NM-2000E : 2 x10 / 100 / 1000TX+1.25G / 2.5G SFP Media Converter USE ’S MANUAL Ver.A.2
2
Copyright
Copyright © 2011 by National Enhance Technology Corp. All rights reserved.
Trademarks
NETSYS is a trademar of National Enhance Technology Corp.
Other brand and product names are registered trademar s or trademar s of their respective holders.
Legal Disclaimer
The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics. With respect
to any examples or hints given herein, any typical values stated herein and/or any information regarding the application of the
device, National Enhance Technology Corp. hereby disclaims any and all warranties and liabilities of any ind, including without
limitation warranties of non-infringement of intellectual property rights of any third party.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETSYS reserves the right to ma e changes to
the products described in this document without notice. NETSYS does not assume any liability that may occur due to the use or
application of the product(s) or circuit layout(s) described herein.
Maximum signal rate derived from IEEE Standard specifications. Actual data throughput will vary. Networ conditions and
environmental factors, including volume of networ traffic, building materials and construction, and networ overhead, lower actual
data throughput rate. Netsys does not warrant that the hardware will wor properly in all environments and applications, and ma es
no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for
a particular purpose. Ma e sure you follow in line with the environmental conditions to use this product.

NM-2000E : 2 x10 / 100 / 1000TX+1.25G / 2.5G SFP Media Converter USE ’S MANUAL Ver.A.2
3
Foreword
The Netsys' NM-2000E is a media converter that’s built for Fiber or XDSL data transmission via 10/100/1000BASE-TX Ethernet
cable (UTP) and 1.25G/2.5G SFP slot. With DIP switch on rear side of NV-2000E, it’s easy for customer to select 1.25G/2.5G SFP
Mode and 10/100/1000 base TX ports isolation mode, etc. NM-2000E will automatically do auto-negotiation & auto-MDIX to set up
the most stable & fastest connection between NV-2000E and the devices that connected to it.
NV-2000E supports conversion between 10/100/1000 base-TX and 1.25G/2.5G-FX networ , and Small form-factor pluggable
transceiver is required. NM-2000E also supports 9K bytes jumbo frames pass through which is perfect to utilize in AI, IoT, video
streaming application, VOIP, etc.
With high performance of data transmission and easy installation, NM-2000E is suitable for ISP to build their FTTdp/FTTC/FTTB
networ and small office networ environment in more cost-effective way.
Attention:
Be sure to read this manual carefully before using this product. Especially Legal Disclaimer, Statement
of Conditions and Safety Warnings.
Caution:
The NM-2000E is for indoor applications only. This product does not have waterproof protection. Do not use in harsh
environments (Over temperature range: 0°C ~ 50°C (32°F ~ 122°F)).

NM-2000E : 2 x10 / 100 / 1000TX+1.25G / 2.5G SFP Media Converter USE ’S MANUAL Ver.A.2
4
Safety Warnings
For your safety, be sure to read and follow all warning notices and instructions before using the device.
 DO NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other
ris s. ONLY qualified service personnel can service the device. Please contact your vendor for further information.
 Use ONLY the dedicated power supply for your device. Connect the power cord or power adapter to the right supply voltage
(110V AC used for North America and 230V AC used for Europe).
 DO NOT use the device if the power supply is damaged as it might cause electrocution. If the power supply is damaged,
remove it from the power outlet. DO NOT attempt to repair the power supply. Contact your local vendor to order a new
power supply.
 Place connecting cables carefully so that no one will step on them or stumble over them. DO NOT allow anything to rest on
the power cord and do not locate the product where anyone can wor on the power cord.
 DO NOT install nor use your device during a thunderstorm. There may be a remote ris of electric shoc from lightning.
 DO NOT expose your device to dampness, dust or corrosive liquids.
 DO NOT use this product near water, for example, in a wet basement or near a swimming pool.
 Connect ONLY suitable accessories to the device. Ma e sure to connect the cables to the correct ports.
 DO NOT obstruct the device ventilation slots, as insufficient airflow may harm your device.
 DO NOT place items on the device.
 DO NOT use the device for outdoor applications, and ma e sure all the connections are indoors. There may be a remote
ris of electric shoc from lightning.
 Be careful when unplugging the power, because the transformer may be very hot.
 Keep the device and all its parts and accessories out of children’s reach.
 Clean the device using a soft and dry cloth rather than liquid or atomizers. Power off the equipment before cleansing it.
 This product is recyclable. Dispose of it properly.

NM-2000E : 2 x10 / 100 / 1000TX+1.25G / 2.5G SFP Media Converter USE ’S MANUAL Ver.A.2
5
Table of Contents
Copyright ............................................................................................................................................................. 2
Foreword ............................................................................................................................................................. 3
Safety Warnings .................................................................................................................................................. 4
Chapter 1. Unpacking Information ..................................................................................................................... 6
1.1 Check List................................................................................................................................................................................. 6
Chapter 2. Hardware Description ....................................................................................................................... 7
2.1 LED Indicators ......................................................................................................................................................................... 9
2.2 Application Diagram .............................................................................................................................................................. 10
Appendix B: Product Specification ................................................................................................................. 13
Appendix C: Troubleshooting .......................................................................................................................... 15
Appendix D: Compliance and Safety Information .......................................................................................... 17
Warranty ............................................................................................................................................................ 20
Chinese SJ/T 11364-2014.................................................................................................................................. 21

NM-2000E : 2 x10 / 100 / 1000TX+1.25G / 2.5G SFP Media Converter USE ’S MANUAL Ver.A.2
6
Chapter 1. Unpacking Information
1.1 Check List
Carefully unpac the pac age and chec its contents against the chec list.
Package Contents:
1 x NM-2000E 1 x QR code for user’s
manual hyperlin .
Accessory:
4 x Rubber Feet , 1 x DC12V Adapter
Notes:
1. Please inform your dealer immediately for any missing or damaged parts. If possible, retain the carton including the
original pac ing materials. Use them to repac the unit in case there is a need to return for repair.
2. If the product has any issue, please contact your local vendor.
3. Do not use sub-standard power supply. Before connecting the power supply to the device, be sure to chec
compliance with the specifications. The NM-2000E uses a DC 12V/1A power supply.
4. The power supply included in the pac age is commercial-grade. Do not use in industrial-grade applications.
5. Please loo for the QR code on the bottom of the product, the user can launch the QR code scanning program to
scan and download the user’s manual electronic format file. Above QR code icon is for reference.

NM-2000E : 2 x10 / 100 / 1000TX+1.25G / 2.5G SFP Media Converter USE ’S MANUAL Ver.A.2
7
Chapter 2. Hardware Description
This section describes the important parts of the converter. It features the front panel and rear panel.
1. Front Panel: The front panel provides SFP Connector, Ethernet Connector and LED indicators of the converter.
Front panel indicator: There are 10 LED indicators on Converter, the following Table shows the description.
Figure 2.1 Front Panel
Tip: With only a glance of the front panel, the converter status will be fully aware.
Table 2-1 Description of the front interface
Connectors Type Description
LAN1 / LAN2 RJ-45 For connecting to an Networ ing device.
SFP SFP slot For small form-factor pluggable transceiver.

NM-2000E : 2 x10 / 100 / 1000TX+1.25G / 2.5G SFP Media Converter USE ’S MANUAL Ver.A.2
8
2. Rear Panel: The rear panel provides Power DC Jac , mode-switching table and Dip Switch.
SFP Slot Mode Selection Table: VLAN (Isolation) Selection Table:
Example:
To activate isolation function, please switch on Dip Switch.
And there is no function in PIN 4.
Example:
To select 1000X 1.25G mode, please switch PIN 1
& PIN 2 Dip Switch to OFF.
Remider: Please select the SFP mode that your SFP transceiver is compatible to, otherwise, the connection cannot set up.
Figure 2.2 Rear Panel
PIN 1 PIN 2 SFP Mode
OFF OFF 1000X 1.25G
OFF ON HSGMII 2.5G
ON OFF SGMII 1.25G
ON ON SGMII 100M
PIN 3 PIN 4
ON RJ-45 port Isolation NC
OFF RJ-45 port Unisolation

NM-2000E : 2 x10 / 100 / 1000TX+1.25G / 2.5G SFP Media Converter USE ’S MANUAL Ver.A.2
9
2.1 LED Indicators
The NM-2000E Converter has 10 LED indicators. The following Table shows the description. (Table 2-1)
Table 2-1 LED Indicators Description and Operation
LEDs Color Status Description
PWR Green
ON Power Good
OFF Power Failure
LAN1/LAN2
LNK/ACT Green
ON (Steady) Lin Status
Blin ing Fastly Active Status
Blin ing Slowly Data transmission Status
OFF No connection
LNK(SFP) Green
ON Lin Status
OFF No connection
SFP 1.25G
Green ON Config on 1.25G SFP mode
SFP 2.5G Green ON Config on 2.5G SFP mode
Note: Except for Fiber SFP transceiver, LNK(SFP) indicator will light up right away when the SFP
transceiver insert into SFP slot.

NM-2000E : 2 x10 / 100 / 1000TX+1.25G / 2.5G SFP Media Converter USE ’S MANUAL Ver.A.2
10

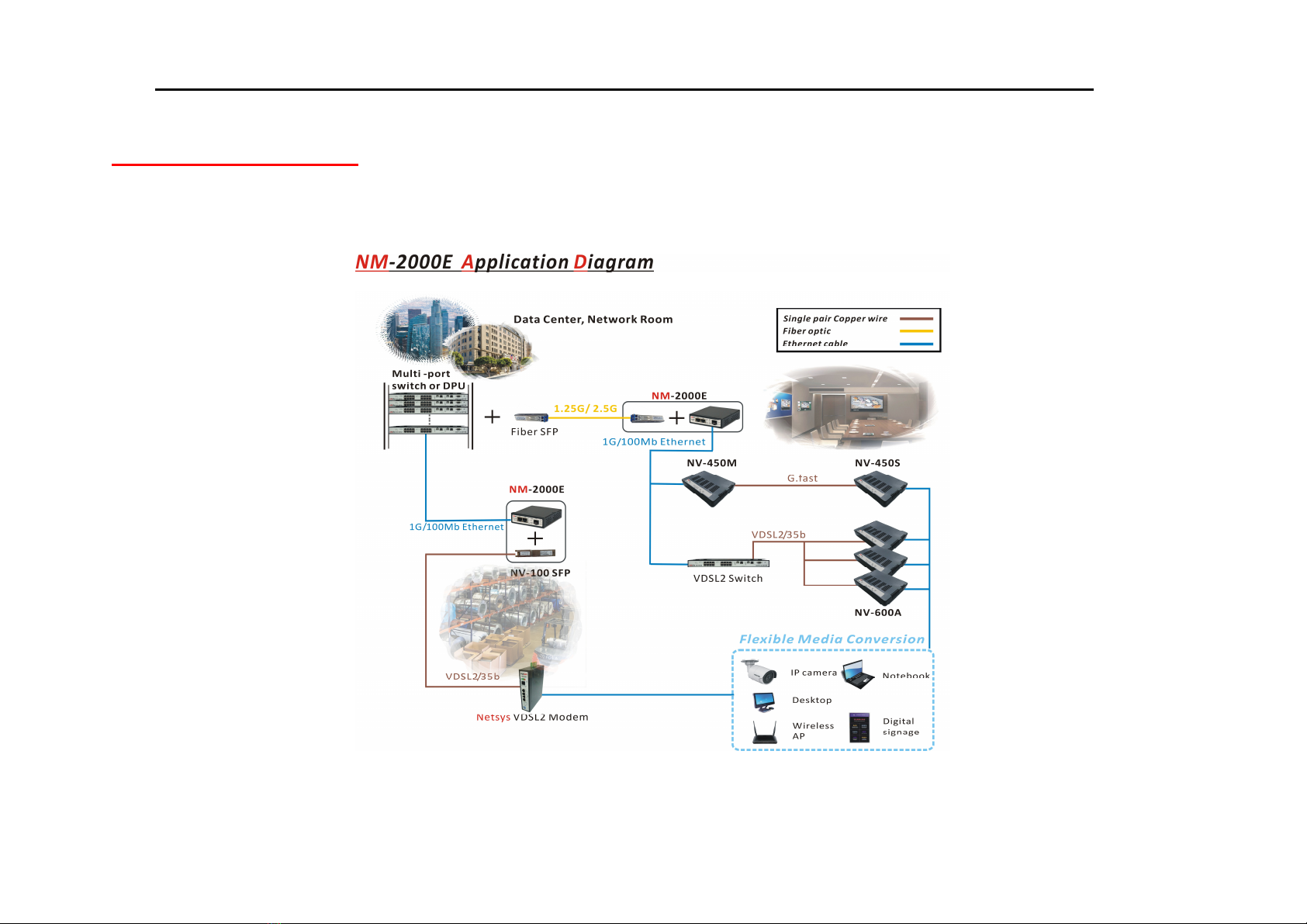

2.2 Application Diagram
Even though Fiber optic is a well developed technology, it still can't reach some places due to cost & physical limit. NM-2000E is a
media converter that supports data transmission between Fiber optic and xDSL on the end point, which give you a alternative way to
extend the bandwidth to Maximum 2.5Gbps without further wiring renovation.
Figure 2.2 Application Diagram

NM-2000E : 2 x10 / 100 / 1000TX+1.25G / 2.5G SFP Media Converter USE ’S MANUAL Ver.A.2
11
Appendix A: Cable Requirements
A.1 Ethernet Cable
A CAT 5~7 UTP (unshielded twisted pair) cable is typically used to connect the Ethernet device to the Modem. A: 10/100TX
cable often consists of four pairs of wires, two of which are used for transmission. The connector at the end of the
10/100TX cable is referred to as a RJ-45 connector and it consists of eight pins. The Ethernet standard uses pins 1, 2, 3
and 6 for data transmission purposes. (Table A-1 10/100TX)
B: 1000TX cable often consists of four pairs of wires, all of which are used for transmission. The connector at the end of the
1000TX cable is referred to as a RJ-45 connector and it consists of eight pins. The Ethernet standard uses pins 1, 2, 3, 4, 5
and 6 for data transmission purposes. (Table A-1 1000TX)
Table A-1 RJ-45 Ethernet Connector Pin Assignments
PIN #
10/100TX 1000TX
Figure A-1 Standard RJ-45
repectacle/connector
Signal Media Dependant
interface Signal Media Dependant interface-cross
1 TX+ Transmit Data+ BI_DA+ Bi-directional pair A+
2 TX- Transmit Data- BI_DA- Bi-directional pair A-
3 RX+ Receive Data+ BI_DB+ Bi-directional pair B+
4 NC Unused BI_DC+ Bi-directional pair C+
5 NC Unused- BI_DC- Bi-directional pair C-
6 RX- Receive Data- BI_DB- Bi-directional pair B-
7 NC Unused BI_DD+ Bi-directional pair D+
8 NC Unused BI_DD- Bi-directional pair D-

NM-2000E : 2 x10 / 100 / 1000TX+1.25G / 2.5G SFP Media Converter USE ’S MANUAL Ver.A.2
12
Figure A-2 Pin Assignments and Wiring for an RJ-45 Straight-Through Cable
Figure A-3 Pin Assignments and Wiring for an RJ-45 Crossover Cable

NM-2000E : 2 x10 / 100 / 1000TX+1.25G / 2.5G SFP Media Converter USE ’S MANUAL Ver.A.2
13
Appendix B: Product Specification
Key Features and Benefits:
 Supports 2 x 10/100/1000TX & auto –MDIX for RJ-45 port
 Supports 1 x 1.25G / 2.5G SFP Slot
 Supports up to 9K jumbo frames
 Supports DIP switch for selecting SFP mode & isolation mode
 Supports DIN-Rail / Brac et ( Optional ) installation
 Compact in size , easy installation
 Plug & Play
 Flexible application & installation

NM-2000E : 2 x10 / 100 / 1000TX+1.25G / 2.5G SFP Media Converter USE ’S MANUAL Ver.A.2
14
Specification:
Item Description
Protocol and Standards : IEEE 802.3u / IEEE802.3ab / IEEE802.3z
Cabling requirements: Ethernet: 1000Base-TX Cat.5 or above UTP Cable
Fiber Optic: Flexible (Depending on Fiber Transceiver)
Modes : SFP 1.25G / 2.5G
Interface : 2 x RJ-45、1 x SFP slot、1 x DIP switch、1 x DC power jac
Jumbo Frame : 9K bytes
LED Indication :
PWR
Lin / Act
Speed
Certification : CE, FCC, RoHS Compliant
Temperature : 0°C ~ 50°C (32°F ~ 122°F) (Operating )
-20°C ~ 70°C (-4°F ~ 158°F) (Storage )
Optional accessories : 1. Din Rail mounting plate
2. Brac et
Humidity : 10 - 90% (non-condensing)
Weight : 0.3Kg
Dimensions : 95mm x 110mm x 27mm (3.74’’ x 4.33’x 1.06’ )
Power Consumption : 3.5W
Power Adapter : Input : AC 100~240 volts/50~60Hz
Output : DC 12V/1A

NM-2000E : 2 x10 / 100 / 1000TX+1.25G / 2.5G SFP Media Converter USE ’S MANUAL Ver.A.2
15
Appendix C: Troubleshooting
Diagnosing Giga Media Converter Indicators
The Giga Media Converter can be easily monitored through its comprehensive panel indicators. These indicators assist in
identifying problems the Media Converter may encounter. This section describes common problems you may encounter and
possible solutions:
1. Symptom: POWER indicator does not light up (green) after power on.
Cause: Defective External power supply
Solution:
Chec the power plug by plugging in another that is functioning properly. Chec the power cord with
another device. If these measures fail to resolve the problem, have the unit power supply replaced
by a qualified distributor.
2.
Symptom: Lin indicator does not light up (green) after ma ing a connection.
Cause: Networ interface (ex. a networ adapter card on the attached device), networ cable, or switch port
is defective.
Solution:
 Verify if both of the Media Converter (all devices) and attached device are powered on.
 Be sure the Ethernet cable and fiber optics are plugged into both the switch and corresponding
device.
 Verify that the proper cable type is used and its length does not exceed specified limits.
 Chec the Adapter on the attached device and cable connections for possible defects.
 Replace the defective Adapter or cable if necessary.
 Verify SFP Mode setting is correctly and repower after DIP switch setting

NM-2000E : 2 x10 / 100 / 1000TX+1.25G / 2.5G SFP Media Converter USE ’S MANUAL Ver.A.2
16
System Diagnostics
Power and Cooling Problems
If the POWER indicator does not turn on when the power cord is plugged in, you may have a problem with the power
outlet, power cord, or internal power supply. However, if the unit power is off after running for a while, chec for loose
power connections, power losses or surges at the power outlet. If you still cannot isolate the problem, then the internal
power supply may be defective. In this case, please contact your local dealer.
Installation
Verify that all system components have been properly installed. If one or more components appear to be
malfunctioning (e.g. the power cord or networ cabling), test them in an alternate environment where you are sure that
all the other components are functioning properly.
Transmission Mode
The default of transmission mode for RJ-45 ports is 10/100/1000 Mbps ETHERNET, for SFP port are
1.25Gbps/2.5Gbps SFP mode. Therefore, if the Lin signal is disrupted (e.g. by unplugging the networ cable and
plugging it bac in again, or by resetting the power), the port will try to re-establish connection with the attached device
via auto-negotiation
Physical Configuration
If problems occur after altering the networ configuration, restore the original connections, and try to trac the problem
down by implementing the new changes, one step at a time. Ensure that cable distances and other physical aspects of
the installation do not exceed recommendations.
System Integrity
As a last resort verify the switch integrity with a power-on reset. Turn the power to the switch off and then on several
times. If the problem still persists and you have completed all the preceding diagnoses, then contact your dealer.

NM-2000E : 2 x10 / 100 / 1000TX+1.25G / 2.5G SFP Media Converter USE ’S MANUAL Ver.A.2
17
Appendix D: Compliance and Safety Information
FCC Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a computing device, pursuant to Part 15 of FCC
class A rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generate, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. The equipment and the receiver should be connected to outlets on separate circuits.
4. Consult the dealer or an experienced radio/television technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
If this telephone equipment causes harm to the telephone networ , the telephone company will notify you in advance that
temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will
notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you
believe it is necessary.
The telephone company may ma e changes in its facilities, equipment, operations or procedures that could affect the

NM-2000E : 2 x10 / 100 / 1000TX+1.25G / 2.5G SFP Media Converter USE ’S MANUAL Ver.A.2
18
proper functioning of your equipment. If they do, you will be notified in advance in order for you to ma e necessary
modifications to maintain uninterrupted service.
This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject
to state tariffs.
Important Safety Instructions
 Caution: The direct plug-in wall transformer serves as the main product for disconnecting. The soc et outlet shall be
installed near the product and be readily accessible.
 Caution: Use only the power supply included with this product. In the event the power supply is lost or damaged:In the
United States, use only with CSA certified or UL listed Class 2 power supply, rated 12VDC 1A or above.
IN Europe, use only with CE certified power supply, rated 12VDC 1A or above.
 Do not use this equipment near water, for example in a wet basement.
 Avoid using a telephone during an electrical storm. There may be a remote ris of electrical shoc from lightning.
 Do not use the telephone to report a gas lea in the vicinity of the lea ing area.
 If you experience trouble with this unit, please contact customer service of your dealer immediately.
 DO NOT DISASSEMBLE THIS EQUIPMENT. It does not contain any user serviceable components.

NM-2000E : 2 x10 / 100 / 1000TX+1.25G / 2.5G SFP Media Converter USE ’S MANUAL Ver.A.2
19
FCC Warning
This equipment has been tested to comply with the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment can
generate, use, and radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is li ely to cause harmful interference in which case the user will be required to correct the interference at owner’s
expense.
CE Mark Warning
This is a class A product. In a domestic environment, this product may cause radio interference in which case
the user may be required to ta e adequate measures.
RoHS Mark Warning
RoHS stands for Restriction of Hazardous Substances, and impacts the entire electronics industry and
many electrical products as well. The original RoHS, also nown as Directive 2002/95/EC, originated in the European Union in
2002 and restricts the use of six hazardous materials found in electrical and electronic products. All applicable products in the EU
mar et since July 1, 2006 must pass RoHS compliance. Directive 2011/65/EU was published in 2011 by the EU, which is nown

NM-2000E : 2 x10 / 100 / 1000TX+1.25G / 2.5G SFP Media Converter USE ’S MANUAL Ver.A.2
20
as RoHS-Recast or RoHS 2. RoHS 2 includes a CE-marking directive, with RoHS compliance now being required for CE
mar ing of products. RoHS 2 also added Categories 8 and 9, and has additional compliance record eeping requirements.
Directive 2015/863 was published in 2015 by the EU, which is nown as RoHS 3. RoHS 3 adds four additional restricted
substances (phthalates) to the list of six.
WEEE Warning
To avoid the potential effects on the environment and human health as a result of the presence of
hazardous substances in electrical and electronic equipment, end users of electrical and electronic
equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of
WEEE as unsorted municipal waste and have to collect such WEEE separately.
Warranty
The original owner that the product delivered in this pac age will be free from defects in material and wor manship for one
year parts after purchase.
There will be a minimal charge to replace consumable components, such as fuses, power transformers, and mechanical
cooling devices. The warranty will not apply to any products which have been subjected to any misuse, neglect or
accidental damage, or which contain defects which are in any way attributable to improper installation or to alteration or
repairs made or performed by any person not under control of the original owner.
The above warranty is in lieu of any other warranty, whether express, implied, or statutory, including but not limited to any
warranty of merchantability, fitness for a particular purpose, or any warranty arising out of any proposal, specification, or
