NM-102 KIT MEDIA CONVERTER SERIES USER’S MANUAL Ver. A6
1
Copyright
Copyright © 2011 by National Enhance Technology Corp. All rights reserved.
Trademarks
NETSYS is a trademar of National Enhance Technology Corp.
Other brand and product names are registered trademar s or trademar s of their respective holders.
Legal Disclaimer
The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics. With respect
to any examples or hints given herein, any typical values stated herein and/or any information regarding the application of the
device, National Enhance Technology Corp. hereby disclaims any and all warranties and liabilities of any ind, including without
limitation warranties of non-infringement of intellectual property rights of any third party.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETSYS reserves the right to ma e changes to
the products described in this document without notice. NETSYS does not assume any liability that may occur due to the use or
application of the product(s) or circuit layout(s) described herein.
Maximum signal rate derived from IEEE Standard specifications. Actual data throughput will vary. Networ conditions and
environmental factors, including volume of networ traffic, building materials and construction, and networ overhead, lower actual
data throughput rate. Netsys does not warrant that the hardware will wor properly in all environments and applications, and ma es
no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for
a particular purpose. Ma e sure you follow in line with the environmental conditions to use this product.

NM-102 KIT MEDIA CONVERTER SERIES USER’S MANUAL Ver. A6
2
Foreword
The NM-102 A20/B20 is a WDM Ethernet media converter that translates transmission signals from a twisted- air
100BASE-TX cable to 100BASE-FX fiber o tic cable. NM-102 A20 is for CO side. NM-102 B20 is for CPE side. It ex ands
network data transmission distances beyond the 100 meters limitation of co er wire to a maximum of 20 km by using
single fiber o tic cable in 100 Mb s.
The NM-102 A20/B20 rovides auto-sensing detection of full du lex or half du lex signaling. It has easy-to-read diagnostic
LED for continuous status re orts on network s eed, du lex media access control connection, and network traffic. The
NM-102 A20/B20 uses standard RJ-45 UTP/STP and SC fiber o tic connectors and is IEEE 802.3u 100BASE-TX/FX
com liant and o erates with all devices that adhere to this standard.
Attention:
Be sure to read this manual carefully before using this product. Especially Legal Disclaimer, Statement
of Conditions and Safety Warnings.
Caution:
The NM-102 A20/B20 is for indoor applications only. This product does not have waterproof protection, please do not use in
outdoor applications.

NM-102 KIT MEDIA CONVERTER SERIES USER’S MANUAL Ver. A6
3
Safety Warnings
For your safety, be sure to read and follow all warning notices and instructions before using the device.
 DO NOT open the device or unit. Opening or removing the cover may expose you to dangerous high voltage points or other
ris s. ONLY qualified service personnel can service the device. Please contact your vendor for further information.
 Use ONLY the dedicated power supply for your device. Connect the power to the right supply voltage (110V AC used for
North America and 230V AC used for Europe. NM-102 supports 5 VDC power input).
 Place connecting cables carefully so that no one will step on them or stumble over them. DO NOT allow anything to rest on
the power cord and do NOT locate the product where anyone can wor on the power cord.
 DO NOT install nor use your device during a thunderstorm. There may be a remote ris of electric shoc from lightning.
 DO NOT expose your device to dampness, dust or corrosive liquids.
 DO NOT use this product near water, for example, in a wet basement or near a swimming pool.
 Connect ONLY suitable accessories to the device.
 Make sure to connect the cables to the correct ports.
 DO NOT obstruct the device ventilation slots, as insufficient air flow may harm your device.
 DO NOT place items on the device.
 DO NOT use the device for outdoor applications directly, and ma e sure all the connections are indoors or have waterproof
protection place.
 Be careful when unplugging the power, because it may produce spar s.
 Kee the device and all its parts and accessories out of the reach of children.
 Clean the device using a soft and dry cloth rather than liquid or atomizers. Power off the equipment before cleaning it.
 This product is recyclable. Dispose of it properly.

NM-102 KIT MEDIA CONVERTER SERIES USER’S MANUAL Ver. A6
4
Contents
Copyright .............................................................................................................................................................. 1
Foreword ............................................................................................................................................................. 2
Safety Warnings.................................................................................................................................................... 3
Chapter . Unpacking Information..................................................................................................................... 5
1.1 Check List..............................................................................................................................................................................5
Chapter 2. Hardware Description....................................................................................................................... 6
2.1 Front Panel ............................................................................................................................................................................7
2.2 Rear Panel..............................................................................................................................................................................7
2.3 LED Indicators.......................................................................................................................................................................8
2.4 Installation .............................................................................................................................................................................9
Appendix A: Product Specification ................................................................................................................. 10
Appendix B: Troubleshooting.......................................................................................................................... 13
Appendix C: Compliance and Safety Information .......................................................................................... 14
Warranty ............................................................................................................................................................ 17
Chinese SJ/T 364-2006.................................................................................................................................. 18

NM-102 KIT MEDIA CONVERTER SERIES USER’S MANUAL Ver. A6
5
Chapter 1. Unpacking Information
. Check List
Than you for choosing Netsys NM-102. Before installing the router, please verify the contents inside the pac age.
Pac age Contents:
1. NM-102 A20 x 1
2. NM-102 B20 x 1
3. AC to DC (5V) Power Adaptor x 2
Notes:
1. Please inform your dealer immediately for any missing or damaged parts. If possible, retain the carton including the
original pac ing materials. Use them to repac the unit in case there is a need to return for repair.
2. If the product has any issue, please contact your local vendor.
3. Do not use sub-standard power supply. Before connecting the power supply to the device, be sure to chec
compliance with the specifications. The NM-102 uses a DC 5V/1A power supply.
4. The power supply included in the pac age is commercial-grade. Do not use in industrial-grade applications.
5. Please loo for the QR code on the bottom of the product, the user can launch the QR code scanning program to
scan and download the user’s manual electronic format file.

NM-102 KIT MEDIA CONVERTER SERIES USER’S MANUAL Ver. A6
6
Chapter 2. Hardware Description
This section describes the important parts of the converter. It features the front and rear panel.

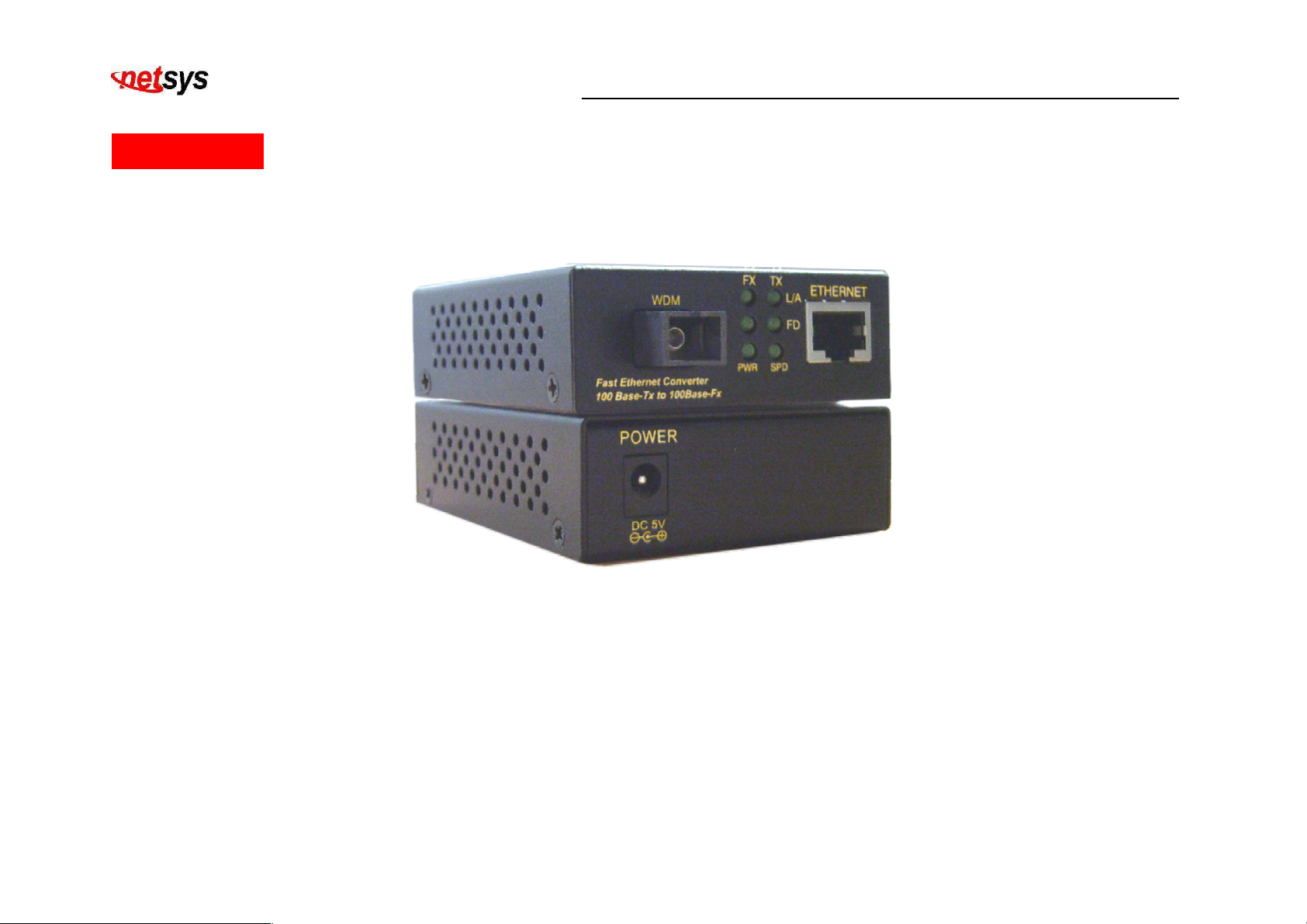

NM- 02KIT Outward

NM-102 KIT MEDIA CONVERTER SERIES USER’S MANUAL Ver. A6
7

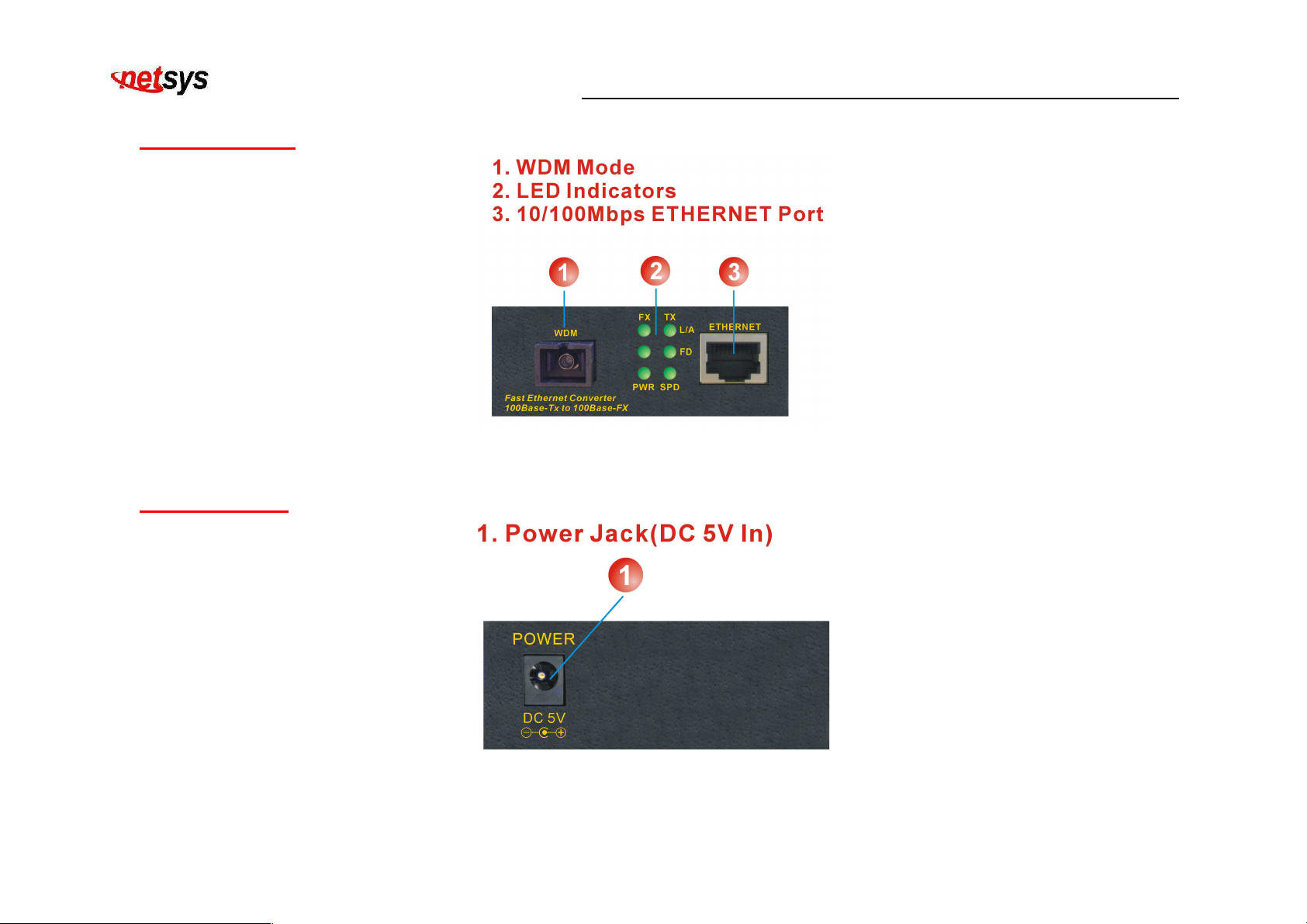

2. Front Panel
Figure 2.1 NM-102’s front anel
2.2 Rear Panel
Figure 2.2 NM-102’s rear anel

NM-102 KIT MEDIA CONVERTER SERIES USER’S MANUAL Ver. A6
8
2.3 LED Indicators
FX
LEDs Color Status Descri tions
FX LINK Green ON Optic fiber is connected
FX full duplex Green ON Full Duplex
POWER/PWR Green ON 5-V power is turned on
TX
LEDs Color Status Descri tions
ETHERNET LINK Green ON RJ-45 Ethernet is connected
FX full duplex Green ON Full Duplex
10/100M Speed Green ON 100M Speed

NM-102 KIT MEDIA CONVERTER SERIES USER’S MANUAL Ver. A6
9
2.4 Installation
Figure 2.3 A licaiotn diagram
LAN
C P E
LAN
RJ45 Ethernet
RJ45 Ethernet
Optical Fiber
NM-102B20
FIBER
DC5v
TX
NM-102A20
FIBER
DC5V
TX
C P E

NM-102 KIT MEDIA CONVERTER SERIES USER’S MANUAL Ver. A6
10
Appendix A: Product Specification
Key Features:
1. Support auto-MDIX and 10/100Base T for RJ-45 port
2. Complies with IEEE 802.3 for 10BaseT/802.3u for 100Base-TX and 100Base-FX.
3. Supports WDM duple mode for TX/RX on single fiber cable
4.Compact in size, easy installation
5. Data Transfer Rate: 100Mbps
6. Duplex mode support: Full or half-duplex mode by Auto-Negotiation
7. LED indicators: PWR, LNK/ACT, SPD, FDX for copper RJ-45 LINK/ACT, FDX for Fiber optic.
8. Fiber: Single Mode: 8.3/125, 8.7/125, 9/125µm optic fiber and up to 20 m
9. EMI certified by CE, FCC
10. External Power Adapter:Input:AC 85~240 volts/50~60Hz.Output:DC 5V/1A

NM-102 KIT MEDIA CONVERTER SERIES USER’S MANUAL Ver. A6
11
Specification:
Model: NM-102A NM-102B
Protocol and Standards: IEEE802.3 & IEEE802.3u
Full Duplex: 200Mbps for 100Base-Tx
Maximum Speed:
Half Duplex: 100Mbps for 100Base-Tx
Ethernet: 100Base-TX 2 pair Cate.5 UTP Cable
Cabling:
Fiber: Single Mode 8.3/125, 8.7/125, 9/125µm
Modes: Full or half-duplex mode, Auto-Negotiation
Pac et Forwarding Rate (64Bytes): 14880pps@10Mbps / 148800pps@100Mbps
Copper: RJ-45
Connector:
Fiber: Single SC-type connector
1550nm(1480~1580nm) 1310nm(1260~1360nm)
TX Optical Frequency:
1310nm(1260~1360nm) 1550nm(1480~1580nm)
Max. / Min. Optical Launch Power: –8dBm / -14dBm
Optical Receive Sensitivity: –31dBm
Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature: -20°C ~ +65°C (-4°F ~ 149°F)
Humidity: Up to 90% (non-condensing)
Dimension: 70(W) x 94(L) x 26(H) mm

NM-102 KIT MEDIA CONVERTER SERIES USER’S MANUAL Ver. A6
12
Specification for optic fi er
Ty e S ecification
Single-Mode Fiber (SMF)
diameter：10/25µm wavelength: 1300 (1270~1355)nm
Multi-Mode Fiber (MMF)
diameter：62.5/125µm wavelength 850 (1270~1355) nm
diameter：62.5/125µm wavelength 1300 (1270~1355)nm
Notes:
1. NM-102KIT of acceptable db loss of the fiber-optic cable connected is 18dBm.
2. NM-102 dose not accept SC/APC (angle-polished connectors) connector. NM-102 can accept SC/UPC (ultra-polished
connectors) connector.

NM-102 KIT MEDIA CONVERTER SERIES USER’S MANUAL Ver. A6
13
Appendix B: Trou leshooting
Diagnosing Media Converter Indicators
The Media Converter can be easily monitored through its comprehensive panel indicators. These indicators assist in identifying
problems the Media Converter may encounter. This section describes common problems you may encounter and possible
solutions
1. Sym tom: POWER indicator does not light u (green) after ower on.
Cause: Defective power outlet, power cord, internal power supply
Solution :
Chee the power outlet by plugging in another that is functioning properly.
Chec the power cord with another device. If these measures fail to resolve the problem, have the unit power
supply replaced by an qualified distributor.
2. Sym tom: Link indicator does not light u (green) after making a connection.
Cause: Networ interface (e.q., a networ adapter card on the attached device, networ cable) or switch port is
defective.
Solution :
 Verify if both of the switch and attached device are powered on.
 Be sure the cable is plugged into both the switch and corresponding device.
 Verify that the proper cable type is used and its length does not exceed specified limits.
 Chec the adapter on the attached device and cable connections for possible defects.
 Replace the defective adapter or cable if necessary.
3. Question: Can you lease find out what the maximum transmit unit (MTU) is for the NM-102 units?
Answer: The MTU for the NM-102 is 1600 bytes.

NM-102 KIT MEDIA CONVERTER SERIES USER’S MANUAL Ver. A6
14
Appendix C: Compliance and Safety Information
FCC Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a computing device, pursuant to Part 15 of FCC
class A rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generate, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. The equipment and the receiver should be connected to outlets on separate circuits.
4. Consult the dealer or an experienced radio/television technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
If this telephone equipment causes harm to the telephone networ , the telephone company will notify you in advance that
temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will
notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe
it is necessary.
The telephone company may ma e changes in its facilities, equipment, operations or procedures that could affect the

NM-102 KIT MEDIA CONVERTER SERIES USER’S MANUAL Ver. A6
15
proper functioning of your equipment. If they do, you will be notified in advance in order for you to ma e necessary
modifications to maintain uninterrupted service.
This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to
state tariffs.
Im ortant Safety Instructions
 Caution: The direct plug-in wall transformer serves as the main product for disconnecting. The soc et outlet shall be
installed near the product and be readily accessible.
 Caution: Use only the power supply included with this product. In the event the power supply is lost or damaged:In the
United States, use only with CSA certified or UL listed Class 2 power supply, rated 5Vdc 1A or above.
IN Europe, use only with CE certified power supply, rated 5Vdc 1A or above.
 Do not use this equipment near water, for example in a wet basement.
 Avoid using a telephone during an electrical storm. There may be a remote ris of electrical shoc from lightning.
 Do not use the telephone to report a gas lea in the vicinity of the lea ing area.
 If you experience trouble with this unit, please contact customer service of your dealer immediately.
 DO NOT DISASSEMBLE THIS EQUIPMENT. It does not contain any user serviceable components.

NM-102 KIT MEDIA CONVERTER SERIES USER’S MANUAL Ver. A6
16
FCC Warning
This equipment has been tested to comply with the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment can
generate, use, and radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is li ely to cause harmful interference in which case the user will be required to correct the interference at owner’s
expense.
CE Mark Warning
This is a class A product. In a domestic environment, this product may cause radio interference in which case
the user may be required to ta e adequate measures.
WEEE Warning
To avoid the potential effects on the environment and human health as a result of the presence of hazardous
substances in electrical and electronic equipment, end users of electrical and electronic equipment should
understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal
waste and have to collect such WEEE separately.

NM-102 KIT MEDIA CONVERTER SERIES USER’S MANUAL Ver. A6
17
Warranty
The original owner that the roduct delivered in this ackage will be free from defects in material and workmanshi for one
year arts after urchase. For the warranty to a ly, you must register your urchase by returning the registration card
indicating the date of urchase.
There will be a minimal charge to re lace consumable com onents, such as fuses, ower transformers, and mechanical
cooling devices. The warranty will not a ly to any roducts which have been subjected to any misuse, neglect or
accidental damage, or which contain defects which are in any way attributable to im ro er installation or to alteration or
re airs made or erformed by any erson not under control of the original owner.
The above warranty is in lieu of any other warranty, whether ex ress, im lied, or statutory, including but not limited to any
warranty of merchantability, fitness for a articular ur ose, or any warranty arising out of any ro osal, s ecification, or
sam le. We shall not be liable for incidental or consequential damages. We neither assume nor authorize any erson to
assume for it any other liability.
WARNING:
1. DO NOT TEAR OFF OR REMOVE THE WARRANTY STICKER AS SHOWN, OR THE WARRANTY IS VOID.
2. WARRANTY VOID IF USE COMMERCIAL-GRADE POWER SUPPLY IS USED AT HARSH ENVIRONMENTS.

NM-102 KIT MEDIA CONVERTER SERIES USER’S MANUAL Ver. A6
18
Chinese SJ/T 11364-2006
有 毒 有 害 物 质 或 元 素
部件名称 铅(Pb) 汞(Hg) 镉(Cd) 六价铬[Cr(VI)] 多溴联苯(PBB) 多溴二苯醚(PBDE)
结构壳体 ○ ○ ○ ○ ○ ○
电 组 ○ ○ ○ ○ ○ ○
电源供应器 ○ ○ ○ ○ ○ ○
包装及配件 ○ ○ ○ ○ ○ ○
○：表示该有毒物质在该部件所有均质材料中的含量均在 SJ/T 11364/2006 标准规定的限量要求以下。
╳：表示该有毒物质至少在该部件的某依均质材料中的含量超出 SJ/T 11364-2006 标准规定的限量要求。
上述规范仅适用於中国法律
