NetterVibration NED 605 User manual

Operating instructions for
Direct Current Electric External
Vibrators
Series NED
August 2022
No. 2068E
Page 1/26
These operating instructions apply to:
NED 605
NED 5016
NED 50100
NED 50200
NED 50500
NED 601110
NED 601510

2
Contents
1General information 3
2Safety 5
3Technical data 7
4Design and function 9
5Transport and storage 10
6Installation 11
7Start-up and operation 14
8Maintenance and servicing 19
9Troubleshooting 22
10 Spare parts and accessories 24
11 Disposal 25
12 Annex 26
Please refer to the delivery note for the scope of delivery.
Check the packaging for possible transport damage. In the event of
damage to the packaging, check the contents for completeness and
possible damage. Inform the carrier in the case of damage.
The Electric External Vibrators of the series NED are hereafter referred
to as "NED".
Document no.
2068E
Version no.
1
Date of issue
August 2022
Scope of
delivery
Designation
Version of
document

General information
3
1 General information
Before installing the NED read these instructions carefully. It is the basis
for any action when dealing with the NED, and may be used for training
purposes. The instructions should be subsequently stored at the operation
site.
The target group for these instructions is technical staff, who have basic
knowledge in mechanics and electrics.
Only complying technical staff may work on the NED.
The NED may only be installed, put into operation, maintained, troubleshot
and disassembled by persons authorised by the operator.
This documentation is protected by copyright.
Netter Vibration reserves all rights such as translations, reprinting and re-
production of the instructions, as well as parts thereof.
All technical information, data and instructions for installation, operation
and maintenance in these instructions are based on the latest information
available at the time of printing and take our past experience to the best of
our knowledge into account.
No claims can be derived from the information, illustrations and descrip-
tions in these operating instructions.
The manufacturer does not assume liability for damages resulting from:
failure to observe the instructions,
improper use,
unauthorised repairs,
technical modifications,
use of non-permissible spare parts.
Translations are made to the best of our knowledge.
Netter Vibration does not assume liability for translation errors, even if the
translation was made by us or on our behalf. Only the original German text
remains binding.
The Electric External Vibrators of the series NED comply with the electro-
magnetic compatibility directive 2014/30/EU.
In particular the standards DIN EN 61000-6-2, DIN EN 61000-6-3 and
DIN EN 61000-6-4 has been observed.
Use and
storage
Target group
Copyright
Limitation of
liability
Directives /
standards
observed

General information
4
The following instruction and warning symbols are used in these instruc-
tions:
DANGER
indicates an immediate danger.
Disregard of this notice will result in death or severe person-
al injuries.
WARNING
indicates a potential danger.
Disregard of this notice can result in death or severe per-
sonal injuries.
CAUTION
indicates a potentially dangerous situation.
Disregard of this notice can result in minor or moderate per-
sonal injuries.
NOTICE
indicates potential material damage.
Disregard of this notice can result in material damage.
IMPORTANT
indicates actions, methods or notes that are not relative to safety, e.g. use-
ful information and tips.
Environmentally safe disposal
indicates the obligation of environmentally safe disposal.
Instruction
and warning
symbols
Personal
injuries
Material
damages
Notes

Safety
5
2 Safety The NED are intended for generating circular vibrations.
General applications are: loosening, conveying, sorting, compacting, sepa-
rating bulk materials and reducing friction. NED are used for emptying
bunkers, as drives for conveyor troughs, sieves and vibrating tables.
The NED are designed for installation in machines and may only be put
into operation, if it has been assured that the complete machine complies
with the regulations of the machinery directive.
Any other use is considered improper.
Installation, commissioning, maintenance and troubleshooting of the NED
may only be performed by authorised qualified personnel.
All handling of the NED is the responsibility of the operator.
DANGER
Risk of electric shock due to high voltage
An electric shock leads to serious injuries or even death.
Perform all work only with insulated tools suitable for the
application.
All work on the system may only be carried out in a volt-
free state.
Never open the terminal box cover when voltage is ap-
plied.
Never loosen or remove paint-sealed screws.
Never touch or remove safety covers.
Protect the NED against falling parts during all work.
Metal parts can cause a short circuit within the NED.
DANGER
Electric shock
An electric shock will result in serious injury or even death.
The NED must be free of voltage during assembly, start-up,
maintenance and troubleshooting.
Observe the following five safety rules:
1. Disconnect the NED from the mains supply.
2. Secure the NED against re-activation.
3. Establish that the NED has no voltage.
4. Earth and short-circuit the power supply of the NED.
5. Cover adjacent live parts or fence them off.
Intended use
Qualification
of qualified
personnel
High voltage
Safety
rules

Safety
6
WARNING
Falling parts
The NED or parts of the construction can come loose due to vibration.
Falling parts can lead to severe personal injuries.
Use only suitable fastening screws and safety washer to attach the
NED.
For attachment Netter Vibration recommends using Netter fastening
kits NBS.
Check the fastening screws after one hour of operation and thereafter
regularly (generally monthly).
Retighten the fastening screws, if necessary. Use a torque wrench and
tighten the screws crosswise.
In critical installation situations suitable securing is mandatory.
WARNING
Risk of injury due to rotating unbalances
During operation of the NED without unbalance covers there is risk of inju-
ry due to rotating unbalances.
Operate the NED only with mounted unbalance covers.
WARNING
Risk of injury while handling heavy parts
Risk of serious injury due to weight during transport and installation of the
NED.
Observe the weight information in Chapter Technical data, from page 7
on.
Only qualified personnel may transport and install the NED.
Use suitable load handling devices and slinging equipment.
Wear suitable personal protective equipment.
CAUTION
Risk of burns due to hot surfaces
NED can strongly heat up during operation. Direct contact may cause
burns.
Do not touch the NED or the cable near the cable gland during opera-
tion or shortly after being switched off.
Only operate the vibrators within the permissible ambient temperature,
according to Ch. Technical data, page 7.
Falling parts
Rotating
Unbalances
Heavy parts
Hot surfaces

Technical data
7
3 Technical data
Nominal volt-
age, nominal
frequency
The main voltage must comply with the nominal voltage indicat-
ed on the type plate.
Direct current 12 V or 24 V
Permissible Voltage deviation:
12 V +/- 2 V
24 V +/- 4 V
Changes of the unbalance settings influence the centrifugal
force. During operation, the maximum permissible centrifugal
force (according to the type plate) must not be exceeded.
The compliance with the electromagnetic compatibility directive
2014/30/EU has to be ensured.
Rotary speed
ranges
3000 min-1 or 3600 min-1
Permissible
ambient tem-
perature*
-20 °C to 40 °C
The maximum ambient temperature specified on the type plate
must not be exceeded. These values are valid for operation with
an ON-period of 100 %. For the following operation modes spe-
cial requirements apply:
cycled operation or
synchronous operation.
These must be clarified with Netter Vibration on a case-by-case
basis.
Sound level
Depending on type ≤ 70 dB(A)
The sound level is determined to a great extent by the surface
upon which the NED is mounted (e.g. sheet metal). The sound
level will be amplified by non-silenced sheet metal.
* Higher temperatures are only possible after consultation with and written approval from the application techni-
cians of NetterVibration.
1
type designation
2
serial number
3
centrifugal force
4
rotary speed
5
current
6
power
7
nominal voltage
8
year of manufacture
9
degree of protection
10
duty cycle
Permissible
operating
conditions
Type plate for
NED 605 and
NED 5016

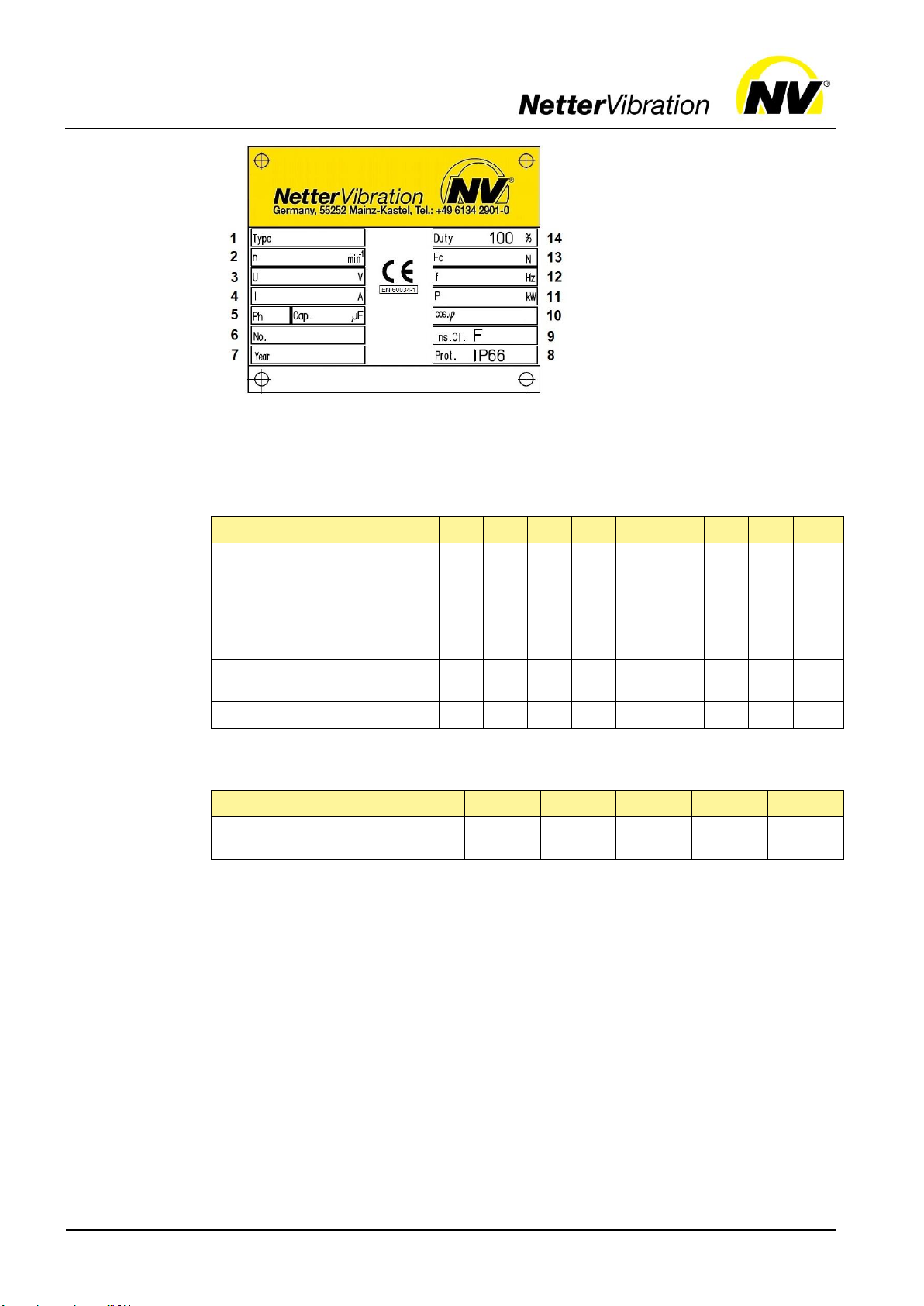

Technical data
8
1
type designation
2
rotary speed
3
nominal voltage
4
current
5
phases / capacity
6
serial number
7
year of manufacture
8
degree of protection
9
insulation class
10
power factor
11
power
12
nominal frequency
13
centrifugal force
14
duty cycle
The values can be found on the type plate. The type plate is located on the hous-
ing. For detailed technical data please refer to the brochure of the NED. Deviating
customer-specific type plates (special designs) are possible.
Netter Vibration recommends the following tightening torques [Nm]:
Type
M4
M5
M6
M8
M10
M12
M16
M20
M22
M24
Fastening screws and
nuts, steel
Property class 8.8*
-
-
10
25
50
87
210
411
559
711
Fastening screws for XS-
unbalances, steel
Property class 12.9**
-
-
-
42
83
146
360
710
970
1225
Fastening screws and
nuts, stainless steel
8.8
21.4
44
74
183
-
-
-
Terminal plate nuts, steel
1.2
2.0
3.0
6.5
13.5
-
-
-
-
-
Screws as supplied, without additional lubrication.
* coefficient of sliding friction 0.14 ** coefficient of sliding friction 0.15
Always use a torque wrench and tighten the screws crosswise.
Type
M13x1
M15x1
M20x1
M25x1.5
M30x2
M45x1.5
Locking nuts
(Pos. 21) see page 20.
30
50
100
170
340
500
Type plate
Tightening
torques

Design and function
9

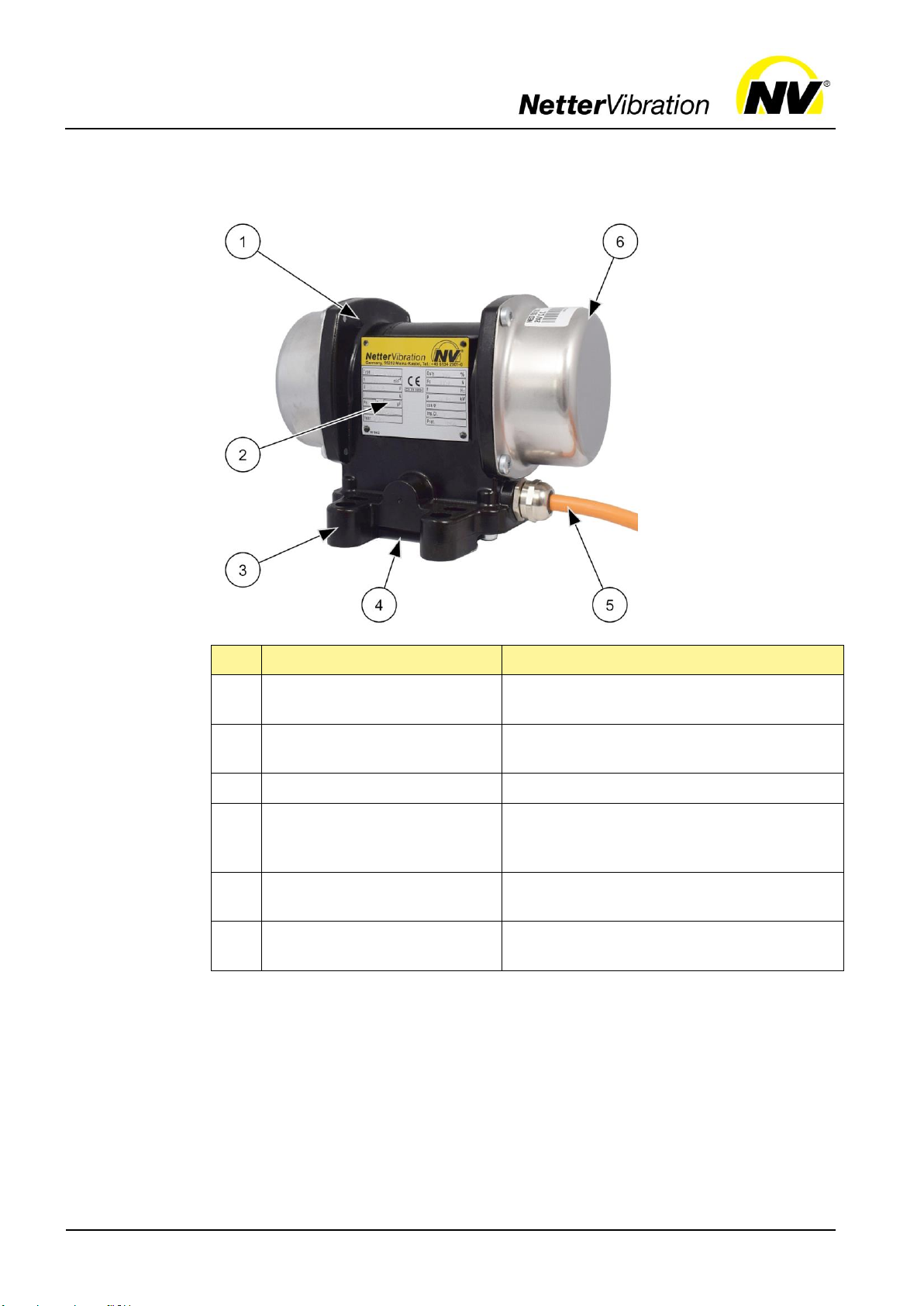

4 Design and function
Example: NED 50100
No.
Element
Function
1
Housing
Contains and protects the components of
the NED.
2
Type plate
Shows model specific information and
data.
3
Housing foot
Attach the NED to the mounting surface.
4
Terminal box
(Here on the bottom side.
Position depending on type.)
Includes electrical parts.
5
Connection cable
Connecting the NED to the customer's
power supply.
6
Unbalance covers
Protect against grabbing into the unbal-
ances.
The Electric External Vibrators of the series NED are direct current motors/
asynchronous motors with inverter, with adjustable weights (unbalances)
mounted on their shaft ends.
The NED generate circular vibrations, that means the vibrations act in all
directions of a plane.
The centrifugal force can be changed by adjustment of the unbalances.
Design
Function

Transport and storage
10
5 Transport and storage
Observe the safety instructions in Ch. Safety, from page 5 on.
Please refer to the brochure for weights and dimensions.
When transporting the NED, ensure that the NED is not subjected to
strong impacts or vibrations that could damage the bearings.
Please observe the following notes:

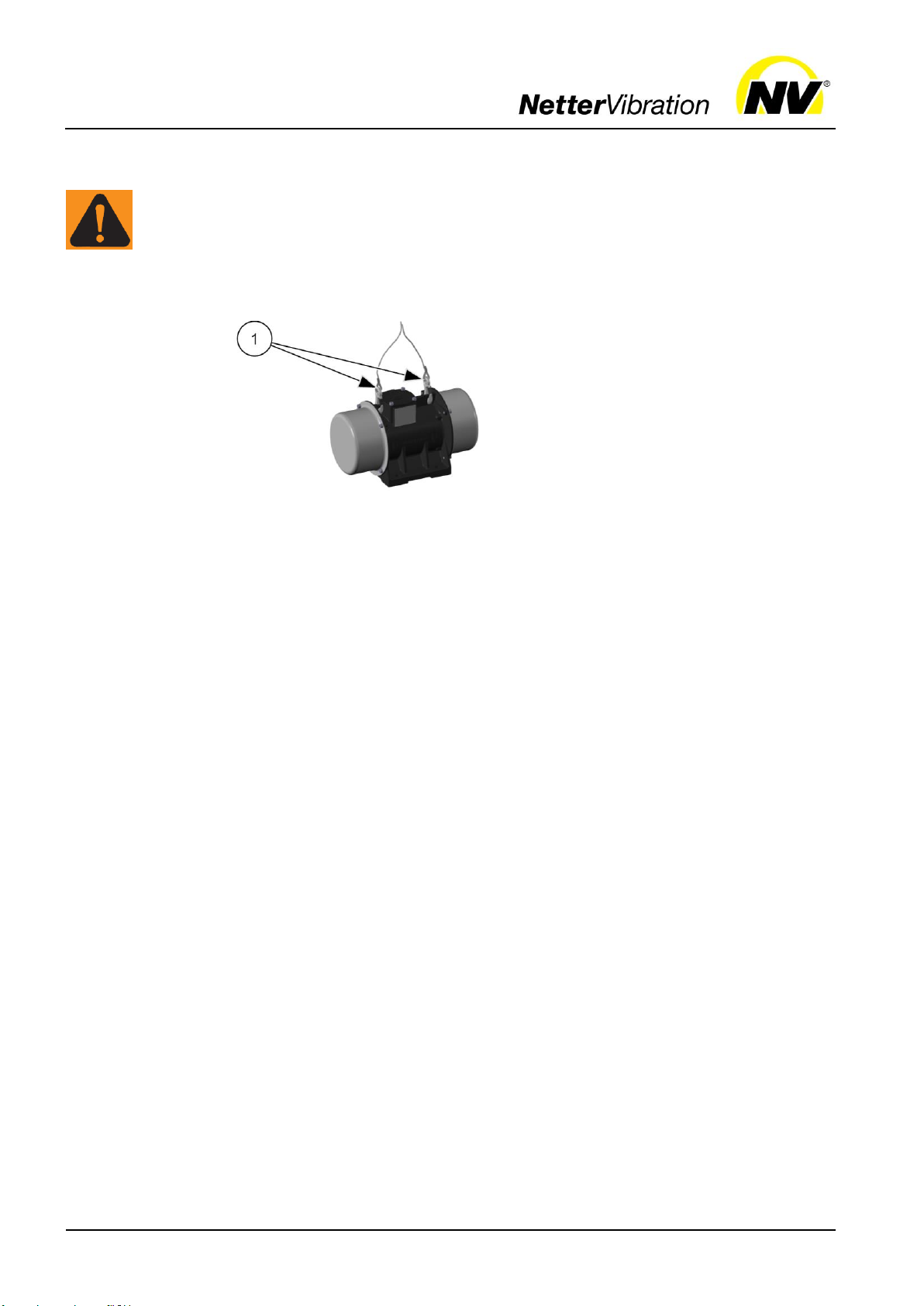

Use only the transport eyelet/eyelets (1) for lifting the NED. If the vibra-
tor is fitted with two transport eyes, both must be used for lifting.
The pulling direction must not exceed 45°.
Lifting tools are of the usual kind such as a pulley or a crane. When
moving loads, use suitable steel cables or hoisting slings which are suf-
ficiently dimensioned for these weights.
Handle the NED very carefully during transport.
The NED are packed ready for installation.
The packaging protects the NED from transport damage. The packaging
material has been selected from an environmentally safe and technically
disposable point of view and is therefore recyclable.
The return of packaging to the material cycle conserves raw materials and
reduces the amount of waste.
Store the NED in a dry and clean environment.
The permissible storage temperature is between -15 °C and +60 °C.
The permissible relative humidity is max. 60 %.
The storage time is max. 2 years.
Do not store the NED outdoors. The electrical components are not pro-
tected against corrosion.
Transport-
conditions
Packaging
Storage

Installation
11
6 Installation
Observe the safety instructions in Ch. Safety, from page 5 on.
Please refer to the brochure for weights and dimensions.
The NED can be operated in any position.

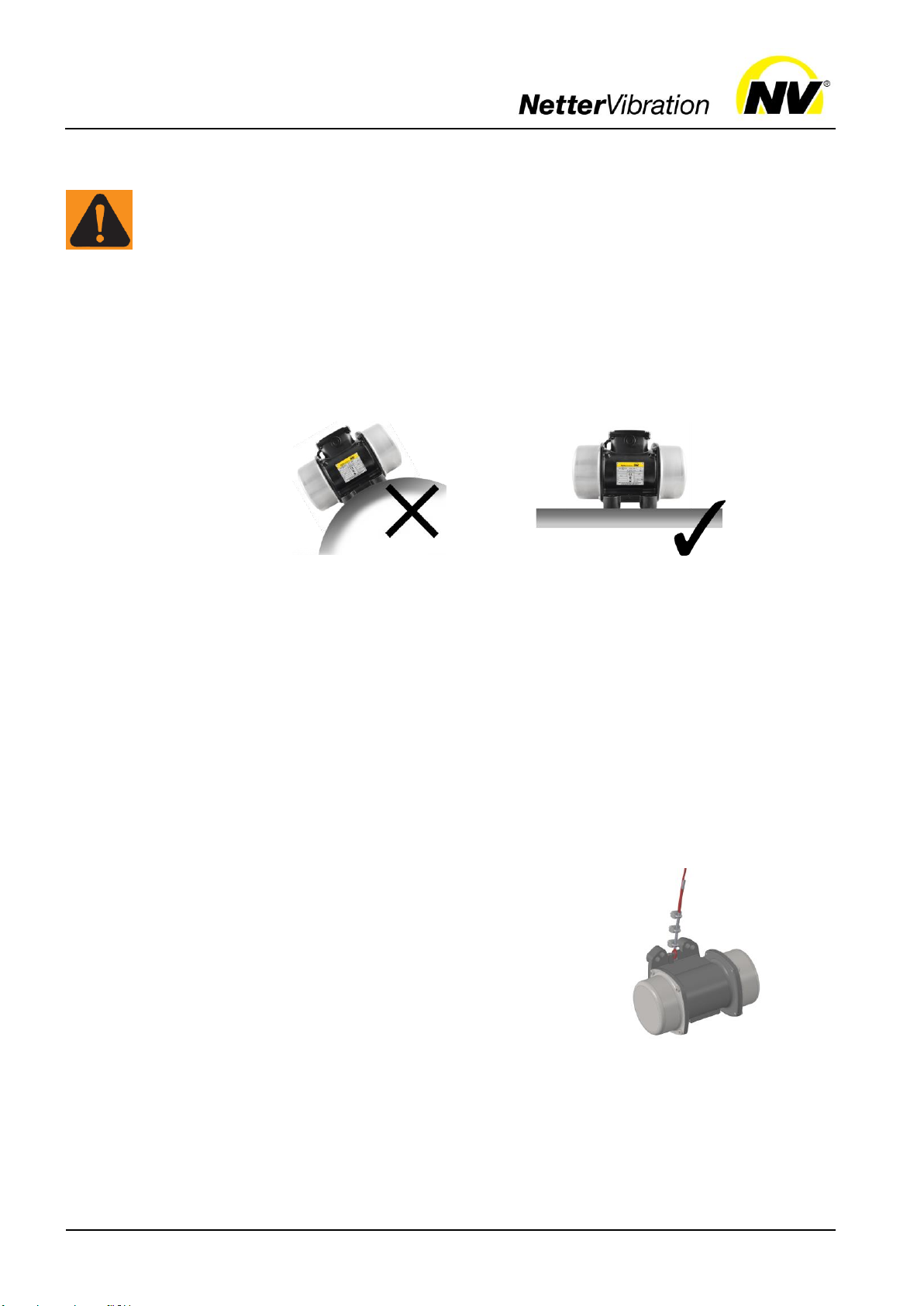

1. Notice: The feet of the NED must lie completely on the surface so that
there is no tension in the housing when tightening the fastening
screw/screws, which could cause mechanical damage. The mounting
surface has to be flat (±0.1 mm flatness) and clean with no paint resi-
dues or burn-ins.
2. The vibrators can be fastened with fastening screws of quality 8.8
(DIN 931 or 933). These must be secured with appropriate locking de-
vices and checked and retightened at regular intervals (usually month-
ly). For safe fastening Netter Vibration recommends the use of fas-
tening kits NBS consisting of a screw, a special lock washer and (for
NBS D) a nut.
Fasten the NED with the fastening screws on the mounting surface.
Use a torque wrench and tighten the screws crosswise. Observe the
recommended values for screw sizes and tightening torques, see
chap. Technical data, from page 7. Higher tightening torques may
cause fracture of screws or tearing of threads.
Warning: Unsuitable screw connections may cause loosening of the
NED by vibration. This can cause damage to persons and material.
3. Use an additional safety device for critical
installation situations, e.g. steel cable NSE.
Use the wire cable clamps to set the safety
cable to the shortest possible cable length.
The safety cable must always be ten-
sioned.
Fastening
the NED

Installation
12
The following requirements and conditions must be met to connect the
NED electrically:
The electrical connection may only be carried out by authorised, quali-
fied personnel.
All work must be carried out exclusively with insulated tools suitable for
the application.
The permissible operating conditions must be met. Please refer to
chap. Technical data, page 7 for operating conditions.
The supply voltage must correspond to the information on the type
plate.
The permissible deviation of the supply voltage must be observed, see
chap. Technical data, page 7.
For the models NED 50100 up to NED 601510:
It is imperative to pay attention to the correct polarity, because the NED
will not start if the polarity is wrong.

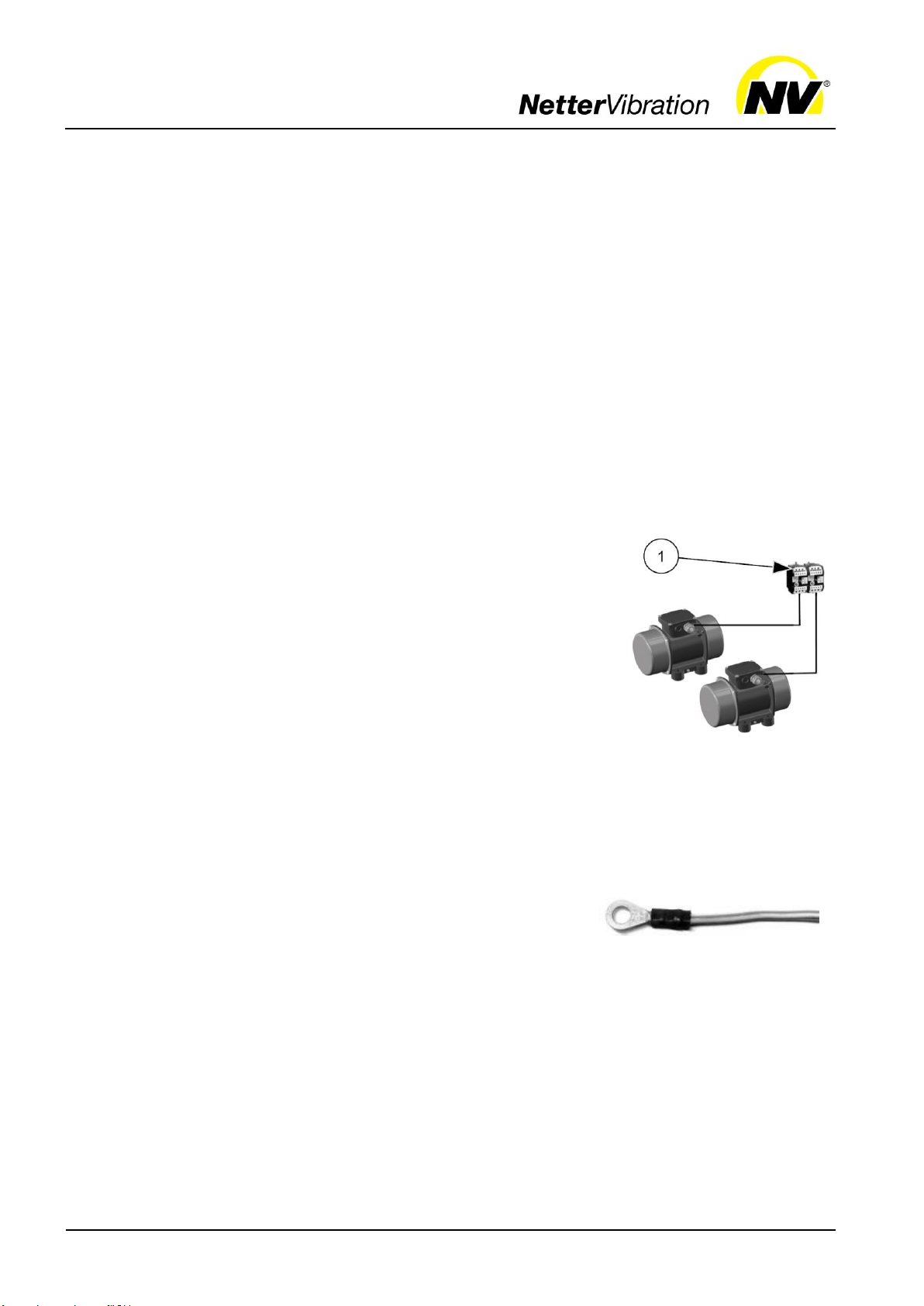

A suitable overload protection (1) must be
pre-connected to each vibrator. The motor
protection switches must be interlocked with
each other in pairs, so that in the event of a
motor failure, the power supply from both
motors is interrupted at the same time in or-
der not to cause uncontrolled vibrations
which can damage the system.
All electrical cables must be carefully laid and must be protected from
high temperatures, lubricants and sharp edges. Care must be taken to
ensure that the cables are not chafed through by vibrating parts. The
correct condition of the electrical cables with their plugs must be
checked at regular intervals (usually every six months). Detected er-
rors are to be eliminated immediately.
The wire ends must be fitted with suita-
ble insulated cable lugs, in order to pre-
vent the strands from splaying.
Note that the models NED 50100 up to NED 601510 have a start delay of
approx. 1 second.
Electrical
connection

Installation
13
Connect the NED via the supplied cable according to the specifications on
the type plate.
Polarity of the connection cables:
NED Models: 605, 5016.
The insulation is marked with the numbers 1 or 2.
NED Models: 50100, 50200, 601110, 601510.
Brown cable +
Blue cable –
Connection
examples NED

Start-up and operation
14
7 Start-up and operation
Observe the safety instructions in chap. Safety, from page 5 on.
Please refer to chap. Technical data, page 7 for permissible operating
conditions.
When commissioning the NED, the rules and regulations of the local
associations for electrical engineering (e.g. VDE) and the valid accident
prevention regulations must be observed.
The NED must always be switched on and off at the main switch.
The NED must not be operated without the covers for the unbalances.
The rotating unbalances cause a risk of injury.
On initial start-up, the current consumption must be measured and
must correspond to the specifications on the type plate.
The terminal box cover must never be opened in the presence of volt-
age.
Note that the models NED 50100 up to NED 601510 have a start delay of
approx. 1 second
Carry out the following measures before start-up:
1. Check that the NED have been mounted correctly and are in perfect
condition.
2. Check that the NED have been properly connected.
3. Check that the cables are undamaged and laid according to the
known regulations and standards.
4. Check that all permissible operating conditions have been observed.
5. Check that all protective measures on the system have been ob-
served.
6. Eliminate possible errors before start-up.
7. Screw connections must be checked and, if necessary, retightened
after 1 h operating time (after initial start-up) and thereafter regularly
(generally monthly). Observe the recommended values for screw siz-
es and tightening torques, see chap. Technical data, from page 7.
Permissible
operating
conditions
Regulations
Measures

Start-up and operation
15
For all NED there is the possibility of unbalance adjustment to directly in-
fluence vibration amplitude, centrifugal force and current consumption.
Unless otherwise specified by you, the NED were delivered with the
standard setting (100 %). If specifications have been made by the custom-
er, there are stickers with the current setting on the unbalance covers.
Notice: The unbalances may only be set mirror-symmetrically!
Procedure:
1. Switch off the NED at the main switch, secure against unintentional
starting and ensure that there is no voltage.
2. Loosen both unbalance covers.
3. Loosen the locking nuts or locking screws.
4. Bring the unbalances to the desired setting according to the following
descriptions for the various unbalance discs. Note the mirror-
symmetrical setting.
5. Retighten the locking nuts or locking screws. Observe the recom-
mended tightening torques, see chap. Technical data, from page 7
6. Fasten both covers for the unbalances.
* For NED 5016: The two unbalance covers can be unscrewed using an oil
filter/strap wrench.
Adjustment of
unbalances

Start-up and operation
16
The NED has a total of 6 unbalance discs type XL.
The centrifugal force is adjustable with the unbalance discs (lamella) of
type XL in the following steps:
1: Number of unbalance discs per side
2: Default number of unbalance discs per vibrator
3: Centrifugal force in %
There are 2 possibilities to adjust the unbalances:
1. The unbalance adjustment (fine adjustment) is carried out by remov-
ing one unbalance disc on each side. All centrifugal values in % can
be adjusted as specified in the table.
The removed unbalance discs must be replaced by compensation
washers of identical thickness and identical inner diameter. These are
available from Netter Vibration.
2. The unbalance adjustment (coarse adjustment) is performed by turn-
ing one unbalance disc on each side by 180° on the shaft.
Twice the number of unbalance discs turned by 180° becomes inef-
fective.

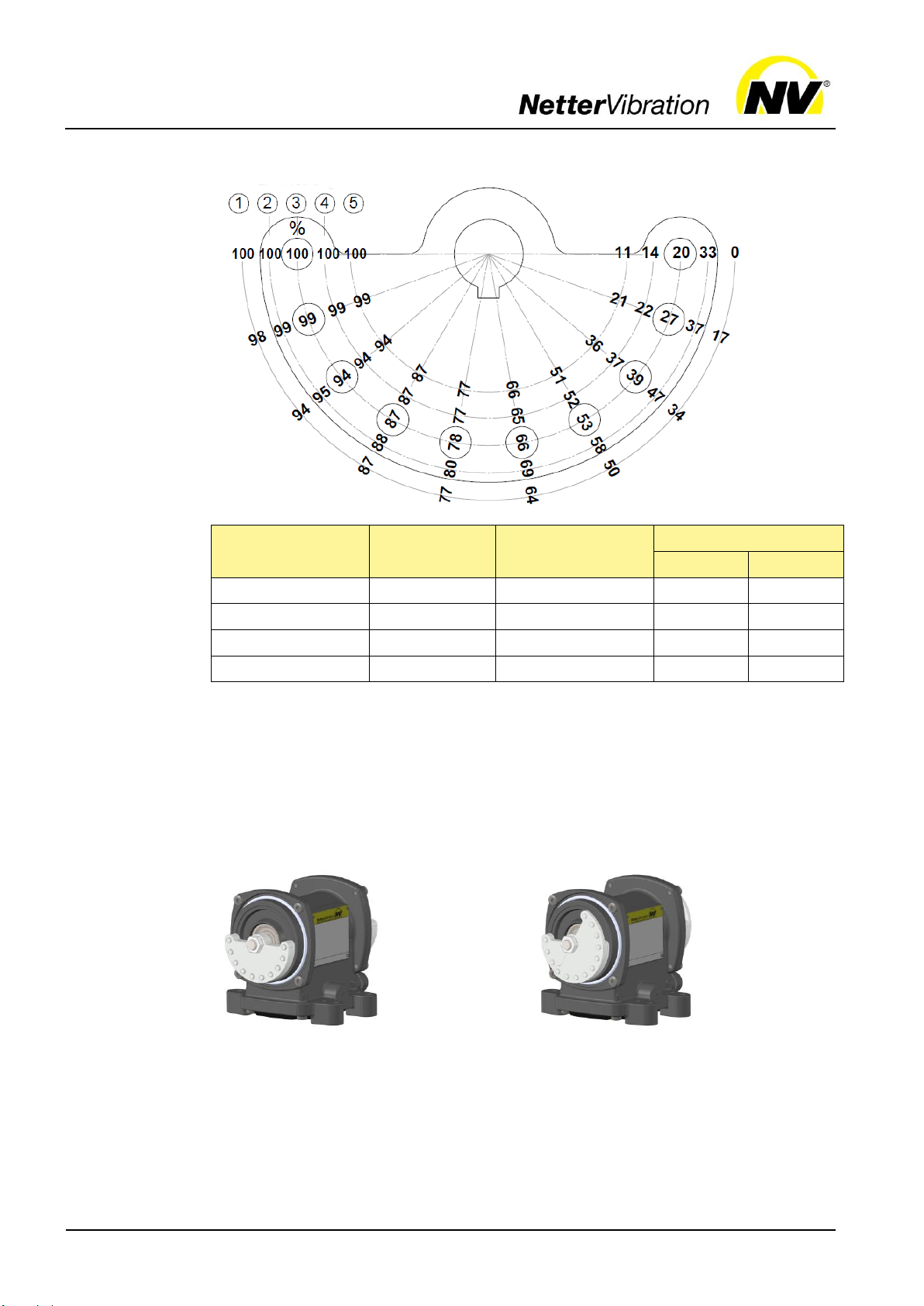

The centrifugal force is adjustable with the unbalance discs (lamella) type
XLs. Adjustment of the unbalances is carried out according to a scale disc
or the supplementary sheet in the terminal box of the NED.
By rotating the outer, adjustable unbalance disc(s) to another position, the
percentage of the centrifugal force changes as shown in the illustration
below. The grid position is defined by position pins.
Unbalance
discs
type XL
Unbalances
type XLs

Start-up and operation
17
Settings:
Type
Settings
Number of
unbalances
Unbalance per side
fixed
adjustable
NED 50100
2
6
2
1
NED 50200
3
10
3
2
NED 50500
3
10
3
2
NED 601110
1
8
2
2
Example:
NED 50100 has a total of 6 unbalance discs (3 discs per side: 2 fixed, 1
adjustable).
If a centrifugal force of 88% is desired, the adjustable unbalance discs are
rotated anticlockwise on both sides into the fourth grid position.
centrifugal force 100 %
centrifugal force 88 %

Start-up and operation
18
The centrifugal force of the NED 601510 is adjustable with the unbalance
discs type XN.
To adjust the unbalance, loosen the bolts with nuts on the unbalances on
both sides. By turning the unbalance disc/ discs to another position, the
percentage value of the centrifugal force changes according to the follow-
ing figure.
After adjustment, fasten the bolts with nuts on both sides, with the recom-
mended torque, see page 8.
Unbalances
type XN

Maintenance and servicing
19
8 Maintenance and servicing
Observe the safety instructions in chap. Safety, from page 5 on.
Information regarding tightening torques for screws and nuts can be found
in Ch. Technical data, page 7.
Maintenance and servicing of the vibrators may only be performed by reg-
ularly trained, authorised and qualified personnel. Work on the electrical
system may only be carried out by a qualified electrician.
The qualified personnel has to work exclusively with tools suitable for the
application.
In the case of unauthorised intervention in the NED there is no longer any
warranty claim.
Before all maintenance and servicing work the NED must be safely dis-
connected from the electrical mains. The procedure is as follows:
1. Switch off NED.
2. Secure against unintentional switching on.
3. Determine that NED are voltage free.
4. Earth and short-circuit.
5. Cover and fence off neighbouring live parts.
Maintenance of the NED must be carried out as follows:
Interval
Action
If required (depending
on operating conditions)
Clean the NED regularly with a wet cloth to remove dust de-
posits.
After one hour operation
after initial start-up
Check screw connections and retighten if necessary.
Monthly
Check screw connections and retighten if necessary.
Check bearing for irregular bearing noise. Replace damaged
bearings or bearings whose service life has been reached.
Check cable supply line.
Every 6 month
Check proper condition of connecting cables and plugs.
Every 2 years
Replace O-rings and plastic seals.
At least every 4 years
Check proper condition of electrical systems and stationary
electrical equipment.
When the bearing life is
reached
Replace the bearings and replace them with equivalent bear-
ings.
Other maintenance and repair work are to be carried out exclusively by
Netter Vibration.
Technical data
Expertise and
regulations
Maintenance
plan

Maintenance and servicing
20
Depending on the operating conditions, the wear of the installed carbon
brushes determines the service life of the types NED 605 und 5016. The
carbon brushes can not be replaced.
Depending on the operating conditions, the bearing life determines the
service life of the types NED 50100, 50200, 50500, 601110, 601510.
When the bearing service life is reached, replace the bearings with equiva-
lent ones, see section " Replacement of bearings".
Type
Service life [h]
Bearing life [h]
NED 605
1500
-
NED 5016
3000
-
NED 50100
-
20230
NED 50200
-
3844
NED 50500
-
1378
NED 601110
-
2092
NED 601510
-
858

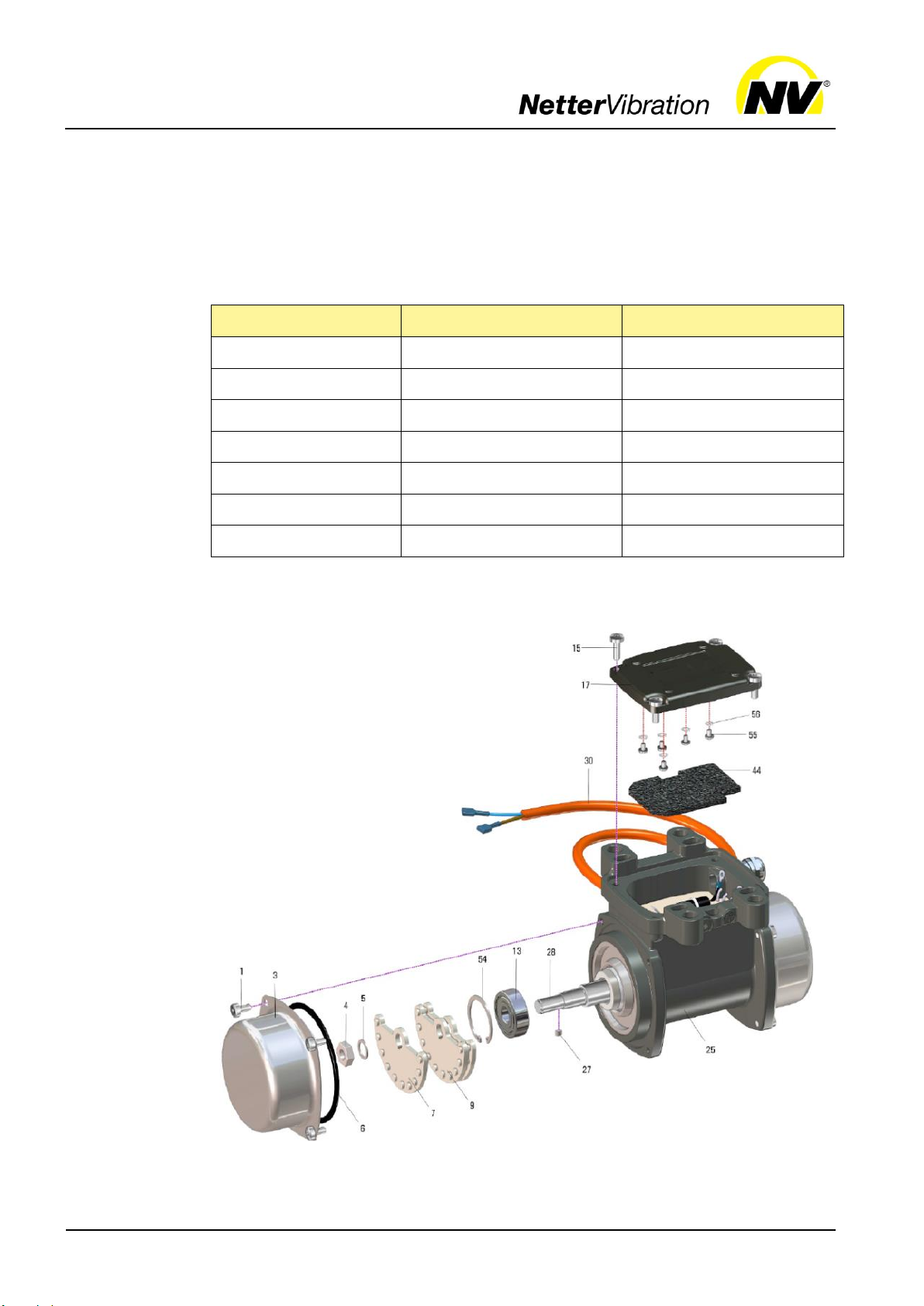

The item numbers refer to the spare parts list.
Example: NED 50100
Service life /
bearing life
Replacement
of bearings
