NetUP HDMI 8x v3 User manual

1/7, Ulofa Palme str., Moscow, Russia
[phone] |
[e-mail] |
http://netup.tv
NetUP Streamer HDMI 8-24x v3
User manual
26.10.2020

NetUP Streamer HDMI 8-24x v3. User manual
2
DIRECTORY
Chapter 1 Product Introduction........................................................................... 3
1.1 Outline............................................................................................................... 3
1.2 Main Features................................................................................................... 3
1.3 Principle Chart (Each Encoder Module) ...................................................... 3
1.4 Technical specification................................................................................... 4
1.5 Order Information............................................................................................ 5
1.6 Appearance and Illustration .......................................................................... 5
Chapter 2 Installation Guide ................................................................................ 6
2.1 Acquisition Check........................................................................................... 6
2.2 Installation Preparation.................................................................................. 6
2.3 Wire’s Connection........................................................................................... 8
2.4 Signal Cable Connection................................................................................ 9
Chapter 3 WEB NMS Operation......................................................................... 10
3.1 login................................................................................................................. 10
3.2 Operation........................................................................................................ 10
Chapter 4 Troubleshooting................................................................................ 14

NetUP Streamer HDMI 8-24x v3. User manual
3
Chapter 1 Product Introduction
1.1 Outline
Streamer HDMI 8-24 v3 is a professional HD/SD audio & video encoding device. It has 8/16/24
HDMI inputs for option. Every 8 HDMI ports share one encoder module with each module
supporting 1MPTS and 8SPTS output. Its high integration and cost effective design makes the
device widely used in varieties of digital distribution systems such as cable TV digital head-end,
digital TV broadcasting etc.
1.2 Main Features
•8 HDMI inputs with 8 SPTS and 1 MPTS output (each encoder module), max 24 HDMI inputs
•MPEG4 AVC/H.264 video encoding format
•MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through, and
audio gain adjustment
•IP output over UDP and RTP/RTSP protocol; 1 ASI out as mirror of MPTS (Optional)
•Support QR code, LOGO, caption insertion (Language Supported: English, Russian)
•Support “Null PKT Filter” function
•Control via web management, and easy updates via web
1.3 Principle Chart (Each Encoder Module)
Mux
MPEG4 AVC/H.264 Encoding
HDMI #1
HDMI #2
HDMI #3
HDMI #4 1 MPTS and 8 SPTS
MPEG4 AVC/H.264 Encoding
MPEG4 AVC/H.264 Encoding
MPEG4 AVC/H.264 Encoding
MPEG4 AVC/H.264 Encoding
MPEG4 AVC/H.264 Encoding
MPEG4 AVC/H.264 Encoding
MPEG4 AVC/H.264 Encoding
HDMI #8
HDMI #7
HDMI #6
HDMI #5 ASI out(Optional)
As copy of MPTS

NetUP Streamer HDMI 8-24x v3. User manual
4
1.4 Technical specification
Input
8/16/24 HDMI inputs
Video
Resolution
input
1920×1080_60P, 1920×1080_60i,
1920×1080_50P, 1920×1080_50i,
1280×720_60P, 1280×720_50P,
720 x 576_50i,720 x 480_60i
Output
1920×1080_30P, 1920×1080_25P,
1280×720_30P, 1280×720_25P,
720 x 576_25P, 720 x 480_30P
Encoding
MPEG-4 AVC/H.264
Bit-rate
1~13Mbps each channel
Rate Control
CBR/VBR
GOP Structure
IP…P (P Frame adjustment, without B Frame
)
Audio
Encoding
MPEG-1 Layer 2, LC-AAC, HE-AAC and
AC3 Pass through
Sampling rate
48KHz
Resolution
24-bit
Audio Gain
0-255 Adjustable
MPEG-1 Layer 2 Bit-
rate
48/56/64/80/96/112/128/160/192/224/256/320
/384 kbps
LC-AAC Bit-rate
48/56/64/80/96/112/128/160/192/224/256/320
/384 kbps
HE-AAC Bit-rate
48/56/64/80/96/112/128 kbps
Stream output
IP output through DATA (GE) over UDP and RTP/RTSP protocol
(8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder board)
1 ASI out as mirror of MPTS (Optional as order)
System function
Network management(WEB)
Miscellaneous
Dimension
(W×L×H)
482mm×328mm×44mm
Environment
0~45℃(work)；-20~80℃（Storage）
Power
requirements
AC 110V± 10%, 50/60Hz, AC 220 ± 10%,
50/60Hz

NetUP Streamer HDMI 8-24x v3. User manual
5
1.5 Order Information
HDMI 8x v3
HDMI 16x v3
HDMI 24x v3
8 HDMI Inputs with 8 SPTS and 1
MPTS out (1 encoder board+1 NMS
port+1 DATA Port)
16 HDMI Inputs with 16 SPTS or 2
MPTS out (2 encoder boards+2 NMS
ports+2 DATA Ports)
24 HDMI Inputs with 24 SPTS or 3
MPTS out (3 encoder boards+3 NMS
ports+ 3 DATA Ports)
1.6 Appearance and Illustration
Front Panel Illustration:
1U chassis (three encoder modules) illustration ：
1
Module 3 NMS and Data port and indicators
Data Port (for IP Signal Output)
NMS (Network Management Port)
2
Module 2 NMS and Data port and indicators
3
Module 1 NMS and Data port and indicators

NetUP Streamer HDMI 8-24x v3. User manual
6
Chapter 2 Installation Guide
2.1 Acquisition Check
When users open the package of the device, it is necessary to check items according to packing list.
Normally it should include the following items:
⚫Streamer HDMI 8-24 v3
⚫User’s Manual
⚫Power Cord
⚫HDMI cables
If any item is missing or mismatching with the list above, please contact local dealer.
2.2 Installation Preparation
When users install device, please follow the below steps. The details of installation will be described
at the rest part of this chapter. Users can also refer rear panel chart during the installation.
The main content of this chapter including:
⚫Checking the possible device missing or damage during the transportation
⚫Preparing relevant environment for installation
⚫Installing Streamer HDMI 8-24 v3
⚫Connecting signal cables
⚫Connecting communication port (if it is necessary)
2.2.1 Device’s Installation Flow Chart is Illustrated as following：
Connecting
Grouding
Wire and
Power
Cord
Acquisition
Check Fixing Device Setting Parameter Running Device
Connecting
Signal Wire

NetUP Streamer HDMI 8-24x v3. User manual
7
2.2.2 Environment Requirement
Item
Requirement
Machine Hall
Space
When user installs machine frame array in one
machine hall, the distance between 2 rows of
machine frames should be 1.2~1.5m and the distance
against wall should be no less than 0.8m.
Machine Hall
Floor
Electric Isolation, Dust Free
Volume resistivity of ground anti-static
material: 1X107~1X1010，Grounding current limiting
resistance: 1M (Floor bearing should be greater
than 450Kg/㎡)
Environment
Temperature
5~40℃(sustainable )，0~45℃(short time)，
installing air-conditioning is recommended
Relative
Temperature
20%~80% sustainable 10%~90% short time
Pressure
86~105KPa
Door & Window
Installing rubber strip for sealing door-gaps
and dual level glasses for window
Wall
It can be covered with wallpaper, or brightness
less paint.
Fire Protection
Fire alarm system and extinguisher
Power
Requiring device power, air-conditioning power
and lighting power are independent to each other.
Device power requires AC power 220V 50Hz. Please
carefully check before running.
2.2.3 Grounding Requirement
⚫All function modules’ good grounding designs are the basis of reliability and stability of devices.
Also, they are the most important guarantee of lightning arresting and interference rejection.
Therefore, the system must follow this rule.
⚫Coaxial cable’s outer conductor and isolation layer should keep proper electric conducting with the

NetUP Streamer HDMI 8-24x v3. User manual
8
metal housing of device.
⚫Grounding conductor must adopt copper conductor in order to reduce high frequency impedance,
and the grounding wire must be as thick and short as possible.
⚫Users should make sure the 2 ends of grounding wire well electric conducted and be antirust.
⚫It is prohibited to use any other device as part of grounding electric circuit
⚫The area of the conduction between grounding wire and device’s frame should be no less than
25mm2.
2.2.4 Frame Grounding
All the machine frames should be connected with protective copper strip. The grounding wire should
be as short as possible and avoid circling. The area of the conduction between grounding wire and
grounding strip should be no less than 25mm2.
2.2.5 Device Grounding
Connecting the device’s grounding rod to frame’s grounding pole with copper wire.
2.3 Wire’s Connection
The grounding wire conductive screw is located at the right end of rear panel, and the power switch,
fuse, power supply socket is just beside, whose order goes like this, power switch is on the left, power
supply socket is on the right and the fuse is just between them.
⚫Connecting Power Cord
User can insert one end into power supply socket, while insert the other end to AC power.
⚫Connecting Grounding Wire
When the device solely connects to protective ground, it should adopt independent way, say,
share the same ground with other devices. When the device adopts united way, the grounding
resistance should be smaller than 1Ω.
Caution:
Before connecting power cord to Streamer HDMI 8-24 v3, user should set the power
switch to “OFF”.

NetUP Streamer HDMI 8-24x v3. User manual
9
2.4 Signal Cable Connection
The signal connections include the connection of input signal cable and the connection of output
signal cable. The details are as follows:
2.4.1 HDMI input cable illustration:
2.4.2 Network Cable illustration (CAT5):

NetUP Streamer HDMI 8-24x v3. User manual
10
Chapter 3 WEB NMS Operation
Streamer HDMI 8-24 v3 does not support front buttons and LCD, users can only control and set the
configuration in computer by connecting the device to web NMS Port. User should ensure that the
computer’s IP address is different from the Streamer’s IP address; otherwise, it would cause IP
conflict.
3.1 login
The default IP address of this device is 192.168.0.136.
Connect the PC (Personal Computer) and the device with net cable, and use ping command to
confirm they are on the same network segment.
I.G. the PC IP address is 192.168.99.252, we then change the device IP to 192.168.99.xxx (xxx can be 0
to 255 except 252 to avoid IP conflict).
Use web browser to connect the device with PC by inputting the Encoder’s IP address in the browser’s
address bar and press Enter.
It will display the Login interface. Input the Username and Password (Both the default Username and
Password are “admin”.) and then click “LOGIN” to start the device setting.
3.2 Operation
When we confirm the login, it will display the WELCOME interface.

NetUP Streamer HDMI 8-24x v3. User manual
11
Parameters →Encoder
Encode Channel 1-8:
From the menu on upper side of the web page, clicking “Enc CH 1-8”, it will display the each
encode channel information of the program from the HDMI input port.
Video and Audio
Settings for
program: User
can edit any item
listed as needed.

NetUP Streamer HDMI 8-24x v3. User manual
12
Click this button to apply the modified parameters.

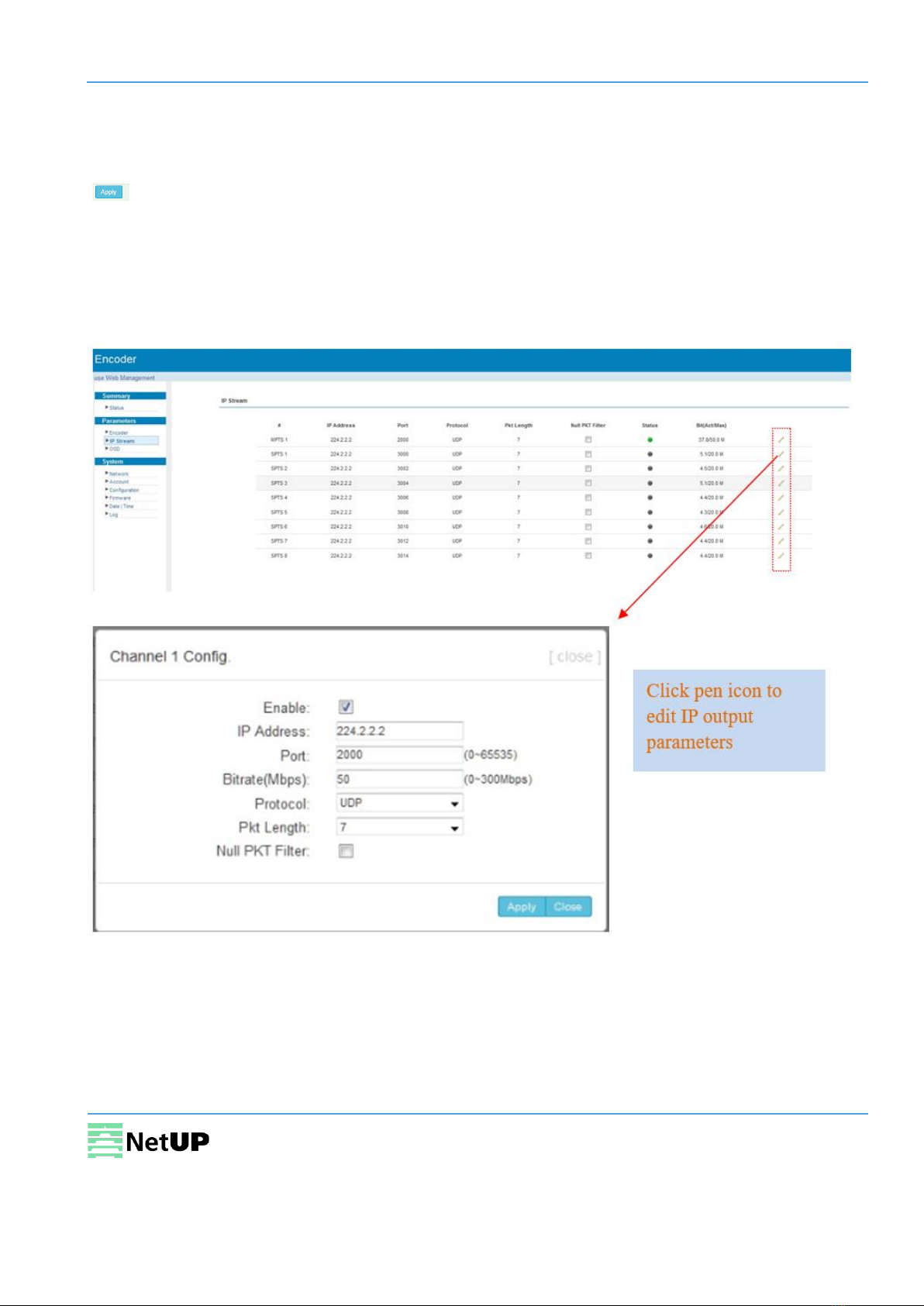

Parameters →IP Stream
Streamer HDMI 8-24 v3 supports TS to output in IP (1MPTS and 8 SPTS) format through the DATA
port. When users click “IP Stream”, it will display the interface where to set IP out parameters. (For
Data 1000M GE port)
Parameters →OSD
Clicking “OSD”, it will display the interface where to configuration the OSD parameters.
System→ Network:
Clicking “Network”, it will display the interface where to set NMS and DATA parameters.
System → Account:

NetUP Streamer HDMI 8-24x v3. User manual
13
Clicking “Account”, it will display the screen where to set the login account and password for the
web NMS. Both the current username and password are “admin”.
System → Configuration:
Clicking “Configuration”, it will display the screen where to save/ restore/factory set/ backup/ load
your configurations.
System → Firmware:
Clicking “Firmware”, it will display the screen where to update firmware for the encoder.
System → Date/Time:
Clicking “Date/Time”, it will display the screen where to set date and time for the device.
System → Log:
Clicking “Log”, it will display the log interface where to check or export the Kernel/System log.

NetUP Streamer HDMI 8-24x v3. User manual
14
Chapter 4 Troubleshooting
Prevention Measure
⚫Installing the device at the place in which environment temperature between 0 to 45 °C
⚫Making sure good ventilation for the heat-sink on the rear panel and other heat-sink bores if
necessary
⚫Checking the input AC within the power supply working range and the connection is correct
before switching on device
⚫Checking the RF output level varies within tolerant range if it is necessary
⚫Checking all signal cables have been properly connected
⚫Frequently switching on/off device is prohibited; the interval between every switching on/off
must greater than 10 seconds.
Conditions need to unplug power cord
⚫Power cord or socket damaged.
⚫Any liquid flowed into device.
⚫Any stuff causes circuit short
⚫Device in damp environment
⚫Device was suffered from physical damage
⚫Longtime idle.
⚫After switching on and restoring to factory setting, device still cannot work properly.
Maintenance needed
