NetUP Streamer HDMI 8x User manual

1/7, Ulofa Palme str., Moscow, Russia
[phone] |[e-mail] |http://netup.tv
NetUP Streamer HDMI 8x
User manual
9 April 2019

NetUP Streamer HDMI 8x. User manual
2
Contents
Introduction ............................................................................ 3
Appearance and illustration................................................................................................... 3
Specifications ......................................................................................................................... 5
Installation guide..................................................................... 6
Device’s installation flow chart.............................................................................................. 6
Packing list check ................................................................................................................... 6
Safety instructions ................................................................................................................. 6
Environment requirement ..................................................................................................... 7
Grounding requirement ......................................................................................................... 7
LCD screen feature description ................................................ 8
Initializing and general settings ............................................................................................. 8
1 System Param...................................................................................................................... 9
2 Modulator ......................................................................................................................... 10
3 Output Settings ................................................................................................................. 11
4 MUX Setting ...................................................................................................................... 11
5 Network Setting ................................................................................................................ 12
6 Configuration Setting ........................................................................................................ 13
7 Version .............................................................................................................................. 13
WEB NMS Operation ..............................................................14

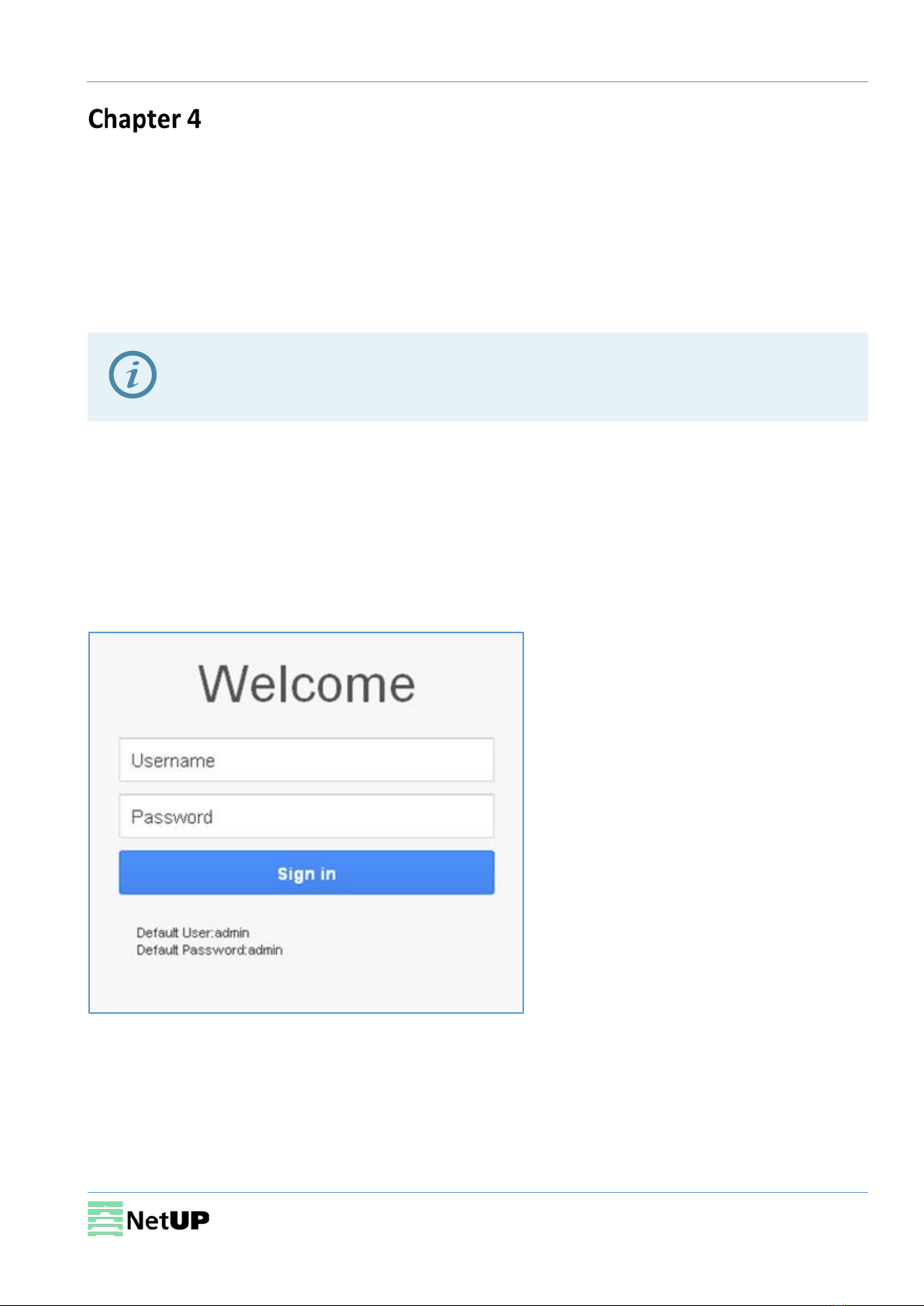

Login ..................................................................................................................................... 14
Status.................................................................................................................................... 15
Encoder ................................................................................................................................ 16
MUX...................................................................................................................................... 17
Modulator ............................................................................................................................ 19
Output.................................................................................................................................. 19
TS Config............................................................................................................................... 22
System .................................................................................................................................. 23
Network................................................................................................................................ 24
Password .............................................................................................................................. 24
Troubleshooting.........................................................................................25

NetUP Streamer HDMI 8x. User manual
3
Introduction
NetUP Streamer HDMI 8x is an all-in-one device, that integrates encoding, (MPEG-4/AVC H.264)
multiplexing and modulation functions in a 1U case. It is capable of converting 8 HDMI signals and 1
ASI input to 2 DVB-T RF outputs in the frequency range of 30~999MHz. It is also equipped with 2 ASI
ports and an IP port. The source signal may come from a satellite receiver, closed-circuit television
camera, etc. The device’s output can be received by DVB-T standard TVs or DVB-T STBs.
This device can be used for advertising or monitoring purposes in public places such as metro, market
halls, theatres, hotels, resorts, etc.
Appearance and illustration
Front panel:
1 LCD screen
2 Indicators
Power
TS in – the input lock indicator
CH1-CH8 coding channels
All indicators will light on when the device is switched on
3 UP/DOWN, LEFT/RIGHT keys
4 ENTER key
5
MENU key
6
LOCK key

NetUP Streamer HDMI 8x. User manual
4
Rear panel:
1
HDMI ports
2
RF test port
3
RF output port
4
ASI input port
5
ASI output ports
6
DATA port (for IP signal output)
7
NMS (Network management port)
8
Power switch
9
Fuse
10
Power socket
11
Grounding pole

NetUP Streamer HDMI 8x. User manual
5
Specifications
Input 8×HDMI and 1×ASI
Video
Encoding
MPEG-4 AVC/H.264
Resolution
1920×1080_60p,1920×1080_50p
1920×1080_60i, 1920×1080_50i
1280×720_60p, 1280×720 _50p
720×576_50i, 720×480_60i
Bitrate
0.8Mbps~19Mbps (each channel)
Rate control
VBR/CBR
GOP Structure
IBBP
Advanced Pretreatment
Deinterlacing, Noise reduction, Sharpening
Audio
Encoding
MPEG-1 Layer 2, HE-AAC V2, LC- AAC
Sample rate 48KHz
Bitrate
64Kbps~384Kbps (each channel)
Multiplexing
1 ASI input multiplexed with local 8 channels of TS
PID remapping (automatically or manually)
Accurate PCR adjusting
Generate PSI/SI table automatically
Modulator
Standard
EN300744
FFT mode
2K, 8K
Bandwidth
6MHz, 7MHz, 8MHz
Constellation
QPSK, 16QAM, 64QAM
Guard Interval
1/4, 1/8, 1/16, 1/32
FEC
1/2, 2/3, 3/4, 5/6, 7/8
MER
≥42dB
RF frequency
30~960MHz, 1KHz step
RF output level
-30~ -10dbm (77~97 dbµV), 0.1db step
RF out
2×RF DVB-T out
Output
2×ASI to mirror one RF output, BNC interface
8×SPTS over UDP, RTP/RTSP, 1000Base-T Ethernet interface (unicast / multicast)
System
Control
LCD/keyboard controls, web NMS support
Update
Ethernet software & hardware upgrade
Other
parameters
Dimension (W×L×H)
482mm×328mm×44mm
Approx. weight
4kg
Temperature
0~45℃ (work); -20~80℃ (storage)
Power requirements
AC 100V-220V±10%, 50/60Hz
Power consumption
25W

NetUP Streamer HDMI 8x. User manual
6
Installation guide
Device’s installation flow chart
Before installing and connecting the device, carefully read the environment and
grounding requirements, as well as safety instructions for the sake of your safety and for
the safety of the device
Packing list check
Check items according to packing list. Normally it should include the following items:
•NetUP Streamer HDMI 8x
•Power Cord
•HDMI cable
•ASI cable
Safety instructions
•Before installing and connecting the device make sure that the device was not damaged during
delivery.
•Install the device in an appropriate place. The device is designed to work in a clean and dry room.
It must be operated and maintained free of dust.
•Before switching on the device make sure that it is adjusted to the mains voltage you intend to
use. Make sure that you keep within the specifications – AC 100V-220V±10%, 50/60Hz.
•Check that all the cables are connected properly. Connect cables only to a device that is turned
off.
Packing list
check
Connecting
grounding
wire and
power cord
Installing
device
Connecting
signal cable
Setting
parameter
Running
device

NetUP Streamer HDMI 8x. User manual
7
Environment requirement
Item
Requirement
Room space
When installing a rack in the room, make sure the distance between two
rows of racks is 1.2~1.5m and the distance to the wall is at least 0.8m.
Room floor
Electric isolation. Dust free. The volume resistivity of ground anti-static
material: 1×107~1×1010 Ω. Grounding current limiting resistance: 1M (Floor
bearing should be greater than 450Kg/m2).
Environment
temperature
5~40℃ (sustainable), 0~45℃ (short time).
Installing air-conditioning is recommended.
Relative temperature
20%~80% (sustainable); 10%~90% (short time).
Pressure
86~105KPa
Door & window
Install rubber strip for sealing door-gaps and dual level glasses for windows.
Walls
Can be covered with wallpaper or dark paint.
Fire protection
Fire alarm system and extinguisher.
Power
The device requires AC 100V-220V±10%, 50/60Hz.
Please carefully check before running.
Grounding requirement
•Connect the ground wire to the grounding hardware on the device. Ground resistance should be
no more than 1 Ω
Grounding is essential for device’s functionality, surge and electronic interference
protection
•Keep proper contact with the metal housing of the device
•Grounding wire must be made out of copper and as thick and short as possible
•Make sure the two ends of grounding wire conduct electricity and are not rusty
•It is prohibited to use any other devices as a part of grounding electric circuit
•All racks should be connected with a protective copper strip. Ground loops should be avoided
•Grounding wire’s contact area with the rack should be no less than 25mm2

NetUP Streamer HDMI 8x. User manual
8
LCD screen feature description
NetUP Streamer HDMI 8x has the LCD screen and keys on its front panel. You can use them to control
and configure the device. Here is the description of keys’ functions:
MENU
Cancel unsaved changes, resets to previous settings and returns to the previous
menu
ENTER
Select a menu item and activates a parameter for modifying, or confirms the
changes after modification
LEFT / RIGHT
UP / DOWN
Navigate through the menu and choose between the available options
LOCK
Lock or unlock the screen. After pressing the lock key, the system will ask if you
want to save the current changes. If you select “No”, the LCD will display the
current configuration state
Initializing and general settings
After powering on the device, it will take a few seconds to initialize the system, and then the LCD will
show the device’s name and multiplex bitrate or max modulating bitrate in the first row, while
channels’ respective input video resolution, frame rate and real-time encoding bitrate in the second
row in turn. It shows as below:
Encoder Modulator 12.4/32.5Mbps
1 1080I 50 11.356M 2 1080I 50 11.356M
Press LOCK to enter the main menu and set the input and output parameters. The LCD will display the
following pages:
1 System Param
2 Modulator
3 Output Setting
4 Mux Setting
5 Network Setting
6 Config Setting
7 Version
Use UP / Down to move through the list. The arrow icon (►) indicates which item has
been selected. Press ENTER to get to the submenu

NetUP Streamer HDMI 8x. User manual
9
1 System Param
The System Param menu contains eight submenus, one for each of the eight encoding channels:
1.1 Channel 1
------------------
1.8 Channel 8
Select a channel and press ENTER to get to the submenu:
1 Video Param
2 Audio Param
3 Prg info
Select an item and press ENTER again.
1 Video Param
The Video Param menu gives you access to the following settings:
Item
Valid values
1.1 Bitrate (Mbps)
08.000
range from 0.8 to 19 Mbps
1.2 Bitrate Mode
[1] CBR
CBR – Constant Bit Rate;
VBR – Variable Bit Rate
1.3 Profile
[1] HIGH
HIGH or MAIN
1.4 Level
[1] 1.2
range from 1.2 to 10
Parameter’s current value is displayed under its name
1) Press ENTER to start editing.
2) Use UP / DOWN to select one of the possible values for the parameter. If you need to
enter a numeric value, first use LEFT / RIGHT to move the cursor to the desired
position, and then set the value using the UP / DOWN buttons.
3) Press ENTER to apply changes or press MENU to return to the parameter list.

NetUP Streamer HDMI 8x. User manual
10
2 Audio Param
The Audio Param menu gives you access to the following settings:
Item
Valid values
2.1 Audio Bitrate
[1] 64 Kbps
range from 64 to 384 Kbps
2.2 Audio Format
[1] MPEG1-Layer II
MPEG1 Layer II, LC-AAC and HE-AAC
3 Prg info
The Prg info menu gives you access to the following settings:
Item
Valid values
3.1 Program Number
0x0101
integer
2 Modulator
The Modulator menu gives you access to the following settings:
Item
Valid values
Bandwidth
[1] 6M
6М, 7М and 8М
Constellation
[1] QPSK
QPSK, 16QAM or 64QAM
FFT
[1] 2К
2К or 8К
Guard Interval
[1] 1/4
1/4, 1/8, 1/16, 1/32
Code rate
[1] 1/2
1/2, 2/3, 3/4, 5/6, 7/8
RF Frequency 1/2
750.00MHz
range from 30 to 90 MHz with 1K step
RF level
-10.0 dbm
range from -30 to -10 dbm (77~97dbµV) with 0.1db step
RF On 1/2
►Off
Off or On

NetUP Streamer HDMI 8x. User manual
11
3 Output Settings
The Output Settings menu contains nine submenus, eight items for each of the SPTS outputs and one
item for the ASI output:
Output 1
------------------
Output 8
ASI Output
Select one of the SPTS outputs and press ENTER to get access to the following settings:
Item
Valid values
1 Output Enable
[1] OFF
UDP, RTP/RTSP or Off (disable an output).
2 Destination IP Address
224.002.002.002
IP address
3 Destination Port
1002
port
4 Filter Null Packet
YES
YES or NO
5 TSID and ONID
TSID (Trans Stream ID);
ONID (Original Network ID)
Select the ASI output and press ENTER to get access to the following settings:
Item
Valid values
1ASI output
[1] RF 1
RF 1 or RF 2
4 MUX Setting
The MUX Setting menu contains three submenus:
4.1 Encoder Mux
4.2 ASI
4.3 PID Remap
Select an item and press ENTER.
4.1 Encoder Mux
The Encoder Mux menu gives you access to the following settings:
RF 1 Program list
RF 2 Program list

NetUP Streamer HDMI 8x. User manual
12
4.2 ASI
The ASI menu gives you access to the following settings:
4.2.1 Program List
4.2.2 Parse Prog
4.3 PID Remap
Item
Valid values
PID Remap
►Yes
Yes or No.
5 Network Setting
The Network Setting menu contains two submenus:
5.1 NMS Interface
5.2 Data Interface
Select one of these items and press ENTER. Both of them give you access to the following settings:
5.1.1 IP Address
192.168.002.136
5.1.2 Subnet Mask
255.255.255.000
5.1.3 Default Gateway
192.168.002.001
5.1.4 MAC Address
201012345679
Use the web interface to modify MAC address
1) Press ENTER to open a list for editing.
2) Use UP / DOWN to select program that should be routed to the selected RF.
3) Use LEFT / RIGHT to select “Add” (add to list) or “Del” (remove from list).
4) Press ENTER to apply changes or press MENU to return to the program list.

NetUP Streamer HDMI 8x. User manual
13
6 Configuration Setting
The Configuration Setting menu gives access to following settings:
Save Config
►Yes
Restore Configuration
►Yes
Factory Set
►Yes
7 Version
Use the Version menu to check the current firmware versions:
7.1 SW Version
X.XX
7.2 HW Version
X.XX
Select the Factory Set item and press ENTER to reset to factory settings

NetUP Streamer HDMI 8x. User manual
14
WEB NMS Operation
In addition to the buttons on the front panel, you can use the web interface to control NetUP
Streamer HDMI 8x.
Login
Connect a personal computer and the device with net cable, and use ping command to confirm they
are on the same network segment.
Make sure that the computer’s IP address is different from the device’s IP address;
otherwise, it would cause an IP conflict
The default IP address of NetUP Streamer HDMI 8x is 192.168.0.136. Thus, set the computer’s IP
address to 192.168.0.X, where X can be from 0 to 255, except 136. Open a web browser, enter the
device’s IP address in the browser address bar and press Enter. If the network is configured correctly,
you will see the login interface (Figure 1).
Enter username and password and click LOGIN to enter the web interface. Default username is
“admin”, default password is “admin”.
Figure-1

NetUP Streamer HDMI 8x. User manual
15
Status
After login, you will get the Status page which displays the current system status (Figure-2).
Figure-2
Use this menu to navigate
between the interface
pages
States of the
HDMI inputs
and the ASI
input
Output TS indicator.
"Red" means error

NetUP Streamer HDMI 8x. User manual
16
Encoder
Open the Encoder page to set coding parameters for each channel (Figure-3).
Figure-3
Set
parameters
Select a channel
See the channel’s input
resolution, encoding
status and bitrate
Confirm changes

NetUP Streamer HDMI 8x. User manual
17
MUX
Open the MUX page to set program multiplexing parameters (Figure-4).
Figure-4
Operation area
update, expand or collapse program lists
enable or disable PID remapping
refresh an input or an output
move programs between the input and the output areas
modify program information
Operation
area
Parse the
program list
ASI input
programs
Output area
HDMI input
programs
Input area
Select the output
Open a window to
modify program
information

NetUP Streamer HDMI 8x. User manual
18
Program modification window
Select a program and click on Edit to modify program information (Figure-5).
Figure-5
Parameters that
can be changed
Confirm changes

NetUP Streamer HDMI 8x. User manual
19
Modulator
Use the Modulator page (Figure-6) to configure the following parameters:
Bandwidth
6 MHz, 7 MHz, 8 MHz
Constellation
QPSK, 16QAM, 64QAM
FFT
2K, 8K
Guard Interval
1/4, 1/8, 1/16, 1/32
Code Rate
1/2, 2/3, 3/4, 5/6, 7/8
RF1-2 Frequency
30…960 MHz
RF Level
-30,0…-10,0 dbm
Figure-6
Output
Use the Output page to set up outputs. There is a separate tab for each type of signal: IP Out
Settings, DATA IP Settings, ASI Output.
Confirm changes

NetUP Streamer HDMI 8x. User manual
20
IP Out Settings
Use the IP Out Settings tab to set up SPTS outputs (Figure-7).
Figure-7
Output Set window:
"Green" indicates that the
output bitrate is normal.
"Red" indicates that the output
bitrate overflow
Press the
button to
adjust output
SPTS
Select one of the options; OFF,
UDP, RTP / RTSP.
Set OFF if you do not want to
output the corresponding MPTS
Confirm changes
