NetworX NX-1348E User manual

NX-1348E
Fixed English Keypad
User’s Manual

Page 2 NX1348E Icon Keypad

NX-1348E ICON KEYPAD DIAGRAM
(For further details, please refer to page 13)
POWER Light is “on”
when AC power is
present; flashes to
indicate a low battery
condition.
READY Light is “on”
when the system is
ready to arm; flashes
if ready to “force arm”.
SERVICE icon is “on”
to indicate a trouble
condition with your
system.
ARMED icon is “on”
when armed; “off” when
disarmed; flashes to
indicate a previous alarm.
INSTANT icon is “on”
when there is no
entry/exit delay.
FIRE Light is “on” to
indicate fire alarm;
flashes to indicate a
trouble condition with
your fire system.
ZONE icons (numbers)
are “on” steady to
indicate bypass; slow
flash for zone fault;
rapid flash for service
condition.
NOTE: Some of the features described above may or may not be available for your system.
Check with your installation company to find out how your system is programmed.
5 FUNCTION KEYS
perform various
functions.
EMERGENCY
ACTIVATION KEYS
NUMERIC CODE
ENTRY KEYS

Page 4 NX1348E Icon Keypad
SECURITY SYSTEM NOTES
Installing/Service Company _________________________________
For Service Call __________________________________________
Central Station ___________________________________________
Duress Code ____________________
This system is is not partitioned.
EMERGENCY ACTIVATION KEYS (check if enabled)
Fire Auxiliary Emergency Police
PROGRAMMED FUNCTIONS
Abort Delay (s) Cancel Alarm Forced Arming (s)
Auto Bypass (s) Change Partitions Group Bypass (s)
Auto Instant Chime Quick Arm (s)
Battery Test Communicator Test Re Exit
Siren Test
(s) These features should not be enabled on UL listed systems.
ENTRY / EXIT DELAY TIMES
Exit Delay Time __________ Secondary Exit Delay Time ________
Entry Delay Time _________ Secondary Entry Delay Time _______

NX1348E Icon Keypad Page 5
ZONE DESCRIPTIONS
01 _________________________ 25 _________________________
02 _________________________ 26 _________________________
03 _________________________ 27 _________________________
04 _________________________ 28 _________________________
05 _________________________ 29 _________________________
06 _________________________ 30 _________________________
07 _________________________ 31 _________________________
08 _________________________ 32 _________________________
09 _________________________ 33 _________________________
10 _________________________ 34 _________________________
11 _________________________ 35 _________________________
12 _________________________ 36 _________________________
13 _________________________ 37 _________________________
14 _________________________ 38 _________________________
15 _________________________ 39 _________________________
16 _________________________ 40 _________________________
17 _________________________ 41 _________________________
18 _________________________ 42 _________________________
19 _________________________ 43 _________________________
20 _________________________ 44 _________________________
21 _________________________ 45 _________________________
22 _________________________ 46 _________________________
23 _________________________ 47 _________________________
24 _________________________ 48 _________________________

Page 6 NX1348E Icon Keypad
INTRODUCTION
This manual is furnished to help you understand your security system and become
proficient in its operation. All users of your security system should read and follow
the instructions in this booklet and, if possible, practice on the keypad control while
your professional installer is on site. Failure to do so could result in the security
system not working properly. Please keep this booklet in an accessible location for
the life of the security system. If you do not understand any part of this manual you
should notify your installing company.
The SECURITY CONTROL can be turned on (ARMED) and off (DISARMED) by
entering a 4 or 6 digit code into the Keypad Control, which is similar to a telephone
keypad. If your Security Control has been so programmed, you may be able to turn
on (ARM) your System by simply pressing the [STAY] or [EXIT] key. The system
must always be disarmed using a 4 or 6 digit code. The LED keypad includes up to
60 icons and a built-in electronic sounder. These provide specific information relating
to the status of the security system which is described in the booklet. Understanding
what the icons and sounds mean will help you easily operate your system.
Keep in mind, the level of security you will obtain with this system relates specifically
with two major factors:
1. The quantity, quality and placement of security devices attached to this system.
2. The knowledge you have of the security system and how that knowledge is
utilized in a weekly test of the complete system.
You should be aware of the following facts when preparing a safety/security plan for
your home/business.
Your security system is an electronic device and is subject to failure or malfunction.
Do not rely on it as your single source of security.
Your system should be tested weekly.
Your system will not work without power.
Warning devices will need to be loud enough, wired correctly, and properly placed to
provide notification of an alarm event.
Smoke and heat detectors may not detect heat and smoke in all situations.Use
qualified security professionals to install and maintain your security system.

NX1348E Icon Keypad Page 7
It may be possible to arm the security system without the backup battery connected.
Your periodic test should be done with AC Power removed to verify the battery is
connected and adequately charged.
Care should be taken to plug in and restrain the AC Transformer after testing.
Please read the following information and instructions carefully before operating your
security control system.

Page 8 NX1348E Icon Keypad
TABLE OF CONTENTS
GLOSSARY OF TERMS............................................................................................................10
ICON KEYPAD DISPLAY.........................................................................................................11
EMERGENCY ACTIVATION KEYS......................................................................................12
UNDERSTANDING THE ICONS & LIGHTS........................................................................13
ARMED ICON .........................................................................................................................13
BYPASS LIGHT.......................................................................................................................13
CANCEL LIGHT......................................................................................................................13
CHIME LIGHT.........................................................................................................................13
EXIT LIGHT.............................................................................................................................13
FIRE ICON ...............................................................................................................................13
INSTANT ICON.......................................................................................................................13
LISTEN-IN ICON.....................................................................................................................14
POWER ICON..........................................................................................................................14
READY / NOT READY ICON................................................................................................14
SILENCED ICON.....................................................................................................................14
STAY LIGHT ...........................................................................................................................14
TAMPER/TROUBLE ICONS..................................................................................................14
ZONE ICON .............................................................................................................................14
KEYPAD FUNCTIONS..............................................................................................................15
ARMING YOUR SYSTEM IN THE “AWAY” MODE.........................................................15
ARMING YOUR SYSTEM IN THE “STAY” MODE...........................................................16
USING THE QUICK ARM .....................................................................................................17
CHANGING MODES WHILE SYSTEM IS ARMED...........................................................17

NX1348E Icon Keypad Page 9
(TABLE OF CONTENTS CONTINUED…)
DISARMING THE SYSTEM ..................................................................................................17
CANCEL / ABORT FEATURE ..............................................................................................17
BYPASSING ZONES ..............................................................................................................18
GROUP BYPASS.....................................................................................................................18
UNBYPASSING.......................................................................................................................18
TURNING THE DOOR CHIME ON AND OFF ....................................................................18
CHANGING USER CODES.......................................................................................................19
ASSIGNING USER CODE AUTHORITY LEVELS..............................................................19
OTHER KEYPAD FUNCTIONS...............................................................................................21
SETTING THE KEYPAD TONE............................................................................................21
CHANGE PARTITION – OPTIONAL.......................................................................................21
VIEW ALARM MEMORY......................................................................................................21
TEST FUNCTION – OPTIONAL...............................................................................................22
RESET FUNCTION.................................................................................................................22
SET SYSTEM DATE...............................................................................................................22
SETTING THE SYSTEM CLOCK..........................................................................................23
SETTING THE KEYPAD LIGHTING....................................................................................23
SERVICE MENU.........................................................................................................................23
KEYPAD CONTROL TONES (BEEPS) ..................................................................................25
EMERGENCY EVACUATION PLANS ..................................................................................25

Page 10 NX1348E Icon Keypad
GLOSSARY OF TERMS
Abort Delay An option that allows a delay in reporting to the central
station.
Authority Level The level of access an individual has when using an
alarm panel.
Central Station The location where alarm data is sent during an alarm
report.
Chime Feature An option that allows the keypad to sound a ding-dong
whenever an entry/exit door is opened.
Codes Can be either User Codes (relating to a person) or
Function Codes (a toggle switch to turn specific
functions on/off). NOTE: A system may have either 99
four-digit codes or 66 six-digit codes, but not a mixture
of the two.
Duress Code An option that allows a special code to be sent to the
central station that indicates the alarm system is being
operated under duress.
Forced Arming An option that allows the system to be turned on
(ARMED) with one or more zones open. A system that
is ready to be “force armed” will flash the ready icon.
(Note: Those zones that are not ready will not create an
alarm.)
Function Code A Function Code is either a four (4) or six (6) digit code
that has been programmed by the installer to operate a
device.
Group Bypass An option that allows the user to bypass multiple zones
with a single operation.
Instant/Delay An option that allows an instant alarm condition for
Entry/Exit doors, or grants a delay to allow someone to
enter/exit the building without an alarm, or before
entering a user code to disarm.
Master Code A master arm/disarm code that can program other user
codes.
Partitioned System A system divided into multiple areas in which its own
user or users control each area.
Perimeter The outer edge of the protected area.

NX1348E Icon Keypad Page 11
Quick Arm An option that allows you to turn on (ARM) the security
system by pressing either the [STAY] or [EXIT] key on
the keypad control (for ARMING only) as programmed
by the installing company.
User Code A four (4) or six (6) digit entry code used to arm or
disarm the system.
ICON KEYPAD DISPLAY
Armed
Instant
Ready
FIRE
Power
Service
Enter Code Silenced
Trouble Tamper
12345678910111213141516
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
33 34 35 36 37 38
39
40 41 42 43 44 45 46 47 48
ALARM
Listen-in
Not

Page 12 NX1348E Icon Keypad
EMERGENCY ACTIVATION KEYS
NOTES: You must hold these keys for 2 seconds to activate these functions. Your
system may not be programmed for these activation keys (see page 1). You should
press these keys only in an emergency situation that requires response by
emergency personnel. If your system is programmed for these functions, the
following reports can be sent.
Fire Key – This key can activate the fire alarm when pressed for two seconds. If your
system is connected to a monitoring center, an emergency report could be sent to
that center.
Auxiliary Emergency Key – This key can activate the auxiliary alarm when pressed
for two seconds. If your system is connected to a monitoring center, an emergency
report could be sent to that center.
Police (Panic/Hold-Up) Key - This key can sound a local audible alarm when pressed
for two seconds. If your system is connected to a monitoring center, an emergency
report could be transmitted to that center. NOTE: Some Panic/Hold-Up alarms are
programmed to be silent at the protected site while reporting an alarm to the
monitoring center. Check with your installing company to determine how your security
system will respond to the Panic/Hold-Up activation.

NX1348E Icon Keypad Page 13
UNDERSTANDING THE ICONS & LIGHTS
ARMED ICON
The armed icon is “on” when the system is armed. The armed icon is “off” when it
is disarmed. The armed icon will flash when there has been an alarm during the
previous arm cycle.
BYPASS LIGHT
The bypass light is “on” when any zone in this keypad’s partition is bypassed. The
zone(s) that is bypassed will also be illuminated. If the bypass light is “off”, no
zones are bypassed.
CANCEL LIGHT
The cancel light will flash during an abort delay time. If a code is entered followed
by the [CANCEL] key while this light is flashing, all abortable reports will stop the
communication process. Note: The abort feature must be enabled. Entering a
code followed by the [CANCEL] key during or after an alarm report to the central
station will cause the cancel light to come on. It will stay on until the central station
has received the cancel report. Note: The cancel feature must be enabled.
CHIME LIGHT
The chime light is “on” when the chime feature is “on”; “off” otherwise.
EXIT LIGHT
The exit light is “on” during the exit delay. Please note that the light will flash during
the last 10 seconds of the exit delay as a warning that the time is running out. (The
user may want to disarm the system if the exit light is flashing in order to prevent
an alarm. The user may then re-arm the system and exit before the delay expires.)
FIRE ICON
A steady fire icon means a fire zone has been faulted. A rapidly flashing fire icon
means that a fire zone is in a trouble condition.
INSTANT ICON
The instant icon is “on” when there is no delay on your entry/exit door(s). Any time
the instant icon is “on” and the exit delay has expired, the opening of an entry/exit
door will produce an immediate alarm. The instant icon can be toggled on or off by
pressing the [Stay] key while the system is armed. When the instant icon is “off”,
the entry/exit door(s) is delayed.

Page 14 NX1348E Icon Keypad
LISTEN-IN ICON
Listen-in icon is on when an NX-534E is active in listen-in mode.
POWER ICON
The power icon is on if the primary power is on. The power icon will flash if the
system has a low battery condition.
READY / NOT READY ICON
The ready icon is “on” when the system is ready to arm and “flashes” if ready to
force arm. The not ready icon is on when the system is not ready to arm because
of a zone(s) being faulted.
SILENCED ICON
The silenced icon appears after a code has been entered to silence the siren but
the zone has not been cleared.
STAY LIGHT
The stay light is “on” when all interior (motion detector) zones are bypassed.
TAMPER/TROUBLE ICONS
The tamper or trouble icon is on when a zone(s) is tampered or in trouble. Press
[]–[2] and refer to the Service Menu section on page 23 of this manual for further
instructions.
ZONE ICON
The zone icons are “off” when everything is normal. A zone icon will be “on” if the
zone has been bypassed. If a zone icon is “flashing”, that zone is in alarm or has
been faulted. If a zone icon is “flashing” rapidly, it means that the zone is in a
trouble condition.
Trouble conditions are:
Tamper Hardware Low Battery Loss of Supervision
(A combination of Alarm/Fault and Tamper/Trouble will produce a rapid “flashing”
light for a short period of time, followed by a slow “flashing” light.)

NX1348E Icon Keypad Page 15
KEYPAD FUNCTIONS
ARMING YOUR SYSTEM IN THE “AWAY” MODE
AWAY is used when the user is away from the premise and wants the interior
protected.
• Close all protected doors and windows.Step 1
• Ready icon will be on or flashing when all protected zones and sensors
are secure. NOTE
: If any zones are bypassed, a sensor in that zone can
be violated without affecting the ready icon.
• The security system will not arm if the not ready icon is on or flashing.
• If the power
icon is off, you have no AC power. Restore power if possible.
If not, contact your installing company listed on page 1 of this booklet for
service.
Step 2 • Enter your 4 or 6 digit user code to arm the system.
• The armed icon and exit light will illuminate.
• You may now leave the building.
NOTE: The exit light will flash rapidly for the last 10 seconds of the exit delay as a
warning to the user that the exit time is about to expire. The user may wish to disarm
and rearm the system if more time is needed.

Page 16 NX1348E Icon Keypad
ARMING YOUR SYSTEM IN THE “STAY” MODE
STAY is used when the user is inside the premise and wants protection around the
perimeter.
• Close all protected doors and windows.Step 1
• Ready icon must be on or f
lashing when all protected zones and
sensors are secure. NOTE
: If any zones are bypassed, a sensor in that
zone can be violated without affecting the ready icon.
• The security system will not arm if the not ready icon is on or flashing.
• If the power icon i
s off, you have no AC power. Restore power if
possible. If not, contact your installing company listed on page 1 of this
booklet for service.
Step 2 • Enter your 4 or 6 digit user code.
• If “Auto Bypass” is enabled, all interior zones will be bypassed
if you do
not leave through a designated entry/exit door.
If Auto Bypass is
enabled, omit Step 3.
• When “Auto Instant” is enabled,
if you do not leave through a
designated entry/exit door the instant icon
will illuminate indicating that
the entry/exit doors no longer have an entry delay. If “Auto Instant”
is
enabled, omit Step 4.
Step 3 • Press the [STAY] key.
• The stay light
will illuminate indicating that all interior zones are
bypassed. (All interior devices will bypass auto
matically, giving the user
freedom of movement within the interior area.)
• The bypass light
will illuminate if any zone(s) are bypassed. If any
zone(s) have been bypassed previously by the user, the icon
(s)
corresponding to the bypassed zone(s) will illuminate, alerting the user
that a zone(s) may be unprotected and can be faulted without an alarm.
Step 4 • To toggle from a “delayed entry” mode to an “Instant” mode
, press the
[STAY] key again.
• The instant
icon will illuminate indicating that the entry/exit doors have
no entry delay.

NX1348E Icon Keypad Page 17
USING THE QUICK ARM (Optional, see page 1)
The Quick Arm feature may be used if it is enabled. Quick Arm will allow the user to
arm the security system in the AWAY mode by pressing the [EXIT] key, or arm in the
STAY mode by pressing the [STAY] key. This feature is used for ARMING ONLY,
and will not disarm the security system. This is ideal for a maid or baby sitter code,
etc.
CHANGING MODES WHILE SYSTEM IS ARMED
Pressing the [STAY] key will turn on/off (toggle) a delay on entry/exit doors and turn
on/off (toggle) the instant icon.
(Optional) Press the [BYPASS] key at this time to turn on/off (toggle) all designated
interior zones.
(Optional) When armed, pressing the [EXIT] key will start the exit delay, enabling you
to leave the building.
IMPORTANT!
The instant icon needs to be off at this time if you plan on re-entering
the building; otherwise you will create an alarm. You may restore an
entry delay by pressing the [STAY] key again.
DISARMING THE SYSTEM
When you enter the protected area through one of the designated Entry/Exit doors,
the keypad control will sound a continuous tone for the duration of the entry delay
time, or until you enter a valid code. The armed icon will go off and the tone will stop.
The security system is now DISARMED. If a valid code is not entered before the end
of the entry delay, an alarm will occur. (NOTE: If the armed icon is flashing during the
entry delay, the alarm system has been activated in your absence. Leave the building
immediately and call your alarm company and/or the police from a safe location.)
CANCEL / ABORT FEATURE (Optional, see page 1)
The cancel light will flash during an abort delay time. If a code is entered followed by
the [CANCEL] key while this light is flashing, all abortable reports will stop the
communication process. Entering a code followed by the [CANCEL] key during or
after an alarm report to the central station will cause the cancel light to come on. It
will stay on until the central station has received the cancel report.

Page 18 NX1348E Icon Keypad
BYPASSING ZONES
If you wish to bypass one or more zones, this must be done while the system is in the
disarmed state. The following steps are used for bypassing zones:
Step 1 Press the [BYPASS] key.
Step 2 Enter user code, if required (optional).
The bypass light flashes.
Step 3
Enter 1 or 2 digits indicating the zone you wish to bypass, i.e. press the
[1] key for zone 1, press [1]-[2] for zone 12.
Step 4 Press the [BYPASS] key again.
Step 5
The corresponding zone icon will illuminate indicating the zone has
been bypassed. Repeat steps 3 and 4 for any other zone(s) that need
to be bypassed.
Step 6
Press the [BYPASS] key again -or- press the [#] key to exit the Bypass
Mode. The bypass light will stop flashing upon exiting the Bypass Mode.
GROUP BYPASS
By pressing the [BYPASS] key, followed by the [0] key, then the [BYPASS] key
again, all zones that are designated as group bypass zones will be bypassed. Press
the [BYPASS] key again -or- press the [#] key to exit group bypassing.
UNBYPASSING
To manually unbypass zones, perform the bypassing procedure on a zone that is
already bypassed. The corresponding icon for that zone will go off when unbypassed.
NOTE: All zones will automatically be unbypassed each time the system is disarmed.
TURNING THE DOOR CHIME ON AND OFF
The door chime is turned on or off by pressing the [CHIME] key while the system is in
the disarmed state. If the chime is on the chime light will be illuminated. If the chime
is off, the chime light will be off. Each press of the [CHIME] key will toggle the chime
feature on/off and produce a momentary ding-dong sound.

NX1348E Icon Keypad Page 19
ADDING AND CHANGING USER CODES
Your system must be Disarmed to change user codes.
Step 1 Press []-[5]
Step 2 The Enter Code icon will display. Enter a [“Master Arm/Disarm” Code].
NFor partitioned systems, someone changing the code of another person
must have access to all or more partitions than the user being changed.
Step 3 The Ready icon will flash.
Step 4 Enter the 2-digit “user number”. (Always enter 2 digits such as [0]-[3] for
user 3.)
Step 5 The instant icon will flash and zone icons will illuminate specifying the first
digit of the “user code”.
When all icons are all illuminated = code is blank; when all icons are off = “0”.
Use the [•] and [–] keys to view the next digit or enter new 4- or 6-digit “user code”.
While using the [•] and [–] keys, you can change any digit by entering a new digit.
This will advance you to the next digit.
To delete a user code, enter []-[]-[]-[] for a 4-digit
code, or []-[]-[]-[]-[]-[] for a 6-digit code.
Step 6 The ready icon will flash indicating you are back at Step 2 above. If the
code is rejected, the sounder will beep 3 times.
Step 7 If another “user code” needs to be programmed, return to Step 4.
Step 8 Press the [#] key while the ready icon is flashing to exit the User Code
Programming Mode.
ASSIGNING USER CODE AUTHORITY LEVELS
Assign authority levels to users by following the steps below. Assign user codes
before assigning authority levels.
Step 1 Press []-[6]-[“Master Arm/Disarm Code”].
NSomeone changing the authority of another person can only add or
remove partition authorization for partitions to which they have access.
Step 2 The ready icon will flash.

Page 20 NX1348E Icon Keypad
Step 3 Enter the 2 digit “user number” to be assigned authority (The ready icon is
constant and the instant icon will flash).
Step 4 Icons illuminated indicate the authority levels assigned to this code. An
explanation of the icons is listed in the following table. You may toggle (turn
on/off) the authority level by pressing the number for that authority level.
ICON AUTHORITY LEVELS IF ICON 8 IS OFF
1 Reserved (Note: Do not change if on.)
2 Arm Only
3 Arm Only After Closing Time
4 Master Arm/Disarm (can program other codes)
5 Arm/Disarm
6 Bypass Zones
7 Open / Close Reporting
8 If this icon is on, this code is programmed as a function code.
Do not change! Press [#] - [#] to exit.
Step 5 Press the [] key. The ready icon is on constant and instant icon is on
constant. This moves you to the partition enable. (The user has access in
partitions that are illuminated.)
Step 6 The illuminated numbers indicate each partition where the user has
access. To change any of the partitions where the user has access, press
numbers corresponding to areas where you want to give the user access
or deny access. (Example: If zone icon #2 is lit, then the user is assigned
access to partition #2. By pressing the [2] key, the icon will go off, denying
access to partition #2. Refer to the following chart.
ICON PARTITIONS ASSIGNED
1 Partition 1
2 Partition 2
3 Partition 3
4 Partition 4
5 Partition 5
6 Partition 6
7 Partition 7
8 Partition 8
Table of contents
Other NetworX Keypad manuals
Popular Keypad manuals by other brands

AWID

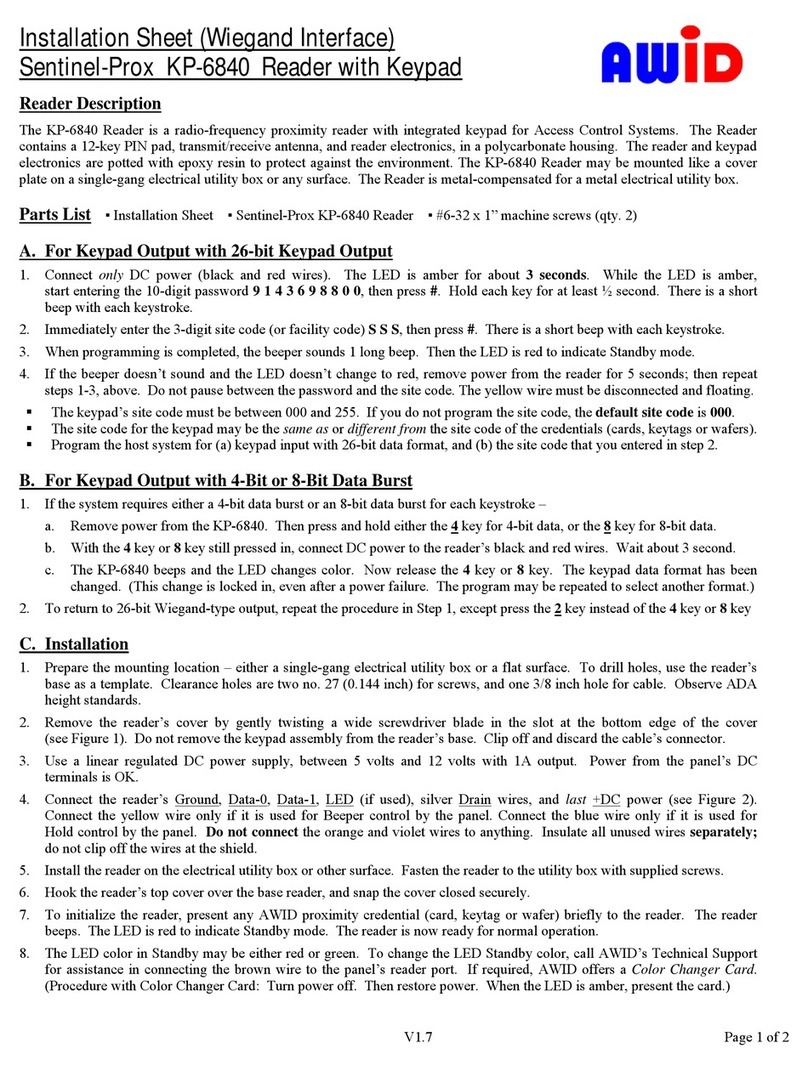

AWID Sentinel-Prox KP-6840 Installation sheet

Chamberlain
Chamberlain LiftMaster TAC2C installation guide

IntelliSense

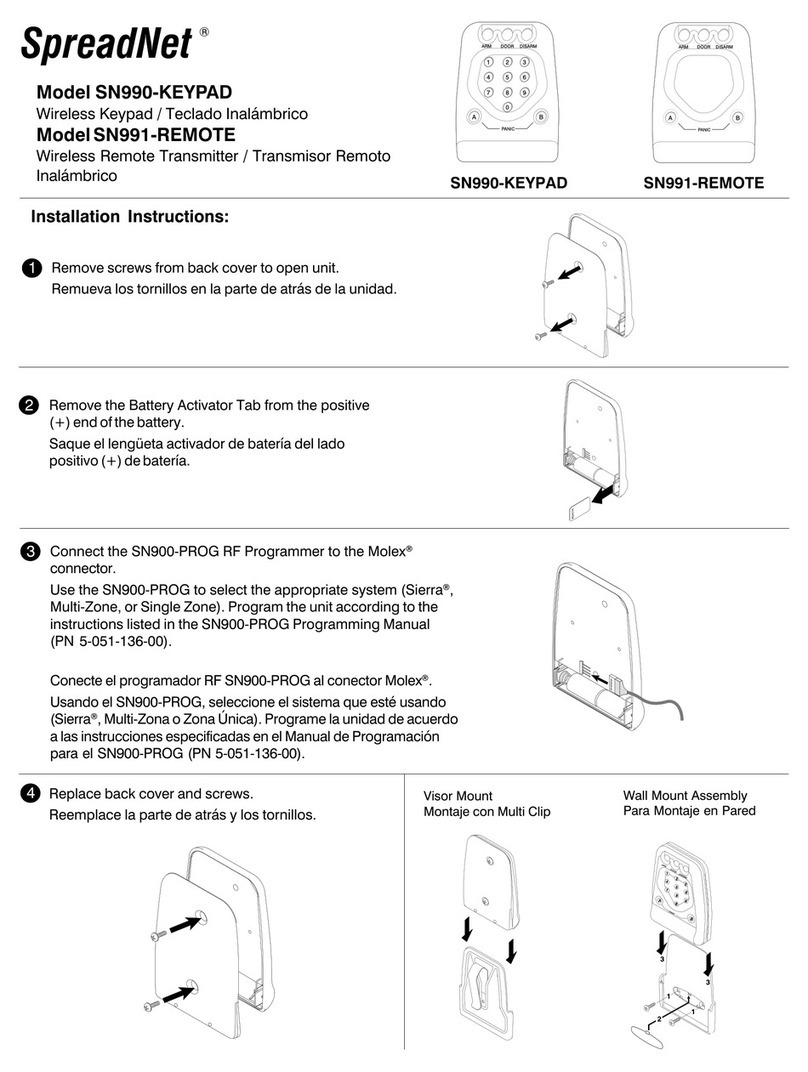

IntelliSense SpreadNet SN991-REMOTE installation instructions

Trust
Trust KP-2100P manual

AES global
AES global SnapCOM PRIME Cellular Series Installation & user's instructions

Satel
Satel INT-SF manual

Universal Remote Control
Universal Remote Control Total Control TKP-7000 owner's manual

Invertek Drives
Invertek Drives OPTIPAD user guide

urmet domus
urmet domus alha 1168/49 installation manual

Ortek
Ortek MS9600-02 user manual

Security Command
Security Command Executive series user guide

Vasco
Vasco DigiPass 270 user guide
