NEUTRIK xirium pro User manual

User Manual
Applies to XIRIUM PRO European devices

2
User Manual – XIRIUM PRO®EU |BDA 494E 2017/07
Imprint
Subject to change due to technical advances! This user manual corresponds to the level of
technology at the time the product was delivered and not the current stage of development at
Neutrik.
If any pages or sections of this user manual are missing, please contact the manufacturer at the
address listed below.
Copyright
This user manual is protected by copyright. The user manual must not be duplicated, reproduced,
microlmed or translated, or converted to be saved and processed in EDP systems, neither as
excerpts nor in full, without the express written authorization of Neutrik.
Copyright by: © Neutrik® AG
Manufacturer
Neutrik®AG
Im alten Riet 143
9494 Schaan
Liechtenstein
T: [phone]
F: [phone]
E: [e-mail]
www.neutrik.com
Document identification
Document No: BDA 494E - V4
Version: 2017/07
cThis user manual applies to firmware 3.1 and app version 3.1!
Language: English
Original language: German
Each user manual in a different language is a translation of the operating manual in German.

3
User Manual – XIRIUM PRO®EU |BDA 494E 2017/07
Table of contents
1 About this document ..............................................4
1.1 Signicance of the user manual .............................4
1.2 Designation ..........................................................4
1.3 Explanation of symbols .........................................5
1.3.1 Symbols in illustrations ....................................5
1.4 Target group .........................................................5
2 Safety ........................................................................6
2.1 Warning information and signal words ..................6
2.2 Warning symbols ..................................................6
2.3 Important regulatory notes ...................................7
2.3.1 Radio frequency radiation exposure informa-
tion .........................................................................7
2.3.2 Declaration of conformity ...............................7
2.4 Important safety instructions.................................8
2.5 Proper use ............................................................9
2.6 Foreseeable improper use .....................................9
3 Components and accessories ................................10
3.1 XIRIUM PRO components....................................10
4 Description of product ..........................................12
4.1 XIRIUM PRO base station..................................... 12
4.2 Modules ............................................................. 13
4.2.1 TX modules...................................................13
4.2.2 RX modules .................................................. 13
4.3 XIRIUM PRO app.................................................14
4.3.1 Overview of operation elements....................14
4.3.2 Links/Overview page.....................................16
4.3.3 Edit page ......................................................17
4.3.4 Settings page................................................20
4.3.5 Help page.....................................................21
4.4 Getting started ...................................................22
4.4.1 App ..............................................................23
4.4.2 Repeater.......................................................23
4.4.3 Signal quality bar ..........................................23
4.4.4 XROC mode .................................................25
4.4.5 Antennas ......................................................25
4.4.6 Remote antennas..........................................27
4.4.7 Antenna combinations ..................................27
4.4.8 Line-of-sight and redundant RF path.............29
4.4.9 Antenna height + distance ...........................29
4.5 Selecting transmission channels ..........................30
4.5.1 Automatic selection of transmission channels ...30
4.5.2 Manual selection of transmission channels....30
5 Operation ...............................................................31
5.1 Setting devices into operation .............................31
5.2 Setting up the transmission path.........................32
5.3 Installing and starting the app.............................33
5.4 Connecting devices with the app ........................33
5.4.1 Connecting devices in stand-alone mode ......33
5.4.2 Connecting devices in network mode ...........34
5.5 Arranging the radio transmission path.................37
5.6 Conguring the device parameters......................38
5.7 Editing system settings........................................41
5.7.1 System Reset .................................................41
5.7.2 Advanced Mode ...........................................42
5.8 Setting up and mounting the XIRIUM PRO
system................................................................43
5.8.1 Positioning the devices..................................43
5.8.2 Positioning the repeater................................44
5.8.3 Systems with several transmitters ..................44
5.8.4 Fastening and securing XIRIUM PRO devices...45
5.9 Updating rmware..............................................46
5.9.1 Installing the XIRIUM PRO Firmware Upgrade
Manager................................................................46
5.9.2 Executing a rmware upgrade ......................47
5.9.3 Uninstalling the XIRIUM PRO Firmware Upgrade
Manager................................................................49
6 Troubleshooting.....................................................50
7 After operation ......................................................51
7.1 Dismounting devices............................................51
7.2 Transporting........................................................51
7.3 Storage ...............................................................51
7.4 Cleaning and care ............................................... 51
7.5 Maintenance and repair....................................... 51
7.6 Disposal ..............................................................52
8 Appendix ................................................................53
8.1 Integrating DANTE ..............................................53
8.1.1 Introduction to DANTETM ...............................53
8.1.2 Enabling a DANTETM link................................53
8.2 Access point settings ..........................................54
8.2.1 Recommended settings.................................54
8.2.2 List of responsible authorities .......................54
8.3 Technical specications .......................................56

4
User Manual – XIRIUM PRO®EU |BDA 494E 2017/07
About this document
1 About this document
This user manual provides an overview of the necessary operation steps and settings of the product.
1.1 Significance of the user manual
This user manual is an integral component of the product and part of the product's safety
concept.
cMake sure that all persons who work with the product have fully read and also
understood this user manual.
cObserve all instructions exactly, especially the safety instructions.
This user manual contains important information for operating and maintaining the product
and troubleshooting minor problems safely and properly on your own.
cKeep this user manual in the immediate vicinity of the product so personnel have access
to it at all times.
cPass this user manual on to every user, e.g., by lending it, or to the future owner of the product.
cIf this user manual is lost or damaged, a copy of the operating manual
can be downloaded from the Neutrik's home page (www.neutrik.com).
1.2 Designation
Designation Explanation
XIRIUM PRO System All components:
XIRIUM PRO base stations, XIRIUM PRO modules, cables, plugs, antennas
XIRIUM PRO base
station
XIRIUM PRO TX (transmitter) without module, short TX
XIRIUM PRO RX (receiver) without module, short RX
XIRIUM PRO module Exchangeable module for the XIRIUM PRO base station
XIRIUM PRO device XIRIUM PRO base station with module plugged-in
XROC mode Extreme Ruggedized One Channel mode for a secure connection in
extreme situations.
Peripheral devices All devices which can be connected with each other via the XIRIUM PRO
devices: audio sources (transmitters) and audio sinks (receivers)
Audio source All devices which emit a signal
Audio sink All devices which receive the audio signals, e.g., loudspeakers, audio
systems (ampliers, mixing consoles, etc.)
Transmission path Wireless connection between the XIRIUM PRO devices.
A transmission path consists of 1 TX, 1 repeater (optional) and at least
1 RX.
Network All devices used which are connected to the app via an access point.

5
User Manual – XIRIUM PRO®EU |BDA 494E 2017/07
About this document
1.3 Explanation of symbols
In order to make this user manual easier to understand, uniform safety instructions, symbols, terms
and abbreviations were used. The following symbols designate instructions which are not relevant to
safety, yet make it easier to understand the operating manual.
^The preconditions for an action are depicted with this symbol. Complete the specied items
before carrying out the action steps which follow.
cAction steps are designated by this symbol. Carry out the action steps in the order they are
presented.
(The result of the action or the reaction of the product to the action are depicted with this
symbol.
•Lists without a mandatory sequence are presented as a list with this bullet.
1. Numbered listings are displayed in this manner.
(1) Refers to a position in an illustration.
Texts in this color designate elements on the app surface.
Wherever you see this symbol, you will nd useful information for safe, trouble-free operation
of the product.
1.3.1 Symbols in illustrations
Symbol Explanation
Image position
Action steps numbered in an illustration.
Carry out the action steps in the order they are presented.
Only carry out these tasks when using an Apple iPad.
Only carry out these tasks when using an Android tablet.
1.4 Target group
This user manual is directed to sound engineers and professional personnel who have detailed expe-
rience in the sound and event technology.
Personnel who are in training must only work with this device under the supervision of experienced
persons.
1
1

6
User Manual – XIRIUM PRO®EU |BDA 494E 2017/07
Safety
2 Safety
2.1 Warning information and signal words
Special warning information regarding potential dangers inherent in a particular action are presented
before instructions for an action. The warnings are ranked as follows:
DANGER
Immediate threat of danger!
This type of warning points out a situation which would result in death or severe injuries.
cIf this warning is not heeded, the threat of death or serious injuries is imminent.
WARNING
Possible threat of danger!
This type of warning points out a situation which could result in death or severe injuries.
cIf this warning is not heeded, the threat of death or serious injuries might be imminent.
CAUTION
Possible threat of danger!
This type of warning points out a situation which could result in minor or moderate injuries.
cIf this warning is not heeded, minor injuries may result.
NOTICE
Possible threat of property damage!
This type of warning points out a situation which could result in damage to the device and its
components.
cIf this warning is not heeded, property damage may result.
2.2 Warning symbols
Symbol Warning
General warning
Warning of hearing impairment
Danger of electric shock

7
User Manual – XIRIUM PRO®EU |BDA 494E 2017/07
Safety
2.3 Important regulatory notes
This equipment has been tested and found to comply with the limits for a Class B digital device, pur-
suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is en-
couraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
NOTICE
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause
undesired operation.
NOTICE
Changes or modications made to this equipment not expressly approved by Neutrik may void
the FCC authorization to operate this equipment.
NOTICE
This device must be professionally installed.
2.3.1 Radio frequency radiation exposure information
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environ-
ment. This equipment should be installed and operated with minimum distance of 0,65 ft (20 cm)
between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or trans-
mitter.
2.3.2 Declaration of conformity
Hereby, Neutrik AG declares that this XIRIUM PRO device is in compliance with the essential require-
ments and other relevant provisions of Directive 1999/5/EC. The Declaration of Conformity may be
consulted at www.neutrik.com/en/approvals-and-certicates.

8
User Manual – XIRIUM PRO®EU |BDA 494E 2017/07
Safety
2.4 Important safety instructions
WARNING
Risk of fire or electric shock!
cTo reduce the risk of re or electric shock, do not expose this device to rain or moisture and do
not set any objects containing liquids on this apparatus.
WARNING
Danger of fire and explosion due to overheated battery!
cDo not expose batteries or battery pack to excessive heat such as re or other heat sources.
•To completely disconnect this apparatus from AC mains, disconnect the power supply cord plug
from the AC socket.
•Keep the mains plug of the power supply cord readily accessible.
Avoid property damage to the XIRIUM PRO devices due to unsuitable operating and environmental
conditions:
•Never immerse in water.
•Protect from strong sunlight.
•Never install the device near heat sources such as radiators, heating units, ovens or stoves.
•Never cover the device, to avoid overheating.
•Protect the device from impact and above all, from falling from poles, stages, tables or furniture.
•Always set up and fasten the device as shown in Section "5.8.4 Fastening and securing XIRIUM
PRO devices" on page 45.
Repair
DANGER
Danger of injury or electric shock and property damage due to improper repair!
The XIRIUM PRO devices do not contain any parts which you can repair yourself. Opening or re-
pairing the devices on your own can lead to severe damage to the devices and electrical shock or
injuries to the operator.
cDo not open the housing of XIRIUM PRO devices under any circumstances.
cDo not exchange any parts yourself.
cOnly have XIRIUM PRO devices repaired by a authorized specialist dealer.
Electrical connection
DANGER
Danger of electric shock when connecting to or disconnecting from a power grid!
cOnly connect the devices to mains sockets installed by authorized electricians.
cDo not handle the devices with moist or wet hands under any circumstances.
cMake sure the specied mains voltage and mains frequency agree with the values of the
power grid.
cOnly use the delivered power supply cable for connecting to the socket.
cDuring storms or whenever there is a danger of power uctuations, switch off the device and
separate from the power grid.
cEnsure that the power supply cable is not kinked, hung over sharp edges or allowed to contact
hot surfaces during operation.
cDo not use the devices if there is interference or damage to the devices, displays or
accessories.

9
User Manual – XIRIUM PRO®EU |BDA 494E 2017/07
Safety
Information for operation
cEnsure that the ambient conditions specied for XIRIUM PRO are observed during operation.
cDo not use the XIRIUM PRO devices if they are not functioning properly, have fallen or been
damaged, have become wet or if parts of the devices have been immersed in water.
cIf disruptions occur during operation:
Immediately switch off the XIRIUM PRO devices and disconnect them from the power grid.
cDo not operate the XIRIUM PRO devices in environments where ammable or explosive
materials, gases or vapors are present or could occur.
2.5 Proper use
The XIRIUM PRO devices are intended for signal transmission between an audio source and an audio
sink in accordance with the technical specications.
2.6 Foreseeable improper use
The XIRIUM PRO devices are not suitable for use in potentially explosive atmospheres.

10
User Manual – XIRIUM PRO®EU |BDA 494E 2017/07
Components and accessories
3 Components and accessories
3.1 XIRIUM PRO components
The components and accessories are ordered individually.
2
12 13
14 15 16 17
18 19
1
67
3 4
9
10 11
8
5

11
User Manual – XIRIUM PRO®EU |BDA 494E 2017/07
Components and accessories
Pos. Description Article no.
1 TX base station*
(TX base station, XIRIUM PRO USB data cable, ManfrottoTM universal
mounting clamp, 5 GHz antenna, 2.4 GHz antenna)
NXP2TX-E
2 RX base station*
(RX base station, XIRIUM PRO USB data cable, ManfrottoTM universal
mounting clamp, 2.4 GHz antenna)
NXP2RX-E
3TX modules
•TX module analog*
•TX module AES*
•TX module DANTE*
NXP-TM-ANA-E
NXP-TM-AES-E
NXP-TM-DANTE-E
4RX modules
•RX module analog*
•RX module AES*
•RX module DANTE*
•Repeater module*
NXP-RM-ANA-E
NXP-RM-AES-E
NXP-RM-DANTE-E
NXP-RM-RP-E
55 GHz antenna 6 dBi 360°H 25°V, for transmitter and repeater NXPA-6-360-25
65 GHz antenna 14 dBi 40°H 35°V, for receiver if no repeater module is
inserted!
NXPA-14-40-35
7 2.4 GHz omnidirectional antenna for connecting app NXPA-WIFI
85 GHz directional antenna (for remte setup) 18 dBi 18°H 18°V, for
receiver if no repeater module is inserted! (cable not included!)
NXPA-18-18-18
95 GHz omnidirectional antenna 2 dBi 360°H 360°V, for repeater
setups with different antenna heights (see page 26)
NXPA-2-360
10 Antenna cable S04162B, N type connectors, 5 m, 4 dB attenuation NKXPA-5
11 N Adapter female female, for remote TX antenna (cable not icluded!) NXPA-N-FF
12 ManfrottoTM universal mounting clamp NXUC-M-15
13 Mounting arm for XIRIUM PRO antennas (NXPA-14-14-35, NXPA-18-
18-18, NXPA-6-360-25), compatible with ManfrottoTM clamp
NXPMA
14 Power cable XIRIUM PRO, 3 m, type F NKXPF-F-3
15 Power cable XIRIUM PRO, 3 m, type G NKXPF-G-3
16 Power cable XIRIUM PRO, 3 m, type J NKXPF-J-3
17 XIRIUM PRO data cable NKXP-DATA
18 Flight case with foam cut-outs to hold 2x base stations (not included) CAS-NXP
19 Hard case (trolley) with foam cut-outs to hold 3 devices (not included) CAS-NXP-T
* Power cables have to be ordered seperately!

12
User Manual – XIRIUM PRO®EU |BDA 494E 2017/07
Description of product
11 66 78 22
Pos. Designation
15 GHz antenna connector with 5 GHz
antenna
The antenna transmits the signals between the
XIRIUM PRO devices.
22.4 GHz antenna connector (reverse SMA)
with 2.4 GHz antenna
Transmits control data via WIFI
3Housing
Extruded aluminum housing
4Lug
Safety lug for additional fall arresting
5Bolt
Adapter for mounting with a ManfrottoTM clamp
6On/off switch
Powering the device ON/OFF, LED indication
LED display:
•LED off: Device off or powering up.
•LED solid green: Device powerd-on and battery
level is between 20 % and 100 %.
•LED slow-ash green: Device powerd-on and
battery is charging.
•LED solid red: Firmware update active.
•LED slow-ash red: Device identication
activated from app by pressing the Identify
Device button.
•LED quick-ash red: Battery level is below
20 %.
4 Description of product
4.1 XIRIUM PRO base station
ON/OFF LINK push 1s
XROC push 4s
ON/OFF LINK push 1s
DELAY push 4s
ON/OFF LINK push 1s
XROC push 4s
ON/OFF LINK push 1s
DELAY push 4s
TX, top view
Bottom view
RX, top view
Pos. Designation
7TX link button
Linking devices, switching XROC mode ON/OFF
•Push and release: Start/stop LINK process
•Hold 4 sec: Toggle XROC mode ON/OFF
LED display:
•LED off: TX not transmitting audio signal.
•LED solid blue: TX transmitting audio signal.
•LED quick-ash blue: Device is activated for
linking process.
•LED slow-ash blue: XROC mode set to ON.
8RX link button
Linking devices; switching delay ON/OFF
•Push and release: Start/stop LINK process.
•Hold 4 sec: Toggle delay ON/OFF.
•Hold 8 sec: Set RF attenuator to "off"
LED display:
•LED off: RX not receiving audio signal.
•LED solid blue: RX receiving audio signal.
•LED quick-ash blue: Device is activated for
linking process.
•LED slow-ash blue: Delay set to ON.
9Type plate
With serial number, SSID and WLAN password
10 D-Sub connector
Interface between base station and module.
11 USB port
USB connection for rmware update
AES
RX
LIECHTENSTEIN
OUT
13 2
EBU
/
RX
LIECHTENSTEIN
LINE
OUT 1 (XROC) OUT 2
13 2 13 2
DANTE
C6
A
RX
LIECHTENSTEIN
OUT
C6
A
TX
LIECHTENSTEIN
IN
AES
12
3
EBU
/
PUSH
DANTE
C6
A
TX
LIECHTENSTEIN
IN
C6
A
REPEATER
RX
LIECHTENSTEIN
TX
LIECHTENSTEIN
IN 2
IN 1 (XROC)
LINE
12
3
PUSH
12
3
PUSH
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz
1
2
3
4
5
10911

13
User Manual – XIRIUM PRO®EU |BDA 494E 2017/07
Description of product
4.2 Modules
TX AES module
RX DANTE moduleRX analog module
Repeater module
RX AES module
TX DANTE moduleTX analog module
Top view Bottom view
4.2.2 RX modules
4.2.1 TX modules
AES
RX
LIECHTENSTEIN
OUT
1 3 2
EBU
/
RX
LIECHTENSTEIN
LINE
OUT 1 (XROC) OUT 2
1 3 2 1 3 2
DANTE
C6
A
RX
LIECHTENSTEIN
OUT
C6
A
TX
LIECHTENSTEIN
IN
AES
12
3
EBU
/
PUSH
DANTE
C6
A
TX
LIECHTENSTEIN
IN
C6
A
REPEATER
RX
LIECHTENSTEIN
TX
LIECHTENSTEIN
IN 2
IN 1 (XROC)
LINE
12
3
PUSH
12
3
PUSH
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz
AES
RX
LIECHTENSTEIN
OUT
1 3 2
EBU
/
RX
LIECHTENSTEIN
LINE
OUT 1 (XROC) OUT 2
1 3 2 1 3 2
DANTE
C6
A
RX
LIECHTENSTEIN
OUT
C6
A
TX
LIECHTENSTEIN
IN
AES
12
3
EBU
/
PUSH
DANTE
C6
A
TX
LIECHTENSTEIN
IN
C6
A
REPEATER
RX
LIECHTENSTEIN
TX
LIECHTENSTEIN
IN 2
IN 1 (XROC)
LINE
12
3
PUSH
12
3
PUSH
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz
AES
RX
LIECHTENSTEIN
OUT
1 3 2
EBU
/
RX
LIECHTENSTEIN
LINE
OUT 1 (XROC) OUT 2
1 3 2 1 3 2
DANTE
C6
A
RX
LIECHTENSTEIN
OUT
C6
A
TX
LIECHTENSTEIN
IN
AES
12
3
EBU
/
PUSH
DANTE
C6
A
TX
LIECHTENSTEIN
IN
C6
A
REPEATER
RX
LIECHTENSTEIN
TX
LIECHTENSTEIN
IN 2
IN 1 (XROC)
LINE
12
3
PUSH
12
3
PUSH
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz
AES
RX
LIECHTENSTEIN
OUT
1 3 2
EBU
/
RX
LIECHTENSTEIN
LINE
OUT 1 (XROC) OUT 2
1 3 2 1 3 2
DANTE
C6
A
RX
LIECHTENSTEIN
OUT
C6
A
TX
LIECHTENSTEIN
IN
AES
12
3
EBU
/
PUSH
DANTE
C6
A
TX
LIECHTENSTEIN
IN
C6
A
REPEATER
RX
LIECHTENSTEIN
TX
LIECHTENSTEIN
IN 2
IN 1 (XROC)
LINE
12
3
PUSH
12
3
PUSH
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz
AES
RX
LIECHTENSTEIN
OUT
1 3 2
EBU
/
RX
LIECHTENSTEIN
LINE
OUT 1 (XROC) OUT 2
1 3 2 1 3 2
DANTE
C6
A
RX
LIECHTENSTEIN
OUT
C6
A
TX
LIECHTENSTEIN
IN
AES
12
3
EBU
/
PUSH
DANTE
C6
A
TX
LIECHTENSTEIN
IN
C6
A
REPEATER
RX
LIECHTENSTEIN
TX
LIECHTENSTEIN
IN 2
IN 1 (XROC)
LINE
12
3
PUSH
12
3
PUSH
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz
AES
RX
LIECHTENSTEIN
OUT
1 3 2
EBU
/
RX
LIECHTENSTEIN
LINE
OUT 1 (XROC) OUT 2
1 3 2 1 3 2
DANTE
C6
A
RX
LIECHTENSTEIN
OUT
C6
A
TX
LIECHTENSTEIN
IN
AES
12
3
EBU
/
PUSH
DANTE
C6
A
TX
LIECHTENSTEIN
IN
C6
A
REPEATER
RX
LIECHTENSTEIN
TX
LIECHTENSTEIN
IN 2
IN 1 (XROC)
LINE
12
3
PUSH
12
3
PUSH
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz
AES
RX
LIECHTENSTEIN
OUT
1 3 2
EBU
/
RX
LIECHTENSTEIN
LINE
OUT 1 (XROC) OUT 2
1 3 2 1 3 2
DANTE
C6
A
RX
LIECHTENSTEIN
OUT
C6
A
TX
LIECHTENSTEIN
IN
AES
12
3
EBU
/
PUSH
DANTE
C6
A
TX
LIECHTENSTEIN
IN
C6
A
REPEATER
RX
LIECHTENSTEIN
TX
LIECHTENSTEIN
IN 2
IN 1 (XROC)
LINE
12
3
PUSH
12
3
PUSH
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz
AES
RX
LIECHTENSTEIN
OUT
1 3 2
EBU
/
RX
LIECHTENSTEIN
LINE
OUT 1 (XROC) OUT 2
1 3 2 1 3 2
DANTE
C6
A
RX
LIECHTENSTEIN
OUT
C6
A
TX
LIECHTENSTEIN
IN
AES
12
3
EBU
/
PUSH
DANTE
C6
A
TX
LIECHTENSTEIN
IN
C6
A
REPEATER
RX
LIECHTENSTEIN
TX
LIECHTENSTEIN
IN 2
IN 1 (XROC)
LINE
12
3
PUSH
12
3
PUSH
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz
AES
RX
LIECHTENSTEIN
OUT
1 3 2
EBU
/
RX
LIECHTENSTEIN
LINE
OUT 1 (XROC) OUT 2
1 3 2 1 3 2
DANTE
C6
A
RX
LIECHTENSTEIN
OUT
C6
A
TX
LIECHTENSTEIN
IN
AES
12
3
EBU
/
PUSH
DANTE
C6
A
TX
LIECHTENSTEIN
IN
C6
A
REPEATER
RX
LIECHTENSTEIN
TX
LIECHTENSTEIN
IN 2
IN 1 (XROC)
LINE
12
3
PUSH
12
3
PUSH
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz
AES
RX
LIECHTENSTEIN
OUT
1 3 2
EBU
/
RX
LIECHTENSTEIN
LINE
OUT 1 (XROC) OUT 2
1 3 2 1 3 2
DANTE
C6
A
RX
LIECHTENSTEIN
OUT
C6
A
TX
LIECHTENSTEIN
IN
AES
12
3
EBU
/
PUSH
DANTE
C6
A
TX
LIECHTENSTEIN
IN
C6
A
REPEATER
RX
LIECHTENSTEIN
TX
LIECHTENSTEIN
IN 2
IN 1 (XROC)
LINE
12
3
PUSH
12
3
PUSH
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz
100-240V~ 0.5A50-60Hz100-240V~ 0.5A50-60Hz
1
2
3
3 1 564
Pos. Description
1D-Sub connector
interface between base station and module
2Module with integrated battery
3Locking bolt
4LED charging indicator
•Flashes green: Battery charging.
•Lit green: Battery fully charged.
Pos. Description
5Audio IN (TX), audio OUT (RX)
(different connections depending on module)
6powerCON TRUE1 chassis
for XIRIUM PRO power cable

14
User Manual – XIRIUM PRO®EU |BDA 494E 2017/07
Description of product

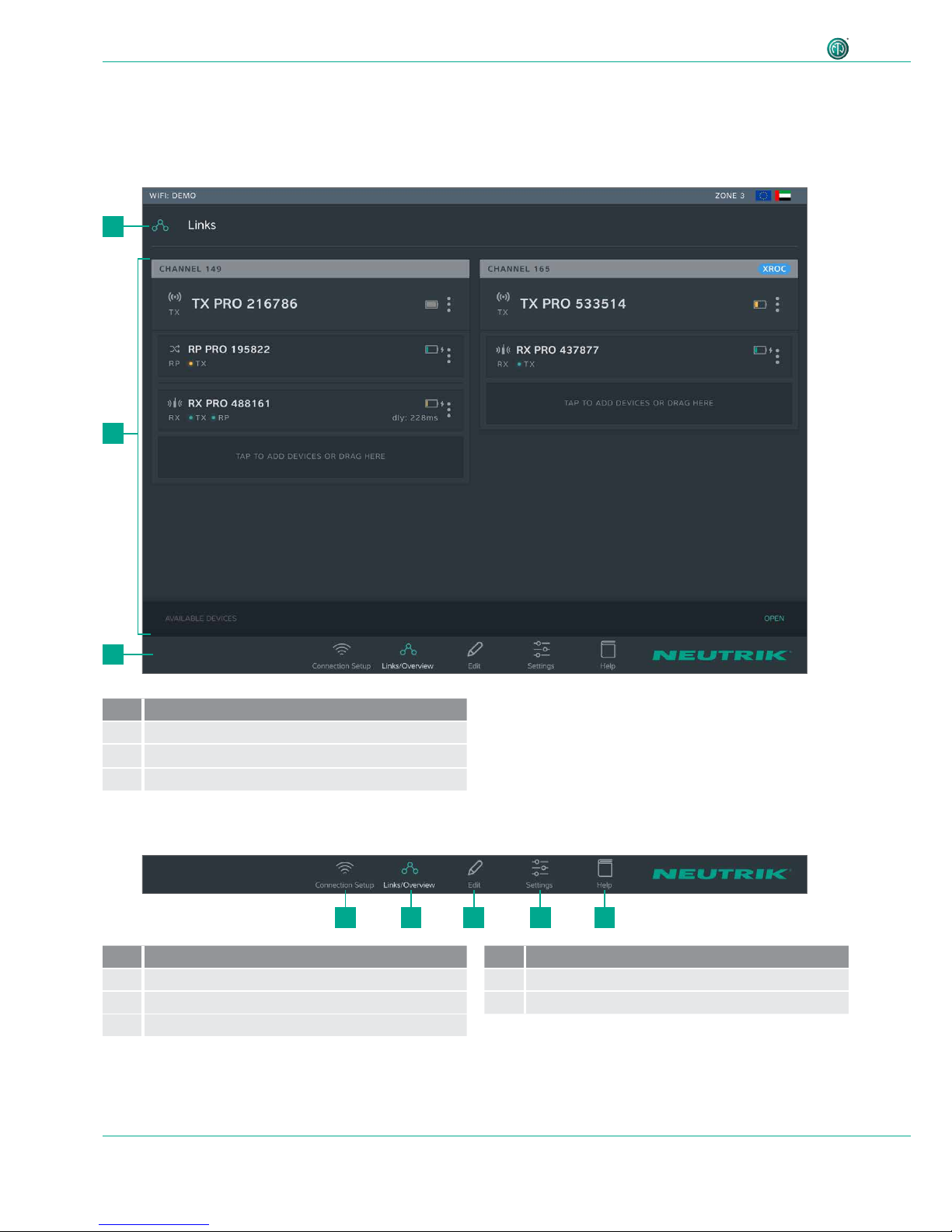

4.3 XIRIUM PRO app
The XIRIUM PRO app enables convenient operation and control of the devices from a tablet.
4.3.1 Overview of operation elements
2
3
21 3 4 5
1
Pos. Description
1Page title
2Operation and display area
3 Navigation bar
Navigation bar
Pos. Description
1Connection setup button
2Links/Overview button
3Edit button
Pos. Description
4Settings button
5Help button
•Tapping a button opens the associated page.
•When the page is active, the pictogram is green and the text is white.

15
User Manual – XIRIUM PRO®EU |BDA 494E 2017/07
Description of product
Symbols in the app
Symbol Description
The displayed device is a TX.
The displayed device is a RX with a repeater module.
The displayed device is a RX.
The battery level is between 40 % and 100 %.
The battery level is below 40 %.
The battery level is below 20 %. Connect the device to the mains supply.
Animated display: Battery is charging.
The signal quality received from the TX is good, which refers to a proper RSSI level and
a low packet loss.
The signal quality received from the TX is critical. This is either due to a critical
RSSI level or a critical packet loss.
On Edit page the signal quality bar is monitored in detail.
The signal quality received from the TX is bad. This is either due to a bad RSSI level or
a high packet loss.
On Edit page the signal quality bar is monitored in detail.
The signal quality received from the RP is good, which refers to a proper RSSI level and
a low packet loss.
The signal quality received from the RP is critical. This is either due to a critical
RSSI level or a critical packet loss.
On the Edit page the signal quality bar is monitored in detail.
The signal quality received from the RP is bad. This is either due to a bad RSSI level or
a high packet loss.
On the Edit page the signal quality bar is monitored in detail.
Display device options button
Tapping this button opens the options menu.
Indicates that a message with information is pending for this device. The information is
displayed in plain text on the Edit page of the selected device.
Mute icon: Indicates, if RX is muted
Zone indicator: Displays to which country settings the devices in use are programmed.
Advanced mode indicator: Displays, if advanced mode is switched ON.
LOW Device temperature is LOW.
HIGH Device temperature is HIGH.
Delay indicator: Indicates in the Links / Overview window if the delay on a RX is
switched on.
RF attenuation indicator: Indicates in the Links / Overview window if the RF
attenuation on a RX is switched on.

16
User Manual – XIRIUM PRO®EU |BDA 494E 2017/07
Description of product
Pos. Description
1Transmission path
This grouping displays all devices that are in one
RF channel
2Transmission channel
3XROC indicator
Is displayed when XROC mode is active for the
RF channel
4TX display
1 TX is needed for each transmission path
5Repeater display
As an option, repeaters may be used.
A maximum 1 repeater per RF channel is possible.
•The display is highlighted in red when there is a
poor connection to the TX, or none at all.
Pos. Description
6RX display
Each eld represents one device.
A minimum 1 RX is needed for each transmission
path.
•The display is highlighted in red when there is a
poor connection to the TX, or none at all.
7Button for adding devices to transmission
path
•Add a device: Use drag&drop to add a device
from AVAILABLE DEVICES.
•Add several devices: Tap button and select
device from AVAILABLE DEVICES.
8AVAILABLE DEVICES
Displays all available devices which have not yet
been assigned to a transmission path.
Tapping OPEN/CLOSE opens/closes the display.
4.3.2 Links/Overview page
All devices that were added to the network via an access point are displayed on this page. The devic-
es are grouped according to transmission path. Each transmission path is assigned to one transmis-
sion channel. In stand-alone mode, the Links/Overview page is inactive.
3
2
4
5
6
7
8
1

17
User Manual – XIRIUM PRO®EU |BDA 494E 2017/07
Description of product
Device options menu
Description
Identify Device
Tap the button to identify a single device: The
power LED of the device slowly ashes red for about
10 seconds.
Show Broadcast Units
Tap the button: The power LEDs of all devices which are
assigned to the same channel slowly ash red for about
10 seconds.
Edit Device
Opens the Edit Device page so all properties of the
device can be edited.
Reset Device
Reset device properties to factory state
4.3.3 Edit page
Edit TX
9
10
5
6
1 2 3 4
78

18
User Manual – XIRIUM PRO®EU |BDA 494E 2017/07
Description of product
Pos. Description
1Filter devices drop-down menu
Only the devices that meet the lter criteria are
displayed.
•All Devices: List all devices.
•Low Battery: Only list devices on which the
battery is weak.
•Out of Range: Only list devices that receive a
poor signal, or none at all.
2Sorting drop-down menu
Species the criteria for sorting the devices.
•Channel: Devices are sorted according to
channel.
•Type: Devices are sorted according to type.
3Device Name
Displays the device name entered by the user.
4Note
Contains useful information for safe, trouble-free
operation.
5Device Properties
•Device Type: Device is a TX.
•Interface: Indicates the module being used.
•Device Temperature: Indicates the temperature
of the device (low, ok or high)
•Channel: Indicates the channel the device is
transmitting on.
•Battery: Indicates the battery charge status
in %.
•XROC: Indicates whether the XROC mode is
ON/OFF.
Pos. Description
6Adjustable properties
Tapping on a property opens the associated sub-
page.
•Name: Opens the page for changing the device
name.
•Channel: Opens the page for changing the
transmission channel.
•XROC: Tapping this button toggles the
XROC mode ON/OFF.
•Info & Settings: Opens a page with information
about the device.
7Reset Device button
Resets the device to factory state.
8Identify Device button
The power LED of the device selected will slowly
ash for about 10 seconds.
9Overview of the connected devices
Lists all connected devices according the set lter
and sorting criteria.
The selected device is marked with a green bar
and a dark background.
10 Name of access point used
In standalone mode the Allow link button is shown on the Edit page. Tapping the Allow link button starts the
connection process of the TX.

19
User Manual – XIRIUM PRO®EU |BDA 494E 2017/07
Description of product
Edit RX
1
2
Pos. Description
1Device properties
•Device Type: Indicates that the device is an RX.
(for RX with repeater module: RP)
•Interface: Indicates the module being used.
•Channel: Indicates the channel the device is
assigned to.
•Battery: Indicates the battery level in %.
•XROC: Indicates whether the transmission path
of the XROC mode is ON/OFF.
•Signal quality: Indicates the signal quality
of the signals received from the TX and/or
repeater. Signal quality is a combination of RSSI
Level and packet loss.
•Delay: Indicates the set delay time in
milliseconds, feet or meters, or indicates the
delay is off.
Pos. Description
2Settable properties
Tapping on a property opens the associated sub-
page.
•Name: Opens the page for changing the device
name.
•Delay: Tap the button to activate/deactivate
the delay.
•Delay Time: Opens the page for setting the
delay time.
•Mute: Mutes RX output
•Info & Settings: Opens a page with information
about the device.
In standalone mode the Link button is shown on page Edit. Tapping the Link button links this RX to the TX.

20
User Manual – XIRIUM PRO®EU |BDA 494E 2017/07
Description of product
4.3.4 Settings page
Pos. Description
1Advanced Mode
Tap the button to activate / deactivate Advanded
Mode (page 40)
2Enter service code button
Opens entry eld for service code
(only for service personnel)
Pos. Description
3Reset System button
Tapping this button opens a window with reset
options.
2
3
1
