Bosch MIYN46 User manual

MIYN46 Wall Transmitter
970.035b | F.01U.278.521 | V2.0 | 2012.12
en User Manual US

MIYN46 Wall Transmitter | en 3
Bosch Security Systems User Manual US 970.035b | F.01U.278.521 | v2.0 | 2012.12
Table of Contents
1 Generalities 5
1.1 Resident Alert System 5
1.2 MIYN46 Wall Transmitter 5
2 Safety Instructions 6
2.1 Introduction 6
2.1.1 Principle 6
2.1.2 Importance of safety instructions 6
2.1.3 Disregarding safety rules 6
2.2 Environmental conditions 6
2.3 General safety instructions 7
2.3.1 Observation and information 7
2.4 Special safety instructions 7
3 Description 8
3.1 General description 8
3.1.1 Top view 8
3.2 Main functions 9
3.2.1 Red emergency call button 9
3.2.2 Blue assistance call button 9
3.2.3 Green acknowledgment button 9
3.2.4 Alarm signaling 9
4 Installation 10
4.1 Unpacking 10
4.1.1 List of contents 10
4.2 Installation 11
4.2.1 Generalities 11
4.2.2 Wall installation 11
4.2.3 Connecting to the power supply 12
4.2.4 Reset 12
4.2.5 Transmitter Identification 12
4.2.6 Operation Check 12
4.2.7 Replacing the battery 13
4.2.8 Configuration and Wiring 14
4.3 Inputs and Outputs 15
4.4 General inputs 15
4.5 Wired Outputs 15
4.6 Wired Inputs 15
4.7 General configuration 16
5Use 17
5.1 Call for Help 17
5.2 Call for Assistance 17
5.3 Call Acknowledgement (Staff Presence) 18

4en | MIYN46 Wall Transmitter
970.035b | F.01U.278.521 | v2.0 | 2012.12 User Manual US Bosch Security Systems
5.4 Reserve Call 18
5.5 Technical Alarm 18
5.6 Caregiver Arrival 18
5.7 Caregiver Departure 19
5.8 Daily Message and Battery Low Message 19
5.9 Error Message 19
6Operation 20
6.1 Description of the six different states 20
6.2 Legend of illustrations 21
6.3 Operation with the staff presence processing activated 21
6.3.1 Device behavior when pressing a button 21
6.4 Operation with the staff presence processing deactivated 24
6.4.1 Device behavior upon pressing a button 24
7Storage 25
7.1 Short term storage conditions 25
7.2 Long term storage conditions 25
8Disposal 26
8.1 Disassembly 26
8.2 Local disposal locations 26
8.3 Returning to the manufacturer 26
8.4 Materials 26
8.4.1 Battery 26
9 Appendix 27
9.1 Electrical specifications 27
9.2 Dimensions and weight 27
9.3 Operating temperature 27
9.4 FCC warning statement 27

MIYN46 Wall Transmitter Ge n e r a l i t i e s | e n 5
Bosch Security Systems User Manual US 970.035b | F.01U.278.521 | v2.0 | 2012.12
1 Generalities
1.1 Resident Alert System
Alarms and Messages arriving from Resident Alert System Transmitters such as the MIYN46
Wall Transmitter are managed and stored by the Main Unit.
1.2 MIYN46 Wall Transmitter
The MIYN46 Wall Transmitter is a multifunction terminal radio transmitter, designed for
residents and staff to make an emergency call, summon assistance or cancel a call directly in
the resident's room. It is part of a Resident Alert System, and is easily expandable.
In the Resident Alert System, the MIYN46 Wall Transmitter allows the resident of an
independent living or assisted living facility to easily alert the care personnel if needed. The
resident simply has to push the large red button. The system is then able to control and to
monitor the progress of the care personnel.
The alarm and event transmission is performed by radio. There is no need for a wired
connection between the MIYN46 Wall Transmitter and the Main Unit, this makes the system
installation easy and allows great mobility.
Depending on the model, two relay outputs are available and may be used to connect alarm
and staff presence indicators such as, for instance, the signal lamps installed above the door.
Two LED signal lamps allow the progress to be monitored on the device.
In this document you will find all the information you need for the installation and the use of
the MIYN46 Wall Transmitter.

6en | Safety Instructions MIYN46 Wall Transmitter
970.035b | F.01U.278.521 | v2.0 | 2012.12 User Manual US Bosch Security Systems
2 Safety Instructions
2.1 Introduction
2.1.1 Principle
2.1.2 Importance of safety instructions
Each safety and protection instruction in this manual must be adhered to in order to avoid
personnel injuries, property damages or environmental pollution.
In a similar manner, the legal bylaws, the measures in prevention of accidents and for the pro-
tection of the environment, as well as the recognized technical rules aiming at appropriate
and safe working conditions which as applied in the country and at the place of use of the
MIYN46 Wall Transmitter must be adhered to.
2.1.3 Disregarding safety rules
Disregarding the safety rules, as well as existing legal and technical regulations, may lead to
accidents, to property damages or to environmental pollution.
2.2 Environmental conditions
Install the MIYN46 Wall Transmitter in a dry place, away from any source of heat.
!
WARNING!
The User / Installer should read and understand this chapter before any intervention on the
MIYN46 Wall Transmitter.
i
NOTICE!
In case of unclear information, please contact your local representative.
!
WARNING!
The MIYN46 Wall Transmitter must not be located near a water tap or any other source of
water.
The electrical safety of the MIYN46 Wall Transmitter is only guaranteed if the electrical instal-
lation is in accordance with the national regulations and if this installation works properly.
The MIYN46 Wall Transmitter may not be used in buildings prone to fire and explosion haz-
ards.
!
CAUTION!
The MIYN46 Wall Transmitter may not be used under exposure to the direct sunlight, to heat,
to dust or to an excessive humidity (only use the equipment in a clean environment).
!
CAUTION!
Interferences
Avoid immediate proximity to other electric devices such as a television.

MIYN46 Wall Transmitter Safety Instructions | en 7
Bosch Security Systems User Manual US 970.035b | F.01U.278.521 | v2.0 | 2012.12
2.3 General safety instructions
1. Switch off the MIYN46 Wall Transmitter: take out the battery or remove the power supply.
2. Dry up the MIYN46 Wall Transmitter.
3. Clean the MIYN46 Wall Transmitter.
4. Check its electrical functions.
2.3.1 Observation and information
In case of defective operation or any other technical incident for which no remedy is
described in this manual, please contact immediately your local representative.
2.4 Special safety instructions
Appropriate safety instructions linked to specific risks are described in the corresponding
section of this manual.
!
DANGER!
During maintenance operations, when the MIYN46 Wall Transmitter is powered and its casing
is removed, the MIYN46 Wall Transmitter may not be left unattended.
!
CAUTION!
The MIYN46 Wall Transmitter may only be connected to the electrical sources as described in
Section 4.2 Installation, page 11.
!
CAUTION!
Maintenance and repairs may only be performed in accordance with the instructions and by
authorized technical personnel only. The sole possession of the User Manual US does not
allow the personnel to perform any kind of repair on the MIYN46 Wall Transmitter. Take into
account all the warnings and follow all the instructions displayed on the MIYN46 Wall Trans-
mitter and those which are printed in the documentation.Never try to use replacement pieces
other than those authorized by the manufacturer of the MIYN46 Wall Transmitter.
!
CAUTION!
It is mandatory to use the products specified in the present User Manual US to clean the
MIYN46 Wall Transmitter. If you plan to use another product, only do so after having obtained
the authorization of the manufacturer.
!
WARNING! Electro Static Discharge
The MIYN46 Wall Transmitter contains highly sensitive electronic components. It should be
opened only in an ESD protected environment with respect to the following precautions:
Discharge yourself from electrostatic loads by touching a grounded conductive surface
before opening the unit.
Avoid touching conductive parts inside the MIYN46 Wall Transmitter if not absolutely nec-
essary.
!
CAUTION!
Never let any liquid enter the system. In case of liquid spill inside the MIYN46 Wall Transmit-
ter, act immediately as follows:

8en | Description MIYN46 Wall Transmitter
970.035b | F.01U.278.521 | v2.0 | 2012.12 User Manual US Bosch Security Systems
3 Description
3.1 General description
3.1.1 Top view
Fig. 3.1 Top view
1. Red emergency call button
2. LED indicator for alarm
3. LED indicator for presence
4. Green acknowledgment button, to acknowledge an alarm locally.
5. Blue assistance call button
6. Socket for coded key insertion (option)
7. Installation compartment
8. Jack plug for pear-push button

MIYN46 Wall Transmitter Description | en 9
Bosch Security Systems User Manual US 970.035b | F.01U.278.521 | v2.0 | 2012.12
3.2 Main functions
The main function of the MIYN46 Wall Transmitter is to enable easier handling of emergencies
and help, directly from the resident’s room.
3.2.1 Red emergency call button
Its large red button with textured surface makes it easy to identify and to press, launching an
emergency call.
3.2.2 Blue assistance call button
If, upon arriving, the staff requires additional help, a call for assistance can be sent by
pressing the round blue button.
3.2.3 Green acknowledgment button
In all cases, there is an automatic call repetition until cancel of the call. Cancelling can be
made directly on the room transmitter with the smaller green button.
3.2.4 Alarm signaling
The presence and alarm LED indicators enhance the signaling of alarms.
The MIYN46 Wall Transmitter is easily expandable, as a socket for pear-push button is directly
accessible.

10 en | Installation MIYN46 Wall Transmitter
970.035b | F.01U.278.521 | v2.0 | 2012.12 User Manual US Bosch Security Systems
4 Installation
4.1 Unpacking
The MIYN46 Wall Transmitter is carefully packed for transportation. The components con-
tained in the box are protected, but should be handled with care. Store the packaging mate-
rial for further use (storage or transport).
1. Take the components out of the box and place the MIYN46 Wall Transmitter in front of
you.
2. Check each component in the box, in accordance with the list of contents below.
3. Check that the MIYN46 Wall Transmitter and its accessories have not been damaged dur-
ing transportation.
4.1.1 List of contents
i
NOTICE!
In case of defective or missing equipment, do not try to install the MIYN46 Wall Transmitter.
Contact immediately your local representative.
Description
MIYN46 Wall Transmitter
2 screws
2 screw anchors
1 CR2450 3V Lithium battery
User Manual US

MIYN46 Wall Transmitter Installation | en 11
Bosch Security Systems User Manual US 970.035b | F.01U.278.521 | v2.0 | 2012.12
4.2 Installation
4.2.1 Generalities
Install the MIYN46 Wall Transmitter in a dry place, away from any source of heat.
4.2.2 Wall installation
The MIYN46 Wall Transmitter can be fixed with two to five screws on a wall. Two holes at 2.4
inches (60 mm) interval are provided for direct mounting on connection boxes. The three
upper holes are used for positioning the device and cannot be reached from the installation
compartment.
!
CAUTION!
Interferences.
Avoid immediate proximity to other electric devices such as a television.
3.4 in (80 mm)
Ø0.3in
(7.5 mm)
2.2 in (53.8 mm)
0.51 in
(13.1 mm) 0.15 in
(3.7 mm)
0.63 in (16 mm)
0.26 in (6.6 mm)
2.36 in (59.9 mm)
1.06 in (27 mm)
0.71 in (18.1 mm)
5.16 in (131 mm)
0.08 in
(2 mm)
1.62 in
(26 mm) 0.15 in
(3.7 mm)

12 en | Installation MIYN46 Wall Transmitter
970.035b | F.01U.278.521 | v2.0 | 2012.12 User Manual US Bosch Security Systems
4.2.3 Connecting to the power supply
The MIYN46 Wall Transmitter can be powered by a lithium battery or/and an external 12-24
VDC power supply. If the device is powered with an external power supply, the battery is not
necessary, but it can be used as a backup power supply in case of power loss.
If the device is powered by the battery only, the battery life is about 2 years. However, it is
recommended to change the battery once a year.
If the device is powered by an external power supply and the battery is used as backup power
supply, it is recommended to check it at regular intervals (for instance once a year) and to
change it if necessary.
4.2.4 Reset
All parameters are reset when powering up the device (battery or external power supply). This
operation causes the synchronization of the daily message.
In order to perform a reset, make sure to remove both the battery and the external power sup-
ply, make a short-circuit on the two pins marked Reset before powering the device up again.
See Section Fig. 4.2 Configuration and Wiring, page 14.
4.2.5 Transmitter Identification
All MIYN46 Wall Transmitters are provided with their own radio identification code that is
assigned in the factory. During the installation, it is necessary to set the relationship between
the identification code of the Transmitter and the place where it is installed (floor/room/bed
or single number). This identification is programmed on the Main Unit (refer to the Main Unit
User Manual).
4.2.6 Operation Check
Once the transmitter has been installed and setup properly, it is recommended to check all
functionalities of the device. The radio transmission can be checked by sending an acknowl-
edgement call by pressing the green button.
!
CAUTION!
When powering the device, the external 12-24 VDC power supply must be equipped with a
setting off safety device, that is easy to access. The power supply must also be equipped with
a safety fuse of lower value, e.g. 100 or 125 mA.
i
NOTICE!
All connections as well as the configuration need to be carried out before powering the device
(insertion of the battery and/or application of the external power supply).

MIYN46 Wall Transmitter Installation | en 13
Bosch Security Systems User Manual US 970.035b | F.01U.278.521 | v2.0 | 2012.12
4.2.7 Replacing the battery
Procedure
1. Open the compartment cover (1) by sliding it downwards and then towards you.
2. Carefully remove the used battery (2).
3. Place the new battery. The positive terminal must be facing you.
4. Replace the compartment cover.
Fig. 4.1 Replacing the battery
!
WARNING!
– May explode if exposed to fire;
– Use only original batteries intended for use with your MIYN46 Wall Transmitter. Using
other type of batteries could be dangerous;
– Do not expose the battery to liquids;
– Do not let the metal contacts on the battery touch another metal. This could damage the
battery;
– Do not disassemble or modify the battery;
– Do not expose the battery to extreme temperatures, and never above 60 ºC (+140 ºF).
– For maximum battery capacity, use the battery at room temperature;
– Keep out of reach of children;
– Use the battery for the intended purpose only;
– Do not allow the battery to be put into the mouth. Battery electrolytes may be toxic if
swallowed.
!
CAUTION!
There is a risk of explosion if battery is replaced by a wrong type or if not connected correctly.
The battery should be replaced exclusively by Authorized Personnel.
Dispose of used batteries according to instructions and regulations.
Battery type is 3V CR2450/DL2450.
2
1

14 en | Installation MIYN46 Wall Transmitter
970.035b | F.01U.278.521 | v2.0 | 2012.12 User Manual US Bosch Security Systems

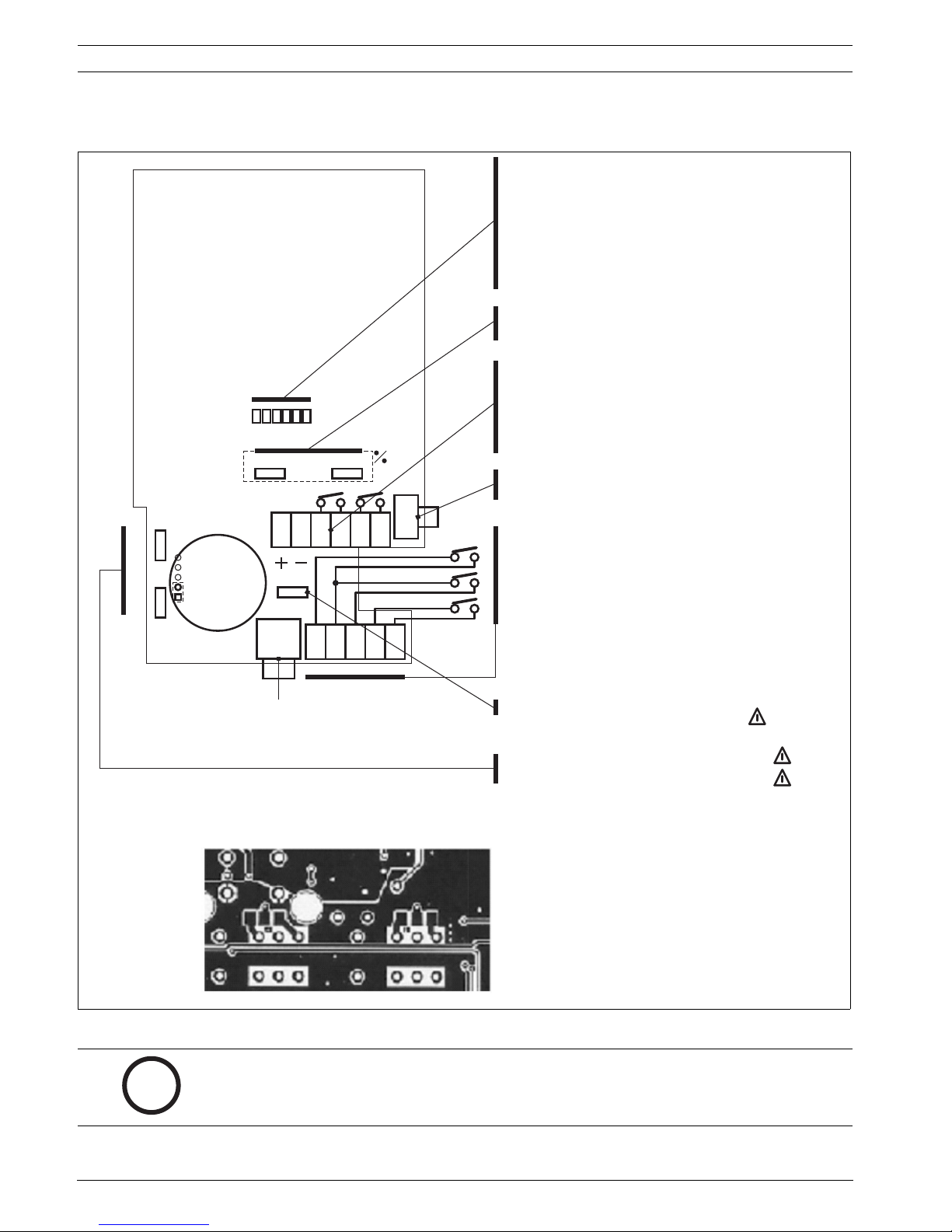

4.2.8 Configuration and Wiring
Fig. 4.2 Configuration and Wiring
J4
J5
J6
123456
12
3
4
5
Terminal J5
1 External 12-24 VDC power supply
5-6 REL 2 Staff Presence
2 GND (0 V)
3-4 REL 1 Call for Help
Terminal J6:
4-5 Reserve Call or Call for Assistance
3-4 Technical Alarm
1-2 Call for Help
Connector J4:
External Call for Help
trigger (pear push button)
Solder Bridges (if soldered):
B8 Call for Assistance only by
B7
B6 No processing
B5 No Daily Message
B4 Not used
B3 Not used
Staff Presence
Call for Assistance from terminals J6[4-5]
Staff Presence
B1 REL 1 Call for Help
B2 REL 2 Staff Presence
(o)
(o)
polarity
polarity
NNC NNC
NC NO
NC NO
J2 Polarity of Technical Alarm input
J3 Polarity of inputterminal J6[4-5]
Connector J7:
Presence / Staff identification (optional)
NNC
J1 External Call for Help trigger
input polarity
CR 2450
battery
Reset
NC-B2-NO NC-B1-NO
Solder bridges B1 and B2 are located on the bottom side of the PCB:
(o)
i
NOTICE!
Setting up one or more inputs to "NC" position results to higher power consumption. This con-
figuration should be used with external power supply or will reduce the battery life.

MIYN46 Wall Transmitter Installation | en 15
Bosch Security Systems User Manual US 970.035b | F.01U.278.521 | v2.0 | 2012.12
4.3 Inputs and Outputs
4.4 General inputs
The * marks a factory setting.
4.5 Wired Outputs
4.6 Wired Inputs
External trigger J4 Jack J1 NO* Closing contact causes a Call for Help
NC Contact opening causes a Call for Help
Power supply J5 1 + 12 to 24 V DC
2-GND 0V
Call for Help
Relay
J5 3-4 B1 NO* A Call for Help causes the closing of
the relay contact
NC A Call for Help causes the opening of
the relay contact
Staff Presence
Relay
J5 5-6 B2 NO* Staff Presence signaling causes the
closing of the relay
NC Staff Presence signaling causes the
opening of the relay
Call for Help J6 1-2 The contact closing causes a Call for
Help.
Technical
Alarm
J6 3-4 J2 NO* The contact closing causes a Technical
Alarm
NC The contact opening causes a Techni-
cal Alarm
Reserve Call or
Call for Assis-
tance
J6 4-5 J3 NO* The contact closing causes a Reserve
Call or a Call for Assistance
NC The contact opening causes a Reserve
Call or a Call for Assistance

16 en | Installation MIYN46 Wall Transmitter
970.035b | F.01U.278.521 | v2.0 | 2012.12 User Manual US Bosch Security Systems
4.7 General configuration
The * marks a factory setting.
(o) MIYN46 Wall Transmitters that feature the output relays are delivered with the Staff Pres-
ence Processing activated (B6 open). Models that do not feature the output relays are deliv-
ered with the Staff Presence Processing disabled (B6 soldered).
Bridge State Function
B3 Open* Technical Alarms are not repeated.
B4 Soldered* Calls are not repeated.
B5 Open* A daily message is sent every 24 hours.
Soldered Daily messages are suppressed.
B6 Open(o) Staff Presence Processing is activated.
Soldered(o) Staff Presence Processing is disabled.
B7 Open* Activation of J6 [4-5] terminal input causes a Reserve Call.
Soldered Activation of J6 [4-5] terminal input causes a Call for Assistance.
B8 Open* The Assistance Call does not depend on the presence of the Care Per-
sonnel.
Soldered The Assistance Call is possible only if the Care Personnel has signaled
his/her presence.

MIYN46 Wall Transmitter Use | en 17
Bosch Security Systems User Manual US 970.035b | F.01U.278.521 | v2.0 | 2012.12
5Use
Every time a MIYN46 Wall Transmitter is used by pressing a button or activating a wired input,
the device sends a radio signal and the lamps indicates its actual state. Optionally, two relays
allow the transmission of status to a remote display such as the signal lamps placed on top of
the door.
Each radio message is sent with a different code which allows the receiver (Resident Alert
System) to recognize the performed action.
5.1 Call for Help
The Call for Help can be triggered in three different ways:
– by pushing the red Call for Help button
– by pushing the external switch connected to the J4 connector, for example a pear
push button.
– by pushing the external button connected to terminals 1 & 2 of the terminal block
J6.
The Call for Help is repeated approximately every 2 minutes until a call acknowledgement
takes place, up to a maximum of 20 minutes. This repeat function can be disabled by setting
the solder bridge B4.
A Call for Help is signaled by red flashes on the signal lamp and optionally, by the activation of
the relay Call for Help.
5.2 Call for Assistance
The Call for Assistance is triggered by pushing the Call for Assistance button (blue).
The Call for Assistance is repeated approximately every 2 minutes until a call acknowledge-
ment takes place, up to a maximum of 20 minutes. This repeat function can be disabled by
setting the solder bridge B4.
A Call for Assistance is signaled by red double flashes on the signal lamp and by the alternate
action/release of the relay Call for Help.
i
NOTICE!
It is recommended to keep the button pressed until the lamp placed above the red button
lights up.
i
NOTICE!
In some cases, the action Call for Help generates a Call for Assistance action. See
Section State before action: Alarm with staff presence, page 22.

18 en | Use MIYN46 Wall Transmitter
970.035b | F.01U.278.521 | v2.0 | 2012.12 User Manual US Bosch Security Systems
5.3 Call Acknowledgement (Staff Presence)
The call acknowledgement is triggered by pushing the Acknowledgement button (green).
The call acknowledgement stops immediately all repetitions of the calls.
Optionally, a call acknowledgement triggers the Staff Presence signal:
– by green flashes on the signal lamp and by activating the Staff Presence relay when
the Caregiver pushes the Acknowledgement button when entering the room.
– by switching off the lamp and releasing the Staff Presence relay when the Caregiver
pushes the Acknowledgement button and leaves the room.
5.4 Reserve Call
The Reserve Call is triggered by pushing the external button connected to terminals 4 and 5 of
the terminal block J6.
The call can be triggered by closing (NO) or opening (NC) the contact.
The Reserve Call is repeated about every 2 minutes until a call acknowledgement takes place,
up to a maximum of 20 minutes. This repeat function can be disabled by setting the solder
bridge B4.
The Reserve Call is signaled in the same way as the Call for Help on the signal lamp and the
relays.
5.5 Technical Alarm
The Technical Alarm is triggered by activating the contact connected to terminals 3 and 4 of
the terminal block J6.
The alarm can be triggered by closing (NO) or opening (NC) the contact 3.
Normally, the Technical Alarm is not repeated, but it is possible to activate the repetition of
the technical alarms by setting the solder bridge B3. In this case, the Technical Alarm is
repeated about every 2 minutes until a call acknowledgement takes place, up to a maximum of
20 minutes.
The Technical Alarm is signaled in the same way as the Call for Help on the signal lamp and the
relays.
5.6 Caregiver Arrival
The Caregiver Arrival message is triggered when the Caregiver inserts the coded key in the
connector on the side of the housing (J7), when entering the room. This message will appear
if the optional coded key function is available on the device.
Up to four categories of Caregivers may be identified by using different keys.
The Caregiver Arrival message is not repeated.

MIYN46 Wall Transmitter Use | en 19
Bosch Security Systems User Manual US 970.035b | F.01U.278.521 | v2.0 | 2012.12
Insertion of the coded key is signaled by green flashes on the signal lamp and by activating the
Staff Presence relay.
5.7 Caregiver Departure
The Caregiver Departure message is triggered when the Caregiver removes the coded key
from the housing, when leaving the room.
The Caregiver Departure message is not repeated.
Removing the coded key is signaled by switching off the green flashes on the signal lamp and
by releasing the Staff Presence relay.
5.8 Daily Message and Battery Low Message
The radio transmission can be checked by way of the daily message which is automatically
sent about every 24 hours. When the battery voltage is too low, the daily message is replaced
by a Battery Low message. The duration of the daily message is 1.7 seconds.
The transmission of the Daily Message can be disabled by setting the solder bridge B5 (this
does not influence the transmission of the Battery Low message).
5.9 Error Message
The Error Message is sent one time if the device has detected a general dysfunction, or if one
of the following triggering devices remains in its activated position for up to 4 minutes:
– Call for Help
– Acknowledgement button
– Call for Assistance
– Reserve Call
i
NOTICE!
The device connected to the Technical Alarm input is allowed to remain in the activated posi-
tion; without transmission of the Error Message.

20 en | Operation MIYN46 Wall Transmitter
970.035b | F.01U.278.521 | v2.0 | 2012.12 User Manual US Bosch Security Systems
6 Operation
6.1 Description of the six different states
During operation, the MIYN46 Wall Transmitter can be set to one of six following states:
Each state is indicated by the signal lamp and by a special position of the output relays.
It is possible to configure the MIYN46 Wall Transmitter in order that:
– the Call for Assistance can be triggered only if the Care Personnel is present.
– the device does not manage the Staff Presence. This mode makes sense only if the
output relays are not provided or not used.
The transition to a specific condition depends on the device configuration, of its actual condi-
tion and of the action completed; as shown on the charts in the following chapters.
State Description
Stand-by No call is being processed.
Alarm without staff presence The resident has triggered a Call for Help but the Care
Personnel has not yet responded.
Alarm with staff presence The Care Personnel has responded after a Call for Help.
Assistance without staff presence A Call for Assistance has been triggered without the
presence of the Care Personnel.
Assistance with staff presence A Call for Assistance has been triggered in the presence
of the Care Personnel.
Staff Presence without alarm The Care Personnel has responded without a previous
call from the resident.
i
NOTICE!
When the MIYN46 Wall Transmitter is powered by an external power supply, the signal lamps
follow the state of the corresponding relay outputs.
