Emerson Rosemount 3051G User manual

Quick Start Guide
00825-0100-4057, Rev EB
July2023
Rosemount™ 3051G Pressure
Transmitter
with 4-20mA HART® Protocol (Revision
5 and 7)

NOTICE
Before installing the transmitter, confirm the correct device driver is loaded on the host
systems. See System readiness.
NOTICE
This Quick Start Guide provides basic guidelines for Rosemount 3051 transmitters. It does
not provide instructions for configuration, diagnostics, maintenance, service,
troubleshooting, explosion-proof, flameproof, or intrinsically safe (IS) installations. Refer to
the Rosemount 3051 Pressure Transmitter Manual for more information. This manual is
available electronically on Emerson.com.
WARNING
Explosions could result in death or serious injury.
Installation of this transmitter in an explosive environment must be in accordance with the
appropriate local, national, and international standards, codes, and practices. Review Product
certifications for any restrictions associated with a safe installation.
Before connecting a HART®-based communicator in an explosive atmosphere, make sure the
instruments in the loop are installed in accordance with intrinsically safe or non-incendive
field wiring practices.
In an explosion-proof/flameproof installation, do not remove the transmitter covers when
power is applied to the unit.
WARNING
Process leaks could result in death or serious injury.
To avoid process leaks, only use the O-ring designed to seal with the corresponding flange
adapter.
WARNING
Electrical shock could cause death or serious injury.
Avoid contact with the leads and terminals. High voltage that may be present on leads can
cause electrical shock.
WARNING
Conduit/cable entries
Unless otherwise marked, the conduit/cable entries in the housing enclosure use a ½–14 NPT
form. Only use plugs, adapters, glands, or conduit with a compatible thread form when
closing these entries.
Quick Start Guide July2023
2 Rosemount 3051G

WARNING
Physical access
Unauthorized personnel may potentially cause significant damage to and/or
misconfiguration of end users’ equipment. This could be intentional or unintentional and
needs to be protected against.
Physical security is an important part of any security program and fundamental in protecting
your system. Restrict physical access by unauthorized personnel to protect end users’ assets.
This is true for all systems used within the facility.
Contents
System readiness......................................................................................................................... 5
Transmitter installation...............................................................................................................6
Safety instrumented systems installation...............................................................................19
Product certifications................................................................................................................ 20
Declaration of Conformity........................................................................................................ 32
China RoHS................................................................................................................................. 36
July2023 Quick Start Guide
Quick Start Guide 3

Quick Start Guide July2023
4 Rosemount 3051G

1 System readiness
1.1 Confirm HART® revision capability
•If using HART based control or asset management systems,
please confirm the HART capability of those systems prior
to transmitter installation. Not all systems are capable of
communicating with HART Revision 7 protocol. You can configure
this transmitter for either HART Revision 5 or 7.
•For instructions on how to change the HART revision of your
transmitter, see Switch HART revision mode.
1.2 Confirm correct device driver
•Verify that the latest device driver (DD/DTM™) is loaded on your
systems to ensure proper communication.
•Download the latest device driver at Emerson.com or FieldComm
Group
1.2.1 Device revisions and drivers
Table 1-1 provides the information necessary to verify the correct
device driver and documentation for your device.
Table 1-1: Device revisions and files
 Identify device Find device driver Review
instruc-
tions
Review
function-
ality
Software
release
date
NAMUR
software
revision(1)
HART®
software
revision(1)
HART
universal
revision
Device
revision(2)
Manual
document
number
Changes
to soft-
ware(3)
Dec-11 1.0.0 01 7 10 00809-010
0-4007
See (3) for
list of
changes.
5 9
Jan-98 N/A 178 5 3 00809-010
0-4001
N/A
(1) The NAMUR software revision is located on the hardware tag of the device. Use a
HART-capable configuration tool to read the HART software revision.
(2) Device driver file names use device and DD revision (such as 10_01). The HART
protocol is designed to enable legacy device driver revisions to continue to
communicate with new HART devices. To access new functionality, download the
new device driver. Emerson recommends downloading new device driver files to
ensure full functionality.
(3) HART Revision 5 and 7 selectable, safety certified, local operator interface, process
alerts, scaled variable, configurable alarms, and expanded engineering units.
July2023 Quick Start Guide
Quick Start Guide 5

2 Transmitter installation
2.1 Mounting the transmitter
2.1.1 Mount the transmitter in a liquid application
Procedure
1. Place taps to the side of the line.
2. Mount the transmitter beside or below the taps.
Mount the transmitter so that the drain/vent valves are
oriented upward.
Figure 2-1: Transmitter mounted in an in-line liquid
application
2.1.2 Mount the transmitter in a gas application
Procedure
1. Place taps in the top or side of the line.
2. Mount the transmitter beside or above the taps.
Quick Start Guide July2023
6 Rosemount 3051G

Figure 2-2: Transmitter mounted in an in-line gas application
2.1.3 Mount the transmitter in a steam application
Procedure
1. Place taps to the side of the line.
2. Mount the transmitter beside or below the taps.
3. Fill impulse lines with water.
Figure 2-3: Transmitter mounted in an in-line steam application
July2023 Quick Start Guide
Quick Start Guide 7

Figure 2-4: Panel and ppe mounting
Panel mount(1) Pipe mount

(1) 1.5 / 16 × 1½ panel bolts are customer supplied.
2.2 In-line gauge transmitter orientation
The low side pressure port (atmospheric reference) on the in-line
gauge transmitter is located in the neck of the transmitter, behind
the housing. The vent path is 360° around the transmitter between
the housing and sensor.
See Figure 2-5.
Keep the vent path free of any obstruction, including but not limited
to paint, dust, and lubrication by mounting the transmitter so that
the process can drain away.
Figure 2-5: In-line gauge low side pressure port
A
ALow side pressure port (atmospheric reference)
Quick Start Guide July2023
8 Rosemount 3051G

2.3 Set the switches
Set Alarm and Security switch configuration before installation as
shown in Figure 2-6.
•The Alarm switch sets the analog output alarm to high or low.
—Default alarm is High.
•The Security switch allows (unlocked symbol) or prevents (locked
symbol) any configuration of the transmitter.
—Default security is Off (unlocked symbol).
To change the switch configuration:
Procedure
1. If the transmitter is installed, secure the loop and remove
power.
2. Remove the housing cover opposite the field terminal side.
WARNING
Do not remove the instrument cover in an explosive
atmosphere when the circuit is live.
3. Slide the Security and Alarm switches into the preferred
position using a small screwdriver.
4. Reattach the transmitter cover.
The cover must be fully engaged to comply with explosion-
proof requirements.
July2023 Quick Start Guide
Quick Start Guide 9

Figure 2-6: Transmitter electronics board
Without LCD display With LCD/local operator interface
(LOI) display

A. Alarm switch
B. Security switch
2.4 Connect the wiring and power up
Figure 2-7: Transmitter wiring diagrams (4–20 mA)
A
B
C
A. 24 Vdc supply
B. RL ≥ 250
C. Current meter (optional)
Use shielded twisted pair cable for best results. Use 24 AWG or larger
wire that does not exceed 5,000 feet (1500 meters) in length. If
applicable, install wiring with a drip loop. Arrange the drip loop so
the bottom is lower than the conduit connections and the transmitter
housing.
Quick Start Guide July2023
10 Rosemount 3051G

NOTICE
Installation of the transient protection terminal block does not
provide transient protection unless the Rosemount 3051 case is
properly grounded. Power could damage the test diode in the
terminal block.
Do not run signal wiring in conduit or open trays with power wiring,
or near heavy electrical equipment.
Do not connect the powered signal wiring to the test terminals.
To wire the transmitter
Procedure
1. Remove the housing cover on the FIELD TERMINALS side.
2. Connect the positive lead to the “+” terminal (PWR/COMM) and
the negative lead to the “–” terminal.
3. Ground housing to fulfill local grounding regulations.
4. Ensure proper grounding.
NOTICE
It is important that the instrument cable is:
•Trimmed close and insulated from touching the transmitter
housing.
•Connected to the next shield if cable is routed through a
junction box.
•Connected to a good earth ground at the power supply
end.
5. If transient protection is needed, refer to Grounding for
transient terminal block for grounding instructions.
6. Plug and seal unused conduit connections.
7. Replace the housing cover.
July2023 Quick Start Guide
Quick Start Guide 11

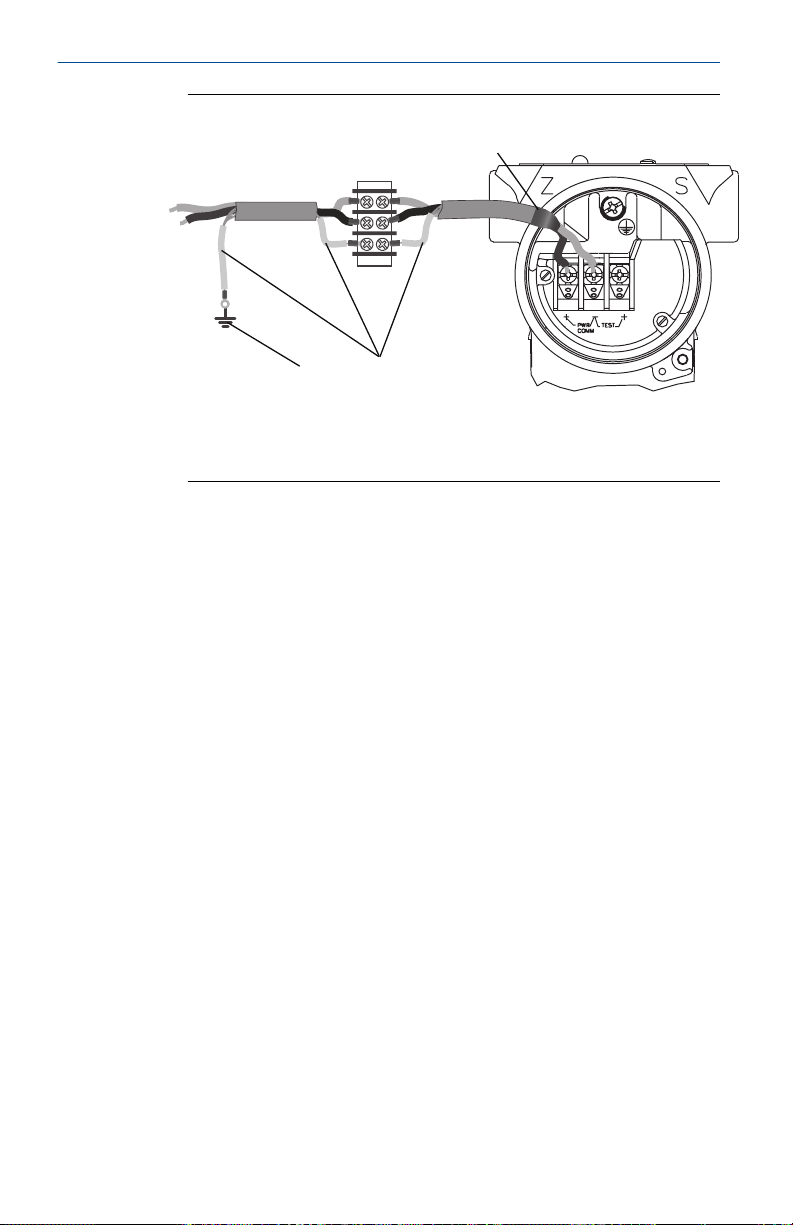

Figure 2-8: Wiring
DP
A
B
C
A. Insulate shield and shield drain wire.
B. Insulate exposed shield drain wire.
C. Connect shield back to the power supply ground.
2.4.1 Grounding for transient terminal block
Ground termination is provided on the outside of the electronics
housing and inside the terminal compartment. These grounds are
used when the transient protection terminal blocks are installed.
Emerson recommends using an 18 AWG or larger wire to connect
housing ground to earth ground (internal or external).
If the transmitter is currently not wired for power up and
communication, see Connect the wiring and power up. When the
transmitter is properly wired, see Figure 2-8 for internal and external
transient grounding locations.
2.5 Verifying configuration
2.5.1 Verify configuration using any HART®-capable configuration
tool or local operator interface (LOI) - option code M4
See Verifying configuration using a Field Communicator to verify
configuration using a Field Communicator or Verifying configuration
with Local Operator Interface (LOI) to verify configuration using the
LOI.
See the Rosemount 3051 Pressure Transmitter Manual for
configuration instructions using AMS™ Device Manager.
Quick Start Guide July2023
12 Rosemount 3051G

2.5.2 Verifying configuration using a Field Communicator
Prerequisites
A Rosemount 3051 device driver (DD) must be installed on the Field
Communicator to verify configuration. Fast Key sequences for the
latest DD are shown in Table 2-1. For Fast Key sequences using legacy
DDs, contact your local Emerson representative.
NOTICE
Emerson recommends installing the latest DD to access the complete
functionality. Visit FieldComm Group for information on updating the
DD Library.
Procedure
Verify device configuration using the Fast Key sequences in Table 2-1.
•A check (✓) in the first column indicates the basic configuration
parameters. At minimum, verify these parameters as part of
configuration and startup.
•A (7) in the first column indicates availability only in HART®
Revision 7 mode.
Table 2-1: Device Revision 9 and 10 (HART 7), DD Revision 1 Fast
Key sequence
 Function Fast Key sequence
HART 7 HART 5
✓Alarm and Saturation Levels 2, 2, 2, 5, 7 2, 2, 2, 5, 7
✓Damping 2, 2, 1, 1, 5 2, 2, 1, 1, 5
✓Range Values 2, 2, 2 2, 2, 2
✓Tag 2, 2, 7, 1, 1 2, 2, 7, 1, 1
✓Transfer Function 2, 2, 1, 1, 6 2, 2, 1, 1, 6
✓Units 2, 2, 1, 1, 4 2, 2, 1, 1, 4
 Burst Mode 2, 2, 5, 3 2, 2, 5, 3
 Custom Display Configuration 2, 2, 4 2, 2, 4
 Date 2, 2, 7, 1, 4 2, 2, 7, 1, 3
 Descriptor 2, 2, 7, 1, 5 2, 2, 7, 1, 4
 Digital to Analog Trim (4 - 20 mA
Output)
3, 4, 2 3, 4, 2
July2023 Quick Start Guide
Quick Start Guide 13

Table 2-1: Device Revision 9 and 10 (HART 7), DD Revision 1
Fast Key sequence (continued)
 Function Fast Key sequence
HART 7 HART 5
 Disable Configuration Buttons 2, 2, 6, 3 2, 2, 6, 3
 Rerange with Keypad 2, 2, 2, 1 2, 2, 2, 1
 Loop Test 3, 5, 1 3, 5, 1
 Lower Sensor Trim 3, 4, 1, 2 3, 4, 1, 2
 Message 2, 2, 7, 1, 6 2, 2, 7, 1, 5
 Scaled D/A Trim (4 - 20 mA Output) 3, 4, 2 3, 4, 2
 Sensor Temperature/Trend
(Rosemount 3051S)
3, 3, 3 3, 3, 3
 Upper Sensor Trim 3, 4, 1, 1 3, 4, 1, 1
 Digital Zero Trim 3, 4, 1, 3 3, 4, 1, 3
 Password 2, 2, 6, 5 2, 2, 6, 4
 Scaled Variable 3, 2, 2 3, 2, 2
 HART Revision 5 to HART Revision 7
Switch
2, 2, 5, 2, 3 2, 2, 5, 2, 3
7 Long Tag 2, 2, 7, 1, 2 N/A
7 Find Device 3, 4, 5 N/A
7 Simulate Digital Signal 3, 4, 5 N/A
2.5.3 Verifying configuration with Local Operator Interface (LOI)
The optional LOI can be used for commissioning the device. The
LOI is a two button design with internal and external buttons. The
internal buttons are located on the display of the transmitter, while
the external buttons are located underneath the top metal tag. To
activate the LOI push any button. LOI button functionality is shown
on the bottom corners of the display. See Table 2-1 and Figure 2-10
for button operation and menu information.
Quick Start Guide July2023
14 Rosemount 3051G

Figure 2-9: Internal and External LOI Buttons
AB
AInternal buttons
BExternal buttons
Note
See Figure 2-10 to confirm external button functionality.
Table 2-2: LOI Button Operation
Button
Left No SCROLL
Right Yes ENTER
July2023 Quick Start Guide
Quick Start Guide 15

Figure 2-10: LOI Menu
Assign PV
HART Revision
2.5.4 Switch HART revision mode
If the HART configuration tool is not capable of communicating with
HART Revision 7, the Rosemount 3051 will load a generic menu with
limited capability. The following procedures will switch the HART
revision mode from the generic menu:
Procedure
Manual Setup → Device Information → Identification → Message
a) To change to HART Revision 5, Enter: “HART5” in the Message
field
b) To change to HART Revision 7, Enter: “HART7” in the Message
field
Note
See Table 2-1 to change HART revision when the correct device driver
is loaded.
2.6 Step 5: Trim the transmitter
Devices are calibrated by the factory. Once installed, it is
recommended to perform a zero trim on gage pressure transmitters
to eliminate error due to mounting position or static pressure effects.
A zero trim can be performed using either a Field Communicator or
configuration buttons.
Quick Start Guide July2023
16 Rosemount 3051G

For instructions using AMS Device Manager, see the Rosemount 3051
HART 7 Reference Manual.
Note
When performing a zero trim, ensure that the equalization valve is
open and all wet legs are filled to the correct level.
Procedure
Choose your trim procedure.
a) Analog Zero Trim – Sets the analog output to 4 mA.
•Also referred to as a “rerange,” it sets the Lower Range
Value (LRV) equal to the measured pressure.
•The display and digital HART output remains unchanged.
b) Digital Zero Trim – Recalibrates the sensor zero.
•The LRV is unaffected. The pressure value will be zero (on
display and HART output). 4 mA point may not be at zero.
•This requires that the factory calibrated zero pressure is
within a range of 3% of the URL [0 + 3% x URL].
Example
URV = 250 inH2O Applied Zero Pressure = + 0.03*250 inH2O = + 7.5
inH2O (compared to factory settings) values outside this range will be
rejected by the transmitter.
2.6.1 Trimming with a Field Communicator
Procedure
1. Connect the Field Communicator (see Connect the wiring and
power up for instructions).
2. Follow the HART menu to perform the desired zero trim.
Table 2-3: Zero Trim Fast Keys
 Analog zero (Set 4 mA) Digital zero
Fast Key sequence 3, 4, 2 3, 4, 1, 3
July2023 Quick Start Guide
Quick Start Guide 17

Figure 2-11: External Configuration Buttons
LOI Analog Zero and Span Digital Zero
A.
A
AConfiguration buttons
Use the following procedures to perform a Zero Trim:
Perform trim with LOI (option M4)
Procedure
1. Set the transmitter pressure.
2. See Figure 2-10 for the operating menu.
a) Perform an analog zero trim by selecting Rerange.
b) Perform a digital zero trim by selecting Zero Trim.
Perform trim with analog zero and span (option D4)
Procedure
1. Set the transmitter pressure.
2. Press and hold the zero button for two seconds to perform an
analog zero trim.
Perform trim with digital zero (option DZ)
Procedure
1. Set the transmitter pressure.
2. Press and hold the zero button for two seconds to perform a
digital zero trim.
Quick Start Guide July2023
18 Rosemount 3051G

3 Safety instrumented systems installation
For Safety Certified installations, please refer to Reference Manual for
installation procedure and system requirements.
July2023 Quick Start Guide
Quick Start Guide 19

4 Product certifications
4.1 European Directive information
A copy of the EU Declaration of Conformity can be found at the
end of the Quick Start Guide. The most recent revision of the EU
Declaration of Conformity can be found at Emerson.com.
4.2 Ordinary Location Certification
As standard, the transmitter has been examined and tested to
determine that the design meets the basic electrical, mechanical,
and fire protection requirements by a nationally recognized test
laboratory (NRTL) as accredited by the Federal Occupational Safety
and Health Administration (OSHA).
4.3 North America
E5 USA Explosionproof (XP) and Dust Ignition-proof (DIP)
Certificate 1053834
Standards FM 3600: 2022, FM 3610: 2021, FM 3615: 2022, FM
3616: 2022, ANSI/UL 61010-1-2019 Third Edition, ANSI-
ISA-12.27.01–2022, ANSI/UL 50E (First Edition)
Markings XP: CL I, DIV 1, GP B, C, D T5;
SEAL NOT REQUIRED
DIP: CL II, DIV 1, GP E, F, G; CL III T5;
-50 °C ≤ Ta ≤ +85 °C
TYPE 4X, IP 68
OPTIONAL: SINGLE SEAL
Specific Conditions for Use:
1. The Rosemount 3051 Transmitter housing may contain
aluminum and is considered a potential risk of ignition by
impact or friction. Care must be taken during installation and
use to prevent impact and friction.
2. The Rosemount 3051 Transmitter housing contains aluminum
and is considered a potential risk of ignition by impact or
friction. Care must be taken into account during installation
and use to prevent impact and friction.
3. Equipment evaluated for atmospheric pressure range between
80 kPa (0,8 bar) to 110 kPa (1,1 bar).
Quick Start Guide July2023
20 Rosemount 3051G
