nevins Bio Canvas User manual

room divider assembly guide

2
Bio Canvas Room Divider Assembly Guide
Table of Contents
Page
Bio Canvas Room Divider Components ----------------------------------------
Tools Required ---------------------------------------------------------------------
Assembly Instructions ------------------------------------------------------------
Appendix I: Leg Holes ------------------------------------------------------------
Appendix II: Connecting Room Dividers ---------------------------------------
3
4
4
7
8

3
Bio Canvas Room Divider Assembly Guide

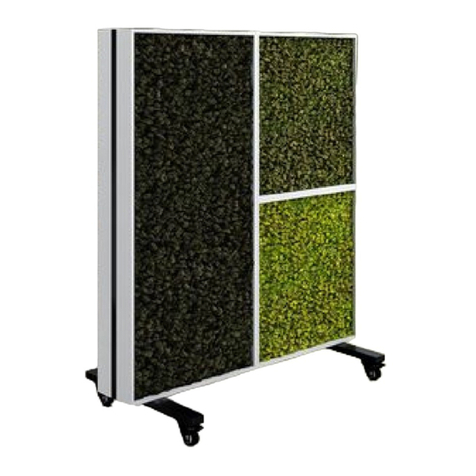

Bio Canvas Room Divider Components
Vertical Frame (1) Base Platforms (2)
M10 x 1.5 x 100 (4) M10 x 1.5 (4)
M10 Washer (8)
M8 x 1.25 x 45
Two Sided
(6ft - 24)
(4ft - 16)
M8 x 1.25 x 40
One Sided
(6ft - 24)
(4ft - 16)
M8 x 1.25
(6ft - 24)
(4ft - 16)

4
Bio Canvas Room Divider Assembly Guide
Tools Required
Assembly Instructions
Ratchet
17mm socket
14mm socket
17mm wrench
14mm wrench
Phillips screwdriver
Step 1: Before installing the legs,
place the face of the frame on a
surface taller than 12” (30 cm). This
is to make sure the base platforms
are not touching during installation.
Step 2: When connecting base
platforms to the bottom of the
frame, make sure to use the correct
holes. The centered holes are for a
two sided divider while the oset
holes are for a one-sided.
(Appendix I) Make sure the holes
not being used for each leg are on
the same side of the frame.
Step 3: Use two M10 bolts, four M10 wash-
ers, and two M10 nuts to connect each leg to
the frame. Tighten down bolts some before
straightening legs as the legs might move
some when first tightening.

5
Bio Canvas Room Divider Assembly Guide
Assembly Instructions
Step 4: Insert wheels/legs levelers by hand
until snug.
Step 5: Turn room divider to upright position.
Step 6: Connect all Bio Canvas plastic frames to room divider. If one-sided, back frames go
on same side as unused holes in legs.
Two-Sided One-Sided Unused Base
Platform hole

6
Bio Canvas Room Divider Assembly Guide
Assembly Instructions
Step 7: Insert natural panel material, next the safety clips are installed around the edges
of the back frame in the indented locations, and then finally snap the front covers on Bio
Canvas frames.
Step 8: If one-sided, then install back panel by placing the panel fasteners (SPC-15) as
illustrated below. Only use the center panel fasteners if the back panel is a whiteboard.
When applying the fasteners onto the metal frame and back panels, press on the fasteners
firmly for several minutes. Allow 60 minutes curing time before attaching the back
panel to the frame. You will hear an audible snap, verifying the fasteners closure. Do not
reposition the back panel for 24 hours.
Step 9: Use wheels/leg levelers to make room divider level by turning in or out.
Step 10: To connect multiple room dividers see Appendix II.
Plastic Back Panels include (4) fasteners
White Board Back Panels include (8) fasteners
Plastic Back Panels include (6) fasteners
White Board Back Panels include (10) fasteners

7
Bio Canvas Room Divider Assembly Guide
Apendix I: Leg Holes

8
Bio Canvas Room Divider Assembly Guide
Apendix II: Connecting Room Dividers
Quick connector (BM-QC) must be ordered separately.
Step 1: Place two stands of the same height side by side.
Step 2: Remove rubber plugs from top ends of vertical frames.
Step 3: Insert connector (BM-QC) into the top and bottom tubes of the stands.
