New Air NWC028SS01 User manual

Manual v1.0
28 Bottle Dual Zone Wine Cooler
Refroidisseur À Vin À Deux Zones
De 28 Bouteilles
Refrigerador de Vino para 28
Botellas de Doble Sección
NWC028SS01
OWNER’S MANUAL
Manuel de L'utilisateour
Manual del Propietario

www.newair.com 2
LANGUAGE INDEX
English Manual.......................................................................................... 3
Manuel en Français................................................................................. 19
Manual en Español.................................................................................. 37

EN
www.newair.com 3
A Name You Can Trust
Trust should be earned and we will earn yours. Customer happiness is the focus
of our business.
From the factory to the warehouse, from the sales floor to your home, the
whole NewAir family promises to provide you with innovative products,
exceptional service, and support when you need it the most.
Count on NewAir.
As a proud NewAir owner, welcome to our family. There are no robots here,
real people shipped your product and real people are here to help you.
Contact Us:
For questions regarding your product, please contact us at:
Call:
1-855-963-9247
Email:
[e-mail]
Online:
www.newair.com
Connect with Us:
Facebook.com/newairusa Instagram.com/newairusa
YouTube.com/newairusa Twitter.com/newairusa

EN
www.newair.com 4
READ AND SAVE THESE INSTRUCTIONS.
TABLE OF CONTENTS
Specifications ....................................................................................................... 5
Register Your Product Online............................................................................... 6
Safety Information & Warnings ........................................................................... 7
Parts List............................................................................................................. 10
Assembly & Installation ..................................................................................... 11
Before Using Your Appliance ..................................................................... 11
Installation Of Your Appliance ................................................................... 11
Electrical Connection ................................................................................. 12
Extension Cord........................................................................................... 12
Operating Instructions ....................................................................................... 13
Control Panel (Touch Control) ................................................................... 13
On/Off Power............................................................................................. 13
Light Setting ............................................................................................... 13
Temperaturesetting................................................................................... 13
Defrosting .................................................................................................. 14
Shelves ....................................................................................................... 14
Cleaning & Maintenance.................................................................................... 15
Cleaning Your Appliance ............................................................................ 15
Power Failure ............................................................................................. 15
Vacations.................................................................................................... 15
Moving Your Appliance.............................................................................. 15
Energy-Saving Tips ..................................................................................... 16
Troubleshooting................................................................................................. 17
Limited Manufacturer’s Warranty ..................................................................... 18

EN
www.newair.com 5
SPECIFICATIONS
MODEL NO.
NWC028SS01
VOLTAGE:
110V-120V
NOISE LEVEL:
43 dB
F
REQUENCY
:
60Hz
POWER CONSUMPTION:
90W
BOTTLE CAPACITY:
28 bottles
STORAGE CAPACITY:
2.86 cu. ft.
TEMPERATURE RANGE:
41°F - 54°F (upper zone) 54°F - 64°F (lower zone)
REFRIGERANT:
R600a (1.84 oz)

EN
www.newair.com 6
REGISTER YOUR PRODUCT ONLINE
Register Your NewAir Product Online Today!
Take advantage of all the benefits product registration has to offer:
Service and Support
Diagnose troubleshooting and service issues faster and more accurately
Recall Notifications
Stay up to date for safety, system updates and recall notifications
Special Promotions
Opt-in for NewAir promotions and offers
Registering your product information online is safe & secure and takes less than
2 minutes to complete:
Alternatively, we recommend you attach a copy of your sales receipt below and
record the following information, located on the manufacturer’s nameplate on
the rear of the unit. You will need this information if it becomes necessary to
contact the manufacturer for service inquiries.
Date of Purchase: ___________________________________________
Serial Number: ____________________________________________
Model Number: ____________________________________________
newair.com/register

EN
www.newair.com 7
SAFETY INFORMATION & WARNINGS
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the Safety Alert Symbol. The symbol alerts you to potential
hazards that can kill or injure you and others. All safety messages
will follow the Safety Alert Symbol and either the words
"DANGER”or “WARNING”
DANGER: Danger means that failure to heed this safety statement may result in
severe injury or death.
WARNING: Warning means that failure to heed this safety statement may
result in extensive product damage, serious personal injury, or death.
All safety messages will alert you about the potential hazard, tell you how to
reduce the chance of injury, and let you know what can happen if the
instructions are not followed.
IMPORTANT SAFEGUIDES
Before the appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of
fire, electrical shock or injury when using the appliance, follow basic
precautions, including the following:
•Plug into a grounded 3-prong outlet, do not remove grounding prong, do
not use an adapter, and do not use an extension cord.
•Replace all panels before operating.
•It is recommended that a separate circuit, serving only your
appliance, be provided. Use receptacles that cannot be turned
off by a switch or pull-chain.
•Never clean appliance parts with flammable fluids. These fumes can create
a fire hazard or explosion. And do not store or use gasoline or other
flammable vapors and liquids in the vicinity of this or any other appliance.
The fumes can create a fire hazard or explosion.
•Before proceeding with cleaning and maintenance operations, make
sure the power line of the unit is disconnected.

EN
www.newair.com 8
•Do not connect or disconnect the electric plug when your hands are wet.
•Unplug the appliance or disconnect power before cleaning or servicing.
Failure to do so can result in electrical shock or death.
•Do not attempt to repair or replace any part of your appliance unless
it is specifically recommended in this manual. All other servicing
should be referred to a qualified technician.
•This appliance is CFC- and HFC-free and contains small quantities of
Isobutane (R600a) which is environmentally friendly, but flammable. It does
not damage the ozone layer, nor does it increase the greenhouse effect.
Care must be taken during transportation and setting up of the appliance
that no parts of the cooling system are damaged. Leaking coolant can ignite
and may damage the eyes.
•In the event of any damage:
-Avoid open flames and anything that creates a spark,
-Disconnect from the electrical power line,
-Air the room in which the appliance is located for several minutes, and
-Contact the Service Department for advice.
•The more coolant there is in an appliance, the larger the room it should be
installed in. In the event of a leakage, if the appliance is in a small room,
there is the danger of combustible gases building up. For every ounce of
coolant, at least 325 cubic feet of room space is required. The amount of
coolant in the appliance is stated on the data plate on the back of the
appliance. It is hazardous for anyone other than an authorized Service
Person to carry out servicing or repairs to this appliance.
•Take serious care when handling, moving, and using the appliance to avoid
either damaging the refrigerant tubing or increasing the risk of a leak.
•Replacing component parts and servicing shall be done by factory authorized
service personnel so as to minimize the risk of possible ignition due to
incorrect parts or improper service.
FOLLOW WARNING CALL OUTS BELOW ONLY WHEN
APPLICABLE TO YOUR MODEL
•Use two or more people to move and install appliance. Failure to do so can
result in back or other injury.
•To ensure proper ventilation for your appliance, the front of the unit must
be completely unobstructed. Choose a well-ventilated area with
temperatures above 50°F (10°C) and below 100°F (38°C). (Optimum
operation occurs within the range 72° to 78°F, or 23°-26°C.). This unit must
be installed in an area protected from the elements, such as wind, rain,
water spray or drips.
•The appliance should not be located next to ovens, grills or other sources of
high heat.

EN
www.newair.com 9
•The appliance must be installed with all electrical, water and drain
connections in accordance with state and local codes. A standard electrical
supply (115 V AC only, 60 Hz), properly grounded in accordance with the
National Electrical Code and local codes and ordinances is required.
•Do not kink or pinch the power supply cord of appliance.
•The fuse (or circuit breaker) size should be 15 amperes.
•It is important for the appliance to be leveled in order to work
properly. You may need to make several adjustments to level it.
•Never allow children to operate, play with or crawl inside the appliance.
•Do not use solvent-based cleaning agents or abrasives on the
interior. These cleaners may damage or discolor the interior.
•Use this appliance only for its intended purpose as described in this User
Manual.
•Keep fingers out of the “pinch point” areas. Clearances between the door
and between the door and cabinet are necessarily small. Be careful closing
doors when children are in the area.
•Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
•Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
•Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
Risk of child entrapment!
Keep children away from refrigerators, freezers, dryers or coolers still in
use. Lock the door to your utility room and warn children not to play
inside these appliances.
Childproof old refrigerators and other appliances you plan to discard or leave in
storage. Use a screwdriver to take off the door of an old refrigerator or
appliance completely.
- SAVE THESE INSTRUCTIONS -

EN
www.newair.com 10

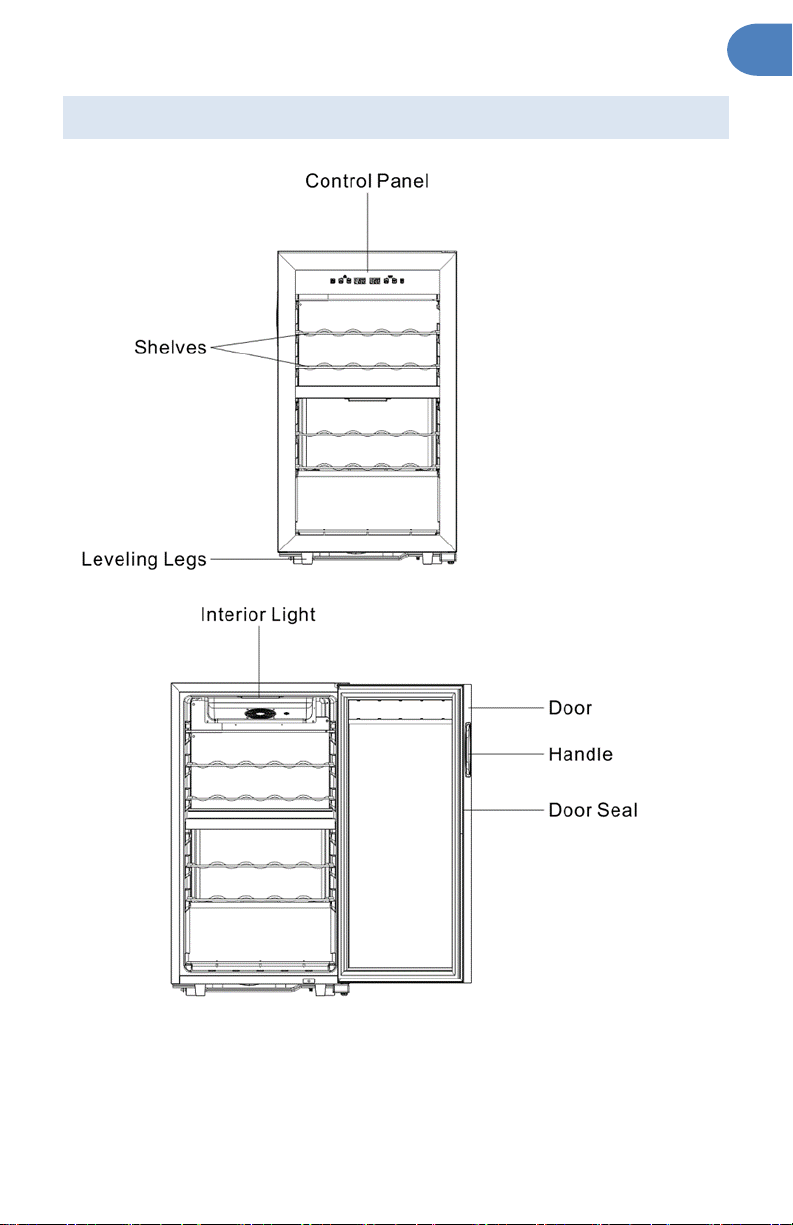

PARTS LIST

EN
www.newair.com 11
ASSEMBLY & INSTALLATION
BEFORE USING YOUR APPLIANCE
•Remove the exterior and interior packing.
•Before connecting this appliance to the power source, let it stand upright
for approximately 2 hours. This will reduce the possibility of a malfunction
in the cooling system from handling during transportation.
•Clean the interior surface with lukewarm water using a soft cloth.
INSTALLATION OF YOUR APPLIANCE
•The appliance is designed for free-standing installation only.
•WARNING: Do not store or install the appliance outdoors.
•CAUTION: This appliance is designed for storing and cooling beverages and
drinks. Do not store perishable food, medicine or other medical products.
•Place your Wine Cooler on a floor that is strong enough to support it when
it is fully loaded. To level the unit, adjust the front leveling legs.
•For free-standing installation, leave 5 inches (127mm) of space around the
back and sides of the unit to allow proper air circulation to cool the
compressor and condenser.
•NOTE: It is recommended that you do not install the appliance near an
oven, radiator or other heating source. Direct sunlight may affect the
acrylic coating and heat sources may increase electrical consumption.
Don’t install in a location where the temperature will fall below 64°F
(18°C). For best performance, do not install the appliance behind a cabinet
door or block the base grille.
•Avoid locating the unit in moist areas.
•Plug the Wine Cooler into an exclusive, properly grounded wall outlet. Do
not under any circumstances cut or remove the third (ground) prong from
the power cord. Any questions concerning power and/or grounding should
be directed toward a certified electrician or an authorized service center.

EN
www.newair.com 12
ELECTRICAL CONNECTION
WARNING
Improper use of the grounded plug can result in electrical shock. If the power
cord is damaged, contact customer service immediately at
[e-mail].
This appliance should be properly grounded for your safety. The power cord of
this appliance is equipped with a three-prong plug which mates with standard
three prong wall outlets to minimize the possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the
power cord supplied. For personal safety, this appliance must be properly
grounded.
This appliance requires a standard three-prong 115/120 Volt AC ~/60Hz
electrical ground wall outlet. Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is properly grounded. When a
standard 2-prong wall outlet is encountered, it is your responsibility and
obligation to have it replaced with a properly grounded 3-prong wall outlet.
To prevent accidental injury, the cord should be secured behind the appliance
and not left exposed or dangling.
The appliance should always be plugged into its own individual electrical outlet
which has a voltage rating that matches the rating label on the appliance. This
provides the best performance and also prevents overloading house wiring
circuits that could cause a fire hazard from overheating. Never unplug the
appliance by pulling on the power cord. Always grip the plug firmly and pull
straight out from the receptacle. Repair or replace immediately all power cords
that have become frayed or otherwise damaged. Do not use a cord that shows
cracks or abrasion damage along its length or at either end. When moving the
appliance, be careful not to damage the power cord.
EXTENSION CORD
Because of potential safety hazards under certain conditions, it is strongly
recommended that you do not use an extension cord with this appliance.
However, if you must use an extension cord it is absolutely necessary that it be
a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a
grounding type plug and outlet and that the electrical rating of the cord be 115
volts and at least 10 amperes.

EN
www.newair.com 13
OPERATING INSTRUCTIONS
It is recommended you install the appliance in a place where the ambient
temperature is between 64° and 100°F (18°-38°C). If the ambient temperature
is above or below the recommended temperatures, the performance of the
unit may be affected. For example, placing your unit in extremely cold or hot
conditions may cause interior temperatures to fluctuate. The range of 41-64°F
(5-18°C) may not be reached.
Temperature range: Upper zone 5-12°C (41-54℉)
Lower zone 12-18°C (54-64℉)
CONTROL PANEL (TOUCH CONTROL)
ON/OFF POWER
Press button for 3 seconds to turn on or turn off the appliance.
LIGHT SETTING
Press button to turn on or turn off the light.
TEMPERATURESETTING
Press lower zone temperature UP & DOWN button together for 5
seconds to change temperature display from Celsius to Fahrenheit.
All the controls will be locked after no operation for 20 seconds, press upper
zone temperature UP & Down button together for 5 seconds to unlock
it.
You can set the desired temperature by pressing or the temperature
selected will increase/decrease by 1 degree with each press of the buttons.

EN
www.newair.com 14
NOTE:
•If the unit is unplugged, or power is lost or turned off, you must wait 3 to 5
minutes before restarting the unit. If you attempt to restart before this
time delay, the unit will not start.
•When you use the unit for the first time or restart the unit after it has been
shut off for a long time, there could be a few degrees variance between
the temperature you select and the one indicated on the LED readout. This
is normal and is due to the length of the activation time. There should not
be a problem once the unit has been running for a few hours.
DEFROSTING
This appliance requires no manual defrosting. During the operation of the
compressor, ice will build up on the evaporator plate which is at the back of
inner cabinet. During the compressor’s off-cycle, the ice will melt, drip down,
and collect in a tray above the compressor, where the compressor’s heat
evaporates the water. If you notice excessive ice build-up on the evaporator,
try setting the temperature slightly higher. Also, be sure that the door gasket is
sealing well.
SHELVES
To take out a shelf, first remove its contents, then raise the back of the shelf
slightly and pull the shelf out.
HOW TO USE YOUR MOISTURE TRAY
Your unit comes with a small water tray to help moisturize corks and or
wooden shelves so they don't dry out. Fill the tray halfway and place it on the
middle shelf— horizontally and towards the back —so moisture is evenly
distributed throughout the inside of the cabinet. Refill the tray when it is a
quarter of the way empty and exercise caution when removing or restocking
bottles so water does not spill out.

EN
www.newair.com 15
CLEANING & MAINTENANCE
CLEANING YOUR APPLIANCE
1. Turn off the power, unplug the appliance, and remove all items, including
shelves.
2. Wash the inside surfaces with a solution of warm water and baking soda
(about 2 tablespoons of baking soda to a quart of water).
3. Wash the shelves with a mild detergent solution.
4. Wring excess water out of the sponge or cloth when cleaning the area where
the controls are located, or any electrical parts.
5. Wash the outside cabinet with warm water and mild liquid detergent. Rinse
well and wipe dry with a clean soft cloth.
6. Do not use steel wool or a steel brush on the stainless steel
POWER FAILURE
Most power failures are corrected within a few hours and should not affect the
temperature of your appliance if you minimize the number of times the door is
opened. If the power is going to be off for a longer period of time, you need to
take the proper steps to protect the contents.
VACATIONS
Short vacations: Leave the appliance operating during vacations of less than
three weeks.
Long vacations: If the appliance will not be used for several months, remove all
items and turn off the appliance. Clean and dry the interior thoroughly. To
prevent odor and mold growth, leave the door open slightly, blocking it open if
necessary.
MOVING YOUR APPLIANCE
•Remove all stored items.
•Securely tape down all loose items (shelves) inside your appliance.
•Turn the adjustable legs up to the base to avoid damage.
•Tape the door shut.
•Be sure the appliance stays secure in the upright position during
transportation. Also, protect the outside of the appliance with a blanket or
similar item.

EN
www.newair.com 16
ENERGY-SAVING TIPS
•The appliance should be located in the coolest area of the room, away from
heat producing appliances and out of direct sunlight.
•Ensure that the unit is adequately ventilated.
•Do not keep the door open any longer than necessary.
CAUTION: Failure to unplug the appliance during cleaning could result in
electrical shock or other personal injury.

EN
www.newair.com 17
TROUBLESHOOTING
You can solve many common problems easily, saving you the cost of a possible
service call. Try the suggestions below to see if you can solve the problem
before calling the service technician.
Problem Possible Causes and Solution
Appliance is not
running
•Appliance is not plugged in.
•Appliance is not turned on.
•Check voltage of the installation.
•Check if the circuit breaker or the fuse has blown.
Appliance is not
cold enough
•Check the temperature control setting.
•Check if ambient temperature is beyond appliance operating
temperature.
•The door is opened too frequently.
•The door is not closed properly.
•The door is not sealing properly.
•Insufficient free space around the appliance.
The compressor
starts and stops
frequently
•The external temperature is high.
•A large quantity of bottles has been put into the cellar.
•The appliance is opened frequently.
•The door is not properly closed.
•
The cellar has not been correctly set.
LED lights do not
operate
•The appliance is not plugged in.
•The fuse has blown.
•LED lights are broken.
•The light switch is off.
Vibration •Check and ensure that the appliance is level
The appliance
mates a lot of
noise
•
The rattling noise may come from the flow of the refrigerant,
which is normal.
•At the end of a cooling cycle, you can hear the noise of water
circulating.
•Expansion and contraction of the internal walls may cause a
cracking sound.
•The appliance is not level.
•
Check if fan is in good condition.
The door does not
close properly
•The appliance is not level.
•The door seal is dirty or damaged.
•The shelves are not positioned correctly.
•A part of the contents is preventing the door from closing.

EN
www.newair.com 18
LIMITED MANUFACTURER’S WARRANTY
This appliance is covered by a limited manufacturer’s warranty. For one year
from the original date of purchase, the manufacturer will repair or replace any
parts of this appliance that prove to be defective in materials and
workmanship, provided the appliance has been used under normal operating
conditions as intended by the manufacturer.
Warranty Terms:
During the first year, any components of this appliance found to be defective
due to materials or workmanship will be repaired or replaced, at the
manufacturer’s discretion, at no charge to the original purchaser. The
purchaser will be responsible for any removal or transportation costs.
Warranty Exclusions:
The warranty will not apply if damage is caused by any of the following:
•Power failure
•Damage in transit or when moving the appliance
•Improper power supply such as low voltage, defective household
wiring or inadequate fuses
•Accident, alteration, misuse or abuse of the appliance such as using
non-approved accessories, inadequate air circulation in the room or
abnormal operating conditions (extreme temperatures)
•Use in commercial or industrial applications
•Fire, water damage, theft, war, riot, hostility or acts of God such as
hurricanes, floods, etc.
•Use of force or damage caused by external influences
•Partially or completely dismantled appliances
•Excess wear and tear by the user
Obtaining Service:
When making a warranty claim, please have the original bill of purchase with
the purchase date available. Once confirmed that your appliance is eligible for
warranty service, all repairs will be performed by a NewAir™ authorized repair
facility. The purchaser will be responsible for any removal or transportation
costs. Replacement parts and/or units will be new, re-manufactured or
refurbished and is subject to the manufacturer’s discretion. For technical
support and warranty service, please email [e-mail].

FR
www.newair.com 19
Un nom de confiance
La confiance doit être gagnée et nous allons mériter la vôtre. La satisfaction du
client est notre priorité.
De l’usine à l’entrepôt et de la surface de vente à votre domicile, les fabricants
des produits NewAir font la promesse de vous fournir des produits novateurs,
un service exceptionnel et un soutien au moment où vous en avez le plus
besoin.
Vous pouvez compter sur NewAir.
En votre qualité de fier propriétaire d’un produit NewAir, nous vous souhaitons
la bienvenue dans notre famille. Notre entreprise n’utilise aucun robot,
uniquement de véritables personnes pour vous livrer votre produit et de
véritables personnes pour vous aider.
Pour nous joindre :
Pour toute question concernant votre produit, communiquez avec nous à :
Téléphone :
1 855 963-9247
Courriel :
[e-mail]
En ligne :
www.newair.com
Suivez-nous :
Facebook.com/newairusa Instagram.com/newairusa
YouTube.com/newairusa Twitter.com/newairusa

FR
www.newair.com 20
LISEZ ET CONSERVEZ CES INSTRUCTIONS.
TABLE DES MATIÈRES
Caractéristiques ................................................................................................. 21
Enregistrer Votre Produit En Ligne .................................................................... 22
Consignes De Sécurité Et Mises En Garde.......................................................... 23
Liste Des Pièces.................................................................................................. 27
Assemblage Et Installation................................................................................. 28
Avant D'utiliser Votre Appareil .................................................................. 28
Installation De Votre Appareil.................................................................... 28
Connexion Électrique................................................................................. 29
Rallonge Électrique .................................................................................... 30
Mode D’emploi .................................................................................................. 31
Panneau De Commande (Contrôle Tactile)................................................ 31
Marche / Arrêt ........................................................................................... 31
Réglage De La Lumière............................................................................... 31
Réglage De La Température....................................................................... 31
Dégivrage ................................................................................................... 32
Étagères…………………………………………………………………………….......................32
Nettoyage ETEntretien ...................................................................................... 33
Nettoyage De Votre Appareil..................................................................... 33
Panne Électrique ........................................................................................ 33
Vacances .................................................................................................... 33
Déplacement De Votre Appareil ................................................................ 33
Conseils D'économie D'énergie ................................................................. 34
Dépannage......................................................................................................... 35
Garantie Limitée Du Fabricant ........................................................................... 36
