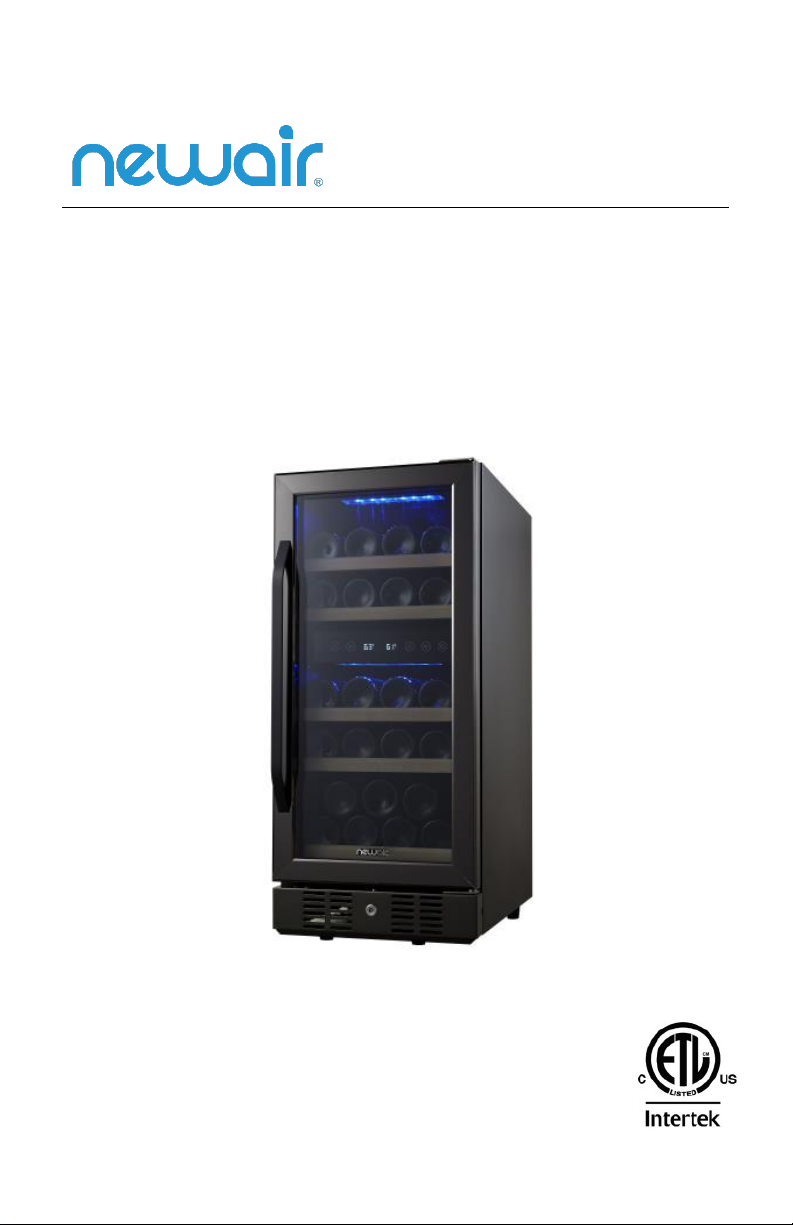

New Air NWC029BS00 User manual

Manual v1.0
29 Bottle
Black Stainless Steel Compressor
Wine Cooler
NWC029BS00
OWNER’S MANUAL
Read and save these instructions.

2
READ AND SAVE THESE INSTRUCTIONS.
TABLE OF CONTENTS
Register Your Product Online……………………………………………………………………………3
Safety Information & Warnings ........................................................................... 4
Parts List............................................................................................................... 5
Installation ........................................................................................................... 7
Operating Instructions......................................................................................... 8
Cleaning & Maintenance ................................................................................... 10
Wine Storage Guide........................................................................................... 11
Troubleshooting................................................................................................. 12
Limited Manufacturer’s Warranty..................................................................... 14
SPECIFICATIONS
MODEL NO.
NWC029BS00
VOLTAGE:
110-120V
CURRENT:
1.2A
FREQUENCY:
60Hz
POWER CONSUMPTION:
90W
STORAGE CAPACITY:
3.2 cubic feet
T
EMPERATURE
R
ANGE
:
40°F - 50°F (upper zone)
50°F - 66°F (lower zone)
PRODUCT WEIGHT:
79 lbs
UNIT DIMENSIONS (W XDXH):
14.81” x 22.50” x 33.63”

3
REGISTER YOUR PRODUCT ONLINE
Register Your NewAir Product Online Today!
Take advantage of all the benefits product registration has to offer:
Service and Support
Diagnose troubleshooting and service issues faster and more accurately
Recall Notifications
Stay up to date for safety, system updates and recall notifications
Special Promotions
Opt-in for NewAir promotions and offers
Registering your product information online is safe & secure and takes less than 2
minutes to complete:
Alternatively, we recommend you attach a copy of your sales receipt below and
record the following information, located on the manufacturer’s nameplate on
the rear of the unit. You will need this information if it becomes necessary to
contact the manufacturer for service inquiries.
Date of Purchase: ___________________________________________
Serial Number: ____________________________________________
Model Number: ____________________________________________
newair.com/register

4
SAFETY INFORMATION & WARNINGS
When using any electrical appliance, basic safety precautions
must be followed in order to reduce the risk of fire, electrical
shock and/or injury to persons or property. Be sure to read all
instructions before using this appliance and observe the
following safety tips:
Attention: To avoid the risk of child entrapment, do n
ot allow children to
operate, play with, or crawl inside the unit. If the unit will not be used for an
extended period of time, remove the door and leave the shelves in place so that
children cannot crawl inside. Also remove the door when disposing of the unit.
Shock Hazard – Electrical Grounding Required
•
Never attempt to repair or perform maintenance on the unit until the
electricity has been disconnected.
•Never remove the round grounding prong from the plug and never use a
two-prong grounding adaptor.
•Altering or cutting of power cord, removal of power cord, removal of power
plug, or direct wiring can cause serious injury, fire, and loss of property
and/or life, and will void the warranty.
•Never use an extension cord to connect power to the unit.
•
Avoid operating this wine cooler in excessively moist or humid
environments.
Important Precautions:
•Do not lift unit by door handle.
•Never install or operate the unit behind closed doors.
•Be sure the kick-plate on the front bottom is free of obstruction. Obstructing
airflow can cause the unit to malfunction and will void the warranty.
•
Failure to clean the condenser every six months can cause the unit to
malfunction.
•Allow unit temperature to stabilize for 24 hours before use.
•Do not block any internal fans.
•
Keep the wine cooler away from hazardous materials or
combustible/flammable substances.
•Use only genuine supplier’s replacement parts. Imitation parts can damage
the unit, affect its operation or performance, and may void the warranty.

5

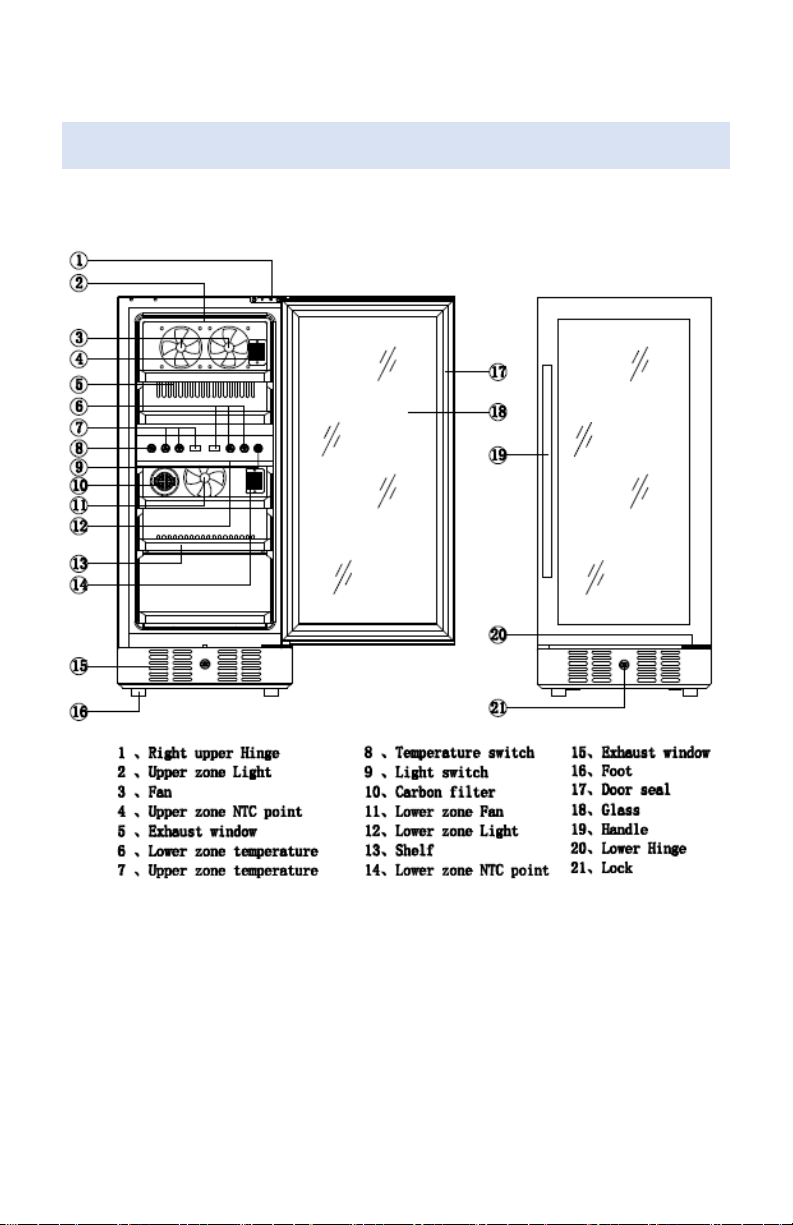

PARTS LIST

6

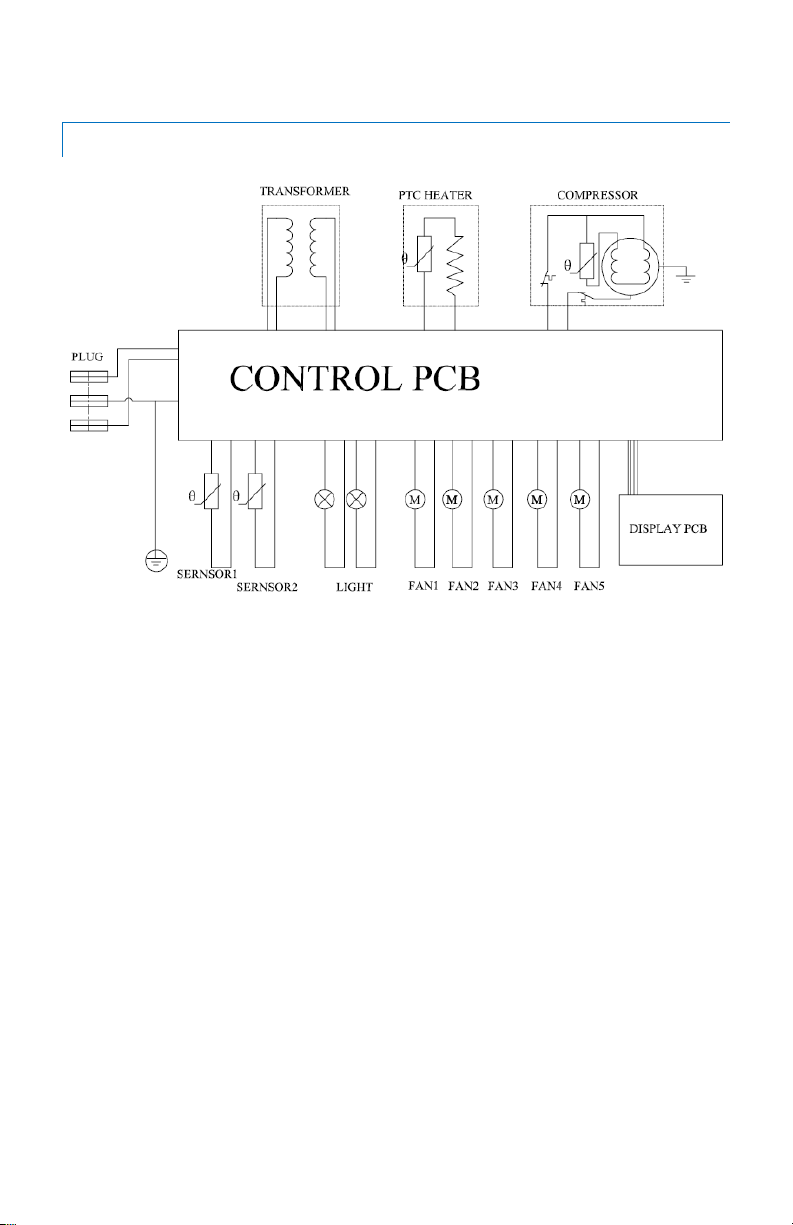

ELECTRICAL CIRCUIT DIAGRAM

7
INSTALLATION
Before connecting the appliance to a power source, let it stand
upright for approximately 2 hours. This will reduce the possibility
of a malfunction in the cooling system from handling during
transportation.
Before operating your wine cooler for the first time, follow these steps:
•Remove the exterior and interior packing.
•Clean the interior surface of the unit with lukewarm water and a soft cloth.
•Place the cooler on a level surface that will be strong enough to support
the unit when it is fully loaded. To level your cooler, adjust the front feet
located at the bottom of the unit.

8
OPERATING INSTRUCTIONS
HOW TO USE THE BUTTONS ON THE DISPLAY PANEL
Raise the desired
temperature. *
Lower the desired
temperature. *
* To set the upper zone temperature, press the UP or DOWN button on the
control panel. The interior temperature of the upper zone can be adjusted in
increments of 1 degree between 40°F and 50°F (5° - 10°C).
* To set the lower zone temperature, press the UP or DOWN button on the
control panel. The interior temperature of the lower zone can be adjusted in
increments of 1 degree between 50°F and 66°F (10° - 18°C).
The interior light can be turned on or off by pressing the “Light” button.
ADDITIONAL NOTES
•The appliance should not be used by children or persons with reduced
physical, sensory or mental capabilities, or lack of experience.
•Children should not play with the appliance. Cleaning and user
maintenance should be performed under adult supervision.
•If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent, or similarly qualified persons in order to avoid a safety
hazard.
•Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
•Do not use mechanical devices or means other than those recommended
by the manufacturer to accelerate the defrosting process.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances other than those recommended by the
manufacturer inside the wine storage compartments of the appliance.
•Do not store explosive substances such as aerosol cans with a flammable
propellant in the appliance.
•This appliance is intended for use only in the household, office and similar
environments.

9

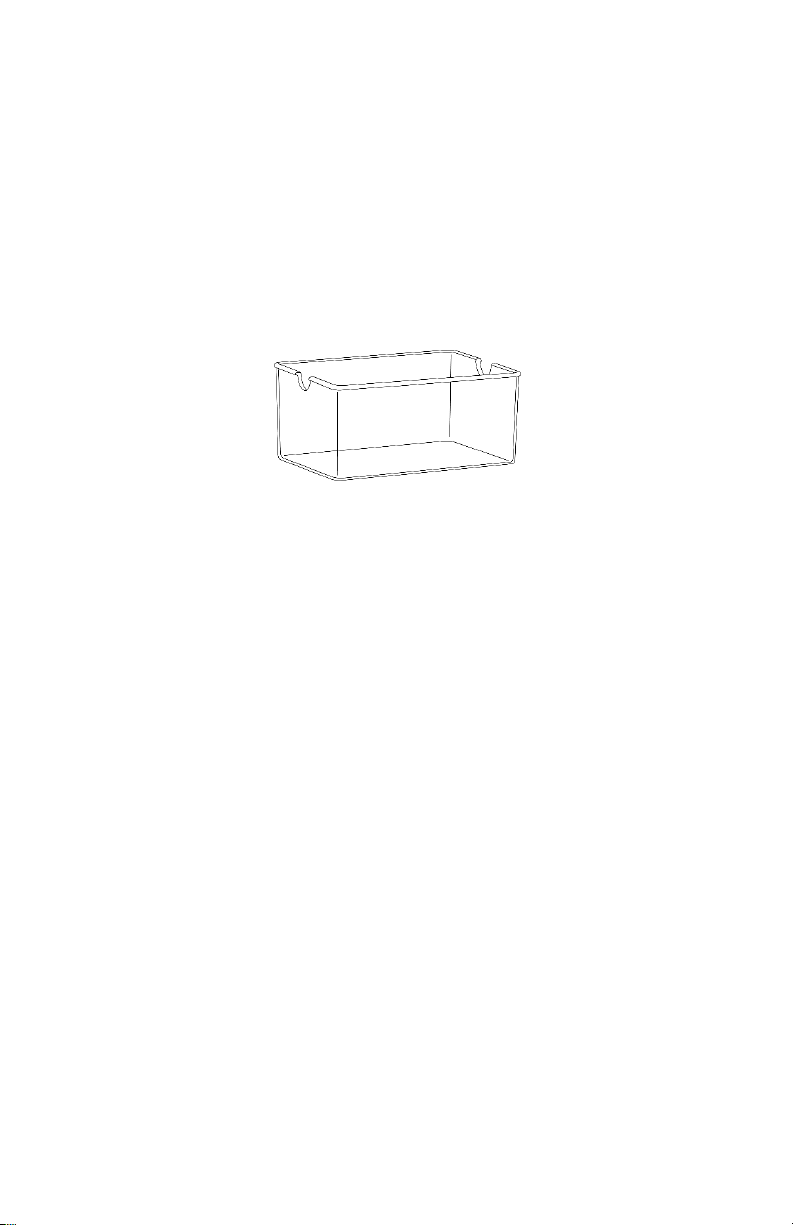

HOW TO USE YOUR MOISTURE TRAY
Your unit comes with a small water tray to help moisturize corks and or
wooden shelves so they don't dry out. Fill the tray halfway and place it on the
middle shelf— horizontally and towards the back —so moisture is evenly
distributed throughout the inside of the cabinet. Refill the tray when it is a
quarter of the way empty and exercise caution when removing or restocking
bottles so water does not spill out.

10
CLEANING & MAINTENANCE
CLEANING YOUR COOLER
To clean your cooler:
•Unplug the cooler and remove anything inside.
•Wash the inside of the unit with a solution made of warm water and baking
soda solution (2 tablespoons of baking soda to one quart of water).
•Unscrew the water reservoir at the bottom of the unit and rinse with
water.
•To clean the outside of the unit, use a mild detergent and warm water.
MOVING YOUR COOLER
To move your cooler:
•Remove anything stored inside.
•Securely tape down all loose parts located inside the unit.
•Turn the leveling feet up to the base in order to avoid damage.
•Tape the door shut.
•Be sure the cooler stays in an upright position during transportation.

11
WINE STORAGE GUIDE
•The ideal temperature for storing red or white wines is 55°F, with humidity
between 60% and 75% RH.
•Store corked bottles on their sides, to keep the cork from drying out and
allowing air into the bottle.
•UV rays make wine age faster, so keep bottles out of direct sunlight.
•Avoid heavy vibrations from motors, etc.
•Store wine separately from strong odors that might contaminate the flavor
of the wine.
HOW LONG SHOULD I STORE MY WINE?
While most wines today are meant to be drunk “young” (within a few years of
production) some fine wines are best served by proper aging. But aging too
long can decrease the flavor of the wine. Generally speaking, red wines can age
longer than white wines, but here is a storage guide for some popular vintages.
Cabernet Sauvignon....................... 7-10 years
Pinot Noir ....................................... 5 years
Merlot ............................................ 3-5 years
Zinfandel ........................................ 2-5 years
Beaujolais....................................... Drink now
Chardonnay.................................... 2-3 years
Riesling ........................................... 3-5 years
Sauvignon Blanc ............................. 18 months – 2 years
Pinot Gris........................................ 1-2 years
Champagne .................................... Ready to drink

12
TROUBLESHOOTING
Problem
Possible Causes
Solution
Wine cellar does not
operate.
The unit may be
plugged in using a
different voltage.
Check if using the
wrong voltage.
The circuit breaker may
be tripped or there is a
blown fuse.
Reset the circuit
breaker or check for a
broken fuse
Wine cellar is not cold
enough.
The external
environment may
require a higher
setting.
Lower the temperature
of the cooler.
The door may be
opened too frequently.
Open the door less
frequently.
The door is not closed
completely.
Make sure the door is
closed securely.
The door seal does not
seal properly.
Replace the seal on the
door. Replacements
can be acquired from
the manufacturer.
The front grille is
obstructed.
Make sure nothing is
blocking the front grille.
The light does not
work.
There may be a
problem with the
display board.
Contact the
manufacturer.
The cooler vibrates
while operating.
The unit is not sitting
on a level floor, or the
unit’s feet are not
correctly installed.
Make sure the unit’s
feet are in the proper
position and tightened
securely.
The cooler produces a
lot of noise.
The unit is not leveled.
See above.
The fan may be
obstructed
Check the fan to make
sure there is no debris
or obstruction. If not,
contact the
manufacturer.
The door will not close
properly.
The unit is not leveled.
See above.

13
Problem
Possible Causes
Solution
The door is not
properly installed.
Check the door hinges
to make sure they are
properly installed.
The seal is weak.
Replace the seal on the
door. Replacements
can be acquired from
the manufacturer.
The shelves are out of
position.
Make sure the shelves
slide all the way into
the unit.
The LED display does
not work.
There may be a
problem with the main
control board.
Contact the
manufacturer.
There is a problem with
the plug.
Contact the
manufacturer.
There is an LED display
error, or the LED
displays “LO”.
The cooling kit is no
longer working
properly.
Contact the
manufacturer.
The PC Board is faulty.
Contact the
manufacturer.
The buttons do not
function.
The temperature
control panel may be
damaged.
Contact the
manufacturer.

14
LIMITED MANUFACTURER’S WARRANTY
This appliance is covered by a limited manufacturer’s warranty. For one year from the
original date of purchase, the manufacturer will repair or replace any parts of this
appliance that prove to be defective in materials and workmanship, provided the
appliance has been used under normal operating conditions as intended by the
manufacturer.
Warranty Terms:
During the first year, any components of this appliance found to be defective due to
materials or workmanship will be repaired or replaced, at the manufacturer’s discretion,
at no charge to the original purchaser. The purchaser will be responsible for any removal
or transportation costs, if needed.
Warranty Exclusions:
The warranty will not apply if damage is caused by any of the following:
•Power failure
•Damage in transit or when moving the appliance
•Improper power supply such as low voltage, defective household wiring or
inadequate fuses
•Accident, alteration, misuse or abuse of the appliance such as using non-
approved accessories, inadequate air circulation in the room or abnormal
operating conditions (extreme temperatures)
•Use in commercial or industrial applications
•Fire, water damage, theft, war, riot, hostility or acts of God such as hurricanes,
floods, etc.
•Use of force or damage caused by external influences
•Partially or completely dismantled appliances
•Excess wear and tear by the user
In Home Warranty Service:
We offer an in-home service warranty on this unit. When making a warranty claim,
please have the original bill of purchase, along with purchase date available before
contacting the manufacturer. Once confirmed that your appliance is eligible for
warranty service, NewAir™ will set up the in-home service with an authorized service
provider.
For in-home service, please adhere to the following:
•The unit must be accessible to the technician
•An adult must be present for the entire period of the in-home service.
Replacement parts and/or units will be new, re-manufactured or refurbished and is
subject to the manufacturer’s discretion. For technical support and warranty service,
please email [e-mail]
