New Balance 905 User manual

User Manual www.newbalance-watch.com
905
NM-709.1
EX2

Design of the Watch
1
[E/V] EL / View Button
• To turn on the EL back light for
about 3 seconds except Workout
Mode and Recall Mode.
• Hold down to turn on the
backlight for 3 seconds in
Workout Mode and Recall Mode.
• To select different sub-functional
displays in the Workout Mode.
[S/L] Start / Lap Button
• To start the counting in
Workout Mode and
Countdown Timer Mode.
• To take lap records when
chronograph is running.
• To increase the setting
value during setting display.
[S/R] Stop / Reset Button
• To stop the counting in
Workout Mode and
Countdown Timer Mode.
• To reset counting in
Workout Mode and
Countdown Timer Mode.
• To select among different
information display in Recall
Mode.
• To decrease the setting
value during setting display.
Thank you for purchasing this watch. Please read this manual thoroughly before using
the watch!
[M] Mode Button
• To select among function modes:
Home Time, Workout, Recall,
Daily alarm, Countdown timer
and Dual time.
• Hold down to select/exit setting
display in the following modes:
Home Time, Workout, Daily
alarm, Countdown timer and
Dual time.
• To select among different setting
items in setting mode.

Time Mode
• Time System: am, pm, hour, minute,
second
• Time Format: 12-hour or 24-hour format
• Calendar Range: 2000~2099
Alarm Mode
• Daily alarm and hourly chime
• Alarm Sound: 30 seconds
Workout Mode
• Heart rate measuring range: 30 to 240
bpm.
• Heart Rate Alert Zone:
3 Pre-defined and 1 user defined.
• Auto-calibration or manual input of
stride length.
• Above / below heart rate zone alert
• Workout Timer: Max 23H59M59S
• Distance: 99.99 km / 63.13 mile
• Step: Max 99,999
• Calorie: Max 9,999 kcal
• Tilt to turn on the backlight when
workout is running
Recall Mode
• Store up to 10 segments and up to
100 lap records
• Each Segment summary contains:
time stamp, total lap no., workout
time, average pace, calorie
consumption, distance, average
speed, max HR, average HR, step and
above/in/below zone timer
• Each Lap Record contains: split time,
lap time, distance, average pace,
average HR and average speed within
the lap
• Odometer function
Timer Mode
• Resolution: 1 second
• Measuring range: 23H59M59S
Others
• Back Light Type: Electro-Luminescent
(EL) back light
• 10 LCD level contrasts adjustable
• Metric / Imperial unit selectable
• 5 ATM water resistance
Specifications
2

Day of week
Date
(month, day)
Current Time
(hour, minute,
second)
Home Time Mode Workout Mode Recall Mode
Dual Time Mode Countdown Timer Mode Daily Alarm Mode
[M] [M]
[M]
[M] [M]
[M]
Major Function Modes
3

Home Time Mode
How to Select a Time Set
• To select Time Setting Mode, hold down [M] for about 2
seconds in Home Time Mode.
• Press [M] to move the selection among these 16
settings refer to the below diagram.
• Press [S/L] or [S/R] to adjust the value.
• Hold down [M] to exit the Time Setting Mode.
• Chime-when this function is on, audible sound will be
heard at zero minute hourly.
• Beep-when this function is on, audible sound will be
heard as key is pressed.
hold [M]
Second
Minute
Hour
Year
Chime
Time Format
Day
Month
Beep
Gender
Birth
Unit
Contrast
BMI
Weight
Height
hold [M]
[M]
[M]
[M]
[M] [M]
[M]
[M]
[M]
[M]
[M]
[M]
[M]
[M]
[M]
[M]
[M]
Time Set Mode
4

Heart Rate Features
• This Watch includes a Chest Strap with connector, thus the Watch can provide a
continuous supply of heart rate data like current heart rate, average heart rate and
maximum heart rate to user for guiding them to achieve their fitness goal.
Precautions / Tips
• The silicon rubber section on the Chest Strap acts as the contacts. They must be
firmly contacted with the user’s skin during measurement.
• DO NOT take heart rate measurement when diving or under water.
• Clean the contacts occasionally by applying a few drops of water, and wipe it dry with
a paper towel to remove any residual grease.
• DO NOT use hand cream; it will insulate the signal between the skin and the contacts.
• Clean your skin with soap and water for better signal transmission.
• For those with extremely dry skin, apply some conductive gel or water may help.
• Adjust the Chest Strap with the buckles until it holds on your chest firmly to avoid it
loosen when doing exercise.
• Avoid doing any awkward motion during measurment, otherwise error may be
resulted.
Contact
Front View
Connector Chest Strap
Back View
Contact
Snap
Button Snap Button
Snap
Button
Battery
Door
Workout Mode - Precaution/Tips for Heart Rate Measurement
5

How to Wear the Chest Strap
• Refer to the below steps to wear the
Chest Strap on one’s chest:
1) Loosen the buckles on the back of the
Chest Strap to allow easier fitting on
your chest.
2) Use one of the snap buttons to attach
the connector to one side of the strap.
3) Hold the Chest Strap around your
chest with one hand.
4) Snap the remaining button to attach
the connector fully on the strap.
5) Adjust the buckles until it fits on your
chest comfortably.
6) Adjust the Chest Strap until the two
contacts are firmly contacted with
your skin.
IMPORTANT: DO NOT wearing the Chest
Strap over your clothes, otherwise it
CANNOT get the heart rate signal.
Workout Mode - Wearing the chest strap
5.1

Step/Distance
Time
Workout Mode - Healthier Lifestyle and Pedometer
5.2
Tips to achieve a Healthier Lifestyle
• The below are the general guide for
achieving a healthier lifestyle:
• Ta ke enough sleep,
• Make social connection,
• Do more exercise,
• Take a daily walk, and
• Eat b alanced diet.
How to Increase Walking Time
• It is suggested that walking could
make contribution to health. Some
tips which would increase your
walking time:
• Walk to your office by getting off
the bus earlier or park your car
farther away from your office.
• Establish a walking habit every
day.
• Walk with some soft music or
friends.
• Set up a goal (How many km
within a week) for your walking.

Step/
Distance/
Calorie expenditure
Time
speed A
speed B
walk/run 1 walk/run 1
start startstop stop
Workout Mode - What is a Pedometer
5.3
Pedometer Features
• This Watch provides some
advance pedometer features to
guide user to achieve his/her
fitness goals.
• The information includes distance,
speed, workout time and calorie
expenditure for walking or
running. The data can be read
instantly or saved into a record to
recall later.

Workout Mode
5.4
Distance View
HRM View Worktime View
Press
[E/V]
1st line
3rd line
Press
[E/V]
Press
[E/V]
Workout Mode
Under Workout Mode, users can
select the following sub-functions by
pressing [E/V] button:
• Distance view
• HRM view
• Worktime view
The 1st and 3rd line display can be
customised by user, refer to chapter
5.7.1 for the selection.

Stop
Run Lap Time
Display
10
Seconds
Press
[S/L]
Lap
Time
Lap No.
Split
Time
Press
[S/L]
Press
[S/R]
Workout
ON
Start
Workout
Time
[S/L] [S/L] [S/L] [S/R]
Stop
Workout
Split Time 3
Split Time 2
Split Time 1
Lap 3Lap 2Lap 1
Workout Mode - Operation
5.5
How to Turn ON/OFF the Workout Function
• Five seconds after Workout Mode is
selected, the Heart Rate function will start
automatically even the workout function has
not been turned ON yet.
• Press [S/L] to turn on the workout function.
• When workout function is turned ON ,
workout data will be updated.
• The Heart Rate measurement will be
STOPPED automatically if NO ‘heart rate’ is
detected for 5 minutes.
• Press [S/L] can make a lap record.
• When workout is finished, press [S/R] to
turn off the workout. Hold [S/R] to reset the
current workout and saved into recall mode.
NOTE:
1) The Chest Strap/Watch MUST be worn on
the user’s chest/wrist properly before
having heart rate/pedometer measurement.
2) User can use the Watch without the Chest
Strap, then NO heart rate data will be
recorded for that workout session.
3) When segment or lap memory is not
available, the oldest segment will be deleted
automatically to spare memory.

The Objective Heart Rate Range
(the ideal range for training
or health reason)
The Objective Heart Rate Range
(the ideal range for
training or health reason)
Above HR Zone
“ Bi - Bi ”
Below HR Zone
“ Bi ”
Heart rate
(beats per minute)
Above
Zone
Below
Zone
Workout Mode - Heart Rate Alert
5.6
• The Heart Rate Alert is a
supplementary feature of the Heart
Rate Measurement function. This
feature can be set up by defining an
objective heart rate range, and hence,
the Watch will alert the user when
he/she gets a heart rate measurement
out of range.
• In order to hear an audible alert for the
above and below zones, zone alert
option shall be turned on. (refer to
5.7.1)
How to Acquire the Objective Heart Rate
Range
• The objective heart rate range is the
region binds by the upper and lower
heart rate limits. These limits must be
set according to different application
and on one’s own health condition.
• These limits can be obtained by the
following:
1) Get these two limits by consulting a
doctor or trainer.
2) Get these two limits by %EMHR
WARNING: Consult a doctor or trainer
to decide the range prior to undergo a
professional Cardio-fitness training.

[M]
[M]
[M]
[M] [M]
[M]
[M]
[M]
[M]
[M]
[M]
[M]
[M]
[M]
[M]
Workout
Mode
Hold
[M]
Hold
[M]
HR Zone
Select
Above Zone
ON/OFF
Below Zone
ON/OFF
My Zone
Lower Limit
HRM View
3rd Line
Work Time View
1st Line
Work Time View
3rd Line
Calibrate
Run Distance
Calibrate
Walk Distance
HRM View
1st Line
Run stride
Walk stride
Distance View
3rd Line
Distance View
1st Line
My Zone
Upper Limit
Workout Mode - Setting Sequence
5.7.1

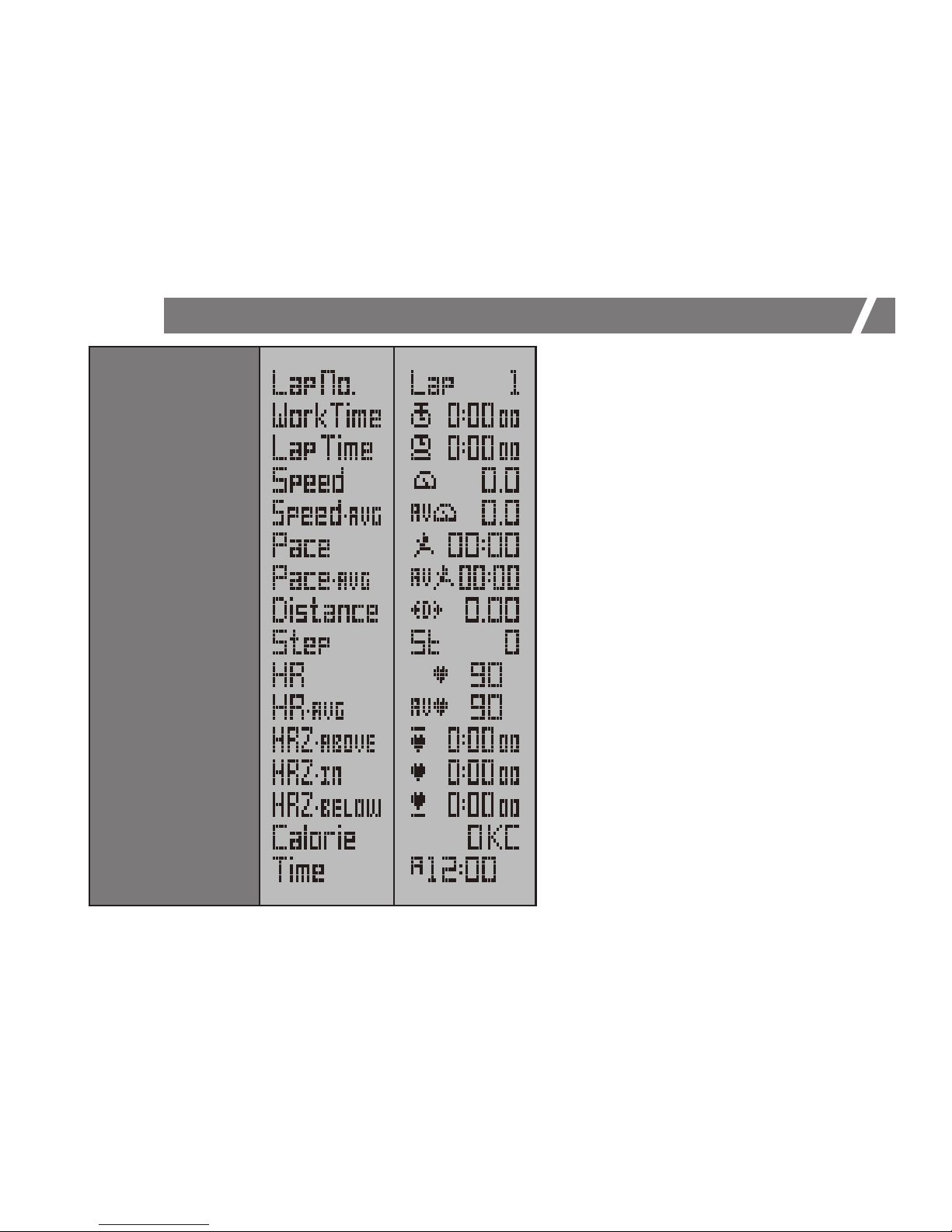

Lap No.
Work Time
Lap Time
Speed
Speed - Average
Pace
Pace - Average
Distance
Step
HR
HR - Average
HR Zone - Above
HR Zone - In
HR Zone - Below
Calorie
Time
To Set the Workout Mode
• Press and hold the [M] button
under Workout Mode to select
the ‘Setting’ display.
The Setting Sequence
• If one of the settings is flashing,
press the [S/L] or [S/R] button
to change the value (hold the
button to change the value at a
faster pace).
• To calibrate ‘Walk’ and ‘Run’
stride, see next chapter for
details.
• Above HR Zone and Below HR
Zone can refer to 5.6 for more
details.
• The adjacent figure shows the
selection of 1st and 3rd line
display.
Workout Mode - Setting Sequence
5.7.2

Set the walkstride
calibrate distance
([S/L]) [M]
Walk
Stride
Calibrate
Walk
Calibrating
[S/R]
[M]
or
[S/L]
or
[S/R]
Walk and Run Stride
• To get the accurate walk and run speed and
distance calculation, user need to enter their
personal walk and run stride.
• User can enter their personal walk and run stride
by selecting automatic or manual calculation.
To set the Walk and Run Stride automatically
• Select ‘Calibrate walk/run distance’ setting under
workout setting mode.
• Input the known distance by pressing [S/L].
• Press [S/R] to start calibrating.
• User start to walk or run for the specific distance.
• When the user reaches, press any key to finish
calibration.
• The watch will automatically calculate the
walk/run stride.
To set the Walk and Run Stride manually
• Select ‘Calibrate walk/run stride’ setting under
workout setting mode.
• Press [M] to enter ‘Walk Stride’ or ‘Run Stride’
display
• When the digit is flashing, press [S/L] or [S/R] to
enter the value of the stride.
Workout Mode - Setting Mode - Walk and Run stride
5.7.3

Back View
• If your Chest Strap stops transmitting heart rate signal
to your watch (NO heart rate reading show on the
Watch), it might be due to low battery in the Chest
Strap.
• We recommend that you have the battery replaced by
an authorized service agency.
How to Replace the Battery for the Chest Strap
• Nevertheless, you can still change the battery of the
Chest Strap by following the instructions:
1. Turn the cover counterclockwise with a coin so that
the vertical slot on the cover turns from the right
mark to the left mark.
2. Turn the cover further gently to pop it out.
3. Put aside the battery cover.
4. Remove the exhausted battery.
5. Replace with a new battery with the (+) sign facing
up.
6.
IMPORTANT: Make sure that the sealing rubber
o-ring is placed correctly in its slot before the
battery cover is replaced.
7. Put the battery cover back with the vertical slot on
the cover points to left mark, and then press the
cover down gently until it is on the same level with
the case surface.
8. Turn the cover clockwise with a coin so that the
vertical slot turns back to the right mark.
Workout Mode - How to Replace the Battery for Chest Strap
5.8

1) Cause: Dry Skin.
Solution: Apply conductive gel or saliva thoroughly on chest area. Even water will help if
conductive gel is not available.
2) Cause: Chest strap is not placed firmly over the chest.
Solution: Make sure the Chest Strap is placed firmly over the chest by adjusting the
buckles.
3) Cause: Muscle tremors caused by holding the Chest strap too hard on your chest.
Solution: The silicon rubber sections must make firm contacts (but NOT too hard) with
the user’s skin during measurement. This will ensure good and consistent readings even
during walking or jogging with arms swinging naturally.
4) Cause: Dead skin on chest.
Solution: Usually rubbing your skin with a towel will help.
5) Cause: A thin layer of body grease insulate the ECG signal which prevents the Chest
Strap or Watch from picking up one’s ECG.
Solution: Wipe chest and the back of the Chest Strap with a tissue or soft towel.
6) Cause: Hairy skin.
Solution: Apply conductive gel to chest area or wrist.
7) Cause: Irregular heartbeats.
Solution: N/A. It is difficult to consistently pick up a reading for those with irregular
heartbeats. Inconsistent response times are expected for those with arrhythmia.
8) Cause: Low Battery.
Solution: It might be due to low battery level in the Chest Strap / watch. Replace the
battery and try again.
9) Cause: Interference of other RF devices (Chest-Strap Measurement)
Solution: Stay away from the place where RF source potentially exist.
5.9 Workout Mode - Potential Causes for NO Heart Rate Reading
or Long Response Time

Turn your wrist to turn on the backlight
Backlight Tilt Function
• When workout is started, the backlight tilt
function is activated. User simply turns his/her
wrist toward him/herself to turn on the backlight
for 3 seconds.
Workout Mode - Backlight Tilt Function
5.10

Segment
Summary
[S/L]*
[S/L]*
[S/L]*
[S/L]*
Lap 1
Lap 2 Last Lap
Segment 1
Segment 2
Segment 3
[E/V]
*Hold [S/L] to move backwards.
Recall Mode
6
Recall Mode
• User can review the Segment
Session in details here.
• It can store up to 10 Segment
Sessions with 100 Lap Records.
• Each segment contains
Summary and Lap Record
displays.
• Press [E/V] to select the
Workout session.
• Press [S/L] to select the
respective information as the
adjacent diagram.
• Hold [S/L] to move backwards.

Segment no.
Time Stamp Odometer
[S/R]
[S/R]
[S/R]
[S/R]
[S/R]
[S/R]
Total Lap No./
Work Time/
Average Pace
Calorie/
Distance/
Average Speed
Max HR/
Average HR/
Step
Above/In
/Below
Zone Time
Recall Mode - Summary Display
6.1
Summary Display
• User can review their workout
summary of different Segment
sessions.
• Press [S/R] to review the
summary information as
adjacent diagram.
