GAS FIRED
VENTED ROOM HEATER
MODEL61
INSTALLATION INSTRUCTIONS
IMPORTANT:
READ THIS MANUAL BEFORE INSTALLING AND USING THIS GAS HEATER.
Installation and/or repair of this unit should only be done by a qualified installer.
This appliance has been tested to and complies with ANSI Z21.11.1(1991) and CGA 1 -
2.1 - M86 with 1989 updates “Gas Fired Vented Room Heaters”, CAN/CGA - 2.17 - M91 “Gas
Fired Appliances For Use At High Altitudes”. Installation must conform with local building
codes or, in the absence of local building codes, with National Fuel Gas Code, ANSI Z223.1
-1988 NFPA 54(88) or CAN/CGA B149.
FOR YOUR SAFETY
WHAT TO DO IF YOU SMELL GAS
♦ Do not try to light any appliance
♦ Do not touch any electrical switch
♦ Do not use any phone in your building
♦ Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
♦ If you cannot reach your gas supplier, call the fire department.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
WARNING: DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN UNDER
WATER. IMMEDIATELY CALL A QUALIFIED SERVICE TECHNICIAN TO
INSPECT THE APPLIANCE AND TO REPLACE ANY PART OF THE CONTROL
SYSTEM WHICH HAS BEEN UNDER WATER.
WARNING: IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN CAUSE INJURY OR PROPERTY DAMAGE.
REFER TO THIS MANUAL. FOR ASSISTANCE OR
ADDITIONAL INFORMATION CONSULT A QUALIFIED INSTALLER, SERVICE
AGENCY OR THE GAS SUPPLIER.
WARNING: DO NOT REPLACE THE BURNER UNIT WITH ANY OTHER SIZED
BURNER. REPLACEMENT WITH AN UNAUTHORIZED BURNER CAN RESULT
IN TEMPERATURES EXCEEDING THE LIMITS FOR THIS UNIT, AND VOID
YOUR WARRANTY.

4
FREESTANDING INSTALLATION
POSITIONING THE UNIT
1. Determine the exact position of your gas heater. If possible place the heater in such a
manner that the piping will be placed between two wall studs so additional framing
is not necessary. Also, try to place unit where flue pipe exit is between two ceiling
joists.
NOTE: Maintain minimum clearances.
DO NOT allow the combustion and ventilation air to be obstructed. Air enters at the
bottom of this unit.
NOTE: DUE TO HIGH TEMPERATURES, THIS UNIT SHOULD BE
LOCATED OUT OF TRAFFIC AREAS AND AWAY FROM FURNITURE AND
DRAPERIES.

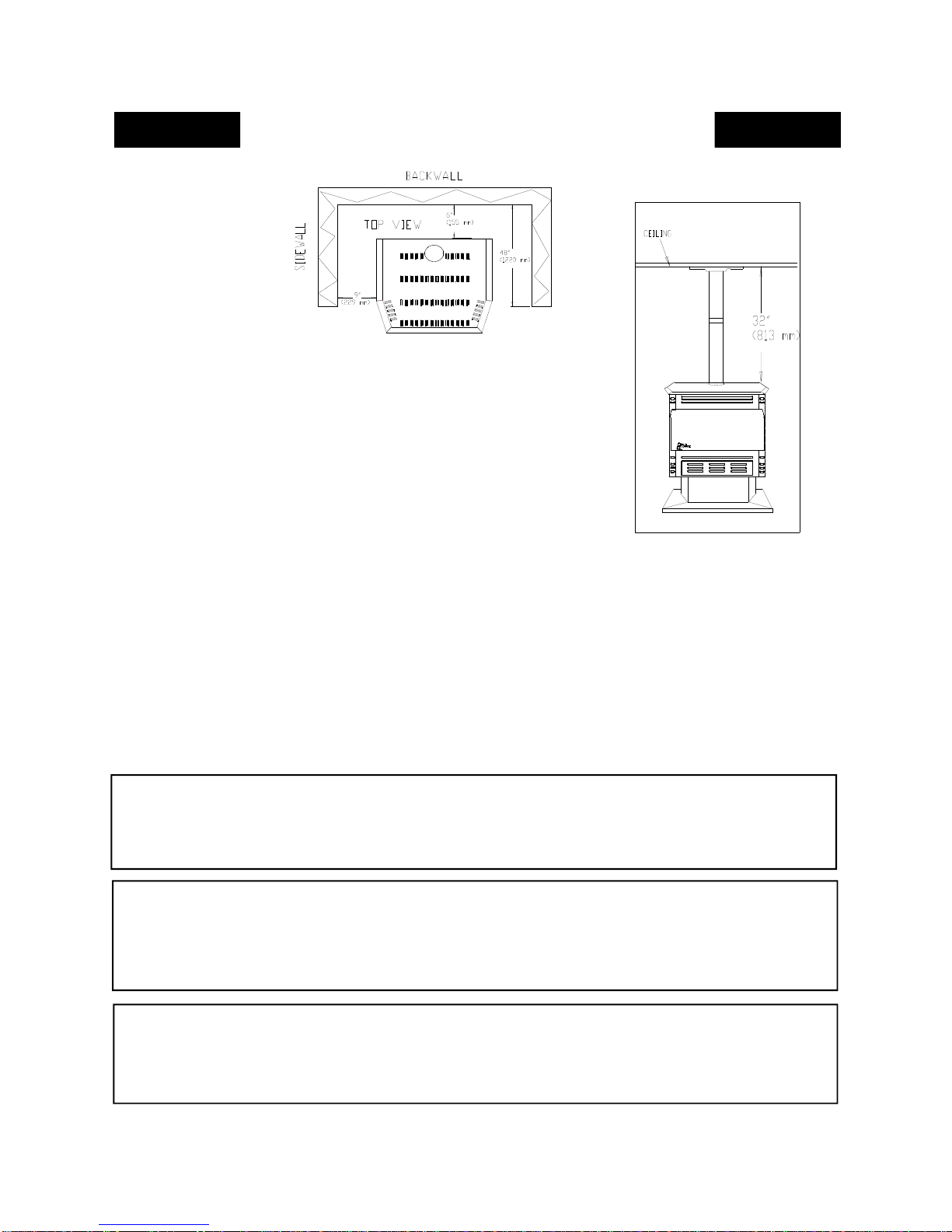

Figure 1
NOTE: When the heater is installed directly on carpeting, wood, or other combustible
material, no floor protector is needed.
WARNING: “Operation of this heater when not connected to a properly installed and
maintained vented system or tampering with the vent safety shutoff system, can result in
carbon monoxide (CO) poisoning and possible death.”
NOTE: For high altitude installations consult the local gas distributor or the authority
having jurisdiction for proper rating methods.

5
INSTALLING THE CHIMNEY SYSTEM
WARNING: THIS GAS APPLIANCE MUST NOT BE CONNECTED TO A CHIMNEY
FLUE SERVING ANOTHER TYPE OF APPLIANCE.
Class "B" - 4" (101 mm) flue vent is required for this unit. Follow the vent pipe manufac-
turer’s instruction or NFPA 54 (ANSI Z223.1 1988) for proper installation. Also see Figure 2
for minimum clearances to roof.
CAUTION: THE INSTALLATION MUST CONFORM TO LOCAL CODES. IN THE
ABSENCE OF LOCAL CODES, INSTALLATION MUST CONFORM WITH THE
NATIONAL FUEL GAS CODE, ANSI Z223.1a-1988 or CAN/CGA-B149.
NOTE: This unit is equipped with a safety spill switch. This switch will shut
off the unit if there is any problem with the chimney.
Figure 2
24" min.
(610 mm) LISTED CLASS 'B' CHIMNEY CAP
STORM COLLAR
FLASHING
24" min.
(610 mm)
1' min.(25 mm) CLEARANCE
METAL FLASHING
WOOD CHASE
4" (101 mm)
1/4"(6 mm) RISE
PER FOOT OF LENGTH
CLASS 'B' WALL THIMBLE
4'(101 mm) 'B' VENT PIPE
FIRESTOP
1' (25 mm) CLEARANCE STANDOFF SLEEVE
29"
(737 mm)

6
REMOVING THE DOOR
1. Facing heater, the door latch is located on the right side just behind the door edge.
2. Release the door latch. Swing door all the way to the left.
3. Grasp top of door with both hands and raise up.
D) WIRING - ROOM AIR BLOWER (See Figure 3)
1. Adjust the speed control knob to the desired level of velocity.
NOTE: The fan will not operate unless the “AUTO/MANUAL” switch is
on the “AUTO” position and the speed control knob has been turned on. The
fan will automatically turn on when the air temperature of your unit reaches
110OF and the “AUTO/MANUAL/OFF” switch is on the “AUTO” setting..
2. This appliance, when installed must be electrically grounded in accordance with local
codes, or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA
70-1987 or with the current Canadian Electrical Code CSA C22.1.
WARNING: ELECTRICAL GROUNDING INSTRUCTIONS: THIS APPLIANCE IS EQUIPPED
WITH A THREE PRONG (GROUNDING) PLUG FOR YOUR PROTECTION AGAINST SHOCK
HAZARD AND SHOULD BE PLUGGED DIRECTLY INTO A PROPERLY GROUNDED THREE-
PRONG RECEPTACLE. DO NOT CUT OR REMOVE THE GROUNDING FROM THIS PLUG.
Figure 3
NOTE: Installation and repair should be done by a qualified service person. The heater
should be inspected before use and at least annually by a qualified service person. More
frequent cleaning may be required due to excessive lint from carpeting, bedding material, pet
hair, etc. It is imperative that control compartments and circulating air passageways of
the heater be kept clean.
BLACK
BLACK
WHITE
GREEN
BLACK
WHITE
MOTOR
THERMOSTAT
AUTO/MAIN
SWITCH
RHEOSTAT
POWER CORD
AUTO
OFF
OFF
MANUAL
WHITE

7
CONNECTING THE GAS LINE
CAUTION: INSTALLATION OF THE GAS LINE MUST ONLY BE DONE BY A QUALI-
FIED PERSON IN ACCORDANCE WITH LOCAL BUILDING CODES.
1. Connect gas line. An accessible shutoff valve must be installed up stream from the unit.
NOTE: Do not run the incoming gas line in a manner that would obstruct the operation or
removal of the fan.
NOTE:
For natural gas:
The minimum inlet gas supply pressure is 4.5 inches W.C.
The maximum inlet gas supply pressure is 10.5/2.61 inches W.C.
For propane gas:
The minimum inlet gas supply pressure is 10.5 inches W.C.
The maximum inlet gas supply pressure is 13.0/3.30 inches W.C.
2. This unit is designed to accept either a 3/8" or 1/2" gas line approved for gas appliances.
Consult local building codes to properly size the gas supply line leading to a 3/8" reduction.
3. Complete installation of the gas line.
WALL SWITCH INSTALLATION (optional)
1. If desired, a wall switch may be used to turn the unit off and on.
NOTE: Installation of a wall switch should only be done by a qualified installer.
NOTE: The lower plug-in receptacle is included for the optional remote control unit. See your
dealer for details.
2. Run low-voltage (doorbell) wire from the “ON/OFF” switch, to the desired location of the
wall switch.
IN
ON
OFF
PILOT
VENT
"ON"
"OFF"
"AUTO"
ROBERT-SHAW VALVE
ROCKER SWITCH
SPILL SWITCH
PIEZO
THERMOGENERATOR
HI
LO
OPTIONAL
REMOTE
SWITCH

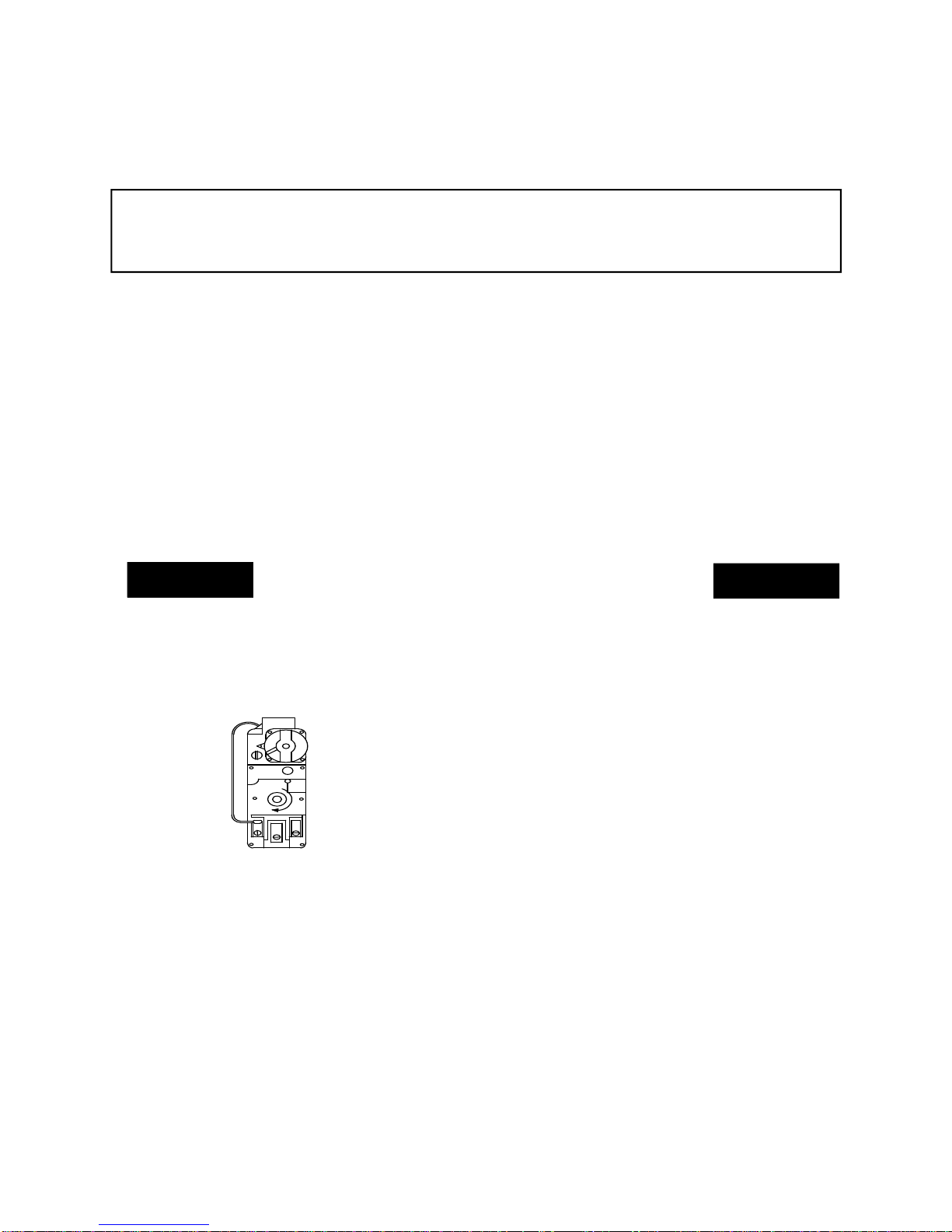

Figure 4

8
PREPARING LOG KIT
1. Open the cartons containing the Burner Base and the logs. Inside one of the cartons you
will find the Burner Base. The logs are boxed separately and numbered as follows:
Front (1)
Rear (2)
Right Side Top (3)
Left Side Top (4)
WARNING: POSITIONING OF THE LOGS IS VERY CRITICAL. (See Figure 3.)
(A) POSITION THE REAR LOG #2 IN REAR LOG HOLDERS, CENTERING LEFT TO
RIGHT.
(B) PLACE FRONT LOG #1 OVER FRONT TUBE OF BURNER, CENTERING LEFT TO
RIGHT OVER BURNER TUBE. YOU WILL NOTICE THE FRONT AND REAR LOGS
HAVE PINS EXTENDING FROM THEM.
(C) TAKE RIGHT TOP LOG #3 AND PLACE IT OVER THE PINS LOCATED AT THE
RIGHT SIDE OF THE FRONT AND REAR LOGS, FACING THE BURNER BASE.
(D) PLACE LEFT LOG #4 OVER THE PINS OF THE LEFT FRONT AND REAR LOGS.
(E) WHEN IGNITING THE BURNER, CHECK AND MAKE SURE THE FLAME IS NOT
TOUCHING EITHER SIDE OF LOG #3 OR LOG #4. IF FLAME IS TOUCHING LOGS ON
EITHER SIDE, MOVE SLIGHTLY TO THE LEFT OR RIGHT TO ELIMINATE THE
FLAME FROM TOUCHING EITHER LOG.
Figure 5
2. Close and latch door.
LIGHTING AND SHUTDOWN
NOTE: Prior to lighting, check all fittings for leakage. This is accomplished by applying soapy
water on all connections made. If there is any leakage bubbles will appear at the point of
connections. If bubbles occur, tighten the fittings until the bubbles no longer appear. All
connections made at the factory have been previously tested.

9
NOTE: The appliance and its individual shutoff valve must be disconnected from the gas
supply piping system during any pressure testing of the system at test pressures in excess of
1/2 psi (3.5 kPa).
The appliance must be isolated from the gas supply piping system by closing its individual
manual shutoff valve during any pressure testing of the gas supply piping system
at test pressures equal to or less than 1/2 psi (3.5kPa).
An 1/8" NPT plugged tap is located on the right side of the regulator, immediately upstream
of the gas supply connection to the appliance. This is used for test gauge connection.
NOTE: Your heater is equipped with a piezo ignitor.
Read 1 - 7 before lighting the unit for the first time.
1. Open the cover door.
2. Turn the regulator valve to “PILOT”, push it in and hold.
3. Press the igniter button. If the line is bled out, the pilot will generally light with two-three
pushes on the igniter.
4. Hold the pilot in for approximately one minute.
5. Release the pilot valve and the flame should stay lit. NOTE: If pilot fails to stay lit, wait
five minutes and repeat steps 2 through 5. If this continues, consult the trouble
shooting guide.
6. Turn the regulator valve to the "ON" position.
7. Flip the “ON/OFF” switch to the “ON” position, (the red is exposed).
8. If you wish to turn the burner off, flip the “ON/OFF” switch. If a wall switch has been
installed, simply turn it off. NOTE: The pilot will stay lit.
9. To turn off the pilot, push in and turn the valve to the “OFF” position.
NOTE: When the unit is initially lit, condensation will appear on the glass. This is normal in
all gas fireplaces, and will disappear in one to three minutes.
NOTE: A paint smell will occur during the first few hours of burning. It is recommended
to leave the fan off during this period. This will speed up the paint curing process.
NOTE: CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF
HIGH SURFACE TEMPERATURE AND SHOULD STAY AWAY TO AVOID BURNS
OR CLOTHING IGNITION. YOUNG CHILDREN SHOULD BE CAREFULLY
SUPERVISED WHEN THEY ARE IN THE SAME ROOM AS THE APPLIANCE.
CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.

10
HIGH ALTITUDE ORIFICE CHART
MODEL ORIFICE SIZE ORIFICE SIZE AT OTHER ELEVATIONS
SEA LEVEL 2000 3000 4000 5000 6000 7000 8000 9K 10K
Model 25 Nat. Gas 42 42 43 43 43 44 44 45 46 47
LP Gas 54 54 55 55 55 55 56 56 56 56
Model 40 Nat. Gas 41 42 42 42 43 43 44 44 45 46
LP Gas 53 54 54 54 54 54 54 55 55 55
Model 60 Nat. Gas 35 35 35 35 35 35 35 36 37 38
61,65,66 LP Gas 51 51 51 51 51 52 52 52 53 53
Retrofits Nat. Gas 35 35 35 35 35 35 35 36 37 38
LP Gas 51 51 51 51 51 52 52 52 53 53
Model 19 Nat. Gas 37 37 38 38 39 40 41 41 42 4 3
LP Gas 53 53 53 53 53 53 53 54 54 54
Model 30, Nat. Gas 38 38 38 38 39 40 41 41 42 43
32,34,329, LP Gas 52 52 52 52 52 52 53 53 53 54
36,42,logs
Model 1127, Nat. Gas 42 42 42 42 42 42 42 42 43 43
327, LP Gas 54 54 54 54 54 54 54 55 55 55
NEW BUCK CORPORATION

11

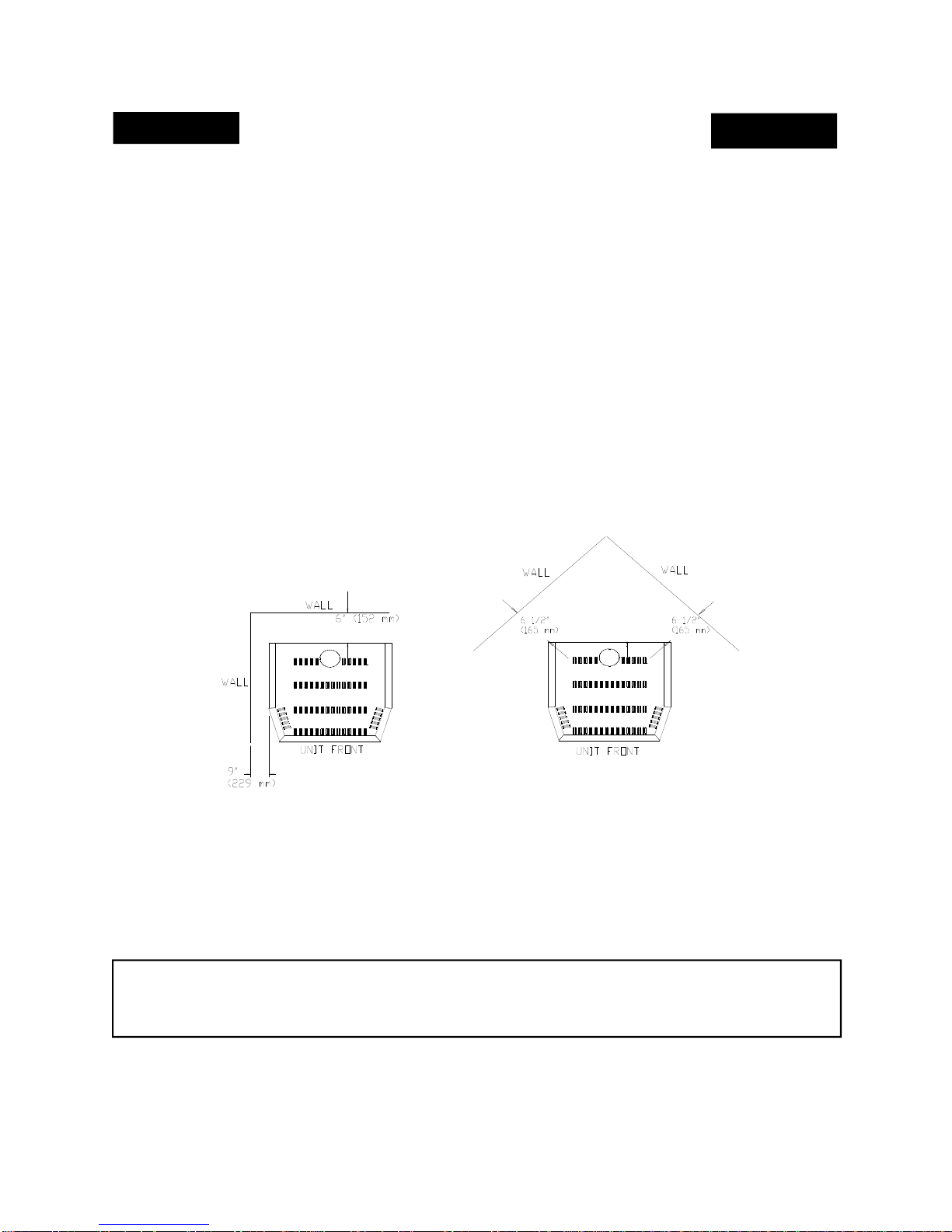

ALCOVE INSTALLATION
Figure 6
IMPORTANT:
1. Caution: Read entire manual before installing unit.
2. For clearances see Figure 6.
3. For installation information see page 3-8.
FOR YOUR SAFETY:
What To Do If You Smell Gas
♦ Do not try to light any appliance.
♦ Do not touch any electrical switch.
♦ Do not use any phone in your building.
♦ Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
♦ If you cannot reach your gas supplier, call the fire department.
♦ Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
WARNING: DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN UNDER
WATER. IMMEDIATELY CALL A QUALIFIED SERVICE TECHNICIAN TO
INSPECT THE APPLIANCE AND TO REPLACE ANY PART OF THE CONTROL
SYSTEM WHICH HAS BEEN UNDER WATER.
WARNING: IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN CAUSE INJURY OR PROPERTY DAMAGE.
REFER TO THIS MANUAL. FOR ASSISTANCE OR ADDITIONAL
INFORMATION CONSULT A QUALIFIED INSTALLER, SERVICE AGENCY OR
THE GAS SUPPLIER.
WARNING: DO NOT REPLACE THE BURNER UNIT WITH
ANY OTHER SIZED BURNER. REPLACEMENT WITH AN UNAUTHORIZED
BURNER CAN RESULT IN TEMPERATURES EXCEEDING THE LIMITS FOR
THIS UNIT, AND VOID YOUR WARRANTY.

12

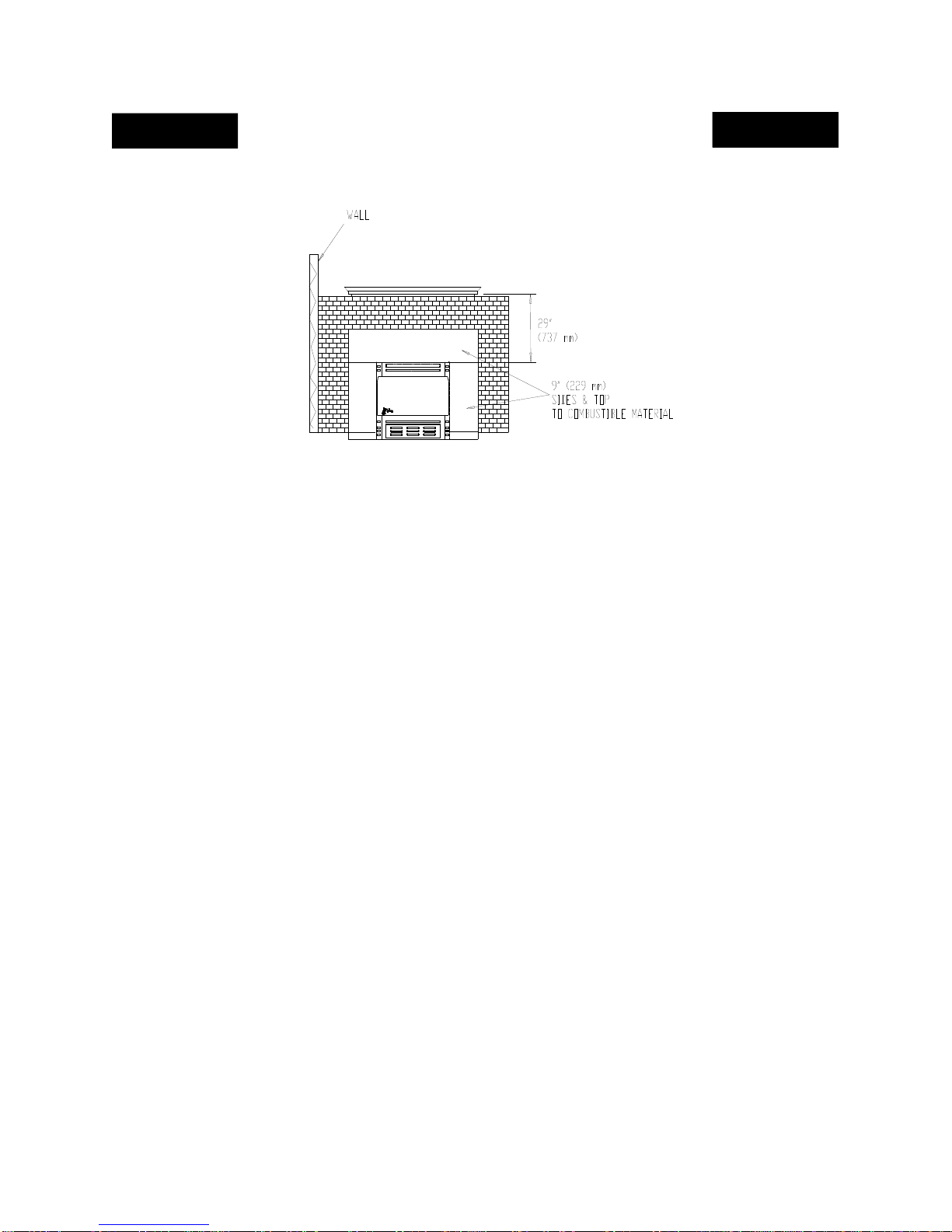

PRE-FAB FIREPLACE INSERT
INSTALLATION
Figure 7
IMPORTANT: READ ENTIRE MANUAL BEFORE ATTEMPTING TO INSTALL
THESE UNITS.
1. For clearance see Figure 7.
2. Failure to follow instructions will result in improper burning of unit and voids all
warranties and liability of manufacturer.
NOTE: Do not allow the combustion and ventilation air to be obstructed. Combustion air
enters at the bottom of this unit.
3. All units must be vented with 4" pipe from top of unit to entire height of existing
chimney.
CAUTION: Read 1 - 7, page 9 carefully before lighting your unit for the first time.
NOTE: TRIM PANELS CANNOT COVER EXISTING COOLING OR LOUVERED
VENTS ON ANY PRE-FAB FIREPLACE.
NOTE: IF THE BOTTOM OF THE HEATER IS LESS THAN 7" (177mm) FROM
COMBUSTIBLE MATERIALS ON THE FLOOR WHEN INSTALLED, YOU MUST
HAVE A FLOOR PROTECTOR 12" (304mm) FROM THE FRONT OF THE HEATER.
NOTE: A tube is located at the top of the unit behind brass louvers. This tube is used to check
draft of unit after it has been installed as an insert.
MANTEL AND/ OR SUPPORTS
COMBUSTIBLE PROJECTING
MORE THAN 3/4”

13
FOR YOUR SAFETY, READ BEFORE LIGHTING
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A
FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE,
PERSONAL INJURY OR LOSS OF LIFE.
A. This appliance has a pilot which must be lighted
by hand. When lighting the pilot, follow these
instructions exactly.
B. BEFORE LIGHTING: Smell around the
appliance for gas. Be sure to smell next to the floor
because gas is heavier than air and will settle on the
floor.
WHAT TO DO IF YOU SMELL GAS
♦ Do not try to light any appliance.
♦ Do not touch any electrical switch; do not use
any phone in your building.
♦ Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
♦ If you cannot reach your gas supplier, call your local
fire department.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or
turn by hand, don’t try to repair it, call a qualified service
technician or gas supplier. Force or attempted repair may
result in a fire or explosion.
D. Do not use this appliance if any part has been under
water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the
control system and any gas control which has been under
water.
1. STOP! Read the safety information above.
2. Make sure the manual shutoff valve is fully open.
3. Turn off all electrical equipment.
4. Open access panel door.
5. Turn control knob clockwise to the “OFF” position.
NOTE: Knob cannot be turned from “PILOT” to “OFF” unless knob
is pushed in slightly. Do not force.
6. Wait (5) five minutes to clear out any gas. Then smell for gas,
including near the floor. If you smell gas, STOP! See page 3,
in the safety information. If you don’t smell gas, proceed to the
next step.
IN
ON
OFF
PILOT
VENT
HI
LO
7. Remove the pilot access panel located below and behind the gas
control unit.
8. Find pilot - follow metal tube from gas control. The pilot is
between the two burner tubes behind the pilot access panel.
9. Turn knob on gas control counter clockwise to “PILOT”.
10. Push in control knob all the way and hold in. Immediately light the
pilot with the Piezo button. Continue to hold the control knob in for
about one (1) minute after the pilot is lit. Release knob and it will
pop back up. Pilot should remain lit. If it goes out, repeat steps 5
through 10.
*If knob does not pop up when released, stop and
immediately call your service technician or gas
supplier.
*If the pilot will not stay lit after several tries, turn
the gas control knob to “OFF” and call your
service technician or gas supplier.
11. Turn gas control knob counterclockwise to “ON”.
12. Close control access panel.
13. Turn on all electric power to the appliance.
14. Set thermostat to desired position.
TO TURN OFF GAS TO APPLIANCE
1. Set the thermostat to lowest setting.
2. Turn off all electrical power to the appliance if
service is to be performed.
3. Remove control access panel.
4. Push in gas control knob slightly and turn
clockwise to “OFF”. Do not force.
5. Replace control access panel.
LIGHTING INSTRUCTIONS

14

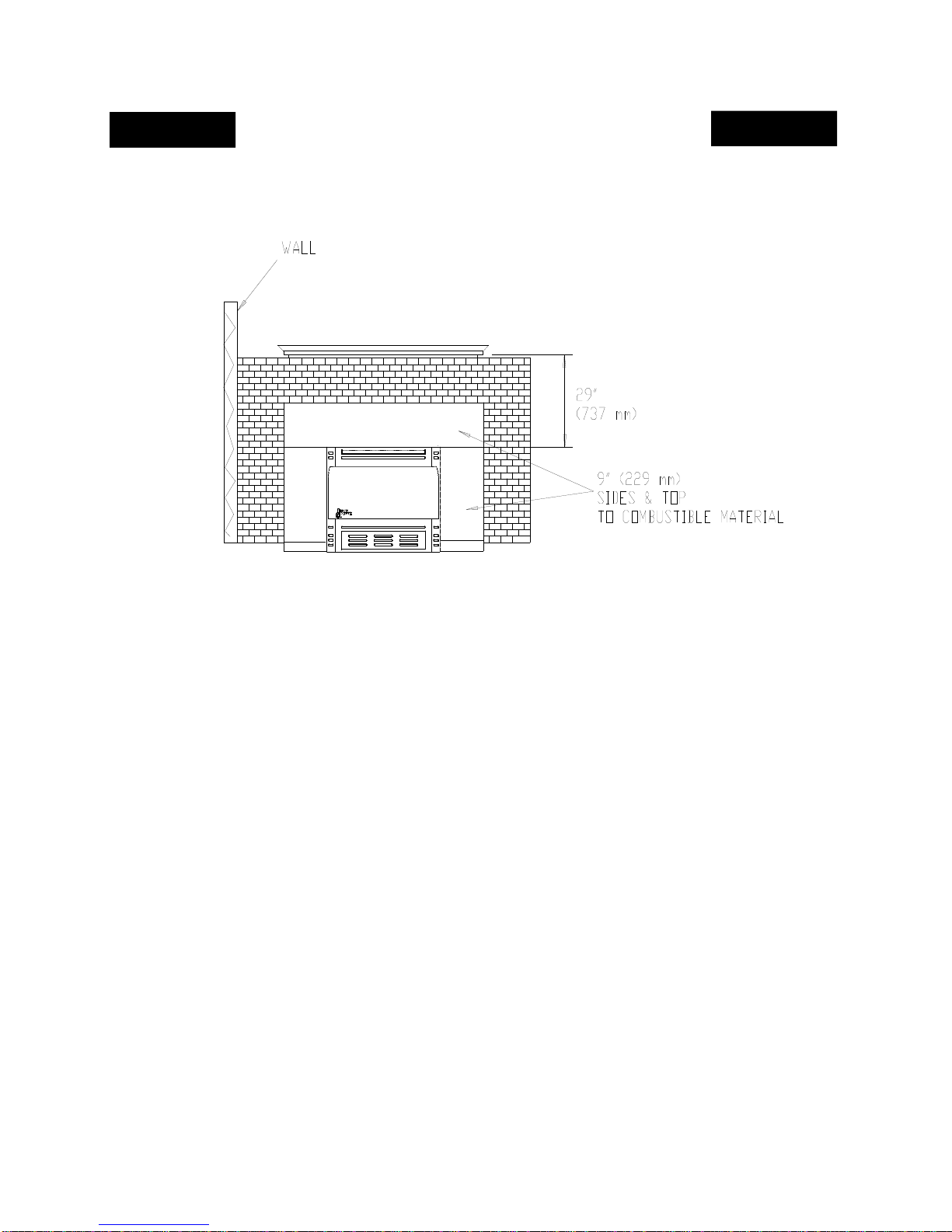

MASONRY INSERT INSTALLATION
Figure 8
IMPORTANT:
1. Caution: Read entire manual before installing unit.
2. For clearance see Figure 8.
3. Masonry insert must be installed as follows:
4. All heaters must be vented with 4" (101mm) pipe from top of unit to entire height of
exiting chimney.
CAUTION: Read 1-7 page 9 carefully before lighting your unit for the first time.
NOTE: YOU MUST HAVE A 12" (304mm) FLOOR PROTECTOR IN FRONT OF
THE HEATER WHEN INSTALLED IN A MASONRY FIREPLACE.
MANTEL AND/ OR SUPPORTS COMBUSTIBLE
PROJECTING MORE THAN 3/4”

15
MAINTENANCE REQUIREMENTS
1. This appliance should be inspected at least once a year by a professional service person.
NOTE: Installation and repair should be done by a qualified service person.
The appliance should be inspected before use and at least annually by a qualified
service person. More frequent cleaning may be required due to excessive lint
from carpeting, bedding material, pet hair, etc. It is imperative that control
compartments and circulating air passageways of the appliance be kept .
2. The room air blower should be disconnected from electrical current, removed, and cleaned
every six months. Check and clean fan blades every 6 months.
3. Yearly examination of the venting system by a qualified agency is required. First
remove the glass on the front of the unit. The burner should be covered or removed
before cleaning. Inside, at the top of the unit, there are two (2) 9/16" nuts. Remove the
nuts and the baffles to expose the lower end of the flue gas exit. Inspect the exterior of
the house, remove the chimney cap and check the flue gas exit and clean with a brush.
Vacuum any residue.
4. Annual cleaning of the burner is required. Clean with a few strokes of a steel brush.
5. Visually check the pilot light and burner when they are burning. The pilot flames
should be steady, not lifting or floating. See Figure 9.

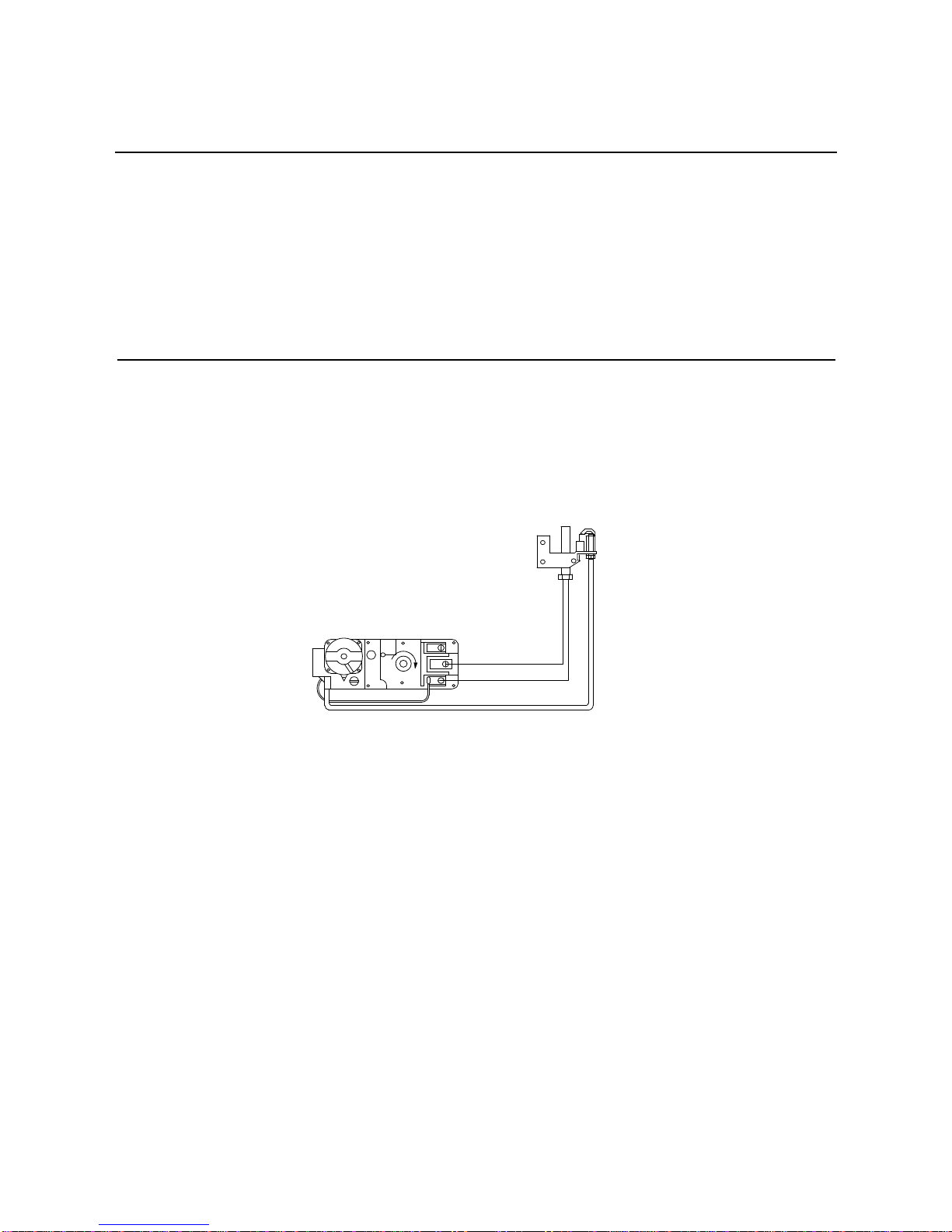

Figure 9
NOTE: REINSTALL GLASS DOOR BEFORE OPERATING THE
UNIT.ANY SAFETY SCREEN OR GUARD REMOVED FOR SER-
VICING AN APPLIANCE MUST BE REPLACED PRIOR TO OPERATING THE
APPLIANCE. AIR INTAKE ON BURNER CANNOT BE CLOSED OFF ANY
CLOSER THAN 3/8". KEEP THE APPLIANCE AREA CLEAR OF COMBUSTIBLE
MATERIALS, SUCH AS GASOLINE AND OTHER FLAMMABLE VAPORS AND
LIQUIDS.
6" (152 MM)

16
TROUBLE SHOOTING GUIDE
The regulator board includes the following items: regulator, generator, pilot, Piezo,
electrode, rocker switch, burner, orifice and orifice holder. If any of these
items are defective, replacement of the entire board would be easier and would not void the
warranty. Please contact your dealer if this becomes necessary.
1. If heater fails to ignite, a qualified service person should check the heater's installation.
2. It is imperative that the control compartment burners and circulating air passageways of
the heater be kept clean. This is necessary to provide adequate combustion and ventilation air.
PROBLEM
1. Pilot won’t light
2. Pilot won’t stay lit
3. No spark when Piezo
button is depressed
CAUSE
1. Gas shut off
2. Gas line not bled out
3. Not holding regulator
valve in long enough
1. Not holding pilot button
in long enough
2. Generator wires loose
at regulator terminals
3. Generator wire
grounded out due to
pinching during
installation of regulator
board
1. The nut which holds the
Piezo in place is loose
2. Wire on back of Piezo
button is loose or off
3. Wire from Piezo to
electrode is loose at
electrode
4. Electrode moved out of
position
SOLUTION
1. Turn gas on
2. Hold valve knob in long
enough to bleed out line
3. Hold in longer.
1. Hold button in long
enough to heat generator
2. Reposition wire and
tighten screws
3. The nuts on regulator
board may need
loosening to remove
pinched wire
1. Tighten nut
2. Put wire back in place
3. Reconnect wire
4. Realign electrode with
1/8" space between it and
pilot

17
IN
ON
OFF
PILOT
VENT
HI
LO
PILOT TUBE
GENERATOR
GEN. WIRE
PROBLEM
4. Burner won’t light
5. Fire goes out after
running for several
minutes
CAUSE
1. Pilot not lit
2. Regulator valve not
turned on
3. Rocker switch not
turned on
4. Rocker switch wire not
connected
1. Obstructed chimney or
down draft
2. Chimney not high
enough
SOLUTION
1. Relight pilot
2. Turn valve to “ON”
3. Press bottom of switch
exposing the “Red” or
“ON” indicator
4. Check wiring diagram
and ensure that all wires
are secure
1. Check chimney for
obstructions
2. Add more chimney
Figure 10

18
REPLACEMENT PARTS
PART PARTNUMBER
AUTO/MANUAL Switch PE0815-2243
Fan Motor PE SBR084
Rheostat PEBC204
Power Cord PE 400240
Thermostat PE 400132
Male Terminal PESX 428
Female Terminal PESX 425
Regulator - Hi/Low PE711 REG (Specify gas type)
Pilot PE5SHL-1
Thermopile PECP2
AUTO/OFF/MANUAL Switch PERC-211RB
Piezo Striker PE 124461
Pilot Tube 1/4" PE 141912
Burner Tube 3/8" PE 381612
Supply Tube 3/8" PE 381612
3/8" Straight x 3/8" Flare Elbow PH 4966
(2 per unit)
JumperWire PE65JUMPER
Burner PODTBURN
Orifice Holder POORFHLD
Orifice POORIFICE
Door Glass (Front) PG 66404 - F
Door Glass (Sides) PG 66404 - S
Door Gasket MG 7810863KRB
Door Glass Gasket MG 1161FBGP
Door Glass Holder PO M6166BAYFRAME
Gas Logs PO19LG
Parts can be purchased at any authorized Buck Stove Dealer.

19
NEW BUCK CORPORATION (NBC)
“LIMITED FIVE YEAR WARRANTY”
FOR THE BUCK STOVE AND RELATED PRODUCTS
PLEASE READ THIS WARRANTY CAREFULLY
This warranty covers your new heating unit, so long as it is owned by the original purchaser,
including optional and standard accessories purchased at the same time, subject to terms,
limitations, and conditions herein set out.
This warranty will not cover any damage and/or failure caused by abuse or improper
installation of the products covered.
WARRANTY
For a five year period from the date of purchase, as long as the heater is owned by the original
purchaser, NBC will repair or replace, at its option, any part defective in materials or work-
manship, with the exception of: optional and standard accessories, and all parts not
permanently attached to the heating unit. Parts not permanently attached to the heating unit are
defined as those items designed to be removed from the stove, including those removable
with common hand tools. The cost of parts only are included. The customer pays
any labor or transportation charges required.
Electrical motors, wiring switches and gas components are warranted for one (1) year from
date of purchase. Customer pays any transportation charges.
PROCEDURE
Should you feel that your heater is defective, you should contact any NBC dealer for the name
of your nearest authorized heater service representative, who will instruct
you on the proper procedure.
CONDITIONS AND EXCLUSIONS
(A) Replacement of parts may be in the form of new or fully reconditioned parts, at NBC's
option.
(B) There are no other warranties express or implied including warranties or Merchantability,
Fitness for Purpose, or Otherwise except those warranties expressly stated herein.
(C) NBC is not liable for indirect, incidental, or consequential damages in connection with the
use of the product including any cost or expense of providing
substitute equipment or service during periods of malfunction or non-use.

20
Some states do not allow the exclusion of incidental or consequential damages, so the above
exclusion may not apply to you.
(D) All warranty repairs under this warranty must be performed by an authorized Buck Stove
service representative. Repairs or attempted repairs by anyone other
than an authorized service representative are not covered under this warranty. In addition,
these unauthorized repairs may result in additional malfunctions, the correction of which is not
covered by warranty.
OTHER RIGHTS
This warranty gives you specific legal rights, and you may also have other rights, which vary
from state to state.
OWNER REGISTRATION CARD
The attached owner registration card must be completed in its entirety and mailed within 30
days from the date of installation,if installed by a factory certified installer to New
Buck Corporation, P.O. Box 69, Spruce Pine, NC 28777, in order for warranty coverage to
begin.
PLEASE NOTE: The Owner Registration Card must contain the Authorized Buck Stove
Dealer Code Number and the Certified Installer's number (if applicable) for warranty coverage
to begin.
NAME_____________________________________________________________
ADDRESS__________________________________________________________
CITY_____________________________STATE__________ZIP______________
MODEL #_______________
SERIAL #_______________DATE OF INSTALLATION_____________________
INSTALLER'S NAME_________________________________________________
DEALER’S NAME____________________________________________________
DEALER’S ADDRESS_________________________________________________
