New Buck Corporation 32 User manual

MODEL 32
MAY BE INSTALLED IN A SOLID FUEL BURNING FIREPLACE, AS A
FREESTANDING FIREPLACE OR WITH AN
OPTIONAL WOODEN SURROUND
ON
WA R N I N G : If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
− Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the fire department.
− Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is in-
stalled. Provisions for adequate combustion and ventilation air must be provided. Refer to
section “ Producing Adequate Ventilation” page 12.
This appliance may be installed in an aftermarket, permanently located, manufactured
(mobile) home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appli-
ance is not convertible for use with other gases.
Manufacturer: NEW BUCK CORPORATION
P.O. Box 69
8000 Highway 226 South
Spruce Pine, NC 28777
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
WARNING
This appliance is equipped for (natural or propane) gas .
Field conversion is not permitted.
VENT-FREE
This appliance is intended for supplemen-
tal heating.
Revised December 2006

TABLE OF CONTENTS
Safety Information and Warnings........................................................................................3
Solid Fuel Burning Fireplace Installation (FP)....................................................................6
Freestanding Installation Without or With Optional Pedestal (FS)....................................8
Wooden Surround Installation (WS) .................................................................................10
Mobile Home Installation .................................................................................................11

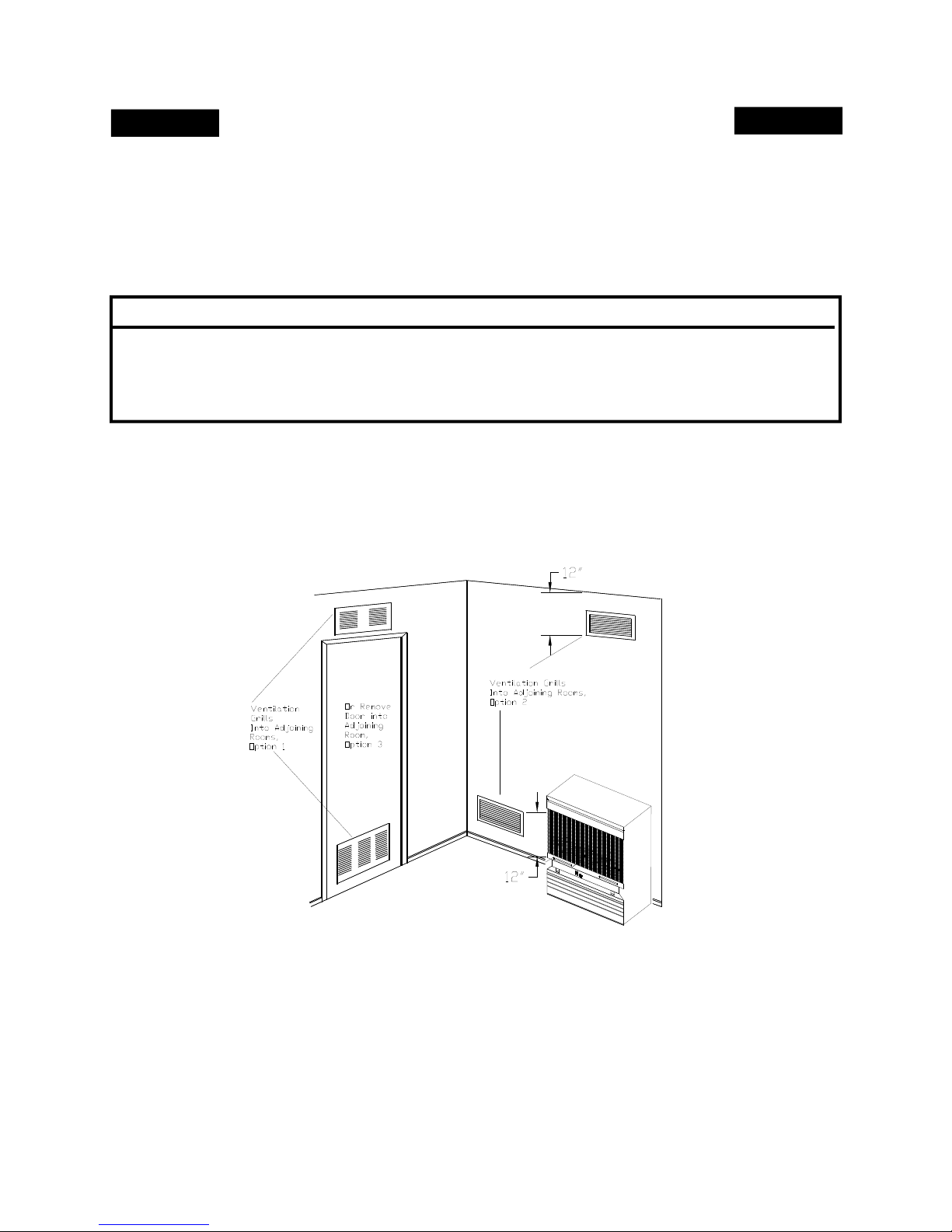

Producing Adequate Ventilation........................................................................................12
Ventilation Air Indoors......................................................................................................14
Ventilation Air Outdoors ...................................................................................................15
Placement of Logs .............................................................................................................16
Gas Connection..................................................................................................................17
Gas Pressure Check ...........................................................................................................18
Lighting Instructions - (ITT) Millivolt Valve....................................................................19
Lighting Instructions - (SIT) Modulating or – (SIT) Manual..........................................23
Flame Check ......................................................................................................................27
Wiring Diagram .................................................................................................................28
Important Safeguards.........................................................................................................29
Trouble Shooting ...............................................................................................................30
Service/Replacement Parts ................................................................................................34
Warranty/Owner Registration............................................................................................39
Page 1

Page 2

SECTION I
SAFETY INFORMATION WARNINGS
IMPORTANT: READ THIS OWNER’S MANUAL CAREFULLY AND COMPLETELY
BEFORE TRYING TO ASSEMBLE, OPERATE, OR SERVICE THE APPLIANCE.
IMPROPER USE OF THESE LOGS CAN CAUSE SERIOUS INJURY OR DEATH FROM
BURNS, FIRE, EXPLOSION, AND CARBON MONOXIDE POISONING.
Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness, and/or
nausea. If you have these signs, the heater may not be working properly. Get fresh air at once!
Have heater serviced.
Some people-pregnant women, persons with heart or lung disease, anemia, those under the
influence of alcohol, and those at high altitudes-are more affected by carbon monoxide than
others.
CAUTION: Strong drafts, such as a ceiling fan placed directly in front of the heater
(pulling from either direction) may create sooting. Sooting will discolor
walls.
1. The installation must conform with local codes ,or in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.1/NFPA54.
2. This appliance may be installed in an After-Market* Manufactured (Mobile) Home,
where not prohibited by state or local codes.
* (After-Market: Completion of sale, not for purpose of resale from the manufacturer.)
This appliance is only for use with the type of gas indicated on the rating plate. This
appliance is not convertible for use with other gases.
NOTE: “Producing Adequate Ventilation” page 12.
IMPORTANT: VENT-FREE HEATERS ADD MOISTURE TO THE AIR. ALTHOUGH THIS
IS BENEFICIAL, INSTALLING HEATER IN ROOMS WITHOUT ADEQUATE
VENTILATION MAY CAUSE MILDEW TO FORM FROM TOO MUCH MOISTURE.
3. Never install this heater:
♦ in a recreational vehicle, bathroom, bedroom, or any other sleeping quarters
♦ where curtains, furniture, clothing, or other flammable objects are less than 42" from the
front of the heater
♦ in high traffic areas or in windy areas
4. Two models are available. One specific model for propane (LP), and one for natural gas.
Use the correct type gas for your home. Do not convert from one gas type to another.
“WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE
DANGEROUS.”
Page 3

5. If this heater is used with propane gas, do not place propane supply tank (s) inside any structure.
6. What To Do IF You Smell Gas:
Shut off gas supply.
- Do not try to light any appliance.
- Do not touch any electrical switch; do not use any phone in your building.
- Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
- If you cannot reach your gas supplier, call the fire department.
7. When operated for the first time, the logs may emit a “paper burning” smell. This smell will
gradually diminish and will be totally eliminated after the first few hours of operation. Run the gas
logs with the flue damper open during this time. Do not use blower at this time.
8. “This heater shall not be installed in a confined space or unusually tight construction unless
provisions are provided for adequate combustion and ventilation air.” See “Producing
Adequate Ventilation”, page 12.
9. Surface of gas logs becomes very hot when operating. Keep children and adults away from hot
surface. Gas logs will remain hot for sometime after shutdown. Allow surface to cool before
touching.
10. Do not place clothing or other flammable material on or near the appliance.
11. If equipped, fresh air damper must be closed.
12. Keep appliance area clean and free from combustible materials, gasoline, and other flammable
flammable vapors and liquids. .
13. If burner shuts off, do not relight until you provide fresh outside air. If burner continues to shut off,
have unit serviced.
14. Do not use this heater if any part has been under water. Immediately call qualified service
technician to inspect the room heater and to replace any part of the control system and any
gas control which has been under water.
15. Turn off the heater and let cool before servicing.
16. These logs are made of bonded fiber. When removing logs and base, do not damage the bonded
material. If the material is damaged extensively, loose fiber dust could be emitted into the air.
17. Any safety screen or guard removed for servicing an appliance must be replaced prior to
operating the heater.
18. This appliance is intended for supplemental heating.
19. “WARNING: Any change to this heater or its controls can be dangerous.”
20. Installation and repairs should be performed by a qualified service person. The appliance
should be inspected before use and at least annually by a professional service person. More
frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.
It is imperative that control compartments, burners and circulating air passageways of the
appliance be kept clean.
Page 4

21. All heater screens must be kept clean when operating the gas logs.
22. .”WARNING: Failure to keep the primary air opening (s) of the burner (s) clean may result
in sooting and property damage.”
23. Do not use this heater for burning trash or cooking. Never place matches, paper, garbage, or any
other material on top of logs or into the flames.
24. Do not install or operate this heater in areas where impurities in the air exist (such as tobacco
smoke or heavy cooking grease). Particles from impurities may discolor walls.
25. Due to high temperatures, the appliance should be located out of traffic and away from
furniture and draperies.
26. Children and adults should be alerted to the hazards of high surface temperature and should
stay away to avoid burns or clothing ignition.
27. Young children should be carefully supervised when they are in the same room with the
appliance.
28. An unvented room heater having an input rating of more than 10,000 Btu per hour shall not
be installed in a bedroom or bathroom.
29. The appliance and its appliance main gas valve must be disconnected from the gas supply
pipping system during any pressure testing of that system at test pressure in excess of 1/2
psi (3.5 kPa).
30. The appliance must be isolated from the gas supply pipping system by closing its equipment
shut-off valve during any pressure testing of the gas supply piping system at test pressures
equal to or less than 1/2 psi (3.5 kPa).
31. “WARNING: Do not allow fans to blow directly into fireplace. Avoid any drafts that alter
burner flame patterns.”
32. “WARNING: Do not use a blower insert, heat exchanger insert or other accessory not
approved for use with this heater.”
33. Adequate clearances around air openings. Nothing may be placed over any of the air openings on
this appliance, or can any of the air openings be modified in anyway.
34. “Trim panels or surrounds shall not seal ventilation openings in the fireplace.”
35. “A fireplace screen must be in place when the appliance is operating and, unless other
provisions for combustion air are provided, the screen shall have opening(s) for introduction
of combustion air.
Page 5

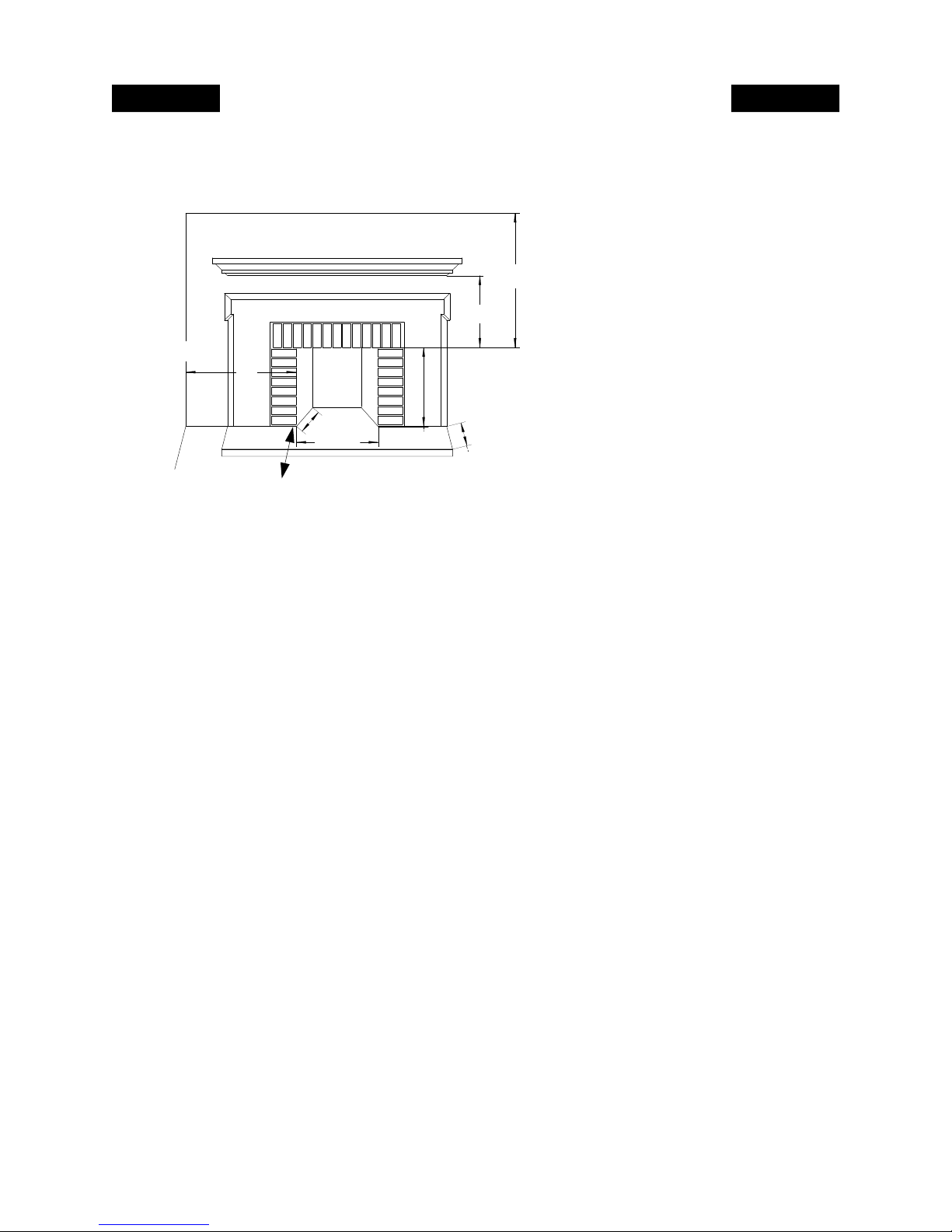

MASONRY INSERT INSTALLATION/ SOLID
FUEL BURNING FIREPLACE MODEL 32 (FP)
1. The Model 32 (FP) may be installed in a masonry fireplace.
Minimum fireplace dimensions: 25 1/2" high, 21-1/2" wide, 13" deep.
7"
20"
24"
12"
21-1/2" 25-1/2"
13"
24” TO COMBUSTIBLES
Your new Buck Vent-Free gas heater may be installed in a Residential or *After-Market Mobile
Home, where prohibited by state or local codes.
*After-Market: Completion of sale. Not for purpose of resale from the manufacturer.
This appliance is for use with the type of gas indicated on the rating plate. Not convertible
for use with other gases.
2. Minimum dimensions sidewall and mantel:
Sidewall-not less than 5" See Figure 1.
Mantel-not less than 16" See Figure 1.
3. Center Model 32 in masonry fireplace. Position front of heater even with front of fireplace
chamber if possible.
4. Place side trim panels flat against the fireplace. Draw a vertical reference line along the
inside edge of the trim panel.
5. Place top trim panel on top of unit. Draw reference line for mounting on lower edge of pane
NOTE: The installer of this appliance must mechanically (peel and stick) attach the marking
supplied with this unvented appliance before installing to the inside of the firebox of the solid-
fuel burning fireplace or listed ventless firebox enclosure into which the unvented fireplace in-
sert is installed. See the example of the marking on page 18 of this manual.
CAUTION: Cutting any sheet-metal parts of the solid-fuel burning fireplace or listed ventless
enclosure in which the unvented fireplace is to be installed is prohibited.
NOTE: “If the factory-built fireplace has no gas access hole(s) provided, an access hole of 1.5
inch (37.5) diameter or less may be drilled through the lower sides or bottom of the firebox in a
proper workmanlike manner. This access hole must be plugged with non-combustible insulation
after the gas supply line has been installed.”
“Refractory, glass doors, screen rails, screen mesh and solid-fuel log grates (if applicable) can
be removed from the fireplace before installing the unvented fireplace insert.”
“Smoke shelves shields and baffles may be removed if attached by mechanical fasteners.”
42”
LEFT SIDE RIGHT SIDE
FRONT
“WARNING: Before installing in a
solid-fuel burning fireplace, the chim-
ney flue and firebox must be cleaned of
soot, creosote, ashes and loose paint by
a qualified chimney cleaner.”
NOTE: Any outside air ducts and / or
ash dumps in the fireplace shall be per-
manently closed at time of appliance
installation.
“WARNING: Any glass doors shall be
fully opened when appliance is in opera-
tion.”
16”
5”
WALL
CEILING
Figure 1
Page 6

6. Slide the unit out and install the trim panels with a drill or screw gun. (Self tapping screws
provided).
NOTE: Make sure the gas supply line is hooked up at this time, and check for leaks at the
connection using soap and water.
CAUTION: Do Not use an open flame to check for leaks.
7. Place logs on the burner base as shown on page 16.
8. For gas hookup and pressure tap test, see instructions on pages 17 & 18.
NOTE: When operated for the first time, the logs and paint may emit a “paper burning smell”.
This smell will gradually diminish after a few hours of operation. Run the heater with the flue
damper, windows or doors, open during this time. DO NOT use blower at this time.
Page 7

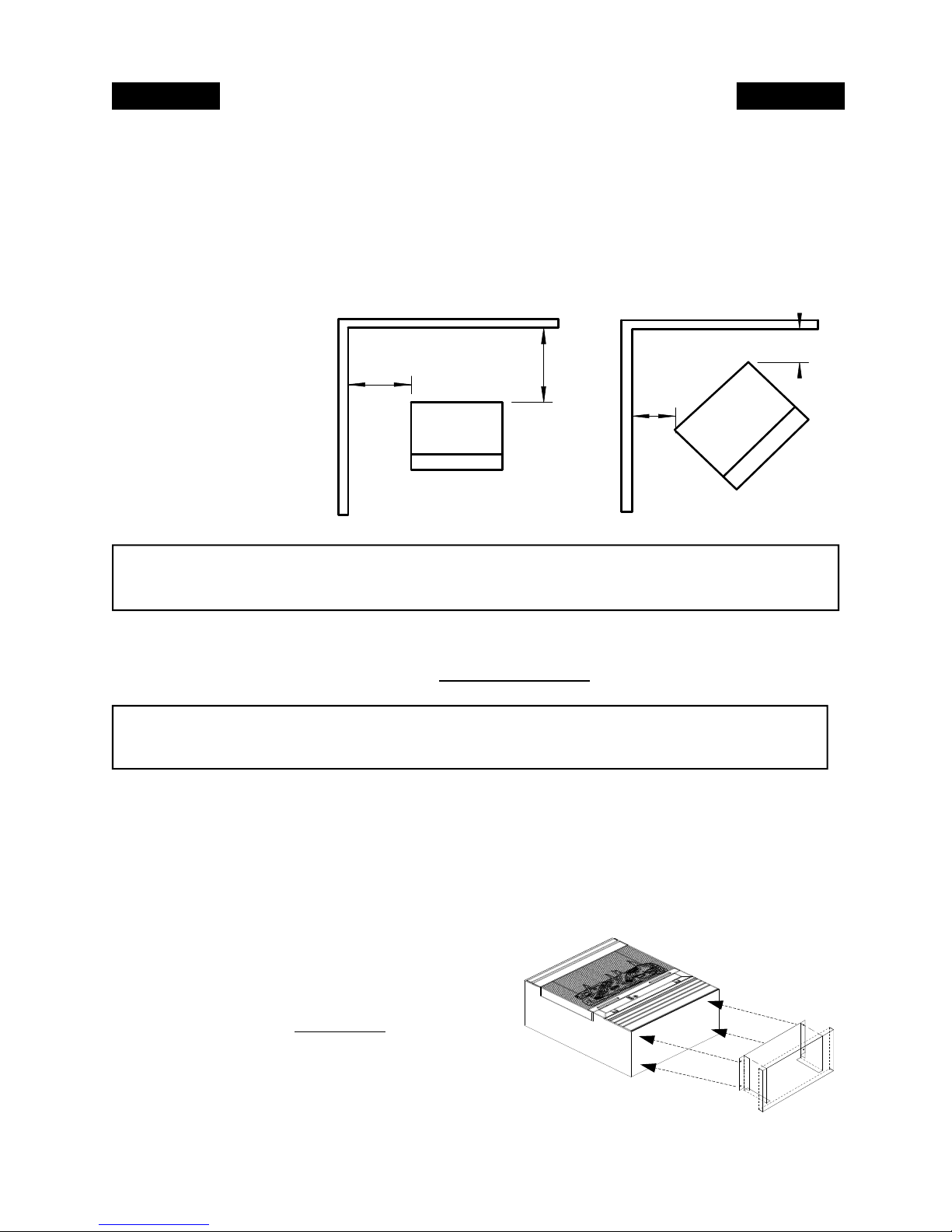

FREESTANDING INSTALLATION
MODEL 32 (FS)
1. Determine the exact location of your gas heater.
NOTE: Due to high temperatures, this heater should be located out of traffic areas and away
from furniture and draperies.
NOTE: For safe installation the minimum clearances must be met. See Figure 2. For floor
protector, see last paragraph, page 8.
CAUTION: THE INSTALLATION MUST CONFORM TO LOCAL CODES. IN THE
ABSENCE OF LOCAL CODES, INSTALLATION MUST CONFORM WITH THE NATIONAL
FUEL GAS CODE,ANSI Z223.1/NFPA54.
NOTE: See page 17 for “Gas Connection” and page 18 for “Pressure Check”.
2. Check gas type. Use only the type of gas indicated on the valve rating plate. If the type of gas listed
on the plate is not your type of gas supply, DO NOT INSTALL. Contact your dealer for proper
model. Position logs as shown on page 16. Position screen before leaving heater unattended.
WARNING: YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY
ARE IN THE SAME ROOM AS THE HEATER. DO NOT PLACE CLOTHING OR OTHER
FLAMMABLE MATERIAL ON OR NEAR THE HEATER.
NOTE: When the appliance is installed directly on carpeting, tile or other combustible material, other
than wood flooring, the appliance shall be installed on a metal or wood panel extending the full width
and depth of the appliance.
Optional Pedestal (Part#FAP11) Instructions: Lay the heater on its back (use a drop-cloth to protect
the back of the heater and the surface of your flooring). Place pedestal against the bottom of the heater.
Center pedestal from left to right and from front to rear. Mark the holes on the angle of the top of the
pedestal onto the bottom of the heater. Lay the pedestal aside.
Drill the marks made onto the heater with a 1/8” bite (not pro-
vided). Replace the pedestal and secure with the screws pro-
vided. Next stand the heater to the upright position. Place the
heater in the desired location following the clearances above in
figure 2. Note: At this point you may need to secure the pedes-
tal to the floor with screws or an “ell” bracket (not provided)
for safety concerns. Next hook up the gas supply line follow-
ing the instructions in this manual completely.
NOTE:
DIMENSIONS SHOWN ARE
MINIMUM CLEARANCE TO
COMBUSTIBLE WALL.
4"
5"
4"
4"
WALL WALL
STOVE
STOVE
Figure 2
NOTE: Clearance form
top of appliance to ceil-
ing is 42”. (Not shown
in figure 2)
Page 8

ALCOVE INSTALLATION
CAUTION: READ ENTIRE MANUAL BEFORE INSTALLING HEATER.
1. For clearances, see Figure 3. The minimum clearances must be met.
2. For “Installation and Gas Connection”, see page 17.
FOR YOUR SAFETY:
WHAT TO DO IF YOU SMELL GAS
-Do not try to light appliance.
-Do not touch any electrical switch.
-Do not use telephone in building.
-Call your gas supplier immediately, from a neighbor’s phone. Follow the gas supplier
instructions.
-If you cannot reach your gas supplier, call the Fire Department.
-Do not store or use gasoline or any other flammable vapors or liquids in the vicinity of
this appliance or any other appliance.
WARNING: DO NOT USE THIS ROOM HEATER IF ANY PART HAS BEEN UNDER
WATER. IMMEDIATELY CALL A QUALIFIED SERVICE TECHNICIAN TO INSPECT
THE ROOM HEATER AND TO REPLACE ANY PART OF THE CONTROL SYSTEM
AND ANY GAS CONTROL WHICH HAS BEEN UNDER WATER.
WARNING: IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION,
SERVICE, OR MAINTENANCE CAN CAUSE PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE. INSTALLATION AND SERVICE MUST BE PERFORMED
BY A QULIFIED INSTALLER, SERVICE AGENCY OR THE GAS SUPPLIER.
“WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE
DANGEROUS.”
NOTE: The depth of the alcove must allow a 4" minimum clearance at the rear. The width of
the alcove must allow a 5” clearance on the right side and the left side. The height of the alcove
must allow for a 10” clearance form the top of the heater to the ceiling of the alcove. The front
edge of the heater must meet the front of the alcove, and have a minimum of 24” to any
combustible material.
NOTE:
DIMENSIONS SHOWN ARE
MINIMUM CLEARANCE TO
COMBUSTIBLE WALL.
FLOOR
PROTECTOR
4"
5"
WALL
STOVE
10"
Figure 3
Page 9

5-1/2"
METAL STRIP
ON
Figure 4
INSTALLATION OF MODEL 32 (WS)
WITH OPTIONAL WOODEN SURROUND(KIT#PA-KDM32)
A. Determine the desired location for your heater and wooden surround. See “Freestanding
Installation” for minimum clearances.
B To install metal filler strips to the surround (after completing step 2 of surround assembly),
position the wooden mantel over the unit, centering it up in the cabinet. Place the metal filler strips
to the side of the cabinet, allowing 1/4" air space between the strips and side of the cabinet. Make a
light pencil mark on strip. Remove the wooden mantel from around cabinet. Align the pencil mark
with the inner edge of the cabinet from back side. Using the screws provided with heater, fasten
strips to the back of the mantel.(At this point complete steps 3 and 4 of surround assembly)
C Make sure wooden mantel is in correct position. Place the heater into the surround. Connect gas line
to the heater, following all the instruction in this manual completely
D Make sure you leave 1/4" space between the metal filler strip and the top and sides of the heater.
You will also want to position the heater so you have 5 1/2" from outer lip of hot air vent to the
pieces of metal strips, not the wooden face of the mantel. See Figure 4.
NOTE: You will need to heave 1/2" space between the back of the wooden mantel and an adjacent
combustible wall.
NOTE: If a masonry hearth is built up under front bottom of heater, and you do not use the hearth
provided with the wooden surround, you must have 12" of non-combustible material from front bottom
edge of heater.
(WS) ASSEMBLY INSTRUCTIONS
Tools Needed: Medium Phillips Screwdriver
Step 1: Lay out all components. (See diagram 1)
Step 2: Assemble end panels (A & B) to top front rail ( C ).(See section “B” above on this page)
Step 3: Stand end panels and top front rail onto hearth and fasten down with screws provided (See dia-
gram 1).
NOTE: Position back of end panels with back of hearth centering assembly from each end. Install front
screws first, then pull back towards the inside to square the surround (mantel) up. Install screws through
back holes.
Step 4: Place top onto surround, flush with back and equal on each end. Secure both ends and middle
with screws provided.
CONTINUED ON PAGE 11
Page 10

INSTALLATION IN RESIDENTIAL
OR AFTER-MARKET MOBILE HOMES
NOTICE:
A QUALIFIED SERVICE TECHNICIAN MUST INSTALL THIS HEATER.
CHECK FOR STATE AND LOCAL CODES CONCERNING INSTALLATION
REQUIREMENTS.
CHECK GAS TYPE:
THIS APPLIANCE IS ONLY FOR USE WITH THE TYPE OF GAS INDICATED ON THE
RATING PLATE. THIS APPLIANCE IS NOT CONVERTIBLE FOR USE WITH OTHER
GASES.
INSTALLATION SUPPLIES:
Before installing the heater, gather the following materials:
- external regulator - ground joint union
(supplied by installer for propane) - sediment trap
- piping (check local codes) - tee joint
- manual shutoff valve* - pipe wrench
- test gauge connection* - sealant (resistant to LP gas)
* An C.S.A. design-certified manual shutoff valve with 1/8" NPT tap is an acceptable alternative to test
gauge connection. Purchase the optional C.S.A. design-certified manual shutoff valve from your dealer.
WARNING
MAINTAIN THE MINIMUM CLEARANCES SHOWN THROUGHOUT THIS MANUAL. IF
POSSIBLE, PROVIDE GREATER CLEARANCES FROM FLOOR, CEILING, AND
ADJOINING WALL.
NOTE: See “Producing Adequate Ventilation” page 12.
.THIS APPLIANCE MAY BE INSTALLED IN AN AFTERMARKET*, PERMANENTLY
LOCATED, MANUFACTURED (MOBILE) HOME, WHERE NOT PROHIBITED BY LOCAL
CODES.
*After Market: Completion of sale, not for the purpose of resale from the manufacturer.
EXPLODED VIEW OF MODEL 32 (WS)
WOODEN SURROUND BASE (HEARTH) (SHOWN AS VIEWED FROM REAR OF SURROUND)
Page 11

PRODUCING ADEQUATE
VENTILATION
This section is for residential or manufactured (mobile) installation
“This heater shall not be installed in a confined space or unusually tight construction unless pro-
visions are adequate combustion and ventilation air.”
The National Fuel Gas Code, ANSI Z223.1/NFPA 54 defines a confined space as a space
whose volume is less than 50 cubic feet per 1,000 BTU per hour (4.8m 3 per kw) of the
aggregate input rating of all appliances installed in that space and an unconfined space as a
space whose volume is not less than 50 cubic feet per 1,000 BTU per hour (4.8m 3 per kw) of
the aggregate input rating of all appliances installed in that space. Rooms communicating
directly with the space in which the appliances are installed, through openings not furnished
with doors, are considered a part of the unconfined space.
“WARNING: IF THE AREA IN WHICH THE HEATER MAY BE OPERATED IS
SMALLER THAN THAT DEFINED AS AN UNCONFINED SPACE OR IF THE
BUILDING IS OF UNUSUALLY TIGHT CONSTRUCTION, PROVIDE ADEQUATE
COMBUSTION AND VENTILATION AIR BY ONE OF THE METHODS DESCRIBED
IN THE NATIONAL FUEL GAS CODE, ANSI Z223.1/NFPA 54, SECTION 5.3 OR
APPLICABLE LOCAL CODES.”
Unusually tight construction is defined as construction where:
a) Walls and ceilings exposed to the outside atmosphere have a continuous water vapor retarder
with a rating of 1 perm (6 x 10-11 kg per pa-sec-m2) or less with openings gasketed or sealed;
b) Weather stripping has been added on openable windows and doors, and
c) Caulking or sealants are applied to areas such as joints around window and door frames,
between sole plates and floors, between wall-ceiling joints, between wall panels, at penetrations
for plumbing, electrical, and gas lines, and at other openings.
NOTE: SOME AREAS IN THE UNITED STATES HAVE HIGHER REQUIREMENTS
FOR CUBIC FEET PER 1000 BTU/ HOUR INPUT. (EX. CINCINNATI, OHIO CODES
REQUIRE 70 CUBIC FEET). CHECK YOUR LOCAL CODE BEFORE
INSTALLATION.
DETERMINING FRESH-AIR FLOW FOR
HEATER LOCATION
DETERMINE IF YOU HAVE A CONFINED OR UNCONFINED SPACE
Use this worksheet to determine if you have confined or unconfined space.
SPACE: Includes the room in which you will install heater plus adjoining rooms with
doorless passageways or ventilation grills between the rooms.
Page 12

1. Determine the volume of the space (length x width x height).
Length x Width x Height =_________cu.ft.(volume of space)
EXAMPLE: 20 ft.(Length) x 16 ft.(Width) x 8 ft.(ceiling Height)=
2560 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add the
volume of these rooms to the total volume of the space.
2. Divide the space volume by 50 cubic feet to determine the maximum BTU/Hr the
space can support.
_________(volume of space)/50 cu. ft. =maximum BTU/Hr the space can support)
EXAMPLE: 2560 cu. ft. (volume of space /50 cu. Ft .= 51.2 or
51200 (maximum BTU/Hr the space can support)
3. Add the BTU/Hr of all fuel burning appliances in the space.
Vent-free heater _______________BTU/Hr
Gas water heater* _______________BTU/Hr
Gas furnace _______________BTU/Hr
Vented gas heater _______________BTU/Hr
Gas fireplace logs _______________BTU/Hr
Other gas appliances* + _______________BTU/Hr
Total = _______________BTU/Hr
Example: Gas water heater 40000 BTU/Hr
Vent-free heater + 18000 BTU/Hr
Total = 58000 BTU/Hr
*Does not include direct-vent gas appliances. Direct-vent draws combustion air
from the outdoors and vents to the outdoors.
4. Compare the maximum BTU/Hr the space can support with the actual amount of BTU/
Hr used.
____________BTU/Hr (maximum the space can support)
____________BTU/Hr (actual amount of BTU/Hr used)
Example: 51200 BTU/Hr (maximum the space can support)
58000 BTU/Hr (actual amount of BTU/Hr used)
The space in the above example is a confined space because the actual BTU/Hr used is more
than the maximum BTU/Hr the space can support. You must provide additional fresh
air. Your options are as follows: A. Rework worksheet, adding the space of an adjoining
room. If the extra space provides an unconfined space, remove door to adjoining room or add
ventilation grills between rooms. See “Ventilation Air From Inside Building”, page 21.
B. Vent room directly to the outdoors. See “Ventilation Air From Outdoors”, page 22.
C. Install a lower BTU/Hr heater, if lower BTU/Hr size makes room unconfined.
If the actual BTU/Hr used is less than the maximum BTU/Hr the space can support, the
space is an unconfined space. You will need no additional fresh air ventilation.
WA R N I N G : YOU MUST PROVIDE ADDITIONAL VENTILATION AIR IN A
CONFINED SPACE
Page 13

VENTILATION AIR
VENTILATION AIR FROM INSIDE BUILDING
This fresh air would come from an adjoining unconfined space. When venting to an adjoining
space, you must provide two permanent openings: one within 12" of the ceiling and one within
12" of the floor on the wall connecting the two spaces. (See Options 1 and 2, Figure 5). You
can also remove door into adjoining room. (See Option 3, Figure 5).
WARNING
REWORK WORKSHEET, ADDING THE SPACE OF THE ADJOINING
UNCONFINED SPACE. THE COMBINED SPACES MUST HAVE ENOUGH FRESH
AIR TO SUPPLY ALL APPLIANCES IN BOTH SPACES.
NOTE: Each opening shall have a minimum free area of 1 square inch per 1000 BTU’s per
hour of the total input ratings of all gas utilization equipment in the confined space, but not less
than 100 square inches.
Figure 5: Ventilation Air From Inside Building
NOTE: Drill holes on bottom of pedestal base on each corner. Unit must be fastened to floor
with screws.
Page 14

VENTILATION AIR FROM OUTDOORS
Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent
openings: one within 12" of the ceiling and one within 12" of the floor. Connect these items
directly to the outdoors. These spaces include attics and crawl spaces. Follow the National
Fuel Gas Code NFPA 54/ANSI Z223.1, Section 4.3, “Air For Combustion and Ventilation” for
required size of ventilation grills or ducts. See Figure 6.
IMPORTANT: Do not provide openings for inlet air into attic if attic has a thermostat-
controlled power vent. Heated air entering the attic will activate the power unit.
WARNING
THIS HEATER MUST HAVE FRESH AIR FOR PROPER OPERATION. IF
NOT, POOR FUEL COMBUSTION COULD RESULT. READ THE
FOLLOWING INSTRUCTIONS TO ENSURE PROPER FRESH AIR FOR
THIS AND OTHER FUEL-BURNING APPLIANCES IN YOUR HOME.
Figure 6: Ventilation Air From Outdoors
Page 15

PREPARING LOG KIT
Open the cartons containing the Burner Base and the M-3019 logs. The logs are numbered
as follows: (1) Front, (2) Rear, (3) Right side top, (4) Left side top.
WA R N I N G : POSITIONING OF LOGS IS VERY CRITICAL (SEE FIGURE 7).
(1) POSITION REAR LOG (#2) , IN REAR LOG HOLDERS, CENTERING LEFT TO
RIGHT.
(2) PLACE FRONT LOG (#1) OVER FRONT PART OF BURNER TUBE. LOCATE LOG
IN THE CENTER OF THE BURNER BASE. MAKE SURE THE MIDDLE SUPPORT
LEG OF THE FRONT LOG IS IN THE HOLDERS LOCATED IN THE CENTER OF
THE BURNER BASE, JUST BEHIND THE FRONT PART OF THE BURNER TUBE.
(3) TAKE RIGHT TOP LOG (#3) AND PLACE IT IN THE SLOTS LOCATED AT THE
RIGHT SIDE OF THE FRONT AND REAR LOGS, FACING THE BURNER BASE.
(4) PLACE LEFT TOP LOG (#4) IN THE SLOTS OF THE LEFT FRONT AND REAR
LOGS.
(5) WHEN IGNITING THE BURNER, CHECK AND MAKE SURE THE FLAME IS NOT
TOUCHING EITHER SIDE OF LOG (#3), OR LOG (#4). IF FLAME IS TOUCHING
LOGS ON EITHER SIDE, MOVE SLIGHTLY TO THE LEFT OR RIGHT TO
ELIMINATE THE FLAME FROM TOUCHING EITHER LOG.
Figure 7
WARNING: Failure to position the parts in accordance with these diagrams or failure to use only
parts specifically approved with this heater may result in property damage or personal injury.
TOP LEFT TOP RIGHT
REAR LOG
FRONT LOG
Page 16

GAS CONNECTION
Check gas type. Use only the type of gas indicated on the valve rating plate. If the gas type
listed on the plate is not your type of gas supply, DO NOT INSTALL. Contact your dealer for
proper model.
Always use an external regulator for all LP heaters to reduce the supply tank pressure to a
maximum of 14" W.C. This is in addition to the regulator furnished with the heater.
WARNING:CONNECTION DIRECTLY TO AN UNREGULATED LP TANK CAN
CAUSE AN EXPLOSION.
The normal gas connection is 3/8" N.P.T. made at the left side (facing the front of the
appliance) of the appliance. If a right side connection is desired, the connecting pipe may be
led under the rear of the burner base to terminate at the right hand side for connection at the
inlet of the valve.
NOTE: The connecting pipe must be internally tinned copper tubing for use with natural gas. Test for
leaks using a solution of soap and water after completing the connection. DO NOT USE OPEN
FLAME.
WA R N I N G : ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE
DANGEROUS.
NOTE: “If the factory-built fireplace has no gas access hole(s) provided, an access hole of 1.5 inch
(37.5mm) diameter or less may be drilled through the lower sides or bottom of the fire box in a proper
workmanlike manner. This access hole must be plugged with non-combustible insulation after the gas
supply line has been installed.”
WARNING: Installation and repairs should be performed by a qualified service person. The
appliance should be inspected before use and at least annually by a professional service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding material,
etc. It is imperative that control compartments, burners and circulating air passageways of the
appliance be kept clean.
Page 17

GAS PRESSURE CHECK
Check the inlet pressure to the burner to ensure that it is shown in the table below.
NOTE: The pressure check point is located on the right side of the valve facing burner, for SIT
Millivolt, and the left side for SIT Modulating.
The appliance and its appliance main gas valve must be disconnected from the gas supply
piping system during any pressure testing of that system at test pressures in excess of 1/2
psi (3.5kPa).
The appliance must be isolated from the gas supply piping system by closing its equipment shut
-off valve during any pressure testing of the gas supply piping system at test pressures equal to
or less than 1/2 psi (3.5 kPa).
VALVE (MILLIVOLT) (SIT MANUAL-MODULATING)
MODEL: FP32 FP32 FP32 FP32
GAS Natural Propane Natural Propane
Maximum Heat Input 33,000 33,000 33,000 33,000
Minimum Heat Input 23,000 23,000 12,000 13,000
Gas Inlet Pressure
Maximum 10.5ins.W.C. 13ins.W.C. 10.5ins.W.C. 9.0ins.W.C.
Minimum * 5.0ins.W.C. *11ins.W.C. *5.0ins.W.C. *11ins.W.C.
Manifold Pressure
Maximum 3.5ins.W.C. 9.0ins.W.C. 3.5ins.W.C. 9.0ins.W.C.
Minimum 3.0ins.W.C. 8.2ins.W.C. 2.8ins.W.C. 7.2ins.W.C.
NOTE: On initial installation it may be necessary to bleed out air in the gas lines. Do this by
holding the control knob and turning the knob to the “PILOT” position for about 30 seconds.
To check the regulator pressure, remove the pressure tag plug at the left side of the regulator
facing the heater. The pressure should be checked with the heater burning and the control set
on high. After measuring the pressure, replace the pressure tap plug, ensuring that there are no
leaks.
* For the purpose of minimum input adjustment.
WA R N I N G
This appliance is equipped for (natural or propane) gas.
Field conversion is not permitted.
Solid fuels shall not be burned in the same fireplace where an unvented room heater has
been installed.
NOTE: The following label has been provided with this appliance and must be read and
then attached to the floor of the fireplace or firebox area beneath the appliance.
The label is a peel and stick label. Make sure the area is cleaned before attaching
the label to it.
“WARNING: This solid-fuel burning fireplace or listed ventless enclosure has been
converted for use with an unvented fireplace insert only. A solid-fuel burning
fireplace cannot be used for burning wood or solid fuels unless all original parts
have been replaced, and the fireplace re-approved by the authority having
jurisdiction. A ventless firebox enclosure cannot be used with an unvented gas log
unless all original parts have been replaced, and the ventless firebox enclosure re-
approved by the authority having jurisdiction.”
Page 18
