New Buck Corporation 1110 User manual

NEW BUCK CORPORATION
MODEL 1110 VENT-FREE GAS HEATER
WA R N I N G : If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
− Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the fire department.
− Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is in-
stalled. Provisions for adequate combustion and ventilation air must be provided. Refer to
section “ Producing Adequate Ventilation” page 13.
This appliance may be installed in an aftermarket, permanently located, manufactured
(mobile) home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appli-
ance is not convertible for use with other gases.
Manufacturer: NEW BUCK CORPORATION
P.O. Box 69
8000 Highway 226 South
Spruce Pine, NC 28777
March 2007
This appliance is intended for sup-
plemental heating.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

TABLE OF CONTENTS
Safety Information and Warnings........................................................................... 3
Product Identification.............................................................................................. 6
Product Features...................................................................................................... 7
Unpacking ............................................................................................................... 7
Cautions……………………………………………………………………………8
Installation............................................................................................................... 9
Producing Adequate Ventilation (Fresh Air for Combustion and Ventilation).... 13
Gas Connection..................................................................................................... 17
Connecting to Gas Supply .................................................................................... 18
Gas Pressure Check………………………………………………………………20
Log Placement……………………………………………………………………21
Lighting Instructions ............................................................................................ 22
Flame Check .................................................................................................... 26-27
Inspecting Pilot ................................................................................................ 26-27
Burner Flame Pattern ....................................................................................... 26-27
Wiring Diagram .................................................................................................... 28
Servicing………………………………………………………………………….29
Cleaning and Maintenance.................................................................................... 30
Troubleshooting .................................................................................................... 31
Technical Service.................................................................................................. 36
Parts List & Blown up View............................................................................ 37-40
Warranty ............................................................................................................... 41
1

2

SAFETY INFORMATION
WA R N I N G S
IMPORTANT: READ THIS OWNER’S MANUAL CAREFULLY AND COMPLETELY
BEFORE TRYING TO ASSEMBLE, OPERATE, OR SERVICE THIS APPLIANCE.
IMPROPER USE OF THESE LOGS CAN CAUSE SERIOUS INJURY OR DEATH FROM
BURNS, FIRE, EXPLOSION, AND CARBON MONOXIDE POISONING.
Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness, and/or nausea. If
you have these signs, the heater may not be working properly. Get fresh air at once! Have burner
serviced.
Some people-pregnant women, persons with heart or lung disease, anemia, those under the influence of
alcohol, those at high altitudes-are more affected by carbon monoxide than others.
Make certain you understand and read all Warnings. Keep this manual for reference. It is your guide to
safe and proper operation of this heater and logs.
CAUTION: Strong drafts, such as a ceiling fan placed directly in front of the heater
(pulling from either direction) may create sooting. Sooting will discolor
walls.
1. The installation must conform with local codes, or in the absence of local codes, with the National
Fuel Gas Code, ANSI Z223.1/NFPA54.
2. This appliance may be installed in an After-Market* Manufactured (Mobile) Home, where not
prohibited by state or local codes.
* (After-Market: Completion of sale, not for purpose of resale from the manufacturer.)
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is
not convertible for use with other gases.
NOTE: See Page 13, for “Producing Adequate Ventilation”.
IMPORTANT: VENT-FREE HEATERS ADD MOISTURE TO THE AIR. ALTHOUGH
THIS IS BENEFICIAL, INSTALLING HEATER IN ROOMS WITHOUT ADEQUATE
VENTILATION MAY CAUSE MILDEW TO FORM FROM TOO MUCH MOISTURE.
3. Never install this heater:
- in a recreational vehicle, bathroom.
- where curtains, furniture, clothing, or other flammable objects are less than 24" from the
front of the heater
-in high traffic areas
- in windy areas
4. Two models are available. One specific model for propane(LP), and one for natural gas. Use the
correct type gas for your home. Do not convert from one gas type to another.
WARNING
This appliance is equipped for (natural or propane) gas .
Field conversion is not permitted.
3

5. If this heater is used with propane gas, do not place propane supply tank (s) inside any structure.
6. What To Do IF You Smell Gas:
Shut off gas supply.
- Do not try to light any appliance.
- Do not touch any electrical switch; do not use any phone in your building.
- Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
- If you cannot reach your gas supplier, call the fire department.
7. When operated for the first time, the logs may emit a “paper burning” smell. This smell will
gradually diminish and will be totally eliminated after the first few hours of operation. Run the gas
logs with the flue damper open during this time. Do not use blower at this time.
8. “This heater shall not be installed in a confined space or unusually tight tight construction
unless provisions are provided for adequate combustion and ventilation air.” See “Producing
Adequate Ventilation”, page 13.
9. Surface of gas logs becomes very hot when operating. Keep children and adults away from hot
surface. Gas logs will remain hot for sometime after shutdown. Allow surface to cool before
touching.
10. Do not place clothing or other flammable material on or near the appliance.
11. If equipped, fresh air damper must be closed.
12. Keep appliance area clean and free from combustible materials, gasoline, and other flammable
flammable vapors and liquids. .
13. If burner shuts off, do not relight until you provide fresh outside air. If burner continues to shut off,
have unit serviced.
14. Do not use this heater if any part has been under water. Immediately call qualified service
technician to inspect the room heater and to replace any part of the control system and any
gas control which has been under water.
15. Turn off the heater and let cool before servicing.
16. These logs are made of bonded fiber. When removing logs and base, do not damage the bonded
material. If the material is damaged extensively, loose fiber dust could be emitted into the air.
17. Any safety screen or guard removed for servicing an appliance must be replaced prior to
operating the heater.
18. This appliance is intended for supplemental heating.
19.“WARNING: Any change to this heater or its controls can be dangerous.”
20.Installation and repairs should be performed by a qualified service person. The appliance
should be inspected before use and at least annually by a professional service person. More
frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.
It is imperative that control compartments, burners and circulating air passageways of the
appliance be kept clean.
4

21. All heater screens must be kept clean when operating the gas logs.
22. ”WARNING: Failure to keep the primary air opening(s) of the burner(s) clean may result in
sooting and property damage.”
23. Do not use this heater for burning trash or cooking. Never place matches, paper, garbage, or any
other material on top of logs or into the flames.
24. Do not install or operate this heater in areas where impurities in the air exist (such as tobacco
smoke or heavy cooking grease). Particles from impurities may discolor walls.
25. Due to high temperatures, the appliance should be located out of traffic and away from
furniture and draperies.
26. Children and adults should be alerted to the hazards of high surface temperature and should
stay away to avoid burns or clothing ignition.
27. Young children should be carefully supervised when they are in the same room with the
appliance.
28. An unvented room heater having an input rating of more than 10,000 Btu per hour shall not be
installed in a bathroom or bedroom.
29. The appliance and its appliance main gas valve must be disconnected from the gas supply
pipping system during any pressure testing of that system at test pressure in excess of 1/2 psi
(3.5 kPa).
30. The appliance must be isolated from the gas supply pipping system by closing its equipment
shut-off valve during any pressure testing of the gas supply piping system at test pressures
equal to or less than 1/2 psi (3.5 kPa).
31. “WARNING: Do not allow fans to blow directly into fireplace. Avoid any drafts that alter
burner flame patterns.”
32. “WARNING: Do not use a blower insert, heat exchanger insert or other accessory not
approved for use with this heater.”
5

PRODUCT IDENTIFICATION

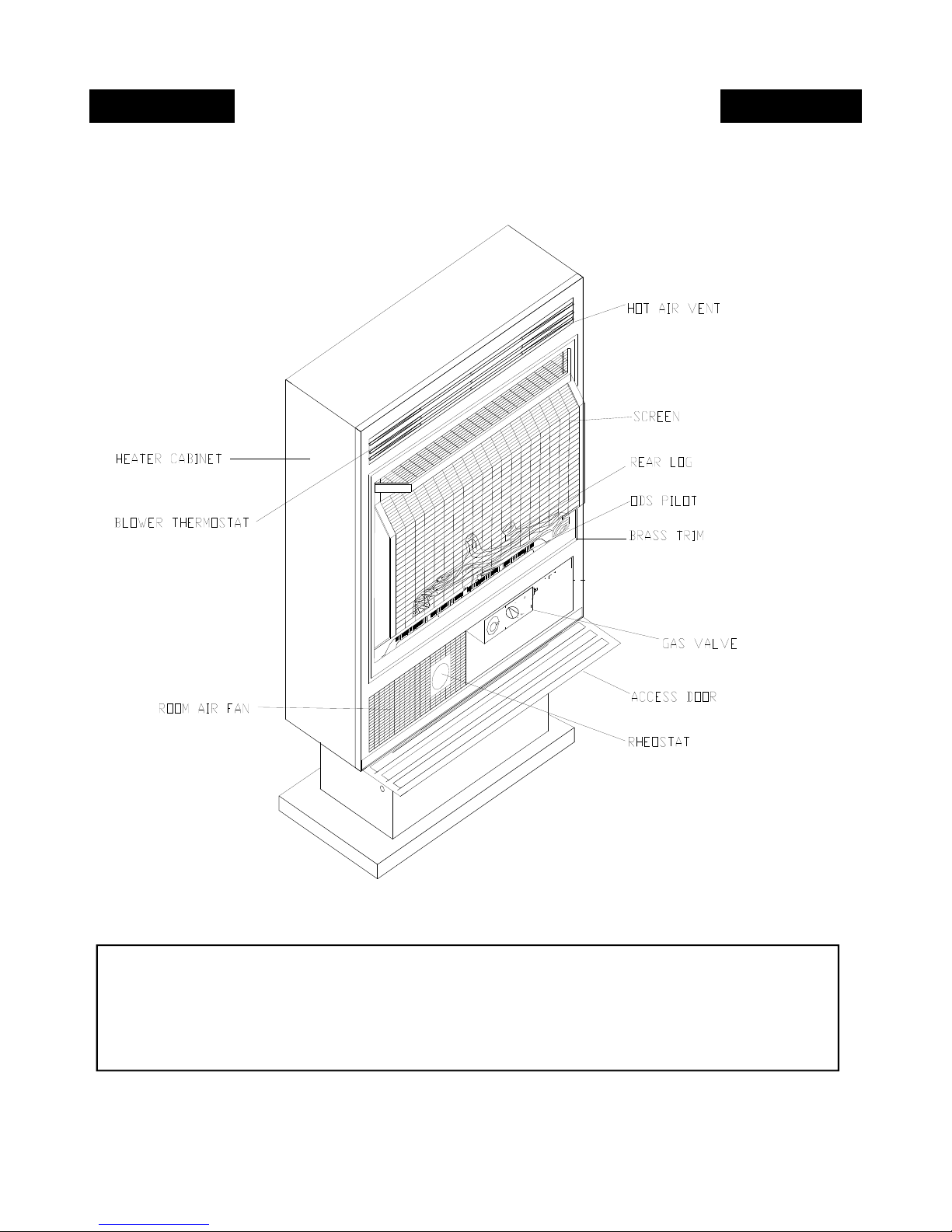

Figure 1
WARNING:Installation and repairs should be performed by a qualified service person. The
appliance should be inspected before use and at least annually by a professional service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding mate-
rial, etc. It is imperative that control compartments, burners and circulating air passageways of
the appliance be kept clean.
6

PRODUCT FEATURES
SAFETY DEVICE
This heater has a pilot with an Oxygen Depletion Sensor Shutoff System (ODS). The ODS/
pilot is a required feature for vent-free room heaters. The ODS/pilot shuts off the heater if there
is not enough (oxygen) fresh air.
PIEZO IGNITION SYSTEM
This heater has a piezo igniter. This system requires no matches, batteries, or other sources to
light the heater.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance
is not convertible for use with other gases.
Model 1110 P* or N*- (Sensing or Modulating Bulb) - This heater has a thermostat sensing
bulb. This bulb will turn the unit on and off. It will not modulate the flame up or down due to
10,00 BTU.
*P - Propane or LP (Liquid Petroleum) *N - Natural gas
UNPACKING
1. Remove all protective packaging applied to heater for shipment.
2. Check heater for any shipping damage. If heater is damaged, promptly inform the dealer
from whom you made the purchase.
3. Lift heater by each bottom corner.
“WARNING: Any change to this heater or its controls can be dangerous.”
7

CAUTION
THIS HEATER CREATES WARM AIR CURRENTS. THESE CURRENTS MOVE HEAT
TO WALL SURFACES NEXT TO HEATER. DO NOT INSTALL HEATER WHERE
IMPURITIES IN THE AIR MAY EXIST.
MINIMUM CLEARANCES TO
COMBUSTIBLE CONSTRUCTION
NOTE: FOR GARAGE INSTALLATION
• Heater pilot and burner must be at least 18" off the floor.
• Locate heater AWAY FROM ANY MOVING VEHICLE.
• Keep appliance area clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
For convenience and efficiency, install heater:
∗ in easy access locations
∗ in coolest part of room
∗ near an electrical outlet
Minimum Clearances are as follows:
42” from the top of the appliance to the ceiling. 5” from the right front corner of the appliance to an
adjacent side wall, and 5” from the left side of the appliance to an adjacent side wall. 7” from the
bottom of the appliance to the top surface of carpeting, tile or other combustible materials in the area
described. See figure 2 below.
• The installation must conform with local codes or, in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.1/NFPA 54.
7"
Note: Front Corner of heater
to an adjacent sidewall with
or without CSA listed
optional wooden mantel.
5" 42"

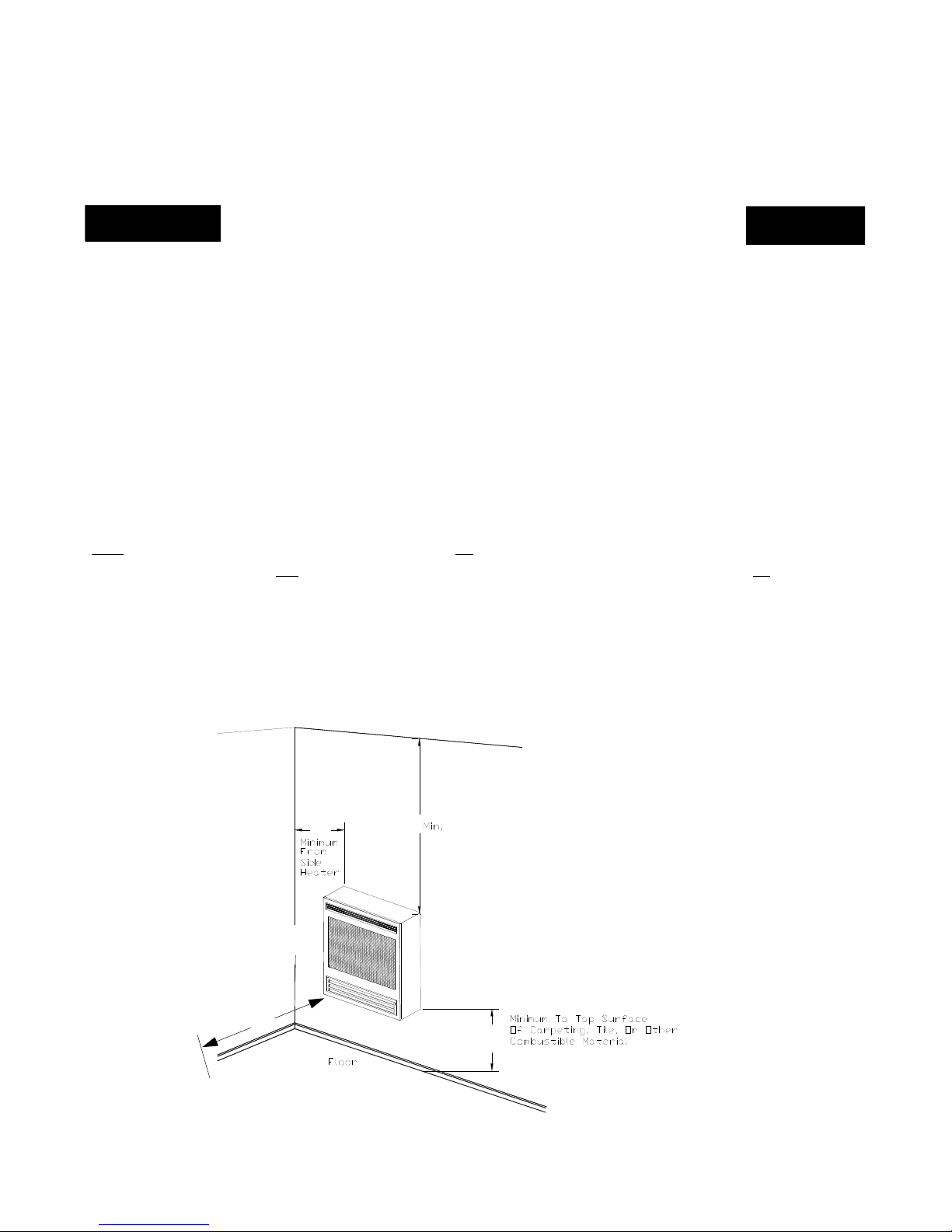

Figure 2
Left
Side Right
Side
Front
From theFrontsur-
faceof the appliance
to any combustible
material.
24”
CAUTION: Do Not obstruct
air openings around appliance.
Improper operation will occur.
“Warning: This unit is not for Freestanding installation
with out Pedestal or Wooden Mantel.”
See Installation/Instruction Manual for further details.
For Wall Mount Unit
8

INSTALLATION
NOTE: This heater may be installed three different ways:
1. Wall Mounted
2. Freestanding heater (with optional pedestal)
3. Freestanding (with optional wooden mantel)
NOTE: Do not set unit flat on any surface without Pedestal or Wooden Mantel.
WALL MOUNT INSTALLATION:
1. After determining the location for the heater, unfold the template provided and place the bottom
of the template a minimum of 7" from bottom of unit to floor.
NOTE: Be sure to level the template before punching the holes.
2. With the template in place and the four black dots centered on studs, punch the four centers
marked in the black dots with a sharp pointed object. Insert the four wood screws provided with
the unit into the four punched holes.
NOTE: Leave 5/8" of the screw projecting from the finished wall.
For sheet rock walls, use wing nuts or anchor wings. Remove the wing nut from the bolt. Place a nut
and washer with the same thread and size on the bolt. Push the wing nut through the wall surface
allowing the wings to spread. Tighten the nut that you placed on the bolt, leaving the required 5/8"
between the back of the bolt head and the finished wall.
FINISHED WALL
5/8" or 15.875 mm
5/8" or 15.875 mm
Stud Wall
Sheet Rock
Wing Nut
Washer
Nut
Toggle Bolt
Figure 4
Figure 3
9

3. Lift heater by each bottom corner and place the round part of the tear drop punch out over each
screw head. Gently push down until the body of the screw is at the end of the slot.
NOTE: Make sure unit is level.
4. Now you are ready to hook up the gas line. The Model 1110 allows for a rear or bottom
connection for the gas line. See “Gas Connection” on page 17 for details.
CLEANING INFORMATION:
Cleaning is a vital part of the life of your stove. In order to properly clean the unit, remove the front.
To remove: use Phillips screwdriver to loosen four screws in the sides of the front. You will find that
the front is easily removed in one piece.
Next you must remove the log(s) from the burner base. Gently place your hands, one on each side of
the log(s) and lift upward. Do not apply to much force on the log(s), this may cause damage to the
fiber material.

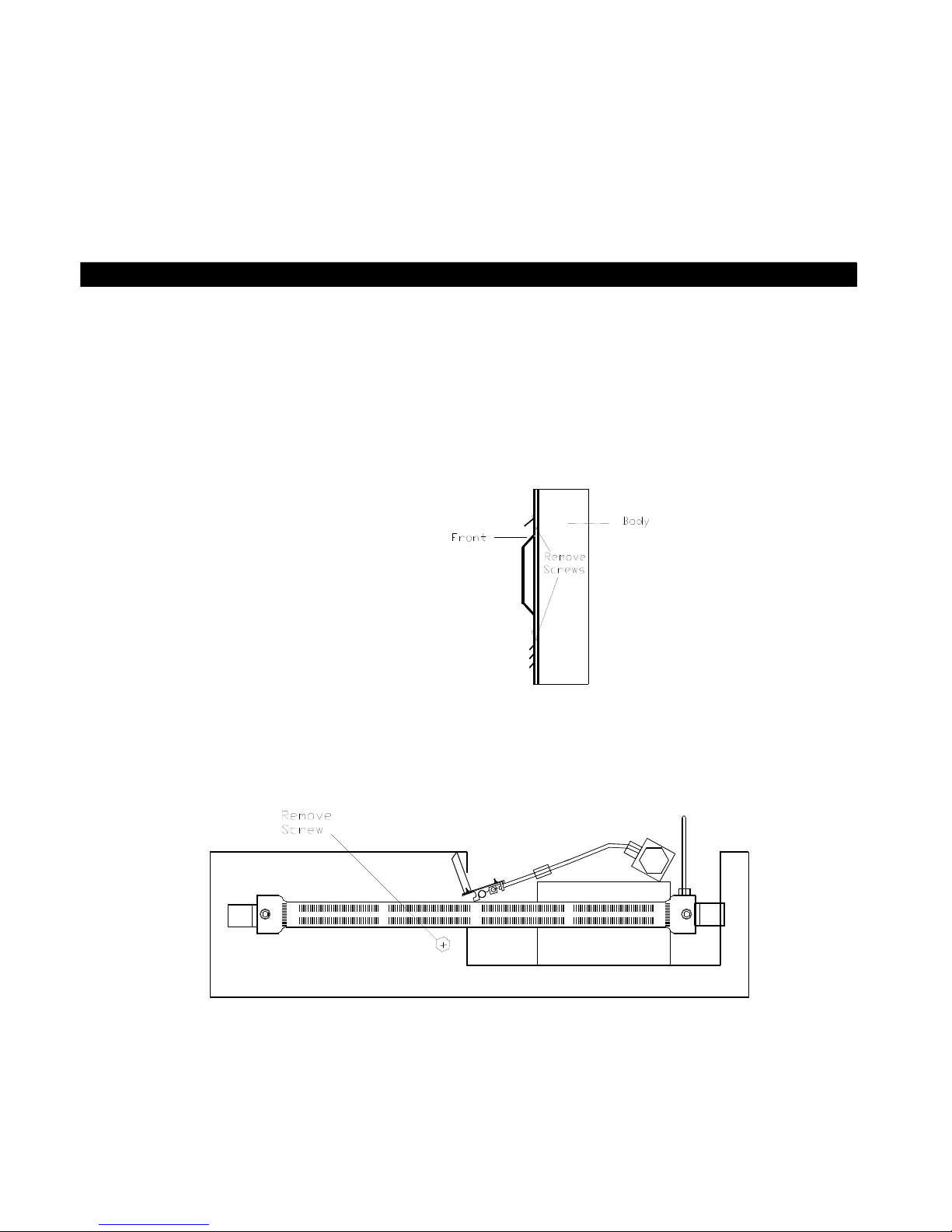

Figure 5
A vacuum cleaner works well for removal of dust and debris from around the burner and logs. To
remove the burner, use a tool with an extension to loosen the screw in the base. The screw is located
between the log and the actual base. Simply slide the base out of the unit. NOTE: Do not use a pin or
any sharp object to clean the pilot.
NOTE: Any parts that are removed while cleaning must be replaced before operating the appliance.
Figure 6
10

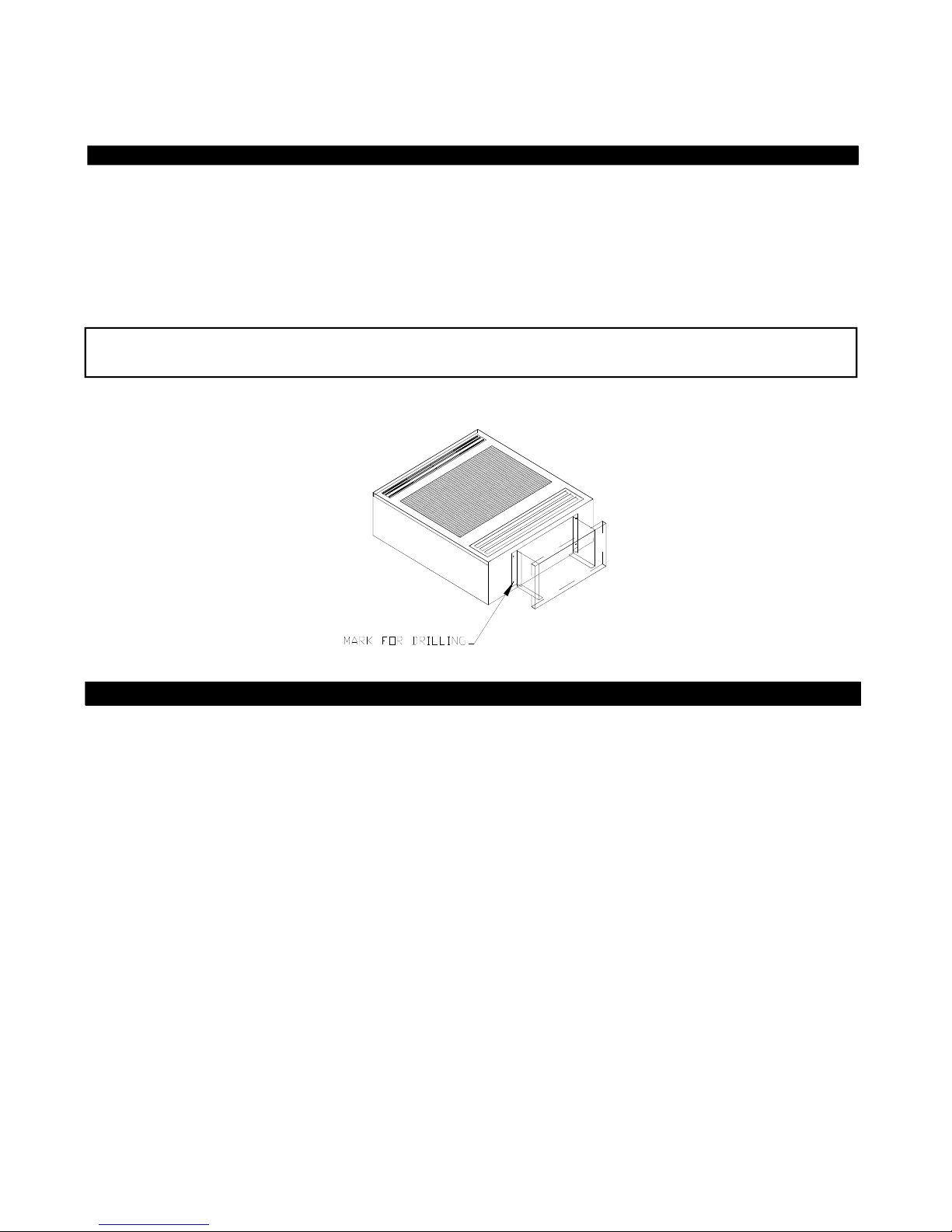

FREESTANDING WITH OPTIONAL PEDESTAL INSTALLATION
1. Place heater on backside and center the pedestal on the bottom. Mark the 4 pre-punched holes in
the pedestal angle. Use the 4 self-tapping screws provided with the pedestal to drill the 4 marked
spots. Secure the pedestal to the bottom of the unit.
NOTE: If the gas line is run through the floor, you may want to drill a hole in the bottom of the
pedestal.
2. The pedestal must be secured to the floor. One option is to drill holes in the top side of the bottom
of the pedestal. Use screws or “Ell” brackets to fasten pedestal to the floor.
IMPORTANT: THE 1110 FREESTANDING UNIT MUST BE INSTALLED ON A FLAT
SURFACE (SUCH AS A WOOD PANEL, METAL OR HARDWOOD FLOORS.)
FREESTANDING OPTIONAL WOODEN MANTEL INSTALLATION
Use the two (2) metal mounting Z-Brackets provided to secure the 1110 into the wooden mantel,
wood screws provided to secure the brackets in place.
IMPORTANT! The Z-Brackets must be properly installed. Failure to
install the Z-Brackets may cause property damage or personal injury.
Use the four (4) sheet metal screws provided to secure the mounting brackets to the rear of the stove.
Insert the screws into the back of the unit.
With the brackets secured to the unit. From the rear slide the unit into the opening of the mantel, cen-
tering from left to right.
With the four (4) wood screws provided secure the brackets to the rear of the mantel. See Figure 7,
page 12.
NOTE: Connect gas line and check for leaks before placing the heater and mantel against the wall.
See “Gas Connection” on page 17.
OPTION: Fasten the wooden mantel to the wall. Use “Ell” brackets at top or bottom corners.
11

MOUNTING BRACKET VIEW
FREE-STANDING
OPTIONAL DELUXE FINISHED MANTEL
Figure 7
DATEREV.
B
DATE
REAR OF MANTEL
REAR OF STOVE
Z BRACKETS
REAR OF
STOVE
Z-BRACKET(S) PLACEMENT ON
STOVE Z-BRACKETS
MOUNTED (SCREWED)
TO THE REAR OF THE
STOVE AND SECURED
(SCREWED) TO THE
INSIDE REAR OF THE
FRONT OF THE MAN-
TEL.
WOOD SCREWS
SHEET METAL SCREWS
NOTE: FLUSH
BRACKET
WITH REAR
TOP OF UNIT.
NOTE: “MODEL 1110 TO BE
USED WITH NEW BUCK
CORP. MANTEL ONLY, PART
# PAKDM1127.” IF USED WITH
ANY OTHER MANTEL THE
WARRANTY WILL BE VOID.
OPTIONAL “L”
BRACKETS (2) AND
SCREWS (2) PRO-
VIDED WITH MAN-
TEL, TO SECURE
MANTEL TO WALL IF
NEEDED.
12

PRODUCING ADEQUATE
VENTILATION
This section is for residential or manufactured (mobile) installation
“This heater shall not be installed in a confined space or unusually tight construction unless pro-
visions are adequate combustion and ventilation air.”
The National Fuel Gas Code, ANSI Z223.1/NFPA 54 defines a confined space as a space
whose volume is less than 50 cubic feet per 1,000 BTU per hour (4.8m 3 per kw) of the
aggregate input rating of all appliances installed in that space and an unconfined space as a
space whose volume is not less than 50 cubic feet per 1,000 BTU per hour (4.8m 3 per kw) of
the aggregate input rating of all appliances installed in that space. Rooms communicating
directly with the space in which the appliances are installed, through openings not furnished
with doors, are considered a part of the unconfined space.
“WARNING: IF THE AREA IN WHICH THE HEATER MAY BE OPERATED IS
SMALLER THAN THAT DEFINED AS AN UNCONFINED SPACE OR IF THE
BUILDING IS OF UNUSUALLY TIGHT CONSTRUCTION, PROVIDE ADEQUATE
COMBUSTION AND VENTILATION AIR BY ONE OF THE METHODS DESCRIBED
IN THE NATIONAL FUEL GAS CODE, ANSI Z223.1/NFPA 54, SECTION 5.3 OR
APPLICABLE LOCAL CODES.”
Unusually tight construction is defined as construction where:
a) Walls and ceilings exposed to the outside atmosphere have a continuous water vapor retarder
with a rating of 1 perm (6 x 10-11 kg per pa-sec-m2) or less with openings gasketed or sealed;
b) Weather stripping has been added on openable windows and doors, and
c) Caulking or sealants are applied to areas such as joints around window and door frames,
between sole plates and floors, between wall-ceiling joints, between wall panels, at penetrations
for plumbing, electrical, and gas lines, and at other openings.
NOTE: SOME AREAS IN THE UNITED STATES HAVE HIGHER REQUIREMENTS
FOR CUBIC FEET PER 1000 BTU/ HOUR INPUT. (EX. CINCINNATI, OHIO CODES
REQUIRE 70 CUBIC FEET). CHECK YOUR LOCAL CODE BEFORE
INSTALLATION.
DETERMINING FRESH-AIR FLOW FOR
HEATER LOCATION
DETERMINE IF YOU HAVE A CONFINED OR UNCONFINED SPACE
Use this worksheet to determine if you have confined or unconfined space.
SPACE: Includes the room in which you will install heater plus adjoining rooms with
doorless passageways or ventilation grills between the rooms.
13

1. Determine the volume of the space (length x width x height).
Length x Width x Height =_________cu.ft.(volume of space)
EXAMPLE: 20 ft.(Length) x 16 ft.(Width) x 8 ft.(ceiling Height)=
2560 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add the
volume of these rooms to the total volume of the space.
2. Divide the space volume by 50 cubic feet to determine the maximum BTU/Hr the
space can support.
_________(volume of space)/50 cu. ft. =maximum BTU/Hr the space can support)
EXAMPLE: 2560 cu. ft. (volume of space /50 cu. Ft .= 51.2 or
51200 (maximum BTU/Hr the space can support)
3. Add the BTU/Hr of all fuel burning appliances in the space.
Vent-free heater _______________BTU/Hr
Gas water heater* _______________BTU/Hr
Gas furnace _______________BTU/Hr
Vented gas heater _______________BTU/Hr
Gas fireplace logs _______________BTU/Hr
Other gas appliances* + _______________BTU/Hr
Total = _______________BTU/Hr
Example: Gas water heater 40000 BTU/Hr
Vent-free heater + 18000 BTU/Hr
Total = 58000 BTU/Hr
*Does not include direct-vent gas appliances. Direct-vent draws combustion air
from the outdoors and vents to the outdoors.
4. Compare the maximum BTU/Hr the space can support with the actual amount of BTU/
Hr used.
____________BTU/Hr (maximum the space can support)
____________BTU/Hr (actual amount of BTU/Hr used)
Example: 51200 BTU/Hr (maximum the space can support)
58000 BTU/Hr (actual amount of BTU/Hr used)
The space in the above example is a confined space because the actual BTU/Hr used is more
than the maximum BTU/Hr the space can support. You must provide additional fresh
air. Your options are as follows: A. Rework worksheet, adding the space of an adjoining
room. If the extra space provides an unconfined space, remove door to adjoining room or add
ventilation grills between rooms. See “Ventilation Air From Inside Building”, page 21.
B. Vent room directly to the outdoors. See “Ventilation Air From Outdoors”, page 22.
C. Install a lower BTU/Hr heater, if lower BTU/Hr size makes room unconfined.
If the actual BTU/Hr used is less than the maximum BTU/Hr the space can support, the
space is an unconfined space. You will need no additional fresh air ventilation.
WA R N I N G : YOU MUST PROVIDE ADDITIONAL VENTILATION AIR IN A
CONFINED SPACE
14

VENTILATION AIR
VENTILATION AIR FROM INSIDE BUILDING
This fresh air would come from an adjoining unconfined space. When venting to an adjoining
space, you must provide two permanent openings: one within 12" of the ceiling and one within
12" of the floor on the wall connecting the two spaces (see Options 1 and 2, Figure 8). You can
also remove door into adjoining room (see Option 3, in Figure 8).
WARNING
REWORK WORKSHEET, ADDING THE SPACE OF THE ADJOINING
UNCONFINED SPACE. THE COMBINED SPACES MUST HAVE ENOUGH FRESH
AIR TO SUPPLY ALL APPLIANCES IN BOTH SPACES.
NOTE: Each opening shall have a minimum free area of 1 square inch per 1000 BTU’s per
hour of the total input rating of all gas utilization equipment in the confined space, but not less
than 100 square inches.

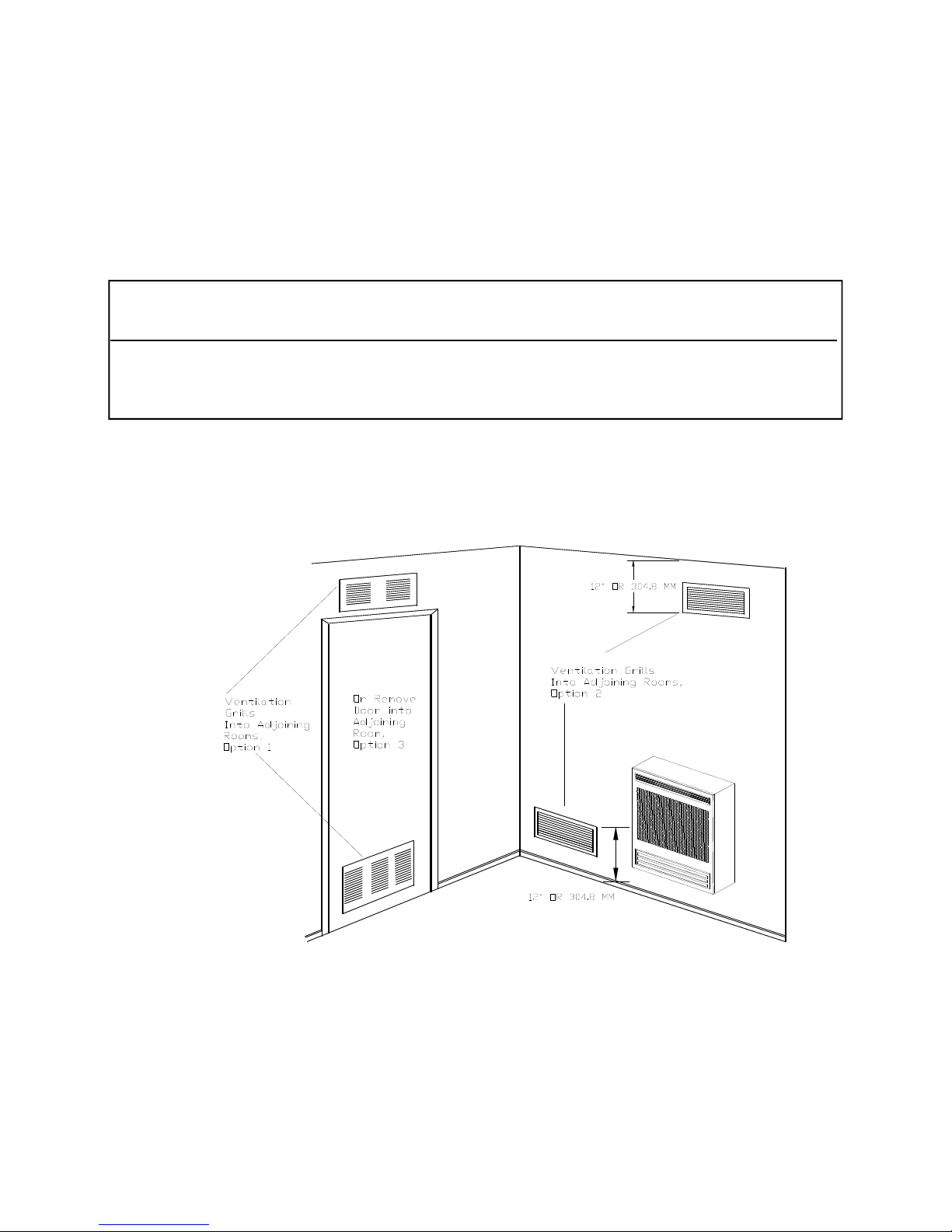

Figure 8
15

Figure 9
VENTILATED ATTIC
OUTLET AIR
OUTLET AIR
INLET AIR
TO ATTIC
TO
CRAWL
SPACE
INLET AIR VENTILATED
CRAWL SPACE
VENTILATION AIR FROM OUTDOORS
Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent
openings: one within 12" of the ceiling and one within 12" of the floor. Connect these items
directly to the outdoors. These spaces include attics and crawl spaces. Follow the National
Fuel Gas Code NFPA 54/ANSI Z223.1, Section 5.3, “Air For Combustion and Ventilation”
for required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for inlet air into attic if attic has a thermostat-
controlled power vent. Heated air entering the attic will activate the power unit.
WARNING
THIS APPLIANCE MUST HAVE FRESH AIR FOR PROPER OPERATION. IF NOT,
POOR FUEL COMBUSTION COULD RESULT. READ THE FOLLOWING
INSTRUCTIONS TO ENSURE PROPER FRESH AIR FOR THIS AND OTHER FUEL-
BURNING APPLIANCES IN YOUR HOME.
16

WA R N I N G : ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE
DANGEROUS.
GAS CONNECTION
Check gas type. Use only the type of gas indicated on the valve rating plate. If the type of gas listed on
the plate is not your type of gas supply, DO NOT INSTALL. Contact your dealer for proper model.
Always use an external regulator for all LP heaters to reduce the supply tank pressure to a maximum of
13" W.C. This is in addition to the regulator furnished with the heater.
WA R N I N G : CONNECTION DIRECTLY TO AN UNREGULATED LP TANK CAN CAUSE
AN EXPLOSION.
The normal gas connection is 3/8” N.P.T. made at the left side (facing the front of the appliance) of the
appliance. If a right side connection is desired, the connecting pipe may be led under the rear of the
burner base to terminate at the right side for connection to the inlet of the valve.
NOTE: The connecting pipe must be internally tinned copper tubing for use with natural gas. Test for
leaks using a solution of soap and water after completing the connection. DO NOT USE OPEN
FLAME.
WARNING: Installation and repairs should be performed by a qualified service person. The
appliance should be inspected before use and at least annually by a professional service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding material,
etc. It is imperative that control compartments, burners and circulating air passageways of the
appliance be kept clean.
17

CONNECTING TO A GAS SUPPLY
CAUTION: NEVER CONNECT HEATER DIRECTLY TO THE PROPANE SUPPLY. THIS
HEATER REQUIRES AN EXTERNAL REGULATOR (NOT SUPPLIED). INSTALL THE
EXTERNAL REGULATOR BETWEEN THE HEATER AND THE PROPANE SUPPLY.
The installer must supply the external regulator for liquid propane gas. The external regulator will
reduce incoming gas pressure. You must reduce incoming gas pressure to between 11" and 14" of
water. If incoming gas pressure is not reduced, heater regulator damage will occur. Install external
regulator with the vent pointing down.
You must also install a sediment trap. Locate the sediment trap where it is within reach for cleaning.
A sediment trap filters moisture and contaminates. This also helps to keep the heater controls clean. If
sediment trap is missing or installed wrong, your unit will not run properly.

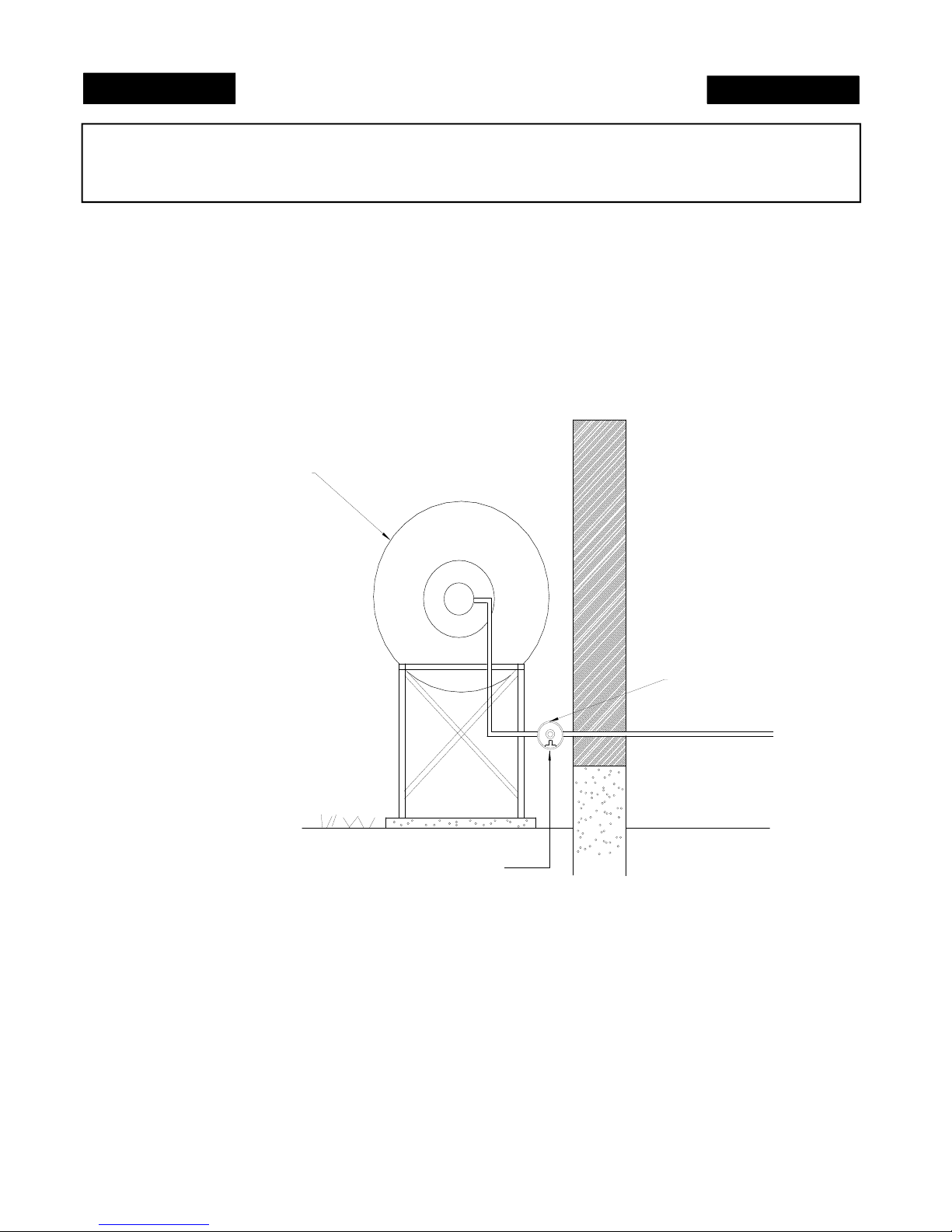

Propane Supply Tank
Vent Pointing Down
External Regulator
Figure 10
18
