New Buck Corporation CR8T User manual

MODEL CR8T
VENT-FREE OR VENTED GAS LOGS
FOR NATURAL OR LIQUID PETROLEUM (L.P.)
WARNING: If the information in this manual is not followed exactly, a
fire or explosion may result causing property damage, personal injury, or
loss of life .
-DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
-WHAT TO DO IF YOU SMELL GAS
*Do not try to light any appliance.
*Do not touch any electrical switch; do not use any phone in your building.
*Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
*If you cannot reach the gas supplier, call the fire department.
-Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
-Save this manual for future reference.
This is an unvented and vented gas-fired heater. It uses air (oxygen) from the room in which
it is installed. Provisions for adequate combustion and ventilation air must be provided. Re-
fer to Section V.
This appliance may be installed in an aftermarket, permanently located, manufactured
(mobile) home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appli-
ance is not convertible for use with other gases.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
New Buck Corporation Effective: March 2005
8000 Highway 226 South
Spruce Pine, NC 28777

TABLE OF CONTENTS
SECTION I: Safety Information ……………………………………… 1
SECTION II: Residential Installation-Unvented Gas Logs……………..4
Clearances……………………………………………………………….5
Gas Connection………………………………………………………....6
Preparing Log Kit……………………………………………………….6
Gas Pressure Check……………………………………………………..8
Lighting Instruction……………………………………………………..9
Flame Check…………………………………………………………...13
Heat Output…………………………………………………………….13
SECTION III: Installation-Heat Shield………………………………...14
Wiring Diagram………………………………………………………..16
SECTION IV: Installation-After Market Mobile Home………………..18
SECTION V: Producing Adequate Ventilation…………………………18
Ventilation Air From Inside……………………………………………..21
Ventilation Air From Outdoors………………………….………………22
SECTION VI: Vented Logs……………………………………………..23
Important Safeguards……………………………………………………25
Cleaning………………………………………………………………….25
Trouble-Shooting………………………………………………………...26
Servicing and Replacement Parts………………………………………...30,31
Warranty………………………………………………………………….34
Owner Registration Card…………………………………………………36

SECTION I
SAFETY INFORMATION
WARNINGS
IMPORTANT: READ THIS OWNER’S MANUAL CAREFULLY AND
COMPLETELY BEFORE TRYING TO ASSEMBLE, OPERATE, OR SER-
VICE THE APPLIANCE. IMPROPER USE OF THESE LOGS CAN
CAUSE SERIOUS INJURY OR DEATH FROM BURNS, FIRE, EXPLO-
SION, AND CARBON MONOXIDE POISONING.
Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness, and /
or nausea. If you have these signs, the heater may not be working properly. Get fresh air at
once ! Turn off gas. Have burner serviced. Some people (such as pregnant women, persons
with heart or lung disease, persons with anemia, those under the influence of alcohol, and
those at high altitudes) are more affected by carbon monoxide than others. Make certain you
understand and read all Warnings. Keep this manual for reference. It is your guide to safe
proper operation of these logs.
1. Install log set only in a solid-fuel-burning masonry fireplace or U.L. listed prefabricated
fireplace constructed of non-combustible materials.
2. The installation and the provision for combustion and ventilation air must conform with
local codes or, in the absence of local codes, with the National Fuel Gas Codes, AN-
SIZ223.1/ NFPA54.
3. This appliance may be installed in an After Market* Manufactured (Mobile) Home,
where not prohibited by state or local codes.
(*After Market: Completion of sale, not for purpose of resale from the manufacturer.)
NOTE: This appliance is only for use with type of gas indicated on the rating plate. This
appliance is not convertible for use with other gases.
NOTE: See Section IV for Mobile Home Installation and Fresh Air and Ventilation.
IMPORTANT: VENT-FREE HEATERS ADD MOISTURE TO THE AIR.
ALTHOUGH THIS IS BENEFICIAL, INSTALLING HEATER IN
ROOMS WITHOUT ADEQUATE VENTILATION MAY CAUSE MIL-
DEW TO FORM FROM TOO MUCH MOISTURE.
4. Never install the log set:
- in a recreational vehicle.
- where curtains, furniture, clothing, or other flammable objects are less than 42” from the
front of the heater.
- in high traffic areas or in windy areas.
NOTE: This log set complies with both the ANSI Z21.11.2b-2004 “Unvented Room Heater”
and ANSI Z21.60b-2004. CSA 2.26b-2004 Decorative Appliance For “Solid Fuel Burning
Fireplace”.
“WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE
DANGEROUS”.
1

5. Two models are available. One specific model for propane (LP), and one for natural gas.
Use the correct gas type for your home. This unit is not field convertible.
6. If these gas logs are for use with propane gas, do not place propane supply tank(s) inside
any structure. Locate propane supply tank(s) outdoors.
7. If you smell gas:
- Shut off gas supply.
- Do not try to light any appliance.
- Do not touch any electrical switch; do not use any phone in your building.
- Immediately call your gas supplier from a neighbor’s phone . Follow the gas suppliers
instructions.
- If you cannot reach your gas supplier, call the fire department.
8. “This heater shall not be installed in a confined space or unusually tight construction
unless provisions are provided for adequate combustion and ventilation air”. See
Section V-Producing Adequate Ventilation. See page 18.
9. Surface of gas logs becomes very hot when operating. Keep children and adults away
from hot surface. Gas logs will remain hot for some time after shutdown. Allow surface
to cool before touching.
10. Never place any objects on these gas logs .
11. These gas logs MUST NOT BE USED with glass doors in a closed position.
12. If equipped, fresh air dampers must be closed.
13. Keep appliance area clean and free from combustible materials, gasoline, and other
flammable vapors and liquids. “Keep burner and control compartment clean. See
installation and operating instructions accompanying heater.”
14. If burner shuts off, do not relight until you provide fresh outside air. If burner keeps
shutting off, have unit serviced.
15. An unvented room heater having input rating of more than 10,000 BTU per hour shall
not be installed in a bedroom or bathroom.
16. Maintain clearance around air openings.
17. Do not use the appliance if any part has been under water. Immediately call a qualified
service technician to inspect the appliance and to replace any part of control system and
any gas control which has been under water.
18. Turn off the gas logs and let cool before servicing.
WARNING
This appliance is equipped for (natural or propane) gas.
Field conversion is not permitted.
2

19. Make sure any safety screen or guard (if any) that was removed for servicing is in place
before operating gas logs.
20. Strong drafts, such as a ceiling fan placed directly in front of the fireplace, may
create sooting. Sooting may discolor walls.
21. Installation and repair should be done by a qualified service person. The heater and the
gas logs should be inspected before use and at least annually by a professional service
person. More frequent cleaning may be required due to excessive lint from carpeting ,
bedding materials, etc. It is important that the control compartment, burners, and circu-
lating air passageways of these gas logs be kept clean and clear.
22. Do not use these gas logs for burning trash or cooking. Never place matches, paper,
garbage, or any other material on top of logs or into the flames.
23. Do not install or operate these gas logs in areas where impurities in the air exist (such
as tobacco smoke and heavy cooking grease). Particles from impurities may discolor
walls.
24. The appliance and its individual shut off valve must be disconnected from the gas supply
piping system during any pressure testing of that system at test pressures in excess of
1/2 psi (3.5 kPa).
25. The appliance must be isolated from the gas supply piping system by closing its equip-
ment shut off valve during any pressure testing of the gas supply piping system
at test pressure equal to or less than 1/2 psi (3.5 kPa).
26. Any outside air ducts and / or ash dumps in the fireplace shall be permanently closed
at time of appliance installation.
27. Due to high temperatures, the appliance should be located out of traffic and away
from furniture and draperies.
28. Do not place clothing or other flammable materials on or near the appliance.
29. The logs are made of light weight refractory. Hold both ends of the log whening remov-
ing or replacing.
30. This appliance is intended for supplemental heating.
31. Children and adults should de alerted to the hazard of high surface temperature
and should stay away to avoid burns or clothing ignition.
32. Young children should be carefully supervised when they are in the same room with
the appliance.
WARNING: “State or local codes may only allow operation of this appliance in a
vented configuration. Check your state on local codes.”
3

SECTION II
RESIDENTIAL INSTALLATION OF GAS LOGS
FIREPLACE PREPARATION
The fireplace needs to be prepared before installing the gas logs.
A. Turn off the gas supply to the fireplace.
B. Any outside air ducts on the fireplace shall be permanently closed at the time of the
appliance installation.
“WARNING: BEFORE INSTALLING IN A SOLID FUEL BURNING FIREPLACE,
THE CHIMNEY FLUE AND FIREBOX MUST BE CLEANED OF SOOT,
CREOSOTE, ASHES AND LOOSE PAINT BY A QUALIFIED CHIMNEY
CLEANER”.
“WARNING: DO NOT ALLOW FANS TO BLOW DIRECTLY INTO
THE FIREPLACE. AVOID ANY DRAFTS THAT ALTER BURNER FLAME
PATTERN”.
LOCATION
Centrally locate the gas logs in the fireplace. Place them deep enough into the fireplace to
accomplish adequate draft (if use as a vented gas log set is planned). Ensure that front of the
logs sit inside the edge of the fireplace.
NOTE: IF THE EXISTING FIREPLACE IE EQUIPPED WITH A SCREEN IT MUST
BE IN PLACE WHEN THE APPLIANCE IS OPERATING . THE SCREEN SHALL
HAVE ADEQUATE OPENING (S) FOR INTRODUCTION OF COMBUSTION AND
VENTILATION AIR.
NOTE: MAINTAIN PROPER CLEARANCE FOR PURPOSE OF SERVICING,
PROPER INSTALLATION, AND OPERATION.

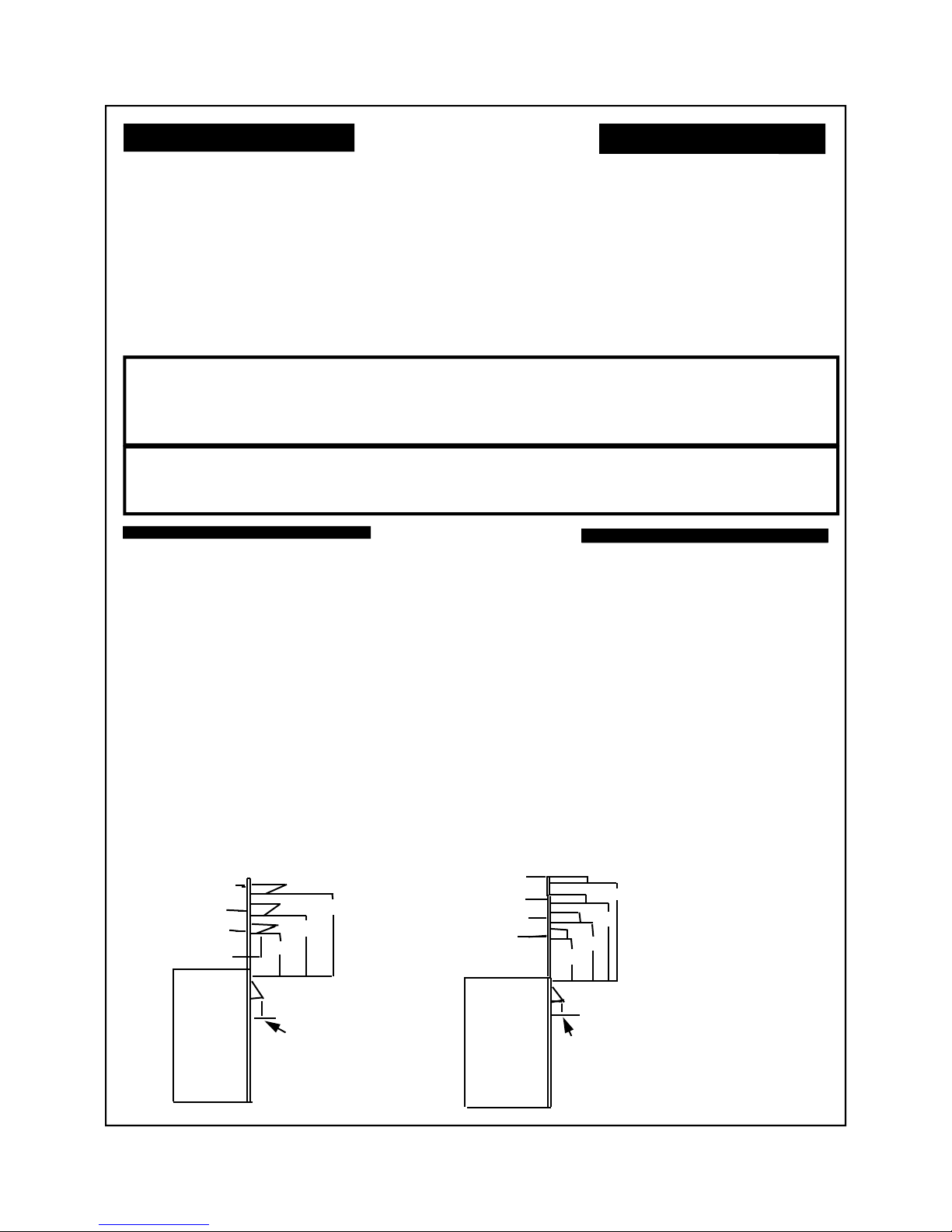

Mantel minimum clearances
for a listed Zero Clearance
Firebox or a Masonry Fire-
place.
*WARNING: Canopy
model MAPSFPC must be
used at all times unless a
10-inch mantel is installed
at 36-inches above the fire-
place opening. (Can be ob-
tained from your local
dealer or purchased from
the factory.)
ANGLE MANTEL FLAT MANTEL
FIGURE 1
Top of firebox opening
2.5”
14”
18”
20”
10” TO 12” Out From Wall
6” To 10” Out From Wall
0” To 6” Out From Wall
MAX. OF 2 1/2”
Top of firebox
opening
10”
12”
14”
8” TO 10” OUT FROM WALL
6” TO 8” OUT FROM WALL
0” TO 6” OUT FROM WALL
2.5”
16”
10” TO 12” OUT FROM WALL
4

“WARNING: THIS APPLIANCE IS FOR INSTALLATION ONLY IN A SOLID
FUEL BURNING MASONRY OR UL127 FACTORY BUILT FIREPLACE OR IN A
LISTED VENTLESS FIREBOX ENCLOSURE.
IT HAS BEEN DESIGN CERTIFIED FOR THESE INSTALLATIONS . EXCEPTION:
DO NOT INSTALL THIS APPLIANCE IN A FACTORY BUILT FIREPLACE THAT IN-
CLUDES INSTRUCTIONS STATING IT HAS NOT BEEN TESTED OR SHOULD NOT BE
USED WITH UNVENTED GAS LOGS”.
INSTALLATION AND CLEARANCES
To ensure a safe installation into an existing solid fuel burning fireplace, the following
instructions must be carefully followed.
NOTE: Gas control knobs are located in lower front center of base. “OFF/PILOT/ON” Right knob ,
Thermostat adjustment is the Left knob..
1. Side wall Clearances:
Clearance from the right and left side of the fireplace opening to any adjacent com-
bustible wall should not be less than 12”.
2. Ceiling Clearance:
The ceiling height should not be less than 42” from the top of the fireplace opening.
3. Mantel Clearance:
Clearances from top of heater to mantel or mantel supports. See Figure 1.
4. Front Clearances:
No objects should be placed within 24” from the front of the fireplace opening.
MINIMUM FIREPLACE DIMENSIONS FOR CR8T LOG SET MANUFACTURED BY
NEW BUCK CORPORATION FOR SOLID FUEL BURNING FIREPLACE OR MASONRY
FIREPLACE AND PREFAB OR MANUFACTURED FIREPLACES.
NOTE: When using CR8T log set with the Model 19HS heat shield see page 14 for
clearances.
MODEL HEIGHT OF WIDTH OF WIDTH AT DEPTH OF
OPENING OPENING REAR FIREPLACE
AT FRONT
CR8T 17” 24” 18” 10”
WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE
DANGEROUS.
WARNING: ‘ CUTTING ANY SHEET METAL PARTS OF THE SOLID-FUEL BURN-
ING FIREPLACE OR LISTED VENTLESS FIREBOX ENCLOSURE IN WHICH THE
UNVENTED FIREPLACE INSERT (LOG SET) IS TO BE INSTALLED IS PROHIB-
ITED.”
NOTE: “Smoke shelves, shields and baffles may be removed if attached by mechanical fasten-
ers.”
NOTE: ”Refractory, glass doors, screen rails, screen mesh and solid-fuel log grates (if applica-
ble) can be removed from the fireplace before installing the unvented fireplace insert.”
5

GAS CONNECTION
Check gas type. Use only the type of gas indicated on the valve rating plate. If the type of
gas listed on the plate is not your type of gas supply, DO NOT INSTALL. Contact your
dealer for proper model.
Always use an external regulator for all LP heaters to reduce the supply tank pressure to a
maximum of 13” W.C. This is in addition to the regulator furnished with the heater.
Warning: Connection directly to an unregulated LP tank can cause an
explosion.
The normal gas connection is 3/8” N.P.T. made at the right side facing the log set. If a
left side connection is desired, the connecting pipe may be routed under the rear of the
burner base to terminate at the right hand side for connection to the inlet of the valve.
NOTE: The connecting pipe must be internally tinned copper tubing for use with natural
gas. Test for leaks using a solution of soap and water after completing the connection.
DO NOT USE OPEN FLAME.
NOTE: “If the factory-built fireplace has no gas access hole(s) provided, an access hole of
1.5 inch (37.5mm) diameter or less may be drilled through the lower sides or bottom of the
firebox in a proper workmanlike manner. This access hole must be plugged with non-
combustible insulation after gas supply line has been installed.”
PREPARING LOG KIT
Open the cartons containing the Burner Base and the Logs. Inside one of the cartons you will find the
Burner Base. The Logs are boxed separately.
CR8T (1) REAR LOG (2) FRONT LOG (3) LEFT TOP LOG
WA R N I N G : POSITIONING OF LOGS IS VERY CRITICAL (FIGURE 2).
LOG PLACEMENT FOR CR8T LOG SET.
1. Place Rear log #1 on rear log support. The log has alignment notche on Left and
right corners.
2. Place Front log #2 with alignment notches over front andirons.
3. Left Top log has locating hole in one end, place hole over pin on Left side of Rear log
(#1) . Make sure Front of Left Top log (#3) is resting on Left side of Left Andiron.
Solid fuels shall not be burned in the same fireplace where an unvented room heater has been
installed.
NOTE: The following label has been provided with this appliance and must be read and then
attached to the floor of the fireplace firebox area beneath the appliance. The label is a peel and
stick label. Make sure the area is cleaned before attaching the label to it.
“WARNING: This solid-fuel burning fireplace or listed ventless enclosure has been
converted for use with an unvented fireplace insert only. A solid-fuel burning fireplace
cannot be used for burning wood or solid fuels unless all original parts have been re-
placed, and the fireplace re-approved by the authority having jurisdiction. A ventless
firebox enclosure cannot be used with an unvented gas log unless all original parts have
been replaced, and the ventless firebox enclosure re-approved by the authority having
jurisdiction.”
6

1
2
3
CR8T LOG PLACEMENT DIAGRAM
Refer to PREPARING LOG KIT page 6.
Figure 2
“WARNING: Failure to position the parts in accordance with these diagrams or
failure to use only parts specifically approved with this heater may result in prop-
erty damage or personal injury.”
7

GAS PRESSURE CHECK
Check the inlet pressure to the burner to ensure that it is as shown in the table below.
NOTE: The pressure check point is located on right side of valve facing the burner.
The appliance and its main gas valve must be disconnected from the gas supply piping sys-
tem during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa).
The appliance must be isolated from the gas supply piping system by closing its equipment
shut-off valve during any pressure testing of the gas supply piping system at test pressures
equal to or less than 1/2 psi (3.5 kPa).
MODEL CR8T
Gas Natural Propane (LP)
Maximum Heat Input 27,000 27,000
Minimum Heat Input 11,000 11,000
Gas Inlet Pressure:
Maximum 10.5 ins. W.C. 13.0 ins. W.C.
Minimum 5 ins. W.C. 11 ins. W.C
Manifold Pressure 3.5 ins. W.C. 10 ins. W.C.
NOTE: On initial installation it may be required to bleed out air in the gas lines. Do this
by holding the knob and turning the knob to the pilot position for about 30 seconds.
The pressure should be checked with the heater burning and the control set on high. After
measuring the pressure, close pressure tap screw, ensuring there are no leaks. Regulator
pressure check screw located above “OFF/ PILOT/ ON” knob at right upper corner of valve.
WARNING
This appliance equipped for (natural or propane) gas.
Field conversion is not permitted.
8

LIGHTING INSTRUCTIONS
MODULATING VALVE(MAXITROL)
FOR YOUR SAFETY, READ BEFORE LIGHTING
WARNING
IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EX-
PLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY
OR LOSS OF LIFE.
A. This appliance has a pilot which must be lighted by hand. When lighting the pilot,
follow these instructions exactly.
B. BEFORE LIGHTING: Smell all around the appliance for gas. Be sure to smell next
to the floor because gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
* Do not try to light any appliance.
* Do not touch any electrical switch; do not use any phone in your building.
* Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
* If you cannot reach your gas supplier, call your local fire department.
C. Use only your hand to push in or turn the gas control knob. Never use tools. If the knob
will not push in or turn by hand, don’t try to repair it, call a qualified service technician.
Force or attempted repair may result in fire or explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualified
service technician to inspect the appliance and to replace any part of the control system
and any gas control which has been under water.
OPERATING INSTRUCTIONS
Before operating this appliance, proceed through the following checklist
.
1. Read and understand these instructions before operating this appliance.
2. Check that there no leaks. If you smell gas do not attempt to light this appliance.
3. Verify that log placement is correct.
9

LIGHTING INSTRUCTIONS
1. STOP! Read the safety information on the previous page.
2. Make sure manual shutoff valve is fully closed.
3. Open access panel door, located in lower front center of base for access to control knobs.
4. Turn off all electric power to the appliance.
5. Set thermostat (flame control) to lowest setting.
6. Push in and turn control knob clockwise to the “OFF” position.
1 6
7
5
4 3
2
MERTIK MAXITROL
OFF
IGNITE
PILOT
FIGURE 3
7. “Wait (5) five minutes to clear out any gas. Then smell for gas, including near the floor. If
you smell gas, STOP! Follow step “B” in the safety information on the previous page. If
you don’t smell gas, go to the next step.”
8. Find Pilot: follow the small metal tub from the right hand rear of the gas control valve.
The pilot is located behind the burner tub and in front of the rear log. Fully open the man-
ual shut-off valve.
9. Turn control knob counterclockwise to the “PILOT” position. Press in
control knob for (15) fifteen seconds (see figure 3).
10. With control knob pressed in, turn control knob clockwise to IGNITE and
then immediately back to PILOT with the button still pressed in. This will light the pilot.
If needed, keep repeating this step until pilot lights.
11. Keep control knob pressed in for one (1) minute after lighting pilot. After (1) minute,
release the control knob. If pilot goes out, repeat steps 1 through 9.
• If the knob does not pop up when released, stop and immediately call your service techni-
cian or gas supplier.
• “If the pilot will not stay lit after several tries, turn the gas control knob to “OFF” and call
your service technician or gas supplier.”
12. Turn control knob counterclockwise to “ON” position.
13. “Set thermostat (flame control) to desired setting. Turn clockwise for “LOW”
and counterclockwise for “HIGH”.
ON
FLAME
CONTROL
CONTROL
KNOB
10

PILOT
PILOT BURNER
IGNITER ELECTRODE
THERMO-COUPLE
O.D.S
13. Close the access panel door.
14. “Turn on all electric power to the appliance.”
CAUTION
DO NOT TRY TO ADJUST HEATING LEVELS BY USING THE
MANUAL SHUTOFF VALVE.
TO TURN OFF GAS TO APPLIANCE
SHUTTING OFF UNIT:
1. Open access panel door, located in lower front center of base for access to control knobs.
2. Set thermostat (flame control) to lowest setting.
2. Turn control knob clockwise to the full “OFF” position.
3. “Turn off all electrical power to the appliance if service is to be performed.”
4. Close access panel door.
SHUTTING OFF BURNER ONLY (pilot stays lit)
1. Open access panel door, located in lower front center of base for access to control knobs.
2. Turn control knob clockwise to the “PILOT” position.
2. Close access panel door.
CAUTION: Hot while in operation. Do Not Touch. Keep children, clothing, furniture,
gasoline, and other liquids having flammable vapors away.
CAUTION: DO NOT TRY TO ADJUST HEATING LEVELS BY USING THE
MANUAL SHUTOFF VALVE.
WARNING: Improper installation, adjustment, alteration, service or maintenance can
cause property damage, personal injury, or loss of life. Refer to owner’s information manual
provided with this appliance. Installation and service must be performed by a qualified
installer, service agency, or the gas supplier.
IMPORTANT: Always operate the appliance at the completely “ON” or the completely
“OFF” positions. Never use the heater at a setting between these positions as this can result in
improper combustion and excessive carbon monoxide emissions.
11

THERMOSTAT CONTROL OPERATION
The thermostat control used on this heater differs from standard thermostats. Standard
thermostats simply turn the burner on and off. The thermostat used on this heater senses the
room temperature and adjusts the amount of gas flow to the burner. This will increase
or decrease the flame height. At times, the room may exceed the set temperature, which will
cause the burner to shut off. When room temperature drops below the thermostat setting,
the burner will cycle itself on again. The flame control knob can be set to any level between
2 and 7.
NOTE: The thermostat sensing bulb measures the temperature of air near the heater cabinet.
This may not always agree with room temperature ( depending on housing construction,
installation location , room size, open air temperature,etc.). Frequent use of your heater will
allow you to determine your personal comfort levels.
MANUAL LIGHTING PROCEDURE
1. If the pilot cannot be ignited with the ignitor on the control valve, it can be manually lit
with the use of a paper match and a lighter rod.
2. Place the match in the holder and light. With other hand, depress the control knob
counterclockwise to PILOT.
3. Use rod to light match and ignite pilot. The pilot is located behind the burner tub and in
front of the rear log. Fully open the manual shut-off valve.
4. Continue to hold the control knob for an additional (1) one minute to ensure the pilot
is completely on.
• If the knob does not pop up when released, stop and immediately call your service tech-
nician or gas supplier.
• “If the pilot will not stay lit after several tries, turn the gas control knob to “OFF” and
call your service technician or gas supplier.”
5. Turn control knob counterclockwise to “ON” position.
“Set thermostat (flame control) to desired setting. Turn clockwise for “LOW”
and counterclockwise for “HIGH”.
6. Close the access panel door.
7. “Turn on all electric power to the appliance.”
12

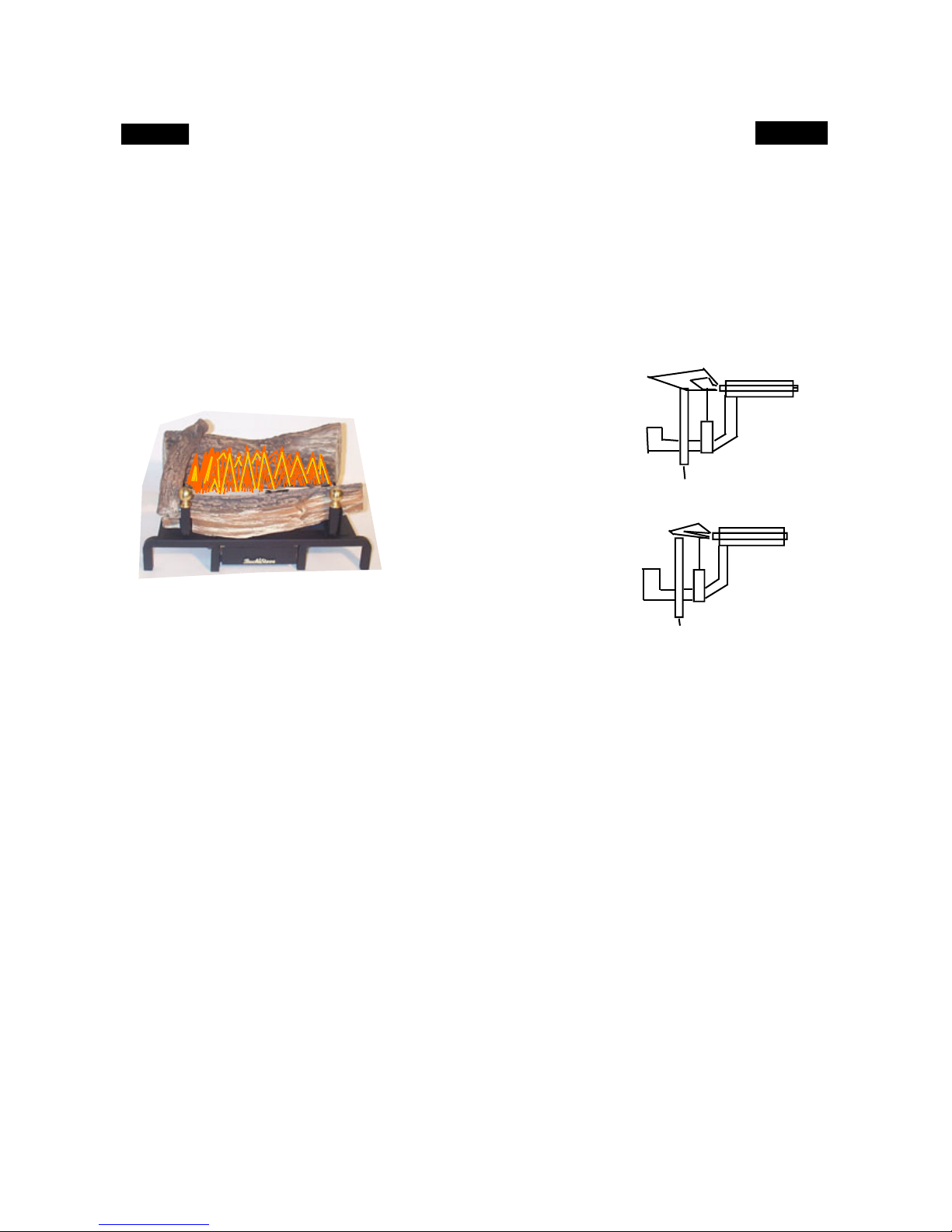

BURNER & PILOT FLAME CHECK
A periodic check of the flames should be made. The flame should always be present when
the gas logs are in operation.
Flames: The flame should extend about 3” to 4” above the rear log for natural gas and
about 6” for propane (LP) gas.
Figure 4
WHEN USED AS A HEATING APPLIANCE
HEAT OUTPUT
The heat output into the room can be controlled by the position of the flue damper, when
used as “Vented Gas Logs”. See Section VI-Vented Models.
The gas logs may be used as non-vented gas logs only where permitted by local state and
city codes. If non-vented gas logs are not permitted, then the fireplace vent area required by
local codes must be met. The installation must conform with local codes or, in the ab-
sence of local codes, with the National Fuel Gas, ANSI Z223.1/NFPA 54. Check your
state or local codes.
CR8T LOGS & BASE PILOT
NATURAL
PROPANE
13

SECTION III
INSTALLATION OF LOG SET WITH
(OPTION ) HEAT SHIELD MODEL 19HS
For installation of gas supply see “Fireplace and Gas Connection” Page 6, Section II.
NOTE: The same clearances for the log set are also used with the 19 Heat Shield.
See Page 4, Section II, Figure 1.
NOTE: Centrally locate the Heat Shield in the fireplace and place it deep enough into the
fireplace to accomplish adequate draft (if use as a vented heater is planned). Ensure that the
Heat Shield front is inside the front edge of the fireplace , see Figure 5. Using the screws
and anchors provided , fasten the Heat Shield to the floor of the fireplace. On each side of
floor frame of the Heat Shield base, there is a “go through hole”. Position the Heat Shield
as described above. Mark the hole for drilling. See Figure 5.
NOTE: When using CR8T LOG SET with optional Heat Shield the following minimums
must be met.
FRONT 24” REAR 23” HEIGHT 20” DEPTH 19 1/2”
Follow log positioning in Section II.
NOTE: For the first few hours of burning, you will have paint and burning smell. It
is recommended to leave the fan off during this period. You may also want to raise a
window or open the doors.
Area For Log
Base Placement
(Center)
“Flush”
Blower Motor Floor Frame (s)
“Go Through Holes” for fastening the 19HS
to the floor. Fireplace Heat Shield
Mantel
Figure 5
14

REPLACEMENT PARTS
FOR (OPTIONAL) HEAT SHIELD MODEL 19HS
Always include correct name, part number, and model number when ordering service
Parts.
KEYS# PART DESCRIPTION PART NUMBER
1. BLOWER PEA2-40-01
RATING:120volts/60HZ/ .54Amps
2. 110 THERMOSTAT PE400132
3. CHROME SHIELD POHS14
4. POWER CORD PE400240
15

WARNING: CHILDREN AND ADULTS SHOULD BE ALERTED TO
THE HAZARDS OF HIGH SURFACE TEMPERATURES AND SHOULD
STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION. YOUNG
CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE
IN THE SAME ROOM AS THESE GAS LOGS.
WARNING: Clothing or other flammable material should not be placed on
or near this appliance.
WIRING DIAGRAM
(FOR OPTIONAL HEAT SHIELD MODEL 19HS )
POWER CORD
MOTOR
JUMPER
THERMOSTAT
JUMPER
JUMPER
WHITE
GREEN
BLACK
NOTE: “If any of the original wire supplied with the appliance must be replaced, it must be replaced
with a wire of at least a 105o C. temperature rating.
NOTE: Installation and repair should be done by a qualified service person. This heater should be in-
spected before use and at least annually by a qualified service person. More frequent cleaning may be
required due to excessive lint from carpeting, bedding material, etc. It is imperative that control com-
partments and circulating air passageways of the heater be kept clean .
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation.
Verify proper operation after servicing.
16
