New Buck Corporation 18 User manual

MODEL 18
NON-CATALYTIC UNIT
FEATURES
PREPARATIONS INSTALLATION
OPERATION MAINTENANCE SAFETY
Buck Stove
SAFETY NOTICE
IF THIS HEATER IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY
RESULT. FOR YOUR SAFETY, FOLLOW THE INSTALLATION INSTRUCTIONS.
CONTACT THE AUTHORITY HAVING JURISDICTION (SUCH AS MUNICIPAL
BUILDING DEPARTMENT, FIRE DEPARTMENT, FIRE PREVENTION
BUREAU, etc.) CONSULT BEFORE INSTALLATION TO DETERMINE THE NEED
TO OBTAIN A PERMIT. KEEP THESE INSTRUCTIONS FOR FUTURE USE.
TESTED AND LISTED BY: ITS/WARNOCK HERSEY, MIDDLETON, WI
MANUFACTURED BY NEW BUCK CORPORATION
200 ETHAN ALLEN DRIVE
P.O. BOX 69
SPRUCE PINE, N.C. 28777
www.buckstove.com Revised October 2010

TABLE OF CONTENTS
Important Instructions................................................................................................................... 3
SECTION I: Introduction ............................................................................................................. 4
SECTION II: Masonry Insert Installation..................................................................................... 5
Installation Preparation-Fireplace................................................................................................. 7
Mounting Trim Panels ................................................................................................................. 9
SECTION III: Pre-Fab Insert Installation................................................................................... 12
SECTION IV: Residential Freestanding Installation.................................................................. 16
Freestanding Installation Clearances .......................................................................................... 18
Alcove Installation Clearances ................................................................................................... 24
SECTION V: Freestanding Mobile Home Installation............................................................... 26
Installation of Close Clearance Shields ...................................................................................... 28
SECTION VI: Wood Heater Safety............................................................................................ 34
.
SECTION VII: Operation ........................................................................................................... 35
SECTION VIII: Room air blower operation ............................................................................. 36
SECTION IX: Troubleshooting.................................................................................................. 37
Parts List ..................................................................................................................................... 39
Warranty ..................................................................................................................................... 40

EPA COMPLIANCE STATUS
The Model 18 heater meets the U.S. Environmental Protection Agency’s Emission limits for
wood heaters sold after July 1, 1992. Under specific conditions this heater has been shown to
deliver heat at rates ranging from approximately 10,000 to 45,000 BTU/Hr for the Model 18.
MODEL 18
WOOD STOVE
1. Secondary air tubes
2. Blower Air Chamber
3. Primary air control
4. Warm air outlets
5. Baffles (interior of stove)
6. Air inlet
7. Door
8. Hearth extension
9. Power cord
10. Legs
11. Stainless steel plate
12. Secondary Air Channel
13. Brass cap
14. Hinge Block
15. Brass overlays
16. Brass overlay mounting
screws
17. Door glass & logo
18. Glass clips
19. Hearth Brass
20. Door Gasket
21. Side glass
22. Leveling screws
23. Firebrick
24. Motor
25. Shot gun air box
26. Disc thermostat
27. Door handle & brass spring handle
28. Air wash screen
29. Glass gasket
30. Door latch
31. Door latch screw
32. Blanket
33. Hinge pins
34. 6" Flue exit
1 11 34 4
20 16
7
15
30 & 31 21
27 16 26
3
2
9
22
24
23
25
610
12
19
8
29
18
33
14
13
5
32
Page 2

INSTALLATION, OPERATION, AND
MAINTENANCE INSTRUCTIONS
MODEL 18
BEFORE INSTALLING YOUR NEW BUCK STOVE,
READ THE ENTIRE INSTRUCTION MANUAL
IMPORTANT INSTRUCTIONS
WARNING
THESE UNITS GENERATE A LOT OF HEAT, SO TREAT THEM WITH CARE. HOT
WHILE IN OPERATION! KEEP CHILDREN, CLOTHING AND FURNITURE AWAY.
CONTACT MAY CAUSE SKIN BURNS. “DO NOT USE CHEMICALS OR FLUIDS TO
START THE FIRE.” “DO NOT BURN GARBAGE OR FLAMMABLE FLUIDS.” “DO
NOT CONNECT TO ANY DISTRIBUTION DUCT OR SYSTEM.” READ ALL
INSTRUCTIONS BEFORE INSTALLING AND USING APPLIANCE. FAILURE TO
FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY
INJURY, OR EVEN DEATH. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCES.
 The New Buck Corp. non-catalytic Model 18 has been tested by ITS, Warnock Hersey to
ANSI/UL Standards 1482.
 Install and operate your unit according to instructions provided in this manual. Local
building codes may apply; therefore, contact your local building inspector or fire marshal
for necessary installation requirements and permits which may go beyond these
instructions. Contact your insurance company for coverage and installation inspection.
 If MODEL 18 is installed in a mobile home:
“DO NOT INSTALL IN SLEEPING ROOMS.”
• NOTE: When burning any unit or appliance that combusts fuel for heat, such as
coal, oil, wood or natural and (L.P.) liquid petroleum gas. We highly recommend the use
of smoke and carbon monoxide detectors in your home.
 Examine masonry fireplace and chimney prior to installation of fireplace accessory to
determine that construction meets minimum fireplace construction requirements
illustrated in instructions, that it is free from cracks, loose mortar, creosote deposits and
other blockage or other signs of deterioration.
CAUTION
DO NOT USE MORE THAN ONE STOVE TO A CHIMNEY. DO NOT USE A FLUE
INTENDED FOR A GAS APPLIANCE. DO NOT CONNECT THIS UNIT TO A
CHIMNEY FLUE SERVING ANOTHER APPLIANCE. DO NOT CONNECT TO ANY
AIR DISTRIBUTION DUCT OR SYSTEM.
 A factory-built pre-fabricated chimney may be used for your units when installed in
Page 3

CAUTION
YOUR CHIMNEY MUST BE CORRECTLY SIZED. A CHIMNEY THAT IS TOO SMALL
OR LARGE IN DIAMETER, OR TOO SHORT, CAN CAUSE YOUR STOVE TO SPILL
SMOKE WHEN THE DOOR IS OPENED.
SECTION I
INTRODUCTION
Your Buck Stove is a non-catalytic unit designed to meet most stringent emissions standards
without use of a catalytic combustor. This effect is achieved through use of a secondary air
which is mixed with primary air in unit's firebox.
For peak performance, we suggest use of natural seasoned hard wood, loading wood
length way from front to rear.
NOTE: Soft woods such as pine, create more creosote, clogging of chimney and produce a less
efficient burn performance.
You should not burn trash or garbage, artificial or paper logs, gift wrapping, treated or
painted wood or any type of coal or flammable fluids.
The primary air, which is controlled by user, burns the wood. Secondary air is admitted into
firebox through secondary air tubes at top of the firebox. This secondary air burns
impurities in smoke released from initial wood burning. The temperature necessary for this
combustion is maintained through firebrick refractory. If any more technical information is
necessary contact your local dealer.
This heater is equipped with a standard room air blower. For operation and uses of these
electrical assemblies, see instructions provided in this manual on page 35.
Page 4

SECTION II
MASONRY INSERT INSTALLATION
The Model 18 may be installed using an all masonry fireplace built in accordance with
Uniform Building Code and National Fire Protection Association (NFPA). The first step in
this type of installation is to determine acceptability of fireplace and chimney for use with
a woodstove. Both construction and condition of fireplace are important consid-
erations when installing a woodstove. The chimney should extend at least 3' above roof and
at least 2' above any point of roof within 10'.
CAUTION
REMEMBER TO HAVE YOUR CHIMNEY INSPECTED FOR LEAKS AND BLOCKAGE
BEFORE YOU INSTALL YOUR STOVE. “DO NOT CONNECT THIS UNIT TO A
CHIMNEY FLUE SERVING ANOTHER APPLIANCE.”
MINIMUM CLEARANCE MASONRY INSERT
A. Side Wall Combustible
B. Front Floor Protector
C. Side Floor Protector
D. Side Wood Trim
E. Top Wood Trim
F. Mantel or Brackets
10"
16"
8"
9"
14"
21"
MODEL 18
1. The hearth must be of masonry construction and must extend a minimum of 16" in front of
firebox opening and a minimum of 8" to either side of firebox opening.
2. If there is not minimum hearth protection from front of firebox opening and
front of masonry hearth, a floor protector must be used in front of hearth to
protect combustible materials. The floor protector must be 3/8" minimum thickness non-
combustible material or equivalent.(See Page 6).
F
B
A
E
C
D
Page 5

Floor Protection:
Floor protection must be 3/8” minimum thickness non-combustible material or equivalent.
How to use alternate materials and how to calculate equivalent thickness
An easy means of determining if a proposed alternate floor protector meets requirements listed
in the appliance manual is to follow this procedure:
1. Convert specification to R-value:
R-value is given—no conversion is needed.
K-factor is given with a required thickness (T) in inches:
C-factor is given: R=1/C
2. Determine the R-value of the proposed alternate floor protector.
Use the formula in step (1) to convert values not expressed as “R”
For multiple layers, add R-values of each layer to determine the overall R-value.
3. If the overall R-value of the system is grater than the R-value of the specified floor protec-
tor, the alternate is acceptable.
Example:
The specified floor protector should be 3/4” thick material with a K-factor of 0.84.
The proposed alternate is 4” brick with a C-factor of 1.25 over 1/8” mineral board with a
K-factor of 0.29.
Step (a): Use formula above to convert specification to R-value. R= 1/K x T = 1/0.84 x .75 =
0.893
Step (b): Calculate R of proposed system. 4” brick of C=1.25, therefore Rbrick = 1/C = 1/1.25
=0.80 1/8” mineral board of K = 0.29, therefore Rmin.bd. =1/029 x0.125 = 0.431
Step (c): Compare proposed system R of 1.231 to specified R of 0.893. Since proposed
system R is greater than required , the system is acceptable.
Definitions:
Install in accordance with 24 CFR, Part 3280 (HUD).
Thermal conductance = C = Btu = W
(hr)(ft²)(°F) (m²)(°K)
Thermal conductance = K = (Btu)(inch) = W= (Btu)
(hr)(ft²)(°F) (m)(°K) (hr)(ft)(°F)
Thermal conductance = R = (ft²)(hr)(°F) = (m²)(°K)
Btu W
Page 6

POSSIBLE TOOLS NEEDED FOR INSTALLATION
If you decide to install your own stove, there are several hand tools you may need to do job. If
you do not already have them, they are readily available at most hardware stores.
Caulking gun
Large adjustable wrench (may not be needed)
Drop cloths or newspapers
Vacuum cleaner or whisk broom
Flashlight
1 tube of RTV silicone, Code 103 or 106, or high temperature rubber cement rated between
450oF- 600o F
7/32" drill bit and drill
Socket/Ratchet Set
INSTALLATION PREPARATION
Fireplace:
1. Locate furniture and other materials away from front of fireplace to allow free access to
fireplace.
2. Cover hearth and adjacent floor areas with a drop cloths to protect from soiling or marring
surface.
3. Remove existing fireplace damper plate.
4. Thoroughly clean fireplace of ashes and soot.
5. Check chimney and smoke chamber for excessive buildup of creosote or soot. Also, check
for obstructions, such as bird’s nests. If chimney is excessively dirty, clean it or have
someone clean it professionally BEFORE installing or using the room heater.
6. If fireplace has an ash dump or outside air provision, these must be sealed off with metal or
tightly packed non-combustible insulation to prevent cold air from entering fireplace
chamber.
MASONRY INSERT INSTALLATION
INSTALLATION OPTIONS
This unit (appliance) may be installed into an all masonry fireplace, built in accordance with
Uniform Building Code and National Fire Protection Association (NFPA 211).
NOTE: Check with local building officials for any permits required for installation of this unit
and notify your insurance company before proceeding with installation
In some cases such as improperly drawing fireplaces , oversize flue liners or to meet codes in
certain areas it is recommended that one of the flowing procedures be followed:
A. A Chimney Connector be installed from appliance flue exit through damper and
a air-tight face seal. See option (A) page 8.
B. A listed Direct Connect be installed from appliance flue exit through damper
into first section of flue liner with air-tight seal. See option (B) page 8.
C. A Positive Connect be installed from appliance flue exit continuing up through
entire chimney and exiting at top of the chimney. See option (C) page 8.
Page 7

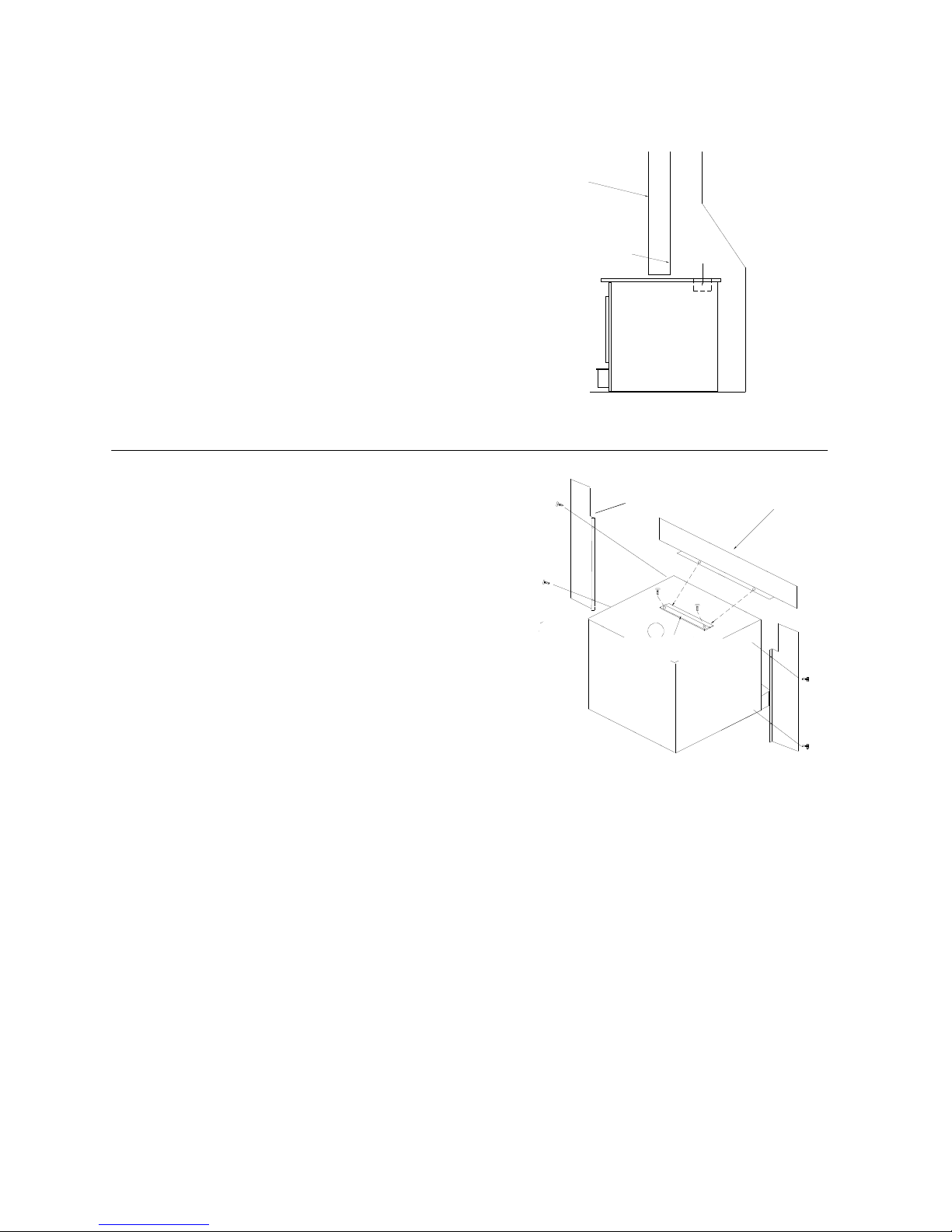

OPTION (B)
REMOVE
DAMPER
OR WIRE IT
OPEN
AIRTIGHT
INSULATED
CLEAN-
BLOCK-OFF PLATE
OR DAMPER
ADAPTER
SEAL TRIM PANELS
WITH INSULATION
OR HIGH
TEMPERATURE
CAULK
STAINLESS
STEEL
CHIMNEY
CONNEC-
TOR MUST
EXTEND 1’
PAST THE
BLOCK-OFF
PLATE OR
TO THE
FLUE LINER
NOTE: Follow installation instruction
with Direct Connection Kit.
(Kit sold separately)
SAFETY NOTICE
If this appliance is not properly installed, a house fire may result. For your safety, follow installation directions.
Contact local building or fire officials about restrictions and installation inspection requirements in your area.
STARTER PIPE
SEAL TRIM PANELS AND UNDER
FRONT OF STOVE UNIT WITH
INSULATION OR HIGH
TEMPERATURE CAULK
OPTION (A)
REMOVE
DAMPER
OR WIRE
IT OPEN
AIRTIGHT INSU-
LATED CLEAN-
OUT
NOTE: New Buck Corporation grants no war-
ranty, implied or stated, for the installation or
maintenance of your appliance, and assumes no
responsibility of any consequential damage (s).
OPTION (C)
NOTE: Follow installation
instruction with Positive
Connection Kit.
(Kit sold separately)
TRIM PANELS
CAP (PREVENTS
WATER FROM
ENTERING)
FLUE
LINER
THE LINER MUST
BE STAINLESS
STEEL CONNEC-
TOR OR FLEXIBLE
VENT. FOLLOW
THE LINER MANU-
FACTURE’S IN-
STRUCTIONS FOR
INSTALLATION
AND SUPPORT
AIRTIGHT
INSULATED
CLEAN-OUT
REMOVE
DAMPER
OR WIRE
IT OPEN
INSTALL A NON-COMBUSTIBLE
COVER PLATE TO PREVENT
WATER FROM ENTERING THE
CHIMNEY
Page 8

INSTALLATION PROCEDURE
(Use a chimney connector or a Listed Direct or Positive Connect) (See Page 8.)
POSITIONING HEATER
When positioning heater, following conditions MUST
be met! (See Figure 2).
1. The front of damper opening must be positioned
BEHIND rear edge of the lintel to ensure proper
draft. (See Figure 2).
2. Center heater in fireplace opening.
MOUNTING TRIM PANELS
After unit is positioned, mark mounting position
of trim panels as follows:
1. Place side trim panels flat against face of fireplace.
Mark front edge of trim panel with a pencil to make
a vertical reference line. (See Figure 3).
2. Place top (long) trim panel on top of unit.
The panel should be flat against the outside face
of fireplace, and standing vertically. Mark along
lower edge of trim panel with a pencil to make a
reference line for mounting.
3. Slide unit out of the fireplace far enough to work
behind trim panel reference lines. FIGURE 3 MOUNTING TRIM PANELS
FIGURE 2 POSITIONING
4. Mount side trim panels. (See Figure 3).
a. Position side trim panel on reference line.
b. Drill mounting holes in center of side trim panel mounting brackets to allow for adjustment in
and out if necessary.
c. Mount trim panel using self-tapping screws provided.
5. Place top trim panel on reference mark. Top trim panel mounting bracket (supplied) must overlap rear lip of
top trim panel. Drill mounting holes in top of stove using holes in bracket as guide. Tighten screws.
6. Follow installation procedures in listed direct connect or positive connect kit you are using and install heater
and connect kit in fireplace. If not using one of installation methods shown on Page 8, continue.
7. Slide unit back into fireplace. Check to be sure that trim panels are properly positioned and lie flat against
front of fireplace. If one or more of panels is out of position, slide unit out and reset by loosening the
mounting screws and repositioning in slot.
8. Reinstall top trim panel by sliding rear lip of top trim panel underneath front lip of mounting bracket al-
ready secured to top of unit.
SIDE TRIM PANEL
TOP TRIM PANEL
TOP TRIM PANEL
MOUNTING BRACKET
FIRE PLACE CUT AWAY
VERTICAL PLANE
LINTEL EDGE DAMPER
OPENING
Page 9

Page 10
NOTE: Mount top trim panel so that it sits in front of top of side trim panels.
9. Obtain brass trim kit provided with insert kit and slip over top and sides of trim panels. Top ends of brass
may need to be trimmed to fit (See Figure 4).
10. Using insulation provided, peel and stick to back of panels overlapping fireplace dimensions by 1" on each
side and top. (See Figure 4A).
11. Next using high heat silicone or furnace cement run heavy bead of caulking around where panels meet
stove. (See Figure 4A).
12. Slide unit back into fireplace. Check to be sure that trim panels (and brass) are properly positioned
and lie flat against front of fireplace. If panels are out of position, slide unit out and reset by loosening
the mounting screws and repositioning in the slot. With bar lift stove up in front. Place insulation
across front and surface of hearth or bottom of fireplace to make complete seal.
13. To check seal of panels, use candle flame and go around entire area sealed by silicone and insulation. If flame
leans toward inside of fireplace, add additional insulation. This ensures an airtight seal.
FINAL CHECK
1. Recheck specified clearances.
2. Remove all foreign material from firebox area.
3. Open primary air control
Primary Air Control: The primary air intake draft control is located at right bottom side of hearth. It
is operated by moving handle out to open (to allow air into firebox) or in (to control or close off)
air into firebox. (See Figure 4).
4. Plug power cord into a 115V AC outlet. “Do not run power cord under unit or in high traffic areas.
5. Place rumpled pieces of newspaper in stove. Light it and close door. Ensure that stove draws properly
through primary draft.
NOTE: “Do not use grate or elevate fire. Build wood fire directly on inner bottom of fire box.”
6. Check for smoke leaks around door.
7. Open door and check for smoke escaping from front of stove. Smoking usually indicates a defective or poorly
positioned chimney. Some chimneys with a marginal draft can be preheated by lighting newspaper and
holding it near open damper with a poker or fire tong. Once the chimney heats up, a proper draft can usually
be obtained.
If a thorough review of Troubleshooting Guide in rear of manual does not reveal problem, contact
your dealer for assistance.
FIGURE 4A
Buck Stove
FIGURE 4
Primary Air Control
Top Trim Panel
Side Trim Panel
Outer Trim
HIGH TEMP
SILICONE
INSULATION

CAUTION
THE UNIT IS PAINTED WITH A SPECIALLY FORMULAR HIGH TEMPERATURE
PAINT THAT CURES DURING FIRST TWO OR THREE FIRINGS. YOU MAY
NOTICE A SLIGHT SMOKING EFFECT AND AN ODOR OF BURNING
PAINT WHEN YOU BUILD FIRST FIRES. THIS IS NORMAL AND IS NOT A
CAUSE FOR ALARM. IN SOME CASES, THESE FUMES WILL ACTIVATE A
SMOKE ALARM. OPENING A WINDOW NEAR UNIT WILL ALLOW THESE
FUMES TO ESCAPE. DO NOT BUILD A LARGE, ROARING FIRE UNTIL THIS
CURING IS COMPLETE OR HEATER FINISH MAY BE DAMAGED.
The connector and/or chimney should be inspected at least once a month during heating season
to determine if a creosote buildup has occurred.
CAUTION
NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE,
CHARCOAL LIGHTER FLUID OR SIMILAR LIQUIDS TO START OR "FRESHEN
UP" A FIRE IN THE HEATER. KEEP ALL SUCH LIQUIDS WELL AWAY FROM
THE STOVE WHEN IT IS IN USE. ALL FLUIDS OF THIS TYPE GIVE OFF
VOLATILE FUMES AND CAN AND WILL EXPLODE!! DON'T TAKE A CHANCE
WITH THE SAFETY OF YOUR HOME AND FAMILY.
Page 11

SECTION III
PRE-FAB
ZERO CLEARANCE INSERT INSTALLATION
The Model 18 may be installed into any UL listed prefabricated fireplace that is large enough to
accept it.
MINIMUM CLEARANCES
Except for “NOTE(S)”, FOLLOW MASONRY INSTALLATION CLEARANCES FOUND
IN YOUR OPERATIONS MANUAL.
INSTALLATION PREPARATION
Pre-Fab Zero Clearance Fireplace
1. Locate furniture and other materials away from front of fireplace to allow free access to
fireplace.
2. Cover hearth and adjacent floor areas with drop cloths to protect from soiling or marring
surface.
3. Remove existing fireplace damper plate/damper rod assembly.
4. Thoroughly clean fireplace of ashes and soot.
5. Check chimney and smoke chamber for excessive buildup of creosote or soot. Also, check
for obstructions, such as bird’s nests. If chimney is excessively dirty, clean it or have
someone clean it professionally BEFORE installing or using the room heater.
6. The Ash Lip, Smoke Baffle and Smoke Shelf may also be removed, if necessary, to provide
room for Model 18. Any other alteration to unit will void ALL New Buck Corporation
responsibility and liability. The WARNING label below must be attached to the back of
fireplace.
NOTE: Plug power cord into a 115 VAC outlet. Route the cord to prevent damage to cord
insulation from heat and sharp objects. Keep cord out of the way of traffic to prevent damage
caused by tripping, etc.
WARNING: This fireplace must be
restored to its original condition for safe use,
if fireplace insert is removed.
Page 12

NOTE: DO NOT BLOCK ANY EXISTING LOUVERS OR VENT ON EXISTING
PREFAB WITH ANY TRIM PANELS FOR MODEL 18.
NOTE: If Pre-Fab Zero Clearance Fireplace is not equipped
With HT-2100 degree UL Listed pipe, a UL-1777 Liner must be
Installed Full Length of chimney and attached to Flue Exit of
Insert.
NOTE: If Pre-Fab Zero Clearance Fireplace is equipped with HT-
2100 degree UL Listed pipe, one of the two following methods must
be met:
HEATER INSTALLATION
A. There are two listed and tested methods of installation of the Model 18 heater into a zero-
clearance or pre-fab fireplace.
1. 6" Increaser
a. The preferred method is to use an increaser made of 24 gauge (minimum) stainless
steel to go from 6" inside diameter to exact diameter of fireplace throat/chimney.
See Page 14, Figure A.
b. Position increaser into throat/chimney of Zero-Clearance Cabinet at a height
slightly higher than Model 18 will be after installation. NOTE: The increaser
may be a two part slip connector type, if desired.
2. Ceramic Blanket
a. The second method is to use a 6" stainless steel connector (rigid or flex) and a
ceramic blanket (available from your dealer). (See Page 14, Figure B).
b. Cut connector at least 18" long and tightly wrap upper portion of connector with
ceramic blanket to almost t size of fireplace throat/chimney.
c. Insert connector into fireplace throat/chimney and use additional ceramic
insulation and tightly pack around connector and throat/chimney at a height
slightly higher than Model 18 will be after installation. NOTE: The increaser
may be a two part size connector type if desired.
Page 13

MINIMUM CLEARANCE TO COMBUSTIBLES
FIGURE A
FIGURE B
INCREASER
PACK TIGHT WITH
CERAMIC WOOL
(DO NOT USE GLASS
WOOL)
6” FLEX PIPE OR
ADJUSTABLE
ELBOW
Page 14

B. To complete this installation, follow basic masonry fireplace trim kit instructions
EXCEPT:
The trim kit may have to be cut down in size so as not to block any cooling vents/
chambers of Zero Clearance Fireplace.
C. To complete methods 1 and 2, position heater into ZC Fireplace and center flue exit under
connection.
D. Slide connector (or slip connector) down into flue exit of heater approximately 3/8".
Now, seal connector to heater (and fireplace throat if method #1 is used) using refractory
cement.
CAUTION: Do not loosen ceramic brick.
CAUTION: Crimped end of connector must be placed into heater throat.
E. Check installation minimum clearances and install an approved heater extension or floor
protector to meet at least minimum clearances.
Page 15

HOLES FOR MOUNTING PEDESTAL
Page 16
SECTION IV
RESIDENTIAL FREESTANDING INSTALLATION
Select an installation location that will give best airflow from front of
heater to remainder of home.
PREPARING STOVE FOR INSTALLATION
1. Inspect unit for any obvious physical damage.
2. Plug power cord into a 115V AC outlet. Do not run power cord under unit or in high traffic areas.
3. Check primary air draft control to ensure that it slides freely.(See Figure 5).
4. Remove any items from within firebox. Spread a dropcloth one floor behind heater. Next, tilt
heater so that back is on drop cloth.
5. (Leg Kit): If legs are to be used, obtain four legs, attach legs to holes in bottom of unit with bolts
and washers supplied with leg kit. (See Figure 5).
6. (Pedestal Kit): If pedestal kit is being used and (out side air is required for residential free
standing installation (see page 29 Out Side Air Installation). Open freestanding kit and obtain
stand. Place stand against bottom of heater (angle side to heater).Center stand front to rear and
also center stand left and right. Mark screw locations on bottom of stove through outer holes of stand
mounting angles. Set stand aside and drill four 7/32" holes in heater bottom. Then mount stand to
bottom of heater with screws provided. (See Figure 5A).
7. Obtain four (4) 3/16" self-tapping screws and secure stand to heater.
8. Reposition heater to upright position.
Figure 5A
Figure 5
PRIMARY AIR
DRAFT CONTROL
PEDESTAL

ALTERNATE FLOOR PROTECTORS MATERIAL
Floor protection must be 3/8” minimum thickness non-combustible material or equivalent.
How to use alternate materials and how to calculate equivalent thickness
An easy means of determining if a proposed alternate floor protector meets requirements listed
in the appliance manual is to follow this procedure:
1. Convert specification to R-value:
R-value is given—no conversion is needed.
K-factor is given with a required thickness (T) in inches:
C-factor is given: R=1/C
2. Determine the R-value of the proposed alternate floor protector.
Use the formula in step (1) to convert values not expressed as “R”
For multiple layers, add R-values of each layer to determine the overall R-value.
3. If the overall R-value of the system is grater than the R-value of the specified floor protec-
tor, the alternate is acceptable.
Example:
The specified floor protector should be 3/4” thick material with a K-factor of 0.84.
The proposed alternate is 4” brick with a C-factor of 1.25 over 1/8” mineral board with a
K-factor of 0.29.
Step (a): Use formula above to convert specification to R-value. R= 1/K x T = 1/0.84 x .75 =
0.893
Step (b): Calculate R of proposed system. 4” brick of C=1.25, therefore Rbrick = 1/C = 1/1.25
=0.80 1/8” mineral board of K = 0.29, therefore Rmin.bd. =1/029 x0.125 = 0.431
Step (c): Compare proposed system R of 1.231 to specified R of 0.893. Since proposed
system R is greater than required , the system is acceptable.
Definitions:
Install in accordance with 24 CFR, Part 3280 (HUD).
Thermal conductance = C = Btu = W
(hr)(ft²)(°F) (m²)(°K)
Thermal conductance = K = (Btu)(inch) = W= (Btu)
(hr)(ft²)(°F) (m)(°K) (hr)(ft)(°F)
Thermal conductance = R = (ft²)(hr)(°F) = (m²)(°K)
Btu W
Page 17

CLEARANCES FOR MODEL -18
RESIDENTIAL FREESTANDING INSTALLATION
MINIMUM CLEARANCES TO COMBUSTIBLES
NOTE: All clearances are to combustibles without low clearance shields and using single
wall pipe and minimum floor protector. Clearances above may be reduced. Follow
NFPA-211 codes if available or follow instructions (see pages 24 and 25).
A B C D E F G
MODEL 18 10" 14" 15" 9" 16" 8" 8"
* Floor Protector at rear needed for through-the-wall exit only.
A
C
B
D
D
E
F
BACK WALL
SIDE WALL
FRONT
45 DEGREES
ADJACENT WALL
ADJACENTWALL
G
Page 18
