New Buck Corporation 81 User manual

FIREPLACE INSERT & FREESTANDING
MODEL 81
NON-CATALYTIC UNIT
Buck Stove
FEATURES
PREPARATIONS INSTALLATION
OPERATION MAINTENANCE SAFETY
SAFETY NOTICE
IF THIS HEATER IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY
RESULT. FOR YOUR SAFETY, FOLLOW THE INSTALLATION INSTRUCTIONS.
CONTACT THE AUTHORITY HAVING JURISDICTION (SUCH AS MUNICIPAL
BUILDING DEPARTMENT, FIRE DEPARTMENT, FIRE PREVENTION
BUREAU, etc.) CONSULT BEFORE INSTALLATION TO DETERMINE THE NEED
TO OBTAIN A PERMIT. KEEP THESE INSTRUCTIONS FOR FUTURE USE.
TESTED AND LISTED BY: ITS/WARNOCK HERSEY, MIDDLETON, WI
MANUFACTURED BY NEW BUCK CORPORATION
200 ETHAN ALLEN DRIVE
P.O. BOX 69
SPRUCE PINE, N.C. 28777
www.buckstove.com Revised October 2010

TABLE OF CONTENTS
Wood Stove Description ............................................................................................................... 2
Important Instructions................................................................................................................... 3
SECTION I: Introduction ............................................................................................................. 4
SECTION II: Masonry Insert Installation..................................................................................... 5
Installation Preparation-Fireplace................................................................................................. 7
Mounting Trim Panels .................................................................................................................. 9
SECTION III: Pre-Fab Insert Installation................................................................................... 12
SECTION IV: Residential Freestanding Installation.................................................................. 13
Freestanding Installation Clearances .......................................................................................... 21
Installation of Close Clearances Shields..................................................................................... 23
SECTION V: Freestanding Mobile Home Installation............................................................... 24
SECTION VI: Wood Heater Safety............................................................................................ 29
SECTION VII: Operation ........................................................................................................... 30
SECTION VIII: Room air blower operation ............................................................................. 32
SECTION IX: Troubleshooting.................................................................................................. 33
Parts List ..................................................................................................................................... 34
Warranty ..................................................................................................................................... 35

EPA COMPLIANCE STATUS
The Model 81 heater meets U.S. Environmental Protection Agency’s Emission limits for wood
heaters sold after July 1, 1992. Under specific conditions this heater has been shown to deliver
heat at rates ranging from approximately 10,000 to 45,000 BTU/hr for the Model 81.

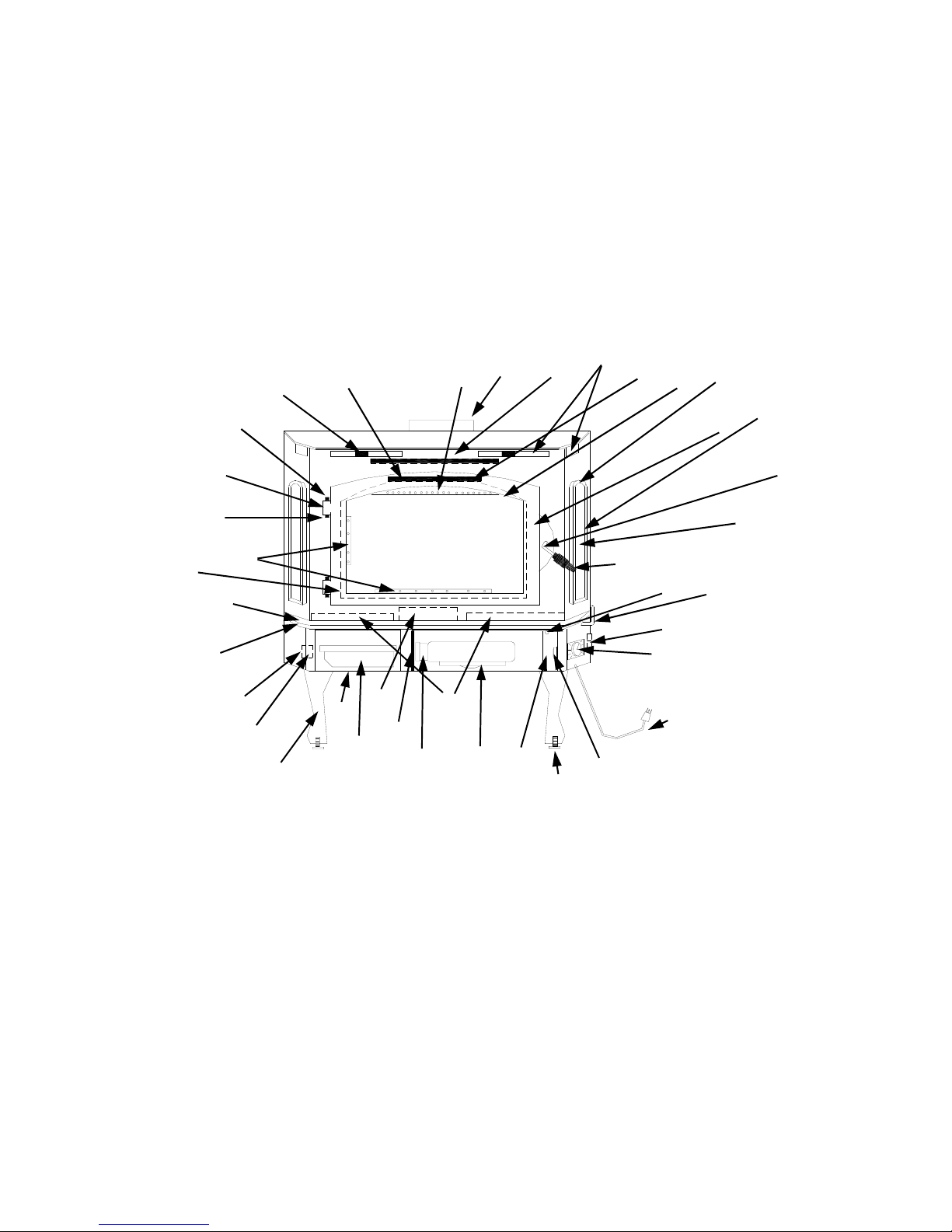

MODEL 81
WOOD STOVE
1. Secondary air tubes
2. Blower control (rheostat)
3. Primary air control
4. Warm air outlets
5. Baffles (interior of stove)
6. Air inlet
7. Door
8. Hearth extension
9. Power cord
10. Legs
11. Stainless steel plate
12. Automatic/off/man. switch
13. Brass cap
14. Hinge Block
15. Brass overlays
16. Brass overlay mounting
screws
17. Door glass & logo
18. Glass clips
19. Hearth Brass
20. Door Gasket
21. Side glass
22. Leveling screws
23. Firebrick
24. Motor
25. Motor mount bracket
26. Cover Door
27. Cover door screws
28. Shot gun air box
29. Ash pan
30. Disc thermostat
31. Door handle & brass spring handle
32. Air wash screen
33. Glass gasket
34. Cover door hinge
35. Magnet holder
36. Cover door Magnet
37. Door latch
38. Door latch screw
39. Blanket
40. Hinge pins
41. 6" Flue exit
(1) 1
(11)
(41) (4)
(20) (32) (16)
(7) (15)
(37) & (38)
(21)
(31)
(27) (3)
(12)
(2)
(9)
(30)
(22)
(26)
(24)
(23)
(25)
(34)
(28
(29)
6
(10)
(36)
(35)
(19)
(8)
(33) (18)
(40)
(14)
(13)
(5) (39)
Page 2

INSTALLATION, OPERATION, AND
MAINTENANCE INSTRUCTIONS
MODEL 81
READ THIS FIRST
IMPORTANT INSTRUCTIONS
WARNING
THESE UNITS GENERATE A LOT OF HEAT, SO TREAT THEM WITH CARE. HOT
WHILE IN OPERATION. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY.
CONTACT MAY CAUSE SKIN BURNS. READ ALL INSTRUCTIONS BEFORE
INSTALLING AND USING THE APPLIANCE. FAILURE TO FOLLOW INSTRUC-
TIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCES.
 The New Buck Corporation non-catalytic system has been tested by Intertek Testing
Services, Warnock Hersey to ANSI/UL Standards :UL 1482 (1996) :UL 1482 (200) :UL
1482 (2006) :UL 1482 (2010).
 Install and operate your units according to instructions provided in this manual. Local
building codes may apply; therefore, contact your local building inspector or fire marshal
for necessary installation requirements and permits which may go beyond these instruc-
tions.
 If appliance is installed in mobile homes:
“DO NOT INSTALL IN SLEEPING ROOMS.”
 NOTE: When burning any unit or appliance that combusts fuel for heat, such as
coal, oil, wood or natural and (L.P.) liquid petroleum gas, we highly recommend the
use of smoke and carbon monoxide detectors in your home.
 Examine masonry fireplace and chimney prior to installation of fireplace accessory to
determine that construction meets minimum fireplace construction requirements
illustrated in instructions, that it is free from cracks, loose mortar, creosote deposits and
other blockage or other signs of deterioration.
CAUTION
DO NOT USE MORE THAN ONE STOVE TO A CHIMNEY. DO NOT USE A FLUE
INTENDED FOR A GAS APPLIANCE. DO NOT CONNECT THIS UNIT TO A CHIMNEY
FLUE SERVING ANOTHER APPLIANCE. DO NOT CONNECT TO ANY AIR
DISTRIBUTION DUCT OR SYSTEM.
 A factory-built pre-fabricated chimney may be used for your units when installed in
compliance with manufacturer's specification and uniform building code.
Page 3

CAUTION
YOUR CHIMNEY MUST BE CORRECTLY SIZED. A CHIMNEY THAT IS TOO SMALL
OR LARGE IN DIAMETER OR TOO SHORT, CAN CAUSE YOUR STOVE TO SPILL
SMOKE WHEN THE DOOR IS OPENED.
SECTION I
INTRODUCTION
Your Buck Stove is non-catalytic unit designed to meet the most stringent emissions standards
without the use of a catalytic combustor. This effect is achieved through the use of a secondary
air which is mixed with primary air in unit's firebox.
For peak performance, we suggest the use of natural seasoned hard wood, loading wood
length way from front to rear.
NOTE: Soft woods such as pine, create more creosote, clogging of chimney and produce a less effi-
cient burn performance.
You should not burn trash or garbage, artificial or paper logs, gift wrapping, treated or
painted wood or any type of coal, or flammable fluids.
The primary air, which is controlled by the user, burns the wood. Secondary air is admitted into
firebox through secondary air tubes at top of firebox. This secondary air burns impurities in
smoke released from the initial wood burning. The temperature necessary for this combustion
is maintained through the firebrick refractory. If any more technical information is necessary,
contact your local dealer.
This heater is equipped with a standard room air blower. For operation and use of these
electrical assemblies, see instructions provided in this manual starting on page 30.
Page 4

SECTION II
MASONRY INSERT INSTALLATION
The Model 81 may be installed using an all masonry fireplace built in accordance with the
Uniform Building Code and National Fire Protection Association (NFPA). The first step in
this type of installation is to determine acceptability of fireplace and chimney for use with a
woodstove. Both construction and condition of fireplace are important consid-
erations when installing a woodstove. The chimney should extend at least 3' above roof and
at least 2' above any point of roof within 10'.
CAUTION
REMEMBER TO HAVE YOUR CHIMNEY INSPECTED FOR LEAKS AND BLOCKAGE
BEFORE YOU INSTALL YOUR STOVE. “DO NOT CONNECT THIS UNIT TO A
CHIMNEY FLUE SERVING ANOTHER APPLIANCE.”
MINIMUM CLEARANCE MASONRY INSERT
A. Side Wall Combustible
B. Front Floor Protector
C. Side Floor Protector
D. Side Wood Trim
E. Top Wood Trim
F. Mantel or Brackets
12"
16"
8"
7"
10"
21"
MODEL 81
1. The hearth must be of masonry construction and must extend a minimum of 16" in front of
firebox opening and a minimum of 8" to either side of firebox opening.
2. If there is not minimum hearth protection from front of firebox opening and front of
masonry hearth, a floor protector must be used in front of hearth to protect combustible
materials. The floor protector must be 3/8" minimum thickness non-combustible material
or equivalent.(See Page 6).
F
B
A
E
C
D
Page 5

MINIMUM CLEARANCES
Floor Protection:
When installing freestanding heater, a floor protector must be use. Floor protection must be
3/8” minimum thickness non-combustible material or equivalent.
How to use alternate materials and how to calculate equivalent thickness
An easy means of determining if a proposed alternate floor protector meets requirements listed
in the appliance manual is to follow this procedure:
1. Convert specification to R-value:
R-value is given—no conversion is needed.
K-factor is given with a required thickness (T) in inches:
C-factor is given: R=1/C
2. Determine the R-value of the proposed alternate floor protector.
Use the formula in step (1) to convert values not expressed as “R”
For multiple layers, add R-values of each layer to determine the overall R-value.
3. If the overall R-value of the system is grater than the R-value of the specified floor protec-
tor, the alternate is acceptable.
Example:
The specified floor protector should be 3/4” thick material with a K-factor of 0.84.
The proposed alternate is 4” brick with a C-factor of 1.25 over 1/8” mineral board with a
K-factor of 0.29.
Step (a): Use formula above to convert specification to R-value. R= 1/K x T = 1/0.84 x .75 =
0.893
Step (b): Calculate R of proposed system. 4” brick of C=1.25, therefore Rbrick = 1/C = 1/1.25
=0.80 1/8” mineral board of K = 0.29, therefore Rmin.bd. =1/029 x0.125 = 0.431
Step (c): Compare proposed system R of 1.231 to specified R of 0.893. Since proposed
system R is greater than required , the system is acceptable.
Definitions:
Install in accordance with 24 CFR, Part 3280 (HUD).
Thermal conductance = C = Btu = W
(hr)(ft²)(°F) (m²)(°K)
Thermal conductance = K = (Btu)(inch) = W= (Btu)
(hr)(ft²)(°F) (m)(°K) (hr)(ft)(°F)
Thermal conductance = R = (ft²)(hr)(°F) = (m²)(°K)
Btu W
Page 6

POSSIBLE TOOLS NEEDED FOR INSTALLATION
If you decide to install your own stove, there are several hand tools you may need to do the job.
If you do not already have them, they are readily available at most hardware stores.
Caulking gun
Large adjustable wrench (may not be needed)
Drop cloths or newspapers
Vacuum cleaner or whisk broom
Flashlight
1 tube of RTV silicone, Code 103 or 106, or high temperature rubber cement rated between
450oF- 600o F
7/32" drill bit and drill
Socket/Ratchet Set
INSTALLATION PREPARATION
Fireplace:
1. Locate furniture and other materials away from front of fireplace to allow free access to
fireplace.
2. Cover hearth and adjacent floor areas with a drop cloths to protect from soiling or marring
surface.
3. Remove existing fireplace damper plate.
4. Thoroughly clean fireplace of ashes and soot.
5. Check chimney and smoke chamber for excessive buildup of creosote or soot. Also, check
for obstructions, such as bird’s nests. If chimney is excessively dirty, clean it or have
someone clean it professionally BEFORE installing or using room heater.
6. If fireplace has an ash dump or outside air provision, these must be sealed off with metal or
tightly packed non-combustible insulation to prevent cold air from entering fireplace
chamber.
MASONRY INSERT INSTALLATION
INSTALLATION OPTIONS
This unit (appliance) may be installed into an all masonry fireplace, built in accordance with
Uniform Building Code and National Fire Protection Association (NFPA 211).
NOTE: Check with local building officials for any permits required for installation of this unit
and notify your insurance company before proceeding with installation
In cases such as improperly drawing fireplaces, oversize flue liners or to meet codes in certain
areas it is recommended that one of the flowing procedures be followed:
A. A Chimney Connector be installed from appliance flue exit through damper, plus
a air-tight face seal. See option (A) page 8.
B. A listed Direct Connect be installed from appliance flue exit through damper,
into first section of flue liner with air-tight seal. See option (B) page 8.
C. A Positive Connect be installed from appliance flue exit continuing up through
entire chimney and exiting at top of chimney. See option (C) page 8.
Page 7

OPTION (B)
REMOVE
DAMPER
OR WIRE IT
OPEN
AIRTIGHT
INSULATED
CLEAN-
OUT
BLOCK-OFF PLATE
OR DAMPER
ADAPTER
SEAL TRIM PANELS
WITH INSULATION
OR HIGH
TEMPERATURE
CAULK
STAINLESS
STEEL
CHIMNEY
CONNEC-
TOR MUST
EXTEND 1’
PAST THE
BLOCK-OFF
PLATE OR
TO THE
FLUE LINER
NOTE: Follow installation instruction
with Direct Connection Kit.
(Kit sold separately)
SAFETY NOTICE
If this appliance is not properly installed, a house fire may result. For your safety, follow the installation directions.
Contact local building or fire officials about restrictions and installation inspection requirements in your area.
STARTER PIPE
SEAL TRIM PANELS AND UNDER
FRONT OF STOVE UNIT WITH
INSULATION OR HIGH
TEMPERATURE CAULK
OPTION (A)
REMOVE
DAMPER
OR WIRE
IT OPEN
AIRTIGHT INSU-
LATED CLEAN-
OUT
NOTE: New Buck Corporation grants no war-
ranty, implied or stated, for the installation or
maintenance of your appliance, and assumes no
responsibility of any consequential damage (s).
OPTION (C)
NOTE: Follow installation
instruction with Positive
Connection Kit.
(Kit sold separately)
TRIM PANELS
CAP (PREVENTS
WATER FROM
ENTERING)
FLUE
LINER
THE LINER MUST
BE STAINLESS
STEEL CONNEC-
TOR OR FLEXIBLE
VENT. FOLLOW
THE LINER MANU-
FACTURE’S IN-
STRUCTIONS FOR
INSTALLATION
AND SUPPORT
AIRTIGHT
INSULATED
CLEAN-OUT
REMOVE
DAMPER
OR WIRE
IT OPEN
INSTALL A NON-COMBUSTIBLE
COVER PLATE TO PREVENT
WATER FROM ENTERING THE
CHIMNEY
Page 8

INSTALLATION PROCEDURE
(Use a chimney connector or a Listed Direct or Positive Connect) (See Page 8.)
POSITIONING HEATER
When positioning heater, the following conditions
MUST be met! (See Figure 2).
1. The front of damper opening must be positioned
BEHIND rear edge of lintel to ensure proper draft.
(See Figure 2).
2. Center heater in the fireplace opening.
MOUNTING TRIM PANELS
After unit is positioned, mark mounting position of trim
panels as follows:
1. Place side trim panels flat against face of fireplace.
Mark front edge of trim panel with a pencil to make a
vertical reference line. (See Figure 3).
2. Place top (long) trim panel on top of unit.
The panel should be flat against the outside face
of fireplace and standing vertically. Mark along
lower edge of trim panel with a pencil to make a
reference line for mounting.
3. Slide unit out of fireplace far enough to work

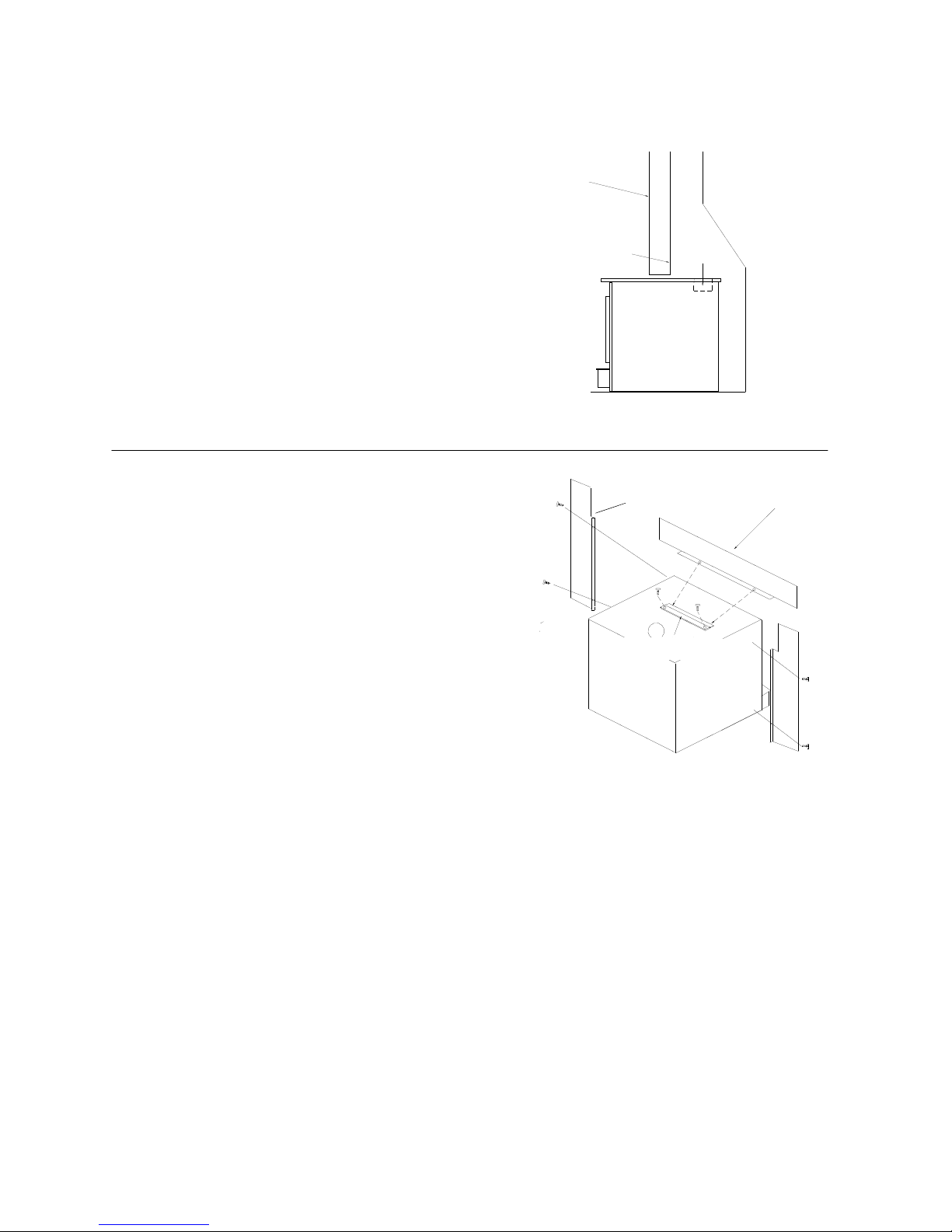

behind trim panel reference lines. FIGURE 3 MOUNTING TRIM PANELS
FIGURE 2 POSITIONING
4. Mount side trim panels. (See Figure 3).
a. Position side trim panel on reference line.
b. Drill mounting holes in center of side trim panel mounting brackets to allow for adjustment in and out if
necessary.
c. Mount trim panel using self-tapping screws provided.
5. Place top trim panel on reference mark. Top trim panel mounting bracket (supplied) must overlap rear lip of
top trim panel. Drill mounting holes in top of stove using holes in bracket as guide. Tighten screws.
6. Follow installation procedures in listed direct connect or positive connect kit you are using and install heater
and connect kit in fireplace. If not using one of installation methods shown on Page 8, continue.
7. Slide unit back into fireplace. Check to be sure that trim panels are properly positioned and lie flat against
front of fireplace. If one or more of panels is out of position, slide unit out and reset by loosening mounting
screws and repositioning in slot.
8. Reinstall top trim panel by sliding rear lip of top trim panel underneath front lip of mounting bracket already
secured to top of unit.
SIDE TRIM PANEL
TOP TRIM PANEL
TOP TRIM PANEL
MOUNTING BRACKET
FIRE PLACE CUT AWAY
VERTICAL PLANE
LINTEL EDGE DAMPER
OPENING
Page 9

NOTE: Mount top trim panel so that it sits in front of top of side trim panels.
9. Obtain brass trim kit provided with insert kit and slip over top and sides of trim panels. Top ends of brass may
need to be trimmed to fit (See Figure 4).
10. Using insulation provided, peel and stick to back of panels overlapping fireplace dimensions by 1" on each
side and top. (See Figure 4A).
11. Next using high heat silicone or furnace cement run heavy bead of caulking around where panels meet the
stove. (See Figure 4A).
12. Slide unit back into fireplace. Check to be sure that trim panels (and brass) are properly positioned and lie flat
against front of fireplace. If panels are out of position, slide unit out and reset by loosening mounting screws
and repositioning in slot. With bar lift stove up in front. Place insulation across front and surface of hearth or
bottom of fireplace to make complete seal.
13. To check seal of panels, use candle flame and go around entire area sealed by silicone and insulation. If flame
leans toward inside of fireplace, add additional insulation. This ensures an airtight seal.
FINAL CHECK
1. Recheck specified clearances.
2. Remove all foreign material from firebox area.
3. Primary Air Control: The primary air intake draft control is located at right bottom side of hearth. It is
operated by moving handle out to open (to allow air into the firebox) or in (to control or close off) air into
firebox. (See Figure 4).
4. Plug power cord into a 115V AC outlet if optional motor is being used. “Do not run power cord under unit
or in high traffic areas.
5. Place rumpled pieces of newspaper in stove. Light it and close door. Ensure that stove draws properly through
primary draft.
NOTE: “Do not use grate or elevate fire. Build wood fire directly on inner bottom of fire box.”
6. Check for smoke leaks around door.
7. Open door and check for smoke escaping from front of stove. Smoking usually ndicates a defective or poorly
positioned chimney. Some chimneys with a marginal draft can be pre-heated by lighting newspaper and
holding it near open damper with a poker or fire tong. Once chimney heats up, a proper draft can usually be
obtained.
If a thorough review of Troubleshooting Guide in the rear of manual does not reveal problem, contact your dealer
for assistance.
FIGURE 4A
Top Trim Panel Outer Trim
Primary Air Control
Side Trim Panel
HIGH TEMP
SILICONE
INSULATION
FIGURE 4
Page 10

CAUTION
THE UNIT IS PAINTED WITH A SPECIALLY FORMULATED HIGH
TEMPERATURE PAINT THAT CURES DURING THE FIRST TWO OR THREE
FIRINGS. YOU MAY NOTICE A SLIGHT SMOKING EFFECT AND AN ODOR OF
BURNING PAINT WHEN YOU BUILD THE FIRST FIRES. THIS IS NORMAL AND
IS NOT A CAUSE FOR ALARM. IN SOME CASES, THESE FUMES WILL
ACTIVATE A SMOKE ALARM. OPENING A WINDOW NEAR THE UNIT WILL
ALLOW THESE FUMES TO ESCAPE. DO NOT BUILD A LARGE, ROARING FIRE
UNTIL THIS CURING IS COMPLETE OR HEATER FINISH MAY BE DAMAGED.
The connector and/or chimney should be inspected at least once a month during heating season
to determine if a creosote buildup has occurred.
CAUTION
NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE,
CHARCOAL LIGHTER FLUID OR SIMILAR LIQUIDS TO START OR "FRESHEN
UP" A FIRE IN THE HEATER. KEEP ALL SUCH LIQUIDS WELL AWAY FROM
THE STOVE WHEN IT IS IN USE. ALL FLUIDS OF THIS TYPE GIVE OFF
VOLATILE FUMES AND CAN AND WILL EXPLODE!! DON'T TAKE A CHANCE
WITH THE SAFETY OF YOUR HOME AND FAMILY.
Page 11

SECTION III
PRE-FAB INSERT INSTALLATION
The Model 81 may be installed into any UL listed pre-fabricated fireplace that is large enough
to accept it.
NOTE: When installing Model 81 into a Pre-Fab Zero-Clearance fireplace, a UL-1777
LINER must be installed the Full Length of chimney and attached to flue exit of insert.
NOTE: The ash lip, smoke baffle and smoke shelf of pre-fab fireplace may be removed if
necessary to provide room for these models. Any other alteration to unit will void ALL New
Buck Corporation responsibility and liability. The warning label below must be attached to
back of fireplace.
NOTE: Plug power cord into a 115V AC outlet. Set switch to “Manual” and rheostat to
“High” position to ensure motor operates properly. Route power cord to prevent damage to
cord insulation from heat and sharp objects. Keep cord out of way of traffic to prevent damage
caused by tripping, etc.
NOTE: DO NOT BLOCK ANY EXISTING LOUVERS OR VENTS ON EXISTING
PRE-FAB WITH ANY TRIM PANELS FOR MODEL 81.
Except for “NOTES” above, please follow instruction of masonry installation, Section II.
Instruction
Minimum clearances for stove
Minimum clearances for floor protector
WARNING: This fireplace must be
restored to it’s original condition for safe use
if the fireplace insert is removed.
Page 12

Page 13
SECTION IV
RESIDENTIAL FREESTANDING INSTALLATION
Select an installation location that will give best airflow from front of heater to
remainder of home.
PREPARING STOVE FOR INSTALLATION
1. Inspect unit for any obvious physical damage.
2. Plug power cord into a 115V AC outlet to test motor and fan. Do not run cord under unit or in high
traffic areas.
3. Check primary air draft control to ensure that it slides freely. (See Figure 5).
4. Remove any items from within firebox. Spread a dropcloth on floor behind heater. Next, tilt heater
so that back is on drop cloth.
5. (Leg Kit): If legs are to be used, obtain four legs, attach legs to holes in bottom of unit with bolts
and washers supplied with leg kit. (See Figure 5).
6. (Pedestal Kit): If pedestal kit is being used and (out side air is required for residential free
standing installation (see page 25 Out Side Air Installation). Open freestanding kit and obtain
stand. Place stand against bottom of heater (angle side to heater). Center stand front to rear and also
center stand left and right. Mark screw locations on bottom of stove through outer holes of stand
mounting angles. Set stand aside and drill four 7/32" holes in heater bottom. Then mount stand to
bottom of heater with screws provided. (See Figure 5A).
7. Obtain four (4) 3/16" self-tapping screws and secure stand to heater.
8. Reposition heater to upright position.
FOUR NEW HOLES
Figure 5 Figure 5A
PRIMARY AIR
DRAFT CONTROL
PEDESTAL
HOLES FOR MOUNTING PEDESTAL

ALTERNATE FLOOR PROTECTORS MATERIAL
Floor Protection:
When installing freestanding heater, a floor protector must be use. Floor protection must be
3/8” minimum thickness non-combustible material or equivalent.
How to use alternate materials and how to calculate equivalent thickness
An easy means of determining if a proposed alternate floor protector meets requirements listed
in the appliance manual is to follow this procedure:
1. Convert specification to R-value:
R-value is given—no conversion is needed.
K-factor is given with a required thickness (T) in inches:
C-factor is given: R=1/C
2. Determine the R-value of the proposed alternate floor protector.
Use the formula in step (1) to convert values not expressed as “R”
For multiple layers, add R-values of each layer to determine the overall R-value.
3. If the overall R-value of the system is grater than the R-value of the specified floor protec-
tor, the alternate is acceptable.
Example:
The specified floor protector should be 3/4” thick material with a K-factor of 0.84.
The proposed alternate is 4” brick with a C-factor of 1.25 over 1/8” mineral board with a
K-factor of 0.29.
Step (a): Use formula above to convert specification to R-value. R= 1/K x T = 1/0.84 x .75 =
0.893
Step (b): Calculate R of proposed system. 4” brick of C=1.25, therefore Rbrick = 1/C = 1/1.25
=0.80 1/8” mineral board of K = 0.29, therefore Rmin.bd. =1/029 x0.125 = 0.431
Step (c): Compare proposed system R of 1.231 to specified R of 0.893. Since proposed
system R is greater than required , the system is acceptable.
Definitions:
Install in accordance with 24 CFR, Part 3280 (HUD).
Thermal conductance = C = Btu = W
(hr)(ft²)(°F) (m²)(°K)
Thermal conductance = K = (Btu)(inch) = W= (Btu)
(hr)(ft²)(°F) (m)(°K) (hr)(ft)(°F)
Thermal conductance = R = (ft²)(hr)(°F) = (m²)(°K)
Btu W
Page 14

Chimney
This model is designed for connection to any listed 2100º UL103 HT chimneys and parts.
Follow chimneys manufacturer's instructions carefully.
NOTE: This Room Heater must be converted to (1) a chimney complying with requirements
for Type HT chimneys in Standard forchimneys, Factory-Built, Residential, Type and
Building Heating Appliance, UL 103, or (2) a code approved masonry chimney with a flue
liner. The chimney size should not be less than nor more than 3 times greater than cross-
sectional area of flue collar.
CAUTION
SPECIAL METHODS ARE REQUIRED WHEN PASSING THROUGH A
WALL OR CEILING. SEE INSTRUCTIONS AND BUILDING CODES.
DETERMINING CHIMNEY LOCATION
A. Ceiling Exits: (Using 6" Single Wall Pipe and UL 103 HT type chimney
system listed with manufacturer in this section of manual).
1. Suspend a plumb bob from ceiling above unit so weight is hanging in center of
flue exit. (A small weight on a string will serve as a plumb bob.) Mark ceiling where
string is suspended to locate center of chimney.
2. After locating center of hole, install ceiling support box, chimney, flashing and rain cap per
chimney manufacturer's instructions.
3. Now connect stove and ceiling support box using #24 ga. minimum blued or black steel
connector pipe. (DO NOT USE GALVANIZED PIPE). Connect each section so
crimped end faces downward and secure each section to each other using at least
Page 15

three (3) sheet metal screws or rivets. Next, install an optional New Buck Corporation
chimney connector to flue exit of heater. (See Figure 6).
4. Install Single Wall Connector and chimney system per manufacturer’s written operating in-
structions. See manufacturer’s list of tested pipes in this manual.
Figure 6
Figure 7
B. Wall Exit Into Metal Tee-Box
1. Mark the plumb line on wall directly behind center of heater. (See Figure 7).
NOTE: When using #24 ga. minimum blue or black steel pipe maintain 18" between pipe and
ceiling.
2. Place vertical portion of heater pipe and elbow in position and project a point onto plumb
line level with center of the elbow.
3. Measure up so there will be at least 1/4" rise per foot of horizontal connector pipe,
(3) sheet
metal
screws
or rivets.
Optional
New Buck
Corporation
chimney
connector
Page 16

maintaining clearances to ceiling as noted in Figure 7. This will give you center of hole for
chimney penetration.
4. After locating center of penetration, install tee box and chimney as per chimney
manufacturer's specifications.
5. Connect chimney collar to tee-box using #24 ga. minimum blued or black steel connector
pipe. (DO NOT USE GALVANIZED PIPE). Connect each section so crimped end faces
downward and secure each section to each other using three (3) sheet metal screws or rivets.
C. Wall Exit Into Masonry (Using Single Wall Pipe)
1. Before connecting this unit to a masonry chimney, determine that masonry fireplace wall
pass-through connector thimble meets NFPA-211 Code and local building codes and is
a minimum of 18" from ceiling. If connector thimble does not meet these codes, the pass
-through connector must be modified. (See Figure 8).
Figure 8
Connectors may pass through walls or partitions constructed of combustible material if
connector is:
(a) Either listed for wall pass-through or is routed through a device listed for wall pass-
through and is installed in accordance with conditions of listing.
(b) Selected or fabricated in accordance with conditions and clearances as stated in NFPA
-211 Code. Any unexposed metal that is used as part of a wall pass-through system
and is exposed to flue gases shall be constructed of stainless steel or other equivalent
material that will resist corrosion, softening, or cracking from flue gases at temperatures
up to 1800oF.
Page 17

NOTE: In addition, a connector to a masonry chimney shall extend through wall to inner
face or liner but not beyond and shall be firmly cemented to masonry.
EXCEPTION: A thimble may be used to facilitate removal of chimney connector for
cleaning, in which case, thimble shall be permanently cemented in place with high-temperature
cement.
2. Once through-the-wall thimble codes are met, simply connectchimney collar to wall pass-
through connector using #24 ga. minimum, blued or black steel connector pipe as follows:
(a) Maintain 1/4" rise per foot (horizontal length) from appliance to chimney.
(b) Connect each section so crimped end faces downward or back toward unit.
(c) Secure each section to each other using at least three (3) sheet metal screws or rivets.
(d) Use three (3) sheet metal screws to fasten pipe to connector collar on heater.
D. Ceiling Exit-Close Clearance
1. Suspend a plumb bob from ceiling above unit so that weight is hanging in center of
flue exit. (A small weight on a string will serve as a plumb bob). Mark ceiling where
string is suspended to locatecenter of chimney hole.
2. After locating center of hole, install ceiling support box, chimney flashing and rain cap.
3. Now connect stove and ceiling support box using #24 ga. minimum blued or black steel
connector pipe. (DO NOT USE GALVANIZED PIPE). Connect each section so crimped
end faces downward and secure each section to each other using at least three (3) sheet
metal screws or rivets. Next, install an optional New Buck Corporation chimney connector
to flue exit of heater or you may use “Ell” brackets to fasten pipe to stove.
4. Install Single Wall Connector and chimney system per manufacturer’s written operating
instructions. See manufacturer's list of tested pipes in this manual.
Page 18
