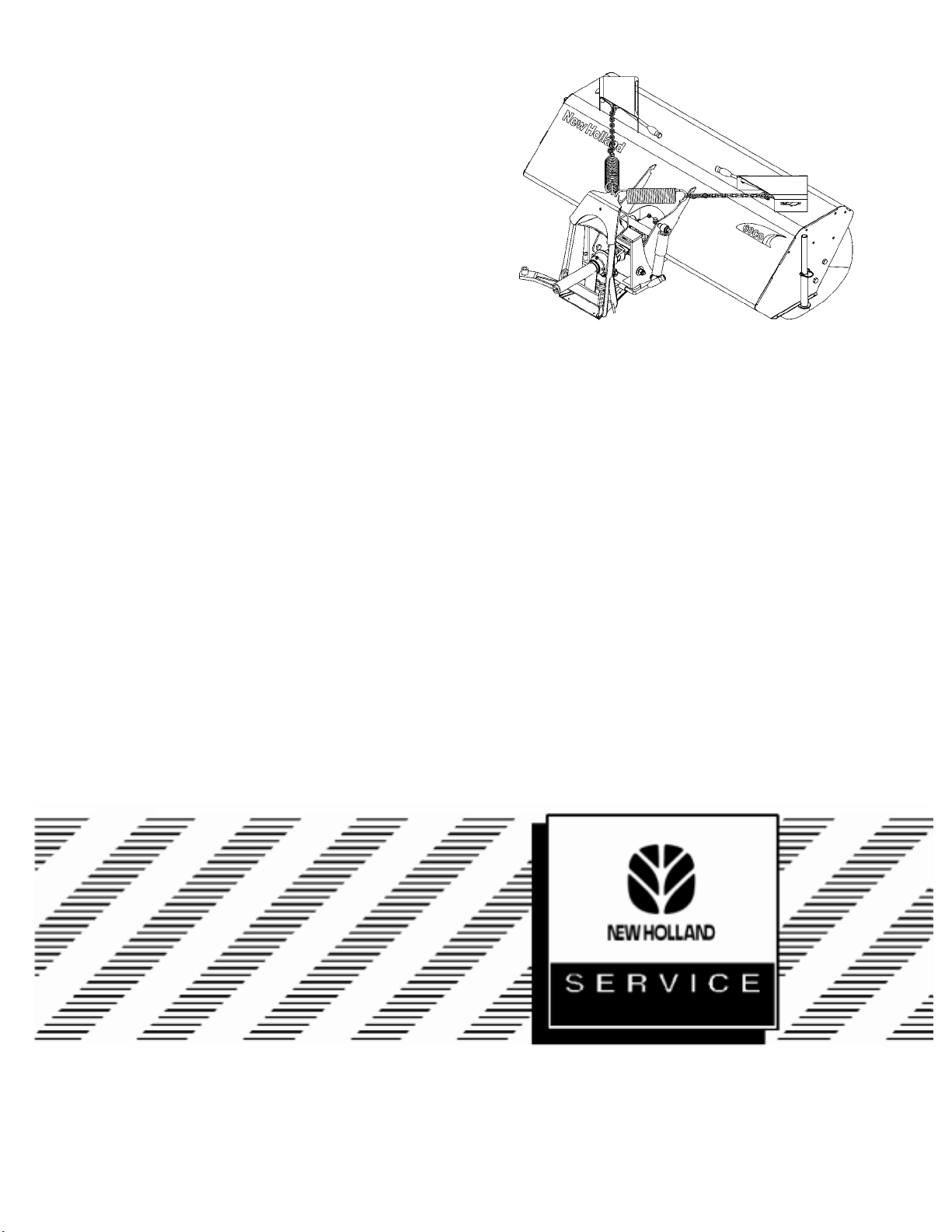

New Holland 717173046 User manual

NEW HOLLAND
OPERATOR'S
MANUAL
60CO 60" Rotary Broom #717173046
For TC Tractors (TC18, TC18D, TC21, TC21D, TC21DA, TC24D,
TC24DA, TC29D, TC29DA, TC33D, TC33DA, TC30, TC35D,
TC35DA, TC40D, TC40DA, TC45DA )
87580886 08/06
(OM 0362BR-A)

TABLE OF CONTENT
OM 0362BR-A 1
INTRODUCTION – TO THE PURCHASER ..........................................................................................3
SAFETY PRECAUTIONS.....................................................................................................................4
Before Operation..........................................................................................................................4
Notice...........................................................................................................................................5
Subframe & Rotary Broom...........................................................................................................5
Before Operation ...........................................................................................................5
Rotary Broom & Subframe Operation ............................................................................6
The Tractor..................................................................................................................................7
General Informaton........................................................................................................7
Operating the tractor......................................................................................................7
During Operation ...........................................................................................................8
Roll-Over Protective Structure "ROPS"..........................................................................8
Additional Safety Equipment..........................................................................................8
Maintenance ................................................................................................................................9
Transporting...............................................................................................................................10
DECALS.............................................................................................................................................11
ASSEMBLY ........................................................................................................................................12
Rotary Broom Assembly............................................................................................................12
Preparation..................................................................................................................12
Driveline Installation.....................................................................................................12
Installation of Female Hitch and Pivot Assembly..........................................................13
Installation of Shock Absorber .....................................................................................13
Installation of Tension Springs.....................................................................................14
Setting up the Male Quick Hitch for TC18, TC18D, TC21, TC21D, TC21DA, TC24D,
TC24DA Tractors.........................................................................................................15
Setting up the Male Quick Hitch for TC29D, TC29DA, TC33D, TC33DA,
TC30A Tractors ...........................................................................................................16
Setting up the Male Quick Hitch for TC35D, TC35DA, TC40D, TC40DA,
TC45DA Tractors.........................................................................................................16
Installation of Rotary Broom.........................................................................................17
Removing the Broom from the Tractor.........................................................................18

TABLE OF CONTENT
OM 0362BR-A 2
OPERATION.......................................................................................................................................19
General Preparation...................................................................................................................19
PTO Operation ............................................................................................................19
Raising and Lowering the Broom.................................................................................19
Manual Angling Adjustment .........................................................................................19
Hydraulic Angling Adjustment......................................................................................19
Transport Mode ...........................................................................................................20
Ground Pressure Adjustment.......................................................................................20
General Sweeping.......................................................................................................21
Lawn Dethatching & Leaf Raking.................................................................................22
Snow Removal ............................................................................................................22
Troubleshooting.........................................................................................................................23
MAINTENANCE..................................................................................................................................23
Maintenance ..............................................................................................................................23
Hardware.....................................................................................................................23
Brush Replacement.....................................................................................................24
Drive Chain Adjustment...............................................................................................26
Gearbox Oil Level and Oil Change...............................................................................26
Lubrication.................................................................................................................................27
Storage......................................................................................................................................28
PARTS................................................................................................................................................29
Introduction................................................................................................................................29
Rotary Broom Assembly............................................................................................................30
Rotary Broom - Exploded view...................................................................................................32
Brush.........................................................................................................................................34
Female Hitch and Pivot Assembly..............................................................................................35
Female Driveline........................................................................................................................36
Gearbox.....................................................................................................................................37
TORQUE SPECIFICATION TABLE....................................................................................................38

INTRODUCTION
OM 0362BR-A 3
TO THE PURCHASER
All products are designed to give safe,
dependable service if they are operated and
maintained according to instructions. Read
and understand this manual before
operation.
This manual has been prepared to assist the
owner and operators in the safe operation and
suitable maintenance of the rotary broom. The
information is applicable to products at the time
of manufacture and does not include
modifications made afterwards.
Read and understand this operator's manual
before attempting to put equipment into
service. Familiarize yourself with the operating
instructions and all the safety
recommendations contained in this manual
and those labeled on the equipment and on
the tractor. Follow the safety
recommendations and make sure that those
with whom you work follow them.
Illustrations
The illustrations may not necessarily
reproduce the full detail and the exact shape of
the parts or depict the actual models, but are
intended for reference only.
Direction Reference
All references to right and left, forward or
rearward, are from the operator's seat, facing
the steering wheel.
Serial Plate
To assist your dealer in handling your needs, please record hereafter the model number and serial
number of your rotary broom and tractor. It is also advisable to supply them to your insurance
company. It will be helpful in the event that rotary broom or tractor is lost or stolen.
TRACTOR ROTARY BROOM
MODEL:
SERIAL NUMBER:
DATE OF PURCHASE:
DEALER NAME:

SAFETY PRECAUTIONS
OM 0362BR-A 4
SAFETY FIRST
This symbol, the industry's "Safety Alert Symbol", is used throughout this manual and on
labels on the machine itself to warn of the possibility of personal injury. Read these
instructions carefully. It is essential that you read the instructions and safety regulations
before you attempt to assemble or use this rotary broom.
DANGER : Indicates an immediate hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING : Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION : Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
IMPORTANT : Indicates that rotary broom or property damage could result if instructions
are not followed.
NOTE : Gives helpful information.
All products are designed to give safe, dependable service if they are operated and maintained
according to instructions. Read and understand this manual before operation. It is the owner's
responsibility to be certain anyone operating this product reads this manual, and all other applicable
manuals, to become familiar with this rotary broom and all safety precautions. Failure to do so could
result in serious personal injury or rotary broom damage. If you have any questions, consult your
dealer.
BEFORE OPERATION
Children
Tragic accidents can occur if the operator is not
alert to the presence of children. Children are
generally attracted to machines and the work
being done. Never assume children will remain
where you last saw them.
1. Keep children out of the operating area and
under the watchful eye of another
responsible adult.
2. Be alert and turn machine off if children enter
the work area.
3. Before and when backing, look behind for
small children.
4. Never carry children while operating the
machine. They may fall off and be seriously
injured or interfere with the safe operation of
the machine.
5. Never allow children to play on the machine
or rotary broom even when they are turned
off.
6. Never allow children to operate the machine
even under adult supervision.
7. Use extra care when approaching blind
corners, shrubs, trees, or other obstructions
that might hide children from sight.

SAFETY PRECAUTIONS - continued
OM 0362BR-A 5
NOTICE
A safe operator is the best assurance against accidents. All operators, no matter how experienced
they may be, should read this operator's manual and all other related manuals before attempting to
operate the rotary broom. Please read the following section and pay particular attention to all safety
recommendations contained in this manual and those labeled on the rotary broom and on the tractor.
SUBFRAME & ROTARY BROOM
Before Operation
1. Read and understand this operator's
manual and tractor operator's manual.
Know how to operate all controls and how
to stop the unit and disengage the controls
quickly.
2. Never wear loose, torn, or bulky clothing
around the tractor, the subframe and the
rotary broom. It may catch on moving parts
or controls, causing injury.
3. Before and during seasons, thoroughly
inspect the area where the rotary broom is
to be used and remove all objects that may
be thrown or cause damage to the rotary
broom.
4. Set transmission to neutral and disengage
clutch, if equipped, before starting the
engine.
5. Do not operate rotary broom in wintertime
without wearing adequate winter garments.
Always wear protective clothing.
6. Never attempt to make any adjustments
while engine is running. Read this manual
carefully to acquaint yourself with the
rotary broom as well as the tractor
operator's manual. Working with unfamiliar
rotary broom can lead to accidents. Be
thoroughly familiar with the controls and
proper use of the rotary broom.
7. Keep all safety guards in place and verify
hardware for proper tightening.
8. Check for moving parts excessive wear
regularly. Replace worn parts with genuine
parts.
9. Replace all missing, illegible, or damaged
safety and warning decals. See list of
decals in operator's manual.
10. Do not modify or alter this rotary broom or
any of its components, or any rotary broom
function without first consulting your dealer.
11. Keep safety decals clean of dirt and grime.
12. Make sure the tractor is counterweighted
as recommended by your dealer. Weights
provide the necessary balance to improve
stability, traction and steering.

SAFETY PRECAUTIONS - continued
OM 0362BR-A 6
Rotary Broom & Subframe Operation
1. Before leaving the tractor unattended, take
all possible precautions. Park the
tractor/rotary broom on level ground, place
the transmission in neutral, set the parking
brake, disengage the PTO, lower the rotary
broom to the ground, place all levers
including auxiliary control levers in neutral,
shut off the engine and remove the ignition
key.
2. Before starting the tractor/ rotary broom,
inspect and clean every rotating part.
3. Prior to operation, clear work area of all
objects that can be picked up and thrown.
Mark all curbs, pipes, etc. that cannot be
moved.
4. Be sure the PTO switch/lever is in OFF
position before starting engine.
5. Exercise extreme caution when operating on
or crossing a gravel drive, walks, or roads.
Stay alert for hidden hazards or traffic.
6. Do not carry passengers.
7. Keep clear of all rotating parts. Do not put
hands or feet under, or into rotary broom and
subframe with engine running. Be especially
observant of the rotary broom areas of
discharge, intake or all other mechanical
motions.
8. Park the tractor/rotary broom on level
ground, place the transmission in neutral, set
the parking brake, disengage the PTO, lower
the rotary broom to the ground, place all
control levers in neutral, shut off the engine,
remove the ignition key and allow the
rotating parts to stop BEFORE making any
repairs, adjustments or inspections.
9. If the rotary broom starts to vibrate
abnormally, disengage the PTO, stop the
engine immediately and check for cause.
Excessive vibration is generally a sign of
trouble.
10. Do not run the engine indoors except when
starting engine and transporting attachment
in or out of building. Carbon monoxide gas is
colorless, odorless and deadly.
11. Do not attempt to operate on steep slopes. If
operating on slopes is necessary, exercise
extreme caution when changing direction.
12. Never operate rotary broom without guards,
and other safety protective devices in place.
All tractor and rotary broom shields and
covers must be correctly installed at all
times. When necessary to remove these,
they must be reinstalled immediately.
13. Never operate rotary broom near glass
enclosures, automobiles, window wells,
embankments, etc., without proper
adjustment of discharge angle.
14. Never operate rotary broom at high transport
speeds on a slippery surface.
15. Use extra caution when backing up.
16. Disengage power to rotary broom when
transporting or when not in use.
17. Never operate the rotary broom without good
visibility and lighting.
18. Prolonged exposure to loud noise can cause
impairment or loss of hearing. Wear a
suitable hearing protective device such as
earmuffs or earplugs to protect against
objectionable or uncomfortable noises.
19. Never allow anyone near the work area.
20. Securely connect rotary broom drive shaft.
Check that all tractor and rotary broom
drivelines are in good working order. Rotary
broom drive shaft coupler must securely lock
to and be retained by annular groove on
tractor drive shaft.
21. Never allow anyone to operate the rotary
broom until they have read the manual
completely and are thoroughly familiar with
basic tractor and rotary broom operation.
22. Make sure the tractor is counterweighted as
recommended by your dealer. Weights
provide the necessary balance to improve
stability, traction and steering.
23. Always make sure all rotary broom
components are properly installed and
securely fastened BEFORE operation.
24. Make sure nobody is in the working area of
the rotary broom. The debris that can be
thrown could cause serious personal injuries.
25. Adjust spring tension so that the rotary
broom head weighs approximately 50 lbs
when the front is lifted.

SAFETY PRECAUTIONS - continued
OM 0362BR-A 7
THE TRACTOR
General Information
1. Read the operator's manual carefully
before using tractor. Lack of operating
knowledge can lead to accidents.
2. Do not permit anyone but the operator to
ride on the tractor. There is no safe place
for passengers.
Operating the Tractor
1. Never run the tractor engine in a closed
building without adequate ventilation, as
the exhaust fumes are very dangerous.
2. Adopt safe driving: If the tractor is
equipped with independent Right/Left
brake pedals, keep the brake pedals
latched together at all times unless
independent braking is required. Never use
independent braking during transport.
3. Always drive at a safe speed relative to
local conditions and ensure that your
speed is low enough for an emergency
stop to be safe and secure.
4. Reduce speed prior to turns to avoid the
risk of overturning. Keep speed to a
minimum.
5. Always keep the tractor in gear to provide
engine braking when going downhill. Do
not coast.
6. Never allow an open flame near the fuel
tank or battery.
7. Make sure the PTO shield is installed when
using the rotary broom and always replace
the PTO shield if damaged.
8. Park the tractor/rotary broom on level
ground, place the transmission in neutral,
set the parking brake, disengage the PTO,
lower the rotary broom to the ground, place
all levers including auxiliary control levers
in neutral, shut off the engine and remove
the ignition key BEFORE leaving the
tractor.
9. Never park the tractor on a steep slope.
10. Do not attempt to operate on steep slopes.
Avoid sudden uphill turns on steep slopes.
11. Handle fuel with care, as it is highly
flammable.
12. Use approved fuel container.
13. Never add fuel to a running engine or a hot
engine.
14. Fill fuel tank outdoors with extreme care.
Never fill fuel tank indoors. Replace fuel
cap securely and wipe up spilled fuel.
15. Never attempt to start the engine and/or
engage rotary broom drive while standing
beside the tractor.
16. Always start the engine from the operator's
seat with all the transmission lever(s) and
rotary broom drive lever in neutral.
17. DO NOT bypass the safety system by
shorting across the terminals of the starter
motor to start the engine. This may cause
the tractor to move suddenly.
18. If the safety start system does not work,
consult your dealer immediately.

Thank you so much for reading.
Please click the “Buy Now!”
button below to download the
complete manual.
After you pay.
You can download the most
perfect and complete manual in
the world immediately.
Our support email:
[e-mail]
