New Holland NEW HOLLAND T8.36O User manual

NEW HOLLAND T8
T8.3OO
I
T8.33O
I
T8.36O
I
T8.39O

2 3
THE FIRST AGRICULTURAL CROSSOVER
MORE POWER AND PRODUCTIVITY
T8 tractors are the most powerful rigid tractor series available with a full powershift transmission. The
entire range boasts New Holland’s cutting-edge ECOBlue™ SCR technology for Tier 4A compliance.
This means that the Cursor 9 engine enjoys exceptional breathability for a significant performance
advantage. All models benefit from Engine Power Management which offers more power for
demanding PTO, hydraulic and transport applications, with up to 49hp(CV) extra on the T8.390.
ABSOLUTE DRIVING PLEASURE
New Holland’s SideWinder™ II armrest makes the T8 range intuitive to operate for reduced fatigue.
All key functions are immediately recognizable and are perfectly placed for fingertip control.
The 68dB(A) whisper-quiet cab is the most spacious in its segment and offers uninterrupted 360°
visibility. Comfort Ride™ cab suspension ensures the smoothest ride even on the roughest terrain.
STYLISH AND STABLE, POWERFUL AND ABLE. TYPICALLY NEW HOLLAND
New Holland DNA runs through every aspect of the T8 tractor series.
A long wheelbase for stability. A quiet, spacious cab. World class ergonomics. Modern FPT Industrial
power for optimum performance and economy. Heavy duty axles for dual wheels front and rear.
High capacity hydraulics. Brilliant all-round visibility. Great manoeuvrability. Stylish looks.
EXACTLY WHAT IT SAYS ON THE ENGINE HOOD
T8 tractors offer improved performance thanks to the Tier 4A ECOBlue™
SCR advantage, and these productivity enhancing characteristics are
immediately obvious to all users. How? Quite simply, it is on the hood.
The first two digits ‘T8’ refer to the tractor’s category and the following
three, for example ‘390’, refer to the maximum engine power the T8
can deliver when its Engine Power Management is active.

MAXIMUM VERSATILITY
T8 tractors were not designed solely for primary arable work. The long wheel base and exceptional
maneuverability ensure the T8 can not just excel at heavy draft applications, they are also perfect for
secondary cultivation, drilling and haulage tasks. The integrated front linkage and PTO means that
a full range of front mounted implements can be fitted and powered.
LOWER OPERATING COST
Operating costs for the new, Tier 4A compliant T8 tractors have been reduced by 17%, thanks
to cutting-edge ECOBlue™ SCR technology, when compared to existing Tier 3 models. This is due to
improved fuel efficiency and long service intervals. Even when the cost of AdBlue®is taken into account.
Max power with EPM [hp(CV)]
T8.300 298
T8.330 327
T8.360 357
T8.390 389
EPM [hp(CV)]
T8.300 41
T8.330 43
T8.360 46
T8.390 49
Rated power [hp(CV)]
T8.300 257
T8.330 284
T8.360 311
T8.390 340
Horsepower
Engine speed
EPM according to the load on transmission, PTO and hydraulics.

AT 68dB(A) THE QUIETEST AND
MOST SPACIOUS CAB IN ITS CLASS
OPERATOR ENVIRONMENT4 5
REDUCING SHOCK
LOADS AND FATIGUE
Day in, day out, the standard
Comfort Ride™ cab suspension
reduces shock loads reaching the
operator by up to 25%. The result?
Less fatigue over long working days.

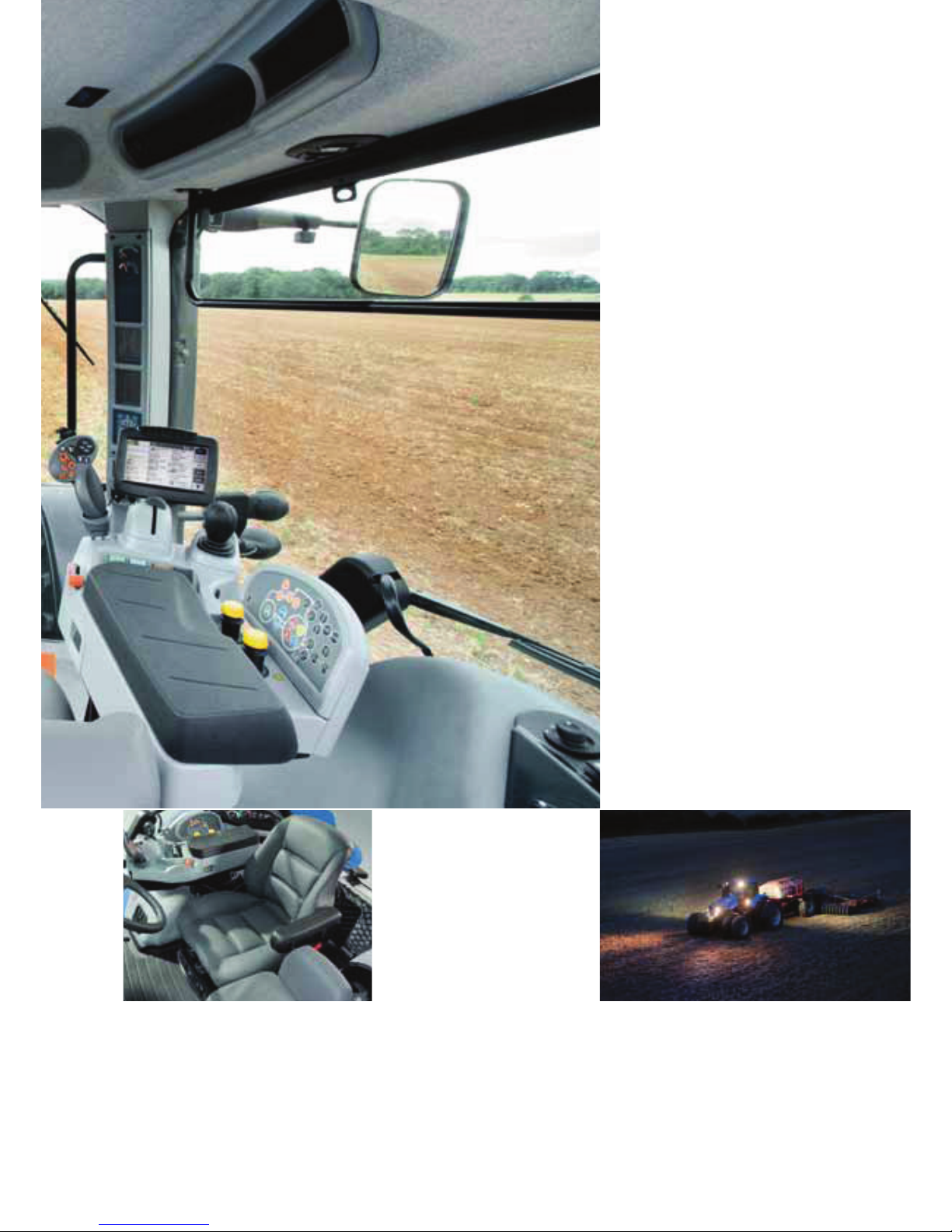

DESIGNED FOR COMFORT AND PRODUCTIVITY
Settle into the luxury seat of a T8 tractor. Fire up the engine.
Get into the field. Take in the excellent view. Let your hand
effortlessly explore the SideWinder™ II controls. Savour
the smooth, quiet power. Enjoy how the seat, cab and axle
suspension cushion the ride. See how easy it is to use
IntelliView™ III touchscreen. It doesn't take long to get used
to excellence.
AT 68dB(A), T8 CABS ARE
THE QUIETEST IN THE BUSINESS

AUTO COMFORT™ SEAT
Operator comfort is a key New Holland priority.
The advanced Auto Comfort™ seat
automatically adjusts to the weight of the
operator. Offering precision controlled
damping, the seat automatically reacts to
shock loads before they reach the operator.
THE FINER POINTS
From the low level door release
to the in cab storage and power
locations, the T8 cab ticks all the
boxes. Right hand wash wipe,
electrically adjustable heated
mirrors and implement box
mounting bars are all standard.
CUSTOMISE YOUR
WORKING ENVIRONMENT
Set your preferred in-cab working
temperature and the optional
automatic climate control system
will maintain this setting, adjusting
to suit ambient conditions. Pull
down the cab blinds to stay cool.
FROM DUSK TO DAWN
Cab roof, engine hood and fender
worklights are easily controlled from a
dedicated switch panel. A 360 degree
lighting package supplies 4 HID lights
and 10 halogen lights. Delayed lighting
ensures that you can leave the tractor
in safety before the lights are turned off.
NEW HOLLAND VISIBILITY
New Holland T8 tractors have
a five-pillar cab design with fully
glazed doors. This is perfectly
matched with a slim engine hood,
curvaceous fenders and a compact
overall design. This all combines
to ensure the operator has brilliant
360° visibility.

SIDEWINDER™ II ARMREST & COMMANDGRIP™ HANDLE6 7
As modern tractors offer increasingly sophisticated features there is a risk that they
become more difficult to understand and operate. At New Holland we listened to
customers and developed the SideWinder™ II armrest to make everything simpler.
All key controls are accessed from the armrest. Throttle, transmission and hydraulics.
Everything you need to control is quickly and easily accessible. More advanced
features can be quickly accessed. It does not take long to master a T8 tractor.
INTELLIVIEW III TOUCHSCREEN.
All the information you need at a
glance. Fingertip adjustment of all
key settings and compatible with
the New Holland IntelliSteer™
guidance system.
• Headland turn sequencing, HTS.
Press to record, store and activate
automated headland turn.
• Finger tip control for
up to two remote valves.
• Rear linkage raise lower.
• Optional IntelliSteer™
autoguidance, automated
steering engagement.
• Forward reverse
shuttle switch.
• Change transmission ratio
up and down.
• Ground Speed Management, GSM.
Transmission and engine work together
to optimise performance.
SIDEWINDER II.
DESIGNED BY FARMERS, FOR FARMERS

• Multifunction joystick. The joystick can be used
to control remote valves or the front linkage.
• Electronic SideWinder™ II adjustment.
Move the armrest to the position that suits you.
• Full access to further advanced controls
under the padded armrest.
• Electronic remotes. Easy to reach paddles
provide fingertip hydraulic operation.
Flow and timing can be simply adjusted
through the IntelliView™ III touch screen.
• EDC mouse.
Precise control of the independent Position
and Draft systems.
EASY ACCESS TO ADVANCED FEATURES
Push the symbol. Activate the feature. The Integrated Control
Panel, ICP, makes it simple to access advanced operating
features. No need to scroll through menus to set up Terralock
traction management, HTS headland turn sequencing, Auto PTO
or ESM Engine Speed Managment.
• Press the Headland Turn Sequencing
button to record and replay the
functions you use most frequently.
• Engage Terralock and it will
automatically manage four-wheel
drive and differential lock selection.
• Auto PTO will disengage and reengage
the PTO during a headland turn.
• Three point hitch levelling and top link
extension at the touch of a button.
As awarded by The Chicago Athenaeum:
Museum of Architecture and Design.
• Select paddle or joystick control for remote valves.
• Throttle up to your desired engine speed, select Engine
Speed Management, and the speed is fixed.

PLM8 9

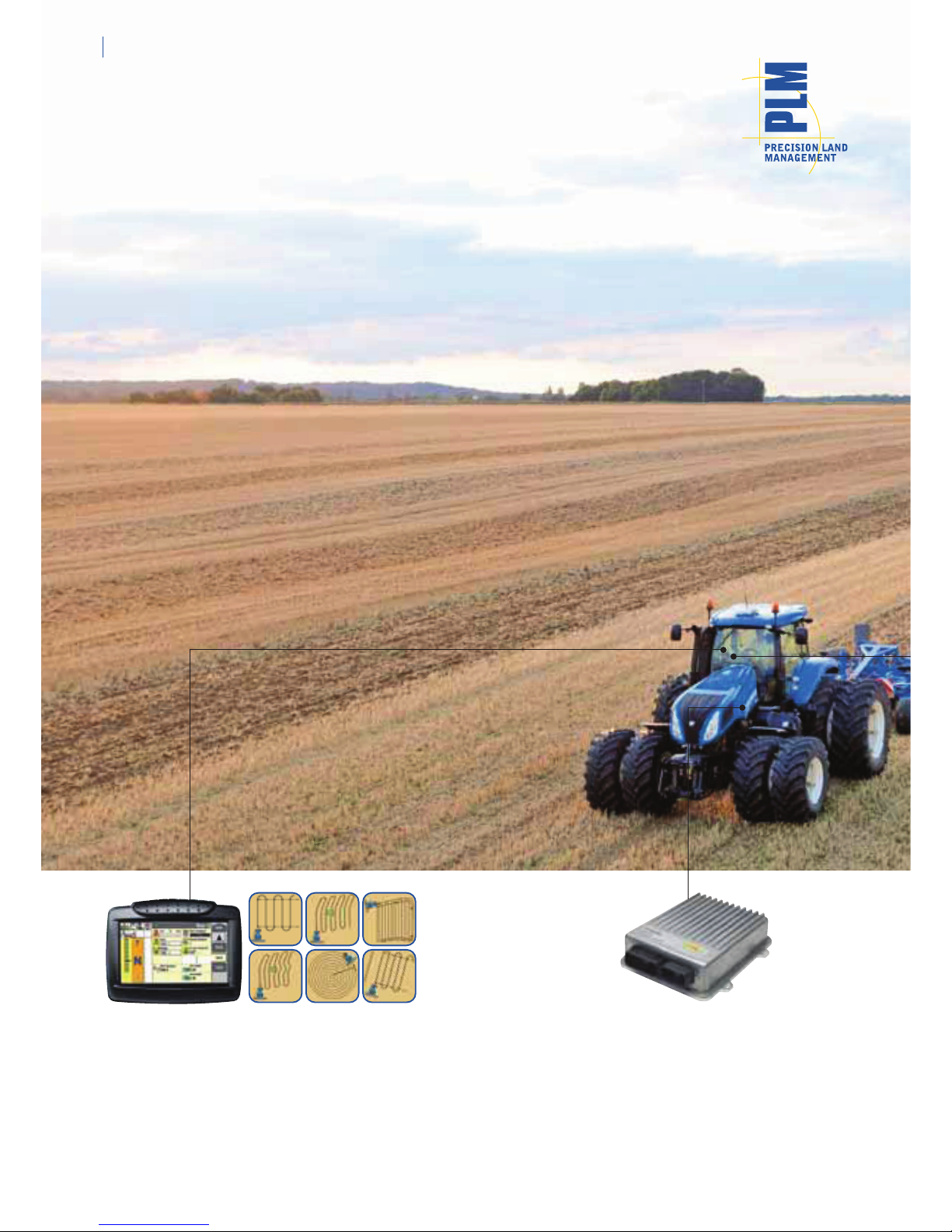

NEW HOLLAND GUIDANCE SYSTEMS
TO MATCH YOUR FARMING NEEDS
FULLY INTEGRATED INTELLISTEER™ GUIDANCE
Guidance system choice will relate to the intended applications and the need to
integrate with existing systems. With T8 series tractors, all IntelliSteer options operate
via factory installed systems that facilitate installation and upgrades. This enables the
selected package to be modified and upgraded simply and more economically.
ALL WIRED UP READY FOR YOUR CHOSEN GUIDANCE SYSTEM
Series T8 tractors can be specified with a fully integrated New Holland designed and developed
IntelliSteer™ Automatic Steering System. Matching DGPS or RTK Technology to fully integrated
control, IntelliSteer helps ensure parallel pass to pass accuracy of up to 1-2cm*. IntelliSteer
is ideal for precision work in even the most demanding situations. It is designed to dramatically
improve operator performance and comfort. All this and more at the touch of a button.
* Using RTK correction signal.
INTELLIVIEW - VISIBLE INTELLIGENCE
The standard IntelliView™ III monitor can be used to set up the
optional New Holland auto guidance systems, and includes a visual
interface that can be employed when operating the IntelliSteer™
system. The IntelliView™ III monitor has a touchscreen display
which allows the programming of a variety of guidance paths,
from straight A-B runs to the most complex adaptive curves. You
can also personalize your settings simply and easily and even transfer
information from your tractor, direct to your Precision Farming software.
INTEGRATED CONTROL SYSTEMS
The New Holland IntelliSteer™ System uses
built in T3 terrain compensated correction
signals (roll, pitch, yaw) to keep the Navigation
Controller II informed of the tractor's orientation.
Also integrated into the hydraulic system is a
control valve which converts the signals from
the Navigation Controller II into hydraulic
movements of the steering system.

LEVELS OF ACCURACY AND REPEATABILITY
New Holland offer four levels of accuracy. This enables you to select the right
IntelliSteer™ system to match your needs and budget. When using RTK correction
with IntelliSteer™ you can enjoy guaranteed year on year repeatability.
GOOD GUIDANCE SAVES MONEY
IntelliSteer helps improve overall
operating efficiency. In poor light
or during long working days,
precision driving is not compromised.
Improved efficiency saves money.
It is as simple as that.
INTELLISTEER.
ON AND OFF SIMPLICITY
The CommandGrip™ handle
incorporates a single button that
is used to activate the IntelliSteer
system. New Holland makes
advanced technology accessible.
2,000
1,000
0
3,000
4,000
EGNOS
Total cost savings with
auto guidance (£)
£1503
£2247
£2803
HP/XP RTK
IMPROVED PROFIT
NH 262 RECEIVER
The NH 262 receiver is capable
of working with EGNOS, OmniSTAR
or RTK correction. For RTK
applications a slim profile radio
mounts underneath the receiver.
RTK BASE STATION
An RTK base station can be used
to broadcasts a correction signal
to achieve a pass to pass
accuracy of –2.5cm.
15 20 25 30
30 cm
EGNOS
OmniSTAR VBS
10 cm
8 9 10 11
12 cm
9 10 11 12 13 14
OmniSTAR XP OmniSTAR HP
2.5 cm
0 1 2
RTK VRS/GPS
2.5 cm
0 1 2
RTK
GPS+GLONASS
30 cm 12 cm 10 cm 2,5 cm 2,5 cm

SCR Catalyst
Nitrogen and Water
Exhaust gas containing NOx
Dosing module
AdBlue/DEF tank
AdBlue/DEF additive
Supply module
ULTIMATE ENGINE BREATHABILITY
ENGINE10 11
CLEAN RUNNING THAT SAVES MONEY
T8 tractors fitted with Tier 4A compliant engines
offer a 17% reduced overall operating cost thanks
to improved fuel efficiency, 100% longer service
intervals, now up to 600 hours, and reduced servicing
costs. All this contributes to longer engine life. Where
does AdBlue®fit into the equation? Well, it’s already
been accounted for. AdBlue®should not be looked
at as an extra cost, it's your route to a lower fuel bill.
Whatever you spend on AdBlue®is paid for several
times over by the reduction in fuel consumption and
the increase in output! Improved environmental profile
and reduced operating costs: it's a win-win situation.
450
375
300
225
150
75
0
T8000
Tier 3
T8.300 T8.330 T8.360 T8.390
EPM
Rated power
T8
Tier 4A
17% COST SAVING
ECOBLUE™ SCR: YOUR POWER GUARANTEE
ECOBlue™ SCR guarantees exceptional
performance and high productivity, independent
of fuel quality, sulphur levels and without the need
for costly diesel additives.
The T8.300 is rated at 257hp(CV) but will deliver
up to 298hp(CV). The 311hp(CV) T8.360 and
340hp(CV) T8.390 develops up to 357 and
389hp(CV) respectively. More power from less
fuel with clean emissions.
T8 tractors are powered by the
same family of advanced Tier 4A
compliant Cursor engine used in
New Holland CX combines. We are
committed to making agriculture
more efficient whilst respecting the
environment. The proven ECOBlue™
SCR technology uses AdBlue®to
transform the harmful nitrogen
oxides contained in the exhaust gas
into harmless water and nitrogen.
This after-treament system is
separate from the main engine which
means only clean, fresh air is fed
into the engine. What does this
mean? Clean running power units
that offer improved performance
and enhanced fuel efficiency.
Operating cost saving (%)
Power output (hp)

ENGINE SPEED MANAGEMENT
In applications where a constant PTO speed is required, the operator
can select Engine Speed Management. This will ensure this selected
speed is accurately maintained under changing loads. This means that
a fixed forward speed will be maintained even on challenging terrain.
ENGINE POWER MANAGEMENT
Engine Power Management is a renowned
New Holland tractor feature. In short, the
engine develops more power and torque
according to the load on the transmission,
hydraulics and PTO. On a T8.390 tractor,
EPM will deliver up to 49hp(CV) extra
but only when it is needed to
maintain performance.
Horsepower
Engine speed
49hp(CV)
EPM according to the load on transmission, PTO and hydraulics.
POWERED BY FPT INDUSTRIAL
New Holland are not going it alone when it comes
to Tier 4A technology, they can draw on the experience
of their engine development partner: FPT Industrial.
Pioneers: Fiat invented Common Rail technology
in the 1980s and brought it to the masses in 1997
on the Alfa Romeo 156. They were the very first to introduce
it on agricultural machines. Pioneering. Always.
Cleaner: Fiat S.p.A. have the lowest overall CO2emissions of
any automotive manufacturer in Europe. Cleaner. Everywhere.
Proven: FPT Industrial have already produced over 150,000
SCR engines during the last five years for the haulage
industry. Reliability. Confirmed.
After all, only those who invented it can reinvent it.
PO WE RTR AI N TEC HN OLO GI ES

TRANSMISSION12 13
PROVEN DESIGN, MODERN CONTROL
ENGINE
POWER
GEARS 9 8 9 7 6 7 8 9 10
SPEED
FIXED FORWARD SPEED?
GSM TAKES CARE OF IT
When load conditions change in the
field, GSM will automatically maintain
a fixed forward speed. The operator
first sets the desired working speed
and then selects the GSM function.
The automated system will then
match engine and transmission
speeds to maintain this fixed forward
speed, to deliver the perfect balance
between maintaining productivity
without compromising economy.
FULL COMMAND IN TRANSPORT
During road transport, GSM will
automatically shift the transmission
according to load and throttle
settings. The foot pedal will act as
a drive pedal, simply press it down
to upshift to your required speed.
GSM. INTELLIGENT AUTOMATION
New Holland Ground Speed
Management, GSM, is more than
just an automated transmission shift
system. With CVT-like functionality, it
uses a combination of data relating
to engine load, forward speed and
operator setting, to manage both
engine and transmission speeds to
optimise performance and economy.
Simple to set up and extremely efficient,
GSM is well proven and dependable.
A FULL POWERSHIFT UP TO 390HP(CV)
Ultra Command™ full powershift transmissions match proven mechanical
efficiency to New Holland ease of control. The result? A transmission
that is really easy to set up and operate with a speed to perfectly match
every application. The CommandGrip™ handle provides finger tip access
to automated features, that including Ground Speed Management.
Choose between 19x4 (40kph ECO or 50kph) direct drive or a 23x6
with creeper options. Ease of use comes as standard.

POWERSHUTTLE
The forward reverse shuttle is operated via
a steering column lever or the CommandGrip™
handle fitted on the SideWinder™ II armrest.
Two methods of changing direction, you
choose the most convenient for your job.
INTELLIVIEW III -
INFORMATION AT A GLANCE
The standard IntelliView™ III display offers easy
toggling between menus to display information that
includes the engine speed, gear ratio, fuel usage
and area worked. A fully ISO compliant screen,
IntelliView III allows quick and easy connection
to implements. Camera inputs also add to
the screen’s versatility.

LONG WHEELBASE FOR BRILLIANT
TRACTION AND STABILITY
The new T8 range has an impressive wheelbase of 3450mm, over 400mm longer than the
nearest competitor, all contained within an overall length of a mere 6369mm. A longer
wheelbase means greater stability at high transport speeds, faster and more efficient
minimum tillage operations and more traction for demanding heavy drawbar applications.
You no longer have to choose. With New Holland, choice comes as standard.
AXLES & TRACTION14 15
TIME TO GET HEAVY
The heavy duty front axles enables dual
wheels to be fitted for even more traction and
less compaction in demanding situations.
Lock to lock turns are not compromised.
Why? Quite simply due to the forward
position of the front axle and the intelligent
tapered design of the T8 front end.
COMPETITION WHEELBASE

TRANSPORT SAFETY
Control, comfort and stability are assured
with the T8’s long wheel base and front
axle suspension. Specified with the
50kph models is pneumatic trailer brakes
to provide safe high speed haulage.

AXLES & TRACTION16 17
COOL MANOEUVARABILITY
The exceptional manoeuvrability of the T8 is
only possible thanks to the unique hood design.
By using the compact cooling package made
possible by the SCR technology, the T8
achieves the tightest of turning angles.
TERRAGLIDE™ FRONT AXLE SUSPENSION
New Holland Terraglide™ front axle suspension is proven to protect the
tractor, mounted implements and the operator from heavy shock loads
during transport and in the field. Now it offers the added benefit of an
improved turning angle. Combined with Comfort Ride™ cab suspension,
you can now enjoy a smoother ride with no compromise in agility.

TERRALOCK TRACTION MANAGEMENT
Terralock will automatically manage the
engagement of drive to the front axle and
the locking of the front and rear differentials.
Of equal importance, the system takes care
of drive during a headland turn to optimise
manoeuvrability.
LONG WHEELBASE FOR COMFORT
AND AGILE PRODUCTIVITY
NEW T8 WHEELBASE
COMPETITION WHEELBASE
The T8 range perfectly combines a long, 3450mm wheelbase with
excellent manoeuvrability. Two concepts which don't normally go together
in this segment. How has New Holland achieved it? Quite simply, the
sculpted bonnet and tombstone enable the wheels to nip in tight to
the tractors body, and together with the redesigned Terraglide font axle
suspension, an impressive 55° turning angle for tight headlands turns
is guaranteed. The result? New Holland's hallmark manoeuvrability
for improved productivity and efficiency.

READY FOR MODERN DEMANDS
FRONT & REAR LINKAGE18 19
HEAVY MOUNTED EQUIPMENT MEETS BIG LIFT CAPACITY
With a lift capacity of up to 10200kg, a T8 series tractor has the
rear linkage capacity to cope with the heaviest of rear attachments.
A large expanse of glass provides excellent vision down to the lift
arms. The swivelling seat and SideWinder II also ease the strain
when monitoring rear implements.

8 sec 5 sec
8 sec 5 sec
FACTORY FITTED FRONT LINKAGE AND PTO
From the outset, the T8 tractor series was designed
to work with a front linkage. The slim engine hood
provides excellent forward visibility.
The balanced long wheelbase makes it easier to
make full use of the linkage’s 5810kg lift capacity.
Integrated electronic front linkage controls are within
easy reach of the operator. A retrofit front linkage
and PTO package is also available.
HEADLAND TURN SEQUENCE
The Headland Turn Sequence has been
refined and developed by New Holland
for the ultimate in easy set-up and use.
For complex applications, including
operating a front linkage, HTS really
can reduce operator fatigue. Of equal
importance, the operator can use HTS
to manage a selection of operations
but leave others to manual control.
It is up to the operator. Set up is simply a
case of recording the desired operations
at the headland. The actions can then
be repeated, automatically, by pressing
a button on the CommandGrip™ handle.
FLEXIBLE BALLASTING
Thanks to New Holland’s optional fully
integrated front linkage, ballasting is now
even easier. You can choose between a
whole whole host of front ballasting options
to perfectly suit each individual application.
They can be be quickly and simply fitted
and removed from the comfort of the cab.

MORE THAN JUST A DRAFT TRACTOR
PTO AND HYDRAULICS20 21
New Holland T8 tractors are designed
to offer exceptional heavy draft
performance. But T8 tractors are built
to do a lot more. From the drawing
board right through to the tractors
in the field, a key aim has been
to design in maximum versatility.
The PTO and hydraulic package of T8
tractors is fully integrated with EPM not
just to deliver massive performance, but
optimum economy too. The T8 reaches
rated PTO speed at reduced engine
speed for maximum fuel efficiency.
With New Holland T8 versatility
comes as standard.
