SECTION 00 - GENERAL INFORMATION - CHAPTER 1
00-1
SECTION 00 - GENERAL INFORMATION
Chapter 1 - General Information
CONTENTS
Section Description Page
Introduction 3...................................................................
Precautionary Statements 4.......................................................
Personal Safety 4................................................................
Machine Safety and Information 4..................................................
Technical Information 5...........................................................
Hardware 5.....................................................................
General 5...................................................................
Plating 5....................................................................
Nut Tightening 5..............................................................
Locknuts 5..................................................................
Jam Nuts 5..................................................................
Thread Lubrication 5..........................................................
Working Safety 6................................................................
Starting the Tractor 7..........................................................
Using the Tractor 8...........................................................
Towing and Transport 9.......................................................
Using Implements and Agricultural Machinery 10.................................
Stopping the Tractor 10.......................................................
Servicing the Tractor 11.......................................................
Diesel Fuel 13..............................................................
Safety Decals 14................................................................
Instruction Decals 16.........................................................
General Information 20..........................................................
Universal Symbols 21...........................................................
Specifications 22................................................................
Engine 22..................................................................
Capacities 22...............................................................
Cooling System 23...........................................................
Electrical System 23.........................................................
Fuel System 23.............................................................
Find manuals at https://best-manuals.com

SECTION 00 - GENERAL INFORMATION - CHAPTER 1
00-2
Section Description Page
Brakes 24..................................................................
Steering 24.................................................................
Power Take-off 24...........................................................
Hydraulic Lift System 24......................................................
Transmission 25.............................................................
Transmission Speeds - km/h (mph) 25..........................................
Cast Iron Weights 26.........................................................
Drawbars 26................................................................
3 Point Hitch 26.............................................................
Tires 27....................................................................
Wheel Bolt Torques 27.......................................................
General Dimensions 28..........................................................
Minimum Hardware Tightening Torques 32.........................................
Special Tools 34................................................................
Tire Ballast and Pressures 36.....................................................
Liquid Ballast (Optional) 36...................................................
Tire Pressure 36.............................................................
Rear Tire Liquid 36..........................................................
Find manuals at https://best-manuals.com

SECTION 00 - GENERAL INFORMATION - CHAPTER 1
00-3
INTRODUCTION
This service manual provides the technical informa-
tion needed to properly service the New Holland
Boomer 8N CVT transmission. Use this manual in
conjunction with the operator’s manual for complete
operation, adjustment, and maintenance informa-
tion.
On New Holland equipment, left and right are
determined by standing behind the unit, looking in
the direction of travel.
Find manuals at https://best-manuals.com

SECTION 00 - GENERAL INFORMATION - CHAPTER 1
00-4
PRECAUTIONARY
STATEMENTS
PERSONAL SAFETY
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
Throughout this manual and on machine decals, you will find signal words DANGER,WARNING, and CAUTION
followed by specific instructions. These precautions are intended for the personal safety of you and those working
with you. Please take the time to read them.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. The
color associated with Danger is RED.
M1169A
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
The color associated with Warning is ORANGE.
M1170A
CAUTION
CAUTION, used with the safety alert symbol, indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury. The color associated with Caution is YELLOW.
M1171A
FAILURE TO FOLLOW DANGER, WARNING, AND CAUTION INSTRUCTIONS COULD RESULT IN DEATH
OR SERIOUS INJURY.
MACHINE SAFETY AND INFORMATION
NOTICE is used to address practices not related to personal injury.
NOTICE: The signal word NOTICE is used throughout this manual followed by specific instructions. These
messages are intended for machine safety, or to identify and present supplementary information.
ANSI 2535.6--2006
ASAE S441.3 FEB04
ISO 11684: 1995
VERSION -- MAY 2009
Find manuals at https://best-manuals.com

SECTION 00 - GENERAL INFORMATION - CHAPTER 1
00-5
TECHNICAL INFORMATION
HARDWARE
GENERAL
The Boomer 8N tractor has been built using metric
hardware.
NOTICE: Be sure to use the hardware specified
when using tapped holes, as trying to install a metric
bolt in an inch thread, or an inch bolt in a metric
thread, will damage the thread.
Certain hardware must be tightened to specific
torque specifications. If specific torque specifications
are not noted, tighten the hardware to the standard
torque chart specification listed in this manual.
PLATING
Hardware used on New Holland tractors is plated
with zinc chromate (gold color). Gold colored
hardware has different torquing requirements from
unplated or zinc plated (silver color) hardware
because of the difference in the coefficient of friction
of the plating material. The torque charts in this
manual list the correct specifications for gold, silver,
and unplated bolts.
NUT TIGHTENING
Whenever possible, the nut should be tightened, not
the head of the bolt. When tightening using the bolt
head, the clamp load can be lost because some of
the torque applied twists the bolt instead of
tensioning (stretching) it. The tension on the bolt is
what holds the joint together.
Approximately 90% of the torque applied during
assembly goes to overcoming friction between the
parts. The other 10% is used to tension (stretch) the
bolt. After assembly, the frictional forces disappear,
which is the basis for the saying “If it does not fail
during assembly, it will not fail in service.” The bolt
may later fail due to other factors, but not from being
over tightened.
LOCKNUTS
Most locknuts are coated with a special lubricant that
is dry to the touch. Anytime a locknut is used, a lower
than normal torque is required. Refer to the torque
charts in this manual for specific values.
JAM NUTS
When using a jam nut to lock a regular nut, the jam
nut should be installed first and tightened to one half
the recommended torque, then held in place while
installing a regular nut to the recommended torque.
THREAD LUBRICATION
The addition of anti-seize compound, Molykote, oil,
graphite, or any other lubricant to a bolt decreases
the friction between it and a nut. This makes it
necessary to reduce the recommended torque to
prevent over tensioning of the bolt. When using the
torque charts in this manual, decrease the value by
20% whenever a lubricant is used.
Find manuals at https://best-manuals.com

SECTION 00 - GENERAL INFORMATION - CHAPTER 1
00-6
WORKING SAFELY
1. During the manufacturing of this tractor, every
step has been taken to ensure safe operation.
However, the best way to avoid accidents is to
exercise caution at all times. Once the accident
has already happened it is too late to remember
what steps should have been taken.
2. Read this manual carefully before starting, using,
carrying out maintenance, refueling or perform-
ing any other type of operation on the tractor.
3. The time spent reading this manual will allow you
to get to know your tractor, thereby saving time
and effort. This will also help prevent accidents
from taking place.
4. Read all the safety decals on the machine and
follow the instructions thereon before starting,
operating, refueling or carrying out maintenance
on the machine. Promptly replace any decals
that are damaged, lost or illegible.
Clean the decals if they are covered by mud or
debris.
5. Remember that the tractor is exclusively designed
for agricultural use. Any other use will require prior
authorization from CNH America LLC.
6. It is advisable to keep a first aid kit on hand.
7. The tractor must only be used by responsible
personnel, trained in tractor use and authorized
to operate the machine.
8. Do not alter the injection system calibration in an
attempt to increase maximum engine speed.

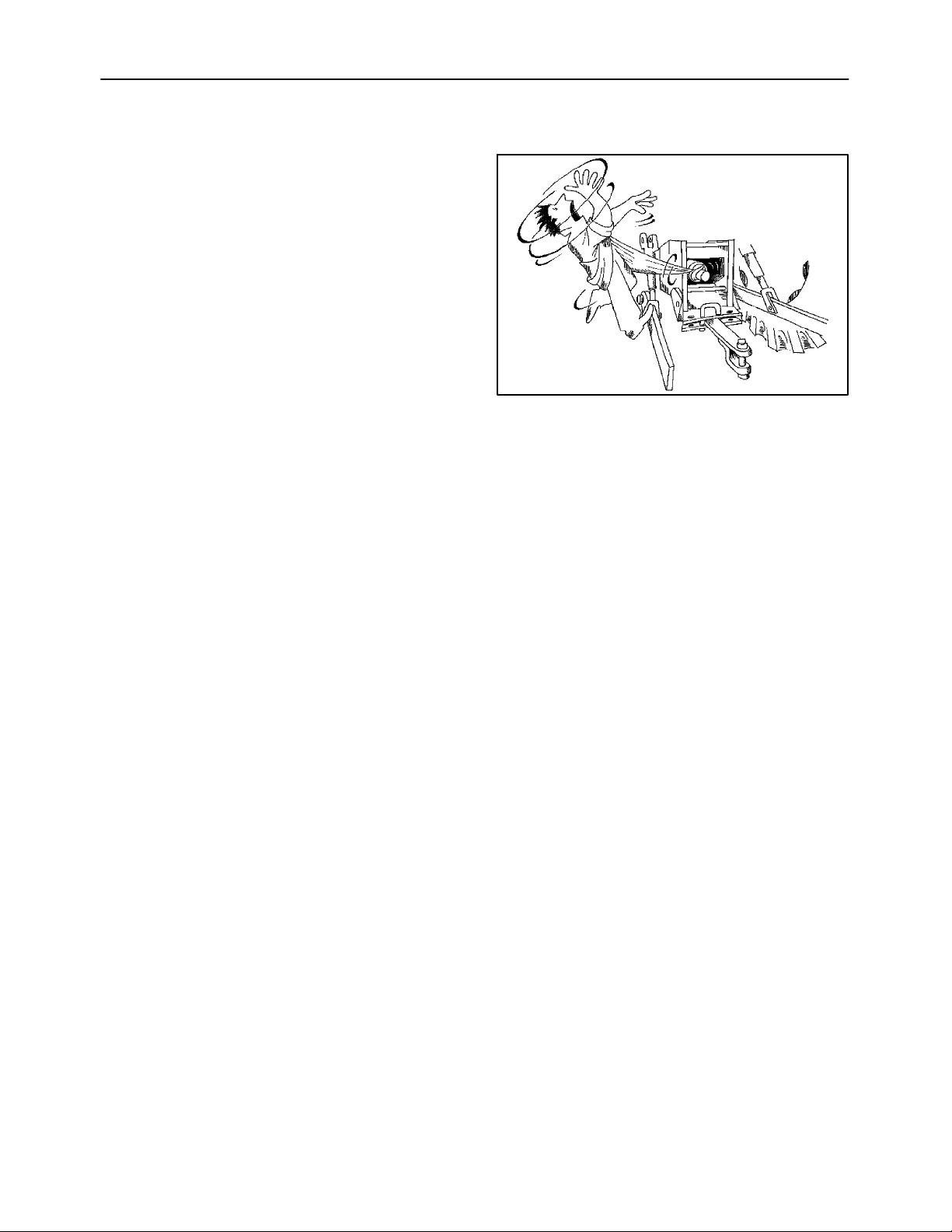

9. Do not wear loose clothing that may be trapped
in moving parts.
Check that all rotating parts connected to the
power take-off are correctly protected.
1
Find manuals at https://best-manuals.com

SECTION 00 - GENERAL INFORMATION - CHAPTER 1
00-7

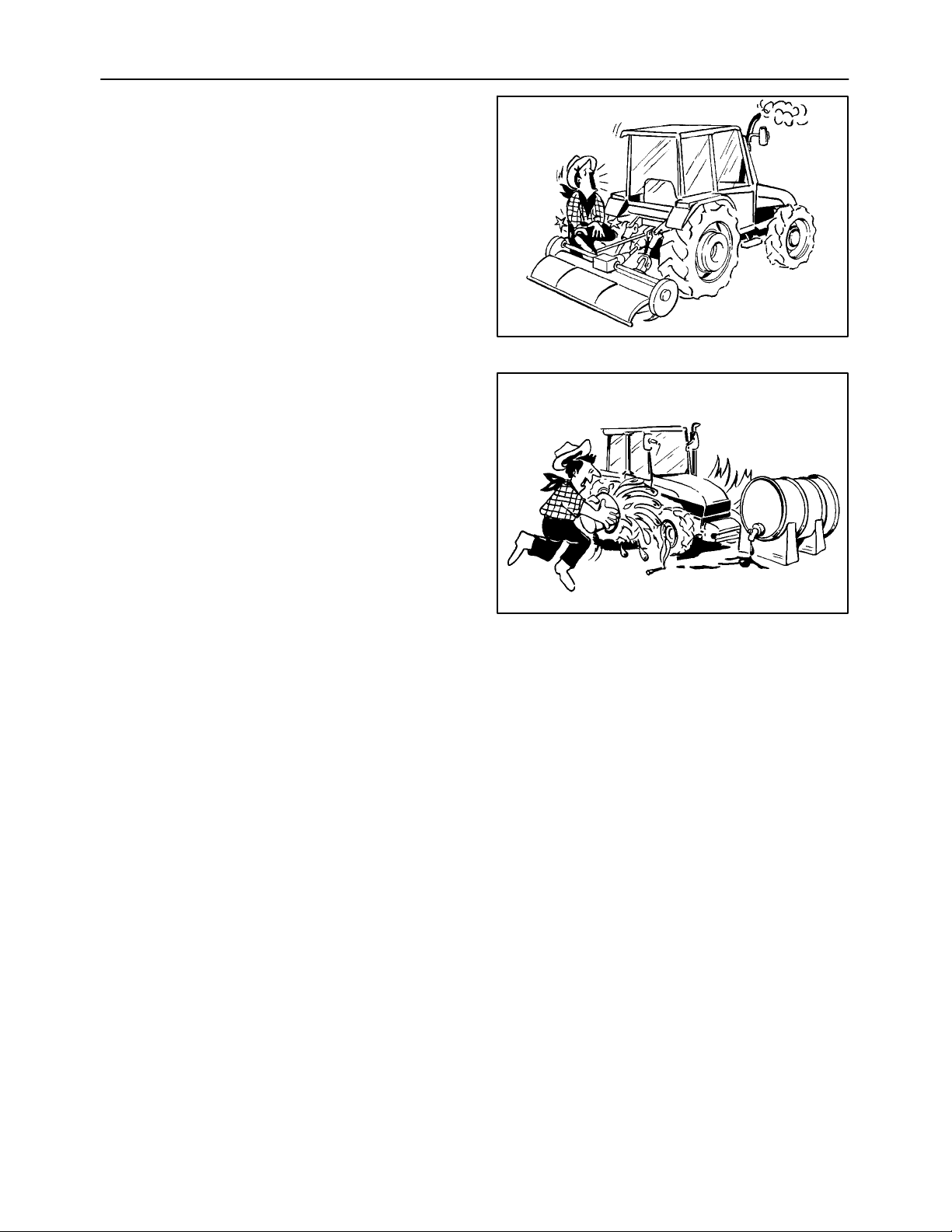

10. Do not alter the calibration of the pressure relief
valves in the various hydraulic circuits (steering,
hydraulic lift, auxiliary distributors, etc.).
11. Avoid using the tractor in unsuitable physical
conditions, stop work instead.
12. Enter and leave the tractor using the steps and
handles provided. Keep these fittings free of mud
and debris.
24135
2
STARTING THE TRACTOR
1. Before starting the engine, check that the hand
brake is on and that the transmission shuttle shift
lever and power take-off are disengaged, even if
the tractor is fitted with a start-up safety device.
Never disconnect the start-up safety switch. If the
switch does not work correctly, contact your local
dealer for eventual repair operations.
2. Before starting the engine, make sure that all
attached implements are lowered to the ground.
3. Before starting the engine, check that all covers
and guards are correctly in position (hood side
panels, power take-off guard, front axle
transmission shaft cover, etc.).
4. Never start or maneuver the tractor unless
seated in the driving position.
5. Before moving the tractor, always check that the
area is free of persons or obstacles.
6. Never run the engine in a closed space without
ensuring adequate ventilation. Exhaust fumes
are damaging to the health and can be lethal.
24134
3
Find manuals at https://best-manuals.com

SECTION 00 - GENERAL INFORMATION - CHAPTER 1
00-8
USING THE TRACTOR
1. Select the most suitable wheel setting for the
work in hand, i.e.: the setting that provides the
best stability.
24136
4

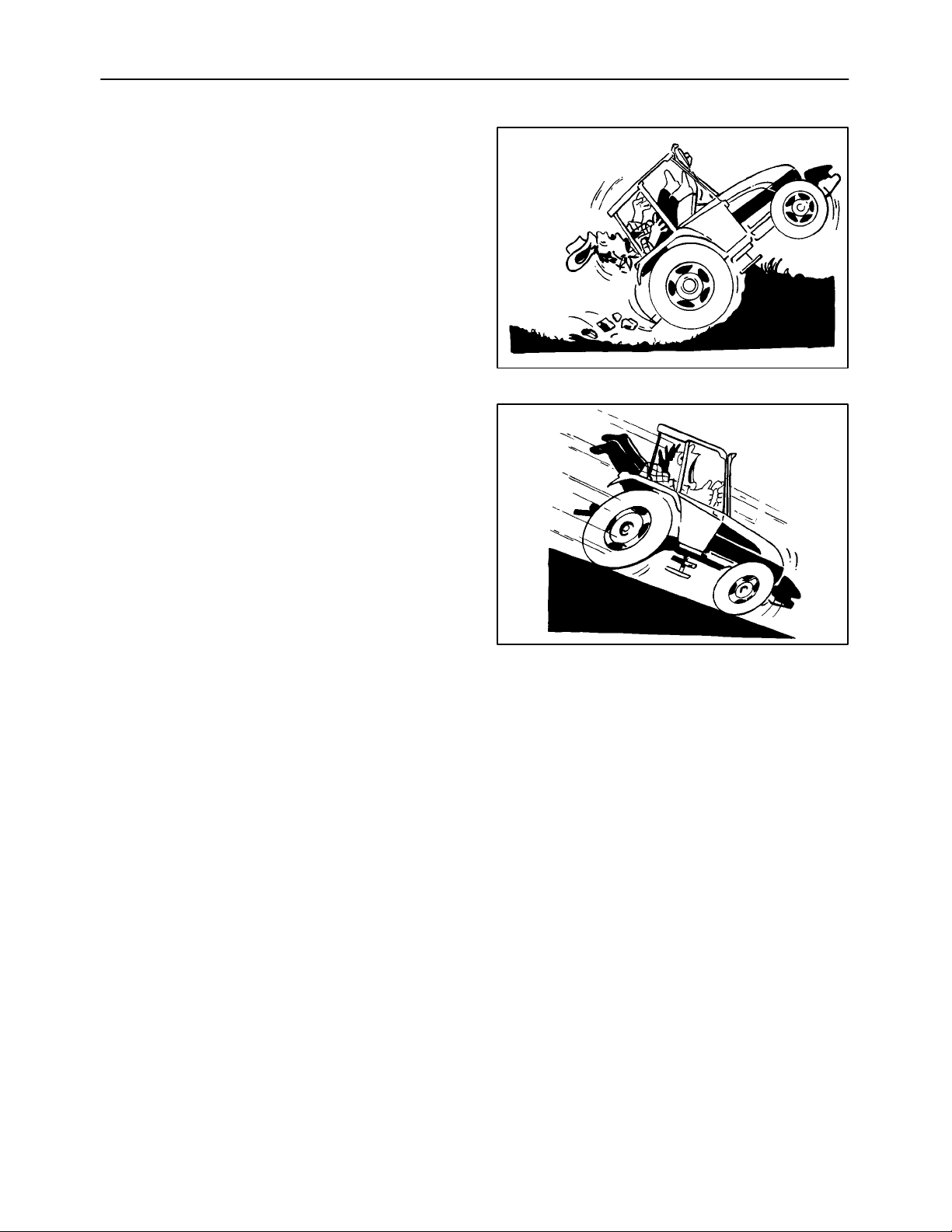

2. Depress the speed control pedal slowly: if
engaged too quickly, especially when the tractor
is getting out of a hole, ditch or operating on
muddy ground or steep slopes, the tractor may
overturn.
Release the speed control pedal immediately if
front wheels begin to lift.
3. When traveling downhill, keep the tractor in gear.
Never place shuttle shift lever in the neutral
position.
4. When the tractor is moving, the operator must
remain correctly seated in the driving position.
5. Never get on or off the tractor while in movement.
6. When using the brakes, press the pedal down
slowly.
7. Avoid taking turns at high speeds.
8. Always use the tractor at a speed that will
guarantee safe operation on the type of land
being worked. When working on uneven ground,
use maximum care to ensure proper stability.
9. If you have to work with the tractor on a gradient,
for example on hillsides, drive at moderate speed
especially when taking turns.
24223
5
Find manuals at https://best-manuals.com

SECTION 00 - GENERAL INFORMATION - CHAPTER 1
00-9

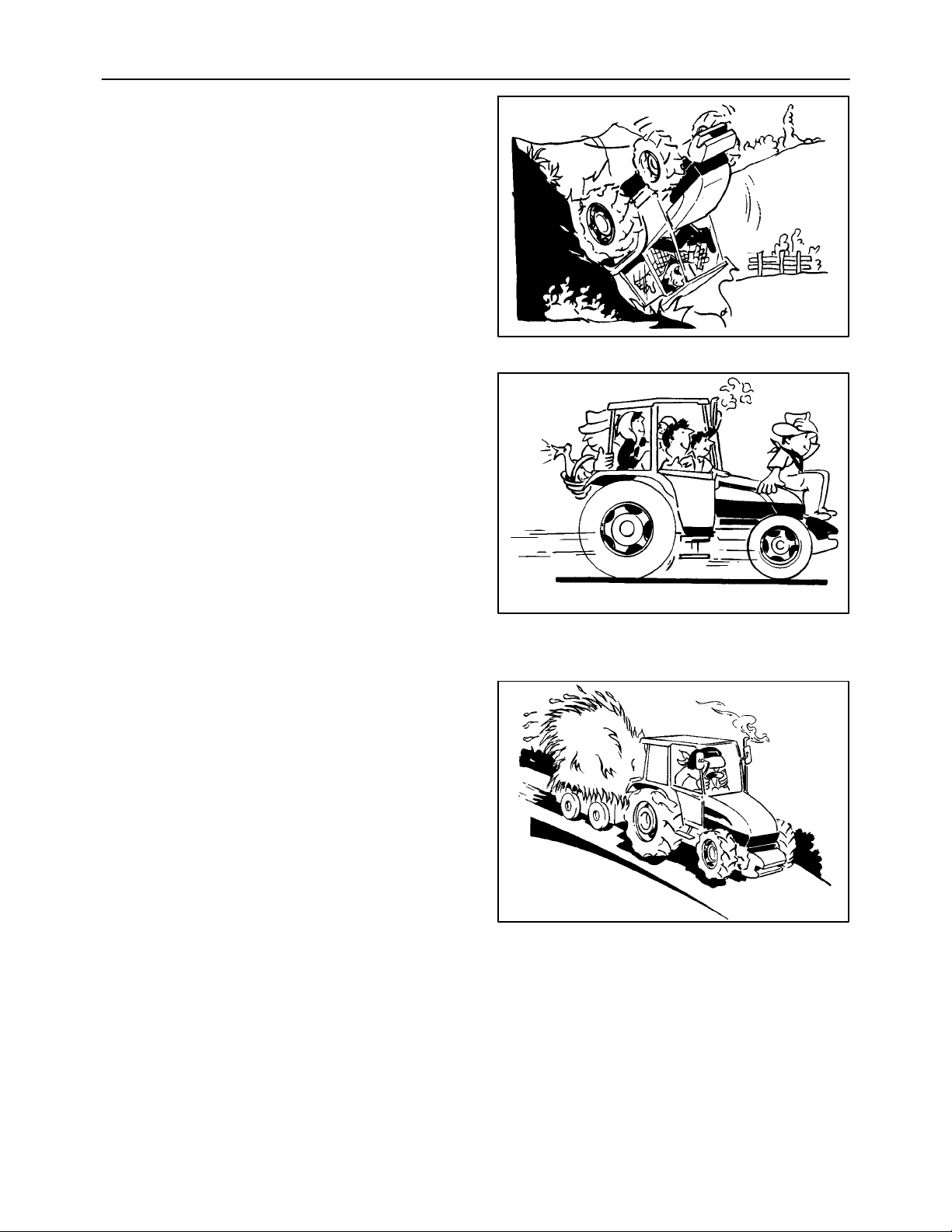

10. Proceed with maximum caution when working
with the wheels near the edge of ditches or
slopes.
11. When driving on public highways, observe the
Highway Code.
24137
6
12. When driving, do not rest your feet on the brake
pedals.
13. Never haul passengers on tractor.
When driving on roads, connect the brake pedals
using the plate provided. Braking when the
pedals are not connected could cause the tractor
to skid. Avoid excessive wear on the brakes by
using engine braking.
24138
7
TOWING AND TRANSPORT
1. To guarantee tractor stability when moving,
adjust the hitching device according to the trailer
or implement to be used.
2. Drive slowly when towing extremely heavy loads.
3. For your own safety, do not tow trailers that are
not fitted with an independent braking system.
4. If the tractor is used to tow heavy loads, always
use the hitching device and never hitch loads
onto the lower arms or the top link of the
three-point linkage. This may result in tipping or
overturning.
5. When towing, do not negotiate turns with the
differential lock engaged as this may prevent you
from steering the tractor.
24139
8
Find manuals at https://best-manuals.com

SECTION 00 - GENERAL INFORMATION - CHAPTER 1
00-10
USING IMPLEMENTS AND AGRICULTURAL
MACHINERY
1. Do not connect implements or machinery that
require more power than can be generated by
your tractor model.
2. Never negotiate sharp turns with the power
take-off under a heavy load; this may damage the
universal joints on the transmission shaft
connected to the power take-off.
3. Never stand between the reversing tractor and
the implement when hitching.
4. When using implements that require the tractor
to be stationary with the engine running, keep the
shuttle lever in the neutral position, apply the
hand brake and use suitable wheel chocks.
5. Do not operate machines connected to the power
take-off without first ensuring that the operating
range of the machine is free of bystanders.
Also check that all rotating parts connected to the
power take-off shaft are correctly protected.
6. Add some type of rear ballast when using lifting
equipment fitted to the front of the tractor. Rear
ballast, such as, rear wheel weights, fluid in rear
tires or 3pt weight box.
24143
9
STOPPING THE TRACTOR
1. When the tractor is stationary, never leave
connected implements in the raised position. All
implements must be lowered before stopping the
engine.
2. Before leaving the driving position, move the
transmission shuttle shift lever to the neutral
position, disengage the power take-off, apply the
hand brake and stop the engine.
Always remove the ignition key from the
dashboard when leaving the tractor unattended.
3. Park on flat surfaces, where possible, put the
tractor into gear and apply the hand brake. As an
additional safety measure, use wheel chocks
(available as an optional); this procedure is
compulsory when parking with a trailer hitched.
24140
10

SECTION 00 - GENERAL INFORMATION - CHAPTER 1
00-11

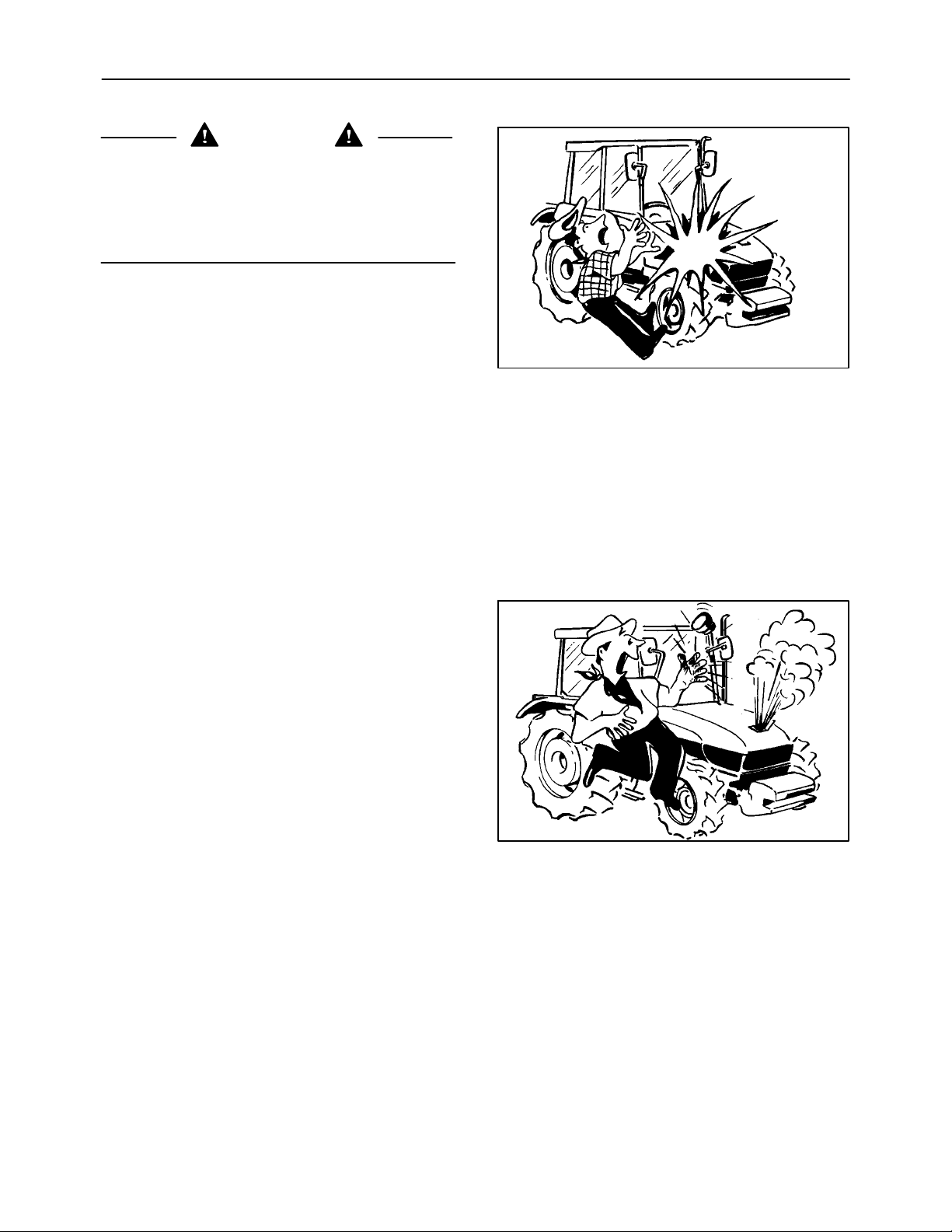

SERVICING THE TRACTOR
CAUTION
Some photographs in this manual may show
shields or cover panels removed for purposes of
clarity.
NEVER OPERATE unit without all shields and
cover panels in place.
M202B
1. Do not work on the tires with unsuitable
equipment or without the necessary experience.
Incorrect tire fitting may put safety at risk. If in
doubt, contact skilled personnel.
2. When changing or storing tires, make sure they
are stacked correctly and cannot roll or topple
over causing personal injury.
3. Before removing any hydraulic tubing, check that
the system is not pressurized.
4. Leaks of pressurized oil can cause serious
injuries. When looking for leaks use the
appropriate safety equipment: screens, safety
glasses and gloves.
5. Before touching any electrical components,
disconnect the ground lead from the battery.
24141
11
6. Only remove the radiator cap after the engine
has been allowed to cool. With the engine
switched off, use a cloth to slowly unscrew the
cap and release the pressure before completely
removing the cap.
24142
12

SECTION 00 - GENERAL INFORMATION - CHAPTER 1
00-12
7. Before inspecting, cleaning or carrying out
maintenance on the tractor (or any implement
connected to the tractor), always ensure that the
engine is switched off, the transmission shuttle
shift lever in neutral, the brakes are on, the power
take-off is disengaged and that all moving parts
are stationary.
24265
13
8. Always keep a fire extinguisher at hand.
24144
14

SECTION 00 - GENERAL INFORMATION - CHAPTER 1
00-13
DIESEL FUEL
1. UNDER NO CIRCUMSTANCES should gaso-
line, alcohol, or blended fuels be added to diesel
fuel. These combinations can create an
increased fire or explosive hazard. Such blends
are more explosive than pure gasoline in a
closed container such as a fuel tank. DO NOT
USE THESE BLENDS.
2. Never remove the fuel cap or refuel with the
engine running or hot.
3. Do not smoke while refueling or when standing
near fuel.
4. Maintain control of the fuel filler pipe nozzle when
filling the tank.
5. Do not fill the fuel tank to capacity. Allow room for
expansion.
6. Low sulfur diesel fuel required.
WHEN YOU SEE THIS SYMBOL
IT MEANS:
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!

SECTION 00 - GENERAL INFORMATION - CHAPTER 1
00-14

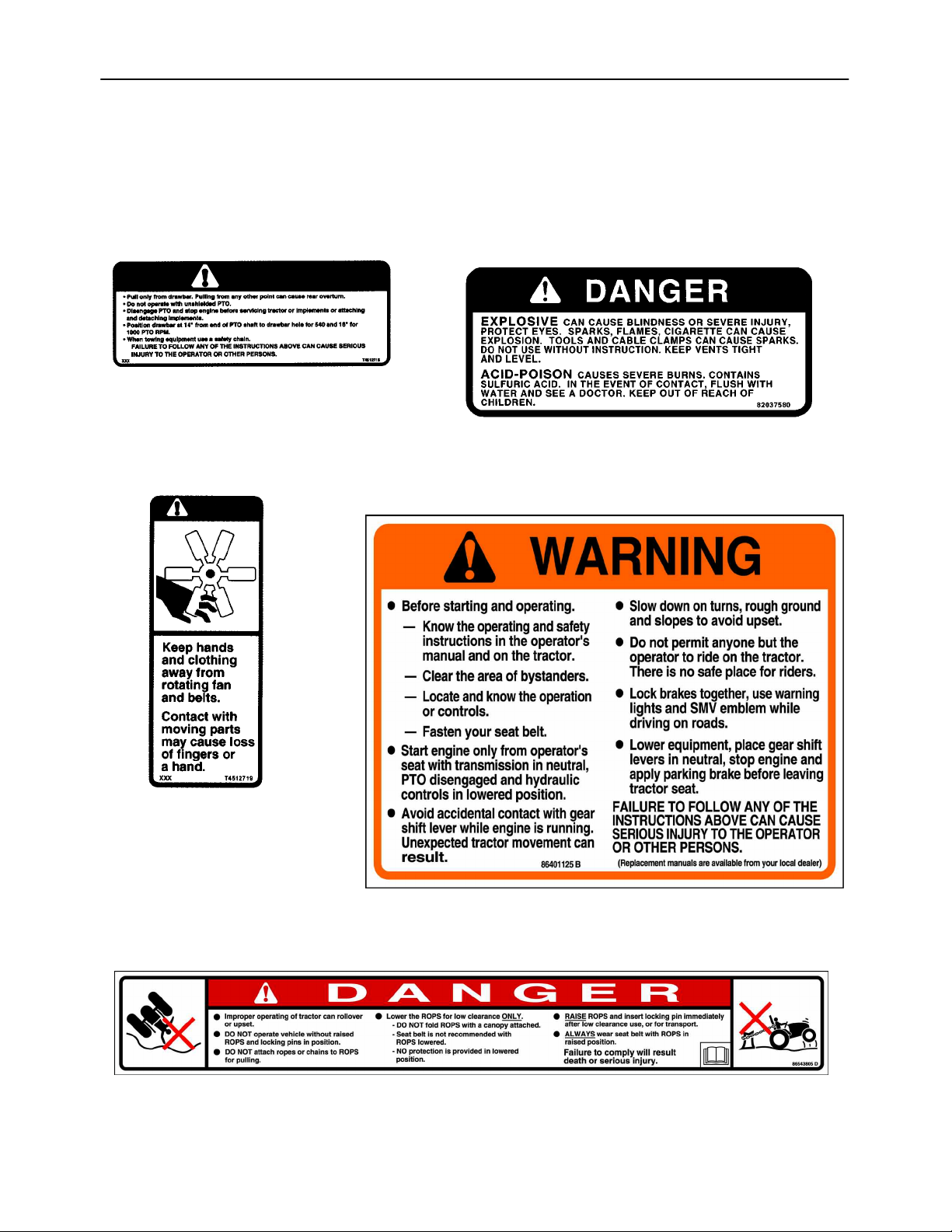

SAFETY DECALS
The following safety decals have been placed on
your machine in the areas indicated. They are
intended for your personal safety and for those
working with you. Please take this manual and walk
around your machine to note the content and location
of these warning signs. Review these warning signs
and the operating instructions detailed in this manual
with your machine operators.
Keep the decals legible. If they are not, obtain
replacements from your authorized dealer. The decal
replacement part numbers are listed with each decal.
WARNING: Pull Only From Drawbar
PART NO: 86532904
LOCATION: PTO Shield
WARNING: Rotating Fan
and Belts
PART NO: 86532907
LOCATION: Both sides of
Radiator Shroud
WARNING
WARNING
DANGER: Battery Safety
PART NO: 82037580
LOCATION: In Front of Battery
WARNING: Before Starting and Operating
PART NO: 86401125 B
LOCATION:Left Side Pod
DANGER: ROPS
PART NO: 86543805_D
LOCATION: Top Under Side of ROPS

SECTION 00 - GENERAL INFORMATION - CHAPTER 1
00-15
DANGER: Start Engine Only From
Operator’s Seat
PART NO: 82985062
LOCATION: On Top of Starter
WARNING: Cooling System
Under Pressure
PART NO: 82029421
LOCATION: Air Filter Intake Tube
WARNING: Operate Controls only from
Tractor seat
PART NO: 87300025
LOCATION: PTO Shield
WARNING: To Jump Start
PART NO: 86402367
LOCATION: In front of battery
IMPORTANT: Disconnect Transmission
PART NO: 84173942
LOCATION: Top Left Dash
WARNING: Tractor Dismounting
PART NO: 84222486
LOCATION: Top Left Dash

SECTION 00 - GENERAL INFORMATION - CHAPTER 1
00-16

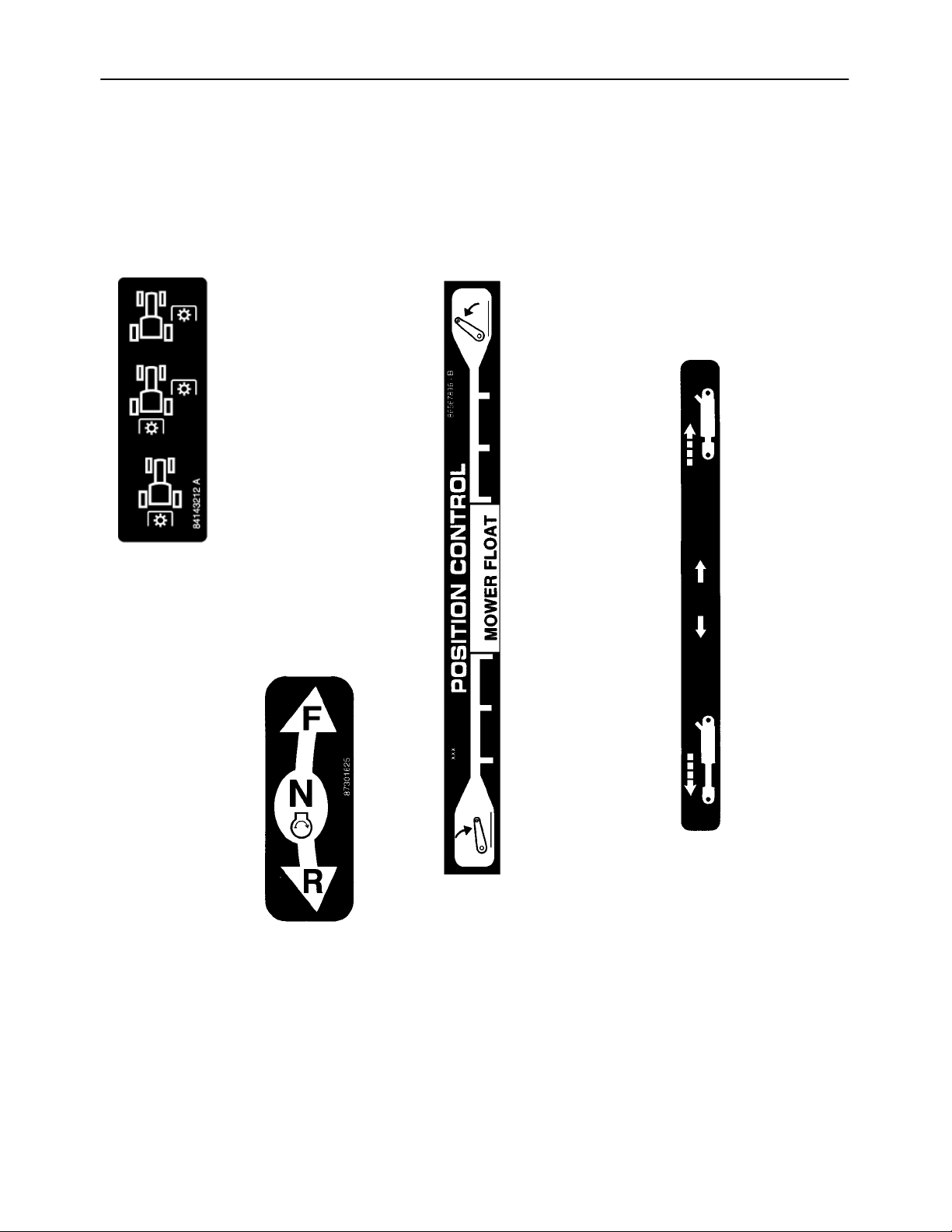

INSTRUCTION DECALS
Position Control
Lever
PART NO: 86567896
LOCATION:
Right-Hand POD Top
Operating Remote
Control
Valve-Single
Spool (Optional)
PART NO: 86567895
LOCATION:
Right-Hand POD Top
PTO Engagement
PART NO: 84143212
LOCATION: Left-Hand
POD near Floor
(With Mid PTO Only)
Forward-Reverse Shuttle
PART NO: 87301625
LOCATION: Top Left of Dash

SECTION 00 - GENERAL INFORMATION - CHAPTER 1
00-17

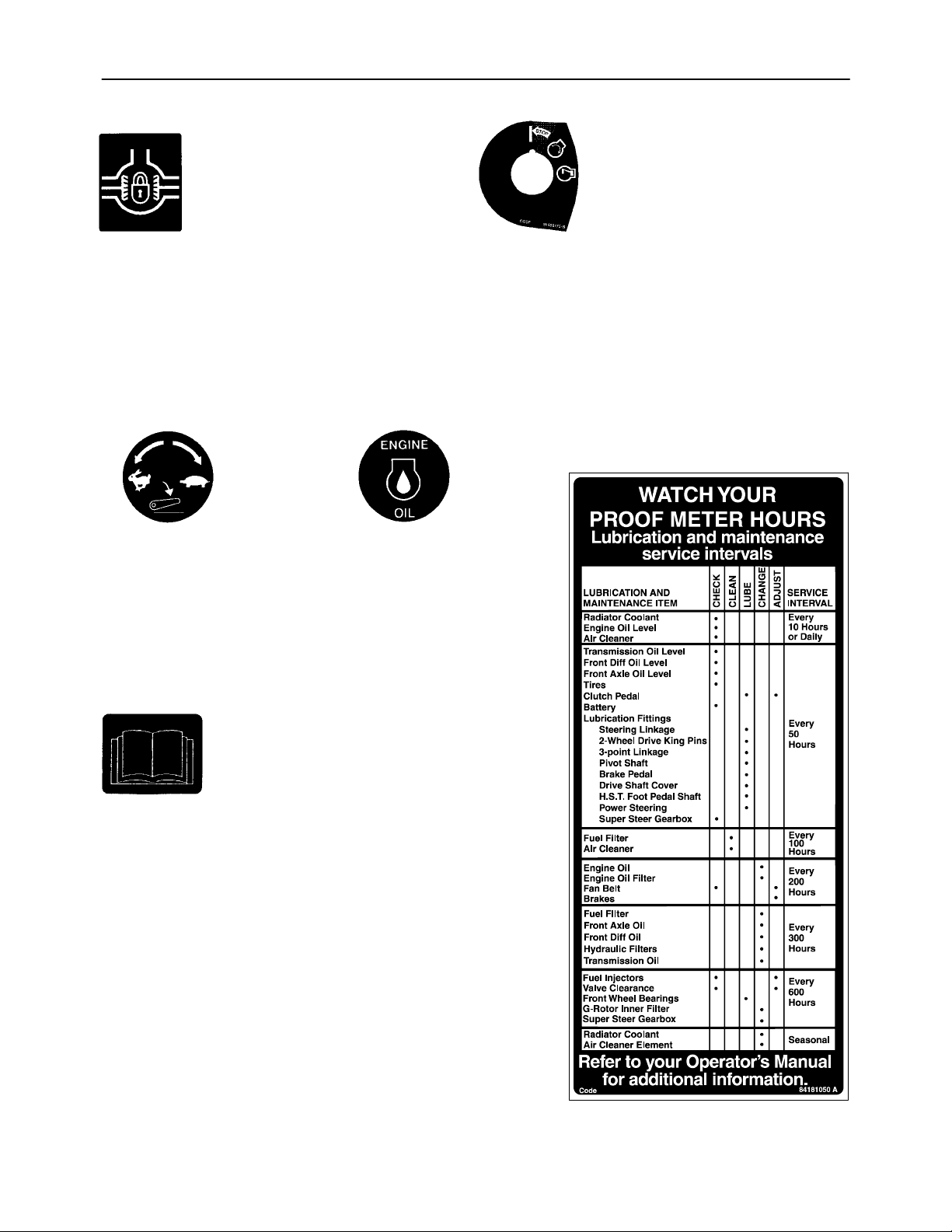

Engine Oil
PART NO: 86532916
LOCATION: Engine Oil
Filler Cap
Hyd. Manifold Operation
(See Operator’s Manual)
PART NO: 86532914
LOCATION: Right Side
Frame Rail Underneath
Operator’s Platform
Starter Switch
PART NO: 87656846
LOCATION: Starter
Switch, Right Side of
Instrument Panel
Lubrication and
Maintenance Intervals
PART NO: 84181050
LOCATION: Inside of Hood
Differential Lock
PART NO: 86532901
LOCATION:Above
Pedal Left Side of
Operator’s Platform
Flow Control Valve
PART NO: 86400295
LOCATION: Top of Flow
Control Knob

SECTION 00 - GENERAL INFORMATION - CHAPTER 1
00-18

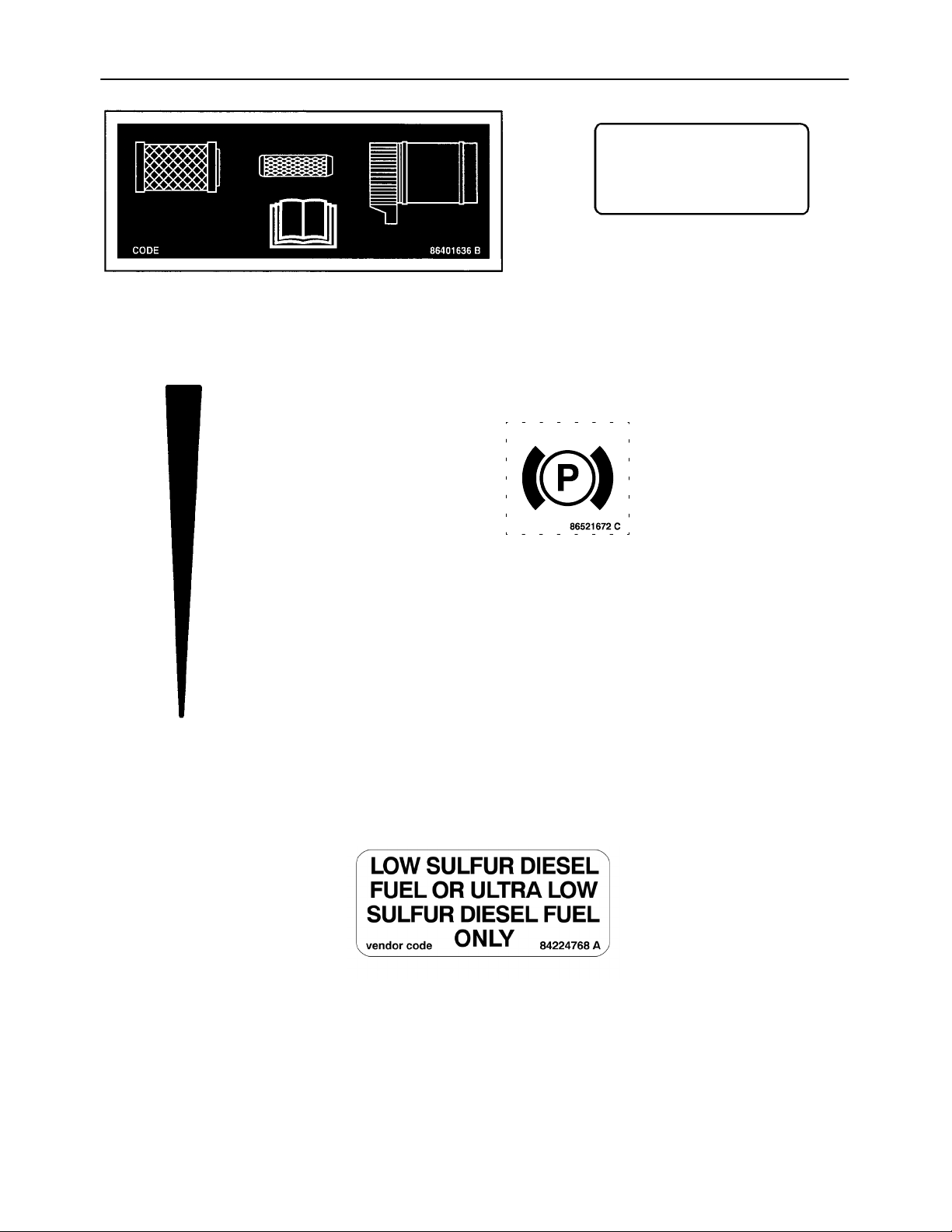

Air Cleaner Maintenance
PART NO: 86401636
LOCATION: Air Cleaner Canister
Red Reflective Tape
PART NO: 86547781
LOCATION: Back Rear Fender
(Both Sides)
Throttle
PART NO: 81863547
LOCATION: Top Right Dash
Code
Parking Brake
PART NO: 86521672
LOCATION: Right side of operator’s
platform
Low Sulfur Fuel
PART NO: 84224768
LOCATION: Left Rear Post of ROPS, near fuel tank

SECTION 00 - GENERAL INFORMATION - CHAPTER 1
00-19
Transmission Controls Decal
PART NO: 84153067
LOCATION: Top of Left-Hand Pod
Boomer 8N Emblem
PART NO: 84174524
LOCATION: Both Sides of the Hood
