Operation Manual
LRM 2200SI
LASER RANGE FINDER MONOCULAR
105 Sparks Ave., Toronto, ON M2H 2S5, Canada

More user manuals on ManualsBase.com
ii

More user manuals on ManualsBase.com
iii
IMPORTANT INFORMATION
Read prior to activation
You have just purchased a sophisticated electro-optical device
that emits invisible laser radiation. To operate it properly, please,
read this manual carefully.
NEVER direct laser beam at the eyes of people or animals
NEVER aim the unit at the Sun or bright sources of light
NEVER subject the unit to impacts
NEVER transport the unit without the case
NEVER disassemble the unit. This may be hazardous for you
due to high voltage currents in the system
NEVER aim the unit at highly reflective objects like mirrors
and retroreflective surfaces, which are in close proximity to
the laser rangefinder. This can lead to the permanent damage
of the photoreceiver incorporated into the device
ALWAYS keep the unit out of the reach of children
ALWAYS remove the battery when the device is not in use
for a long period
ALWAYS store the unit in a dry place
Caution - use of controls or adjustments, or performance of
procedures other than those specified herein may result in
hazardous radiation exposure

More user manuals on ManualsBase.com
iv
Caution - use of optical instruments such as binoculars,
loupes, mirrors, lenses, etc. with this product increases eye
hazard
Avoid eye exposure to direct laser beam or its close reflection
Prevent bright light from focusing through the eyepiece

More user manuals on ManualsBase.com
TABLE OF CONTENTS
1.BRIEF DESCRIPTION ............................................. 2
Principle of operation .......................................................... 2
Key Features........................................................................ 3
2.DEVICE APPEARANCE.......................................... 4
3.DELIVERY SET ....................................................... 6
Standard delivery set ........................................................... 6
4.SPECIFICATIONS.................................................... 7
5.OPERATION INSTRUCTIONS............................... 9
Changing battery ............................................................... 10
Measuring procedure ......................................................... 11
Maximum distance ............................................................ 11
Target selection logic......................................................... 12
Operation and service modes............................................. 13
Accuracy correction........................................................... 14
Compass calibration .......................................................... 16
Gating mode ...................................................................... 16
Individual Measurement and Scanning regimes................ 17
Data Recall mode .............................................................. 18
Additional display information.......................................... 19
6.BEST MEASURING TECHNIQUE ....................... 20
7.STORAGE AND MAINTENANCE ....................... 21
8.TROUBLESHOOTING........................................... 22
9.WARRANTY .......................................................... 23

More user manuals on ManualsBase.com
2
10.CUSTOMER SUPPORT ......................................... 24
11.QUALITY CERTIFICATE ..................................... 25
CAREFULLY READ ALL THE INSTRUCTIONS BEFORE
USING THE UNIT!
FAILURE TO OBEY THE INSTRUCTIONS WILL VOID
THE WARRANTY AND MAY CAUSE INJURY!
1. BRIEF DESCRIPTION
LRM 2200SI Laser Rangefinder Monocular (the unit) is an
advanced laser range finder system that enables instant distance,
direction, elevation, azimuth and speed measurement.
The unit complies with CFR 21, Part 1040.10.
High quality multi-coated optics are combined in this device with
complex circuitry design to create a system that can outperform
other product in its class.
Principle of operation
Once activated, the unit sends invisible, eye-safe laser pulses to
the target. The pulses reflected from the target are captured and
processed internally. The unit operates based on the time-of-
flight principle meaning that range is calculated by measuring the
delay between the sent and received laser pulses.
A built-in digital inclinometer measures the elevation
simultaneously with distance measurement, in its turn elevation

More user manuals on ManualsBase.com
3
measurement allows height calculation. The unit measures
azimuth simultaneously as well. Speed of an object moving
closer or further from the unit can also be calculated using the
time-of-flight principle.
Key Features
Three channel optical solution (optical, laser and receiver)
ensures measurement accuracy
Original digital circuitry allows ranging through most types
of glass, bushes and other obstacles
Distance is displayed in meters or yards
Speed is displayed in km/h or mph
On-board memory stores results of last 10 measurements, for
recall
Selection of the first, last or the most reflective target
Target quality display indicator assures results are reliable
Two reticle shapes: -¦- or
Built-in digital compass and inclinometer
Speed and height measurement capability
The unit automatically turns off when idle for 16 seconds to
preserve battery
Rubberised weatherproof body

More user manuals on ManualsBase.com
4
2
3
4
5 6 7
1
8
2. DEVICE APPEARANCE
Fig. 1. Front view
1 - Eyepiece 2 - Objective lens
3 - Laser emitter lens 4 - Receiver lens
5 - M (Mode) button 6 - A (Action) button
7 - Body of the device 8 - Rubber grip

More user manuals on ManualsBase.com
5
Fig.2. Rear view
1 - Eyepiece 10 - Tripod socket
9 - Battery compartment cover 12 - Classification
11 - Identification imprint imprint, shown below
9
11
1
12
10

More user manuals on ManualsBase.com
6
3. DELIVERY SET
Standard delivery set
LRM 2200SI is supplied in a set comprised of the following:
Qty
LRM 2200SI 1
9V Lithium (non-magnetic) battery 1
Soft carrying case
Cleaning cloth
1
1
Neck strap 1
Operation manual 1
Warranty card 1

More user manuals on ManualsBase.com
7
4. SPECIFICATIONS
Optics
Magnification
Objective lens diameter
Exit pupil diameter
Field of view
Type of coating
7x
25 mm
3.6 mm
8
Fully multi-coated optics
Range Finder
Laser
Measuring range
Accuracy
First, last and auto target selection
Meters/Yards display
Last 10 readings recall
Reticle
Target quality indicator
Class 1, eye safe, 905 nm
10 m – 2,200 m
1 m
Yes
Yes
Yes
-¦- or
Yes
Compass
Measuring azimuth range 360
Accuracy ±2

More user manuals on ManualsBase.com
8
Inclinometer
Measuring elevation range ±80o
Accuracy ±1o
Speed Detector
Measured speed range 5-400 km/h
Accuracy ±2 km/h
Power
Battery 9V Lithium (non-magnetic)
Battery capacity Min 5,000 measurements
(Scanning regime)
'Low Battery' indicator Yes
Environmental
Operational temperature range
Storage temperature range
-25 / +50oC (-13 / +122oF)
-45 / +65oC (-49 / +149oF)
Mechanics
Tripod thread
Weight without battery
Dimensions
¼ inch
450 g
127x125x60 mm

More user manuals on ManualsBase.com
9
5. OPERATION INSTRUCTIONS

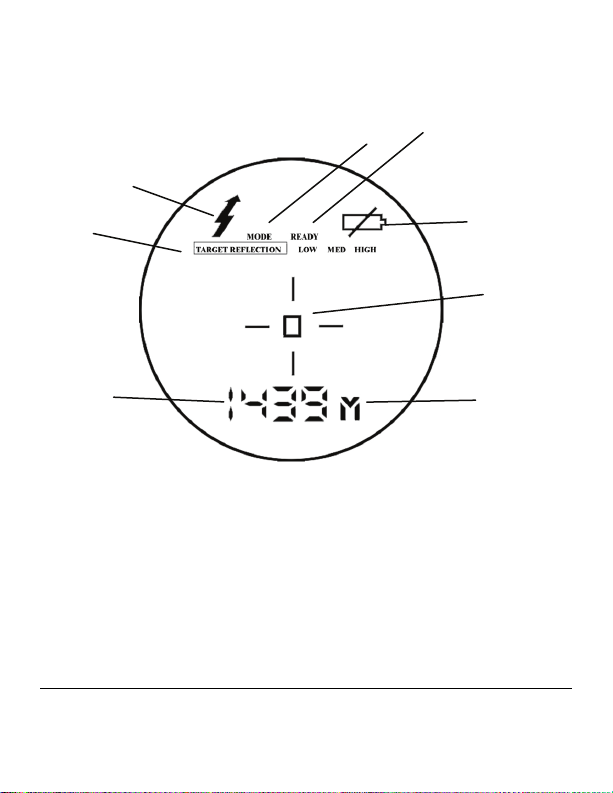

1 – Low battery indicator 2 – Reticle (either -¦- or )
3 – Units of measurement 4 – Measurement result
5 – Target quality indicator 6 – Laser active indicator
7 – Setup mode indicator 8 – Ready mode indicator
4
6
2
1
5
3
8
7
Fig. 3. Liquid Crystal Display as
seen through the eyepiece

More user manuals on ManualsBase.com
10
Changing battery
To install a battery:
Slide the battery compartment cover down (Fig. 2)
Install the battery, observing correct polarity
Do not force the battery while placing back inside the
compartment.
Close the compartment cover
If the battery does not fit the compartment easily, it means that
either polarity was reversed or the battery contacts are jammed.
To remove battery:
Slide the battery compartment cover down (Fig. 2)
Shake the rangefinder gently towards the open end of the
battery compartment
Pull out the battery
The unit is fully operational when battery voltage is higher than
6.2V. A ‘LOW BATTERY’ warning is displayed when battery
voltage falls below 6.5V.
Ni-MH rechargeable batteries capable to sustain current drain up
to 250 mA can be used to power the unit.
Note: Non-magnetic batteries should be used for peak compass
performance. If a non-magnetic battery is not used, you may
need to calibrate the unit after changing the battery (see Compass
calibration below for more details).

More user manuals on ManualsBase.com
11
Measuring procedure
When the unit is powered off the LCD will appear blank. To
activate the unit press and hold A button (Fig. 1) for half a
second. The word ‘READY’ will appear on the display to
indicate the unit is powered on.
Pressing the A button (Fig. 1) in Ready to Measure mode will
initiate measurement. The result of the measurement is displayed
in a form that depends on the measurement parameters (see Setup
Mode).
If a measurement is unsuccessful for any reason, four dashes (‘---
-‘) will be displayed on the LCD. For successful measurement
the target must be at least 10 m away.
If more than one parameter is chosen to measure, e.g. distance
and elevation, the results will replace each other on the display
every second.
Maximum distance
Though maximum measurement distance depends on target
reflectivity, weather conditions and other conditions, for most
relatively large targets the unit will provide accurate ranging for
up to 2,200 meters. The indicated measurement range (2,200
meters) is proven to a NATO standard target with the following
characteristics: 2.3x2.3 meters, albedo 0.3, visibility >20km.
Target reflectivity depends on its color, surface finish, size,
shape, position in relation to the laser beam and other factors.
Bright target colors are more reflective than darks. A polished

More user manuals on ManualsBase.com
12
surface is more reflective than a rough one. Larger targets reflect
better than small ones. Ranging a target perpendicular to the laser
beam provides better results than the one positioned under a
sharp angle to the beam.
Weather conditions that influence air transparency (rain, fog,
snow, mist) reduce maximum range. Bright sunny days will
reduce performance as well, as IR sun radiation may interfere
with reflected laser impulses.
While the unit will measure through many glass types, measuring
through glass may reduce accuracy.
Natural hand tremor decreases the accuracy of long distance
ranging. Use of a tripod is highly recommended.
Target selection logic
On its way towards the target the laser beam may reflect off
various objects in the atmosphere, thus decreasing ranging
accuracy. The smaller, the farther, and the less reflective is the
target, the higher is the possibility of obtaining an incorrect
measurement.
To improve accuracy the unit has a built-in target selection logic,
which allows choosing which target to range: the nearest (‘first’),
the farthest (‘last’), or the most reflective (‘auto’).
This mechanism helps selecting the target when ranging from
behind bushes, wires, through falling snow, or in similar
conditions. Similarly it enables ranging a target in front of a
bigger object, such as a wire in front of the wall.

More user manuals on ManualsBase.com
13
Note: Even with target selection logic the unit may not always be
able to range the desired target as its reflectivity may be too low
to produce enough laser beam reflections for statistically reliable
calculation. A warning will be displayed if the result is not
statistically reliable. See more about target reflectivity in
Additional display information.
Operation and service modes
Pressing Mode button (5, Fig.1.1) in Ready mode switches the
unit between modes of operation. To activate any desired mode
from the menu you must confirm your selection by pressing the
Action button (Fig.1.1). The unit has the following modes of
operation:
Ready – Unit is ready to perform measurements
dFLt – sets default mode of operation with factory settings1
GAtE – sets gating measurement mode
Std – allows the user to select single action measurements:
oDistance only (d)
oCompass Only (C)
oElevation Only (E)
oSpeed Only (S)
oHeight Only (H)
oSpeed + Distance (Sd)
oDistance + Elevation (dE)
Unit – allows the user to select units of desired
measurements:

More user manuals on ManualsBase.com
14
oDistance from meters to yards
oSpeed from km/h to mph2
rEc – allows data recall of the last 10 measurement results:
oCLr – Clears all measurements
SEt – allows the user to select the following advanced
options:
oFrSt – First Target Measurement
oLASt – Last Target Measurement
oAUtO – Auto Target Measurement3
oReticle – Change reticle from + (cross) to
(rectangle)
oCAL – Calibration
CALc – Compass calibration
corr – Accuracy correction of active
measurement parameters
Display Test
1 - in default, the following modes are set: distance in meters,
elevation in degrees, speed is set to km/h (not measured), cross
reticle, most reflective (‘auto’) target selected, no gating.
2 - this option is available only if Speed is selected from the Std
menu.
3 - not shown in the menu if currently selected
Accuracy correction
If the System produces any measurement errors that lie beyond
unit specification, it may be an indication that unit requires

More user manuals on ManualsBase.com
15
calibration similar to one conducted during production process.
To perform the accuracy correction, select corr from the CAL
menu.
Perform correction according to required measurement
parameters by pressing Action button, see table below:
Active mode of
measurement
(Std)
Correction
parameter Condition
D, dE Distance Install unit at 1 meter1
from a flat target2
C Azimuth
Put unit on a level plane
and aim it to the North
direction 3
E, dE Elevation Put unit on the
horizontal level
1 – Accuracy of correction will depend on accuracy of
installation against the target. It must be exactly as specified. The
numbers shown on the display reflect the correction.
2 – Target should not have high-reflective surface (white color is
not considered high reflective in this case).
3 – The unit shall be well levelled with deviation from 0 not
more than ±0.75 degrees. Horizontal direction shall be to

More user manuals on ManualsBase.com
16
Magnetic North (not True North). If the unit detects large
installation errors (unit is not well levelled or not aimed to the
North), then LCD will show result “444” and “99”, which means
that correction was not performed due to incorrect setup.
Compass calibration
If the System was exposed to a strong magnetic field or was not
in use for a long time, the compass accuracy may diminish.
To return the compass into working condition:
Select CALc from CAL menu
Keeping the unit horizontal, perform one full rotation around
vertical axis within half a minute and then one full rotation
around vertical axis with device upside down during half
a minute.
If one rotation does not restore calibration – perform two
rotations.
Normal compass function should now be restored.
Gating mode
In this mode gating function is activated. Here the minimal
distance to the target can be set. Any object closer than the
gating distance will be ignored.
To select Gating Mode:
Select GAtE from the mode menu
