Newland SPEEDATA SD35 User manual

SD35 User Guide

SD35 User guide V1.0
2
Appearance

SD35 User guide V1.0
3
Keypad
Volume key
Scan key
Scanning
key
Power key
Home key
Back key
Enter key
Resent key
Function
keys
Screen off
key
Scan key
OK key

SD35 User guide V1.0
4

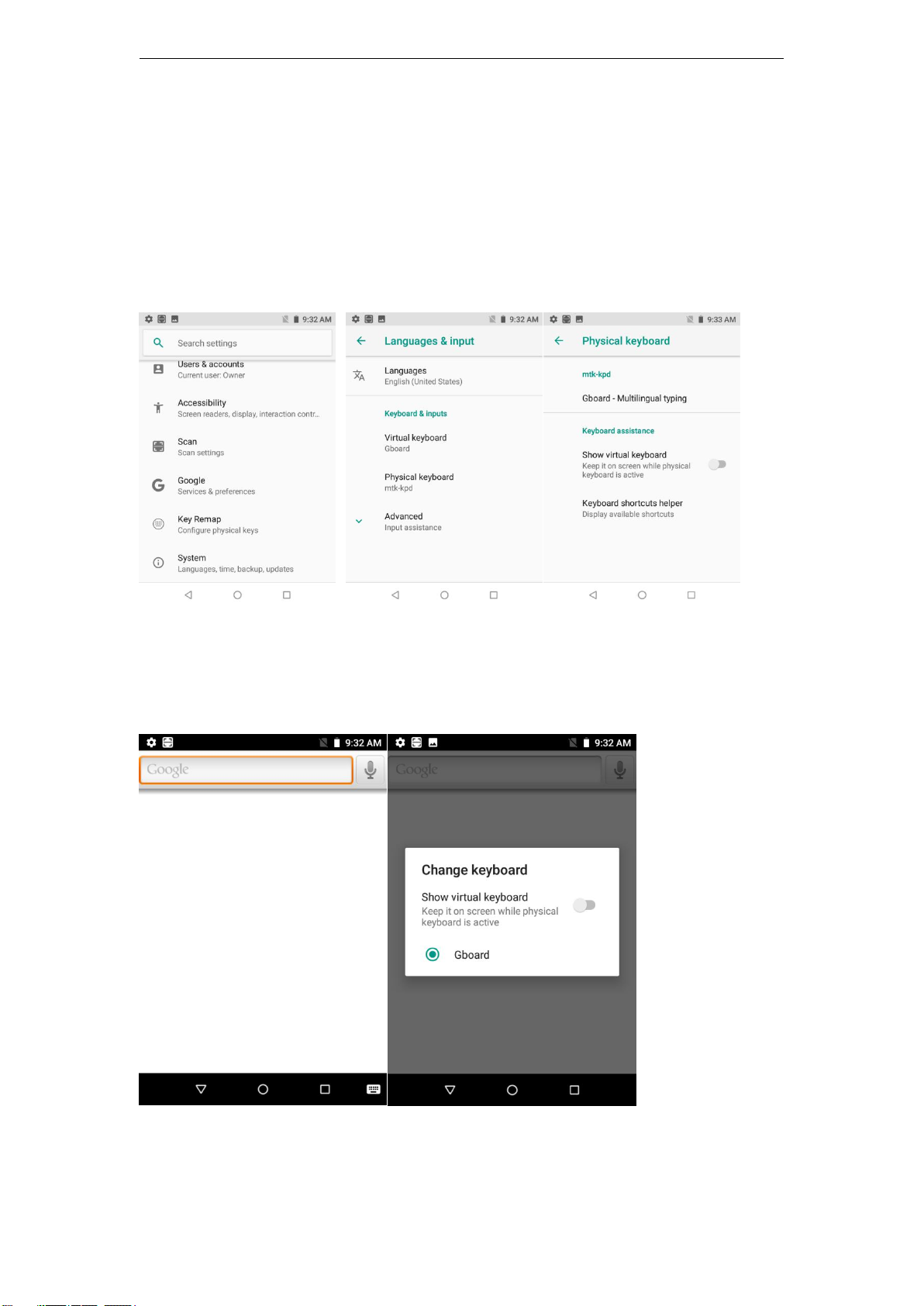

Virtual Keyboard
When the device is turned for the first time ,please Click “Setting”
-> ”system ”->”Languages&Input”->”Physical Keyboard”,and enable “Show
Virtual keyboard”.Then you can use “Virtual Keyboard”and”Physical Keyboard”
at the same time.
Quick setup
You can click the iron in the lower right corner to enter the “Change keyboard”
interface to enable “Show virtual keyboard”.

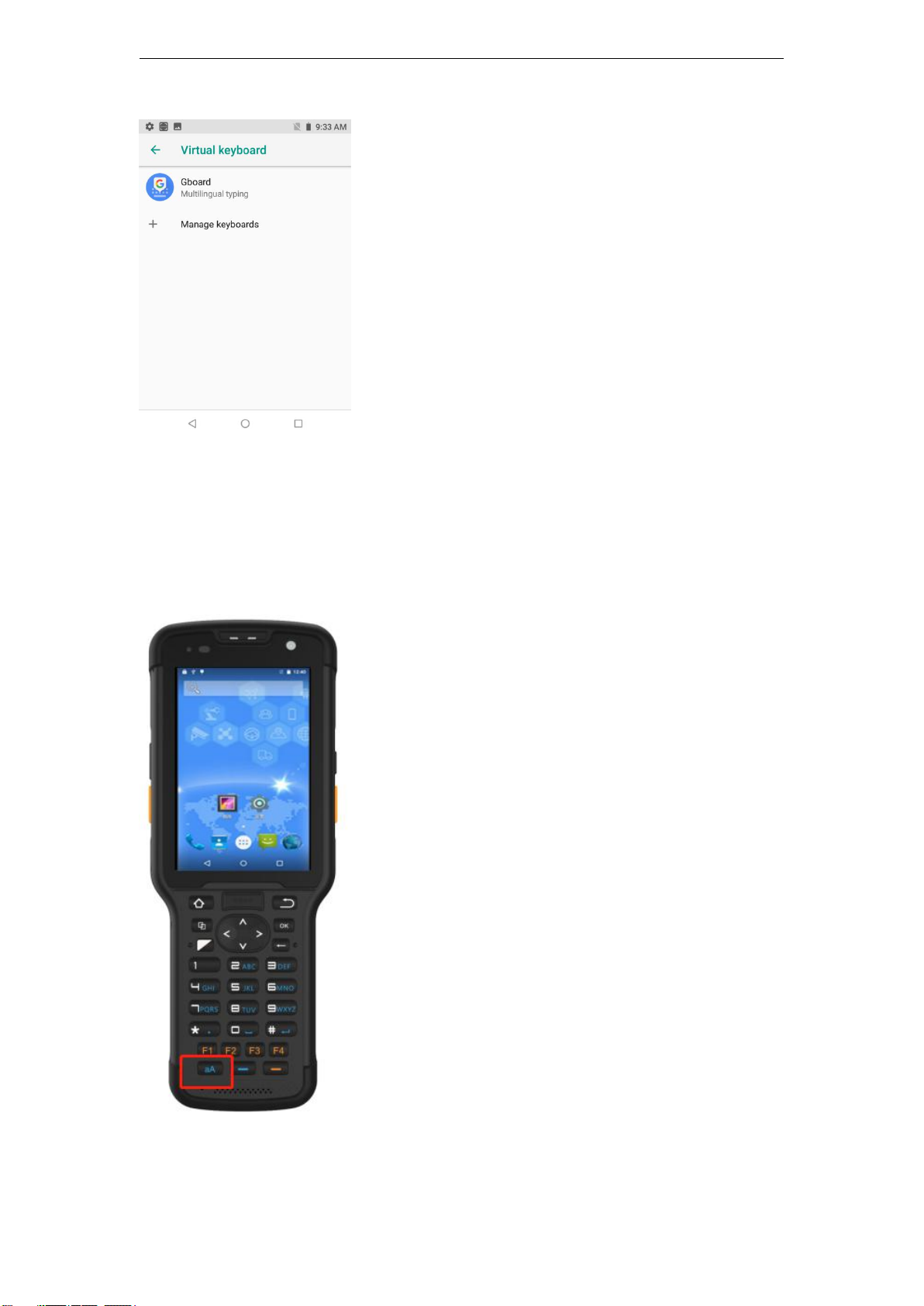

Click “Setting”->”system”->”Languages&Input”-”Virtual Keyboard”,then click
“manage keyboard”,you can manage the virtual keyboard.

SD35 User guide V1.0
5
Physical Keyboard
When the device is turned on for the first time,the default input of the physical
keyboard is numbers.You can switch between numbers and uppercase and
lowercase by pressing the “aA”key.
Note:Please refer to the “physical key definition” for how to use the function
keys.

SD35 User guide V1.0
6
SIM Card
1 Both SIM cards use standard Nano-SIM cards. Please use professional
equipment to open the SIM card warehouse, so as not to damage the
equipment and affect the protection performance.
2 When the SIM1 card is placed, the SIM1 card is placed horizontally in the
upper right corner of the second layer of the slot, which is flat with the slot, and
the SIM1 card is successfully placed.
3 When the SIM2 card is placed, the SIM2 card is placed horizontally in the
upper left corner of the first layer of the slot, which is flat with the slot, and the
SIM2 card is successfully placed.
4 Memory card slot, maximum expandable 128G memory card.

SD35 User guide V1.0
7
Charging&Attention
1 Please use the supplied charger and USB (Type-C) cable. Otherwise, the
fast charging mode cannot be enabled. Using a non-original charger and a
USB charging cable may result in long charging time and repeated restarts,
and affect the battery life.
2 It is recommended not to operate the devices while charging, and not to
cover objects on the device and charger.
3 When the device is in low power, there will be an indicator light and a desktop
pop-up reminder. Please charge as soon as possible to avoid affecting normal
use.
4 Please ensure that the power is about 50% when store the equipment for a
long time. Please place the equipment in a suitable environment with dry
temperature to avoid equipment failure caused by long-term storage.
5 In case of damage to the battery, charging head and charging cable, please
contact us in time to purchase, do not repair it yourself, so as to avoid danger
and cause extra loss.
Charging indicator status
Device charging indicator
Red light blinking:low-battery.
Red light on:charging in process.
Green light on:fully charged.
Cradle indicator status
Red light on:extra-battery charging in process.
Green light on:extra-battery fully charged.
Power on&Power off&Restart

SD35 User guide V1.0
8
1 When the device is powered off, press and hold the power button for 2
seconds.And the device will boot into the Android operating system. It takes a
long time to initialize the device. Please wait patiently.
2 When the device is powered on, press and hold the power button for 2
seconds. The system will pop-up menu and display two options:”Power off”,
and “Restart”. Choose ”Power off”or “Restart”.
3 When the device is abnormal or unable to operate, press and hold the red
power button for more than 15 seconds to force restart the device.
Locking and Unlocking the device
Lock the device:Brief press the power button on the right side of device,if no
operation is performed on the device for a preset period of time,the device will
lock automatically.You can change how long it takes the device lock.
Unlock the device:Brief press the power button on the right side of device and
slide the screen upward.If no screen method is set,you can directly enter the
system interface.If the screen method is set,you need to enter an unlock
password or pattern to enter.
Unlocking method settings:settings->Security&location->Screen
lock,Choose the unlock method you need.

SD35 User guide V1.0
9
Note:If you select”pattern Unlock”,please pay attention to the prompts during
setting, whether you want to use the pattern to unlock when you turn on the
device, select "Yes", you need to use the pattern you set to unlock after
restarting the device.
*If you accidentally forget the unlock pattern or password,please contact
us.*

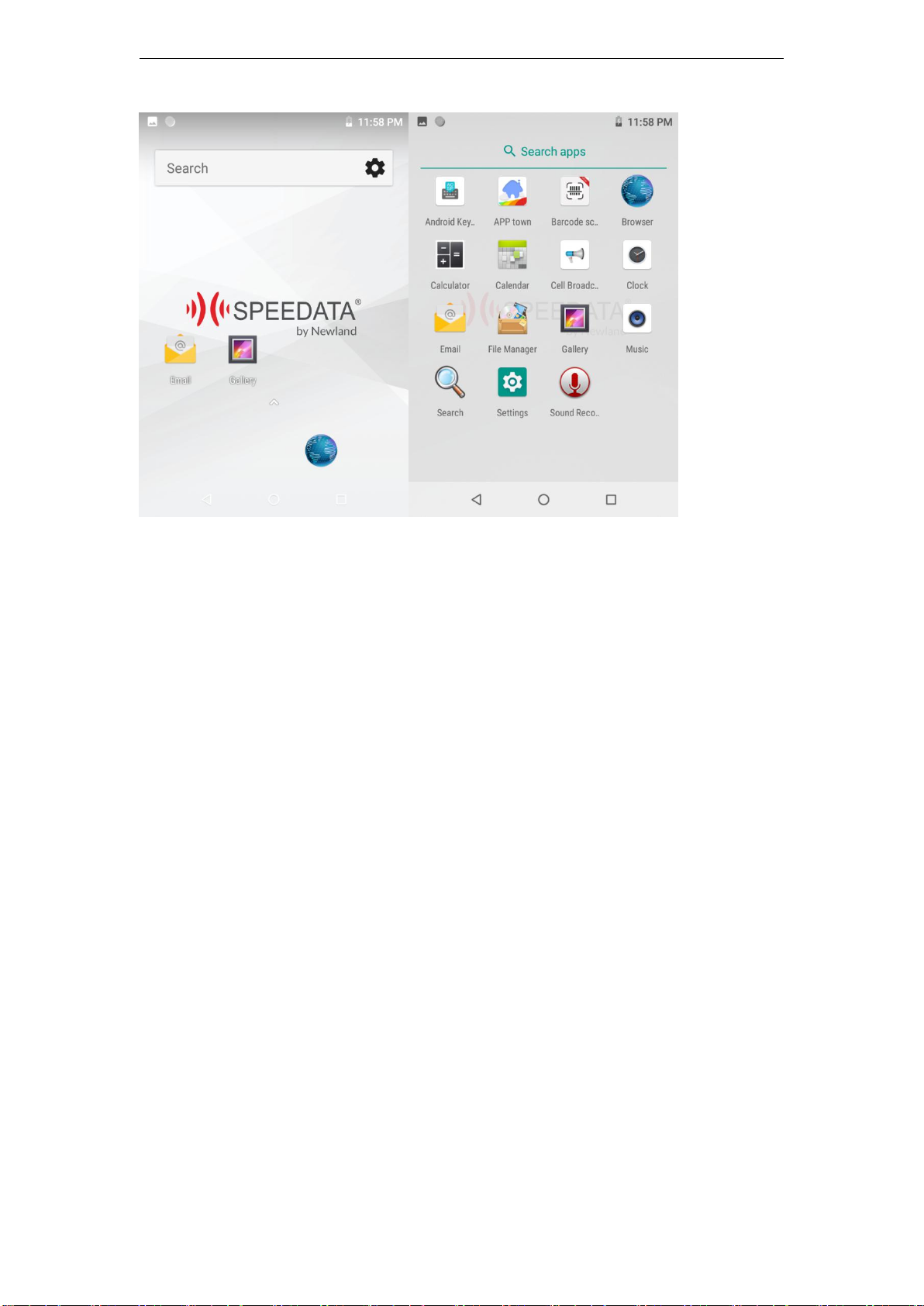

Home Screen
Swipe up anywhere on the main screen to enter the application drawer to view
all applications.

SD35 User guide V1.0
10
Open an app:Tap to open an app.
Add an app iron to the home screen:Swipe up on the main screen interface
to see all applications.Tap and hold your desired app and then drag it on the
home screen.
Installing App:Use one of the following methods to install a new app on the
device.
1 Download an APK file from APP town,and install it.(Only the programs
uploaded by us, the overseas version may not have this in the future, so it is
not recommended.)
2 Install third-party app stores yourself.
3 Connect device to PC with the supplied cable.The computer transfers the
application installation package to the device, then the device opens the file
manager to find the installation package and install it. (Note that the file suffix
is .apk, it can be installed directly.)
Uninstalling APP:Long press your desired APP iron,click “App info” to enter
the app info,then click uninstall.

SD35 User guide V1.0
11
Notification bar
Touch the top of the screen and swipe down to open the notification bar. You
can click the shortcut function icons to turn on and off the corresponding
functions such as WLAN, Bluetooth, etc. Unprocessed notification items can
be double-tap to expand, touch to view, or swipe left and right to remove.

SD35 User guide V1.0
12
Communicating with PC
1 Connect the USB port on the SD35 to your computer with included USB
cable.
2 Switch the device on,touch the top of the screen and swipe down to open the
notification bar as show below.
3 Tap “USB charging this device”,Then tap for more options.Then you may
handle the files on the terminal though your computer.
Brightness:adjust
brightness
Wi-Fi ：
connect
wifi
Click to enter
settings
Click to enter
Edit interface

SD35 User guide V1.0
13
Notification
bar:double-tap to
expend,touch to
view,swipe left and
right to remove
USB debugging
connected:connec
t USB to disable
USB debugging
mode
USB usage:Click to enter the USB usage selection
interface, select the corresponding mode according
to your needs

SD35 User guide V1.0
14
Screenshot
Press the device "power" and "volume-" buttons at the same time to take a
screenshot, or swipe down the screen to open the notification bar, and click the
screenshot icon to take a screenshot.

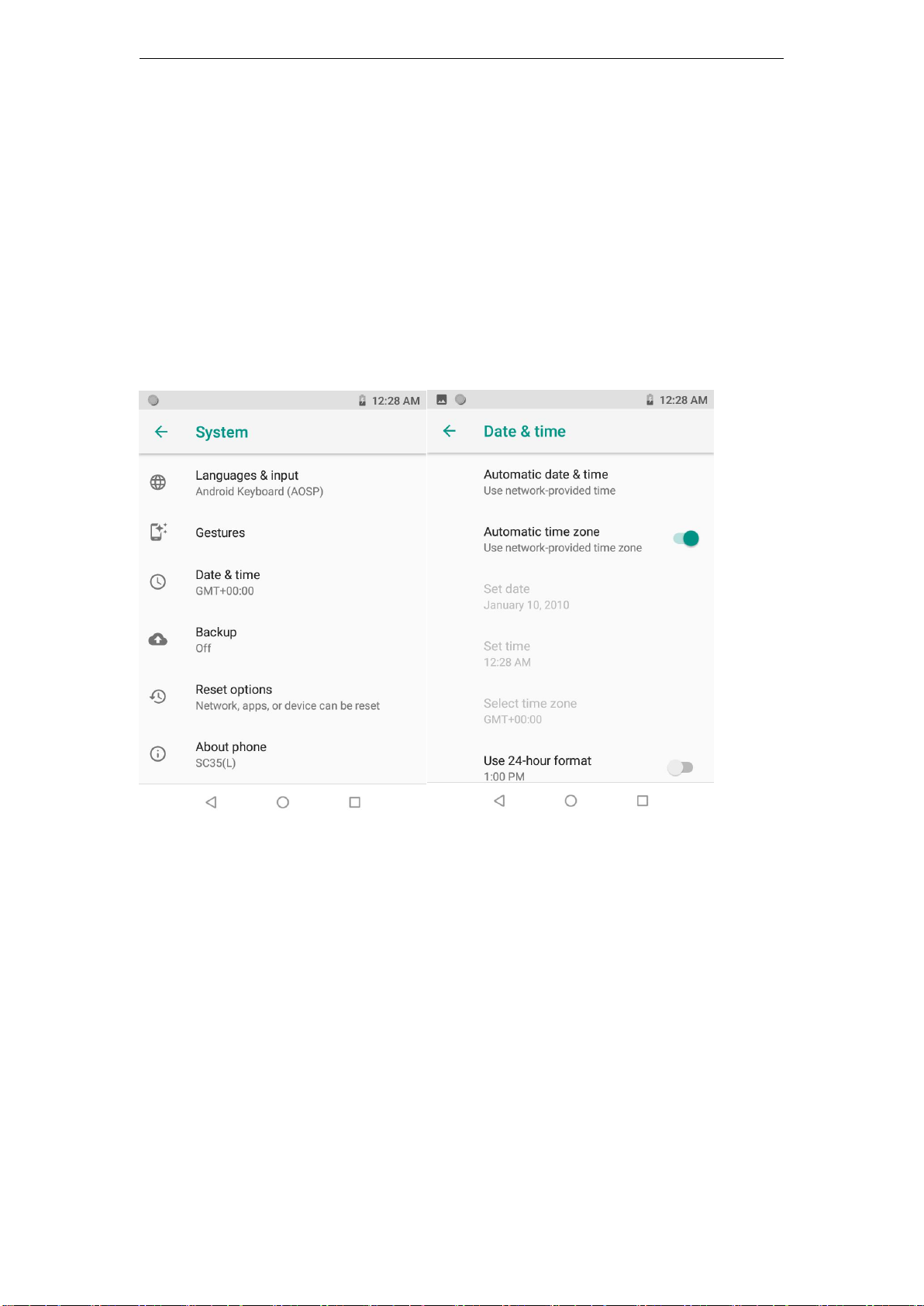

Date&time
Set the Date&time:Click Settings->System->Date&time.The time provided by
the network can be set as needed or the time zone can be set manually.

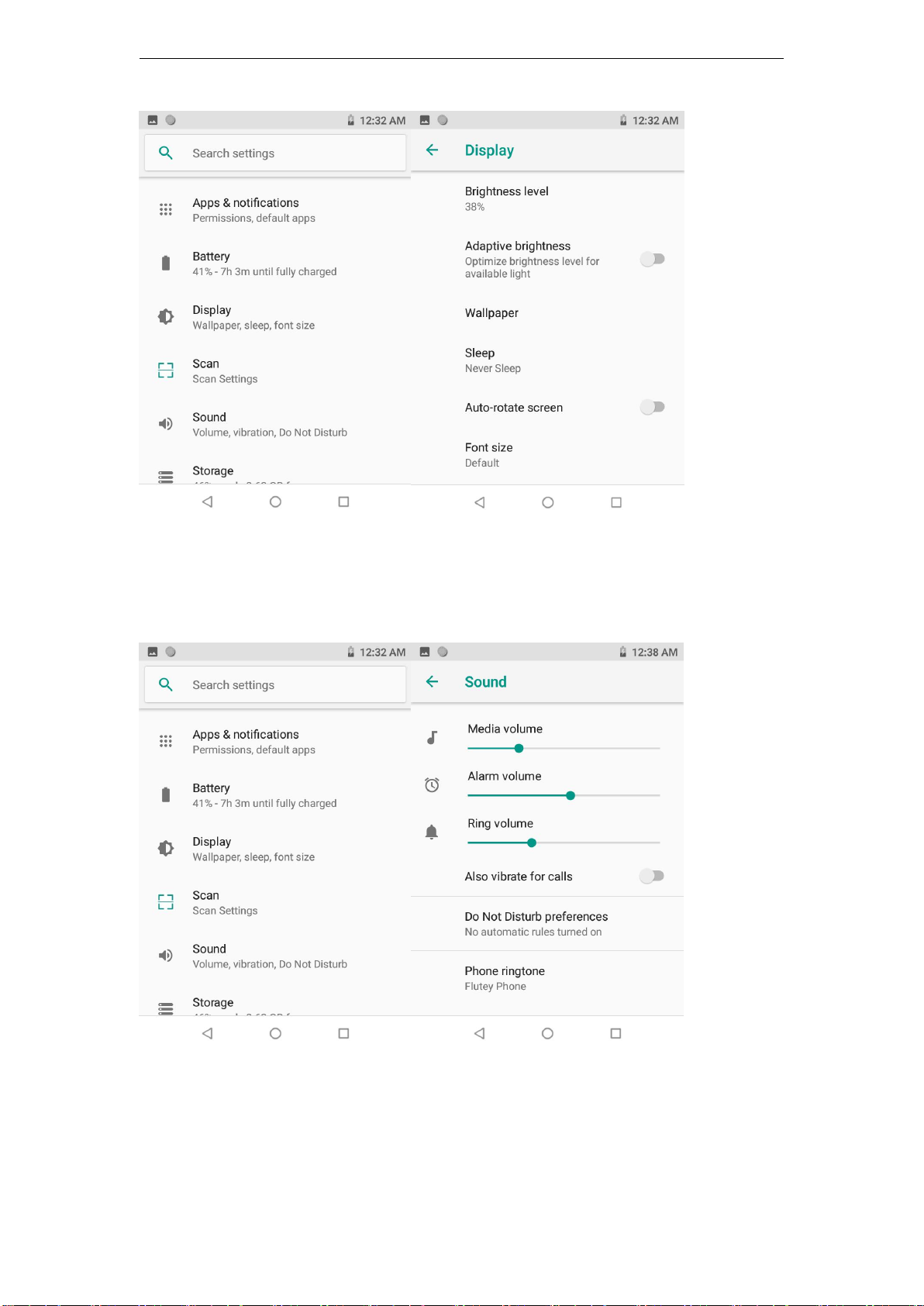

Display
Click settings->Display,Set the screen brightness, wallpaper, font size etc.
according to your needs.

SD35 User guide V1.0
15
Sound
Click settings->Sound,you can set the volume, call vibration, mobile phone
ringtone, etc. according to your needs.
Note:There is no sound during the use of the device, you can enter the
ringtone setting, check whether the volume setting is too low, and check
whether the "Do Not Disturb preferences" is turned on by mistake.

SD35 User guide V1.0
16
WIFI & Network
Connect to a Wi-Fi network
1 Swipe down from the status bar to open the notification panel.
2 Press to enter the WLAN settings interface.
3 Turn on the WLAN switch. The system will list the detected WLAN networks
in tabular form.
4 Click on the WLAN network to connect. If you have selected an encrypted
network, you need to enter an access password connection.
Connect mobile data networks
1 Swipe down from the status bar to open the notification panel.
2 Click to open mobile data network.
3 When you do not use a mobile network, please turn off the mobile data
service in time to save data traffic and extend standby time.
Change default language
1 The default display language of the system is English. After the factory
settings or firmware upgrade, the system display language is restored to
English.
2Click Settings，Click System > Languages & input > Languages > + Add a language,
Select the language you want to add. Drag ,drag the language you want to
change to the top, and the change is complete.

SD35 User guide V1.0
17
Barcode Scanning
Basic Settings
Click "Settings"-"Scan" to enter the scan settings.
Scan engine on/off:Turn on / off the barcode scanning function.
Out to Cursor:Results of scanned barcode displayed at focus.
Scan Sound:After the barcode scanning is finished, the tone will sound.
Scan Vibrate:Vibration alert after barcode scanning.
Save Image:Save the barcode picture to album.
Scan mode:The device has a built-in three-minute scan mode. Select the fast
scan mode you are used to. It needs to be turned on and off to enable the
scan.
A,Long-press continuous scan: In this mode, press and hold the scan button to
turn on the scan laser, release it to automatically turn off the scan laser, and if
the barcode is successfully scanned when the scan button is pressed, the scan
laser is turned on repeatedly.
B,Single scan: In this mode, press the scan button to turn on the scan laser. If a
barcode is successfully scanned, the scan laser will automatically turn off. If no
barcode is scanned within 10 seconds, the scan laser will automatically turn off,
or press the scan button 1 second, the release laser is automatically turned off.
C,One-click continuous scan: In this mode, press the scan button to turn on the
scanning laser. After the barcode is successfully scanned, the scanning light
will not turn off, and continuous scanning will be excited. Press the scan button
again to turn off the scanning laser.
Continuous Scan Internal:Setting the continuous Scan Internal(ms).
Attached key value: Special keys are added after the barcode output, such as

SD35 User guide V1.0
18
"Enter" and "Line Feed".
Add custom prefix: add custom characters, numbers, letters, etc. before the
barcode output (add "#" for demonstration)
Add a custom suffix: add custom characters, numbers, letters, etc. after the
barcode output (add "#" for demonstration)
Code setting:Configure the barcode parameters of one-dimensional and
two-dimensional code.
With enter key
With table key
No addition
Add prefix
Add suffix

SD35 User guide V1.0
19
Choose code-1d-EAN-13-Enable
such as the scan result after scanning "EAN-13" barcode, one less.
You can select "EAN-13" type, enable "Check transmit Digit", and scan later
the results show normal.
Example1:EAN-13 barcode:6456813472345;When the "Check transmit
Digit"not enabled,the result show 645681347234 ;and when the "Check
transmit Digit" is enable,the result show 64566813472345 .

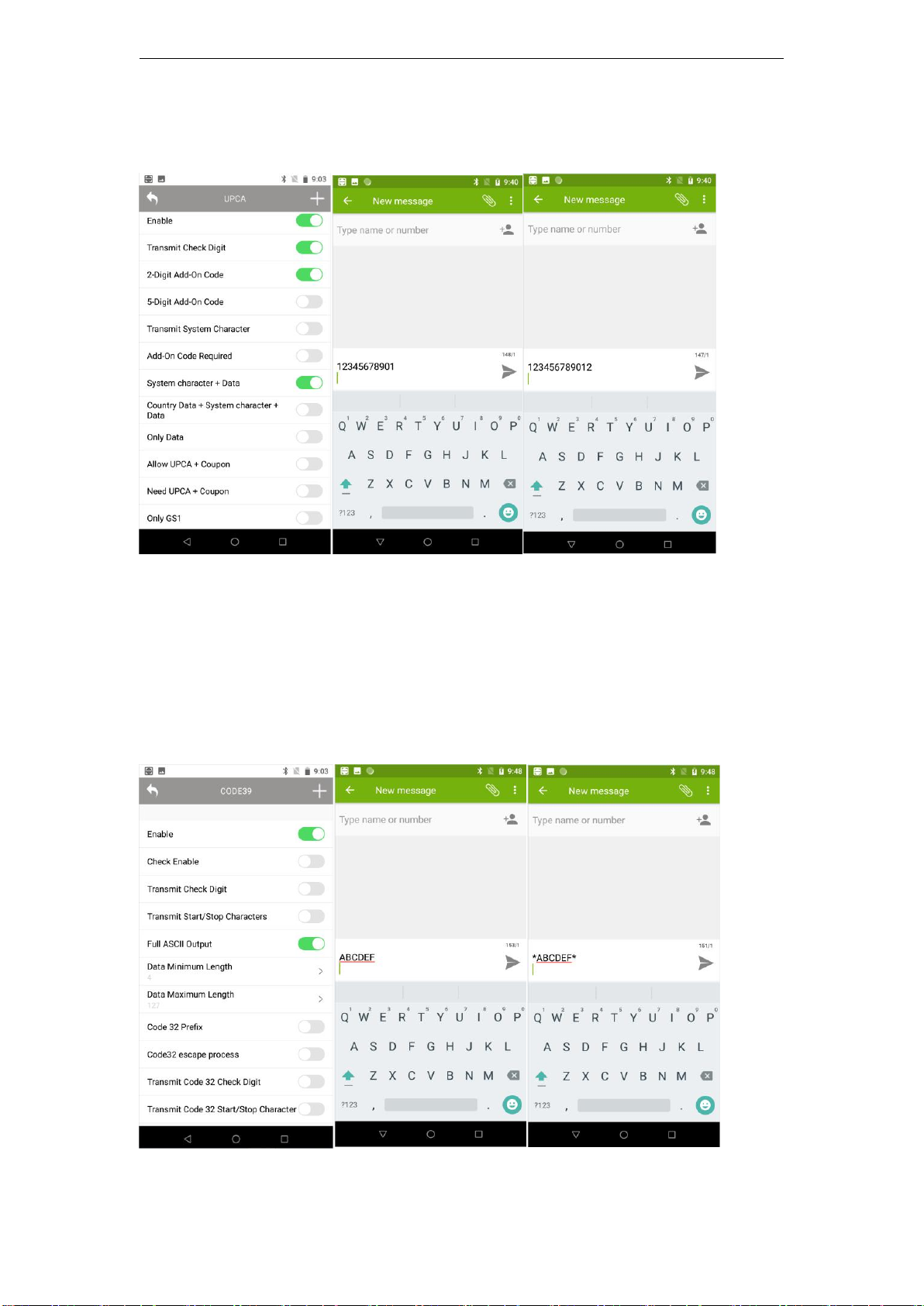

Choose code-1d-UPC-A-Enable
such as the scan result after scanning "UPC-A" barcode, one less.
You can select "UPC-A" type, enable "Check transmit Digit", and scan later the
results show normal.
Example1:UPC-A barcode:123456789012;When the "Check transmit Digit"not

SD35 User guide V1.0
20
enabled,the result show 12345678901,and when the "Check transmit Digit" is
enable,the result show 123456789012.
Choose code-1d-Code39-Enable
such as the scan result after scanning "Code39" barcode, one less.
You can select "Code39" type, enable "Transmit Start/Stop Characters ", and
scan later the results show normal.
Example1:Code39 barcode:ABCDEF;When the "Transmit Start/Stop
Characters "is not enabled,the result show *ABCDEF*,and When the "Transmit
Start/Stop Characters "is enabled,the result show ABCDEF.
