Newland NLS-FM200 User manual

NLS-FM200
Mobile 2D Barcode Scanner
User Guide
Latest:20081015

nlscan.com Page II
目录
About This Reference 1
Introduction 1
Graphic Emphasis 1
Chapter Description 1
Getting Start 2
Introduction 2
Familiar with FM200 3
Unpacking 3
Outline 3
Cable Slot 4
Specifivations 5
Connect FM200 & Host 6
Communication Ports 6
Install USB Cable 7
Install RS232 Cable 8
ON, OFF, IDLE, RESTART 9
Power On 9
Power Off 9
IDLE Mode 9
RESTART 9
Programming Outline 10
Introduction 10
Code Programming 10
Command Programming 11
Reading 12
Illumination 13
Aiming 14
Reading Mode 15
Mode Selection 15
Sensor Mode Timeout 15
Sensor Mode Sensitivity 16
Reading Stance 17
Constrain Multi-reading 18
Default 19
Factory Default 19
User Default 19
Beep 20
Beep Denotation 20
Program Beeper 20
System Information 21
The system information is provided in such format 21
Maintenance 22
Maintenance 22

nlscan.com Page III
USB Interface 23
Introduction 23
USB HID-KBW 24
USB Country Keyboard Types 25
USB Country Keyboard Types 26
Unknown Characters, Beep 27
Function Key Mapping 29
ASCII Function Key Mapping Table 30
Keystroke Delay 31
CAPS Lock Override 31
Convert Case 32
Emulate Numeric Keypad 33
USB DataPipe 34
USB Visual RS232 35
RS232 Interface 36
Inteuduction 36
Baud Rate 37
Parity Check 38
Data Bits Transmitted 39
Stop Bits 40
Introduction 41
Symbologies Selections 41
Symbologies 41
General Options 42
Prohibit Reading All 42
Allow Reading All 42
Allow Reading All 1D 42
Prohibit Reading All 1D 42
Allow Reading All 2D 42
Prohibit Reading All 2D 42
Code 128 43
Load Factory Default 43
Read/Abort Code 128 43
Check Digit 43
Select Message Length 44
UCC/EAN-8 45
Load Factory Default 45
Read/Abort UCC/EAN-8 45
Check Byte 45
2 Digits Addenda Code 46
5 Digits Addenda Code 46
EAN-8 expand to EAN-13 47
EAN-13 48
Load Factory Default 48
Read/Abort EAN-13 48
Check Byte 48

nlscan.com Page IV
2 Digits Addenda Code 49
5 Digits Addenda Code 49
UPC-E 50
Load Factory Default 50
Read/Abort UPC-E 50
Check Byte 50
Transmit First ‘0’Selections 52
Extend To UPC-A Selections 52
UPC-A 53
Load Factory Default 53
Read/Abort UPC-A 53
Check Byte 53
2 Digits Addenda Code 54
5 Digits Addenda Code 54
Transmit Selections 55
Interleaved 2 of 5 56
Load Factory Default 56
Read/Abort Interleaved 2 of 5 56
Select Message Length 57
Check Byte 58
Fixed Length Selection 59
ITF-14 60
ITF-6 61
China Post 25 62
Load Factory Default 62
Read/Abort China Post 25 62
Select Message Length 63
Check Byte 64
Code 39 65
Load Factory Default 65
Read/Abort Code 39 65
Transmit Start & Stop Character. 65
Select Message Length 66
Check Byte 67
Decode ASCII 68
Codabar 69
Load Factory Default 69
Read/Abort Codabar 69
Transmit Start & Stop Character 69
Select Message Length 70
Check Byte 71
Code 93 72
Load Factory Default 72
Read/Abort Code 93 72
Select Message Length 73
Check Byte 74
UCC/EAN-128 75
Load Factory Default 75

nlscan.com Page V
Read/Abort UCC/EAN-128 75
PDF417 76
Load Factory Default 76
Read/Abort PDF417 76
Select Message Length 77
QR Code 78
Load Factory Default 78
Read/Abort QR Code 78
Select Message Length 79
QR Twin Code 80
Aztec Code 81
Load Factory Default 81
Read/Abort Aztec Code 81
Select Message Length 82
Multi-Barcode Processing feature 83
Data Matrix 84
Load Factory Default 84
Read/Abort Data Matrix 84
Select Message Length 85
Data Matrix Twin Code 86
Chinese-Sensible Code 87
Load Factory Default 87
Read/Abort Chinese-Sensible Code 87
Select Message Length 88
OCR Selections 89
Inrtuducation 89
Prefix/Suffix 90
Intruducation 90
General Programming 91
Prohibit or Allow Prefix/Suffix 91
Prefix Sequences 91
User Prefix 92
Prohibit or Allow User Prefix 92
Program User Prefix 92
AIM Prefix 93
Code ID Prefix 94
Code ID Prefix 94
Code ID Default 94
Modify Code ID 95
8.4 User Suffix 97
Prohibit or Allow User Suffix 97
Program User Suffix 97
Stop Prefix 98
Prohibit or Allow Stop Suffix 98
Program Stop Suffix 98

nlscan.com Page VI
Message Intersect & Pack 99
Introducation 99
Message Intersect 100
introduction 100
1D, Program Intersect Option 101
How to clear a certain 1D barcode Intersection Setting? 101
Message Intersect 102
2D, Program Intersect Option 102
How to clear a certain 2D barcode Intersection Setting? 102
Symbologies ID Number：103
Message Pack 104
Introduction 104
Normal Pack 104
ESC_Bank Pack 105
ESC_AddLen Pack 106
Batch Programming 107
Itruducation 107
Appendix 108
Digit Code 108
Save and Abort 109

nlscan.com Page 1
Introduction
This product reference introduces a Newland Auto-ID Image product —NLS-
FM200 (ab. " FM200").
Graphic Emphasis
TOOL, facilitate use of the manual
ATTENTION, be aware & read through
E.g., help understand a certain operation.
TIPS, help understand better.
Chapter Description
About This Reference

nlscan.com Page 2
Getting Start
Introduction
FM200 is an omnidirectional Imager to capture, decode and transfer 1D & 2D
barcode. Newland Auto-ID patented UIMG™ technology ensure its fast and accurate
performance, and thus provide the best value.
It works at hand-held and hands-free modes in a stand. The ergonomic design
allows comfort and easy use.
Chapter One presents a holistic picture of how to use and step-by-step manner
guide. Please have a FM200 and a stand on hand.
This chapter is recommended to general users, maintenance staff and software
programmers.

Getting Start
nlscan.com Page 3
Unpacking
Unpack FM200 and accessories. Check with the packing list to make sure that there is none damaged or missing.
If any, please keep the original package and contact your supplier for services.
Outline
Familiar with FM200

nlscan.com Page 4
Getting Start

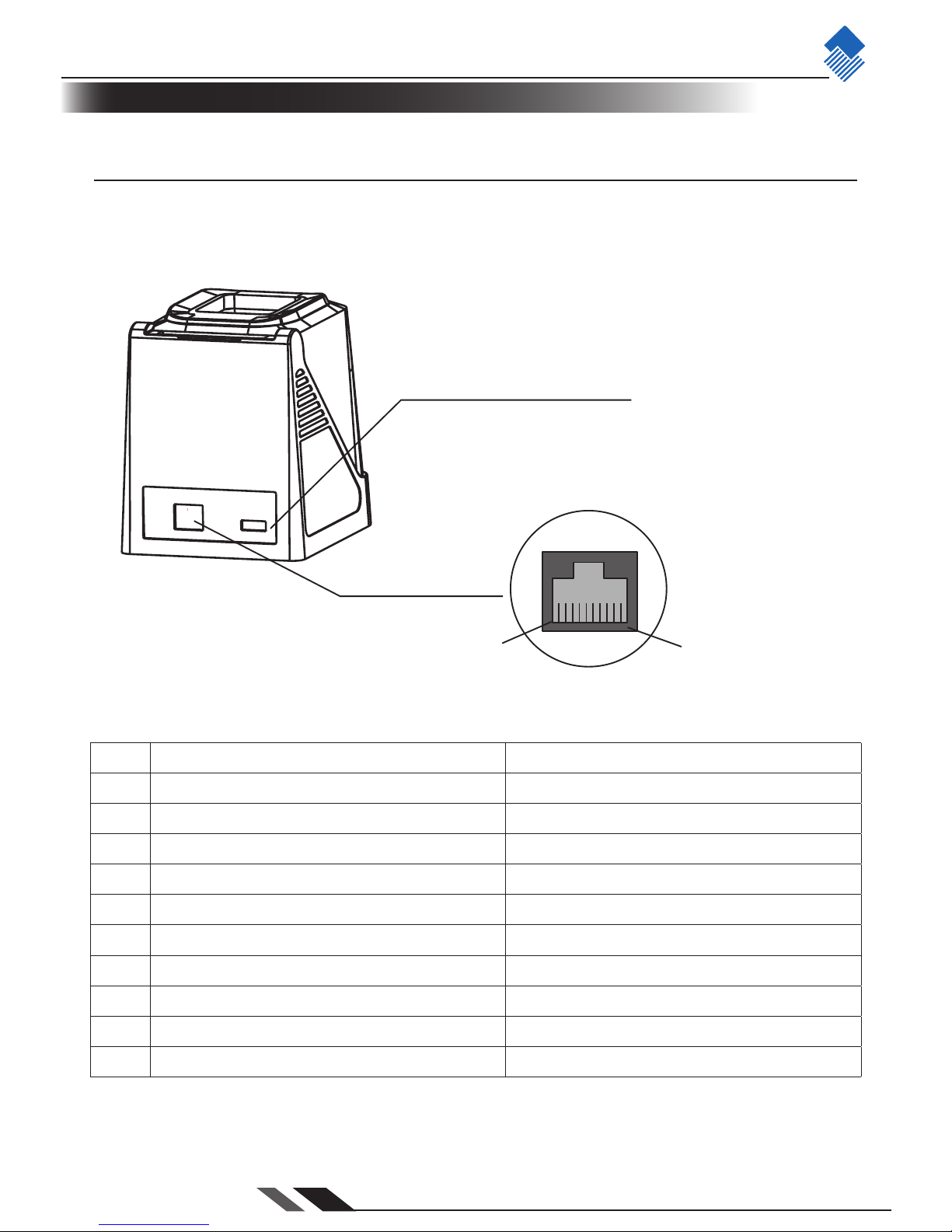

RS 232 Port
Cable Slot
PIN Functions I/O
1 GND
2 VIN
3 VIN
4 RS232 - TXD OUT
5 RS232 - RXD IN
6 RS232 - CTS IN
7 RS232 - RTS OUT
8 GND
9 USBC_D-
10 USBC_D+
PIN 1
PIN 10
Familiar with FM200
USB Port

Getting Start
nlscan.com Page 5
Specifivations
Performance
Image Sensor CMOS
Resolving 640 * 480
2D
PDF417, QR Code(Model 1/2), DataMatrix(ECC200, ECC000, 050, 080, 100,140),
Aztec, Chinese Information Code, etc.
1D
Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25,
Interleaved 2 of 5, ISBN/ISSN, Code 93, etc.
Precision ≥ 3mil
Light Source LED(622 nm - 628 nm)
Light Intensity 290 LUX (130 mm )
Depth of Scan Field 0 mm ~ 450 mm
Print Contrast Signal ≥ 25%
Roll 360°
Pitch 45°
Yaw 45°
Illumination 0 ~ 100,000 LUX
Electricals
Power Consumption 2 W
Voltage DC 5 V
Current
Max 400 mA
Working 300 mA
Idle 1 mA
Weight 250 g
Environment
Operate Temperature -5℃- +45℃
Storage Temperature -40℃- +60℃
Humidity 5% - 95%(non-condensing)
Programming Software QuickSet
Certification FCC Part15 Class B, CE EMC Class B

nlscan.com Page 6
Getting Start
Communication Ports
FM200, An imager, Must connect with a Host to perform. A Host can be PC, POS. Or any intelligent terminal
with supported communication ports.
US 1. B ：
USB port on host：
RS23 2. 2 ：
RS232 port on host：
Please check available ports to order appropriate cable fitted.
Connect FM200 & Host
Performance
Image Sensor CMOS
Resolving 640 * 480
2D
PDF417, QR Code(Model 1/2), DataMatrix(ECC200, ECC000, 050, 080, 100,140),
Aztec, Chinese Information Code, etc.
1D
Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25,
Interleaved 2 of 5, ISBN/ISSN, Code 93, etc.
Precision ≥ 3mil
Light Source LED(622 nm - 628 nm)
Light Intensity 290 LUX (130 mm )
Depth of Scan Field 0 mm ~ 450 mm
Print Contrast Signal ≥ 25%
Roll 360°
Pitch 45°
Yaw 45°
Illumination 0 ~ 100,000 LUX
Electricals
Power Consumption 2 W
Voltage DC 5 V
Current
Max 400 mA
Working 300 mA
Idle 1 mA
Weight 250 g
Environment
Operate Temperature -5℃- +45℃
Storage Temperature -40℃- +60℃
Humidity 5% - 95%(non-condensing)
Programming Software QuickSet
Certification FCC Part15 Class B, CE EMC Class B

Getting Start
nlscan.com Page 7
Install USB Cable
Insert USB Cable (RJ45 male head) into cable slot (HR200);1.
Insert USB Cable (USB male head) into USB slot (Host female slot);2.
Switch ON and perform;3.
You may need to install driver into the host to perform; See USB Interface4.
Connect FM200 & Host

nlscan.com Page 8
Getting Start
Install RS232 Cable
Connect FM200 & Host
Insert RS232 cable (RJ 45 male head) into cable slot (HR200);1.
Insert RS232 cable (RS232 male head) into RS232 slot (Host female slot);2.
Connect RS232 cable and the mains with power adapter;3.
Switch ON and perform4.

Getting Start
nlscan.com Page 9
Power On
Connect FM200 and Host. FM200 will power on and in "Idle" status (factory default).
Communication Programming, Reading and User Preference Programming can be progressed when power ON.
Power Off
4 ways to "Power OFF":
Remove Cable Off HR200;
»
Remove Power Adapter Off RS232 Cable;»
Remove USB Cable Off the Host;»
Remove PS/2 cable off the Host»
IDLE Mode
When Imager is NOT reading, it is in "IDLE mode".
No reading attempt within a timeout, the Imager switch to IDLE mode automatically.
RESTART
If FM200 halted and does not respond to operations, please "Restart" by "Power OFF", and then "Power ON".
ON, OFF, IDLE, RESTART

nlscan.com Page 10
Getting Start
Programming Outline
Introduction
There are 3 ways to program user options:
Code Programming: special encoded barcodes to work on "read & set options" base;1.
Command Programming: a ASCII string, the Imager received from data cable as commands to set options;2.
QuickSet：a programming software exclusively use by Newland Auto-ID products. It displays decoded data3.
and images captured. Programming work on "choose & set options" base from dialog windows.

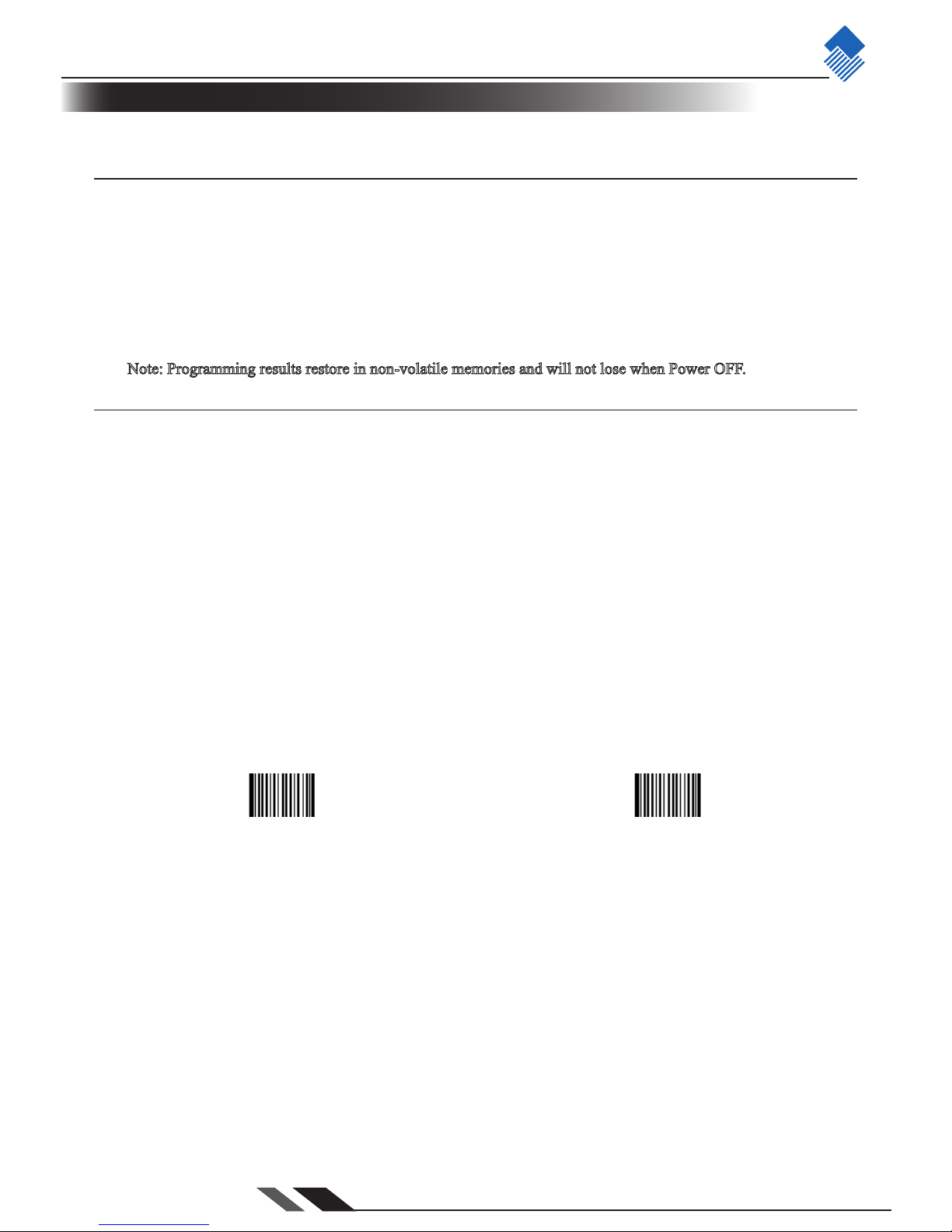

Note: Programming results restore in non-volatile memories and will not lose when Power OFF.
Code Programming
Please read "Code Programming ON" bar to activate "Code Programming" function. More than one
programming code can be read at a time allows various programming. Terminate code programming function by
reading "Code Programming OFF", or by reading an ordinary barcode.
Some code programming may use digits. They can be "input" by reading relevant codes See Appendix for digit
codes.
** Code Programming OFF
【Pro CMD：0006000】
Code Programming ON
【Pro CMD：0006010】

Getting Start
nlscan.com Page 11
Programming Outline
Command Programming
The Programming Command (Pro CMD) pairs a unique Programming Code. Sending commands to the Imager
is identical with Code Programming. A full command is formed by [Start Symbol "nls" + Pro CMD = Parameters].
There are 4 ways to program a command:
"nls" + Pro CMD1.
E.g. [nls0100060], set RS232 transmit Baud Rate to 38400bps
"nls" + Pro CMD = Decimal Parameter2.
It is used to define parameter, such as Min Message Length.
E.g. [nls0312040=10], select Sensor Mode Sensitivity to be 10
"nls" + Pro CMD = Hex Parameter3.
It is used to program Prefix, Suffix, Stop Bits, CodeID, Message Length, and Message Intersection.
E.g. [nls0310000=0x0d0a], program Suffix to be CR/LF
"nls" + Pro CMD = "Parameter"4.
Letters, digits and characters can be embraced by quotation mark as parameter.
E.g. [nls0300000="AUTO-ID"], program Prefix to be AUTO-ID

nlscan.com Page 12
Getting Start
Reading
The “Sensor Mode”or “Continuous Mode”should be selected. See “Reading Mode”for details.
Because FM200 does not have a manual trigger, and it is a fix mount reader.
Mobile phone screen should be facing the scan window for the optimum reading stance.

Getting Start
nlscan.com Page 13
Code Programming ON
Code Programming OFF
Tools
Illumination LED lighting up barcodes is used to capture better images. There are 4
options:
“Illumination Wink”: LED keep flashing when reading
»
“Illumination Keep ON”: LED keep on when Power ON»
“Illumination Read ON”: LED keep on when reading»
“Illumination OFF”: LED is off all the time»
** Illumination Wink
【Pro CMD：0200000】
Illumination Read ON
【Pro CMD：0200030】
Illumination Keep ON
【Pro CMD：0200010】
Illumination OFF
【Pro CMD：0200020】
Illumination

nlscan.com Page 14
Getting Start
Code Programming ON
Code Programming OFF
Tools
Aiming
** Aim Wink
【Pro CMD：0201000】
Smart Aim
【Pro CMD：0201030】
Aim Keep ON
【Pro CMD：0201010】
Aim OFF
【Pro CMD：0201020】
Aiming LED focusing with a cross is used to allocate the Optimum Reading Stance.
There are 4 options:
“Aim Wink”: LED keep flashing when reading
»
“Aim Keep ON”: LED keep on when Power ON»
“Smart Aim”: LED keep on when idle, and keep on when reading. Reading Mode»
automatically switches to “Sensor Mode”when “Smart Aim”is chosen.
“Aim OFF”: LED is off all the time
»
