Newport INFINITY INFCR User manual

INFCR
INFINITY¨C Programmable Digital
RTD Meter
OperatorÕs Manual
®
NEWPORT Electronics, Inc.
Made in the USA
®

Counters
Frequency Meters
PID Controllers
Clock/Timers
Printers
Process Meters
On/Off
Controllers
Recorders
Relative
Humidity
Transmitters
Thermocouples
Thermistors
Wire
Rate Meters
Timers
Totalizers
Strain Gauge
Meters
Voltmeters
Multimeters
Soldering Iron
Testers
pH pens
pH Controllers
pH Electrodes
RTDs
Thermowells
Flow Sensors
For Immediate Assistance
In the U.S.A. and Canada: 1-800-NEWPORT
¨
In Mexico: (95) 800-NEWPORT
SM
Or call your local NEWPORT Office.
Internet e-mail
[email protected]
Additional products from
NEWPORTnetSM On-Line Service
http://www.newportUS.com
®
NEWPORT Electronics, Inc.
It is the policy of NEWPORT to comply with all worldwide safety and EMC/EMI regulations that apply. NEWPORT is
constantly pursuing certification of its products to the European New Approach Directives. NEWPORT will add the CE mark
to every appropriate device upon certification.
The information contained in this document is believed to be correct but NEWPORT Electronics, Inc. accepts no liability for
any errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, patient connected applications.
Trademark Notice:
, , , , , and are trademarks of
NEWPORT Electronics, Inc.
PATENT NOTICE: The ÒMeter Case Bezel DesignÓ is a trademark of NEWPORT Electronics, Inc., registered in the U.S..
This product is covered by one or more of the following patents: U.S. Pat. No. Des. 336,895; 5,274,577 / CANADA
2052599; 2052600 / ITALY 1249456; 1250938 / FRANCE BREVET No. 91 12756 / SPAIN 2039150; 2048066 / UK PATENT
No. GB2 249 837; GB2 248 954 / GERMANY DE 41 34398 C2. OTHER INTERNATIONAL PATENTS PENDING.
!This device is marked with the international caution symbol. It is important to read the Setup Guide before installing or commissioning this device as it contains important information relating to safety and EMC.
®
NEWPORT
®
NEWPORT
®

i
PREFACE
Manual Objectives
This manual shows you how to set up and use the Programmable Digital RTD Meter.
Standard Procedures:
* Checking voltage jumpers, or changing voltage power
* Mounting the panel
* Selecting the input type
* Selecting a decimal point position
* Setting the setpoint's active band
* Selecting a latched or unlatched operation
* Setting setpoint deadbands
* Enabling/disabling setpoint changes
* Enabling/disabling the RESET button in the run mode
Optional Procedures:
* Setting input resolution
* Enabling/disabling analog output
* Selecting analog output as current or voltage
* Selecting analog output or proportional control
* Selecting proportional band
* Using manual reset (offsetting setpoint errors)
* Scaling analog output

Table of Contents
Section Page
1. INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.1 UNPACKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.2 SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2. ABOUT THE METER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2.1 DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2.2 STANDARD FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2.3 AVAILABLE ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2.4 FRONT OF THE METER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2.5 REAR OF THE METER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2.6 CONDITIONS REQUIRING DISASSEMBLY . . . . . . . . . . . . . . . . . . . .10
3. GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.1 RATING/PRODUCT LABEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.2 MAIN BOARD POWER JUMPERS . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.3 PANEL MOUNTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
3.4 CONNECTING SENSOR INPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
3.5 CONNECTING MAIN POWER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
3.6 ANALOG AND RELAY OUTPUT CONNECTIONS . . . . . . . . . . . . . . . .17
4. CONFIGURING THE METER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
4.1 SELECTING THE INPUT TYPE (INPT) . . . . . . . . . . . . . . . . . . . . . . . .19
4.2 DECIMAL POINT POSITION (DEC.P) . . . . . . . . . . . . . . . . . . . . . . . . .19
4.3 READING CONFIGURATION ("RD.CF") . . . . . . . . . . . . . . . . . . . . . . .20
4.4 SETPOINT 1 CONFIGURATION (S1.CF) . . . . . . . . . . . . . . . . . . . . . .20
4.5 SETPOINT 2 CONFIGURATION (S2.CF) . . . . . . . . . . . . . . . . . . . . . .21
4.6 SETPOINT 1 DEADBAND (S1.DB) . . . . . . . . . . . . . . . . . . . . . . . . . . .21
4.7 SETPOINT 2 DEADBAND (S2.DB) . . . . . . . . . . . . . . . . . . . . . . . . . . .22
ii

Table of Contents
4.8 OUTPUT CONFIGURATION (OT.CF) . . . . . . . . . . . . . . . . . . . . . . . . .22
4.8.1 To Enable or Disable The Analog Output . . . . . . . . . . . . . . . . . .22
4.8.2 To Select Analog Output as Current or Voltage . . . . . . . . . . . . . .23
4.8.3 To Select Analog Output or Proportional Control . . . . . . . . . . . .23
4.9 PROPORTIONAL BAND (P.BND) . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
4.10 MANUAL RESET (M.RST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
4.11 OUTPUT SCALE AND OFFSET (OT.S.O) . . . . . . . . . . . . . . . . . . . . .26
4.12 LOCK OUT CONFIGURATION (LK.CF) . . . . . . . . . . . . . . . . . . . . . . .28
4.12.1 To Enable or Disable Setpoint Changes . . . . . . . . . . . . . . . . . .28
4.12.2 To Enable or Disable the RESET button in the Run Mode . . . .28
4.12.3 To Enable DisplayÕs Program Version . . . . . . . . . . . . . . . . . . . .28
4.13 RTDTEMPERATURE OFFSET. (T.OFF) . . . . . . . . . . . . . . . . . . . . . .29
4.14 TUNING PROPORTIONAL CONTROLLER . . . . . . . . . . . . . . . . . . . .29
5. DISPLAY MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
6. MENU CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
7. SETPOINT CONFIGURATION DISPLAYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
8. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
9. FACTORY PRESET VALUES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
iii

Table of Contents
List of Figures
Figure Page
Figure 2-1. Front-Panel Illustration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Figure 2-2. ac Connector Label Version 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Figure 3-1. Main Board Power Jumpers (W1, W2, W3) . . . . . . . . . . . . . . . . . . . . .11
Figure 3-2. Main Board Jumper Positions (6 S2 Pins) . . . . . . . . . . . . . . . . . . . . . .12
Figure 3-3. Upper Option Board Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Figure 3-4. Meter - Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Figure 3-5. Panel Cut-Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Figure 3-6. 2-Wire RTD Input Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Figure 3-7. 3-Wire RTD Input Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Figure 3-8. 4-Wire RTD Input connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Figure 3-9. Main Power Connections - ac . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Figure 3-10. Main Power Connections - DC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Figure 3-11. Analog Output Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Figure 3-12. Relay Output Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Figure 3-13. Isolated Analog Output Connections. . . . . . . . . . . . . . . . . . . . . . . . . .18
Figure 4.1 Proportional Band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Figure 8-1. Meter Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
List of Tables
Table Page
Table 2-1. Accessories and Add-Ons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

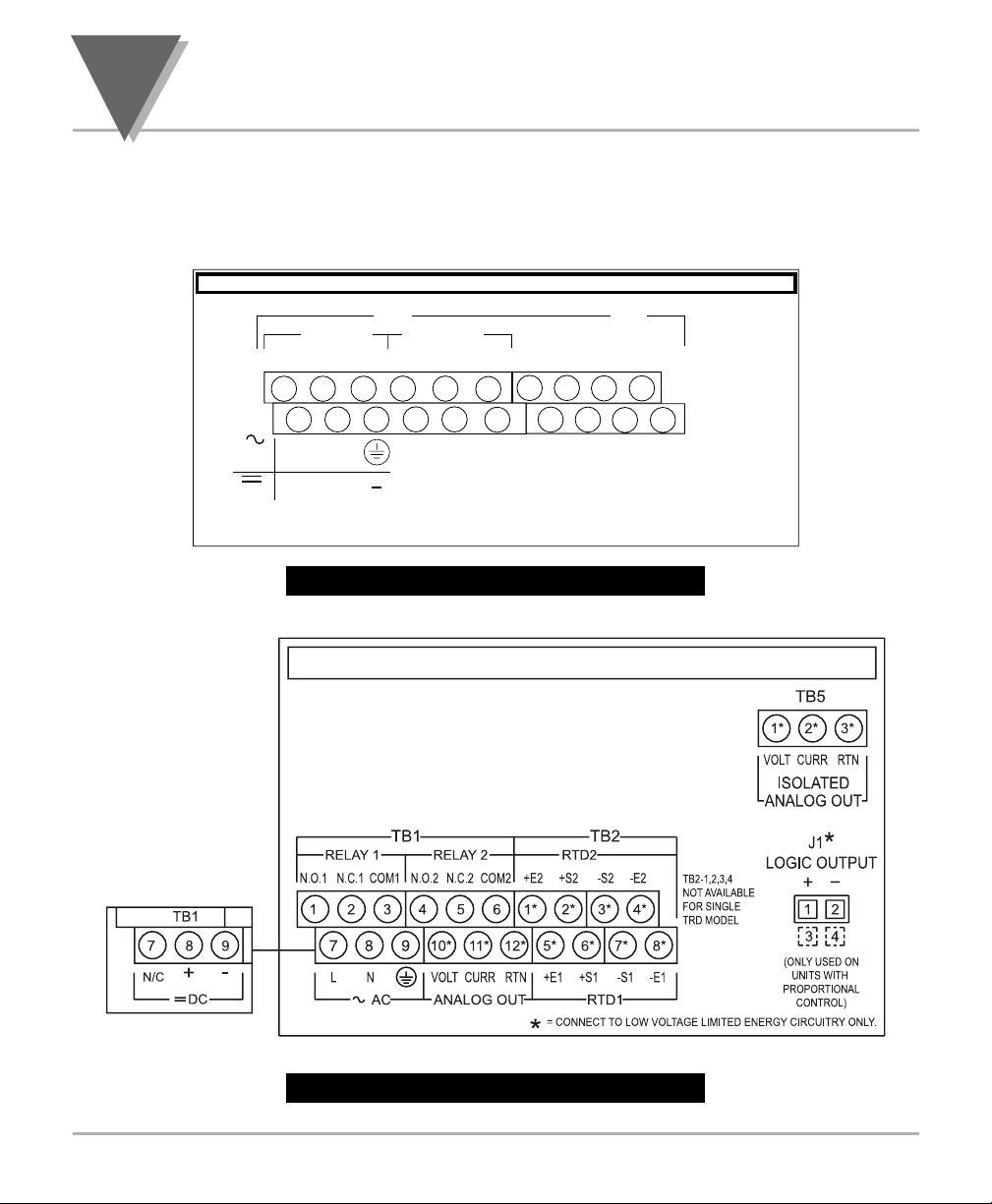

Table 2-2. Rear Connector Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Table 3-1. S3 Jumper Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Table 3-2. AC Power Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Table 5-1. Display Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Table 6-1. Menu Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Table 6-2. Front Panel Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Table 6-3. Run Mode Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Table 7-1. Setpoint Configuration Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Table 9-1. Factory Preset Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
iv

v
Table of Contents
NOTES, WARNINGS and CAUTIONS
Information that is especially important to note is identified by these labels:
¥ NOTE
¥ WARNING
¥ CAUTION
¥ IMPORTANT
NOTE: provides you with information that is important to successfully setup and use
the Programmable Digital Meter.
CAUTION or WARNING: tells you about the risk of electric shock.
CAUTION, WARNING or IMPORTANT: tells you of circumstances or practices that
can effect the meter's functionality and must refer to accompanying documents.
Note
☞

SECTION 1. INTRODUCTION
1.1 UNPACKING
Remove the Packing List and verify that all equipment has been received. If there are any
questions about the shipment, use the phone numbers listed on the back cover to contact the
Customer Service Department nearest you.
Upon receipt of shipment, inspect the container and equipment for any signs of damage. Take
particular note of any evidence of rough handling in transit. Immediately report any damage to
the shipping agent.
The carrier will not honor any claims unless all shipping material is saved for their
examination. After examining and removing contents, save packing material and
carton in the event reshipment is necessary.
Verify that you receive the following items in the shipping box:
QTY DESCRIPTION
1 Indicator/controller with all applicable connectors attached.
1 Owner's Manual
1 Set Mounting brackets
1 QuickStart Manual
If you ordered any of the available options (except the "BL" Blank Lens option), they
will be shipped in a separate container to avoid any damage to your
indicator/controller.
1
1
Note
☞
Note
☞

1Introduction
1.2 SAFETY CONSIDERATIONS
This device is marked with the international caution symbol. It is important to read this
manual before installing or commissioning this device as it contains important
information relating to Safety and EMC (Electromagnetic Compatibility).
Unpacking & Inspection
Unpack the instrument and inspect for obvious shipping damage. Do not attempt to
operate the unit if damage is found.
This instrument is a panel mount device protected in accordance with Class I of
EN 61010 (115/230 AC power connections). Installation of this instrument should be
done by Qualified personnel. In order to ensure safe operation, the following
instructions should be followed.
This instrument has no power-on switch. An external switch or circuit-breaker shall be included in
the building installation as a disconnecting device. It shall be marked to indicate this function, and
it shall be in close proximity to the equipment within easy reach of the operator. The switch or
circuit-breaker shall not interrupt the Protective Conductor (Earth wire), and it shall meet the
relevant requirements of IEC 947Ð1 and IEC 947-3 (International Electrotechnical Commission).
The switch shall not be incorporated in the mains supply cord.
Furthermore, to provide protection against excessive energy being drawn from the mains supply
in case of a fault in the equipment, an overcurrent protection device shall be installed.
¥ The Protective Conductor must be connected for safety reasons. Check that the
power cable has the proper Earth wire, and it is properly connected. It is not safe
to operate this unit without the Protective Conductor Terminal connected.
¥ Do not exceed voltage rating on the label located on the top of the instrument housing.
¥ Always disconnect power before changing signal and power connections.
¥ Do not use this instrument on a work bench without its case for safety reasons.
¥ Do not operate this instrument in flammable or explosive atmospheres.
¥ Do not expose this instrument to rain or moisture.
¥ Unit mounting should allow for adequate ventilation to ensure instrument does not
exceed operating temperature rating.
¥ Use electrical wires with adequate size to handle mechanical strain and power
requirements. Install without exposing bare wire outside the connector to minimize
electrical shock hazards.
EMC Considerations
¥ Whenever EMC is an issue, always use shielded cables.
¥ Never run signal and power wires in the same conduit.
¥ Use signal wire connections with twisted-pair cables.
¥ Install Ferrite Bead(s) on signal wires close to the instrument if EMC
problems persist.
Note
☞
Note
☞
2

3
SECTION 2. ABOUT THE METER
2.1 DESCRIPTION
The Resistance Temperature Detector (RTD) meter is a value packed indicator/controller. Four
full digits accurately display your temperature. Select from 2, 3 or 4 wire input configuration. Your
meter may be a basic indicator or it may include analog output or dual relay output. Analog or
dual relay output must be ordered at time of purchase. Analog output is fully scalable and may be
configured as a proportional controller, or to follow your display. Dual 5 amp, form C relays
control critical processes. Front panel peak detection and memory is also standard. A mechanical
lockout has been included to guard against unauthorized changes.
2.2 STANDARD FEATURES
The following is a list of features:
* 4-digit red 14 segment LED display
* ±0.5¡ C accuracy
* Peak detection and memory
* Non-volatile memory-no battery backup
* 115 or 230 V ac 50/60 Hz power supply
The following is a list of optional features
* Dual 5 amps, form C relay outputs
* Scalable analog output
* Proportional control
* Front-panel deviation correction
* Easy setup for proportional control
2

2About The Meter
2.3 AVAILABLE ACCESSORIES
Table 2-1. Accessories and Add-Ons
Add-On Options
FS Special Calib/Config
SPC4 NEMA-4 Splash Proof Cover
SPC18 NEMA-4 Splash Proof Cover, NEW
Accessories
TP1A Trimplate panel adaptor.
Adapts DIN1A/DIN2A cases to larger panel cutouts
RP18 19-In. Rack Panel for one (1) 1/8 DIN instrument
RP28 19-In. Rack Panel for two (2) 1/8 DIN instrument
RP38 19-In. Rack Panel for three (3) 1/8 DIN instrument
4

5
About The Meter
2.4 FRONT OF THE METER
Figure 2-1 shows each part of the front of the meter.
Figure 2-1. Front-Panel Illustration
METER DISPLAY:
Digital LED display: -1.9.9.9. or 9.9.9.9. 4-digit 14 segment, 0.54" high LED
display with programmable decimal point.
Setpoint LED: Display windows light when appropriate:
1 - Setpoint 1 Status
2 - Setpoint 2 Status
2

2About The Meter
METER BUTTONS
SETPTS Button
This button functions only in the run mode. When the meter is in the run mode, press this button
to sequentially recall the previous setpoint settings. After using the ¶/MAX and ©/DEV buttons
to alter these settings as desired, press the SETPTS button to store these new values.
Unless you press the SETPTS button within 20 seconds to store your input, the meter will scroll
to setpoint 2 and retain the last value stored.
If the dual relay option is not installed, pressing the SETPTS button will display "V.-03"
which is the meter's software version.
¶/MAX Button
During the run mode, press the ¶/MAX button to recall the PEAK reading since the last press of
the RESET button. To return to the current readings without resetting the PEAK reading, press
the ¶/MAX button. To reset the PEAK reading, press the RESET button.
During the configuration mode, use the ¶/MAX button to change the values of the flashing digit
shown on the display and/or toggle between menu choices, such as "R.1=F" or "R.1=C". When
configuring your setpoint values, press the ¶/MAX button to increment the flashing digit from
0 to 9 by 1's.
©/DEV Button
During the run mode press the ©/DEV button to display the deviation from setpoint 1.
When configuring your setpoint values, press the ©/DEV button to scroll to the next digit.
6
Note
☞

7
About The Meter
MENU Button
In the run mode, press the MENU button to terminate the current measuring process and enter
you into the configuration mode.
In the configuration mode, press the MENU button to store changes in the non-volatile memory
and then advance you to the next menu item.
RESET Button
If you hard reset or power off/on the meter, it shows "RST" followed by "RTD".
In the run mode, press the RESET button to reset the setpoints and display "SP.RS". If display
shows peak value, press the RESET button to reset peak value. Display shows "PK.RS".
In the configuration mode, press the RESET button once to review the previous menu. Pressing
the RESET button twice results in a hard reset and returns you to the run mode.
2

2About The Meter
2.5 REAR OF THE METER
Figure 2-2 shows the connector label mounted at the top of the meter housing. Table 2-2 gives a
brief description of each connector at the rear of the meter.
Figure 2-2. ac Connector Label Version 1
Figure 2-3. ac Connector Label Version 2
1246
5
3
7810 12
11
9
RELAY 1
RELAY2
67 58
TB1 TB2
N
AC
L
N.O.1 N.C.1 COM1 N.O.2 N.C.2 COM2
+S
IN -S IN -R IN
23 14
+E
OUT N/C +R IN
DC
ANA
1
VOLT
OUT
ANA
2
CUR
OUT
ANA
3
RTN
N/C
N/C
N/C
+
8
dc Connector
Label detail

9
About The Meter
2.5 BACK OF THE METER (Continued)
Table 2-2. Rear Connector Description
Connector Description
TB1-1 Setpoint 1: Normally open (N.O.1) connection
TB1-2 Setpoint 1: Normally closed (N.C.1) connection
TB1-3 Setpoint 1: Common (COM1) connection
TB1-4 Setpoint 2: Normally open (N.O.2) connection
TB1-5 Setpoint 2: Normally closed (N.C.2) connection
TB1-6 Setpoint 2: Common (COM2) connection
TB1-7 ac line connection (no connections on dc-powered units)
TB1-8 ac neutral connection (+ Input on dc-powered units)
TB1-9 ac Earth ground (-dc-power return on dc-powered units)
TB1-10 Analog 1 voltage output
TB1-11 Analog 2 current output
TB1-12 Analog 3 return
Version 1* Version 2*
TB2-1 No Connection +E2: not used
TB2-2 +E: Positive excitation (current source) +S2: not used
TB2-3 No Connection -S2: not used
TB2-4 +R: For 3 or 4 wire RTD connection -E2: not used
TB2-5 No Connection +E1: Positive excitation
TB2-6 +S: Positive signal input +S1: Positive signal input
TB2-7 -S: Negative signal input -S1: Negative signal input
TB2-8 -R: For 2 wire RTD connection -E1: Negative excitation
* See Figure 3-2 for connector version
TB5-1 Isolated Analog Voltage Output
TB5-2 Isolated Analog Current Output
TB5-3 Isolated Analog Output Return
J1 (1-2) Remote tare connection with a momentary switch.
2

2About The Meter
2.6 DISASSEMBLY
You may need to open up the meter for one of the following reasons:
¥ To check or change the 115 or 230 Vac power jumpers.
¥ To install or remove jumpers on the main board.
Disconnect the power supply before proceeding.
To remove and access the main board, follow these steps:
¥ Disconnect the main power from the meter.
¥ Remove the back case cover.
¥ Lift the back of the main board upwards and let it slide out of the case.
10
Note
☞

11
SECTION 3. GETTING STARTED
Caution: The meter has no power-on switch, so it will be in operation as soon you
apply power.
If you power off/on the meter, or perform a hard reset (press the RESET button twice), the meter
shows "RST", followed by "PROC".
3.1 RATING/PRODUCT LABEL
This label is located on top of the meter housing (Refer to Figure 3-4).
3.2 MAIN BOARD POWER JUMPERS
Important: If you want to change the Factory preset jumpers, do the following steps;
otherwise go to section 3.3.
Disconnect the power from the unit before proceeding.
To check voltage jumpers, or to change from 115 V to 230 V ac:
1. Remove the main board from the case. Refer to Section 2.6.
2. Locate the solder jumpers W1, W2, and W3 (located near the edge of the main board
alongside the transformer - refer to Figure 3-1).
3. If your power requirement is 115 V ac, solder jumpers W1 and W3 should be wired,
but jumper W2 should not. If your power requirement is 230 V ac, solder jumper W2
should be wired, but jumpers W1 and W3 should not.
Figure 3-1 shows the location of solder jumpers W1 through W3 on the main board.
Figure 3-1. Main Board Power Jumpers (W1, W2, W3)
3
Note
☞

3Getting Started
3.2 MAIN BOARD POWER JUMPERS (Continued)
Figure 3-2 shows the main board jumpers.
Figure 3-2. Main Board Jumper Positions (6 S2 Pins)
Figure 3-3. Upper Option Board Installation
P1
TB5
Attach cable
to P1.
ED
D
C
C
B
B
A
A
MAIN BOARD
T1
DISPLAY BOARD
TB1
TB2
S2
S2
S3
S3
TP11
TP1
TP2
TP3
TP4
TP5
TP6
TP7
TP8
TP9
TP10
J1
TB1
TB2
{
{
Version #2
with upper &
lower level
pull-out
connector
plugs.
TB1
TB2
Version #1 with
Non-Removable
connectors.
12
