USER MANUAL
▍MODEL:
*LCMR-300 (300W Incandescent lamp)
*LCMR-1000 (1000W Resistive load)
▍FEATURES:
* Learning function, easy operation.
* Receiver has 6 memorysettings, no memoryloss forever.
*Red LED indicator for POWER ON and MEMORY SETTINGS.
* Learning function Receiver compatible to all ARC transmitters (including learning transmitter
and code switch transmitter).
* Remote control till 30M in open area.
▍INSTALLATION:
Controller (Receiver)
*Disconnect main power before installation.
* Screw holder of receiver can be cut off if necessary.
* Connect AC wire and load (lamp) to receiver
block terminal (fig. 1).
* Connect main power on.
* LED indicator on receiver should light on.
Remote control (Transmitter)
Learning system transmitter (fig. 2)
* Learning systemhas million codes which is house
code.
* The million codes are set up in each transmitter
before shipping out of factory.
* Million code of each transmitter will have very few
chance to be the same with other transmitters.
*LYCT-505 can remote control max. 16 receivers.
LED indicator on the transmitter will light on
while pressing the button.
*LWST-605 can control 2 receivers.
Code switch transmitter (fig. 3)
* YCT-100 & YCT-603 max. control 16 receivers (under a house code)
LED indicator on the transmitter will light on while pressing the button.
* WST-512 can control 1 receiver only.

Page 2

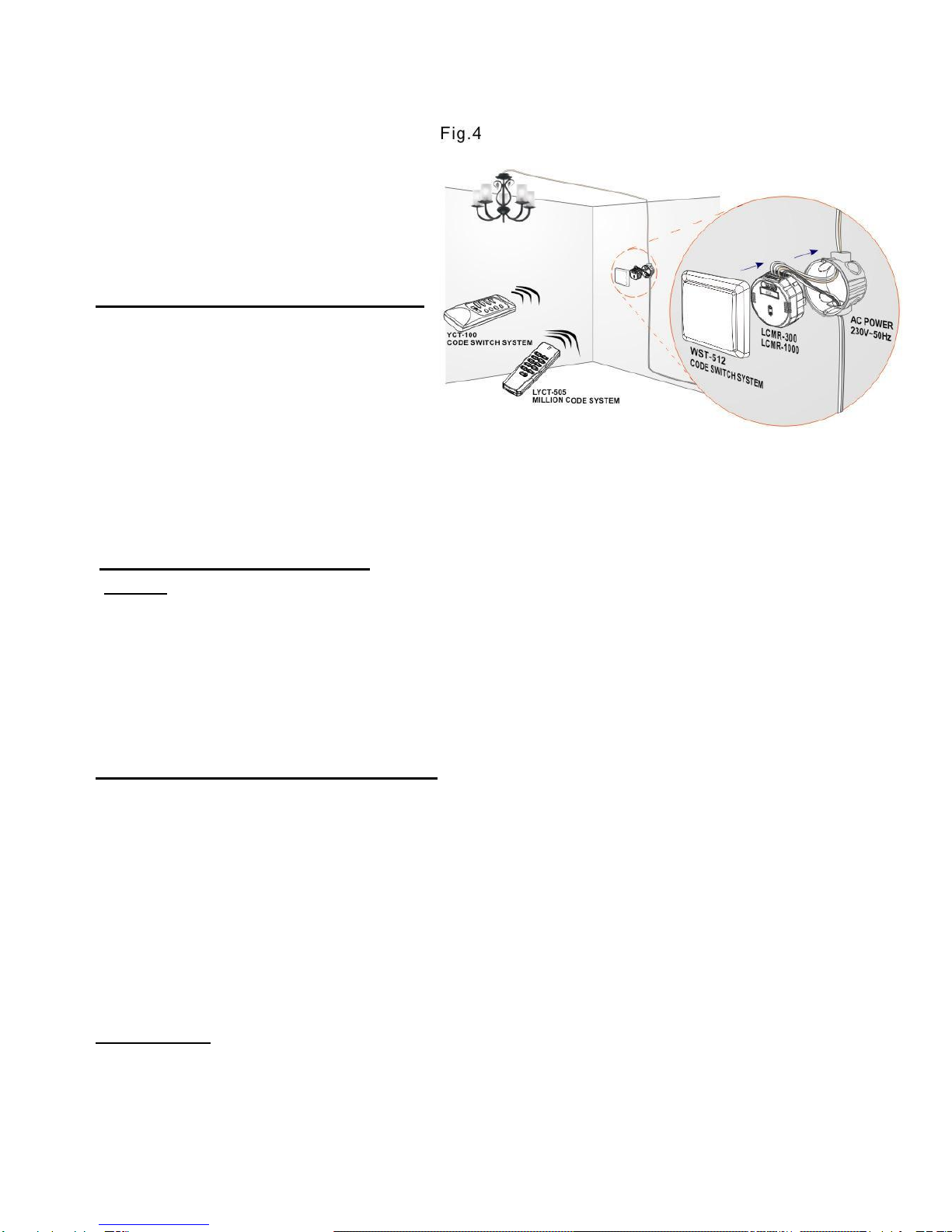

Link transmitter with receiver (fig. 4)
* LCMR can be remote controlled by wall switch
or handy transmitter.
* Cover LWST-605 or WST-512 to LCMR
as a wall switch to remote control LCMR.
* Or use LYCT-505 / YCT-603 / YCT-100 to handy
remote control LCMR.
*All ARC transmitters with other functions such like
sensor function can also remote control LCMR.
▍HOW TO SET CODE: learning function:
* To start, programyour transmitter with the
receiver.
* Connect power to receiver (fig.1).
* Bring the transmitter near the receiver, push the
learning button on receiver once (fig.4)
* Receiver LED will blink slowly, press transmitter
selected “ON”button.
* Receiver connected lamp will blink twice, code is
confirmed and LED stops blinking.
* Remember the transmitter button you selected for the
programmed receiver.
▍HOW TO CHANGE OR DELETE
CODE :
DELETING INDIVIDUALLY- ALL MEMORY DELETE -
*Push the learning button once, LED will blink slowly. * Push the learning button for 6 sec.., LED will blink continuously.
* Press selected “OFF”button on transmitter, * Release and push again once.
which selected programmed memoryis deleted. * Receiver connected lamp will blink twice for confirmation.
* Receiver connected lamp will blink twice for confirmation. * ALL PROGRAMMED MEMORY WILL BE DELETED
* Repeat step for re-setting. FROM RECEIVER.
▍RECEIVER HAS 6 MEMORY SETTINGS:
* Learning function RECEIVER has 6 memory settings.
* It can be programmed as to your requirement with special effect. It can be programmed to switch ON at one time individually
or programmed with different combinations switching.
* This means one receiver can be programmed into max. 6 different combinations.
Example :if there are 3 receivers, [ receiver 1 = lamp shade , receiver 2 = night light, receiver 3 = ceiling light ]
Receiver 1,2,3 can be control individually with transmitter button 1,2,3
Receiver 1,3 can be programmed with transmitter button 4, ( lamp shade and ceiling light ON/OFF at same time )
Receiver 1,2,3 canalso be programmed into group function ALLON or OFF at same time into group button
( lamp shade, night light and ceiling light ON/OFF at same time )
(Above settings ‘Receiver 1’and ‘3’takes up 3 programmed memoryand ‘Receiver 2’only 2 program memory,
different combinations and settings can be teamed up and controlled from transmitter )
▍OPERATION:
TRANSMITTER DIMMER RECEIVER(LCMR-300)
ON button –control receiver ON/DIMMER * Press transmitter button ‘ON’twice, light will start to dim,
OFF button –switch OFF function press again, light stops at required brightness.
GROUP button –ALL ON or ALL OFF at the same time * To dimagain, restart as above procedures.

Page 3
Direct 16 controls button
–(LYCT-505 / YCT-603 / YCT-100)
Channel I - 1,2,3,4 ON/OFF RECEIVER(LCMR-1000)
Channel II –5,6,7,8 * Press transmitter button ‘ON’to switch on.
Channel III –9,10,11,12 * Press transmitter button ‘OFF’to switch off.
Channel IV –13,14,15,16
▍SPECIFICATION:
IP : 20
Class: I
T(max): 40℃
Frequency: 433.92MHz
Power: 230V～+/-10%, 50Hz
LCMR-300 : 300 W / 230V～(incandescent lamp)
LCMR-1000: 1000W / 230V～(Resistive load)
▍FAULT FINDING:
No activation : Check battery direction or running out battery of
transmitter.
Replace new fuse (fig. 5):
* disconnect main power, put fuse into fuse hole (step1).
* put fuse hole into the main module (step2) and connect main power on.
Fuse specification:
LCMR-300: T1.6A H250V
LCMR-1000 T5A H250V
▍CAUTION :
Do not place two receivers near eachother, the distance should be above 1 meter.
▍Warning!
DO NOT OVERLOAD
Do not use in damp places like patios, cellar, flammable liquid, solvents, paints etc…
▍Manufacturing site:
HOMEWELL Electronics Co., Ltd.
Address: NO.7~8 Building, the 5th. Industrial Park, Xia Village Gong Ming Town, BaoanDistrict, Shenzhen city , China
