Nexgrill 720-0140-LP User manual

STAINLESS STEEL GAS GRILL
USE AND CARE GUIDE
MODEL NO.: 720-0140-LP ®
FOR OUTDOOR USE ONLY
PLEASE CONTACT 1-800-790-1299 FOR ASSISTANCE

MESSAGE TO OUR CONSUMERS
Thank you for selecting our stainless steel gas grill.
Because this appliance contains features which may not found on other grills, we recommend
that you read this entire booklet before your first use. Keep it in a handy place as it has
answers to questions that may occur during future use.
Please read this booklet carefully and be sure your gas grill is properly assembled, installed and
maintained. Failure to follow these instructions could result in serious bodily injury and/or property
damage. This gas grill in intended for outdoor use only and is not intended to be installed in or on
recreational vehicles or boats.
NOTE TO INSTALLER: Leave these instructions with the consumer after installation.
NOTE TO CONSUMER: Retain for future reference.
TABLE OF CONTENTS
SECTION FIVE
Care and maintenance …………………. 28
Lighting Illustration…………………… 29
To match light the grill………………….31
Care and maintenance……………… ….32
Troubleshooting ……………………….. 32
SECTION SIX
Enlarge view …………………….…….. 34
Parts list ……………………………….. 35
Ordering parts ………………………….. 36
Grill hints ………………………………. 36
SECTION SEVEN
Grill cooking chart …………………… 37
SECTION EIGHT
Grill recipe suggestions ……………….. 40
SECTION NINE
Warranty ………………………………. 43
SECTION ONE
Precaution ……………………………. 1
Placement of the grill ………………… 3
SECTION TWO
Assembly check list ………………….. 4
Assembly instructions ………………... 7
SECTION THREE
Gas hook-up ………………………… 21
Leak testing ……….……………….....23
Installer final check list ………………23
Propane tank assembly……………….24
Operation instructions ………………..25
Grill lighting instructions …………… 26
SECTION FOUR
Using side burner …………………… 27

PRECAUTIONS
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odor continues, immediately call
your gas supplier.
CALIFORNIA PROPOSITION 65-
WARNING
The burning of gas fuel generates some by-
products, which are on the list of substances,
which are known by the State of California to
cause cancer or reproductive harm. California
law requires businesses to warn customers of
potential exposure to such substances. To
minimize exposure to these substances, always
operate this unit according to the use and care
manual, ensuring you provide good ventilation
when cooking with gas.
WARNING
Do not try to light this appliance without
first reading the “LIGHTING
INSTRUCTIONS” section in this manual. SAFETY PRACTICES TO AVOID
PERSONAL INJURY
When properly cared for, your stainless steel
grill will give safe, reliable service for many
years. However, extreme care must be used
since the grill produces intense heat and that
can increase accident potential. When using
this appliance basic safety practices must be
followed, including the following:
Read this Care and Use Manual carefully and
completely before using your grill to reduce the
risk of fire, burn hazard or other injury.
Do not repair or replace any part of the grill
unless specifically recommended in this manual.
All other service should be referred to a
qualified technician.
CHILDREN SHOULD NOT BE LEFT
ALONE OR UNATTENDED IN AN AREA
WHERE THE GRILL IS BEING USED.
NEVER ALLOW THEM TO SIT, STAND OR
PLAY ON OR AROUND THE GRILL AT
ANY TIME.
FOR YOUR SAFETY
1. Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance..
TESTED IN ACCORDANCE WITH ANSI
Z21.58 / CGA 1.6 STANDARD FOR
OUTDOOR COOKING GAS
APPLIANCES. THIS GRILL IS FOR
OUTDOOR USE ONLY.
Check your local building codes for the
proper method of installation. In the absence
of local codes, this unit should be installed in
accordance with the National Fuel Gas Code
ANSI Z223.1/NFPA 54, ANSI/NFPA 58 OR
CGA B149.1 Natural Gas and Propane
Installation Code, and the National Electrical
Code, ANSI/NFPA 70, or the Canadian
Electrical Code, CSA C22.1.
1

PRECAUTIONS
DO NOT STORE ITEMS THAT ATTRACT
CHILDEN AROUND OR BELOW THE
GRILL OR IN THE CART. NEVER ALLOW
CHILDREN TO CRAWL INSIDE OF THE
CART.
Never let clothing, pot holders or other
flammable materials come in contact with or
too close to any grate, burner or hot surface
until it has cooled. Fabric may ignite and
result in personal injury.
For personal safety, wear proper apparel.
Loose fitting garments or sleeves should never
be worn while using this appliance. Some
synthetic fabrics are highly flammable and
should not be worn while cooking.
Only certain types of glass, heat-proof glass
ceramic, earthenware, or other glazed utensils
are suitable for grill use. These types of
materials may break with sudden temperature
changes. Use only on low or medium heat
settings according to the manufacturer’s
directions.
Do not heat unopened food containers as a
build-up of pressure may cause the container
to burst.
Use a covered hand when opening the grill lid.
Never lean over an open grill.
WHEN LIGHTING A BURNER, ALWAYS
PAY CLOSE ATTENTION TO WHAT YOU
ARE DOING. BE CERTAIN YOU ARE
TURNING THE IGNITER LABELED FOR
THE BURNER YOU INTEND ON USING.
When using the grill, do not touch the grill
rack, burner grate or immediate surroundings
as these areas become extremely hot and
could cause burns. Use only dry potholders.
Moist or damp potholders on hot surfaces may
cause burns from steam. Do not use a towel or
bulky cloth in place of potholders. Do not let
potholders touch hot portions of the grill rack.
Grease is flammable. Let hot grease cool before
attempting to handle it. Avoid letting excess
grease deposits collect in the grease tray at the
bottom of the grill’s firebox. Clean often.
DO NOT USE ALUMINUM FOIL TO LINE
THE GRILL RACKS OR GRILL BOTTOM.
This can severely upset combustion air flow or
trap excessive heat in the control area.
For proper lighting and performance of the
burners keep the burner ports clean. It is
necessary to clean them periodically for
optimum performance. The burners will only
operate in one position and must be mounted
correctly for safe operation.
Clean the grill with caution. Avoid steam burns;
do not use a wet sponge or cloth to clean the
grill while it is hot. Some cleaners produce
noxious fumes or can ignite if applied to a hot
surface.
INSECT WARNING!!! Spiders and insects can
nest in the burners of this and any other grill,
and cause the gas to flow improperly. This is a
very dangerous condition which can cause a
fire to occur behind the valve panel, thereby
damaging the grill and making it unsafe to
operate. Inspect the grill twice a year.
Be sure all grill controls are turned off and the
grill is cool before using any type of aerosol
cleaner on or around the grill. The chemical
that produces the spraying action could, in the
presence of heat, ignite or cause metal parts to
corrode.
2

PRECAUTIONS
Do not use the grill for cooking excessively
fatty meats or products which promote flare-
ups. Do not operate the grill under unprotected
combustible construction. Use only in well
ventilated areas. Do not use in buildings,
garages, sheds, breezeways or other such
enclosed areas. THIS UNIT IS FOR
OUTDOOR USE ONLY.
Keep the area surrounding the grill free from
combustible materials, trash, or combustible
fluids and vapors such as gasoline or charcoal
lighter fluid. A minimum of 24” clearance
away from combustible material. Do not
obstruct the flow of combustion and
ventilation air. If the unit is stored indoors
ensure that it is cool. If propane is used, the
cylinder must be unhooked and the propane
cylinder stored outside in a well ventilated
area, out of the reach of children.
DO NOT USE BRIQUETTES OF ANY KIND
IN THE GRILL.
This stainless steel grill is designed for
optimum performance without the use of
briquettes. Do not place briquettes on the
radiant as this will block off the area for the
grill burners to vent. Adding briquettes can
damage ignition components and knobs, and
void the warranty.
Keep the back of the cart free and clear from
debris. Keep any electrical supply cord, or the
rotisserie motor cord away from the heated
areas of the grill.
Never use the grill in extremely windy
conditions. If located in a consistently windy
area (oceanfront, mountaintop, etc.) a
windbreak will be required (see below). Always
adhere to the specified clearance.
NEVER USE A DENTED OR RUSTY
PROPANE TANK.
PLACEMENT OF THE GRILL
Locate the grill only in a well-ventilated area. Never
locate the grill in a building, garage, breezeway,
shed or other such enclosed areas without an
approved ventilation system. During heavy use, the
grill will produce a lot of smoke. After the grill is
placed in a suitable position, lock the wheels
according to the sticker located beneath the right
door. Keep any electrical supply cord and the fuel
supply hose away from any heated surfaces.
Storage of an outdoor gas cooking appliance indoor
is permissible only if the cylinder is disconnected
and removed from the appliance.
This outdoor cooking gas appliance shall be used
only outdoors and shall not be used in a building,
garage or any other enclosed area. This appliance is
not intended to be installed on recreational vehicles
and/or boats. 3
CLEARANCE
To Non-Combustible Construction
A minimum of 3” clearance from the back of
the grill to non-combustible construction is
required for the lid to open fully.
DO NOT INSTALL THIS UNIT INTO
COMBUSTIBLE ENCLOSURES!
LOCATION
When determining a suitable location take
into account concerns such as exposure to
wind, proximity to traffic paths and keeping
any gas supply lines as short as possible.

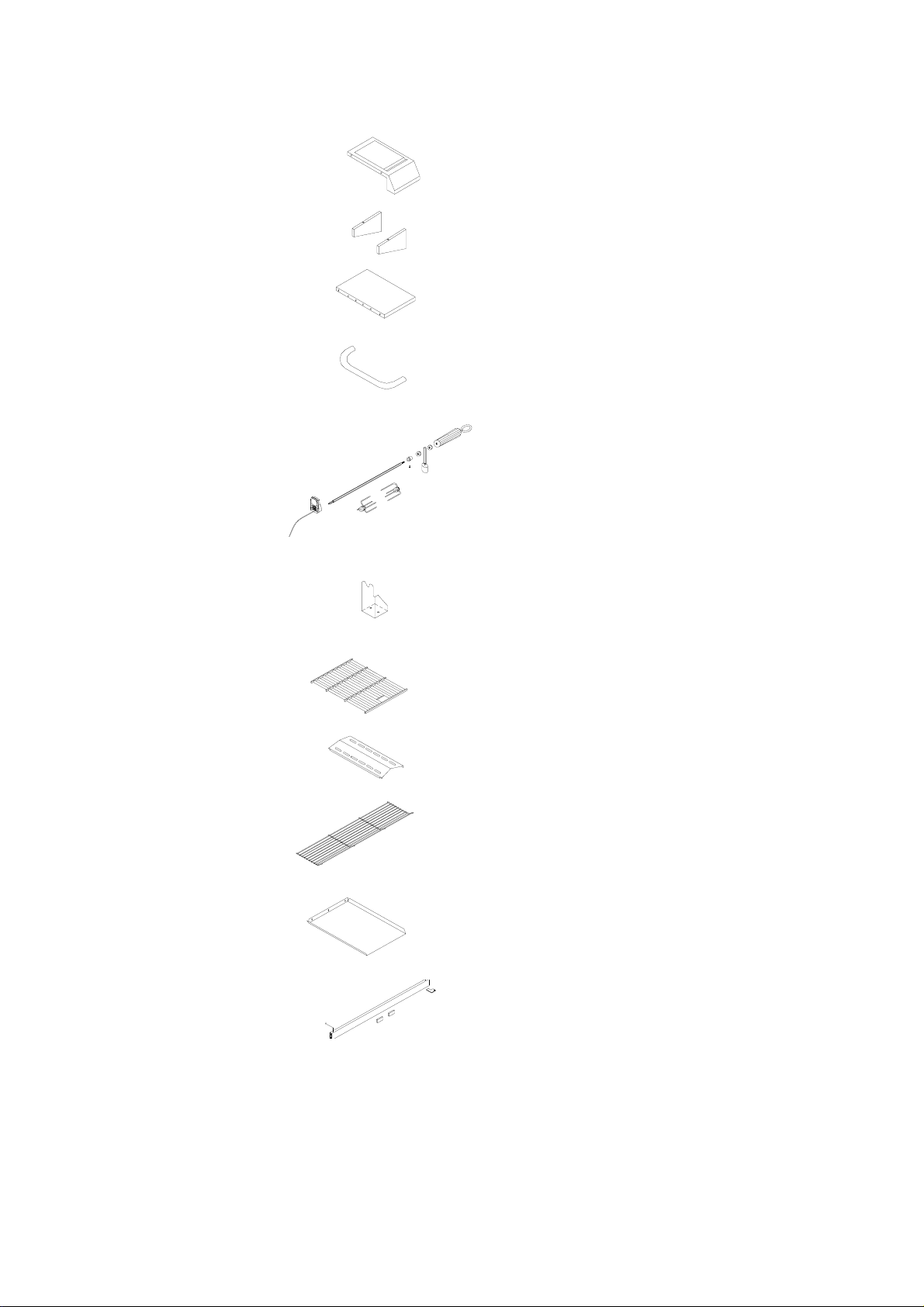

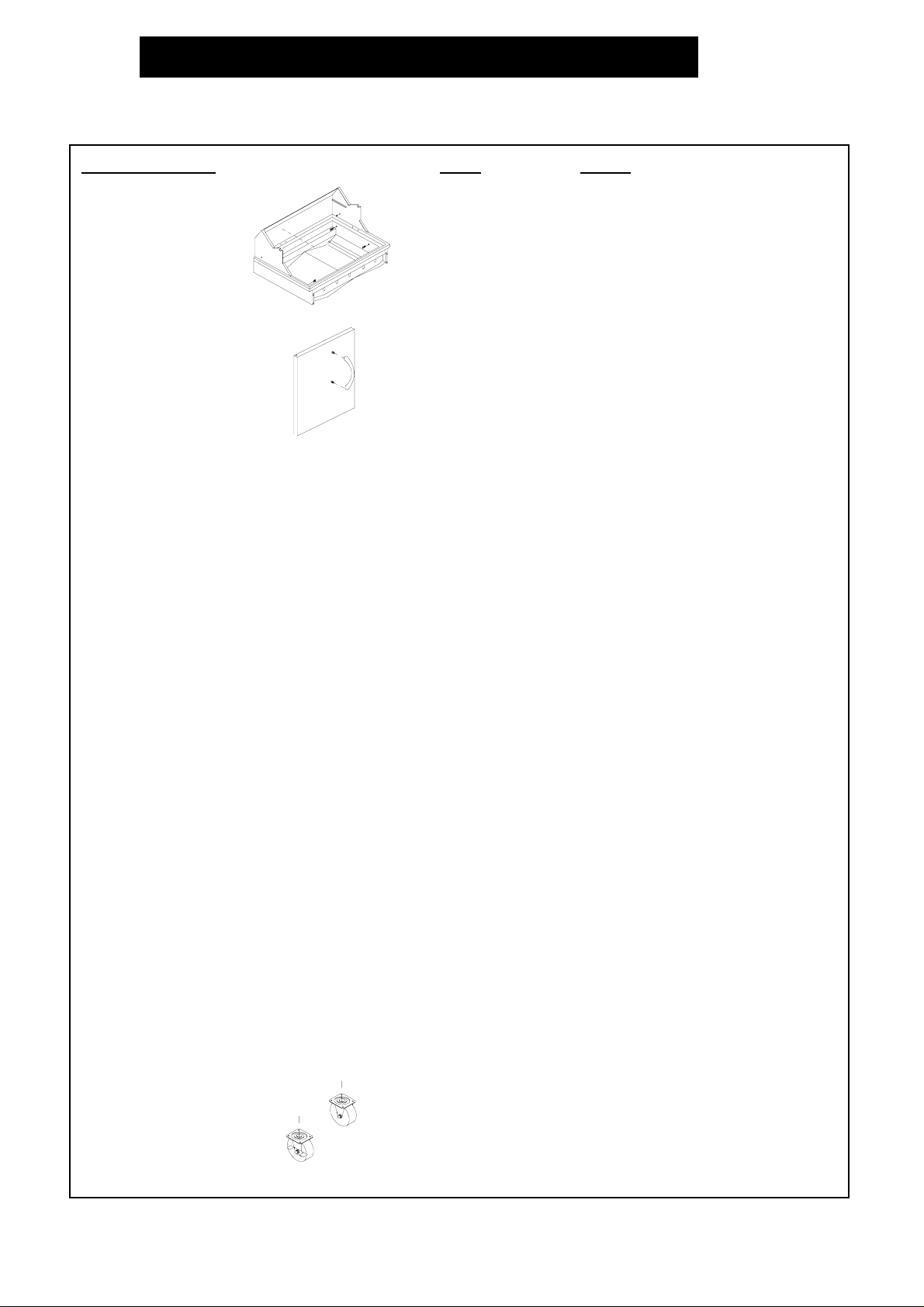

ASSEMBLY CHECK LIST
Castors 4
Item Description Parts QTY Check

Side Burner Bowl
Assembly
Side Shelf Bracket
Side Shelf
Push Bar
Rotisseries Kit
With Motor
Motor Bracket

L Wrench
Spice Tray
Lighting Rod
Hardware Packe A
Hardware Packe B
Hardware Packe C
2
1
1
1
1
1
6

ASSEMBLY INSTRUCTIONS SIDE SHELVE
PLEASE READ THE INSTRUCTIONS THROUGHLY AND FOLLOW STEP
BY STEP.

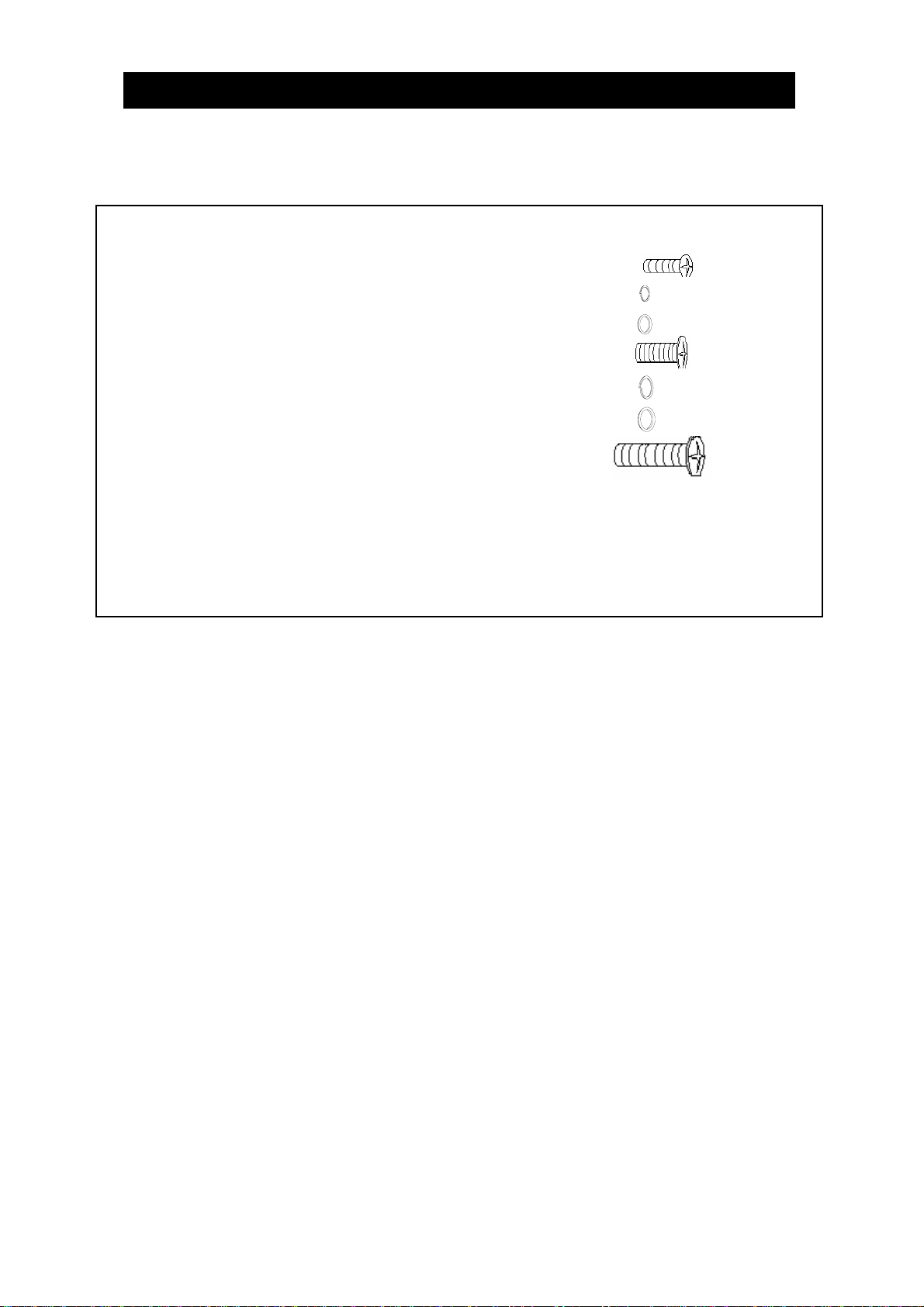

HARDWARE PACK DESCRIPTION SPECIFICATION QUANTITY
A TRUSSHEADSCREW 5/32”X12MM 14PCS
SPLITLOCK 5/32” 14PCS
LOCKWASHER
14PCS
B TRUSSHEADSCREW 1/4”X12MM 30PCS
SPLITLOCK 1/4” 30PCS
LOCKWASHER
30PCS
C TRUSSHEADSCREW 1/4”
X19M 18PCS
SPLITLOCK 1/4”

STEP 2: Use 4 pcs of truss head 5/32”x 12mm screw and 4 pcs of split lock
and 4 pcs of lock washer(pack A), then attach the left and right side panels
to the bottom panel as shown figure below. When installing the right and
left panel, the flat side must face outside.
STEP 3: Assemble back panel to bottom panel with 3 pieces of truss head
5/32” x12mm screw and 3pieces of 5/32” split lock and 3 pieces of lock washer
(Pack A). When installing the back panel, the flat side must face outside.
Pack A
Base
Back Panel

ASSEMBLY INSTRUCTIONS

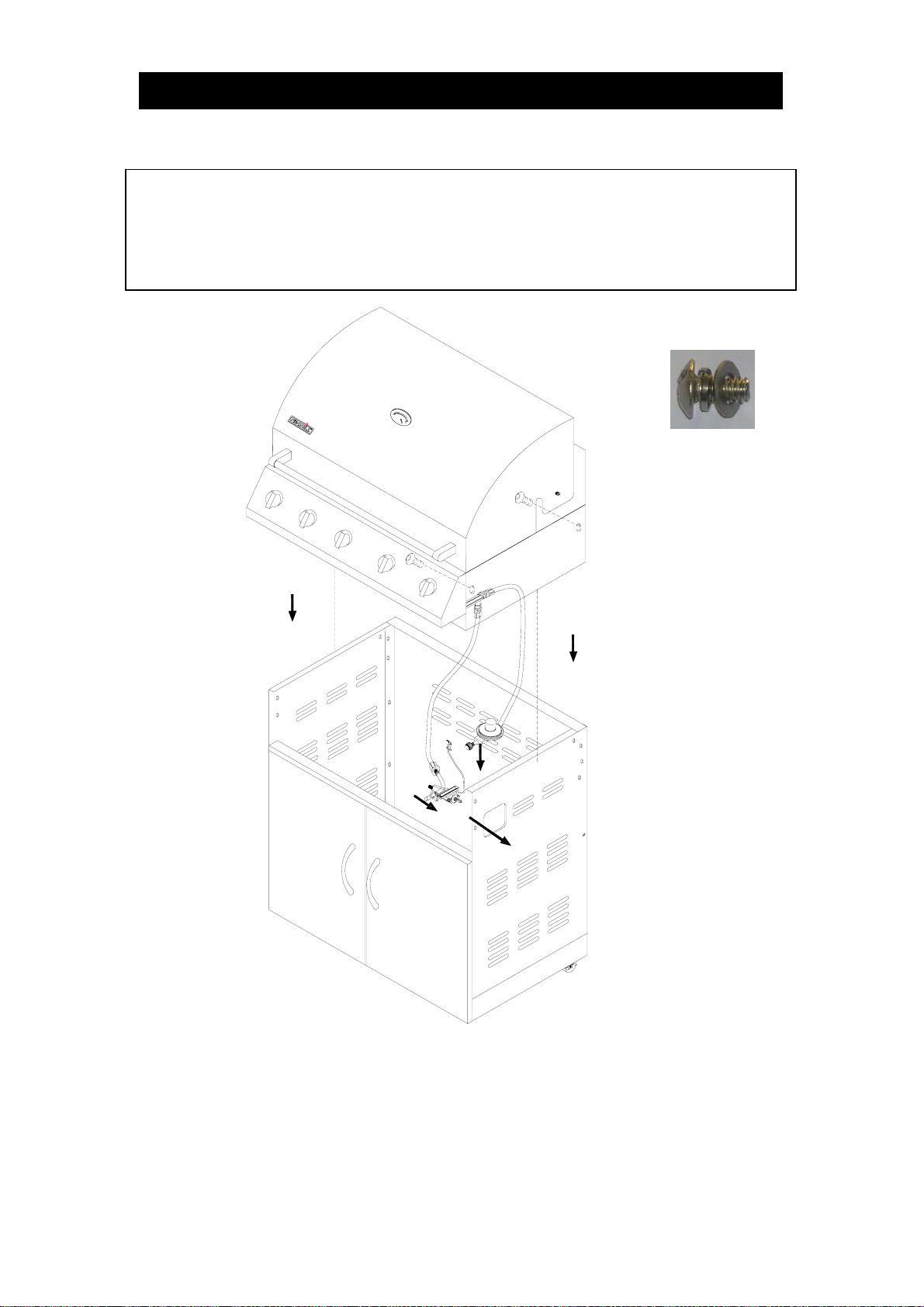

STEP 6: Place the upper portion of grill on to the cart, align with the side
panels. Then assemble it with the cart using 4 pcs of 1/4”x12mm head screw
and split lock and lock washer.(pack B).
NOTE:Tighten all screws before processing.
3D
A027B
Pack B
10

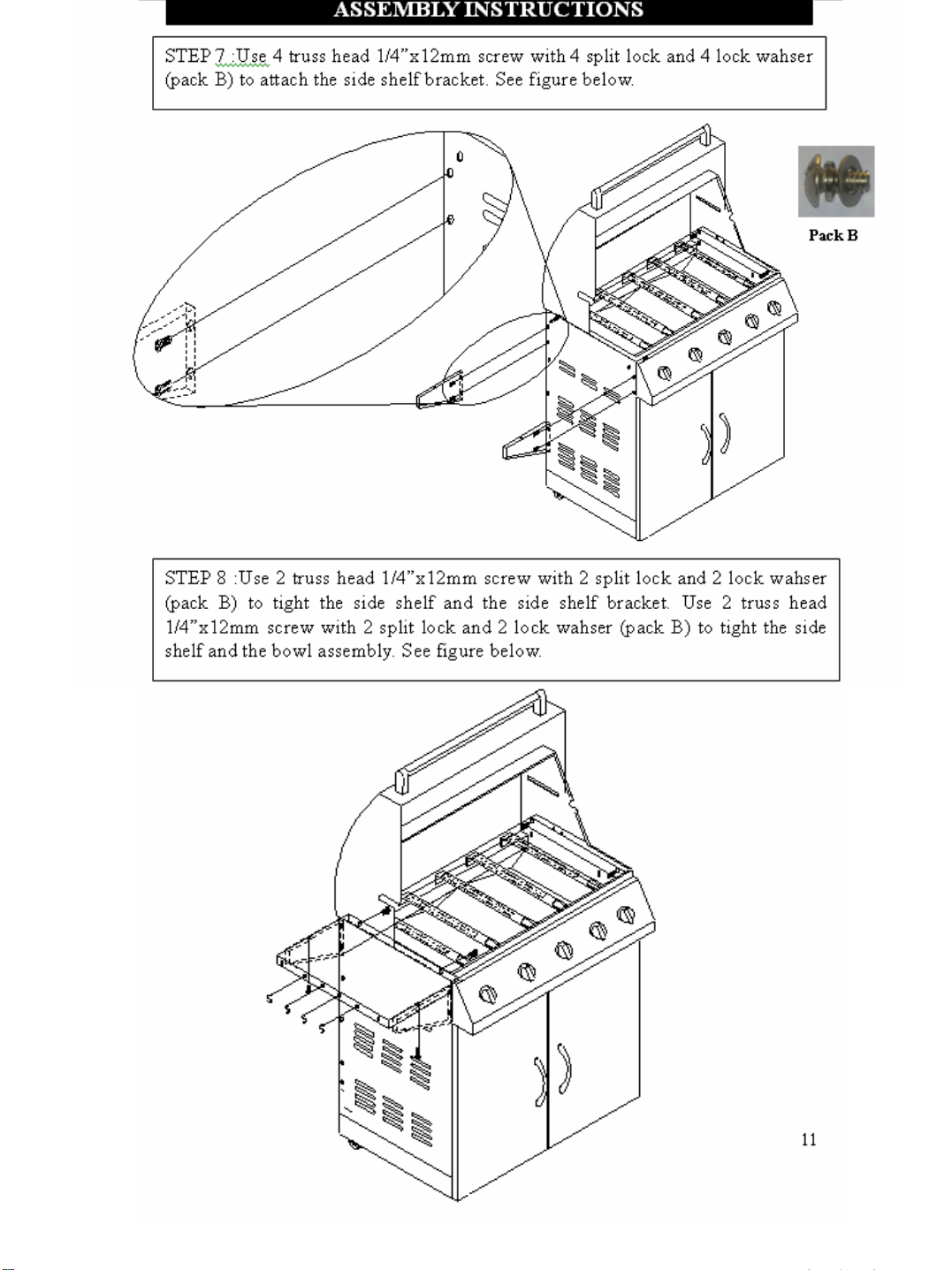

ASSEMBLY INSTRUCTIONS
STEP 9 :Use 2 truss head 1/4”x12mm screw with 2 split lock and 2 lock wahser
(pack B) to tight the side shelf and the spice tray. See figure below.
Pack B
STEP 10 :Use 4 truss head 1/4”x12mm screw with 4 split lock and 4 lock
wahser (pack B) to attach the side burner bracket. See figure below.
12

Step:13 Side burner valve assembly:
ASSEMBLY INSTRUCTIONS
Step 1: Insert valve assembly through side Step 2: Remove 4(four) screws & washers
panel from the “U” brackets on the side
(Side panel, right) burner.
Step 3: Insert valve stem assembly into burner Step 4: Insert valve stem assembly into
tube. face-plate.

ASSEMBLY INSTRUCTIONS
Step 5: Replace “U” brackets with 4(four) Step 6: Align & tighten knob seat & valve
Screws( DO NOT TIGHTEN) stem with 2(two) screws & washers
Note:(Make sure hose is not bent) as shown below.
Step 7;Tighten all 4(four) screws on the “U” Step 8: Place knob on valve stem and secure
brackets on the burner, then connect with the wrench tool.
the ignition wire on to valve.
(wrench tool enclosed in bag)
Valve Stem
Knob Seat
Ignition wire
**Important Note! Make Sure Side Burner Hose Is not Bent**
15

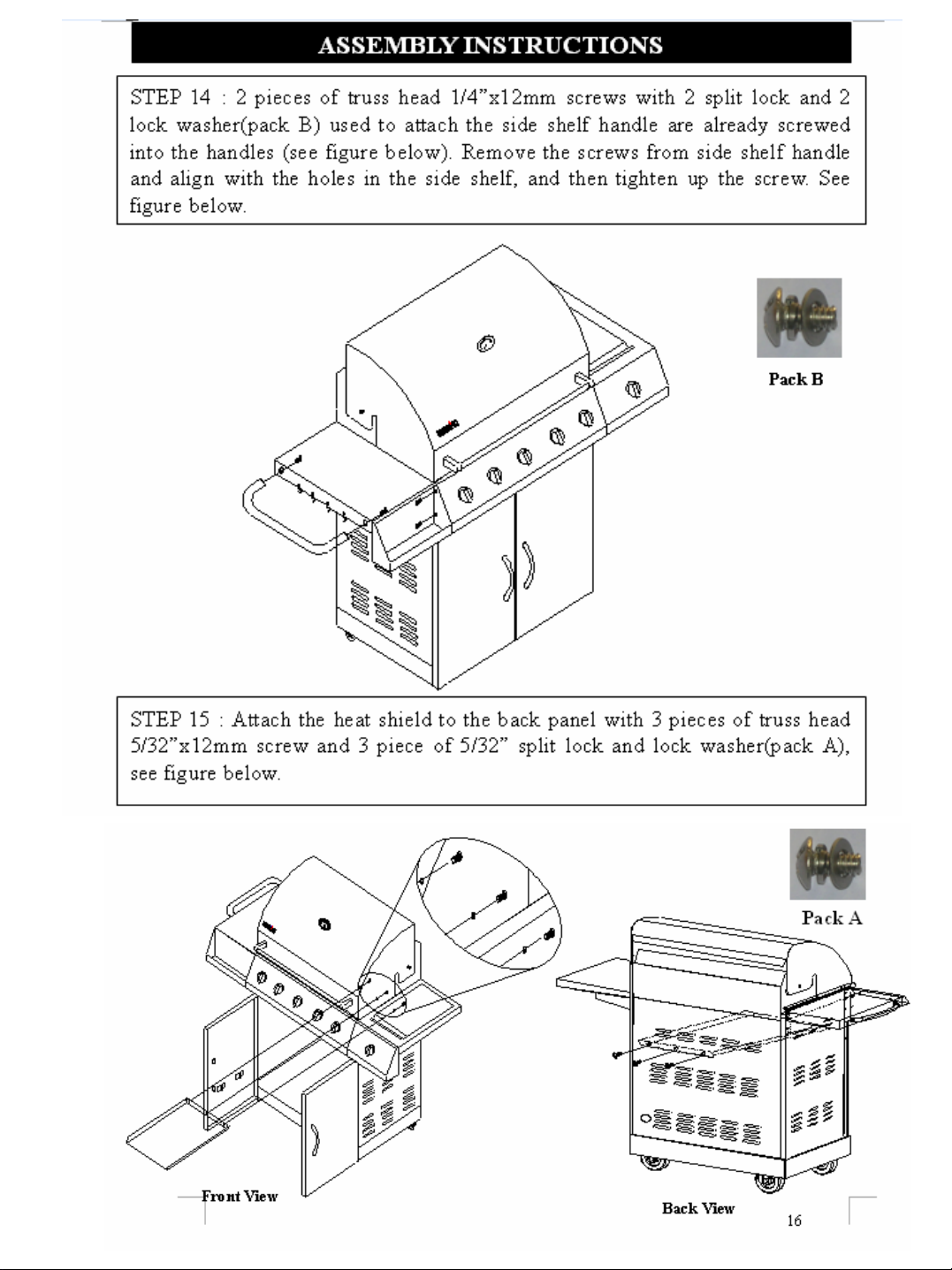

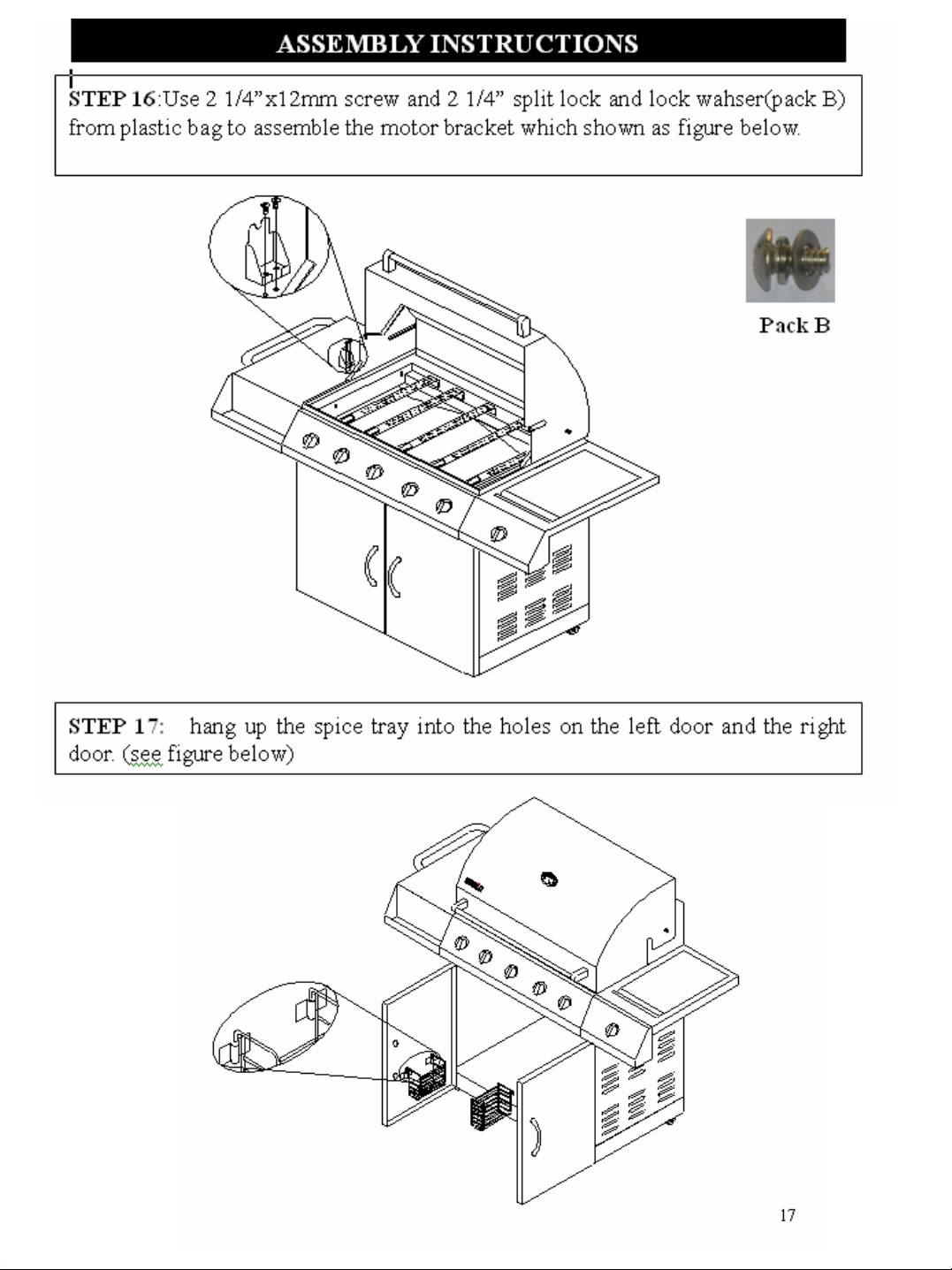

ASSEMBLY INSTRUCTIONS
STEP 18: Place the flame tamers, cooking grids and the warming rack into the
grill. Then insert the grease try.
