Nexo PSR2 Series User guide

System Manual PSR2 Series
DP2538-05-CM
PSR2 Series
PS8 & LS400
PS10R2 & LS600
PS15R2 & LS18
System manual

CONTENTS
Page 2/ 109 System Manual PSR2 Series
CONTENTS
PLEASE READ CAREFULLY BEFORE PROCEEDING..................................................................................5
1INTRODUCTION .........................................................................................................................................7
2PS AND LS GENERAL SETUP INSTRUCTIONS....................................................................................8
2.1 PS AND LS CONNECTIONS.........................................................................................................................................8
2.1.1PS8 and PS10R2 connectors........................................................................................................................................... 8
2.1.2PS15R2 connectors............................................................................................................................................................. 8
2.1.3LS subwoofers connectors............................................................................................................................................... 8
2.1.4Configuring PS15R2 for passive or active mode................................................................................................... 9
2.2 CABLING ......................................................................................................................................................................9
2.3 PS AND LS RECOMMENDED AMPLIFICATION .....................................................................................................10
2.4 PS AND LS SETUPS ON NEXO TD CONTROLLERS.............................................................................................10
3CONNECTION DIAGRAMS..................................................................................................................... 11
3.1 PS8 AND LS400 /DTDAMP4X1.3...................................................................................................................11
3.2 PS10R2 AND LS600 /DTDAMP4X1.3...........................................................................................................11
3.3 PS15R2 (PASSIVE MODE)AND LS18 /DTDAMP4X1.3 (BRIDGE STEREO).............................................12
3.4 PS8 /NXAMP4X1MK2(4 CHANNELS MODE) .................................................................................................13
3.5 LS400 /NXAMP4X1MK2(4 CHANNELS MODE)............................................................................................14
3.6 PS8 AND LS400 /NXAMP4X1MK2(4 CHANNELS MODE)...........................................................................15
3.7 PS10R2 AND LS600 /NXAMP4X1MK2(BRIDGE STEREO) .......................................................................16
3.8 PS15R2 (PASSIVE MODE)AND LS18 /NXAMP4X1MK2(BRIDGE STEREO) ...........................................16
3.9 PS8 AND LS400 /NXAMP4X2MK2(4 CHANNELS MODE)...........................................................................17
3.10 PS10R2 /NXAMP4X2MK2(4 CHANNELS MODE).........................................................................................18
3.11 LS600 /NXAMP4X2MK2(4 CHANNELS MODE)............................................................................................19
3.12 PS10R2 AND LS600 /NXAMP4X2MK2(4 CHANNELS MODE) ..................................................................20
3.13 PS15R2 (PASSIVE MODE)AND LS18 /NXAMP4X2MK2(4 CHANNELS MODE) ......................................21
3.14 PS8 AND LS400 /NXAMP4X4MK2(4 CHANNELS MODE)...........................................................................22
3.15 PS10R2 AND LS600 /NXAMP4X4MK2(4 CHANNELS MODE) ..................................................................23
3.16 PS15R2 (PASSIVE MODE)/NXAMP4X4MK2(4 CHANNELS MODE)..........................................................24
3.17 PS15R2 (ACTIVE MODE)/NXAMP4X4MK2(4 CHANNELS MODE)............................................................25
3.18 LS18 OMNI MODE /NXAMP4X4MK2(4 CHANNELS MODE).......................................................................26
3.19 LS18 CARDIO MODE /NXAMP4X4MK2(4 CHANNELS MODE) ...................................................................27
3.20 PS15R2 (PASSIVE MODE)AND LS18 /NXAMP4X4MK2(4 CHANNELS MODE) ......................................28
4NS-1 SIMULATION SOFTWARE .......................................................................................................... 29
5CONFIGURABLE ASYMETRICAL HORN............................................................................................ 30
5.1 PRINCIPLE ................................................................................................................................................................30
5.2 CHANGE OF CONFIGURATION ................................................................................................................................30
5.3 "FRONT OF HOUSE"CONFIGURATION ..................................................................................................................31
5.4 "STAGE MONITOR"CONFIGURATION ...................................................................................................................31
6PS SERIES HARDWARE SETUP PROCEDURE................................................................................. 32
6.1 SAFETY FIRST...........................................................................................................................................................32
6.1.1Flown systems safety .......................................................................................................................................................32
6.1.2Ground stacking safety...................................................................................................................................................33
6.1.3Contacts .................................................................................................................................................................................33
6.2 GENERAL DESCRIPTION.........................................................................................................................................34
6.2.1PS10R2/PS15R2/LS600.................................................................................................................................................34
6.2.2LS18.........................................................................................................................................................................................34
6.2.3Accessories............................................................................................................................................................................35
6.2.4Warnings on PS and LS accessories..........................................................................................................................37
6.3 INSTALLATION APPLICATIONS ..............................................................................................................................38
6.3.1Described configurations...............................................................................................................................................38
6.3.2PS rigidly mounted on a wall or a ceiling (vertical or horizontal)............................................................39
6.3.3PS10R2/PS15R2/LS600 mounted on a ceiling (vertical)...............................................................................41

CONTENTS
System Manual PSR2 Series Page 3/ 109
6.3.4PS15R2 mounted on a ceiling (horizontalal).......................................................................................................42
6.3.5PS and LS600 wall suspension (vertical) ...............................................................................................................43
6.3.6PS8/PS10R2 wall suspension (horizontal)............................................................................................................44
6.3.7LS18 and PS15R2 vertical array rigidly mounted on a ceiling....................................................................45
6.3.8LS18 and PS15R2 vertical array cable mounted on a ceiling.......................................................................47
6.4 TOURING APPLICATIONS........................................................................................................................................48
6.4.1Described configurations...............................................................................................................................................48
6.4.2PS on speaker stand or on LS subwoofer................................................................................................................49
6.4.3PS flown vertically ............................................................................................................................................................50
6.4.4PS flown horizontally ......................................................................................................................................................52
6.4.5LS18 flown vertically.......................................................................................................................................................54
6.4.6Ground stacked LS18.......................................................................................................................................................57
6.5 TESTING AND MAINTENANCE OF THE SYSTEM ..................................................................................................60
7SYSTEM CHECK ALIGNMENT GUIDELINES..................................................................................... 61
7.1 STACKED LS AND FLOWN PS................................................................................................................................61
7.2 DRIVING THE LS FROM THE AUX SEND ..............................................................................................................62
7.3 RECOMMENDED INSTALLATION TOOLS AND EQUIPMENT................................................................................62
8TECHNICAL SPECIFICATIONS............................................................................................................. 63
8.1 LS18 AND LS18-E SUBWOOFERS .......................................................................................................................63
8.1.1System specifications.......................................................................................................................................................63
8.1.2Dimensions (mm/inches)...............................................................................................................................................64
8.2 LS600.......................................................................................................................................................................65
8.2.1System specifications.......................................................................................................................................................65
8.2.2Dimensions (mm/inches)...............................................................................................................................................66
8.3 LS400.......................................................................................................................................................................67
8.3.1System specifications.......................................................................................................................................................67
8.3.2Dimensions (mm/inches)...............................................................................................................................................68
8.4 PS15R2 ...................................................................................................................................................................69
8.4.1System specifications.......................................................................................................................................................69
8.4.2Dimensions (mm/inches)...............................................................................................................................................70
8.4.3Diagrams...............................................................................................................................................................................71
8.5 PS10R2 ...................................................................................................................................................................72
8.5.1System specifications.......................................................................................................................................................72
8.5.2Dimensions (mm/inches)...............................................................................................................................................73
8.5.3Diagrams...............................................................................................................................................................................74
8.6 PS8............................................................................................................................................................................75
8.6.1System specifications.......................................................................................................................................................75
8.6.2Dimensions (mm/inches)...............................................................................................................................................76
8.6.3Diagrams...............................................................................................................................................................................77
8.7 PS AND LS ACCESSORIES .......................................................................................................................................78
8.7.1VNI-UBRK8...........................................................................................................................................................................78
8.7.2VNI-UBRK10 ........................................................................................................................................................................79
8.7.3VNI-UBRK12 ........................................................................................................................................................................80
8.7.4VNI-ABRK..............................................................................................................................................................................81
8.7.5VNI-LBRK ..............................................................................................................................................................................82
8.7.6VNI-WS8 ................................................................................................................................................................................83
8.7.7VNI-WS10..............................................................................................................................................................................84
8.7.8VNI-WS15..............................................................................................................................................................................85
8.7.9GPI-BUMPER........................................................................................................................................................................86
8.7.10 GPI-ANPL1.................................................................................................................................................................87
8.7.11 GPI-ANPL3.................................................................................................................................................................88
8.7.12 LSI-CPLA.....................................................................................................................................................................89
8.7.13 VNI-IPCOV8...............................................................................................................................................................90
8.7.14 VNI-IPCOV15 ............................................................................................................................................................91
8.7.15 VNT-ADPT..................................................................................................................................................................92
8.7.16 VNT-SSBRK8.............................................................................................................................................................93
8.7.17 VNT-SSBRK10 ..........................................................................................................................................................94

CONTENTS
Page 4/ 109 System Manual PSR2 Series
8.7.18 VNT-SSBRK15 ..........................................................................................................................................................95
8.7.19 VNT-TCBRK...............................................................................................................................................................96
8.7.20 VNT-XHBRK ..............................................................................................................................................................97
8.7.21 VNT-TTC.....................................................................................................................................................................98
8.7.22 GPT-BUMPER...........................................................................................................................................................99
8.7.23 LST-XBOW18.........................................................................................................................................................100
8.7.24 VXT-BL820..............................................................................................................................................................101
8.7.26 GPT-GSTK................................................................................................................................................................102
8.7.27 LST-COVER18........................................................................................................................................................103
8.7.28 LST-WB18...............................................................................................................................................................104
9PS & LS MODULES & ACCESSORIES LIST.......................................................................................105
10 USER NOTES ...........................................................................................................................................108

PLEASE READCAREFULLY BEFOREPROCEEDING
System Manual PSR2 Series Page 5/ 109
PLEASE READ CAREFULLY BEFORE PROCEEDING
BASIC PRECAUTIONS
Do not open the speaker system or attempt to disassemble the internal parts or modify them in any way. The speaker system
contains no user-serviceable parts. If it should appear to be malfunctioning or damaged, discontinue use immediately and have
it inspected by qualified NEXO service personnel.
Water exposure: Do not expose the speaker system to direct rain, do not use it near water or in wet conditions. Do not place
containers with liquid on speaker system as they might spill into openings. If any liquid such as water seeps into the speaker
system, have it inspected by qualified NEXO personnel.
Sun exposure: Do not expose the speaker system to direct sun.
Operating temperature with temperate climate: 0°C to +40°C (-20°C to +60°C for storage).
SYSTEM DEPLOYMENT SAFETY RULES
Read User Manual before deployment. Before use of enclosed speaker system, please ensure that anyone
involved in system deployment understands the rigging –stacking –pole mounting safety rules as described
in the speaker system User Manual. Failure to do this exposes people to potential injury or death.
Please check the web site nexo-sa.com for the latest update.
Always consult qualified NEXO personnel if the device installation requires construction work and make sure to observe the
following precautions:
Mounting precautions
- choose mounting hardware and an installation location that can support 4 times the weight of the speaker system;
- do not use speaker system handles for suspended installation;
- do not expose speaker system to excessive dust or vibration, or extreme cold or heat to prevent possibility of component
damage;
- do not place the speaker system in an unstable position from which it might fall accidentally;
- if speaker systems use a stand, ensure that stand specifications are adapted, and that stand height does not exceed
1.40m/55”; never move the stand while the speaker is in position.
- in case of wind greater than 8 on Beaufort scale (72km/h –45mph), a touring system has to be landed or an additional
securing has to be implemented.
- for fixed installations, wind loading has to be taken into account in accordance to the national standards.
Connection and powering precautions
- remove all connected cables before moving the speaker system;
- turn off AC power of all power amplifier units before connecting the speaker system;
- when turning on the AC power to the audio system, always turn on the power amplifier last; when turning the AC power off,
always turn off the power amplifier first;
- when used in cold conditions, a gradual power ramp up should be applied to the system on a 5 mn period to allow the
loudspeaker components to stabilize during the very first minutes of usage.
Inspect the speaker system periodically.

PLEASE READ CAREFULLY BEFORE PROCEEDING
Page 6/ 109 System Manual PSR2 Series
HIGH SOUND PRESSURE LEVELS
Exposure to extremely high noise levels may cause permanent hearing loss. Individuals vary considerably
in susceptibility to noise-induced hearing loss but nearly everyone will lose some hearing if exposed to
sufficiently intense noise for a sufficient period of time. The U.S. Government’s Occupational and Health
Administration (OSHA) has specified the following permissible noise level exposures: Sound Duration Per
Day In Hours
Sound Level dBA, Slow Response
8
90
6
92
4
95
3
97
2
100
1 ½
102
1
105
½
110
¼ or less
115
According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Ear plugs or
protectors to the ear canals or over the ears must be worn when operating this amplification system in order to prevent
permanent hearing loss, if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous
exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high
sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.
DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT
This symbol on the product or on its packaging indicates that it shall not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative
consequence for the environment and human health, which could otherwise be caused by inappropriate
waste handling of this product.The recycling of materials will help to conserve natural resources. For more
detailed information about recycling of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.

INTRODUCTION
System Manual PSR2 Series Page 7/ 109
1INTRODUCTION
Thank you for selecting a NEXO PS series equipment.
This manual is intended to provide you with necessary and useful information about your PS and LS System, which includes
the following products:

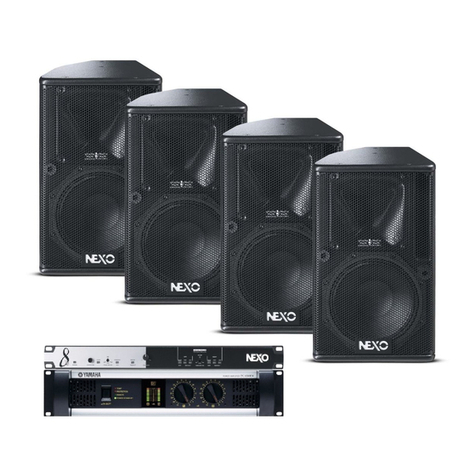

•PS8 comprises one 8"x2” self-shielded Neodymium LF driver and one
1.4” titanium diaphragm / self-shielded Neodymium HF driver with a 1”
exit mounted on a low distortion, constant directivity asymmetrical
dispersion horn.
•LS400 is PS8 companion subwoofer. It comprises 1x12" (30cm) long
excursion driver. LS400 has fittings for pole standing but is not intended
to be flown.
•PS10R2 comprises one 10"x2.5” self-shielded Neodymium LF driver and
one 1.7” PI diaphragm / Neodymium HF driver with a 1” exit mounted on
a low distortion, constant directivity asymmetrical dispersion horn.
PS10R2 is available in Left and Right versions.
•LS600 is PS10R2 companion subwoofer. It comprises 1x15" (38cm) long
excursion Neodymium driver. LS600 has fittings for flying and pole
standing.
•PS15R2 comprises one high excursion 15"x3” Neodymium LF driver and
one 3” Titanium diaphragm HF driver with a 2” exit mounted on a low
distortion, constant directivity asymmetrical dispersion horn. PS15R2 is
available in Left and Right versions.
•LS18 and LS18-E are PS15R2 companion subwoofer. It comprises
1x18’’ (46cm) long excursion driver and features very high efficiency as
well as high acoustic output. LS18 has fittings for transporting, flying,
stacking and pole standing. LS18-E is identical to LS18, with the
exception that it has none of the fittings described above. It is intended
to be set on the floor in fix installations.
•A full range of accessories provides safe, flexible and simple means of
installing PS Series in fixed installation as well as in touring applications.
•PS and LS are controlled, powered and monitored by NEXO
TDcontrollers. For a complete description of these controllers, please
refer to User Manuals. NEXO TDcontrollers DSP algorithms and
parameters are fixed in software and updated regularly. Please consult
the NEXO web site (nexo-sa.com) for the latest software releases.
•NS-1 simulation software assists in the design and implementation of PS
Series. Please consult the NEXO web site (nexo-sa.com) for the latest
software releases.
•Available for Mac, iPad and iPhone, NEXO NeMo provides full remote
control over a digital audio network from anywhere in the venue, thanks
to an intuitive and graphically attractive user interface. NeMo is available
on Apple App Store.
Please devote your time and attention to reading this manual. A comprehensive understanding of PS and LS specific features
will help you to operate your system at its full potential.

PS ANDLS GENERAL SET-UPINSTRUCTIONS
Page 8/ 109 System Manual PSR2 Series
2PS AND LS GENERAL SETUP INSTRUCTIONS
2.1 PS and LS connections
PS speakers and LS subwoofers are connected with Speakon NL4FC plugs (not supplied). A wiring diagram is printed on the
connection panel located on the back of each cabinet. The 4 pins of the Speakon sockets identified in / out are connected in
parallel within the enclosure.
Either connector can be used to connect amplifier or to link to an additional PS cabinet or to link to an optional LS subwoofer (if
present). Therefore, a single 4-conductor cable can connect two amplifier channels to various PS speakers and/or LS
subwoofers.
2.1.1 PS8 and PS10R2 connectors
2.1.2 PS15R2 connectors
2.1.3 LS subwoofers connectors
Speakon Connector
PS8/PS10R2
1(-)
PS8/PS10R2 (-)
1(+)
PS8/PS10R2 (+)
2(-)
Through
2(+)

Through
Speakon Connector
PS15R2
Passive Mode
Active Mode
1(-)
Through
PS15R2 LF (-)
1(+)
Through
PS15R2 LF (+)
2(-)
PS15R2 (-)
PS15R2 HF (-)
2(+)
PS15R2 (+)
PS15R2 HF (+)
Speakon Connector
LS
1(-)
LS (-)
1(+)
LS (+)
2(-)
Through
2(+)

Through

PS ANDLS GENERAL SET-UPINSTRUCTIONS
System Manual PSR2 Series Page 9/ 109
2.1.4 Configuring PS15R2 for passive or active mode
Remove the six TORX screws that hold the connector panel.
Remove the connector panel so that filter WAGO connectors become accessible.
In Passive Mode, WAGO connector from filter should be inserted in “Passive In”, and “Passive Out” should be connected to
speakers WAGO connector.
In Active Mode,WAGO connector from filter should be directly connected into speakers WAGO connector (PCB connectors are
then unused).
PS15R2 connector panel Passive mode Active mode
2.2 Cabling
NEXO recommends the exclusive use of multi-conductor cables to connect the system: the cable kit is compatible with all the
cabinets, and there is no possible confusion between LF, MF and HF sections.
Cable choice consists mainly of selecting cables of the correct sectional dimension (size) in relation to the load resistance and
the cable length. Too small a cable section will increase both its serial resistance and its capacitance; this reduces the electrical
power delivered to the loudspeaker and can also induce response (damping factor) variations.
For a serial resistance less or equal to 4% of the load impedance (damping factor = 25), the recommended cable length is given
by:
Lmax = Z x S S in mm2, Z in Ohm, Lmax in meters
The table below indicates these values, for 3 common sizes.
Load Impedance ()
2
2.6
4
5.3
8
16
Cable section
Recommended Cable Length
1,5 mm² (AWG #15)
3m/10ft
3m/13ft
6m/20ft
8m/26ft
12m/39ft
24m/79ft
2,5 mm² (AWG #13)
5m/16ft
7m/23ft
10m/33ft
13m/44ft
20m/66ft
40m/131ft
4 mm² (AWG #11)
8m/26ft
10m/33ft
16m/52ft
21m/70ft
32m/105ft
64m/210ft
6 mm2(AWG #9)
12m/40ft
16m/52ft
24m/79ft
32m/104ft
48m/160ft
96m/315ft
Maximum allowed length is 4 times recommended length.
Example:
PS15R2 module has a 8 nominal impedance in passive mode. When connecting 2 modules in parallel, total load impedance
becomes 4.
Recommended length for 4mm2/ (AWG#11) is 16m / 52ft, maximum allowed length is 64m / 208ft.
C
A
D

PS ANDLS GENERAL SET-UPINSTRUCTIONS
Page 10 / 109 System Manual PSR2 Series
IMPORTANT
Long speaker cables induce capacitive effects –up to hundreds of pF depending on the quality of the
cable - with a low-pass effect on high frequencies. If long speaker cables must be used, ensure that they
do not remain coiled while in use.
2.3 PS and LS recommended amplification
NEXO TD Controllers
Recommended amplification
DTD Controller + DTDAMP4x0.7 (4x0.7kW/4)
2 x PS8 per channel
DTD Controller + DTDAMP4x1.3 (4x1.3kW/4)
2 x PS8 per channel
1 x LS400 per channel
1 x PS10R2 per channel
DTD Controller + DTDAMP4x1.3 Bridge Stereo (2x2.6kW/8)
1 x LS600per bridged channels
1 x PS15R2 in passive mode per bridged channels
1 x LS18 per bridged channels
NXAMP4x1mk2 Powered Controller 4 channels mode (4x1.3kW/2)
3 x PS8 per channel
2 x LS400 per channel
NXAMP4x1mk2 Powered Controller Bridged Stereo mode (2x2.6kW/4)
2 x PS10R2 per bridged channels
2 x LS600per bridged channels
2 x PS15R2 in passive mode per bridged channels
2 x LS18 per bridged channels
NXAMP4x2mk2 Powered Controller 4 channels mode (4x2.5kW/2)
4 x PS8 per channel
3 x LS400 per channel
3 x PS10R2 per channel
2 x LS600 per channel
2 x PS15R2 in passive mode per channel
2 x PS15R2 in active mode: 2 channels
1 x LS18 per channel
NXAMP4x4mk2 Powered Controller 4 channels mode (4x4.5kW/2)
4 x PS8 per channel
3 x LS400 per channel
4 x PS10R2 per channel
4 x LS600 per channel
4 x PS15R2 in passive mode per channel
4 x PS15R2 in active mode: 2 channels
3 x LS18 per channel
2.4 PS and LS setups on NEXO TD Controllers
Please consult nexo-sa.com for NEXO TD Controllers firmware information.

CONNECTION DIAGRAMS
System Manual PSR2 Series Page 11 / 109
3CONNECTION DIAGRAMS
3.1 PS8 and LS400 / DTDAMP4x1.3
3.2 PS10R2 and LS600 / DTDAMP4x1.3

CONNECTION DIAGRAMS
Page 12 / 109 System Manual PSR2 Series
3.3 PS15R2 (passive mode) and LS18 / DTDAMP4x1.3 (Bridge Stereo)

CONNECTION DIAGRAMS
System Manual PSR2 Series Page 13 / 109
3.4 PS8 / NXAMP4x1mk2 (4 channels mode)

CONNECTION DIAGRAMS
Page 14 / 109 System Manual PSR2 Series
3.5 LS400 / NXAMP4x1mk2 (4 channels mode)

CONNECTION DIAGRAMS
System Manual PSR2 Series Page 15 / 109
3.6 PS8 and LS400 / NXAMP4x1mk2 (4 channels mode)

CONNECTION DIAGRAMS
Page 16 / 109 System Manual PSR2 Series
3.7 PS10R2 and LS600 / NXAMP4x1mk2 (Bridge Stereo)
3.8 PS15R2 (passive mode) and LS18 / NXAMP4x1mk2 (Bridge Stereo)

CONNECTION DIAGRAMS
System Manual PSR2 Series Page 17 / 109
3.9 PS8 and LS400 / NXAMP4x2mk2 (4 channels mode)

CONNECTION DIAGRAMS
Page 18 / 109 System Manual PSR2 Series
3.10 PS10R2 / NXAMP4x2mk2 (4 channels mode)

CONNECTION DIAGRAMS
System Manual PSR2 Series Page 19 / 109
3.11 LS600 / NXAMP4x2mk2 (4 channels mode)

CONNECTION DIAGRAMS
Page 20 / 109 System Manual PSR2 Series
3.12 PS10R2 and LS600 / NXAMP4x2mk2 (4 channels mode)
