Nexo ePS12 User manual

PAGE 1 OF 2
- Read this document before using.
- Keep this document.
- Observe all warnings and cautions.
VNI-HCPL600
DP6792 –01 - DI
Coupler ePS12 eLS18
Contents:
X1 Top Frame
X1 Left Plate
X2
M6
X2
M6x25
X6
M10x25
X1 Right Plate
X12
M10
X6
M10x30
** The type of the screws may differ from the representation
Weight: 17 kg / 37.4 lb

PAGE 2 OF 2
- Read this document before using.
- Keep this document.
- Observe all warnings and cautions.

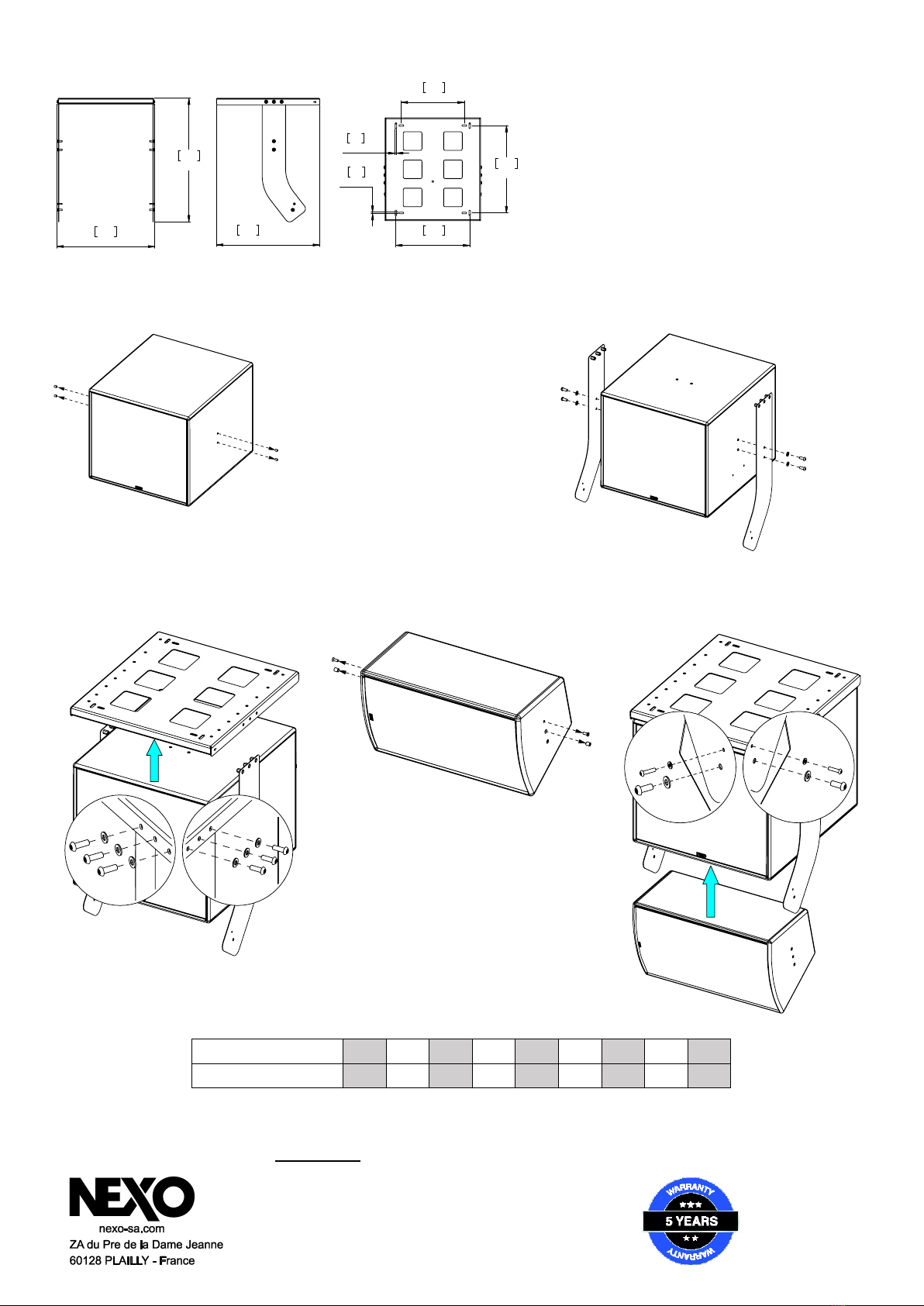

Dimensions
Warnings
Ensure that the mounting location and
fasteners can support at least 4 times the
weight of all the installed cabinets, auxiliary
equipment and cables.
Use only the provided screws (thread lock
coated) and accessories.
Assembly
Remove the screws on both sides.
Assemble the Plates on each side of eLS18 using the M10x25
screws.
Place the assembly below the frame plate.
Pay attention to the mounting direction, see
the mark on the top frame.
Fasten the M10x30 screws.
Remove the screws on both sides of ePS12.
Place ePS12, fasten with M10x25 and M6x25
screws.
Hole*
1
2
3
4
5
6
7
8
9
Angle (+/- 1°)
+28
+20
+12
+3
-6
-16
-26
36
-39
*Hole from the front of the cabinet
•NEXO cannot accept responsibility for accidents caused by any factor other than defects in this product itself.
•Please check the web site nexo-sa.com for the latest update.
















