Nexo ID14 User manual

DP4970-01-DI
ID14 / ID14-I
User manual

TABLE OF CONTENTS
Page 2/ 16 ID14
TABLE OF CONTENTS
TABLE OF CONTENTS___________________________________________________________________ 2
WARNINGS ____________________________________________________________________________ 3
EQUIPMENT ___________________________________________________________________________ 4
DESCRIPTION__________________________________________________________________________ 5
PRESET_______________________________________________________________________________ 6
CROSSOVER FREQUENCY_______________________________________________________________ 7
ACCESSORIES _________________________________________________________________________ 8
ARRAY EQ____________________________________________________________________________ 10
MAINTENANCE________________________________________________________________________ 11
TECHNICAL SPECIFICATIONS ___________________________________________________________ 13
USER NOTES _________________________________________________________________________ 14
EU Conformity declaration
We,
NEXO SA
ZA DU PRE DE LA DAME JEANNE
60128 PLAILLY –France
Declare under our sole responsibility that the product
Type
Serial number
Passive Loudspeaker
ID14
On the product
Is in conformity with the provisions of the following directive
including all applicable amendments:
2014/35/UE (Low Voltage Directive)
Applied rules and standards:
Plailly, August 2020
EN 13155, EN 62368
Joseph CARCOPINO, R&D Director

WARNINGS
ID14 Page 3/ 16
WARNINGS
PRECAUTIONS
ude any user-
repairable part.
If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician.
Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the
system. If a liquid gets into the system, please have it inspected by a NEXO qualified technician.
The connection should be performed by qualified technician, by ensuring that power is off.
Operating temperature with temperate climate: 0°C to +40°C (+32°F to +104); -20°C à +60°C (-4°F to +140°F) for storage.
SAFETY INFORMATIONS
Read this manual before using the speaker.
Keep this manual available for further reference.
Observe all warnings and cautions.
Please check the NEXO Web site nexo-sa.com to get the most up-to-date version of this manual.
Ensure you are aware of the safety rules applying to rigging, stacking or installing on tripod or speaker stand. Failure to observe
these rules may expose persons to potential wounds or even death.
Only use the system with accessories specified by NEXO.
Please always consult a NEXO-accredited technician if the installation needs architectural works and observe following precautions:
Mounting Precautions:
- Please select screws and mounting location supporting 4 times the system weight.
- Do not expose the system to excessive dust, vibrations, to extreme cold or hot temperatures, to reduce the risk of
damaging components.
- Do not place the system in an unstable position: it could fall accidentally.
- If cations are adapted and that its height does not exceed
.
Connection and Powering Precautions:
- Unplug connected cables before moving the system.
- Power off the system before connecting the system.
- When switching on the installation, the amplifier must be powered last; when switching the installation off, shut off the
amplifier first.
- If you work by cold temperatures, progressively raise the level to nominal value during the first minutes of use, to allow the
system components to stabilize.
Please check regularly the system condition.
HIGH SOUND PRESSURE LEVELS
Exposure to very high sound pressure levels may cause permanent hearing losses. Degrees of hearing losses may be different
from one person to another, but almost everybody will be affected if exposed to high sound pressure levels during a long period of
time. The OSHA (Occupational Safety and Health Administration) American Agency specified the following maximal exposures:
Number of Hours
Sound Pressure Level (dBA),
Slow Response
8
90
6
92
4
95
3
97
2
100
1 ½
102
1
105
½
110
¼ or less
115
WASTE OF ELECTRIC OR ELECTRONIC EQUIPMENT
This symbol on the product or its packaging indicates that this product must not be treated as household waste.
Instead, it is your responsibility to hand it over to a designated collection point for the recycling of waste
electrical and electronic equipment. By ensuring your waste equipment is recycled, you will help prevent
potential negative consequences for the environment and human health, which could appear if this product was
not recycled. Recycling helps spare natural resources. For more information about the recycling of this product,
please contact your local city office, your household waste disposal service or your reseller.

EQUIPMENT
Page 4/ 16 ID14

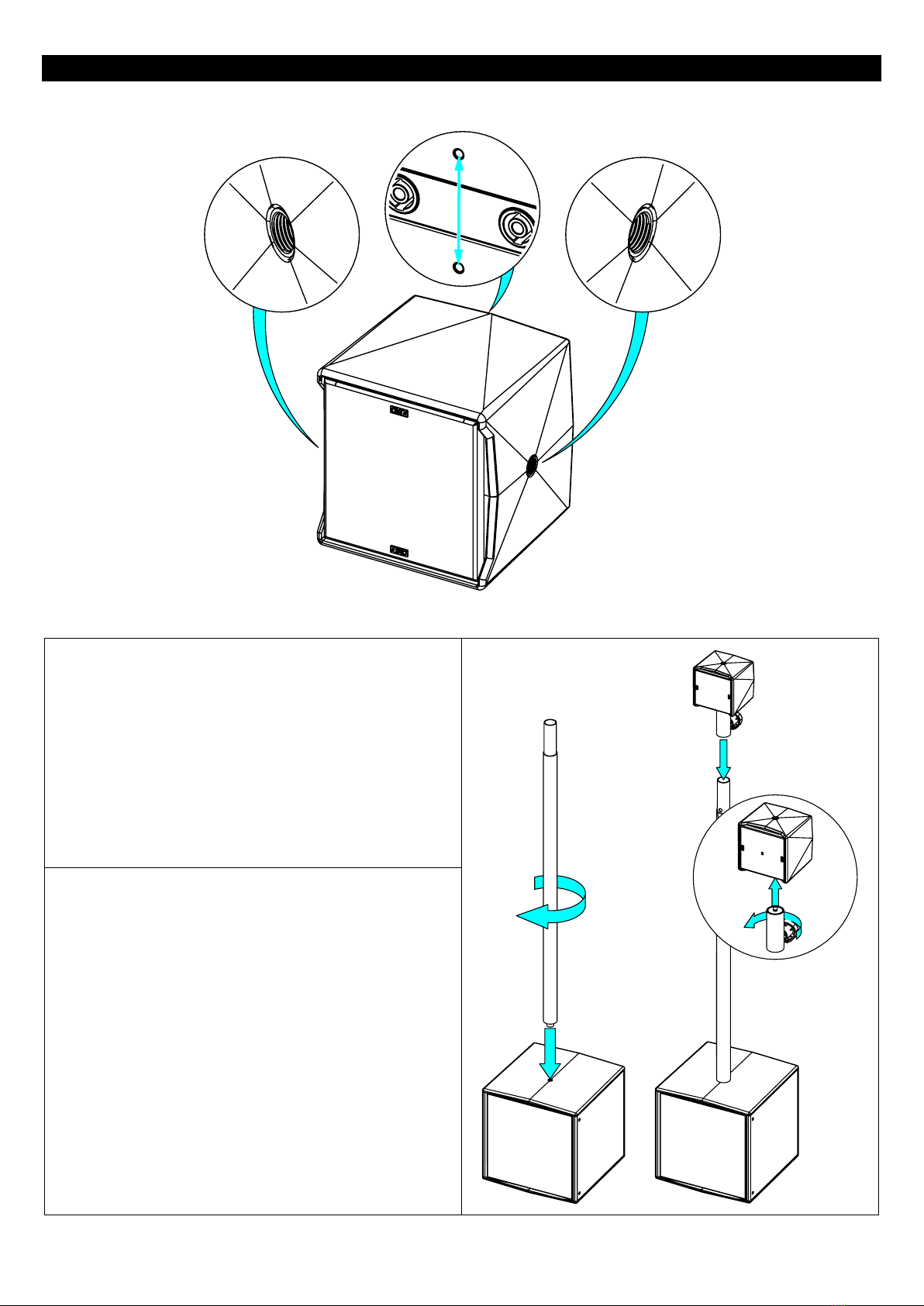

EQUIPMENT
3 locations for hanging, 1 on the back (2x M6 / 73mm pitch) and on each side (1x M10).
Assembly on distance rod or speaker stand
Place distance rod on the connector plate (M10) of the Sub.
Place ID14 on the distance rod / monitor stand
IMPORTANT
Speaker stand must be rated for ID14 weight.
Speaker stand must always be installed on a horizontal surface.
Stand height and footprint must be defined to prevent assembly
from collapsing.
Ensure that audience is not allowed within a safety area which
radius is equal or higher than assembly height.
Test steadiness of the assembly by pushing in all directions.

DESCRIPTION
ID14 Page 5/ 16

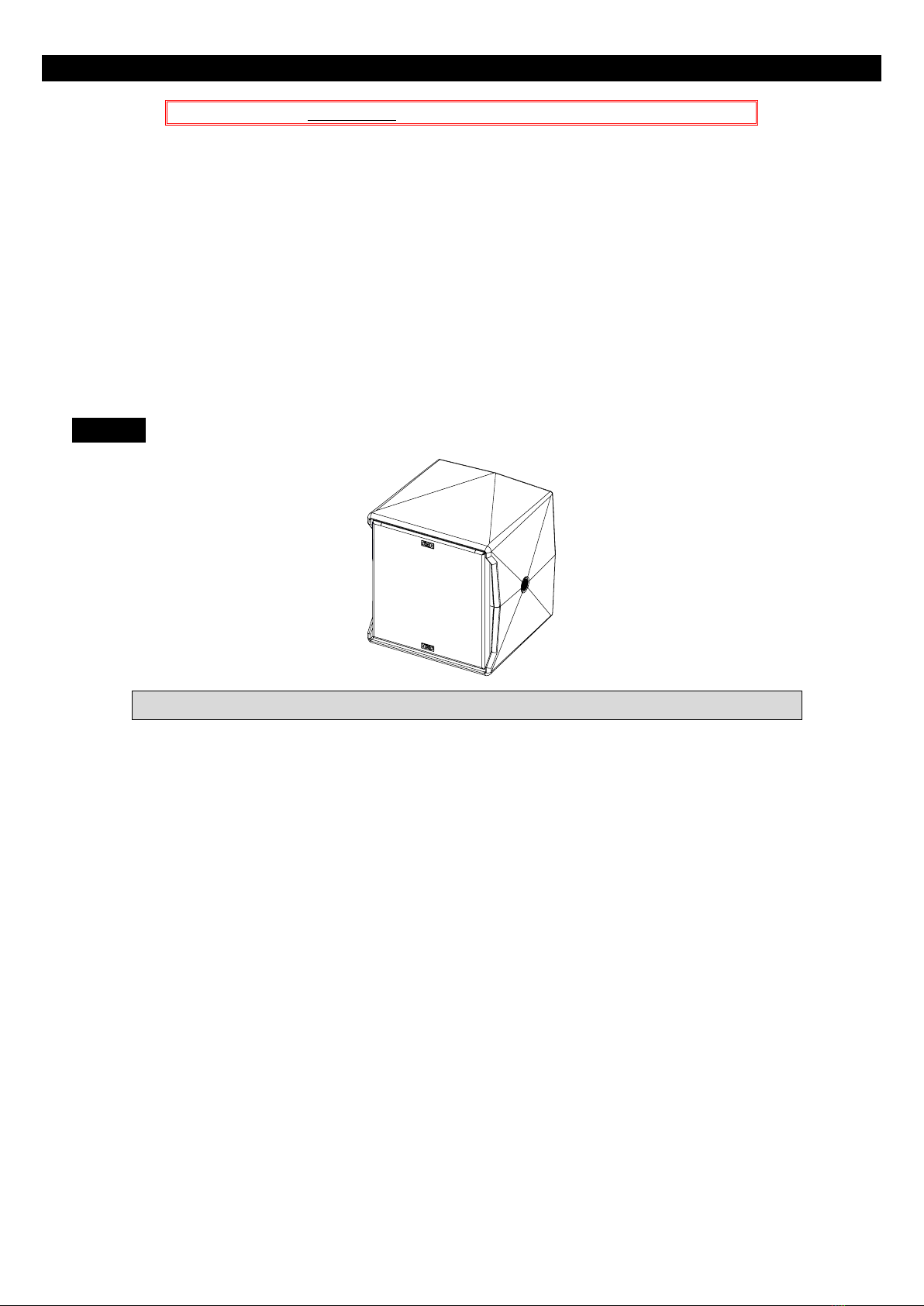

DESCRIPTION
→The ID14 is a compact full-range coaxial speaker
→ID14 HF Dispersion (upon ordering):
•100° - 100°: ID.14-I100100 / ID.14-I100100PW / ID.14-T100100 / ID.14-T100100PW
•90° 140°: ID.14-I90140 / ID.14-I90140PW / ID.14-T90140 / ID.14-T90140PW
→Versions:
•ID14t: for 
•ID14i: for fixed installations, black, white
→ID14 can be used alone or with IDS108 subwoofer.

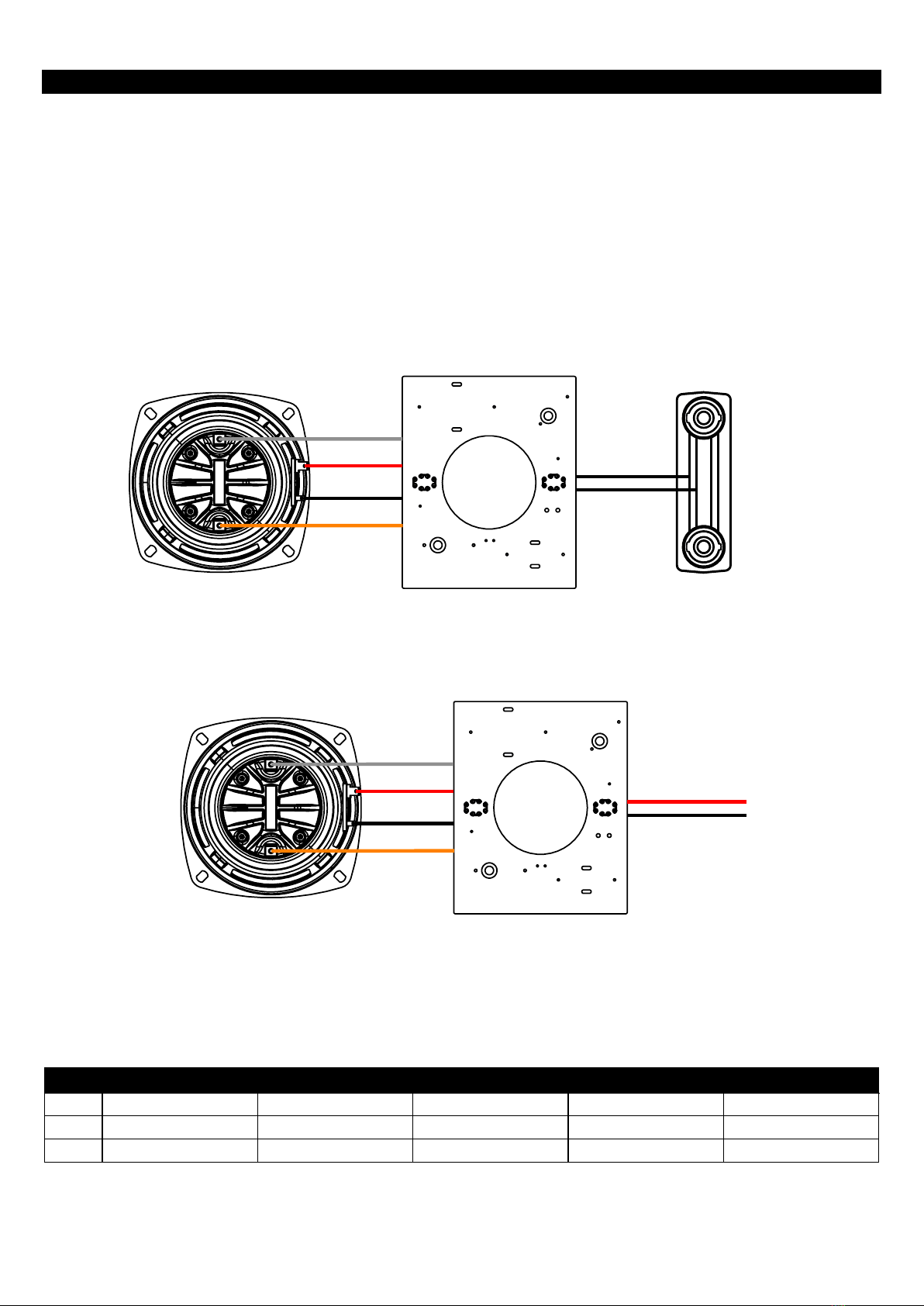

→ID14t is equipped with two Speakon NL4 connectors with parallel-wired pins, one on each side and two on the back. ID14t use
2+/2-. The 1+/1- pins are used by the sub.
→ID14i is supplied with a fixed cable (HO7ZZ-F), 2x 0.75mm2 section, length 2m, outside diameter 6.1mm ± 1mm.
(+): Brown / Red; (-): Blue / Black
→Amplification
•The ID14 speakers must be used with a NEXO processor to handle EQ, phase alignment, crossover and
excursion/thermal protection for the system loudspeaker.
•The following table shows the number of ID14 speakers and IDS108 subwoofers usable with each solution.
DTD + DTDAMP4X0.7
DTD + DTDAMP4X1.3
NXAMP4X1mk2
NXAMP4X2mk2
NXAMP4X4mk2
ID14
Up to 4 per channel
Up to 4 per channel
Up to 8 per channel
Up to 8 per channel
Up to 8 per channel
IDS108
Up to 2 per channel
Up to 2 per channel
Up to 3 per channel
Up to 4 per channel
Up to 4 per channel
Recommended



PRESET
Page 6/ 16 ID14
PRESET
Please consult nexo-sa.com for NEXO TD Controllers firmware information.
For the ID14, the following setups are available:
→MAIN is the recommended setup for most FOH application, similar to previous firmware setup.
→MONITOR is recommended for monitor applications. Warning: this setup is a low latency setup and therefore its phase is not
compatible with other NEXO cabinets, including subs.
Preset
•ID14 MON PA 100100, with high pass at 120 or 150 Hz.
•ID14 MON PA 14090, with high pass at 120 or 150 Hz.
•ID14 MAIN PA 100100, with high pass at 120 or 150 Hz.
•ID14 MAIN PA 14090, with high pass at 120 or 150 Hz.
ID14
Front of house and stage monitor applications

CROSSOVER FREQUENCY
ID14 Page 7/ 16
ID14 + IDS108
Stage monitor applications with Sub
Front of house applications with Sub
CROSSOVER FREQUENCY
→120 Hz: Default crossover, to be used without sub or with a small sub, e.g. IDS108.
→150 Hz: Used for high level application, for « front fill » on stage, with a large main system.

ACCESSORIES
Page 8/ 16 ID14
ACCESSORIES
WARNINGS
All ID14 accessories are specifically rated in agreement with structural computations.
Never use other accessories –including push-pins –when assembling ID14 cabinets than the ones provided by NEXO: NEXO
will decline responsibility over the entire ID14 accessory range if any component is purchased from different supplier.
PROHIBITED: ID14 below ID14 or ID14 below IDS108 without dedicated accessory
IDT-HBRK14
Bracket for Touring or fixed use.
IDT-GSTK14
Ground stacking accessory.
IDT-TVP
Bolt adapter M10 to 35mm.
IDI-14TO108
Adapter for ID14 on IDS108.

ACCESSORIES
ID14 Page 9/ 16
IDI-WM01
Speaker wall mount; 0° to 30°.
IDI-WB02
Universal speaker wall mount
IDT-4CASE14
Flight case for 4x ID14 and accessories

ARRAY EQ
Page 10 / 16 ID14
ARRAY EQ
The ArrayEQ allows to adjust the system frequency response in its lower range
(see curves below, with different ArrayEq values):
ArrayEQ HF: only available on NXAMPmk2

MAINTENANCE
ID14 Page 11 / 16
MAINTENANCE
NOTE:
Speakers and Grills can be sent back to NEXO for recycling

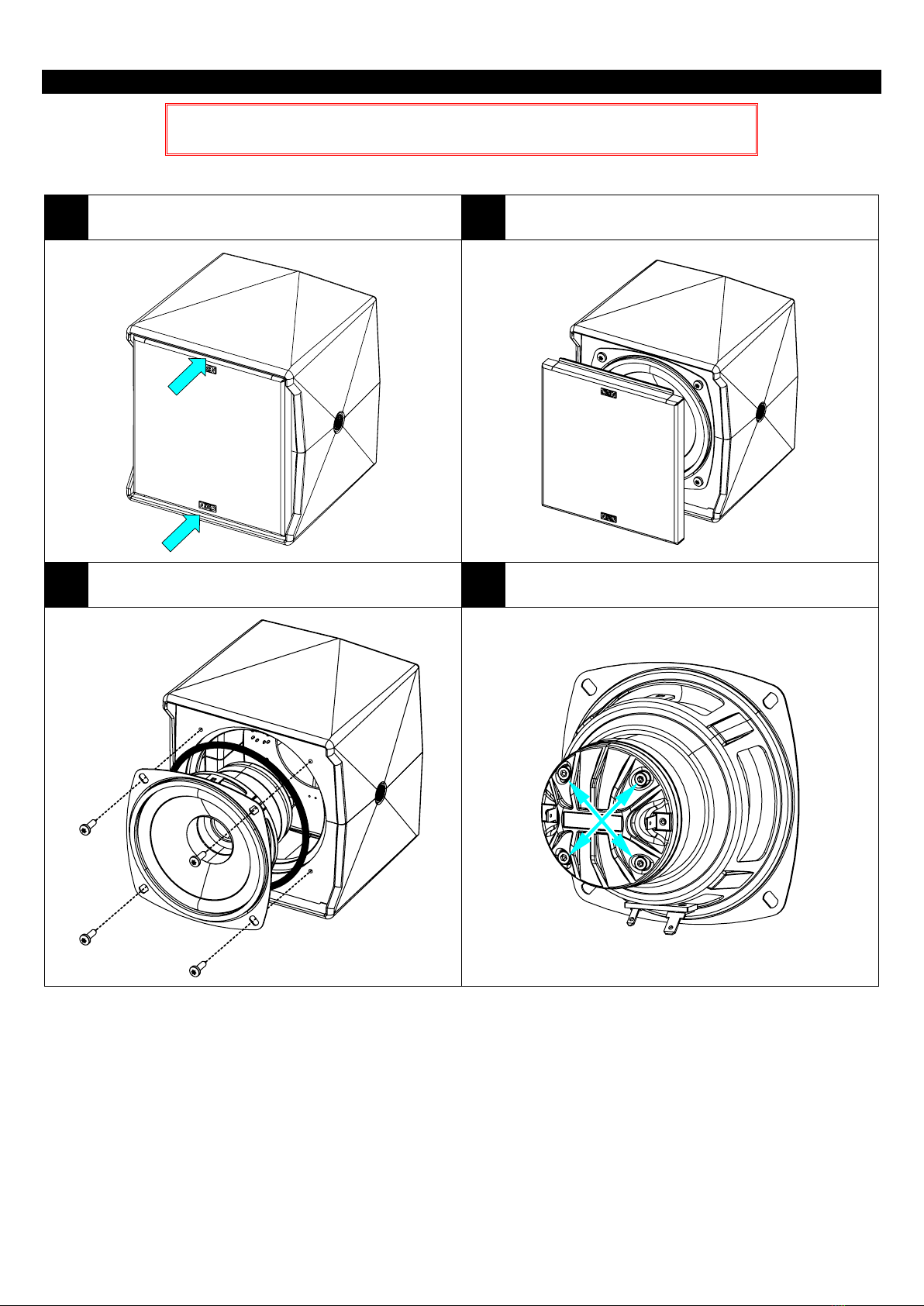

Driver access
1
Place a flat screwdriver in the space between the grille
and the cabinet to unlock the grille.
2
Remove the grille
3
Remove 4 screws to access to the speaker, make sure
the gasket is correctly located when reassembling.
4
To access to the HF diaphragm, remove 4 screws.

MAINTENANCE
Page 12 / 16 ID14
Spare parts
MARK
QUANTITY
REFERENCE
DESIGNATION
1
1
05ID14T-A
Complete grille Touring Black
1
05ID14T-APW
Complete grille Touring White
1
05ID14I-A
Complete grille Installation Black
1
05ID14I-APW
Complete grille Installation White
2 (a)
1
05HPC4-100
100x100 (with gasket)
1
05HPC4-140

3
1
05NHP4R/K
HF Diaphragm (with gasket)
(a) PAY ATTENTION TO THE DIRECTIVITY OF THE DRIVER WHEN ORDERING




TECHNICAL SPECIFICATIONS
ID14 Page 13 / 16

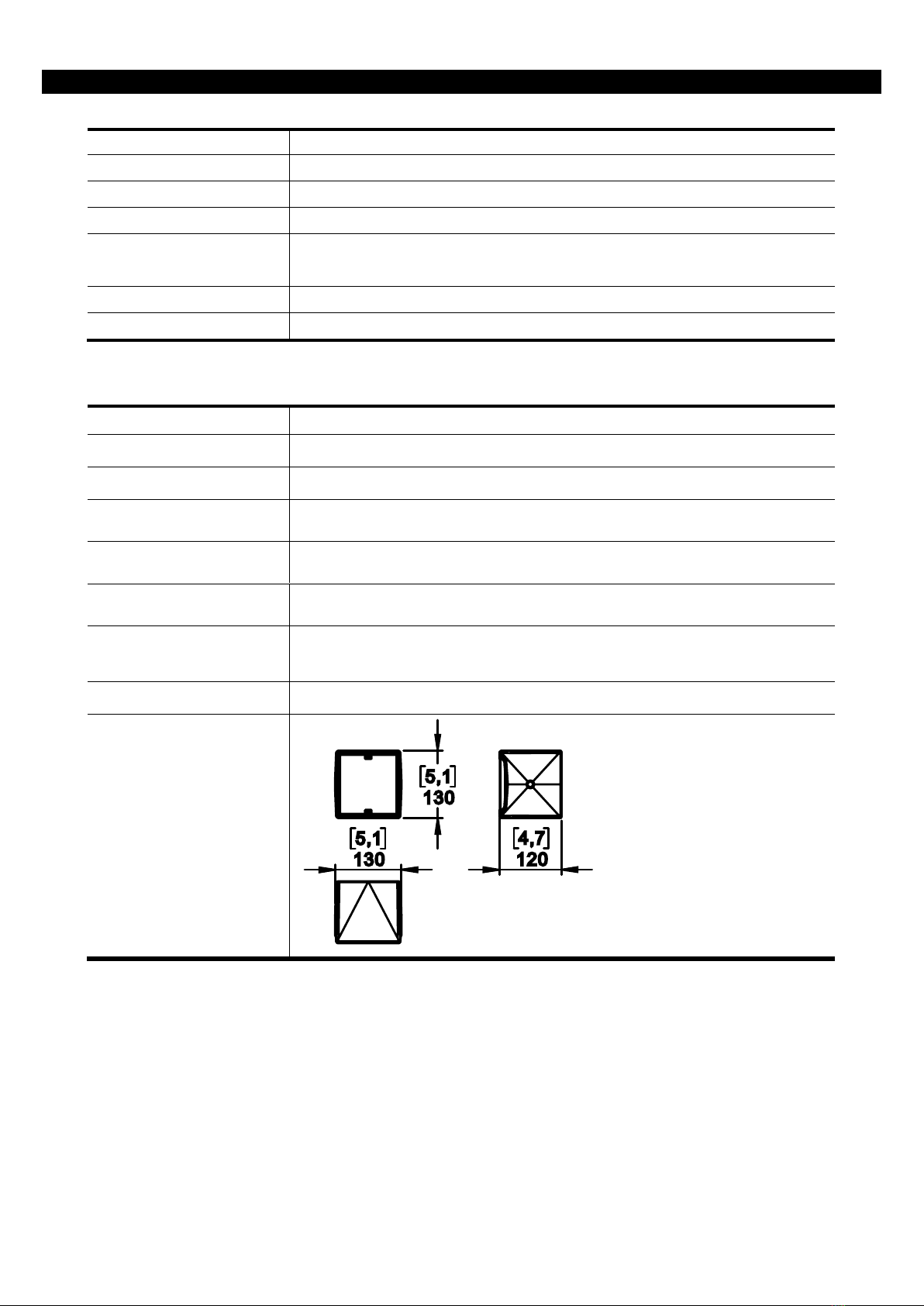

TECHNICAL SPECIFICATIONS
ID14 WITH NEXO ELECTRONICS
Model
ID14
Frequency range (±6dB)
95 Hz 20 kHz
Peak SPL Level (1m)
116dB Peak
Operating voltage
20Vrms (105Vpeak)
HF dispersion
(upon ordering)
100°x100° - 90°x140°
Crossover Frequency
120Hz 150 Hz
Nominal Impedance
16
SPECIFICATIONS
Model
ID14
Components
1x Coaxial LF: 4- 16long excursion & HF:1.4 - - Neodymium driver
Material
Polyurethane
Finish
Black: raw sandblasted
White: structural paint
Front finish
Magnelis® Steel front grille (Touring version)
UV resistant acoustic fabric fitted front grille (Install version)
Fittings
1x M10 on each side for dedicated U bracket
2x M6 / 73mm pitch at the back
Connector
2x NL4, 4 poles connectors (Touring version)
1x Cable gland with 2 cores cable (Install version)
Weight
1.7 kg / 3.7 lb
Dimensions

USER NOTES
Page 14 / 16 ID14
USER NOTES

USER NOTES
ID14 Page 15 / 16

Page 16 / 16 ID14
