Nexo 45N-12 User manual

DP2539-01-DI
45N12
Line Monitor
User manual

TABLE OF CONTENTS
Page 2/ 14 45N12
TABLE OF CONTENTS
TABLE OF CONTENTS___________________________________________________________________ 2
WARNINGS ____________________________________________________________________________ 3
EQUIPMENT ___________________________________________________________________________ 4
DESCRIPTION__________________________________________________________________________ 5
PRESET_______________________________________________________________________________ 6
CROSSOVER FREQUENCY_______________________________________________________________ 7
ACCESSORY___________________________________________________________________________ 7
ARRAY EQ_____________________________________________________________________________ 7
MAINTENANCE_________________________________________________________________________ 8
TECHNICAL SPECIFICATIONS ___________________________________________________________ 11
USER NOTES _________________________________________________________________________ 12
EU Conformity declaration
We,
NEXO SA
ZA DU PRE DE LA DAME JEANNE
60128 PLAILLY –France
Declare under our sole responsibility that the product
Type
Serial number
Loudspeaker
45N12
On the product
Is in conformity with the provisions of the following directive
including all applicable amendments:
2006/95/CE (Low Voltage Directive)
Applied rules and standards:
Plailly, February 08th, 2015
EN 12100, EN 60065
Joseph CARCOPINO, R&D Director

WARNINGS
45N12 Page 3/ 14
WARNINGS
PRECAUTIONS
Do not open the speaker, do not try to disassemble it neither to modify it in any way. The system doesn’t include any user-
repairable part.
If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician.
Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the
system. If a liquid gets into the system, please have it inspected by a NEXO qualified technician.
The connection should be performed by qualified technician, by ensuring that power is off.
Operating temperature with temperate climate: 0°C to +40°C (+32°F to +104); -20°C à +60°C (-4°F to +140°F) for storage.
SAFETY INFORMATIONS
Read this manual before using the speaker.
Keep this manual available for further reference.
Observe all warnings and cautions.
Please check the NEXO Web site nexo-sa.com to get the most up-to-date version of this manual.
Ensure you are aware of the safety rules applying to rigging, stacking or installing on tripod or speaker stand. Failure to observe
these rules may expose persons to potential wounds or even death.
Only use the system with accessories specified by NEXO.
Please always consult a NEXO-accredited technician if the installation needs architectural works and observe following precautions:
Mounting Precautions:
-Do not expose the system to excessive dust, vibrations, to extreme cold or hot temperatures, to reduce the risk of damaging
components.
-Do not place the system in an unstable position: it could fall accidentally.
Connection and Powering Precautions:
-Unplug connected cables before moving the system.
-Power off the system before connecting the system.
-When switching on the installation, the amplifier must be powered last; when switching the installation off, shut off the amplifier
first.
-If you work by cold temperatures, progressively raise the level to nominal value during the first minutes of use, to allow the
system components to stabilize.
Please check regularly the system condition.
HIGH SOUND PRESSURE LEVELS
Exposure to very high sound pressure levels may cause permanent hearing losses. Degrees of hearing losses may be different
from one person to another, but almost everybody will be affected if exposed to high sound pressure levels during a long period of
time. The OSHA (Occupational Safety and Health Administration) American Agency specified the following maximal exposures:
Number of Hours
Sound Pressure Level (dBA),
Slow Response
8
90
6
92
4
95
3
97
2
100
1 ½
102
1
105
½
110
¼ or less
115
WASTE OF ELECTRIC OR ELECTRONIC EQUIPMENT
This symbol on the product or its packaging indicates that this product must not be treated as household waste.
Instead, it is your responsibility to hand it over to a designated collection point for the recycling of waste
electrical and electronic equipment. By ensuring your waste equipment is recycled, you will help prevent
potential negative consequences for the environment and human health, which could appear if this product was
not recycled. Recycling helps spare natural resources. For more information about the recycling of this product,
please contact your local city office, your household waste disposal service or your reseller.

Equipment
Page 4/ 14 45N12
EQUIPMENT
Handles - Magnets
Handling 45N12
Moving cabinet
In order to move 45°N-12 quickly on stage:
Lift the cabinet with the front handle
Slide it on the rounded rear skids
Drop it at its new position.
Locking / Unlocking cabinet
An integrated magnetic locking system allows connecting multiple monitors together with no requirement for additional parts.
Locking is achieved by simply adjusting cabinets side by side.
To unlock cabinets, simply lift one of the side handles: cabinets
will unlock with almost no effort.

DESCRIPTION
45N12 Page 5/ 14
DESCRIPTION
→The 45N12 is a monitor which brings all the benefits of line-array technology to the stage;
→HF dispersion:
•Horizontal 30° - Scalable 30° steps when arrayed
•Diagonal (Coupling Plane) 22.5° - Scalable 22.5° steps when arrayed
•Vertical 60° (Asymmetrical -45° / + 15°)
→The speaker is equipped with two NL4 connectors, the 4 pins of the 2 sockets are connected in parallel within the enclosure.
•PASSIVE MODE : 2+/2-
•ACTIVE MODE : LF (1+/1-) –HF (2+/2-)
→Amplification
•The 45N12 cabinet MUST be used with a NEXO processor to handle EQ, phase alignment, crossover and
excursion/thermal protection for the system loudspeakers.
•The following table shows the number of 45N12 usable with each solution.
NXAMP4X1(BRIDGED)
NXAMP4X2
NXAMP4X4
45N12
Up to 2 per channel
Up to 3 per channel
Up to 4 per channel
→Configuring 45N12 for Passive or Active Mode
IMPORTANT 45N12 are factory configured in active mode
In order to change active or passive configuration:
•Remove the TORX screws that hold the rear/bottom metal panel;
•Remove the rear/bottom metal panel to access passive network WAGO connectors.
•In Passive Mode, CNX WAGO connector should be inserted in “Passive In”, and loudspeakers WAGO connectors
should be inserted in connector “Passive Out”.
•In Active Mode, CNX WAGO Connector should be directly connected to loudspeakers WAGO connectors (passive
filter is then bypassed).
Passive mode configuration
Active mode configuration

PRESET
Page 6/ 14 45N12
PRESET
Please consult nexo-sa.com for NEXO TD Controllers firmware information.
For the 45N12, the following setups are available
→Passive mode
•45N12 1 Box, with high-pass at 60, 85 or 120 Hz.
•45N12 2 Boxes, with high-pass at 60, 85 or 120 Hz.
•45N12 3 Boxes, with high-pass at 60, 85 or 120 Hz.
→Active mode
•45N12 HF 1 Box, with high-pass at 60, 85 or 120 Hz.
•45N12 HF 2 Boxes, with high-pass at 60, 85 or 120 Hz.
•45N12 HF 3 Boxes, with high-pass at 60, 85 or 120 Hz.
•45N12 LF 1 Box, with high-pass at 60, 85 or 120 Hz.
•45N12 LF 2 Boxes, with high-pass at 60, 85 or 120 Hz.
•45N12 LF 3 Boxes, with high-pass at 60, 85 or 120 Hz.

CROSSOVER FREQUENCY
45N12 Page 7/ 14
CROSSOVER FREQUENCY
→60 Hz: Full range application
→85 Hz: Use with a NEXO subwoofer.
→120 Hz: Use with a NEXO subwoofer.
ACCESSORY
45T-CASE12: FLIGHT CASE FOR 2X 45N12
ARRAY EQ

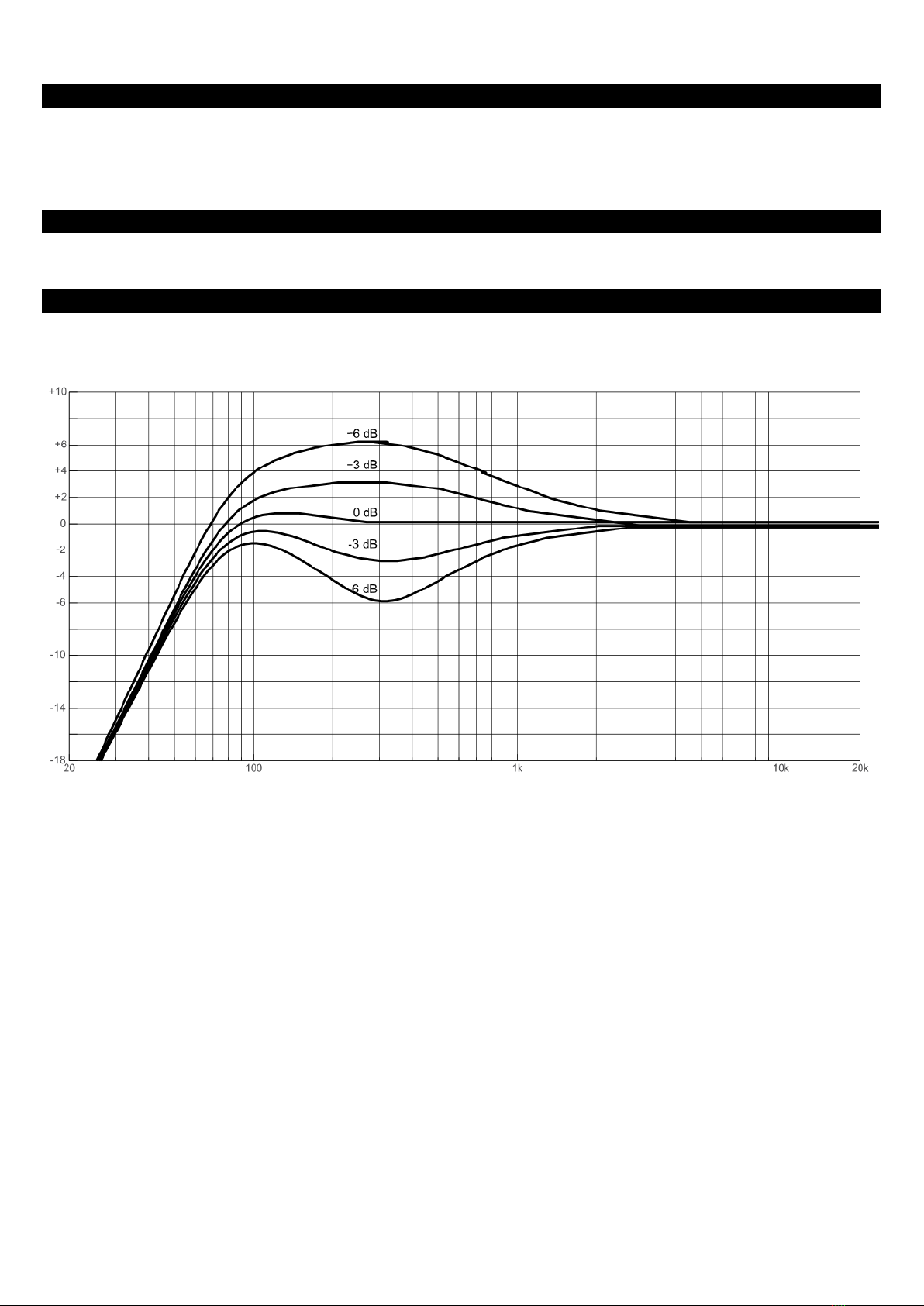

The ArrayEQ allows to adjust the system frequency response in its lower range
(see curves below, with different ArrayEQ values):

MAINTENANCE
Page 8/ 14 45N12
MAINTENANCE
12” Access
1
Remove 11 screws (Tx25), 4 on each side and 3 on the
front.
2
Remove the grille.
3
Remove the 4 screws (Tx25) and washer to remove the
PMP.
4
Remove the 4 screws (Tx25) to access 12”.

MAINTENANCE
45N12 Page 9/ 14

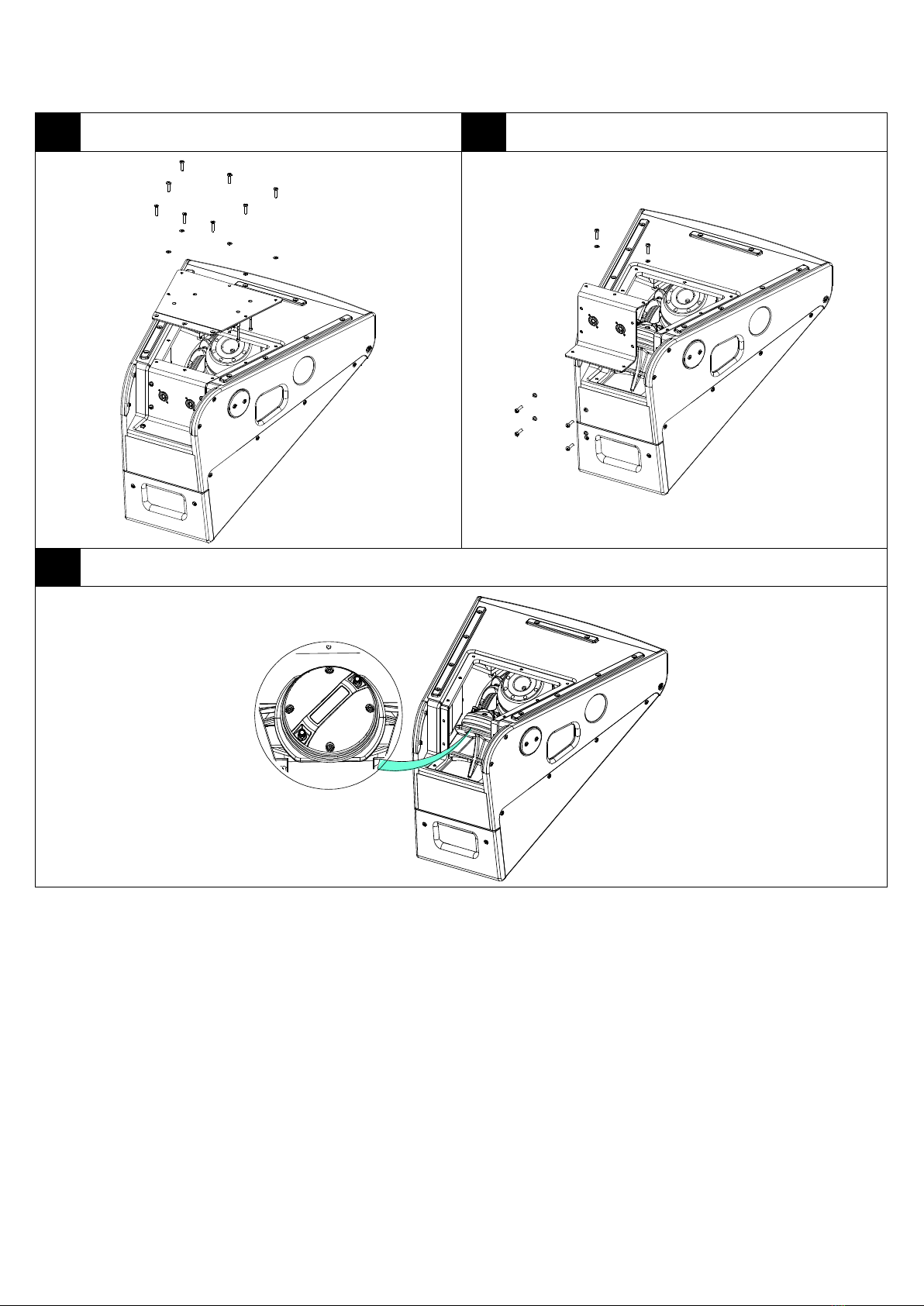

HF Access
1
Remove the passive filter plate, 8 screws (Tx25).
2
Remove the CNX plate, 6 screws (Tx25).
3
You can access the HF driver to change the diaphragm.
LF: red (+) / black (-)
HF: orange (+) / grey (-)

MAINTENANCE
Page 10 / 14 45N12
Spare parts
MARK
QUANTITY
REFERENCE
DESIGNATION
1
1
0545N12-A
45N12 complete grille black (with screws)
1
0545N12-APW
45N12 complete grille white (with screws)
2
1
05HPB12ND8
12” driver
1
05HPB12ND8R/K
Recone kit HPB12ND8
3
2
05PATIN-A2
45N12 Long skid (with screws)
4
1
05PATIN-A1
45N12 Short skid (with screws)
5
2
05AIMANT66
Magnet D66 black (with screws)
6
2
05AMRD66
Magnet washer D66 black (with screws)
2
05AMRD66-PW
Magnet washer D66 white (with screws)
7
1
0545N12-FPC
Passive filter black (with plate and screws)
8
1
05HPADE914-16
HF driver complete (with screws)
1
05NH91-16R/K
HF diaphragm HPADE914-16
9
1
0545N12-FPA
Rear plate CNX black complete

TECHNICAL SPECIFICATIONS
45N12 Page 11 / 14
TECHNICAL SPECIFICATIONS
45N12 WITH NEXO ELECTRONICS
Model
45N12
Frequency range (±6dB)
50Hz –20kHz
Peak SPL Level (1m)
140dB
Operating voltage
50Vrms (180Vpeak)
HF Dispersion
60° Vertical (Asymmetrical -45° / +15°)
30° Horizontal- Scalable 30° steps when arrayed
22.5° Diagonal (Coupling Plane) - Scalable 22.5° steps when arrayed
Crossover Frequency
LF-HF: 1kHz Passive
Nominal Impedance
Active mode (8ΩLF - 16ΩHF) –Passive mode 8Ω
SPECIFICATIONS
Model
45N12
Components
LF: 1x12” - 8Ω; HF: 1x3” - 16Ω – Neodymium driver
Material
Baltic birch plywood
Finish
Black or white structural paint
Front finish
Steel front grille + back foam (black) / back mesh (white)
Fittings
4 handles (2 side metal recessed, 2 front and rear molded)
Connector
4x NL4, 4 connectors
Weight
24 kg –53 lb
Dimensions

USER NOTES
