nexstyle 654OSA013STS Assembly instructions
Please read and save this guide before using your range hood.
Store the guide in a safe place so you will know where it is
when you want to refer to it.
stainless steel
range hood
Model#: 654OSA013STS
Installation
Guide and
User Manual
THIS UNIT REPLACES TOP
VENTING RANGE HOODS ONLY.
CHECK YOUR EXISTING RANGE
HOOD BEFORE INSTALLING.
2
IMPORTANT
Carefully check the unit prior to installation to ensure there is no damage.
Do not dispose of any packaging until you are satisfied with your new
range hood.
If you have any problems with this unit or there are miss-
ing or damaged parts, please call toll free:
1-800-459-4409.
DO NOT RETURN THE UNIT TO THE PLACE OF PURCHASE
before calling the toll free number above.
IMPORTANT
This is a top venting range hood. Check your existing range hood
venting system to ensure your venting is compatible. This unit can’t
replace a back venting range hood.
3
Table of Contents
A. Important Safety Instructions ................................................... 4
- Installation ............................................................................. 4
- Operations ............................................................................ 5
- Cleaning ................................................................................ 6
B. Before You Start .................................................................... 7
C. Electrical Requirements ........................................................... 11
D. List of Materials ....................................................................... 13
E. Planning for the Installation .................................................... 15

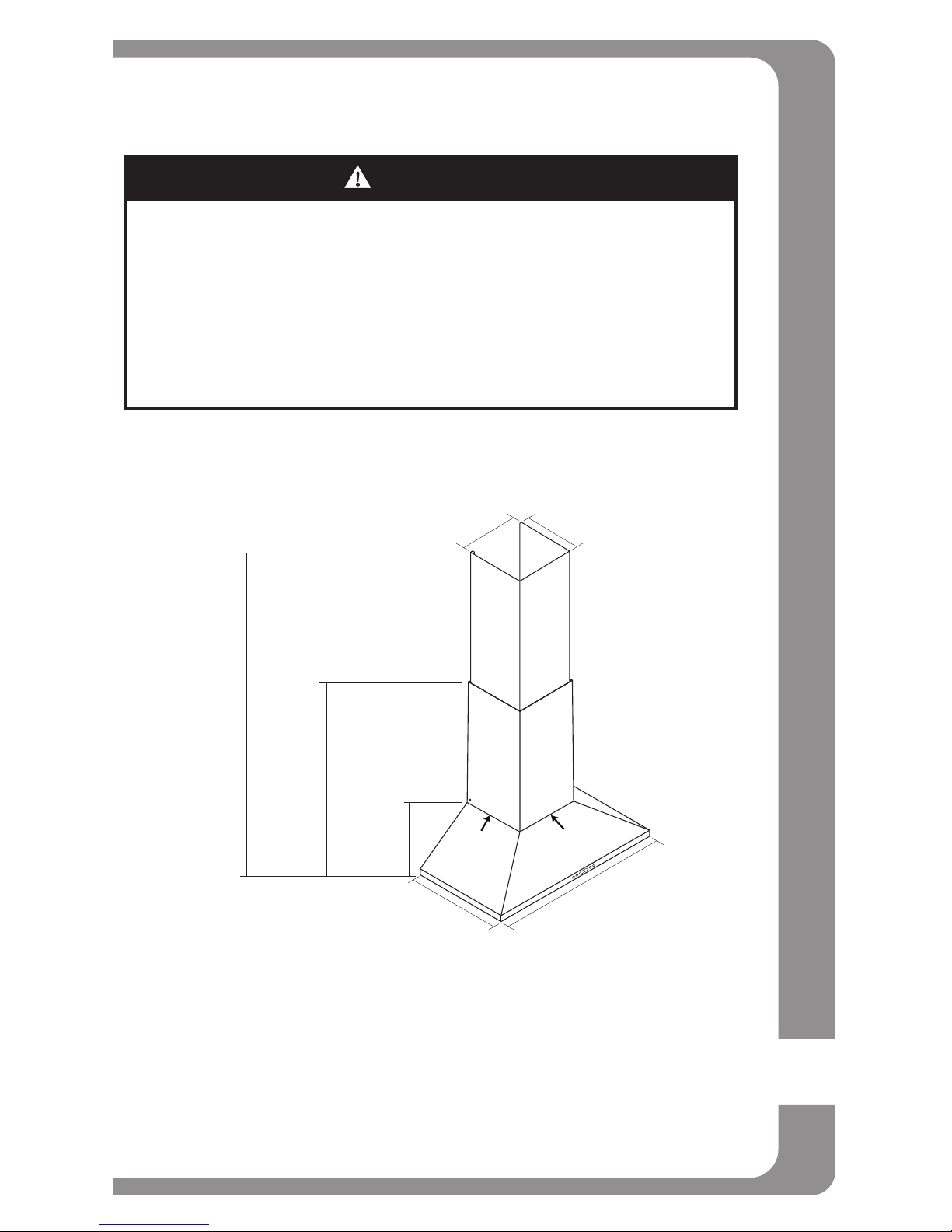

- Dimensions ........................................................................... 15
- Important .............................................................................. 15
- Venting Method ..................................................................... 17
F. Installation Instructions ............................................................ 19
G. Maintenance ............................................................................ 23
H. Trouble Shooting ..................................................................... 25
I. Range Hood Operations .......................................................... 27
J. Wiring Diagram ........................................................................ 28
K. Specifications .......................................................................... 28
• Readandsavetheseinstructions.Savethisguideforlocalelectrical
inspector’s use.
• Approvedforresidentialappliances.
• Forresidentialuseonly.
Installation must comply with all local codes.
• Requirement:120VAC,60Hz.15or20ABranchCircuit.
• Readallinstructionsbeforeproceeding.
• Turnoffpowercircuitbreakerbeforewiringthisappliance.
Installer: Must leave instructions for this unit with owner.
Homeowner: Please retain these instructions for future reference and
for local electrical inspector’s use.
4
A. IMPORTANT SAFETY
INSTRUCTIONS
Read all instructions before installing and operating this appliance.
INSTALLATION
Do not install if the appliance is damaged.
1.The instructions in this manual are intended for qualied installers,
service technicians or other qualified persons. NEVER attempt to
install this appliance yourself.
2. Installing the unit without an electrical and technical background could
result in injury.
3.Allelectricalwiringmustbeproperlyinstalled,insulatedandgrounded.
Old duct work should be cleaned or replaced if necessary to avoid
the possibility of a grease fire. Check all joints on duct work to insure
proper connection. All joints should be properly taped.
4.Personalinjuryhazard.Becauseoftheweightandsizeoftherange
hood,twoormorepeopleareneededtomoveandsafelyinstallthe
range hood. Failure to properly lift range hood could result in damage
to the product or personal injury.
5. SEVERE INJURY - Range hood may have very sharp edges. Please
wearprotectiveglovestoremoveanypartsforinstalling,cleaningor
servicing.
IMPORTANT
Carefully check the unit prior to installation to ensure there is no damage.
Do not dispose of any packaging until you are satisfied with your new
range hood.
NOTE
Ifyouhaveanyproblemswiththeunit,pleasecalltollfree:
1-800-459-4409. Do not return the unit to the place of purchase before
calling the toll free number.
5
OPERATIONS
1. Read all instructions in this manual before operating the appliance.
2.Alwaysleavesafetygrillsandltersinplace.Withoutthesecomponents,
operatingblowerscouldcatchontohair,ngersandlooseclothing.
3.NEVERdisposeofcigaretteashes,ignitablesubstances,oranyforeign
objects in blowers.
4. NEVER leave cooking unattended. Use caution when cooking with oil.
Overheating may cause oil to reach its flash point and ignite. Used oil
will ignite at lower temperatures than fresh oil.
5. NEVER cook over open flames under the range hood. Constantly
monitordeep-fryersduringuse,asoverheatedoilmayignite.
6
CLEANING
Do not operate blowers when filters are removed.
1. The saturation of greasy residue in the blower and filters may cause
increased flammability. Keep this appliance clean and free of grease
and residue build-up at all times to prevent possible fires.
2. Filters must be cleaned periodically and kept free from accumulation
of cooking residue (see cleaning instructions inside). Old and worn
filters must be replaced immediately.
3. NEVER disassemble parts to clean without proper instructions. Parts
should be disassembled by qualified persons only.
The manufacturer and distributors decline all responsibility in the event of failure to
observe the instructions given here for installation, maintenance and suitable use
of the product. The manufacturer and distributors further decline all responsibility
for injury due to negligence and the warranty of the unit automatically expires due
to improper maintenance.
SAFETY NOTE:
Workman Safety Gloves
Remove PVC film before installation. Always wear “Safety Workman
Gloves”forinstallation,cleaning,lightbulbchanginganddismantlingto
reduce the risk of injury.
7
B. BEFORE YOU START...
It is very important for your safety and the safety of others that you follow
the many important safety messages in this manual and on your appli-
ance. Always read and obey all safety messages. All safety messages
willtellyouwhatthepotentialhazardis,howtoreducethepossibilityof
injury,andwhatcanhappeniftheinstructionsarenotfollowed.
This safety alert symbol alerts you to potential hazards that can kill
or hurt you and others. All safety messages will follow the safety
alert symbol and the word “WARNING.”
READ AND SAVE THESE INSTRUCTIONS
WARNING : TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING CAREFULLY:
1) Use this unit only in the manner intended by the manufacturer. If
you have any questions, contact the distributor, importer or the
manufacturer.
2) Beforeservicingorcleaningtheunit,switchpoweroffatthejunction
box and lock the panel door to prevent power from being switched on
accidentally.Ifthejunctionboxdoorcannotbelocked,securelyfasten
a prominent warning sign to the panel door.
3) Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-related construction.
8
4) Sufficient air is needed for proper combustion and exhausting of gases
through the flue (duct cover) of fuel burning equipment to prevent
back drafting. Follow the heating equipment manufacturer’s guidelines
and safety standards such as those published by the National Fire
ProtectionAssociation(NFPA)andtheAmericanSocietyforHeating,
RefrigerationandAirConditioningEngineers(ASHRAE),andthelocal
code authorities.
5) Whencuttingordrillingintothewallorceiling,donotdamageelectrical
wiring and hidden utilities.
6) Fans must always be vented to the outdoors.
WARNING:Toreducetheriskofre,useonlymetalductwork.
CAUTION: For general ventilation use only. Do not use the range hood
fanstoexhausthazardousorexplosivevapours.
WARNING : To reduce the risk of injury in the event of a range
top grease fire, observe the following: (Based on “kitchen fire safety
tips” published by the NFPA)
1) SMOTHERFLAMESwithaclose-ttinglid,cookiesheet,ormetaltray,
then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the
amesdonotgooutimmediately,EVACUATEANDCALLTHEFIRE
DEPARTMENT.
2) NEVER PICK UP A FLAMING PAN - you may be burned.
3) DONOTUSEWATER,includingwetdishclothsortowels-aviolent
steam explosion will result.
4) UseanextinguisherONLYif:
a)YouknowyouhaveaclassABCextinguisher,andyoualreadyknow
how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department is being called.
d) You can fight the fire with your back to an exit.
9
CAUTION:Toreduceriskofreandtoproperlyexhaustair,besureto
ventairoutside-donotventexhaustairintospaceswithinwalls,ceil-
ings,attics,crawlspaces,orgarages.
WARNING: Toreducetheriskofreorelectricshock,donotusethis
hood with any external solid state speed control device.
WARNING: Toreducetheriskofarangetopgreasere:
1) Never leave cooking unattended as boil-overs may ignite. Heat oils
slowly on low or medium settings.
2) Always turn hood fans on when cooking at high heat or when cooking
ambefoods.(i.e.CrepesSuzette,CherriesJubilee,PeppercornBeef
Flambe).
3) Clean ventilating fans frequently. Grease should not be allowed to
accumulate on fan or filter.
4) Useproperpansize.Alwaysusecookwareappropriateforthesizeof
the surface element.
Togetthebestperformance,theverticalclearancebetweenthecook-top
and the range hood should range from 45.7 cm - 68 cm (18 in. - 26.75 in.)
10
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short
circuit, grounding reduces the risk of electric shock by providing an
escape wire for the electric current.
WARNING: Improper grounding can result in a risk of electric shock.
Consult a qualified electrician if the grounding instructions are not
completely understood or if doubt exists as to whether the appliance is
properly grounded.
CAUTION: The range hood has a thermally protected system for the
motor, which will shut down automatically if the motor is overheated.
Iftheoverheatprotectiontrips,disconnectthepowerandwaitfor10
minutes until the motor cools down.
11
C. ELECTRICAL REQUIREMENTS
OBSERVE ALL GOVERNING CODES AND ORDINANCES
WARNING
* Electrical grounding is required for this range hood.
* Check with a qualified electrician if you are not sure whether the range
hood is properly grounded.
* Failure to follow electrical requirements may result in a fire.
* A fuse in the neutral or grounding circuit could result in electrical shock.
* If the hot/cold water pipe is interrupted by plastic nonmetallic gaskets or
other materials, DO NOT use for grounding.
* * DO NOT ground to a gas pipe.
IMPORTANT: It is the customer’s responsibility to contact a qualified
electrical installer and assure that the electrical installation is adequate
andcomplieswiththeNationalElectricalCode,orCSAstandardsandall
local codes and ordinances.
1. Save installation instructions for electrical inspector’s use.
2. Ifcodespermitandaseparategroundwireisused,itisrecommended
that a qualified electrician determine if the ground path is adequate.
3. DO NOT use an extension cord or adapter plug with this appliance.
4. RISK OF ELECTRICAL SHOCK - This range hood must be properly
grounded.
5. The range hood must be connected with copper wire only.

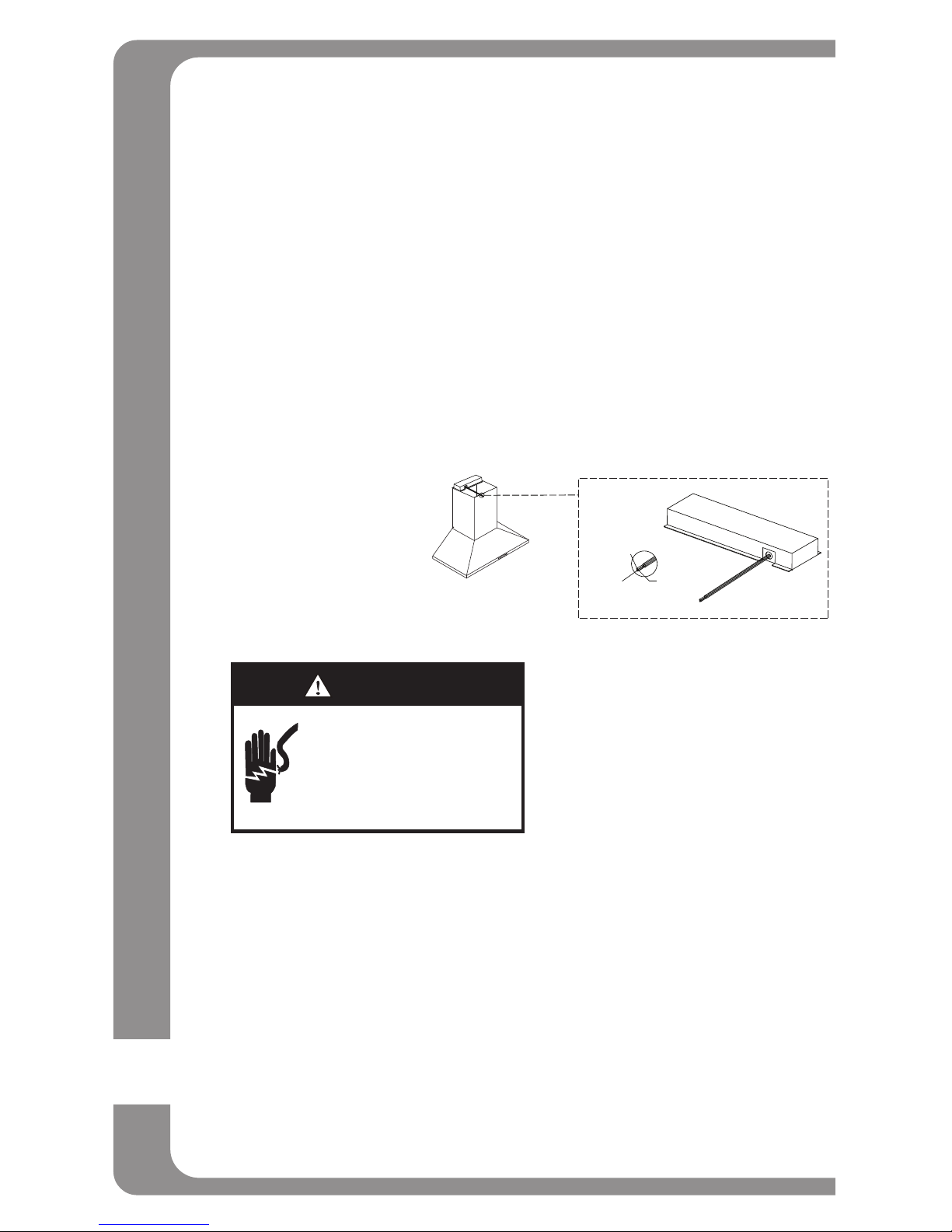

6. The range hood should be connected directly to the junction (or circuit
breaker) box through exible, armoured or nonmetallic sheathed
copper cable. Allow some slack in the cable so the appliance can be
moved if servicing is ever necessary.
12
7. A UL listed or CSA approved conduit connector must be provided
at each end of the power supply cable (at the range hood and at
the junction box).
8. Whenmakingtheelectricalconnection,cuta3.2cm(1-1/4in.)hole
in the wall. A hole cut through wood must be sanded until smooth.
A hole through metal must have a grommet.
9. Whencuttingordrillingintothewallorceiling,donotdamage
electrical wiring and other hidden utilities.
10.WiresizesmustconformtotherequirementsoftheNational
ElectricalCodeANSI/NFPA70-latestedition*,orCSAStandards
C22.1-94,CanadianElectricalCodePart1andC22.2No.0-M91-
latestedition**andalllocalcodesandordinances.
White (N)
Black (L)
Yellow/Green
(G)
BLACK ( Live )
WHITE ( Neutral )
GREEN/YELLOW/GREEN (Ground )
* National Fire Protection Association Batterymarch Park Quincy,
Massachusetts 02269
**CSA International, 178 Rexdale Boulevard, Toronto, Ontario,
CANADA, M9W 1R3
WARNING
ELECTRICAL SHOCK HAZARD
Do not perform service on an electrically
live system. Disconnect the main electrical
supply before servicing this device.
Touching electrical connectors or other
exposed electrical circuitry inside this range
hood when they are energized could result
in death, serious bodily injury, or property
damage.
13
D. LIST OF MATERIALS
TOOLS FOR INSTALLATION:
marker or
pencil
measuring tape
level
powered
screwdriver
or drill
utility knife
Philips
screwdrivers
flat-blade
screwdrivers
tape
adjustable
wrench
Notice:
1. Remove the range hood from the carton packaging and place on a
flat surface for assembly.
2. Check carefully to ensure there are no missing parts or mounting
hardware.
3. DO NOT REMOVE THE PLASTIC COVERING ON THE DUCT
COVERS AT THIS TIME as it protects the duct covers from scratches
during installation
14
SUPPLIED PARTS:
triangle panel x 2
damper x 2
duct set with o-ring
chimney support panel
PARTS BOX
body hook x 2
4mm x 16mm screw x 6
4mm x 8mm screw x 4
4mm x 8mm tapping screw x 2
5mm x 16mm screw & washer x 4
installation guide
toggle bolt x 4
hood body x 1 chimney cover - 1 set
15
E. PLANNING FOR INSTALLATION
WARNING
* Proper installation is your responsibility - Have a qualified technician install this range hood.
* Read the entire installation guide and user manual thoroughly, and understand instructions and warnings.
* PERSONAL INJURY HAZARD - Because of the weight and size of the range hood, two or more people
are needed to move and safely install the range hood. Failure to properly lift range hood could result in
damage to the product or personal injury.
* All openings in ceiling and wall where range hood will be installed must be sealed.
* Range hood location should be away from strong draft areas (windows, doors and strong heating vents).
* SEVERE INJURY - Rotating fan can cause severe injury. Stay clear of fan when motor is running.
* SEVERE INJURY - Range hood may have very sharp edges. Please wear protective gloves to remove
any parts for installing, cleaning or servicing.
1. DIMENSIONS:
85.4 cm
(33.6 in)
145.4 cm
(57.2 in)
25.4 cm
(10 in) 29 cm
(11.4 in)
32.5 cm
(12.8 in)
50 cm (19.7 in) 75 cm (29.5 in)
28.5 cm (11.4 in)
32.5 cm (12.8 in)
2. IMPORTANT: Measure all the following steps before installation.
The duct covers are adjustable and designed for various ceiling heights.
The chimneys can be adjusted for ceilings between 243.8 cm (8 ft.) and
304.8cm(10ft.)dependingonthedistancebetweenthebottomofthe
hood and the cook top.
16
Beforeinstallation,measurealldistancesbelowtoensuretheproper
position of the range hood.
1) Distance from the floor to the ceiling.
2) Distancebetweentheoortothecountertop/stove.
3) Distancebetweenthecounter/stoveandrangehood
(recommended
45.7 cm - 68 cm [18 in. - 26.75 in.] )
4) Height of range hood and chimney.
5) Height of the range hood installation
91.4 cm
(36 in.) min.
upper chimney
lower chimney ceiling height
hood body
min: 45.7 cm (18 in.)
max: 68 cm (26.75 in.)
17
3. Outdoor venting methods (for outdoor venting through the roof or
wall only).
The hood is equipped with a transition “duct set” for exhausting air
outdoors. Vent work can terminate either through the roof or wall. To vent
throughawall,a90degreeelbowisused.
IMPORTANT:
- Vent system must terminate outdoors (through roof or side wall).
Example 1. Vertical roof venting
Example 2. Horizontal wall venting
Ducting through the roof
Ducting through the wall
Roof
Pipe
Duct cover
Roof cap
Wall cap
Duct cover
Wall
Pipe
- Do not terminate the vent system in an attic or any other enclosed
area.
- Useonlymetal/exiblealuminumvents.
- Never use plastic vents.
- Always keep ducts clean to ensure proper air flow.
- NEVER exhaust air or terminate duct work between walls, crawl
spaces,ceilings,atticsorgarages.Allexhaustmustbeventedtothe
outdoors.
- Use caulking to seal exterior wall or roof opening around the cap.
- Donotuse10.2cm(4in.)laundry-typewallcaps.
18
- Always keep ducts clean to ensure proper air flow.
- It is recommended that the range hood be vented vertically through
theroofthrough15cm(6in.)roundmetal/aluminiumventwork.The
sizeoftheventshouldbeuniform.
- Usenomorethanthree90 degree elbows. Do not install two elbows
together.
-
Make sure there are a minimum of 61 cm (24 in.) of straight vent
between
the elbows if more than one elbow is used. The length of the
vent system and number of elbows should be kept to a minimum for
effective performance.
- Theventsystemmusthaveadamper.Ifrooforwallcaphasadamper,
Do not use damper supplied with the range hood.
- Use duct tape to seal all joints in the vent system.
- Fasten all connections with sheet metal screws and tape all joints with
certified Silver Tape or Duct Tape.
Calculate the duct run length:
Ifductedwiththerequiredminimumof15cm(6in.)roundductwork,the
ductrunshouldnotexceed10.7m(35ft.).Calculatethelengthofthe
duct work by adding the equivalent feet as below for each piece of duct
in the system.
Ifyoumustelbowrightaway,doitasfarawayfromthehood’sexhaust
opening as possible.
45
o
Elbow 91.4 cm (36 in.)
90
o
Elbow 1.52 m (60 in.)
90
o
Flat Elbow 3.66 m (144 in.)
Wall Cap 0 cm (0 in.)
2.74 m (9 ft.) Straight Duct 2.74 m (108 in.)
2-90
o
Elbow 3.05 m (120 in.)
Wall Cap 0 cm (0 in.)
Total System 5.79 m (228 in.)
19
F. INSTALLATION INSTRUCTIONS
- Beforemakingcuts,makesurethereisproperclearancewithinthe
ceiling or wall for exhaust vent.
- Check your ceiling height and the hood height maximum before you
select and install your hood. The hood installation height above the
cook top is your preference. A lower hood ensures more effective
captureofcookingodours,greaseandsmoke.Thehoodshouldbe
installed between 45.7 cm (18 in.) and 68 cm (26.75 in.) above the
counter top.
- Mounting hooks are provided to secure the hood to most wall types.
However, a qualied technician must verify suitability of the hooks,
screws and drywall anchors with your wall type.
- Due to the size and weight of this range hood, the support must
be rmly attached to the wall. For plaster or sheet rock walls, the
support must be attached to the studs. If this is not possible, a
support structure must be built behind the plaster or sheet rock. The
manufacturer assumes no responsibility for injury or damage caused
by improper installation.
- Put a thick, protective covering over your counter top, cook top
or range to protect from damage and dirt. Remove any hazardous
objects around the area when installing.
1. Find an optimal location to install the range hood. Mark the leveling
points of the two body hooks (fig. 1) on the wall and drill two holes.
Inserttwotoggleboltsandreserveapproximately6.3mm(1/4in.)for
the body hooks. Be sure to use appropriate anchors for your wall.
2. Use four sets of 5 mm x 16 mm screws with washers to install the
body hooks onto the hood (see fig. 2).
3. Install the duct set using six 4 mm x 16 mm screws (see fig. 3).
wall
(Fig. 1)
Hang hood
body on
toggle bolts
1/4"
hood body
ceiling
toggle bolts
appropriate
length
body hooks
six
4 mm x 16 mm
screws
5 mm x 16 mm
screw and
washer
(Fig. 2) (Fig. 3)
duct set
o-ring
20
Ifthedampersarenotpre-installedintheO-ringduct:
a) insert one end of the damper into the hinge slot
b) gently bend the damper and carefully insert the second end of the
damper into the hinge slot
c) Be very careful when installing the dampers. Applying to much
force or not bending the damper enough may damage or break
the damper hinge ends.
This manual suits for next models
1
Table of contents
Other nexstyle Ventilation Hood manuals
Popular Ventilation Hood manuals by other brands
Prizer Hoods
Prizer Hoods METAL LINERS installation instructions
Whirlpool
Whirlpool GXU7130DXB1 Use & care guide
Greenheck
Greenheck UL 555S Leakage Class II SSSMDR-502 product manual
Electrolux
Electrolux EFC 9461 user manual
Cobal
Cobal GRP61S User instruction
NEFF
NEFF D96IMV1N0 User manual and installation instructions
