NexWatch PW-5000 User manual

PW-5000
Output Module
Installation Manual
Part Number: PW5KxOUT
TD1117 rev11101

TD1117 rev1101
Installation Guide
PW-5000 Output Module 3
Contents
Warnings and Cautions ........................................................................................4
Disclaimer ...........................................................................................................6
Product Liability; Mutual Indemnification ................................................................6
Unpacking Procedure ...........................................................................................6
Shipping Instructions ............................................................................................ 7
Limited Warranty ..................................................................................................7
Confidentiality .....................................................................................................8
Description .......................................................................................................... 9
Set Up ...............................................................................................................9
LED Operation ..................................................................................................11
Power ...............................................................................................................11
Communications ...............................................................................................11
Alarm Contact Wiring ........................................................................................ 12
Control Output Wiring .......................................................................................12
Mounting Options .............................................................................................13
Suggested Installation Sequence .........................................................................13
Specification ...................................................................................................... 14
Wiring Diagram for Connectors 1 through 8 ........................................................15
Wiring Diagram for Connectors 7 through 11 ......................................................16

4PW-5000 Output ModuleInstallation Guide
TD1117 rev1101
Warnings and Cautions
WARNINGWARNING
WARNINGWARNING
WARNING
Before installation, TURN OFF the external circuit breaker which supplies power to the
system.
Before connecting the device to the power supply, verify that the output voltage is within
specifications of the power supply.
Do not apply power to the system until after the installation has been completed.
Personal injury or death could occur, and the equipment could be damaged beyond
repair, if this precaution is not observed!
WARNING
Fire Safety and Liability Notice
Never connect card readers to any critical entry, exit door, barrier, elevator or gate
without providing an alternative exit in accordance with all fire and life safety codes
pertinent to the installation.These fire and safety codes vary from city to city and you
must get approval from local fire officials whenever using an electronic product to control
a door or other barrier. Use of egress buttons, for example, may be illegal in some cities.
In most applications, single action exit without prior knowledge of what to do is a life
safety requirement.Always make certain that any required approvals are obtained in
writing. DO NOT ACCEPTVERBAL APPROVALS, AS THEY ARE NOTVALID.
NexWatch neverrecommends usingthe PW-3000 or PW-5000or related products foruse
as a primary warning or monitoring system. Primary warningor monitoring systems should
always meet local fire and safety code requirements.The installer must also test the
system on a regular basis by instructing the end user in appropriate daily testing proce-
dures.Failure to test a system regularly could make installer liable for damages to the end
user if a problem occurs.
WARNING
EARTH ground all enclosures, for proper installation.
WARNING

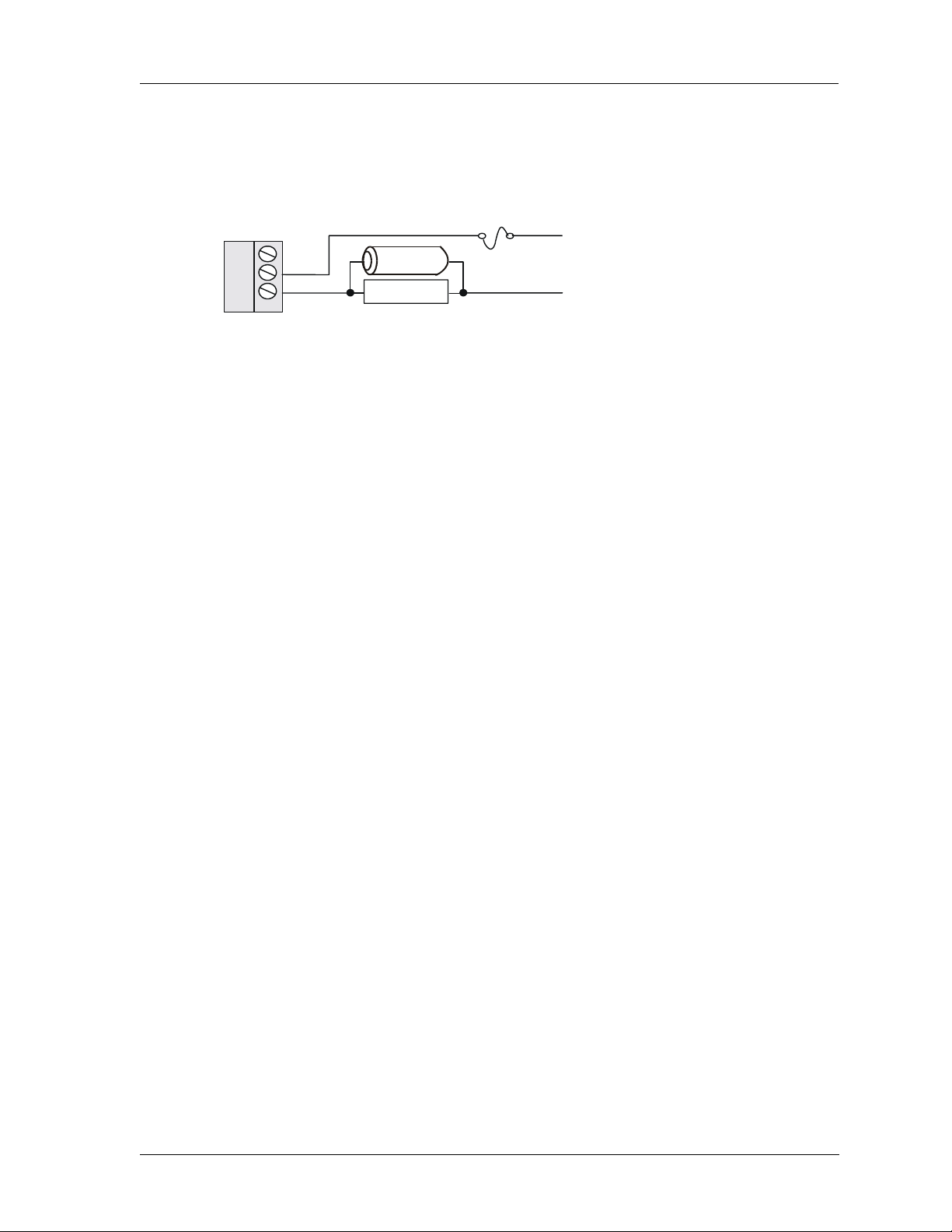

Use suppressors on all door strikes.Use S-4 suppressors for installation.NexWatch
recommends only DC strikes.
The information in this document is subject to change without notice.

TD1117 rev1101
Installation Guide
PW-5000 Output Module 5
CAUTION
IF ANY DAMAGE TO THE SHIPMENT IS NOTICED, A CLAIM MUST BE FILEDWITH
THE COMMERCIAL CARRIER RESPONSIBLE.
CAUTION
Electro-static discharge can damage CMOS integrated circuits and modules.
To prevent damage always follow these procedures:
Use static shield packaging and containers to transport all electronic components,
including completed reader assemblies.
Handle all ESD sensitive components at an approved static controlled workstation.These
workstations consist of a desk mat, floor mat and an ESD wrist strap.Workstations are
available from various vendors.
NOTICE
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules.These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment.This equipment generates, uses, and can radiate radio fre-
quency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications.Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
NOTICE
This document and the data in it shall not be duplicated, used or disclosed to others for
procurement or manufacture, except as authorized by and with the written permission of,
NexWatch, Inc.The information contained in this document or in the product itself is
considered the exclusive property and trade secrets of NexWatch, Inc.Copyright laws of
the United States protect all information in this document or in the software product itself.
NOTICE
Any use of this product is subject to the terms and acceptance of the NexWatch, Inc.
Software Agreement.Please request a copy from NexWatch, Inc., and review the agree-
mentcarefully.

6PW-5000 Output ModuleInstallation Guide
TD1117 rev1101
Disclaimer
Product Liability; Mutual Indemnification
In the event that a Customer receives a claim that a Product or any component thereof
has caused personal injury or damage to property of others, Customer shall immediately
notify NexWatch in writing of all such claims.NexWatch shall defend or settle such claims
and shall indemnify and hold Customer harmless for any costs or damages including
reasonable attorneys’fees which Customer may be required to pay as a result of the
defective Product or the negligence of NexWatch, its agents, or its employees.
Customer shall hold harmless and indemnify NexWatch from and against all claims,
demands, losses and liability arising out of damage to property or injury to persons
occasioned by or in connection with the acts or omissions of Customer and its agents
and employees, and from and against all claims, demands, losses and liability for costs of
fees, including reasonable attorneys’fees, in connection therewith.
Unpacking Procedure
CAUTION
If any damage to the shipment is noticed before unpacking, a claim must be filed with the
commercial carrier.
All containers should be opened and unpacked carefully in order to prevent damage to
the contents.
The following steps are used to unpack equipment in preparation for installation:
1.Open the container and remove the unit(s) and all packing material.Retain the
container and all packing materials. They may be used again for reshipment
of the equipment, if needed.
2.Inspect the contents for shortage.If items are missing items, contact the order entry
department.
3.Visually check contents. If damage is discovered, perform the following:
If shipping caused damage to the unit, a claim must be filed with the
commercialcarrier.
If any other defect is apparent, call for a return authorization at 800-227-1667 Option-
2.

TD1117 rev1101
Installation Guide
PW-5000 Output Module 7
Shipping Instructions
To ship equipment back to NexWatch,Inc.:
1.Contact the customer servicedepartment at 800-227-1667 Option-2 before returning
equipment. When you call please have available:
• A description of the problem or reason you are returning the equipment.
• Your original purchase order number, invoice number and if the unit is still under
warranty.
• A new purchase order number if the unit is not under warranty
2.From the customer service department, obtain the Return Authorization Number (RMA)
.
3.Show the RMA number on all packages shipped.Packages, which are not marked with
an RMA number will be refused at the factory and returned to you COD.
4.Carefully pack the equipment for shipment.Use the original packing material whenever
possible
Limited Warranty
All Products sold or licensed by NexWatch include a warranty registration card which
must be completed and returned to NexWatch by or on behalf of the end user in order for
NexWatch to provide warranty service, repair, credit or exchange. All warranty work shall
be handled through Customer which shall notify NexWatch and apply for a Return Mer-
chandise Authorization (RMA) number prior to returning any Product for service, repair,
credit or exchange. NewWatch warrants that its Products shall be free from defects in
materials and workmanship for a period of two years from date of shipment of the Prod-
uct to Customer.The warranty onTerminals, Printers, Communications Products and
Upgrade kits is 90 days from date of shipment.Satisfaction of this warranty shall be
limited to repair or replacement of Products which are defective or defective under
normal use.NexWatch’s warranty shall not extend to any Product which, upon examina-
tion, is determined to be defective as a result of misuse, improper storage, incorrect
installation, operation or maintenance, alteration, modification, accident or unusual
deterioration of the Product due to physical environments in excess of the limits set forth
in Product manuals.THERE ARE NOWARRANTIES WHICH EXTEND BEYOND THIS
PROVISION.THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES WHETHER
EXPRESS, IMPLIED OR STATUTORY, INCLUDING IMPLIEDWARRANTIES OF MER-
CHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. NO REPRESENTA-
TION OR WARRANTY OF THE DISTRIBUTOR SHALL EXTEND THE LIABILITY OR
RESPONSIBILITY OF THE MANUFACTURER BEYOND THETERMS OF THIS PROVI-
SION.IN NO EVENT SHALL NEXWATCH BE LIABLE FOR ANY RE-PROCUREMENT
COSTS, LOSS OF PROFITS, LOSS OF USE, INCIDENTAL, CONSEQUENTIAL OR
SPECIAL DAMAGESTO ANY PERSON RESULTING FROMTHE USE OF
NEWWATCH’SPRODUCTS.

8PW-5000 Output ModuleInstallation Guide
TD1117 rev1101
Confidentiality
All software, drawings, diagrams, specifications, catalogs, literature, manuals and other
materials furnished by NexWatch relating to the design, use and service of the Products
shall remain confidential and shall constitute proprietary rights of NexWatch and Customer
agrees to treat such information as confidential.Customer shall acquire no rights in the
design of the Products or the related materials except to use such information solely for
the purpose of and only during the time it sells the Products.Customer shall not copy the
design of any of the Products or use or cause to be used any Product design or related
materials for its own benefit or for the benefit of any other party.The covenants contained
in this section shall remain effective throughout the term of this Agreement and thereafter
unless specifically waived by NexWatch in writing.

PW-5000 Output Module 9
Installation Guide
TD1117 rev1101
N-1000-IV FourN-1000-IV Four
N-1000-IV FourN-1000-IV Four
N-1000-IV Four
RR
RR
Reader Boardeader Board
eader Boardeader Board
eader Board
Description
The Output Board provides connections for 16 relay outputs. This board can be rack
mounted, in which case, only one edge is accessible for wiring. Mounting the board flat
increases the amount of available I/O slightly but also significantly decreases the number
of boards that can be mounted in one enclosure.
Starting at the bottom of the rack-mount side of the board, the first connector provides
power to the board. The next connector provides communication with the Controller
(PW5KxIC). Continuing up this edge, the next 6 connectors provide 12 relay output
connections.
When the board is mounted flat, four additional relay outputs and two dedicated alarm
inputs for cabinet tamper and power fault detection are available on the opposite edge of
theboard.
All 16 form-C relay outputs are designed to handle dry-circuit signals. The two dedicated
inputs are non-supervised. Communication to the control panel is accomplished via an
RS-485interface.Thisboard requires 12VDC input power.
When communication to the Controller is lost, this board maintains all previous output
settings at the time communication was lost.
Set Up
Jumper Settings:
repmuJ gnitteS tluafeD detceleS
1J FFO &evitcatonsirotanimretLOE584-SR1troP
NOevitcasirotanimretLOE584-SR1troP

Installation Guide
10 PW-5000 Output Module
TD1117 rev1101

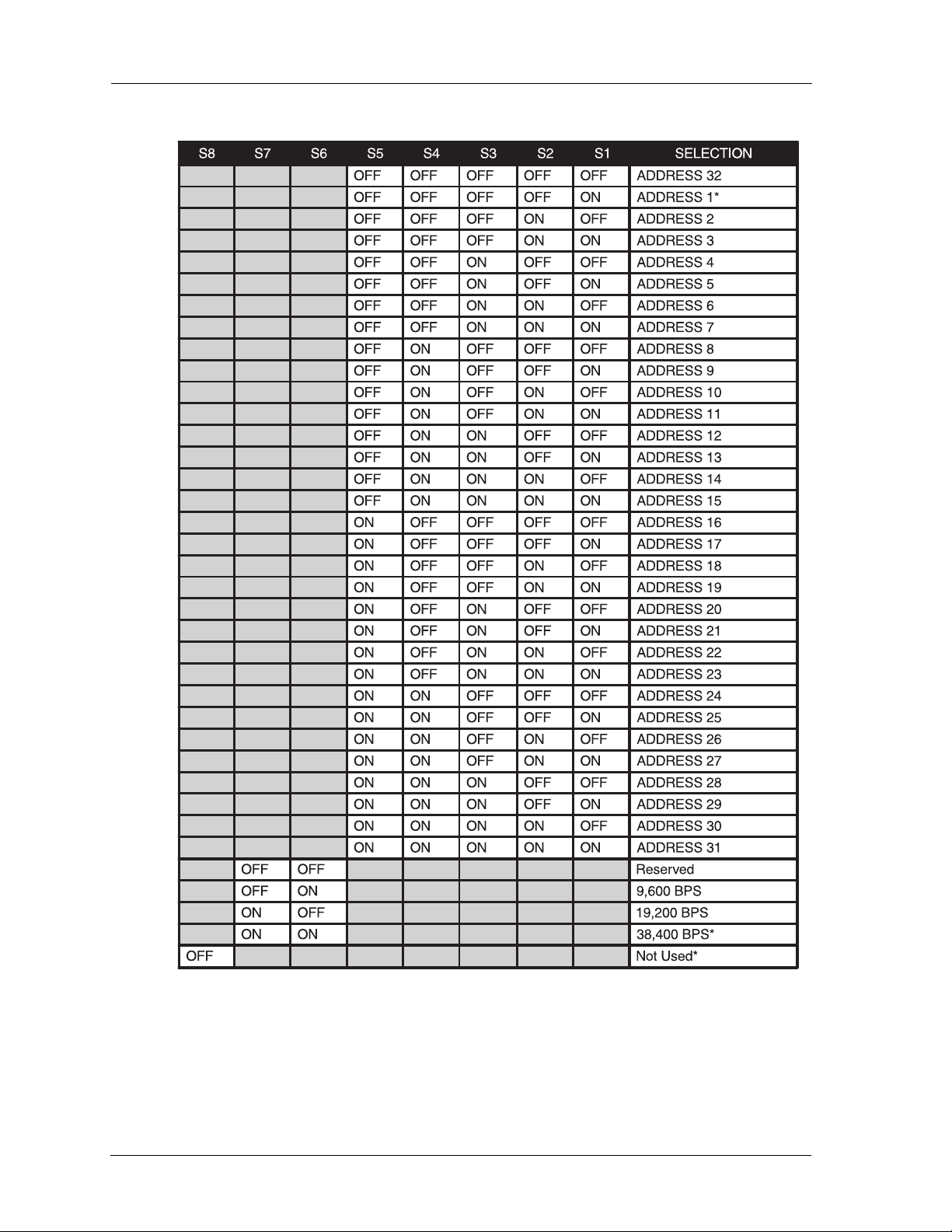

DIP Switch Settings:
* = Default

PW-5000 Output Module 11
Installation Guide
TD1117 rev1101
LED Operation
The Output board uses two on-board LEDs to provide status information during its power-
upsequenceandnormaloperation.
EDOM
DEL 1D DEL 2D NOITPIRCSED
pu-rewoP ecneuqeS
NOFFOputeserawdrah,pu-rewoPtratS
FFONOMARgnitseT
NONOnoitazilaitinignitelpmocdnaMORgnitseT
HSALFNOdetelpmocsipu-rewoPretfasemit4sehsalf1DDEL
lamroN noitarepO
HSALF
ecnosehsalftI.DELtaeb-traehrossecorpehtsisihT )elcycytud%02~(emitNOtrohsA.dnocesyreve lairestsolsahroenil-ffosidraobehtsetacidni NOgnolA.draobrellortnoCehthtiwnoitacinummoc enilnosidraobehtsetacidni)elcycytud%08~(emit .draobrellortnoCehthtiwgnitacinummocdna
HSALF.troPlaireSstinoytivitcasierehtnehwhsalF
In addition to the status LEDs, there are 16 additional LEDs on board for relay status.
When any relay is energized or ON, its corresponding status LED turns ON also. The LED
remains ON for as long as the relay is energized. The assignment for each relay status
LED is shown in the following table.
#YALER 1 2 3 4 5 6 7 8
DEL21D41D61D81D11D31D51D71D
#YALER 9 01 11 21 31 41 51 61
DEL4D6D8D01D3D5D7D9D
Power
The Output board accepts 12VDC with an operating range of 10 to 16 VDC and con-
sumes 275mA of current. Locate the power source as close to the board as possible.
Connect power with a minimum of 18AWG cables.
NOTE:POLARITY for 12VDC power is important. Make sure the +12VDC is
connected to the terminal labeled +12V and the return is connected to the terminal
labeled GND.
Communications
The Output board communicates to host controller through an RS-485 interface.The
interface allows for multi-drop communication of up to 4,000 feet (1,200 m) total per
port. Use two twisted pair (minimum 24AWG) with shield (Belden 9842 or equiv.) for
communication. The default speed of this port is 38.4Kbps but it can be downgraded to
19.2Kbps or 9.6Kbps if line conditions or receiving equipment require it (see jumper and
DIP switch settings).

Installation Guide
12 PW-5000 Output Module
TD1117 rev1101
For Wiring to an RS-485 port:
1.TR+ is the plus side of the transmit and receive differential signal
2.TR– is the negative side of the transmit and receive differential signal.
3.GND is the signal ground.The wiring for this signal is required and NOT optional.
This signal must NOT be connected to chassis GND.
4.Use 24 AWG low capacitance, two twisted-pair, shielded cable (Belden 9842 or
equiv.).
+
—
Common
Orange/white stripe
W
hite/orange stripe
Note: For N-485 Communication Connections, twist the blue pair together and use as the
common;use the orange pair as your data pair, observing polarity. Connect the external
drainshield to the appropriateearthgroundononeend.
5. When daisy-chaining RS-485 ports together connect theTR+ wires from the up-
stream and downstream boards to theTR+ terminal and likewise, connect theTR–
wiresfrom the upstream and downstreamboards to theTR– terminal.
By factory default J1 is set open. If this board is the last board on the RS-485 bus,
install jumper J1 across both pins (closed). Closing J1 provides the bus termination
required.
Alarm Contact Wiring
InputsTMP and PFL are typically used for monitoring cabinet tamper and power failure
respectively.These two inputs are not supervised and are not accessible when the board
is rack mounted. These inputs are used when this board is mounted remotely and cannot
take advantage of the tamper and power fail detect inputs on the Controller board. If these
inputs are not used, install a short piece of wire at the input to indicate safe condition.
Control Output Wiring
Sixteen form-C relay contacts are provided as general-purpose outputs. They are
configurable as standard (energize to activate) or fail-safe (de-energize to activate) by the
host software.
The energized or ON time of each relay can be configured using pulse control for single or
repeating pulses by the host software. The energized or ON time of a single pulse can be
extended up to 24 hours. For repeating pulses, the on/off time can be defined in 0.1
second increments and be repeated up to 255 times.
All 16 relays are rated for dry contact signal or load switching. While they are sized to
handle typical loads, load switching can cause abnormal contact wear and premature
contact failure. Switching of inductive loads (i.e., strikes) also causes EMI (electromag-
neticinterference)which may interfere with normal operation of other equipment. To
minimize premature contact failure and to increase system reliability, a contact protec-
tion circuit is highly recommended. The following two circuits are suggested. Locate the

PW-5000 Output Module 13
Installation Guide
TD1117 rev1101
protection circuit as close to the load as possible (within 12 inches [30cm]), as the
effectiveness of the circuit decreases as the distance from the load increases.
Relays13 through 16 aregeneral purpose relay outputsand are not availablewhen the
board is rack mounted.
1
2
3
NC
NO
C
LOAD
S-4 Power Source
Use sufficiently large gauge of wires for the load current as to avoid voltage loss.
Mounting Options
Thisboard can be mounted on-edge in the rack-mountenclosure providedby NexWatchor
ti can be mounted flat against any surface using standoffs under the mounting holes
provided in each of the four corners of this board.
When this board is rack-mounted, the connectors for tour general-purpose outputs and
two dedicated inputs are not accessible and should not be used.
The most likely reason for mounting a board flat is that it is being installed remotely to
be located near the door(s) being monitored. In this case, mount it in its own enclosure.
Use the two dedicated inputs to monitor cabinet tamper and power faults. The four
additional general-purpose outputs allow for the control of local horns or other equip-
ment.
Suggested Installation Sequence
1. Set Jumpers and DIP-switchs.
2. Mount the board in the appropriate enclosure – If this board is being mounted in a
rack, the component side of the baord is to your right as you face the rack.
3. Connect the communications and power supply to the circuit boards with the Power
Supply Harness.
WARNING: DO NOT CONNECTTHE POWER SUPPLYTOTHE AC SOCKET UNTIL
ALL WIRING HAS BEEN INSTALLED AND RECHECKED.
4. Connect wiring to alarm input sensors or install jumper wire as appropriate.
5. Connect relay output wiring as appropriate.
6. Connect communications wiring to the Intelligent Controller.
7. Recheck wiring for correct connections and continuity.
8.When all boards have been installed, connect the Power Supply Cord for proper
connections and power.
9. Setup the panel controls using the host software.

Installation Guide
14 PW-5000 Output Module
TD1117 rev1101
Specification
The Output board is for use in low voltage, class 2 circuits only.
Primary power:
12VDC±10% 275mA
Relaycontacts:
Relays 1 through 16 outputs, Form-C, 2A @ 28VDC, resistive
Inputs:
Two unsupervised dedicated inputs
Communication:
RS-485: Range9,600to38,400bps
Wire requirements:
Power 1 twisted pair, 18AWG
RS-485 24AWG, 4,000feet (1,200m) max.,
2(120Ω, 23pF) twisted pairwith shield (Belden 9842 or equiv.)
Alarm inputs 1 twisted pair per input, 30 ohms max.
Outputs As required for the load
Mechanical:
Dimension 5.5" (140mm) W x 9" (229mm) L x 1" (25mm) H
Weight 12 oz. (340g) nominal
Environment:
Temperature 0°Cto +49°C, operating, -55°Cto +85°C, storage
Humidity 0% to 85% RHNC

PW-5000 Output Module 15
Installation Guide
TD1117 rev1101
Wiring Diagram for Connectors 1 through 8

Installation Guide
16 PW-5000 Output Module
TD1117 rev1101
Note: For N-485 Communication Connections, twist the blue pair together and use as the common;
use the orange pair as your data pair, observing polarity. Connect the external drain shield to the
appropriate earth groundononeend.
Wiring Diagram for Connectors 7 through 11

Your Access to the Future
47102 Mission Falls Court • Fremont, CA 94539 USA
Tel [phone] • Fax [phone]
www.nexwatch.com
