Nibe Fighter 2005 User manual

MOS GB 0842-5
FIGHTER 2005
511517
INSTALLATION AND MAINTENANCE INSTRUCTIONS
NIBE FIGHTER 2005
1 x 230 V
LEK
LEK

For the Installer
Contents 1
FIGHTER 2005
For Home Owners
General information for the installer
Transport and storage ........................................... 6
Inspection of the installation .................................. 6
Erecting the heat pump ......................................... 6
Control ................................................................... 6
Pipe connections
General .................................................................. 7
Pipe connection (heating medium) ........................ 7
Water volumes ....................................................... 7
Sensor placement ................................................. 7
Pressure drop, heating medium side ..................... 8
Docking
General .................................................................. 9
FIGHTER 2005 docked with SMO 10...................... 9
Several FIGHTER 2005s docked with SMO 10..... 10
FIGHTER 2005 docked with wood-fired boiler
and hot water heater ......................................... 11
Abbreviations......................................................... 11
Electrical connections
Electrical installation ............................................. 12
Connection .......................................................... 12
Circulation pump ................................................. 13
Outside sensor .................................................... 13
Thermostat hot water .......................................... 14
Single step thermostat heating ............................ 14
Additional heat/downtime .................................... 15
Example of addition connection .......................... 15
External indication of common alarms ................ 15
Commissioning and adjusting
Preparations ......................................................... 16
Filling and venting the heating medium system ... 16
Balance temperature ........................................... 16
Stop temperature ................................................. 16
Soft-start relay ..................................................... 16
Compressor heater .............................................. 16
Start-up and inspection ....................................... 16
Readjusting, heating medium side ...................... 16
Adjustment, charge flow ...................................... 17
Control
Explanation .......................................................... 18
Channel description ............................................. 19
Sensors
Sensor placement ................................................ 21
Temperature sensor data ..................................... 21
Data for discharge sensor ................................... 21
Electrical circuit diagram
Electrical circuit diagram ...................................... 22
Component locations
Component locations ........................................... 23
List of components .............................................. 24
Sound pressure levels
Sound pressure levels ......................................... 25
Dimensions
Dimensions and setting-out coordinates ............. 26
Enclosed kit
Enclosed kit ......................................................... 27
Accessories
Accessories ......................................................... 28
Technical specifications
Technical specifications........................................ 29
Working area ....................................................... 30
General
Concise product description ................................ 2
Setting table ......................................................... 2
System description
Principle of operation ........................................... 3
Maintenance routines
Maintenance of FIGHTER 2005 .......................... 4
Dealing with malfunctions
FIGHTER 2005 not in operation .......................... 5
Draining, heat medium side ................................... 5

Channel Factory settings
06 Start defrosting ............. -3 °C
07 Stop defrosting ............. +10 °C
09 Max. defrosting ............. 7 min
10 Min. interval betw. defrosting ............. 50 min
13 Select thermostat ............. 0 (auto mode)
14 Fan speed low/high ............. +14 °C
15 Fan speed low/high, VV ............. +14 °C
16 Start drip tray heater ............. +2 °C
17 Balance temperature ............. +5 °C
18 Stop temperature ............. -7 °C
19 Start interval compressor ............. 20 min
28 Time delay addition relay ............. 120 min
30 Max return temperature ............. 45 °C
31 Connection diff. return temp. ............. 2 °C
General
FIGHTER 2005
For Home Owners
2
In order to get the ultimate benefit from your heat pump FIGHTER 2005 you should
read through the For Home Owners section in this Installation and Maintenance
Instruction.
FIGHTER 2005 is a base heat pump for heating small houses, apartment blocks and
small industrial premises. Outdoor air is used as a heat source.
FIGHTER 2005 is a Swedish made quality product offering a long life span and
safe operation.
Installation date
Type designation
FIGHTER 2005- __ kW
Installation engineers
Settings
Date __________ Signed __________________________________
The serial number (103),should always be stated in all
correspondence with NIBE.
___ ___________
To be filled in when the heat pump has been installed

FIGHTER 2005 is an outdoor air heat pump, specially
designed for the Nordic climate. FIGHTER 2005 utilis-
es the outside air so there is no need for bore holes or
coils in the ground. FIGHTER 2005 has an automatic
2-step capacity regulator for the fan.
FIGHTER 2005 is designed for **water based heating
systems and can be used together with most electric
boilers, oil-fired boilers or equivalent. The heat pump
includes an advanced control system for optimal con-
trol. FIGHTER 2005 is started by a start signal from
another controller, return line sensor or thermostat.
FIGHTER 2005 can also be controlled by a specially
designed controller, SMO 10*. This connects and dis-
connects the additional heat and controls switching
between room heating and hot water heating.
FIGHTER 2005 can both heat hot water effectively at
high outdoor temperatures and give a high output to
the heating system at low outdoor temperatures.
If the outdoor temperature drops to a level under the
stop temperature all heating must then occur with
external additional heat.
FIGHTER 2005 is manufactured in sizes 8 and 11.
Materials have been chosen to provide a long service
life and to fully withstand harsh outdoor conditions.
System description 3
For Home Owners
FIGHTER 2005
Principle of operation
The heating medium side and the hot water side must
be fitted with the necessary safety equipment in
accordance with the applicable regulations.
* accessory for FIGHTER 2005
** When docking with FIGHTER 2005, a total water
volume, incl. boiler, radiators, pipes, etc. of at least
20 litres boiler water per kW output on the heat
pump is recommended.
Pool
VXV1
PG
VXV1
PG
VXV1
PG
SMO 10
SMO 10
HR
HR
HR
SMO 10
HR
HR
HR
HR
HR
HR
HR
HR
P
VVC
52
44
63
81
76
36
38
95
19
15
96
88
35-1
43-1
89-1
94-1 94-2
43-2
35-2
5
52
44
85
6
P
VP
31
FG1* CP1
CP*
RG1
RG2
SV1
SV2
CP2 FG2
VVG
LP1
UG
93
P
FG1 CP1
RG1 RG2
SV1
SV2
CP2 FG2
VVC
VVG
LP1
UG
VXV 2
PCP
POG
P
FG1* CP1
RG1
SV1
VVG
LP1
UG
Med pool och shunt 2
Grundinkoppling
Med shunt 2
AV
SÄV
TV RV
RV BV
BV
SF
86
86
89-2
20
49
98
31
45
31
31
SÄV
SÄV
52
SÄV
VP
VP
VP
HR
HR
RV BV
BV
CP*
UKV*
UKV*

Maintenance routines
FIGHTER 2005
For Home Owners
4
FIGHTER 2005 is equipped with control and monitor-
ing equipment, however some exterior maintenance is
still necessary.
Make regular checks throughout the year that the inlet
grille is not clogged by leaves, snow or anything else.
In addition, you should ensure during the colder parts
of the year that too much frost or ice does not form
under FIGHTER 2005. Strong wind in connection with
extensive snowfall can cause the inlet and exhaust air
grilles to become clogged. Make sure that there is no
snow on the grilles.
If necessary the outer casing can be cleaned using a
damp cloth. Care must be exercised so that the plastic
cover is not scratched when cleaning. Avoid spraying
water into the grilles or on the sides so that water can
penetrate into FIGHTER 2005.
Maintenance of FIGHTER 2005
WARNING!
Rotating fan

Dealing with malfunctions 5
For Home Owners
FIGHTER 2005
Cause: External control equipment has not given the
start signal.
Action: Check the settings on the control equip-
ment.
Cause: Fuse has tripped.
Action: Replace the fuse or reset the MCB. If the
fuse trips again the installation engineer
should be contacted.
Cause: Low outdoor temperature.
Action: Wait until the outdoor air temperature is
higher than the heat pump’s set stop value.
Cause: Tripped HP, LP or MS.
Action: Check that the system has been vented cor-
rectly. Check the fuses. If the fault has not
been rectified contact the installation engi-
neer.
FIGHTER 2005 not in
operation
In the event of malfunction or operating disturbances first check the points below:
NOTE!
As FIGHTER 2005 can be connected
to a large number of external units,
these should also be checked.
NOTE!
Work behind screwed covers may only
be carried out by or under the
supervision of a qualified
installation engineer.
Ifthe operating disturbance cannot be rectified by means of the above
an installation engineer should be called.
It is recommended in the event of prolonged power
failures that the part of the heating system located out-
doors is drained.
Draining, heat medium side
NOTE!
The product's serial number
should always be stated with all corre-
spondence with NIBE.
______________

General information for the installer
FIGHTER 2005
For the Installer
6
Current regulations require the heating installation to
be inspected before it is commissioned. The inspec-
tion must be carried out by a suitably qualified person
and should be documented. The above applies to
closed heating systems. If the heat pump is replaced,
the installation must be inspected again.
FIGHTER 2005 is placed outdoors on a firm base,
preferable a concrete foundation. FIGHTER 2005
should not be positioned next to sensitive walls, for
example, next to a bedroom. Also ensure that the
placement does not inconvenience the neighbours.
Large amounts of condensation water as well as melt
water from defrosting can be produced. Provide good
drainage at the installation area and make sure water
cannot run out onto paths or the like during periods
that ice can form. Ideally condensation water is led off
to a street inlet or the like.
The distance between FIGHTER 2005 and the house
wall should be at least 350 mm. Free space in front of
and above FIGHTER 2005 should be at least one
metre. FIGHTER 2005 should not be placed so that
the recirculation of outdoor air can occur. This causes
lower output and impaired efficiency.
FIGHTER 2005 should be transported and stored ver-
tically.
Transport and storage
Installation
Inspection of the installation
FIGHTER 2005 is equipped with an internal electronic
controller that handles all functions necessary for heat
pump operations.
Accordingly, defrosting, stop at max/min temperature,
connection of the compressor heater as well as ena-
bling the heater for the drip pan, monitoring of motor
protection and pressure switches are controlled.
The number of starts and the operating time can also
be read.
The integrated controller is set during installation and
can be used during a service.
Under normal operation conditions the home owner
does not need to have access to the controller.
FIGHTER 2005 has an integrated electronic return
line sensor that limits the return temperature. The flow
and return line sensors are fitted during installation.
FIGHTER 2005 can also be switched on/off via signals
from other control equipment or a thermostat. When
FIGHTER 2005 is to be controlled using the accessory
SMO 10, the relevant control procedures are described
in respective instructions.
SMO 10 communicates with FIGHTER 2005, which
means that the settings and measurement values from
FIGHTER 2005 can be adjusted and read on SMO
10.
Control
70
71
442
466
318
301
200
1045
530
133
1186
530
191
500
30 - 50
350 mm
400 mm
3 m
Fritt utrymme bakom
1074
Fritt utrymme framför
Fritt utrymme
Min. avstånd
vid användning
av flera F 2010
70
71
442
466
318
200
1045
133
1186
191
500
30 - 50
350 mm
400 mm
3 m
Fritt utrymme bakom
1074
Fritt utrymme framför
Fritt utrymme
Min. avstånd
vid användning
av flera F 2010
Min. distance
when using
several F 2005
Free space in front
Free space behind
Free space

Pipe connections 7
FIGHTER 2005
For the Installer
Pipe installation must be carried out in accordance
with current norms and directives. FIGHTER 2005
works up to an outgoing temperature from the heat
pump of approximately 58 °C. See section “Commis-
sioning and adjusting” – “Adjustment, charge flow” for
the right flow setting. Since FIGHTER 2005 is not
equipped with shutoff valves on the water side these
must be fitted to facilitate future service. The return
temperature is limited by the return line sensor and is
adjusted on channel 30.
General
FIGHTER 2005 can be connected to the heating sys-
tem – see the section Docking.
The heat pump must be vented by the upper connec-
tion (70, HM-out) using the venting nipple on the
enclosed flexible hose. The supplied particle filter is
installed before the inlet, that is to say, the lower con-
nection (71, HM-in) on FIGHTER 2005. All outdoor
pipes are to be thermally insulated with at least 19
mm thick pipe insulation.
The circulation pump should be operational, even
if FIGHTER 2005 is not running, to prevent dam-
age due to freezing. The circulation pump can also
be controlled directly from FIGHTER 2005, terminal
(11), which takes the outdoor temperature into consid-
eration. Alternatively, the heat pump is connected to
an intermediate circuit with a heat exchanger, pump
and water with anti-freeze. Shutoff and drain valves
are fitted so that FIGHTER 2005 can be emptied in
the event of prolonged power failures.
The supplied flexible hoses act as vibration dampers.
The flexible hoses are fitted so a slight bend is creat-
ed, thus acting as vibration damping.
Pipe connections (heating
medium)
When docking with FIGHTER 2005, a total water vol-
ume, in the boiler and accumulator, of at least 20 litres
boiler water per kW output on the heat pump is recom-
mended.
Water volumes
NOTE!
The pipe work must be flushed before
the heat pump is connected, so that
any contaminants do not damage the
components parts.
FIGHTER 2005 is supplied with flow and return line
sensors, sensors and cables are packed in the
distribution box. The edge board connector is fitted at
the factory.
■Flow line sensor (89), yellow cable.
■Return line sensor (93), blue cable.
■Flow and return line sensors are routed through
the cable gland (102) to respective measurement
points.
■The flow and return line sensors are fitted on the
straight section of the copper pipe using cable ties
together with heating pipe paste and aluminium
tape.
NOTE! It is important that the contact between the
sensor and measurement point is good and that
the sensors are insulated.
Sensor placement
95
95
FIGHTER 2010
VVM 240
AV
AV
SÄK
SF
RC
TV
95
FIGHTER 2010
VVM 240
RC
52
63
44
44
76
99
21
VVM 240
RC
FG
RG
UG
15
95
FIGHTER 2010
VVM 240
AV
AV
SÄK
SF
RC
TV
FG
RG
UG
Till rollup
89
94
LEK
LEK
E

Pipe connections
FIGHTER 2005
For the Installer
8
Pressure drop, heating medium side
FIGHTER 2010-6
FIGHTER 2005-8, 10
FIGHTER 2010-8
FIGHTER 2005-14
Flöde
kPa
Tr yckfall
kPa
Tr yckfall
kPa
Tr yckfall
l/s
Flöde
l/s
Flöde
l/s
0
0,5
1
1,5
2
2,5
3
3,5
4
0 0,05 0,1 0,15 0,2 0,25 0,3 0,35 0,4 0,45
0
0,5
1
1,5
2
2,5
3
3,5
4
0 0,05 0,1 0,15 0,2 0,25 0,3 0,35 0,4 0,45
0
0,5
1
1,5
2
2,5
3
3,5
4
0 0,05 0,1 0,15 0,2 0,25 0,3 0,35 0,4 0,45
FIGHTER 2005-8, -11
Pressure drop
Flow

Docking 9
For the Installer
FIGHTER 2005
FIGHTER 2005 can be installed in several different
ways. The safety equipment must be installed in
accordance with current regulations for all docking
options.
When docking with FIGHTER 2005, a total water vol-
ume, in the boiler and accumulator, of at least 20 litres
boiler water per kW output on the heat pump is recom-
mended.
General
FIGHTER 2005 docked to the oil-fired/pellet boiler together with
SMO 10 and water heater (floating condensing)
Pool
VXV1
PG
VXV1
PG
VXV1
PG
SMO 10
SMO 10
HR
HR
HR
SMO 10
HR
HR
HR
HR
HR
HR
HR
HR
P
VVC
52
44
63
81
76
36
38
95
19
15
96
88
35-1
43-1
89-1
94-1 94-2
43-2
35-2
5
52
44
85
6
P
VP
31
FG1* CP1
CP*
RG1
RG2
SV1
SV2
CP2 FG2
VVG
LP1
UG
93
P
FG1 CP1
RG1 RG2
SV1
SV2
CP2 FG2
VVC
VVG
LP1
UG
VXV 2
PCP
POG
P
FG1* CP1
RG1
SV1
VVG
LP1
UG
Med pool och shunt 2
Grundinkoppling
Med shunt 2
AV
SÄV
TV RV
RV BV
BV
SF
86
86
89-2
20
49
98
31
45
31
31
SÄV
SÄV
52
SÄV
VP
VP
VP
HR
HR
RV BV
BV
CP*
UKV*
UKV*
SMO 10 controls FIGHTER 2005, oil-fired boiler, circu-
lation pumps, shunts, etc. FIGHTER 2005 works with
floating condensing against the heating system and
prioritises hot water charging via the three way valve
(VXV1).
If FIGHTER 2005 cannot meet the heating require-
ment, the oil-fired boiler is started and additional heat
is shunted in.
The outline diagram is equipped with accessories.

Docking
FIGHTER 2005
For the Installer
10
Several FIGHTER 2005s together with SMO 10 and water heater
(floating condensing)
Pool
86
86
15
76
44
52
38
35
63
88
81
81
86
86
76
44
52
38 63
89
94
43
20
49
49
49
52
19
VP2
95
31
VP1
93
31
HR
HR
HR
HR
HR
VP2
VP1
VP2
VP1
85
44
52
65
VVC
36
96
P
SV1 FG1*
RG1
SMO 10
CP1
PG
UG
LP2
LP1
VVG
VXV1
P
VXV 2
PCP
POOL G
VVC
SV1 FG1
RG1
SMO 10
CP1
PG
UG
LP2
LP1
VVG
VVC
VXV1
P
Grundinkoppling
Grundinkoppling
Med pool
98
45
31
SÄV
SÄV
SÄV
AV
AV BV
BV
RG
TV
RG
TV
BV
SF
SF
VP2
VP1
SMO 10
TV
RV BV
BV
HR
UKV*
CP*
SMO 10 controls up to nine FIGHTER 2005s (of which
max one for hot water), immersion heater, circulation
pump, shunt, etc. FIGHTER 2005 works with floating
condensing against the heating system and prioritises
hot water charging via the three way valve VXV1.
FIGHTER 2005 VP1 heats the hot water.
If FIGHTER 2005 cannot meet the heating require-
ment, additional heated is shunted in from the oil-fired
boiler.
When additional heat is engaged, hot water is heated
using the immersion heater in the hot water heater.
FIGHTER 2005 VP1 is connected in at position (44)
using the enclosed modular cable (15m) from SMO 10.
VP2 is connected in to VP1 using the screened 3-core
cable on the screw terminal (44).
The outline diagram is equipped with accessories.

Docking 11
For the Installer
FIGHTER 2005
FIGHTER 2005 docked with wood-fired boiler and hot water heater
(fixed condensing)
Abbreviations
AV Shut-off valve
CP Circulation pump
FG Flow line sensor Included in FIGHTER 2005
HR Auxiliary relay
LP Charge pump
RG Return line sensor Included in FIGHTER 2005
RV Control valve
SF Particle filter Included in FIGHTER 2005
SV Shunt valve
SÄV Safety valve
TV Drain valve
UG Outside sensor
VVG Hot water sensor
FIGHTER 2005
AV
RV SF
SÄV
TV
FG RG
BV
LP1
UG
RC
Vedpanna
Extern alt
befintlig regler-
utrustning.
VVB / ACK
FIGHTER 2005
RC
52
44
63
81
76 38
86
86
49
89
94
9795
15
34
84
96
45
35
43
FIGHTER 2005 charges the hot water heater/accumu-
lator tank (VVB/ACK). When the wood-fired boiler is
used, the heat pump and immersion heater are dis-
connected with a rising temperature on the flow line
sensor (RG) and starts again when the temperature
starts to drop. Self-circulation through the heat pump
is prevented by the check valve (BV). The return line
sensor (RG) is placed in the submerged tube on the
accumulator tank.
Wood-fired boiler
External or exist-
ing control equip-
ment

LEK LEK LEK
43
37
38
39
2
26
68
29
11
40
100
14
16
30
13
97
9
34
57
44
29
11
30
13
9
34
44
29
11
14
16
30
34
LEK
LEK
LEK
Gammal bild
LEK
9
30
9
30
9
NOTE!
Electrical installation and service
must be carried out under the
supervision of a qualified electrician.
Electrical installation and wiring must
be carried out in accordance with the
stipulations in force.
NOTE!
The live external control must be
taken into consideration when
connecting.
The routing of cables for heavy current and signals
should be made out through the cable glands on the
heat pump's left-hand side, seen from the front.
The terminal block (9) for the incoming supply is
accessed by removing the 6 screws on the plastic
cover and the screws (TORX 20) on the distribution
box.
Electrical installation
LP HP
9
Inkommande matning 3 x 400 V
30
29
29
30
29
30
34
34
21
steg 2
steg 1
16
14
34
16
14
11
Re1
X29
4
X29
5
N
X29
6
29
11
Re1
X29
4
X29
5
N
X29
6
29
1
2
3
4
5
6
7
8
L2 L3N L1
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
NO O/C NO O/C
Tillsats Stillestånd
NC NC
NO O/C
NC
Hjälpkontaktor
(ingår ej vid leverans)
12 – 230V
15
88
90
86
41
33
3 41 2 5 6
89
93
29
30
29
30
29
30
16
14
34
NO O/C NO O/C
NC NC
16
14
34
34
3 41 2 5 6
91
9
Inkommande matning 3 x 230 V
L2 L3N L1
9
Inkommande matning 1 x 230 V
L2 L3N L1
29
30
29
30
1
8
7
6
5
4
3
2
EXTERNT
Start tillsatsvärme
Electrical connection
FIGHTER 2005
For the Installer
12
Incoming supply 1 x 230V
The figure shows the heat pump in its 1 x 230 V design.
■A heat pump must not be connected without the
permission of the electricity supplier and must be
connected under the supervision of a qualified
electrician.
■If a miniature circuit breaker is used this should
have a motor characteristic “D” (compressor opera-
tion). For MCB size see Technical Specifications.
■The FIGHTER 2005 does not include an isolator
switch on the incoming electrical supply. The instal-
lation must be preceded by a circuit-breaker with
at least a 3 mm breaking gap.
■If an insulation test is to be carried out in the build-
ing, disconnect the heat pump.
■Connect the heat pump to the terminal block (9),
via a distribution board with fuses. The heat pump
is not reconnectable between 1-phase and 3-phase;
neither can it be reconnected between 3 x 230 V
and 3 x 400 V.
■The signal cable for the thermostats is connected
to terminal (30) on the relay card (29). Cable type:
unscreened LiYY, screened LiYCY. Cable area, at
least 0.22 with cable lengths less than 50 m.
Alternatively the relevant signal cable is connected
from terminal (44) on the control card (34) to SMO
10.
■The circulation pump for FIGHTER 2005 is con-
nected to a separate supply or on terminal block
(11). NOTE! There is a risk of freezing when the
circulation pump is connected to the terminal
block (11) and FIGHTER 2005 is deenergized.
■A common alarm can be connected to terminal
(11).
Connection

Electrical connection 13
For the Installer
FIGHTER 2005
LP HP
9
Inkommande matning 3 x 400 V
30
29
29
30
29
30
34
34
21
steg 2
steg 1
16
14
34
16
14
11
Re1
X29
4
X29
5
N
X29
6
29
11
Re1
X29
4
X29
5
N
X29
6
29
1
2
3
4
5
6
7
8
L2 L3N L1
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
NO O/C NO O/C
Tillsats Stillestånd
NC NC
NO O/C
NC
Hjälpkontaktor
(ingår ej vid leverans)
12 – 230V
15
88
90
86
41
33
3 41 2 5 6
89
93
29
30
29
30
29
30
16
14
34
NO O/C NO O/C
NC NC
16
14
34
34
3 41 2 5 6
91
9
Inkommande matning 3 x 230 V
L2 L3N L1
9
Inkommande matning 1 x 230 V
L2 L3N L1
29
30
29
30
1
8
7
6
5
4
3
2
EXTERNT
Start tillsatsvärme
Circulation pump (accessory)
Common alarm
The figure shows the heat pump in its 1 x 230 V design.
An outdoor sensor (15) is positioned on the underside
of FIGHTER 2005. If the FIGHTER 2005 faces south
or to the west, where there is a risk of intensive heat-
ing by the sun the outdoor sensor should be positioned
on a north or north-west facing wall.
Outside sensor
When the circulation pump is connected to the termi-
nal block (11) the pump is controlled by FIGHT-
ER 2005. Pump activity depends on the status of
FIGHTER 2005, heating/hot water requirement and
outdoor temperature. Pump exercising is handled by
FIGHTER 2005.
NOTE! There is a risk of freezing when the circula-
tion pump is connected to the terminal block (11)
and FIGHTER 2005 is deenergized.
Circulation pump
LEK LEK LEK
43
37
38
39
2
26
68
29
11
40
100
14
16
30
13
97
9
34
57
44
29
11
30
13
9
34
44
29
11
14
16
30
34

Electrical connection
FIGHTER 2005
For the Installer
14
You can use a basic thermostat to switch the compres-
sor on and off. This thermostat should be of the break-
ing type (NC) when the set temperature has been
reached. The contactor should be potential free.
When an external thermostat is not used, terminal
block 30, pos 6 and 7 should be strapped.
If you choose to use a single step thermostat then
option “0” on channel 13, see section “Control Chan-
nel description”, should be selected.
You set the required outdoor air temperature level for
switching between low and high fan speeds on chan-
nel 14. At an outdoor air temperature below 13°C, the
fan is forced to high speed irrespective of the setting
on channel 14.
Connection of the single step thermostat is made as
set out in the picture below.
LP HP
9
Inkommande matning 3 x 400 V
30
29
29
30
29
30
34
34
21
steg 2
steg 1
16
14
34
16
14
11
Re1
X29
4
X29
5
N
X29
6
29
11
Re1
X29
4
X29
5
N
X29
6
29
1
2
3
4
5
6
7
8
L2 L3N L1
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
NO O/C NO O/C
Tillsats Stillestånd
NC NC
NO O/C
NC
Hjälpkontaktor
(ingår ej vid leverans)
12 – 230V
15
88
90
86
41
33
3 41 2 5 6
89
93
29
30
29
30
29
30
16
14
34
NO O/C NO O/C
NC NC
16
14
34
34
3 41 2 5 6
91
9
Inkommande matning 3 x 230 V
L2 L3N L1
9
Inkommande matning 1 x 230 V
L2 L3N L1
29
30
29
30
1
8
7
6
5
4
3
2
EXTERNT
Start tillsatsvärme
You can use a basic contactor or a thermostat to switch
the compressor on and off for heating hot water. This
function is given priority ahead of the heating function,
which means that irrespective of the status of the heat-
ing thermostat the compressor will work according to
the settings for hot water production.
This contactor should be of the breaking type (NC)
when the set temperature is reached. The contactor
should be potential free.
Connection of the switch for the hot water function is
made as set out in the picture below.
Hot water thermostat
LP HP
9
Inkommande matning 3 x 400 V
30
29
29
30
29
30
34
34
21
steg 2
steg 1
16
14
34
16
14
11
Re1
X29
4
X29
5
N
X29
6
29
11
Re1
X29
4
X29
5
N
X29
6
29
1
2
3
4
5
6
7
8
L2 L3N L1
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
NO O/C NO O/C
Tillsats Stillestånd
NC NC
NO O/C
NC
Hjälpkontaktor
(ingår ej vid leverans)
12 – 230V
15
88
90
86
41
33
3 41 2 5 6
89
93
29
30
29
30
29
30
16
14
34
NO O/C NO O/C
NC NC
16
14
34
34
3 41 2 5 6
91
9
Inkommande matning 3 x 230 V
L2 L3N L1
9
Inkommande matning 1 x 230 V
L2 L3N L1
29
30
29
30
1
8
7
6
5
4
3
2
EXTERNT
Start tillsatsvärme
NOTE!
The following pages about
thermostats, additional heat, common
alarms and downtime, do not apply
when FIGHTER 2005 is
controlled by SMO 10.
NOTE!
When a thermostat with a bulb is
used, the bulb must be insulated
carefully.
Single step thermostat heating
(auto mode)

Electrical connection 15
For the Installer
FIGHTER 2005
FIGHTER 2005 is equipped with a potential free con-
tactor intended for additional heat: Max 250V 2A.
The setting of the outdoor air temperature (balance
temperature) when the additional relay is activated is
made on channel 17, see the section “Control Chan-
nel description”.
External additional heat: connected via the additional
relay terminal (14). Conditions for connecting addition-
al heat:
■The outdoor air temperature should be lower than
the set balance temperature (channel 17)
■The compressor should have been operational for at
least the period selected in channel 28. Defrosting
is included in this time.
If the outdoor air temperature drops down to a level
under the set value, stop temperature (downtime), in
channel 18 compressor operations are blocked and all
heating must take place using the external additional
heat via the downtime relay terminal (16). This function
is also activated when FIGHTER 2005 is deenergized.
The connection to the additional relay is made as set
out in the picture below.
LP HP
9
Inkommande matning 3 x 400 V
30
29
29
30
29
30
34
34
21
steg 2
steg 1
16
14
34
16
14
11
Re1
X29
4
X29
5
N
X29
6
29
11
Re1
X29
4
X29
5
N
X29
6
29
1
2
3
4
5
6
7
8
L2 L3N L1
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
NO O/C NO O/C
Tillsats Stillestånd
NC NC
NO O/C
NC
Hjälpkontaktor
(ingår ej vid leverans)
12 – 230V
15
88
90
86
41
33
3 41 2 5 6
89
93
29
30
29
30
29
30
16
14
34
NO O/C NO O/C
NC NC
16
14
34
34
3 41 2 5 6
91
9
Inkommande matning 3 x 230 V
L2 L3N L1
9
Inkommande matning 1 x 230 V
L2 L3N L1
29
30
29
30
1
8
7
6
5
4
3
2
EXTERNT
Start tillsatsvärme
Max load across the relay contactors is 250V 2A.
During operations without the need of the additional
heat or downtime the relay contactors are closed
between NO and O/C.
Additional heat and downtime are acquired between
NC and O/C. The contactors are drawn in the deener-
gized state.
Additional and downtime relays are activated during,
normal operating conditions for FIGHTER 2005. Both
relays are deactivated in the event of operating disrup-
tions.
LP HP
9
Inkommande matning 3 x 400 V
30
29
29
30
29
30
34
34
21
steg 2
steg 1
16
14
34
16
14
11
Re1
X29
4
X29
5
N
X29
6
29
11
Re1
X29
4
X29
5
N
X29
6
29
1
2
3
4
5
6
7
8
L2 L3N L1
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
NO O/C NO O/C
Tillsats Stillestånd
NC NC
NO O/C
NC
Hjälpkontaktor
(ingår ej vid leverans)
12 – 230V
15
88
90
86
41
33
3 41 2 5 6
89
93
29
30
29
30
29
30
16
14
34
NO O/C NO O/C
NC NC
16
14
34
34
3 41 2 5 6
91
9
Inkommande matning 3 x 230 V
L2 L3N L1
9
Inkommande matning 1 x 230 V
L2 L3N L1
29
30
29
30
1
8
7
6
5
4
3
2
EXTERNT
Start tillsatsvärme
Basic electrical circuit diagram for connection of auxil-
iary relays for additional heat and downtime.
LP HP
9
Inkommande matning 3 x 400 V
30
29
29
30
29
30
34
34
21
steg 2
steg 1
16
14
34
16
14
11
Re1
X29
4
X29
5
N
X29
6
29
11
Re1
X29
4
X29
5
N
X29
6
29
1
2
3
4
5
6
7
8
L2 L3N L1
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
NO O/C NO O/C
Tillsats Stillestånd
NC NC
NO O/C
NC
Hjälpkontaktor
(ingår ej vid leverans)
12 – 230V
15
88
90
86
41
33
3 41 2 5 6
89
93
29
30
29
30
29
30
16
14
34
NO O/C NO O/C
NC NC
16
14
34
34
3 41 2 5 6
91
9
Inkommande matning 3 x 230 V
L2 L3N L1
9
Inkommande matning 1 x 230 V
L2 L3N L1
29
30
29
30
1
8
7
6
5
4
3
2
EXTERNT
Start tillsatsvärme
Position 2, 230 V output
signal with a common alarm.
Position 3, 230 V output
signal with no alarm.
additional
heat
downtime
auxiliary relay (not
included in delivery)
FIGHTER 2005 is equipped with a contactor for exter-
nal indication of common alarms. The function
becomes active with all types of alarms. Max load on
the relay contact is 250V 2A.
The connection for external indication of common
alarms is made as set out in the picture below:
External indication of
common alarms
Additional heat/downtime Example of addition
connection

Commissioning and adjusting
FIGHTER 2005
16
For the Installer

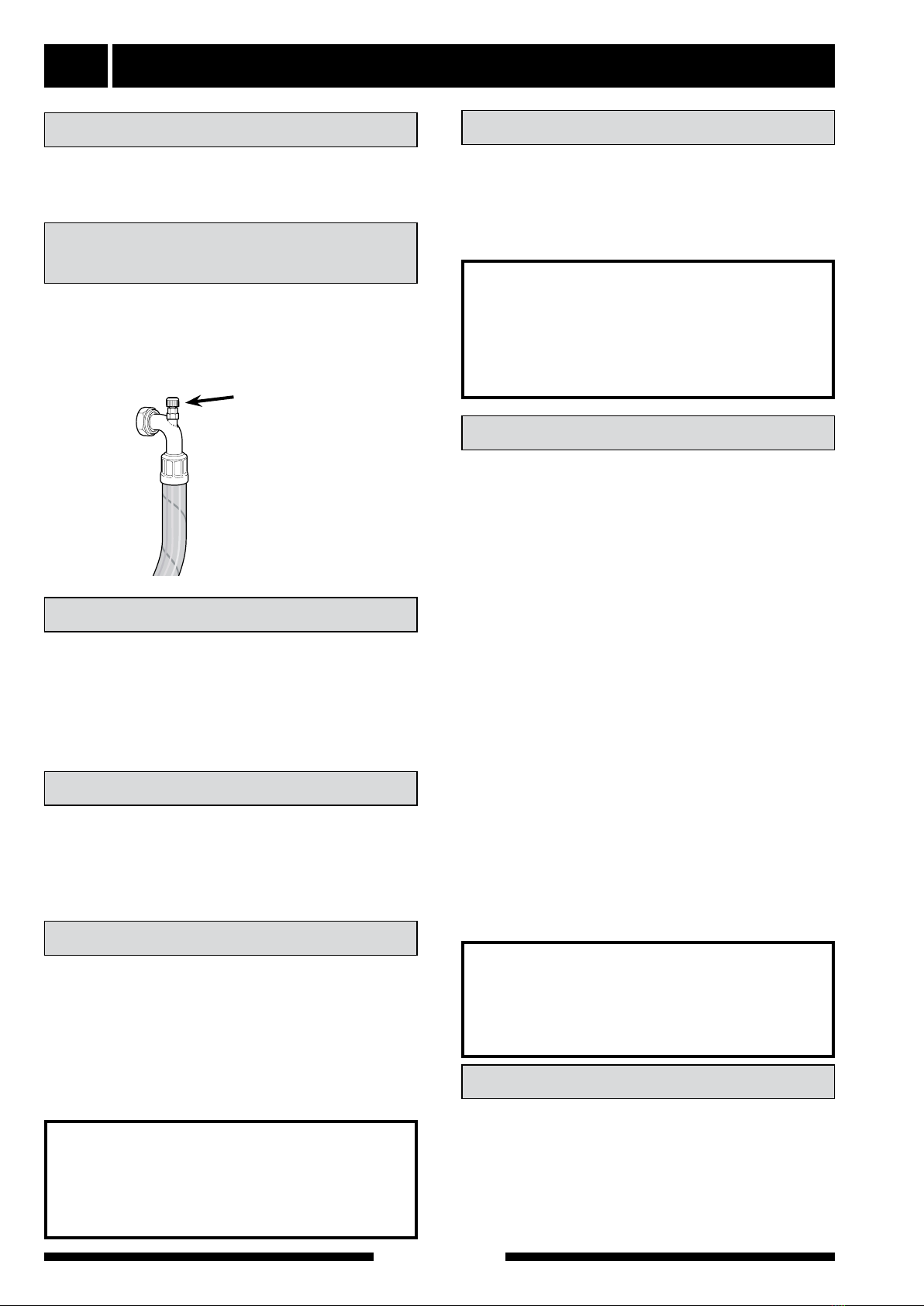

The heating medium system is filled with water to the
required pressure. Vent the system using the venting
nipple on the enclosed flexible hose and possibly the
circulation pump.
Before commissioning, check that the heating circuit is
filled and well vented. Check the pipe work for leaks.
Filling and venting the heating
medium system
Preparations
NOTE!
The compressor must not be forced to
start with periods shorter than 1 start
per 15 minutes.
NOTE!
The compressor heater must have
been connected for 6-8 hours before
the first start, see the section “Start-up
and inspection”.
FIGHTER 2005 is equipped with a soft-start relay (97)
that limits the inrush current for the compressor.
The compressor must not be forced to start with peri-
ods shorter than 1 start per 15 minutes.
The balance temperature is the outdoor temperature
when the heat pump’s stated output is equal to the
building’s output requirement. This means that the
heat pump covers the whole building’s output require-
ment down to this temperature. Setting of the balance
temperature, additional heat, is made on channel 17.
When using a standard radiator system and with hot
water heating the stop temperature should not fall
below -7 °C. The setting of the stop temperature,
downtime, is done on channel 18.
LEK
Venting nipple
Balance temperature
Stop temperature
FIGHTER 2005 is equipped with a compressor heater
that heats the compressor before start-up and when
the compressor is cold. The compressor must have
been switched on for 6-8 hours before the FIRST start,
see the section Start-up and inspection.
Compressor heater
Soft-start relay
■Modular cable (44) or thermostat/strap, terminal
(30) is disconnected.
■The working switch is turned on.
■Check that all incoming phases are energized.
■Check that the miniature circuit-breaker (2) is on.
■The compressor heater (25) must have been oper-
ational for at least 6 hours before the compressor
start can be initiated. This is done by switching on
the control voltage and disconnecting the modular
cable and thermostat/strap.
■ The display on the control card (34) shows C0/CC
F0 H1/H3 depending on the outdoor temperature.
During this period the compressor is heated to
increase the service life.
■After 6-8 hours the modular cable, external
thermostats or strap on the input for hot water
and/or input for single step or double step ther-
mostat are connected. See the sections, Electri-
cal connections - Hot water thermostat, Single step
thermostat heating.
■Restart SMO 10 if necessary.
■Once the connection is made, the compressor
starts after approx. 20 minutes.
■Adjust the charge flow according to the diagram,
see the section Adjustment, charge flow
■Fill in the commissioning report on page 2.
Start-up and inspection
NOTE!
The live external control must be
taken into consideration when
connecting.
Air is initially released from the hot water and venting
may be necessary. If bubbling sounds can be heard
from the heat pump, the circulation pump and radia-
tors the entire system requires further venting. When
the system has stabilised (correct pressure and all the
air removed) the heating controls can be set at the
required values.
Readjusting, heat medium side

Commissioning and adjusting 17
FIGHTER 2005
For the Installer
Adjusting the temperature difference (∆T) between the
flow temperature and the return temperature.
This is easily done by using the temperatures meas-
ured in Channel 32 (flow temperature) less Channel
29 (return temperature), this temperature difference
(∆T) is adjusted with the help of the circulation pump
and control valve. Adjustment is performed with stable
operation about 5 minutes after start, or about 5 min-
utes after defrosting with a cold outdoor temperature.
The temperature difference shall be as in the diagram
below (+1- 2K). At outdoor temperatures above 28 °C
the charge flow can be increased by 30 % to obtain a
position ∆T.
The diagrams shows the heat pump with a high fan
speed, at low fan speeds ∆T will be 0.5 to 1 degree
lower.
Adjustment, charge flow
0,0
2,0
4,0
6,0
8,0
10,0
12,0
14,0
16,0
-10 -5 0510 15 20
°C
∆T
2
1
3
Rekomenderat ∆T för värmebärare/laddflöde F2005-8
18,0
20,0
25 30
0,0
2,0
4,0
6,0
8,0
10,0
12,0
14,0
16,0
-10 -5 0510 15 20
°C
∆T
2
1
3
Rekomenderat ∆T för värmebärare/laddflöde F2005-10
18,0
20,0
25 30
0,0
2,0
4,0
6,0
8,0
10,0
12,0
14,0
16,0
-10 -5 0510 15 20
°C
∆T
2
1
3
Rekomenderat ∆T för värmebärare/laddflöde F2005-14
18,0
20,0
25 30
1 flow temperature 35°
2 flow temperature 45°
3 flow temperature 55°
Outside temperature
0,0
2,0
4,0
6,0
8,0
10,0
12,0
14,0
16,0
-10 -5 0510 15 20
°C
∆T
2
1
3
Rekomenderat ∆T för värmebärare/laddflöde F2005-8
18,0
20,0
25 30
0,0
2,0
4,0
6,0
8,0
10,0
12,0
14,0
16,0
-10 -5 0510 15 20
°C
∆T
2
1
3
Rekomenderat ∆T för värmebärare/laddflöde F2005-10
18,0
20,0
25 30
0,0
2,0
4,0
6,0
8,0
10,0
12,0
14,0
16,0
-10 -5 0510 15 20
°C
∆T
2
1
3
Rekomenderat ∆T för värmebärare/laddflöde F2005-14
18,0
20,0
25 30
Outside temperature
FIGHTER 2005 -8
FIGHTER 2005 -11

Control
FIGHTER 2005
18
For the Installer
Channel
Shows the current channel. Change channels using
the Plus button or the Minus button
Explanation
C0 F0 H1
00 01
C1 F1 H0
00 01
C2 F2 H2
00 01
CD F0 H2
00 01
20 1/1
20 1/1/1
21 1/1/1
C0 F0 H0
00 01
CC F0 H3
00 01
20 1
F-2010
ver 2.20
13 2
C2 F1 H0
00 01
F-2010
v 2.30
C1 F2 H2
00 01
C0 F0 H1
00 01
C1 F1 H0
00 01
C2 F2 H2
00 01
CD F0 H2
00 01
20 1/1
20 1/1/1
21 1/1/1
C0 F0 H0
00 01
CC F0 H3
00 01
20 1
F-2010
ver 2.20
13 2
C2 F1 H0
00 01
F-2010
v 2.30
C1 F2 H2
00 01
C0 F0 H1
00 01
C1 F1 H0
00 01
C2 F2 H2
00 01
CD F0 H2
00 01
20 1/1
20 1/1/1
21 1/1/1
C0 F0 H0
00 01
CC F0 H3
00 01
20 1
F-2010
ver 2.20
13 2
C2 F1 H0
00 01
F-2010
v 2.30
C1 F2 H2
00 01
C0 F0 H1
00 01
C1 F1 H0
00 01
C2 F2 H2
00 01
CD F0 H2
00 01
20 1/1
20 1/1/1
21 1/1/1
C0 F0 H0
00 01
CC F0 H3
00 01
20 1
F-2010
ver 2.20
13 2
C2 F1 H0
00 01
F-2010
v 2.30
C1 F2 H2
00 01
C0 F0 H1
00 01
C1 F1 H0
00 01
C2 F2 H2
00 01
CD F0 H2
00 01
20 1/1
20 1/1/1
21 1/1/1
C0 F0 H0
00 01
CC F0 H3
00 01
20 1
F-2010
ver 2.20
13 2
C2 F1 H0
00 01
F-2010
v 2.30
C1 F2 H2
00 01
C0 F0 H1
00 01
C1 F1 H0
00 01
C2 F2 H2
00 01
CD F0 H2
00 01
20 1/1
20 1/1/1
21 1/1/1
C0 F0 H0
00 01
CC F0 H3
00 01
20 1
F-2010
ver 2.20
13 2
C2 F1 H0
00 01
F-2010
v 2.30
C1 F2 H2
00 01
C0 F0 H1
00 01
C1 F1 H0
00 01
C2 F2 H2
00 01
CD F0 H2
00 01
20 1/1
20 1/1/1
21 1/1/1
C0 F0 H0
00 01
CC F0 H3
00 01
20 1
F-2010
ver 2.20
13 2
C2 F1 H0
00 01
F-2010
v 2.30
C1 F2 H2
00 01
Heater
The compressor heater is always active when the
compressor is switched off.
The drip tray heater is connected when the outdoor
temperature drops below the set value and is discon-
nected when the stop temperature is reached.
Fan
The fan has two speeds, high and low. The fan is con-
trolled by the outdoor temperature. The lower speed is
used when the outdoor temperature is high to limit the
output. The fan does not run during defrosting.
Compressor
The compressor has a minimum
running time of 5 minutes before
compressor stop can be effected.
C0 Compressor off, circulation pump off
C Flashes when the compressor wants to start but
is prevented by the time conditions or high return
temperature.
F0 Fan off
H1 Compressor heater on
Drip tray heater off
C1 Compressor on, circulation pump on
F1 Fan on, low speed
H0 Compressor heater off
Drip tray heater off
C1 Compressor on, circulation pump on
F2 Fan on, high speed
H2 Compressor heater off
Drip tray heater on
CD Compressor defrosting
Value
Shows the current value. Increase/decrease value
using the plus button respective minus button.
C0 F0 H1
00 01
C1 F1 H0
00 01
C2 F2 H2
00 01
CD F0 H2
00 01
20 1/1
20 1/1/1
21 1/1/1
C0 F0 H0
00 01
CC F0 H3
00 01
20 1
F-2010
ver 2.20
13 2
C2 F1 H0
00 01
F-2010
v 2.30
C1 F2 H2
00 01
C0 F0 H1
00 01
C1 F1 H0
00 01
C2 F2 H2
00 01
CD F0 H2
00 01
20 1/1
20 1/1/1
21 1/1/1
C0 F0 H0
00 01
CC F0 H3
00 01
20 1
F-2010
ver 2.20
13 2
C2 F1 H0
00 01
F-2010
v 2.30
C1 F2 H2
00 01
Plus button
The plus button (37) is used to browse
through the channel system (forwards) or
raise the value of the selected parameter.
See the section Control Channel description
Minus button
The minus button (38) is used to browse
through the channel system (backwards) or
lower the value of the selected parameter.
See the section Control Channel description
Enter button
The Enter button (39) is used to activate
and confirm value changes.
See the section Control Channel description
CC Circulation pump on, compressor off
H3 Compressor heater on
Drip tray heater on
