Nieco BroilVection JF64 User manual

WA R N I N G :
Improper installation, adjustment, alteration, maintenance can cause property damage, injury, or
death. Read the installation, operating and maintenance instructions thoroughly before installing
or servicing this equipment.
IMPORTANT: RETAIN THI MANUAL IN A AFE PLACE FOR FUTURE REFERENCE
Broiler area must be kept free of combustible materials, and the flow of combustion and ventilation
air must not be obstructed. Operating personnel must not perform any maintenance or repair
functions. Contact your Nieco Authorized Dealer.
APPROVALS:
Mo el JF62/JF63/JF64
Natural Gas/LP
Owner’s Manual
BroilVection™
BroilVection™
F O R Y O U R S A F E T Y:
Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any
other appliance.

26 Nieco Corporation - Model JF62/63/64G
F. PARTS LOCATION DRAWINGS - ODELJF62
DISCHARGE & TOP VIEW
PRODUCT SLIDE P/N 20874
HEAT SHIELD P/N 20829
STRIPPER BLADE P/N *
PAN P/N 16382
BURNER P/N 20808
GREASE TRAY P/N 20769
HEAT REFLECTOR P/N 20906
HOOD INCENDALIST P/N 19249
INCENDALIST P/N 20860
* STRIPPER BLADE, FIXED, 14” BELT P/N 20855 STRIPPER BLADE, FIXED, 7” BELT, DUAL P/N 20785
AIR BOX ⁄ BURNER, REAR, UPPER, 13.38'' P/N 20814

27 Nieco Corporation - Model JF62/63/64G
F. PARTS LOCATION DRAWINGS - ODELJF62
FEED END VIEW
TRAY, GREASE DRIP P/N 19685
GREASE PAN
P/N 20779
HEAT SHIELD
P/N 19090
ENCLOSURE FEEDER
P/N *
DRIVE UNIT
P/N **
FEEDER COVER
P/N 19734
FRAME
P/N ***
FEEDER HEAT SHIELD P/N 20763
* ENCLOSURE 7” DUAL BELT, FEEDER P/N 19735 ENCLOSURE 14” SINGLE BELT, FEEDER P/N 20859
** DRIVE UNIT WIRE BELT, 14” BELT, RH P/N 20929 DRIVE UNIT PUSH BAR, 14” BELT, RH P/N 20930 DRIVE UNIT PUSH BAR, 7” BELT, LH P/N 20888 DRIVE UNIT PUSH BAR, 7” BELT, RH P/N 20889 DRIVE UNIT WIRE BELT, 7” BELT, RH P/N 20887 DRIVE UNIT WIRE BELT, 7” BELT, LH P/N 20886
*** FRAME, 7” DUAL BELT P/N 20026 FRAME, 14” SINGLE BELT P/N 19762

32 Nieco Corporation - Model JF62/63/64G
F. PARTS LOCATION DRAWINGS

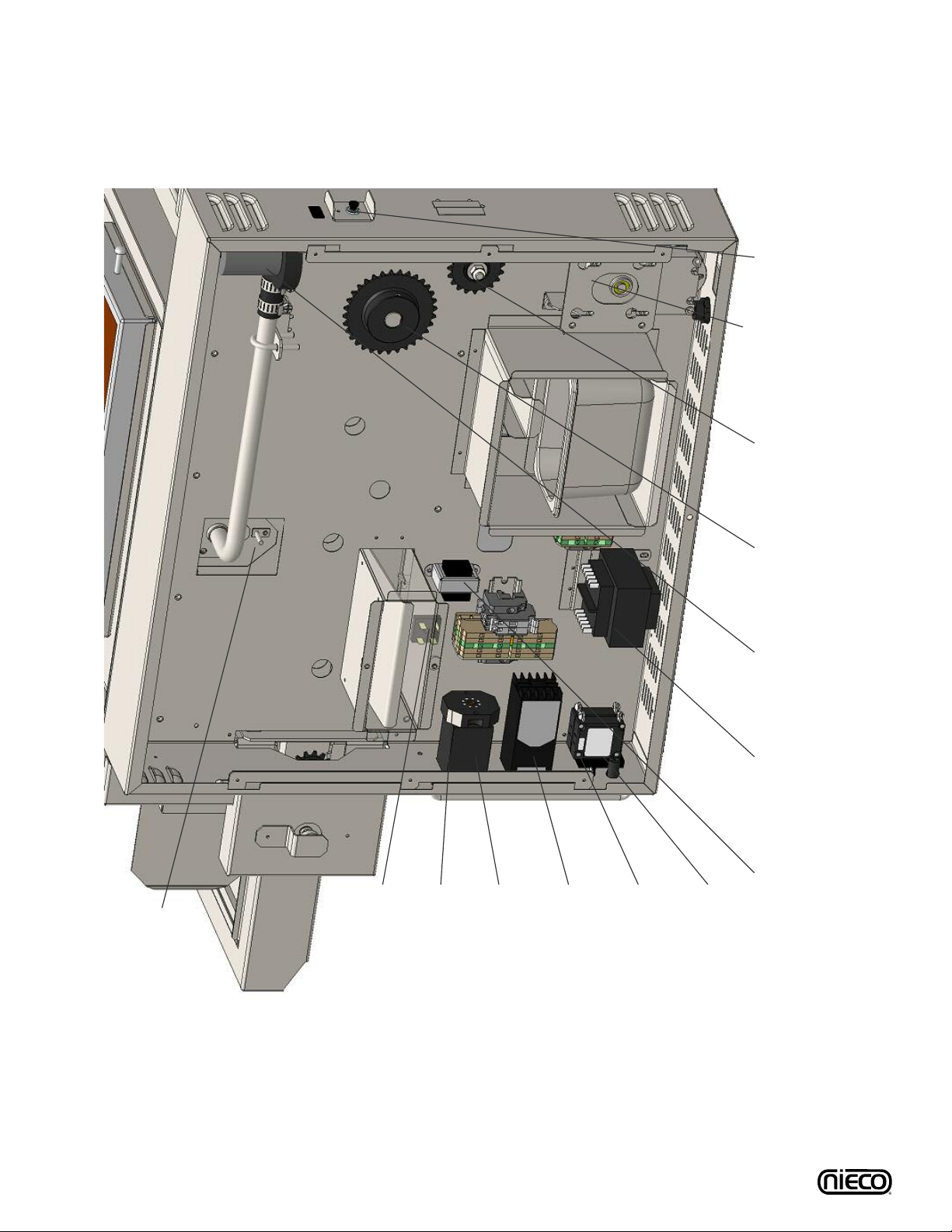

RIGHT SIDE CONTROL BOX
SCR BASE
P/N 4136
CONTROL, DIGITAL BELT SPEED
P/N 13727-B
CONTROL, MODULATING VALVE, 24V
P/N 19076
INDICATOR LIGHT, GREEN, 28V
P/N 4402
SWITCH, ROCKER,
50A CIRCUIT BREAKER
P/N 15480
TRANSFORMER,
115^230V PRI,
24V SEC, 5VA
P/N 16034
TRANSFORMER,
240VAC INPUT, 24
VAC OUTPUT
P/N 10529
BLOWER, MINI,
16-28 VDC
P/N 18447
GEAR MOTOR, DC,
BRUSHLESS,
REVERSE SHAFT
P/N 20786
SWITCH, MOTOR REVERSING P/N 13579
SPROCKET, 35B32,
3^4 INCH ID
P/N 13699
IDLER SPROCKET,
35C19, 3^8'' BORE
P/N 11081
RECTIFIER, SINGLE PHASE
BRIDGE, 25A, 200V
P/N 12725
THERMOCOUPLE PROBE, 1.88'',
TYPE J, 48'' LEADS
P/N 18861
SPROCKET,
DRIVER, 35B10,
3^8'' BORE
P/N 17899

33 Nieco Corporation - Model JF62/63/64G
F. PARTS LOCATION DRAWINGS
FEEDER BRACKET ASSE BLY
BEARING, SHOULDER
WASHER, LARGE,
FEEDER DRIVE
P/N 14896
SPROCKET, CLUTCHED, 13T, BELLEVILLE SPRING P/N 14900

34 Nieco Corporation - Model JF62/63/64G
F. PARTS LOCATION DRAWINGS
FEEDER ASSE BLY
PUSH-BAR, FEEDER, 14'' ROD BELT P/N 20099 PUSH-BAR, FEEDER, 7'' ROD BELT P/N 20018
CHAIN, LADDER, 6 SETS OF 17 LINKS P/N 11381
BUSHING, FLANGED, Ø3^8'' SHAFT X .275'' P/N 19913
SPROCKET, ROLLER CHAIN, 12T, Ø3⁄8'' BORE P/N 20883
BUSHING, FLANGED, Ø3^8'' SHAFT X .275'' P/N 19913
SHAFT, DRIVE, PUSH-BAR, Ø.375, 14'' ROD BELT P/N 20101 SHAFT, DRIVE, PUSH-BAR, Ø.375, 7'' ROD BELT P/N 20020
COUPLER, DRIVE, .25 SQ X .38 ID P/N 11194
ROLL PIN P/N 11114
ROLL PIN P/N 11114
COUPLER, DRIVE, .25 SQ X .38 ID P/N 11194
BUSHING, FLANGED, Ø3^8'' SHAFT X .275'' P/N 19913
COLLAR, SHAFT, SET
SCREW, Ø3/8 “ BORE
P/N 6099
SPROCKET, WIREBELT,
24T, 3/8” BORE
P/N 20882
SHAFT, DRIVE, 13'' WIRE BELT, 1 LANE P/N 20107 SHAFT, DRIVE, 6'' WIRE BELT, 1 LANE P/N 19728
COLLAR, SHAFT, SET SCREW, Ø3/8 “ BORE P/N 6099
BUSHING, FLANGED, Ø3^8'' SHAFT X .275'' P/N 19913
WIREBELT, 72 X .050 MESH X 13'' WIDE X 5 SPACES P/N 17499 WIREBELT, 72 X .050 MESH X 6'' WIDE X 3 SPACES P/N 19725
BRACKET, TENSIONER
P/N 20021

4
A. GENERAL INFOR ATION
A.1 Description
The Nieco Model JF62/63/64 (single belt) and JF62-2/63-2/64-2 (dual belt) automatic broiler features high
release convection burners, Patent pending BroilVection™ air system that uses waste heat to greatly
reduce energy needs, easy cleaning and a simple and intuitive control package to help eliminate broiling
problems and provide the operator with even greater control over the broiling environment.
This manual provides the safety, installation and operating procedures for the Nieco Automatic Broiler
Model JF62/63/64. We recommend that all information contained in this manual be read prior to installing
and operating the broiler.
A.2 Warranty Information
Please read the full text of the limited Warranty in this manual.
If the unit arrives damaged, contact the carrier immediately and file a damage claim with them. Save all
packing materials when filing a claim. Freight damage claims are the responsibility of the purchaser and
ARENOT covered under warranty.
The warranty does not extend to:
• Damages caused in shipment or damage as a result of improper use.
• Installation of electrical service.
• Normal maintenance as outlined in this manual.
• Malfunction resulting from improper maintenance not in accordance with the steps contained in
this manual and any applicable training.
• Damage caused by abuse or careless handling outside of the normal operating procedures
contained in this manual.
• Damage from moisture into electrical components.
• Damage from tampering with or removal of any safety device.
I PORTANT!
Keep these instructions for future reference. If the unit changes ownership,
be sure this manual accompanies the equipment.
I PORTANT
The Nieco Corporation reserves the right to change specifications and product design. Such revi-
sions do not entitle the buyer to corresponding changes, improvements,
additions or replacements for previously purchased equipment.
Nieco Corporation - Model JF62/63/64G

5
A.3 Service/Technical Assistance
If you experience any problems with the installation or operation of your broiler, contact your local
Authorized Nieco Distributor.
Fill in the information bellow and have it handy when calling your authorized service agency for assistance.
The serial number is on the broiler rating plate on the side of the unit.
Purchased from:
Date of Purchase:
Model No.:
Serial No.:
For the name of your local Authorized Nieco Distributor, please call [phone].
Use only genuine Nieco replacement parts in your broiler. Use of replacement parts other than those sup-
plied by Authorized Nieco Distributors and Service Agencies will void the warranty and may significantly
alter the performance of your broiler. The use of non-Nieco parts is capable of affecting these criteria, and
may affect broiler performance, parts longevity and food safety. Your local Authorized Nieco Distributor and
Service Agent has been factory trained and has a complete supply of parts for your Nieco Automatic
Broiler.
You may contact the factory direct at [phone] if you have trouble locating your local Nieco
Distributor.
A.4 Important Safety Information
Throughout this manual, you will find the following safety words and symbols that signify important safety
issues with regards to operating or maintaining the equipment:
WARNING
GENERALWARNING. Indicates
information important to the proper
operation of the equipment. Failure
to observe may result in damage to
the equipment and/or severe bodily
injury or death.
WARNING
ELECTRICALWARNING. Indicates
information relating to possible
shock hazard. Failure to observe
may result in damage to the equip-
ment and/or severe bodily injury or
death.
CAUTION
GENERALCAUTION. Indicates
information important to the proper
operation of the equipment. Failure
to observe may result in damage to
the equipment.
WARNING
HOTSURFACEWARNING.
Indicates information important to
the handling of equipment and
parts. Failure to observe caution
could result in personal injury.
Nieco Corporation - Model JF62/63/64G

6
A.4 Important Safety Information (Continued.)
In addition to the warnings and cautions in this manual, use the following guidelines for safe operation of
your Nieco Automatic Broiler:
• Read and follow all instructions before using this equipment.
• Install or locate broiler only for its intended use as described in this manual.
• Do not operate this equipment if it has a damaged cord or plug, if it is not working properly or if it
has been otherwise damaged.
• This equipment should only be serviced by authorized personnel. Contact your local Nieco
Distributor for adjustment or repair.
• Use only genuine Nieco replacement parts for your broiler. Failure to do so will void the warranty
and may significantly alter the performance of your broiler. The use of non-Nieco parts is capable
of affecting these criteria, and may affect broiler performance, parts longevity and food safety.
The following warnings and cautions appear throughout the manual and should be carefully
observed:
• Turn the broiler off, close the main gas valve, and disconnect the plug before
performing any service, maintenance or cleaning on the broiler.
• Always allow the broiler to fully cool before performing any service, maintenance or
cleaning. Failure to wait for the broiler to cool fully may result in personal injury.
• The procedures in this manual may include reference to the use of chemical products. The
Nieco Corporation does not endorse the use of any particular cleaning/degreasing agent.
Use only those chemicals that are approved for use in your kitchen.
• The broiler should be grounded according to local electrical codes to prevent the
possibility of electrical shock. It requires a grounded receptacle with separate electrical
lines, protected by fuses or circuit breakers of the proper rating.
• All electrical connections must be in accordance with local electrical codes and any other
applicable codes.
• The use of adequate ventilation (as rated in this manual) with this broiler is mandatory.
Failure to adequately ventilate this unit and provide safe operating distances (as specified
in this manual) is a fire safety hazard. Follow the instructions for emergency broiler
shutdown in the event of an emergency.
• No attempt should be made to operate this appliance in the event of a power failure.
WARNINGELECTRICALSHOCKHAZARD. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD
RESULT IN SERIOUS INJURY OR DEATH:
• Electrical ground is required on this appliance.
• Check with a qualified electrician if you are in doubt as to whether the appliance is properly
grounded.
• Do not use water on or near the control box for risk of serious injury or death due to
electrical shock.
WARNING, HIGHTE PERATURES WITH HOT SURFACES. FAILURE TO FOLLOW THESE PROCE-
DURES COULD RESULT IN SERIOUS INJURY:
• Do not attempt to clean, disassemble or perform maintenance on this broiler until it is fully
cooled as per the instructions contained in this manual.
Nieco Corporation - Model JF62/63/64G

7Nieco Corporation - Model JF62/63/64G
B. INSTALLATION
B.1 Pre-Installation
Uncrate the broiler and inspect for shipping damage. Remove the tape securing the machine parts, and
install the parts in their proper location. If there are obvious or concealed damages to any part of the
broiler, please contact your freight carrier. The factory warranty does not cover freight damage.
B.2 ounting
Follow the mounting instructions if this function is not performed by the installer.
B.3 Leveling
The grease drain system is based on a gravity-flow design. Therefore, it is extremely important that the
broiler be placed on a level surface.
B.4 Hood Requirements
This appliance must be installed under a ventilation hood of adequate size. Do not obstruct the flow of
combustion and ventilation air. An adequate air supply must be available for safe and proper operation.

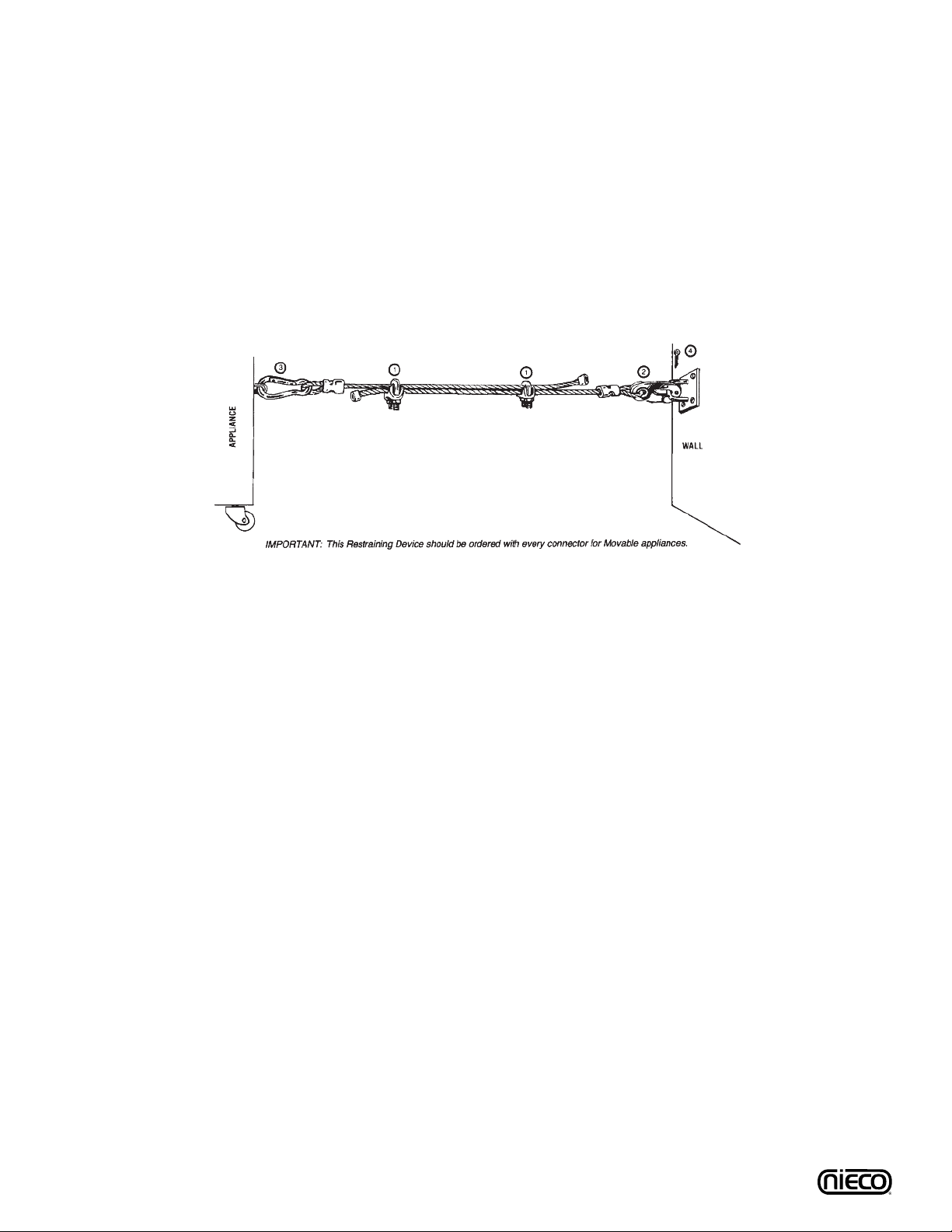

For installations in the Commonwealth of Massachusetts the following shall apply: Venting shall be in
compliance with NFPA Section 10.3.5.2 for the Model JF62.
B.5 Clearance
Keep appliance area free from combustibles.
To facilitate disassembly and service of the unit a minimum of 24” (610 mm) should be allowed on the
control panel (feed end) of the broiler.
REQUIRED for
installation near
combustible walls
and construction
REQUIRED for installa-
tion near non-com-
bustible walls and
construction
RECO ENDED by
Nieco for proper disas-
sembly and service
Back of broiler
Sides of broiler
Front of broiler
(Feed end)
REQUIRED AND RECO ENDEDCLEARANCES
12” (305 mm) 0” (0 mm)
0” (0 mm)
24” (610 mm)
0” (0 mm)
0” (0 mm)
0” (0 mm)
12” (305 mm)
12” (305 mm)
