Niigata seiki INSIDE T CALIPERS User manual

INSIDE “T” CALIPERS
DIGITAL INSIDE POINT CALIPERS
Thank you for purchasing the INSIDE “T” CALIPERS.
This product is a precision measurement tool designed specifically for point measurement of inside surfaces.
●For safe and proper use of this product, please read this instruction manual before use and follow the procedures described.
Please keep manual where it is accessible to user for future reference.
●Keep this manual with the instrument if transferred or leased to a third party.
●For inquiries about this product, please contact dealer or Niigata Seiki at the address listed on the following page.

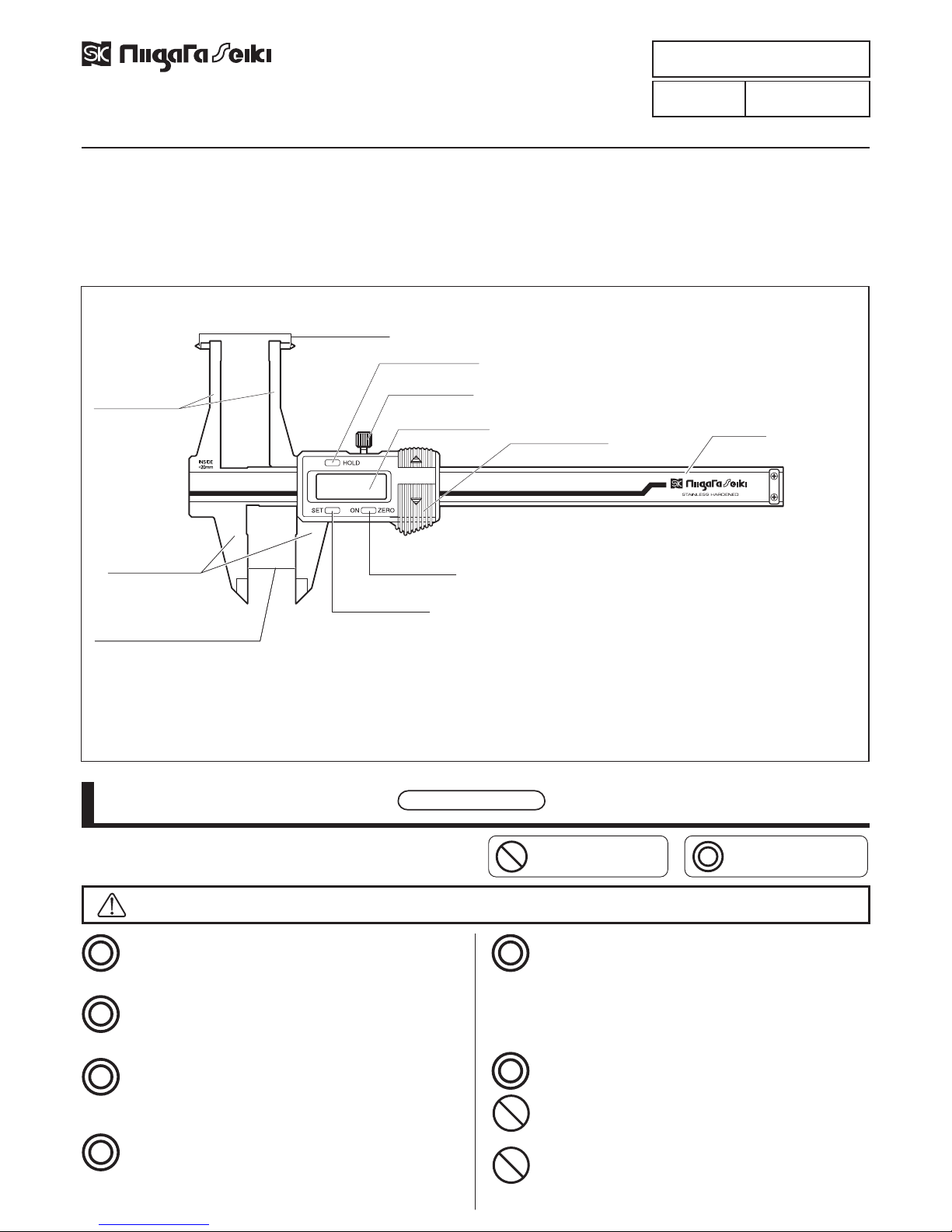

■Part Identification and Description
For internal measurements.
Locks the slide unit and LCD.
Digitally displays the measured value.
Cover for Silver Oxide SR44 battery.
Holds value on display.
Switch to Preset Mode.
Power ON/OFF, will display preset value.
Measurement reference for LCD slide.
④Inside Jaw......................
⑤Lock Screw....................
⑥LCD Display...................
⑦Battery Cover …………..
⑧[HOLD]Button...............
⑨[SET]Button..................
⑩[ON/ZERO]Button...........
⑪Scale..............................
Outside measurements performed
between these surfaces.
For external measurements.
Applied to inside surfaces for
measurement.
①Measuring Surface……………
For Outside Measurements
②Outside Jaw……………………
③Stylus Tip………………………
Safety Precautions Please Observe
④Inside Jaw
②Outside Jaw
③Stylus Tips
⑤Lock Screw
⑧[HOLD]Button
⑩[ON/ZERO]
Button
⑨[SET]Button
⑥LCD Display
⑦Battery Cover ⑪Scale
①Measuring Surface
For Outside Measurements
Always follow the proper operating procedures in order to prevent
harm to yourself or others, and to prevent damage to property.
Indicates risk of personal injury or property damage if not followed.
Caution
Denotes a “prohibition”:
You MUST NOT do it.
Denotes a “requirement”:
You MUST do it.
Read the instruction manual and follow the
instructions.
・Use of product other than as described in the manual
may cause accident.
Use only for measuring.
・Use for any purpose other than measuring may damage
or wear the instrument. Improper use may also cause
accident.
Handle with Care.
・Do not drop or subject instrument to excessive force. Do
not place under heavy objects. Improper handling may
cause damage or poor accuracy.
・Do not scratch instrument.
Avoid using in locations with high electric fields,
such as near fluorescent lights or switching power
supplies.
・May cause erroneous reading to display on LCD.
Use and store only in environment meeting the
following conditions.
●Dry location protected from rain, water, and oils.
●Location that does not become hot.
●Location protected from use by children and
unauthorized people.
・Use in places contrary to the above may cause
damage to the product resulting in accident or injury.
Jaw Tips Are Sharp -- Handle With Care.
・Careless handling may cause injury.
Do not disassemble or modify.
・Doing so may cause accident or injury. Please contact
distributor or place of purchase for service.
Do not write on instrument with electric engraver.
・Do not engrave instrument or jaw, such as an ID
number with engraver or electric pen.
D-150IT
Model No.
User Manual

SET
PRESS
①
SET
SET
PRESS
③
SET
SET
LONG PRESS
②
SET
SET SET
ON
PRESS
OFF
LONG PRESS
SET
SET
⑥
25.00
MEASURE
SET
⑦Battery
Cover
OPEN
PRESS
PREPARATION FOR USE ORIGIN PRESET
POWER ON / OFF
※Use one SR44 Battery.
・Please wipe off corrosion protectant with a soft, oiled cloth.
・Please insert batteries.
①Slide battery cover in direction
of arrow.
②Insert battery with (+) side outward.
③Replace battery cover.
Preparations to be performed after purchase prior to first use.
④Repeat steps ②, ③above to set the preset value to the size
of the calibration standard.
⑤To return blinking “SET” display, press the [SET]button again.
For internal measurements, a ring gauge calibration standard
is required to preset the origin value.
（※Ring gauge calibration standard is not included）
※Please use calibration standard to check accuracy regularly.
③Short press of [SET] button will
change the blinking number.
⑥In measurement mode 
(“SET” not displayed on
LCD,) confirm the setting
by measuring the
calibration standard with
the calipers.
②With “SET” displayed, a long press
on the [SET]button switches
selected character position to modify
(indicated by character blinking.)
①Press the [SET]button until “SET” is
displayed on LCD.
①Press [ON/ZERO]button to turn on power.
②To turn off power, press and hold [ON/ZERO]button (approx
2 sec.) until power is off.
・With power on, pressing the [ON/ZERO]button will show the
preset value.
・With power on, pressing [SET]button toggles the preset
mode.
・Pressing the [HOLD]button will fix the value displayed on the
LCD.
・ Sliding the main scale will re-enable the display after it is shut
off from the auto-display-off feature.
Q. Nothing is displayed, or the numbers are flashing.
A. The battery may be low, please replace battery with a
newone.
Q. The number on the LCD does not change, even as
main slide is moved.
A. Please reset by removing battery for about 30sec.,
and then replacing.
Q. Nothing happens when buttons are pressed.
A. Please make sure battery is inserted correctly.
CARE AND STORAGE WHEN NOT IN USE
TROUBLE SHOOTING
●If Instrument is not working properly, or if you have any
questions, please contact distributor or place of purchase.
●Please note, manufacturer is unable to respond to inquires
or provide service directly. Please contact distributor or place
of purchase.
SERVICE
SPECIFICATIONS
●After use, wipe with soft cloth and store with jaws
slightly open.
If locked in closed position, slight temperature changes may
cause expansion and excessive force which will result in
poor accuracy.
●Store in supplied accessory case in a cool, dry location.
Avoid moisture and direct sunlight, keep secure from
unauthorized personnel.
Model No.
Power
D-150IT
Resolution
Measurement
Range
Instrument
Error
Auto Display
Off
Maximum
Response
Speed
0.01mm
Weight Approx. 230g
Silver Oxide Battery
SR44･1.55V
Battery Life
Silver Oxide Battery
SR44･1.55V
(For test) x1
Accessories
Approx. 1 year
for normal usage
External : 0-150mm
Internal : 20-170mm
External : ± 0.05 mm
Internal : ± 0.10mm
Approx. 5 min.
1.5m/s
Operating
Temperature
Range
0 ℃〜40℃
Storage
Temperature
Range
-10 ℃〜60℃
Niigata seiki Co., Ltd.
6-15-22, Tsukanome, Sanjo, Niigata, Japan, 955-0055
Tel. : [phone] Fax. : [phone]
MAIL:[email protected]
URL
http://www.niigataseiki.co.jp
I218-K 1411
