Nilfisk-Advance C 120.2 User manual

Nilfisk C 120.2
Nilfisk C 125.2
User Manual

Copyright © 2008 Nilfisk

3
Index
1 Safety precautions and warnings .............................................3
2 Description ...............................................................................5
3 Before you start using your pressure washer...........................6
4 Operating your pressure washer ..............................................8
5 Fields of Application and Working Methods .............................9
6 After using your pressure washer...........................................11
7 Maintenance...........................................................................12
8 Trouble Shooting ....................................................................14
9 Further information.................................................................15
10 Main technical data ................................................................17
11 Declaration .............................................................................18
1 Safety Precautions and Warnings
Before starting
up your high-
pressure washer
for the first time,
this instruction
manual must be read through
carefully. Save the instructions
for later use.
Safety instructions
marked with this
symbol must be
observed to pre-
vent danger to persons.
This symbol is
used to mark safety
instructions that
must be ob-
served to prevent
damage to the ma-
chine and its performance.
This symbol
indicates tips
and instructions
to simplify work and to ensure a
safe operation.

Do not let people who have not
been trained in the use of a
high pressure washer nor read
the instruction manual operate
the machine.
This appliance is not intended
for use by children or other
persons without assistance or
supervision if their physical,
sensory or mental capabili-
ties prevent them from using it
safely. Children should be su-
pervised to ensure that they do
not play with the appliance.
Before starting up your machine
please check it carefully for any
defects. If you find any, do not
start up your machine and con-
tact your Nilfisk distributor.
Especially check:
The insulation of the electric
cable should be faultless
and without any cracks. If the
electric cable is damaged, an
authorized Nilfisk distributor
should replace it.
WARNING!
High pressure jets can be
dangerous. Never direct the
water jet at persons, pets,
live electrical equipment or
the machine itself.
Never try to clean clothes or
footwear on yourself or other
persons.
Hold the spray lance firmly
with both hands. The spray
lance is affected by a thrust
of up to 16.4 N during ope–
ration.
The operator and anyone in
the immediate vicinity of the
site of cleaning should take
action to protect themselves
from being struck by debris
dislodged during operation.
Wear goggles and protection
clothes during operation.
This appliance has been de-
signed for use with cleaning
agents supplied or recom-
mended by the manufacturer.
The use of other cleaning
agents or chemicals may
adversely affect the safety of
the appliance.
Disconnect from electrical
power supply before carrying
out user maintenance.
To ensure the appliance
Symbols used to mark in-
structions

4
safety only use original spare
parts from the manufacturer
or approved by the manufac-
turer.
High pressure hoses, fittings
and couplings are important
for the safety of the appli-
ance. Only use hoses, fittings
and couplings recommended
by the manufacturer.
Do not use the appliance
if a supply cord or impor-
tant parts of appliance are
damaged, e.g. safety device ,
high pressure hose and trig-
ger gun.
The appliance is intended to
clean cars and garden etc..
Appropriate ear protection
has to be used.
Never use the machine in
an environment where there
could be a danger of explo-
sion. If any doubt arises,
please contact the local
authorities.
It is not allowed to clean as-
bestos-containing surfaces
with high pressure.
 This high pressure washer
must not be used at tempera-
tures below 0°C.
WARNING!
Inadequate extension cables
can be dangerous. Cables on
drums should always be com-
pletely uncoiled to prevent the
cable from overheating.
If an extension cable is used,
the plug and the socket must be
waterproof and comply with the
below-mentioned requirements
for length and cable dimen-
sions.
1.0 mm² max. 12.5 m
1.5 mm² max. 20 m
2.5 mm² max. 30 m
If the electric cable is
damaged, it must be re-
placed by the manufacturer
or his service agent or simi-
larly qualified person in order
to avoid a hazard.
Mains power connection
The following should be ob-
served when connecting the
high pressure washer to the
electric installation:
The electric installation shall
be made by a certified elec-
trician and comply with IEC
364.
It is recommended that the
electric supply to this appli-
ance should include either a
residual current device that
will interrupt the supply if the
leakage current to earth ex-
ceeds 30 mA for 30 ms.
The permissible modulus of
power supply impedance: ≤
0.332 Ω.
Water connection
Connection to the public
mains according to regula-
tions.
Inlet hose can be connected
to the water mains with a
max. inlet pressure of 10
bars.
This high pres-
sure washer is
only allowed to be
connected with
the drinking water
mains, when an
appropriate backflow preventer
has been installed, Type BA ac-
cording to EN 1717. The back-
flow preventer can be ordered
under number 106411177. The
length of the hose between the
backflow preventer and the high
pressure washer must be at
least 10 metres to absorb pos-
sible pressure peaks (min diam-
eter ½ inch).
Operation by suction (for ex-
ample from a rainwater vessel)
is carried out without backflow
preventer. Recommended suc-
tion set: 126411387.
As soon as water has flown
through the BA valve, this water
is not considered to be drinking
water any more.
IMPORTANT! Only use wa-
ter without any impurities. If
there is a risk of running sands
in the inlet water (i.e. from your
own well), an additional filter
should be mounted.
Safety devices
Pressure safety device:
The unloader valve can reduce
pressure if it exceeds pre-set
values.
Locking device on spray gun
(7a) (see illustration at the end
of this manual):
The spray gun features a lock-
ing device. When the pawl is
activated, the spray gun cannot
be operated.
Thermal sensor:
A thermal sensor protects the
motor against overloading. The
machine will restart after a few
minutes when the thermal sen-
sor has cooled.

5
2 Description
2.1 Application This high-pressure washer has
been developed for domestic
use within:
- Car, motorbike, boat, cara-
van, trailer, patio/drive/flag-
stones, woodwork, brickwork,
barbecue, garden furniture,
lawn mower
Section 5 describes the use of
the high-pressure washer for
various cleaning jobs.
Only use the high-pressure
washer for purposes described
in this manual.
The safety precautions must be
observed to prevent damage
to the machine, the surface to
be cleaned or severe personal
injuries.
2.2 Operation elements
and model survey
See illustration at the end of
this manual.
1 Start/stop switch
2 Water inlet with filter (2a)
3 High pressure connection
4 High pressure hose
5 Electric cable
6 Click & Clean spray lance
7 Spray gun with lock (7a)
8 Click & Clean Tornado®PR
nozzle
9 Click & Clean Powerspeed®
nozzle
10 Click & Clean foam sprayer
11 Nozzle cleaning tool
12 Trolley handle
13 Hose hook
14 Model tag
15 Hook for electric cable
Specifications: See model tag
(14) of machine.
We reserve the right to alter the
specifications.
3 Before you start using your
pressure washer

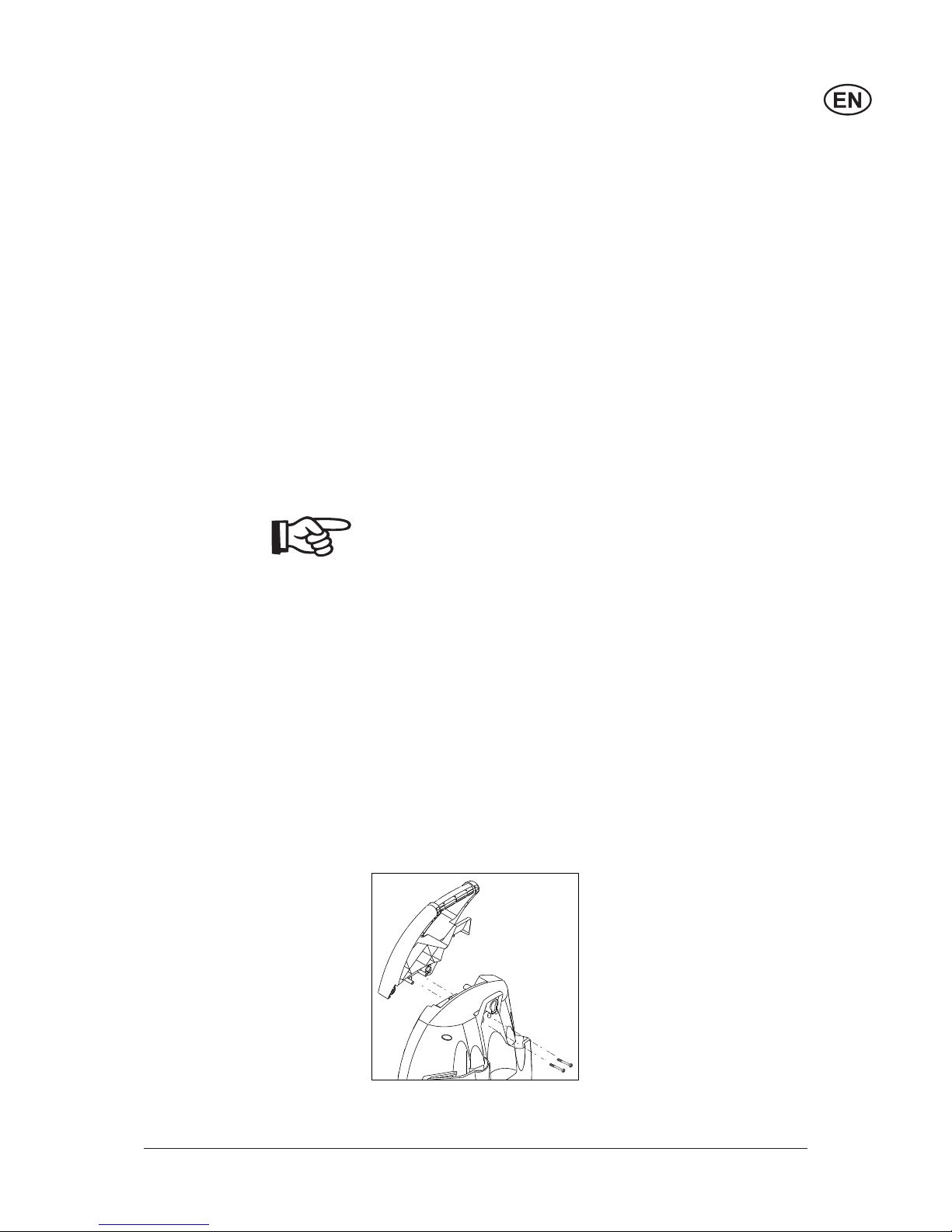

3.1 Mounting of trolley
handle
1. Place the trolley handle (12)
on the machine.
2. Secure the handle by mount-
ing the 2 screws.

6
3.2 Mounting of quick
coupling
1. Screw the quick coupling
tight on to the water inlet (2).
Note: The inlet filter (2a) must
always be fitted in the water
inlet pipe to filter out sand, lime-
stone and other impurities as
these will damage the pump
valves.
Caution: Failure
to fit the filter will
invalidate the
guarantee.

4 Operating your pressure washer
4.1 Connection of high
pressure hose
1. Mount the high pressure
hose on the outlet (3).
3.3 Mounting of high
pressure hose
Attach the high pressure hose
(4) to the spray gun (7).
Detach the high pressure hose
by pressing the pawl (A).

7

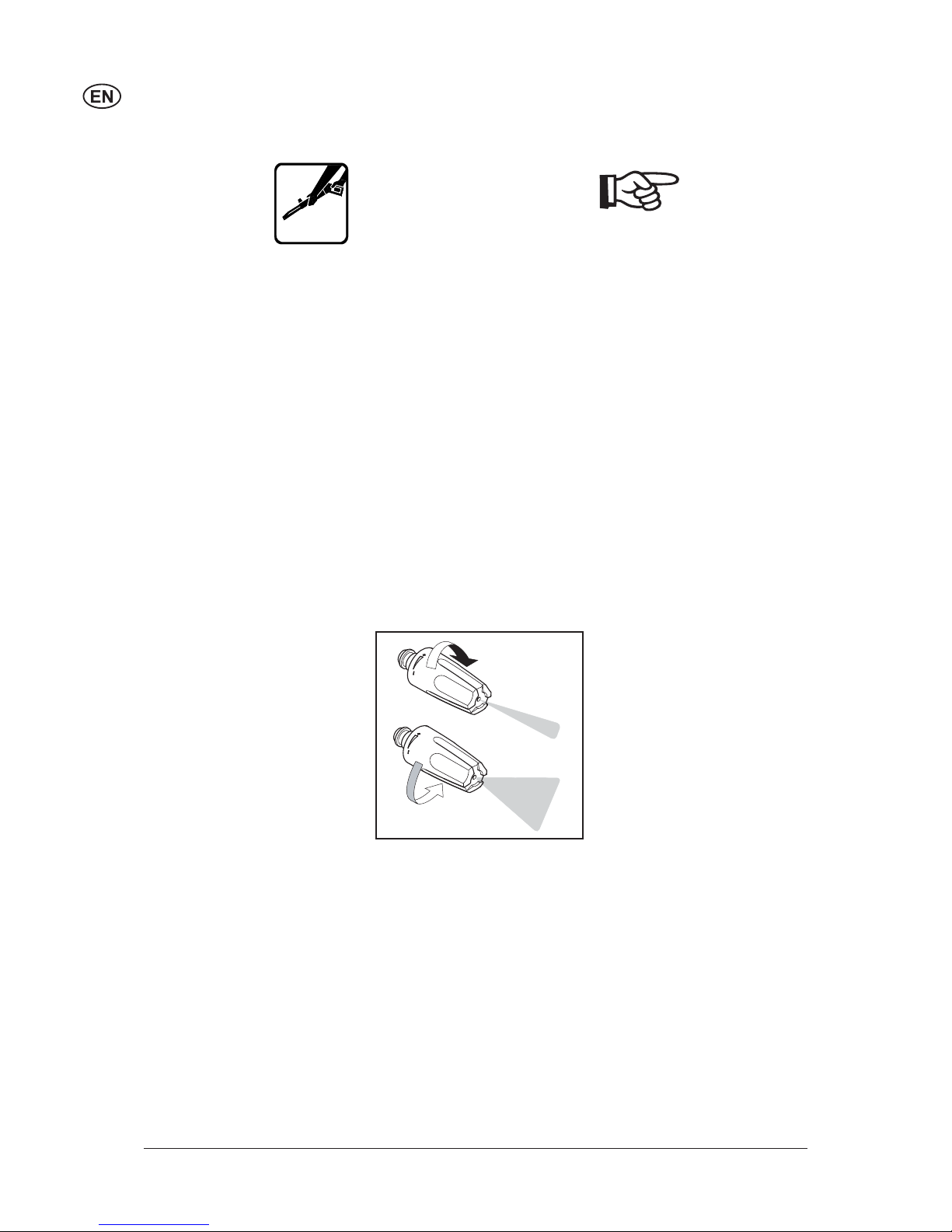

4.2 Mounting of spray
lance and Click & Clean
nozzles 
2. Attach the nozzle.
Warning: When
attaching the Click &
Clean nozzles, the
pawl on the side
of the spray lance (6)
should come out again.
Note: The Torna-
do® PR nozzle (8)
and the foam sprayer (10) fea-
ture a swivel lock, which must
be positioned in the hole in the
Click & Clean spray lance (6).
Press the pawl to detach the
Click & Clean nozzle.
6
7
1. Push the spray lance (6) into
the spray gun (7) and screw
it on.
Note: The spray lance (6) has a
built-in low pressure nozzle that
can be used for flushing away
dirt.
4.3 Water connection IMPORTANT! Only use wa-
ter without any impurities. If
there is a risk of running sands
in the inlet water (i.e. from
your own well), an additional
filter (106411231) should be
mounted.
1. Let the water run through the
water hose before connecting
it to the machine to prevent
sand and dirt from penetrat-
ing the machine.
Note: Check that the filter is
fitted in the water inlet pipe
and that it is not clogged up.
2. Connect the water hose to
the water supply by means
of the quick connector (inlet
water, max. pressure: 10 bar,
max. temperature: 40°C).
3. Turn on the water.
An ordinary 1/2" garden hose
of min. 10 m and max. 25 m
will be suitable.
NOTE: Connection to the public
mains according to regulations.

8
4.4 Start and stop of the
machine (when
connected to a water
supply)
The spray lance is affected
by a thrust during operation -
therefore always hold it firmly
with both hands.
IMPORTANT: Point the nozzle
at the ground.
1. Check that the machine is in
upright position.
NOTE: Do not place the
machine in high grass!
2. Release the trigger lock (7a).
3. Activate the trigger of the
spray gun (7) and let the
water run until all air has
escaped from the water
hose.
4. Press the Start/stop switch
"I" (1).
5. Activate the trigger of the
spray gun (7).
Always adjust the distance and
thus the pressure of the nozzle
to the surface, which is to be
cleaned.
Do not cover the machine
during operation or use it in a
room without adequate ventila-
tion !
Note: If the ma-
chine is left or
not used for 5
minutes, it must be switched off
on the start/stop switch "O" (1):
1. Press the start/stop switch
"O" (1).
2. Disconnect the electrical plug
from the socket.
3. Shut off the water supply and
activate the trigger to relieve
the machine of pressure.
4. Lock the spray gun (7a).
When releasing the trigger of
the spray gun, the machine
automatically stops. The ma-
chine will start again when you
re-activate the spray gun.
Lavtryk
Højtryk
4.5 Pressure regulation on
the TORNADO®PR-
nozzle
The pressure can be regulated
on the TORNADO®PR nozzle
(8).High pressure
Low pressure

9
5 Fields of application and working
methods
5.1 General Efficient high pressure cleaning is achieved by following a few
guidelines, combined with your own personal experience of specific
cleaning tasks. Accessories and detergents, when correctly cho-
sen, can increase the efficiency of your pressure washer. Here is
some basic information about cleaning.
5.1.1 Detergent and foam Foam or detergent should be applied onto dry surfaces so that the
chemical product is in direct contact with the dirt. Detergents are
applied from bottom to top, for example on a car bodywork, in order
to avoid "super clean" areas, where the detergent collects in higher
concentration and streams downwards. Let the detergent work for
several minutes before rinsing but never let it dry on the surface be-
ing cleaned. Note: It is important that the detergents do not dry up.
Otherwise the surface that has to be cleaned can be damaged.
5.1.2 Mechanical effect In order to break down tough layers of dirt, additional mechanical
effect may be required. Special wash brushes offer this supplemen-
tary effect that cuts through dirt (especially by car washing).

10
5.2 Typical fields of application
Below you will find a description of a lot of cleaning tasks which can be solved by a pressure washer
from Nilfisk in association with accessories and detergents.
Task Accessories ‘Click
& Clean’
Cleaning method
Car Car nozzle,
auto brush,
undercarriage
nozzle,
Foam sprayer,
Car Combi Cleaner
1. Apply Car Combi Cleaner with the foam sprayer. Always start
from the bottom and work upwards. Let Car Combi Cleaner act
for at least 5 min.
2. Wash the car with the car nozzle, which has been optimized for
quick and gentle cleaning of enamelled surfaces (the jet is wider
and not so sharp). Start at the front of the car and work back-
wards to avoid water from penetrating by the door mouldings.
3. U se the brush for removal of traffic film which is not removed by the
nozzle. If the car is very dirty, apply Car Combi Cleaner again.
4. Attach the undercarriage nozzle and clean undercarriage and
wheel arches.
5. Remove water from the surface of the car with the scraper
on the car brush. Make sure that all grains of sand etc. have
been removed before using the scraper. Wipe with a wash
leather where the scraper cannot reach.
Rims, alu-
minium
Rim brush,
auto nozzle,
atomizer,
Alu Cleaner
Apply Alu Cleaner with an automizer. Let it act for approx. 5 min.
and wash with the rim brush. For steel rims, use Car Combi
Cleaner. Use the foam sprayer and wash with rim brush.
Be careful! The high pressure jet may damage the tyres.
Flagstones,
concrete
floors and
other hard
surfaces
Powerspeed®
nozzle,
Stone & Wood
Cleaner,
Patio Cleaner
Wash towards outlets or the like. On surfaces with moss or algae
you may start by applying Stone & Wood Cleaner with the foam
sprayer. Wash before the soap dries. Another more effective and
quicker method is to use the Patio Cleaner. Thus you will also
avoid splashes.
Garden
furniture,
wood
Wood Cleaner
Garden brush
Apply Wood Cleaner and wash before the soap dries.
NOTE: Use the garden brush to clean off the dirt.
Brickwork,
Wood work
Powerspeed®
nozzle,
Stone & Wood
Cleaner,
Patio Cleaner
Same method as for flagstones, but be careful - bad joints and
wood may be damaged by high pressure. You may choose only
to use the Tornado®nozzle. Adjust the distance (pressure) to
the quality of the joints and the wood. Patio Cleaner can also be
used on vertical surfaces.
Gutter Undercarriage
nozzle
Wash the gutter with the nozzle. Always wash towards
downpipes. Beware not to spray under the roofing.
Cleaning
of drain
pipes, out-
lets, down
pipes etc.
Tube cleaner Push the tube cleaner approx. ½ m (to mark) into a tube or drain
and activate the trigger of the spray handle. The nozzle opening
turning backwards will pull the cleaner through the tube. The
nozzle will break down the „plug“ and flush the dirt backwards.
Rust, paint Water/sandblasting
equipment
Mount the water/sand blasting equipment and rust and paint
is efficiently and quickly removed. Beware not to damage the
surface to be sandblasted.
Green-
house
Tornado®PR nozzle
brush, Stone &
Wood Cleaner
Wash with high pressure and maybe a brush. You may use Stone
& Wood Cleaner to remove moss and algae.
Garden
tools, lawn
mover
Tornado®PR
nozzle, Power-
speed®nozzle,
multiangle adaptor,
Metal Cleaner
Rinse the worst dirt off with the nozzle. Apply Metal Cleaner with
the foam sprayer and let it act for approx. 5 min. Wash with the
nozzle.You may use the multiangle adaptor for hard to get at
areas to avoid splashing.

11

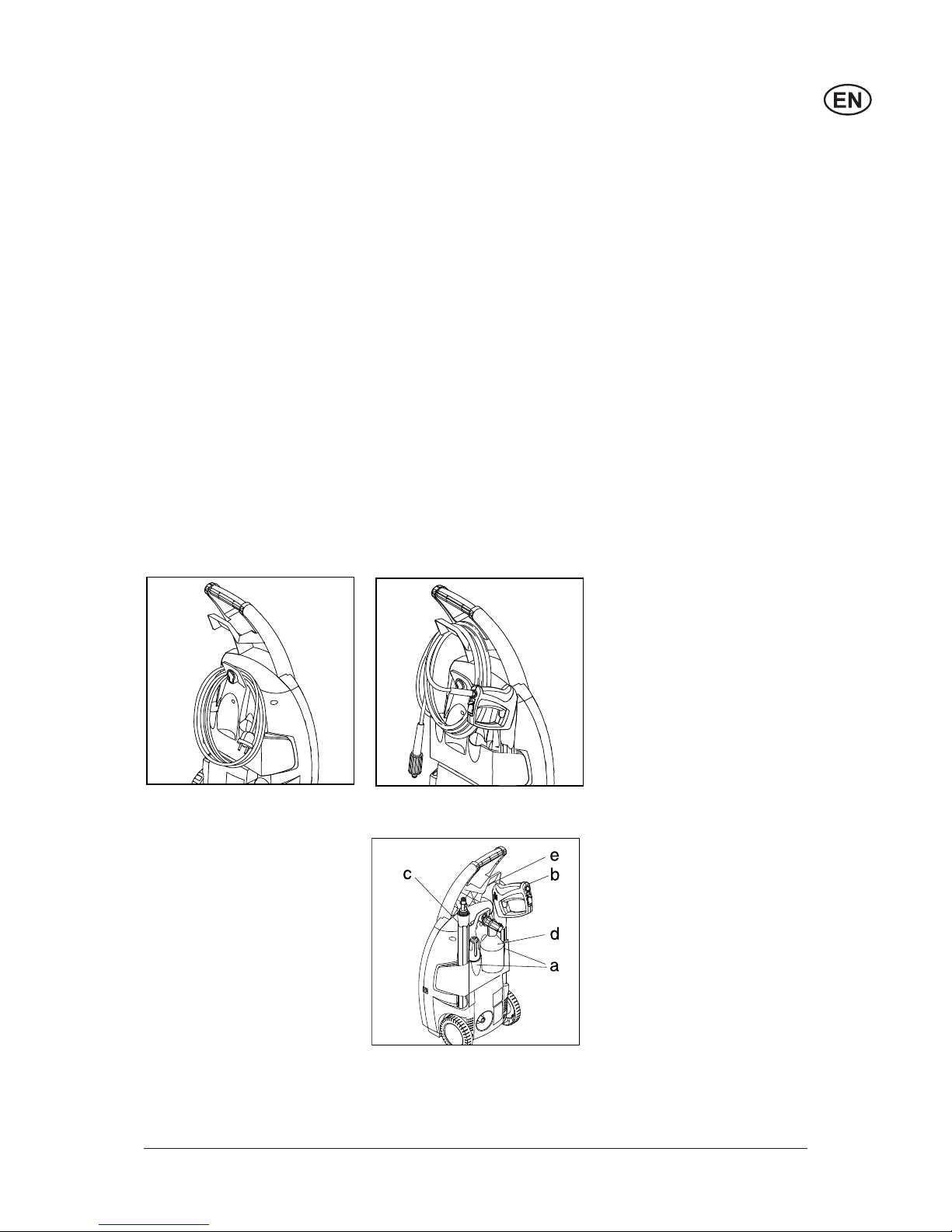

6.3 Storage of accessories The standard accessories
(nozzles (a), spray handle (b),
spray lance (c), foam sprayer
(d)) can be stored on the pres-
sure washer.
The nozzle cleaning tool (e) can
also be stored on the product.

6 After using your pressure washer
6.2 Winding up of electric
cable and high pressure
hose
To avoid accidents, the electric
cable and the high pressure
hose should always be winded
carefully up.
1. Wind up the electric cable on
the appropriate hooks.
6.1 Storing the washer The machine should be
stored in a frost-free room!
Pump, hose and accessories
should always be emptied of
water prior to storing as follows:
1. Stop the machine (press
the start/stop switch “O” (1)
and detach water hose and
accessory.
2. Restart the machine and
activate the trigger. Let the
machine run until no more
water runs through the spray
gun.
3. Stop the machine, unplug
and wind up hose and cable.
4. Place spray handle, nozzles
and other accessories in the
holders of the machine.
Should the machine by mistake
be frozen, it will be necessary
to check it for damage.
NEVER START-UP A FROZEN
MACHINE.
Frost damages are not
covered by the guarantee!

12
WARNING! Always disconnect
the electrical plug from the
socket prior to maintenance or
cleaning.
To ensure a long and problem
free working life, please take
the following advice:
Wash out water hose, high
pressure hose, spray lance
and accessories before
mounting.
Clean the connectors of dust
and sand.
Make sure that no sand or
dirt is blocking the movement
of the pawl on the Click &
Clean spray lance. Rinse ac-
cording to requirement.
Rinse the detergent spraying
attachment after use.
Clean the nozzles.
Any repair should always be
made in an authorized work-
shop with original spare parts.
7 Maintenance
7.1 Cleaning of water inlet
filter
Clean the water inlet filter
regularly once a month or more
frequently according to use.
Carefully loosen the filter with a
screwdriver and clean it. Check
that it is intact before re-mount-
ing it.
The inlet filter must always be
fitted inside the water inlet pipe
to filter out sand, limestone and
other impurities, as they will
damage the pump valves.
CAUTION: Failure to fit the filter
will invalidate the guarantee.

13
7.2 Cleaning of nozzle A clogging up in the nozzle
causes a pump pressure which
is too high. This is why cleaning
is required immediately.
1. Stop the machine and dis-
connect the nozzle.
2. Clean the nozzle. IMPOR-
TANT: The cleaning tool (11)
should only be used when
the nozzle is detached!
3. Flush the nozzle backwards
with water.
7.3 Cleaning of machine
vents
The machine should be kept
clean so as to let cooling air
pass freely through the ma-
chine vents.
7.4 Greasing of couplings To ensure an easy connec-
tion and that o-rings do not dry
up, the couplings should be
greased regularly.

14
8 Trouble-shooting
To avoid unnecessary disappointments, you should check the following before contacting the Nilfisk
service organization:
Symptom Cause Recommended action
Machine refuses to start Machine not plugged in Plug in machine.
Defective socket Try another socket.
Fuse has blown Replace fuse. Switch off other machines.
Defective extension cable Try without the extension cable.
Fluctuating pressure Pump sucking air Check that hoses and connections are air-
tight.
Valves dirty, worn out Clean and replace or refer to local Nilfisk
or stuck distributor
Pump seals worn out Clean and replace or refer to local Nilfisk-
distributor.
Machine stops Fuse has blown Replace fuse. Switch off other machines.
Incorrect mains voltage Check that the mains voltage corresponds
to specification on the model tag.
Thermal sensor activated Leave the washer for 5 minutes to cool
down.
Nozzle partially blocked Clean the nozzle (see section 7.2)
Fuse blows Fuse too small Change to an installation higher than the
amp. consumption of the machine.
You may try without the extension cable.
Machine pulsating Air in inlet hose/pump Allow machine to run with open trigger until
regular working pressure resumes.
Inadequate supply of Check that the water supply corresponds to
mains water specifications required (see model tag)
NB! Avoid using long, thin hoses (min. 1/2")
Nozzle partially blocked Clean the nozzle (see section 7.2)
Water filter blocked Clean the filter (see section 7.1)
Hose kinked Straighten out hose.
Machine often starts Pump/spray gun is Contact your nearest Nilfisk Service
and stops by itself leaking Centre.
Machine starts, but Pump/hoses or accessory Wait for pump/hoses or accessory to thaw.
no water comes out frozen
No water supply Connect inlet water.
Water filter blocked Clean the filter (see section 7.1)
Nozzle blocked Clean the nozzle (see section 7.2)
In case problems other than the above occur, please contact your local Nilfisk distributor.

15
9 Further information
9.1 Recycling the washer Make the old cleaner unusable
immediately.
1. Unplug the cleaner and cut
the electric cable.
Do not discard electrical appli-
ances with household waste.
As specified in European Direc-
tive 2002/96/EC on old electri-
cal and electronic appliances,
used electrical goods must
be collected separately and
recycled ecologically.
Contact your local authorities or
your nearest dealer for further
information.
9.2 Warranty conditions Nilfisk guarantees high pres-
sure washers for domestic use
for 2 years. If your high pres-
sure washer or accessories are
handed in for repair, a copy of
the receipt must be enclosed.
Guarantee repairs are being
made on the following condi-
tions:
that defects are attributable
to flaws or defects in materi-
als or workmanship. (wear
and tear as well as misuse
are not covered by the
guarantee).
that the directions of this
instruction manual have been
thoroughly observed.
that repair has not been
carried out or attempted by
other than Nilfisk-trained
service staff.
that only original accessories
have been applied.
that the product has not been
exposed to abuse such as
knocks, bumps or frost.
that only water without any
impurities has been used.
that the high pressure
washer has not been used
for rental nor used commer-
cially in any other way.
Repairs under this guarantee
include replacement of defec-
tive parts, exclusive of packing
and postage/carriage. Besides,
we refer to your national law of
sale.
The machine should be for-
warded to one of the service
centres of the Nilfisk organisa-
tion with description/specifi ca-
tion of the fault.
Repairs not covered by the
guarantee conditions will be
invoiced. (I.e. malfunctions due
to Causes mentioned in section
Troubleshooting Chart of the
instruction manual).
In order that Nilfisk can render
you optimum service, you
should register your product on
our web site www.nilfisk-alto.
com under “PRODUCT REGI-
STRATION”.

16

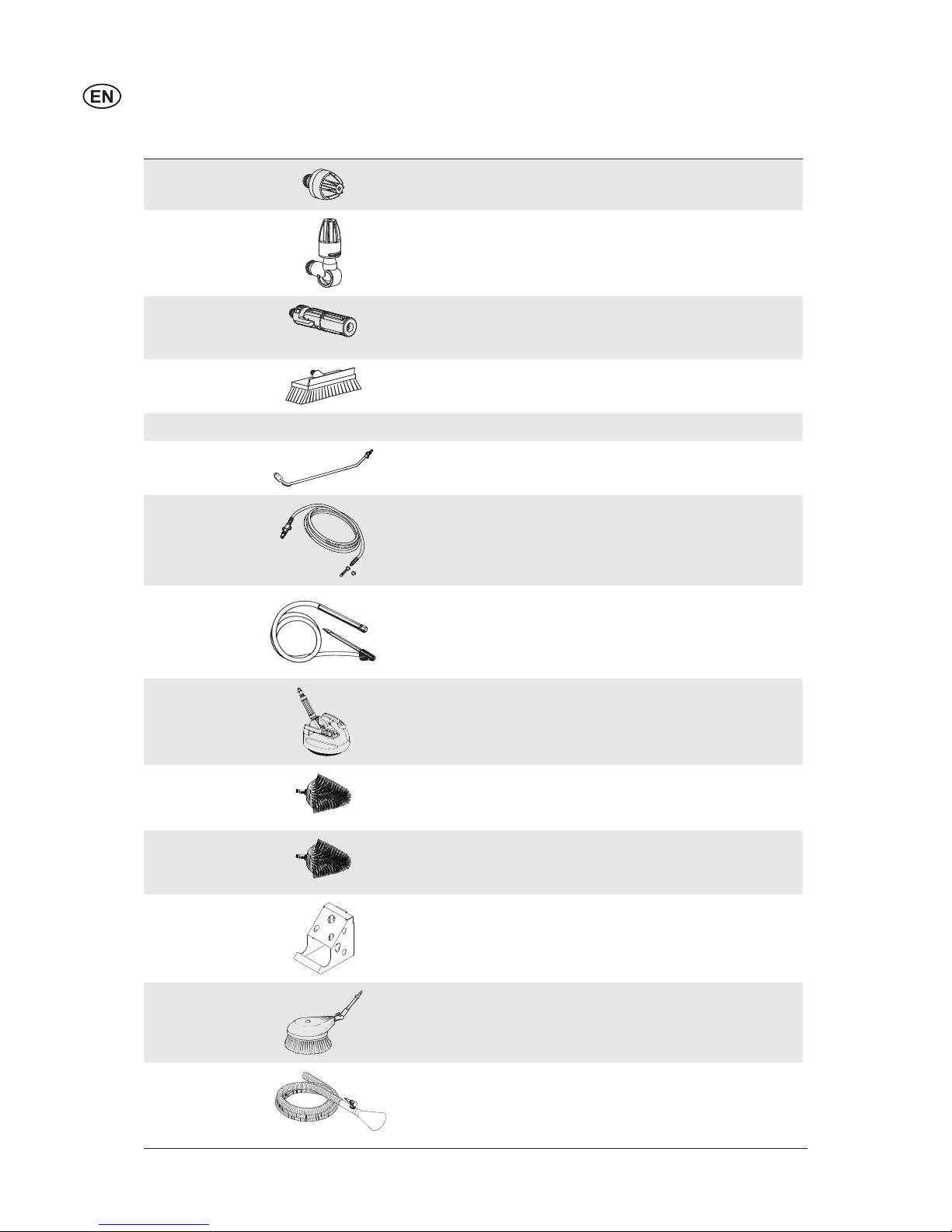

9.3 Accessories
Only use original accessories.
Click & Clean
Car nozzle
Special nozzle for enameled surfaces. Optimal distance: 30
- 50 cm.
Click & Clean
Undershassis
nozzle
90° angled special nozzle for undercarriage and wheel arches.
Integrated guide shoes.
Click & Clean
Multiangle
adaptor
Adjusted in angles from 0° - 90° for better working posture and
cleaning of hard to get at places as for instance barrels or the
underside of the lawn mower. Fits all nozzles.
Click & Clean
Brushes
For cars and other surfaces. Available in more shapes.
Extension hose 7 m extension hose increasing the working range.
Underchassis
spray lance
Special spray lance for washing your car underneath.
Drain & Tube
cleaner
15 m long tube cleaner for the cleaning of tubes and drains.
Water-sand-
blasting equip-
ment
For removal of paint and rust. Sand available from do-it-your-
self shops.
Patio Plus Equipment for quick cleaning of patio/drive/flagstones.
Garden brush Rotary brush for cleaning of wooden surfaces.
Rim brush Rotary brush for cleaning of wheel rims.
Wall hook For storage of machine on wall.
Rotary brush For cleaning vehicles and other surfaces.
Water suction
kit
For removal of large amounts of water from e.g. garden
pounds.

17
Detergents
Stone & Wood Cleaner For flagstones, brick- and woodwork. Suitable for moss and algae.
Plastic Cleaner For plastic and synthetic materials such as garden furniture.
Metal Cleaner For cleaning of metal such as garden tools.
Car Combi Cleaner For cars etc. With rinsing wax.
Alu Cleaner For surfaces of aluminium. Applied with an atomizer.
Oil & Grease Cleaner For cleaning of grease and oil on motors for instance. Applied with
an atomizer.
Wood Cleaner For cleaning of wooden surfaces incl. of wooden garden furniture.
10 Main Technical Data
Type C 120.2-6
Rated pressure bar/MPa 100/10.0
Permissible pressure bar/MPa max. 120/12.0
Rated flow l/min 5.9
Rated input kW 1.65
Rated voltage V 230-240
Max. water temperature °C 40
Inlet pressure bar/MPa 0.15-10/0.015/1.0
Sound pressure level dB(A) 78
Guaranteed sound power level dB(A) 92
Vibration according to ISO 5349 m/s2max. 2.5

18
11 Declaration
Declaration
Manufacturer's name and address or his authorized
representative in the Community
Nilfisk-Advance AG
Nilfisk Business Unit
Guido-Oberdorfer-Str. 10
89287 Bellenberg
GERMANY
Name of the person responsible for the technical
documentation
Wolfgang Nieuwkamp
Description of the equipment:
Equipment name
Model
Dimension
Rated output voltage
Rated frequency
Rated input power
Other
High pressure washer
Nilfisk
C 120.2
280 x 270 x 820 mm
AC 230-240 V
50 Hz
1.65 kW
Measured sound power level 90 dB(A)
Guaranteed sound power level 92 dB(A)
Declaration The equipment refer in this document fulfils all the requirements of
the Directive :
Machine Directive 98/37/EC
Low-voltage Directive 73/23/EEC
EN 60335-2-79: 2004
EN 60335-1/A1: 2004
EN 50366: 2003
EMC Directive 89/336/EEC
EN 55014-1/A2: 2002
EN 55014-2/A1: 2001
EN 61000-3-2/A2: 2005
EN 61000-3-3/A1: 2001
Outdoor Noise Directive 2000/14/EC
Place and date of the declaration Bellenberg, November 10, 2005
Signature

128303201 a (01.2008)
Nilfisk, Division of Nilfisk-Advance A/S, Industrivej 1, DK - 9560 Hadsund, tel.: [phone]
