Nilfisk-Advance 118EXP User manual

ELECTRIC EXPLOSION PROOF VACUUM CLEANER MODEL
MODELO DE ASPIRADOR ELÉCTRICO A PRUEBA DE EXPLOSIÓN
ASPIRATEUR ANTI-DÉFLAGRANT ÉLECTRIQUE MODÈLE
118EXP
(dry use only) (sólo uso en seco) (utilisation sèche seulement)
P/N 7 24190 A CONTACT DE MISE À LA TERRE DU FABRICANT
ASPIRATEUR, LES OPERATEURS DOIVENT LIRE ET COMPRENDRE LES
INSTRUCTIONS QUI SUIVENT AVANT LA MISE EN MARCHE DE CETTE MACHINE
ATENCIÓN: PARA GARANTIZAR LA UTILIZACIÓN SEGURA DE ESTE ASPIRADOR,
LOS OPERADORES DEBEN LEER Y COMPRENDER LAS SIGUIENTES
INSTRUCCIONES ANTES DE INTENTAR PONER LA MÁQUINA EN MARCHA
MISE EN GARDE: AFIN D'ASSURER UNE UTILISATION SECURITAIRE DE CET
OPERATORS MUST READ AND UNDERSTAND THE FOLLOWING
Class II - Group E, F and G Hazardous Locations
For Use in Class I - Group D
INSTRUCTIONS FOR USE
INSTRUCCIONES DE USO
INSTRUCTIONS D'UTILISATION
INSTRUCTIONS BEFORE ATTEMPTING TO PLACE THE MACHINE IN SERVICE
CAUTION: TO INSURE THE SAFE USE OF THIS VACUUM MACHINE,
Pour utilisation dans les emplacements
dangereux de Classe I - Groupe D, Classe II - Groupes E, F et G
Para la utilización en lugares peligrosos de
clase I - grupo D, Clase II - grupo E, F y G
C309 02/2010
Nilfisk-Advance America, Inc., 300 Technology Drive, Malvern, Pa 19355, [phone]
INSTRUCTIONS QUI SUIVENT AVANT LA MISE EN MARCHE DE CETTE MACHINE

English
INSTRUCTIONS FOR USE PAGE 1

Contents Pa
g
e
Test For Ground Continuity …………………………………………………………………………. 2
Preparing the Machine for Dry Recovery …………………………………………………………. 3
Making Adjustments to Container Gaskets ……………………………………………………… 3
Using the Vacuum………………………………………………………………………………………. 4
Using the Vacuum/ Turning the Machine On/Off…………………………………………………….. 5
Using the Vacuum/ Cleaning the Main Filter…………………………………………………………. 5
Using the Vacuum/ Emptying the Container…………………………………………………………. 5
Replacing Parts ………………………………………………………………………………………… 6
Replacing Parts/ Replacing the HEPA Filter ……………………………………………………….. 6
Replacing Parts/ Replacing Main filter ……………………………………………………………… 6
Replacing Parts/ Replacing the optional (upstream) HEPA Filter ………………………………… 7
Parts Explosion ………………………………………………………………………………………… 8
Parts Explosion/ Container unit ……………………………………………………………………….. 8
Parts Explosion/ Suction unit …………………………………………………………………………. 9
Dimensions ………………………………………………………………………………………………. 10
Wirings Diagrams ……………………………………………………………………………………… 11
Applications …………………………………………………………………………………………….. 12
Grounding Instructions ……………………………………………………………………………….. 12
Tools and Attachments ………………………………………………………………………………. 12
Warranty ………………………………………………………………………………………………… 13
Accessories ………………………………………………………………………………………………… 14
PLEASE READ THESE INSTRUCTIONS COMPLETELY BEFORE USING THE MACHINE
CAUTION: THE OPERATOR SHOULD TEST THE VACUUM MACHINE FOR GROUND
CONTINUITY BEFORE EACH USE
TEST FOR GROUND CONTINUITY (Ul 1213 par. 22)
1. Make sure that the grounding path between the
terminal for connection of the grounding conductor of
the power cord and parts of the Vacuum is assured.
2. Check the ground continuity with an appropriate
continuity tester.
3. The resistance of the grounding continuity path
shall not exceed 0.1 ohm.
WARNING: If unacceptable results are recorded, DO NOT OPERATE THE CLEANER.
Using the tester, check for continuity between each connection of the vacuum
cleaner (example: tool to wand, wand to hose, hose to machine, etc) If the problem
can not be corrected refer the unit to an AUTHORIZED SERVICE CENTER ONLY.
INSTRUCTIONS FOR USE PAGE 2

PREPARING THE MACHINE FOR DRY RECOVERY
1. Release latches and remove power-head from recovery tank.
2. Insure that the static dissipating, polyester felt filter is properly
mounted in the recovery tank. If not, refer to the instructions for
“Replacing the Main Filter” (page 6).
3. Place the power-head back on the recovery tank and fasten latches.
1
4. Attach the static dissipating hose to the suction
inlet on the recovery tank and attach the desired tool to the hose.
5. Conduct a ground continuity check before operating (Figure 1).
6. Operate this machine only on properly grounded electrical outlets.

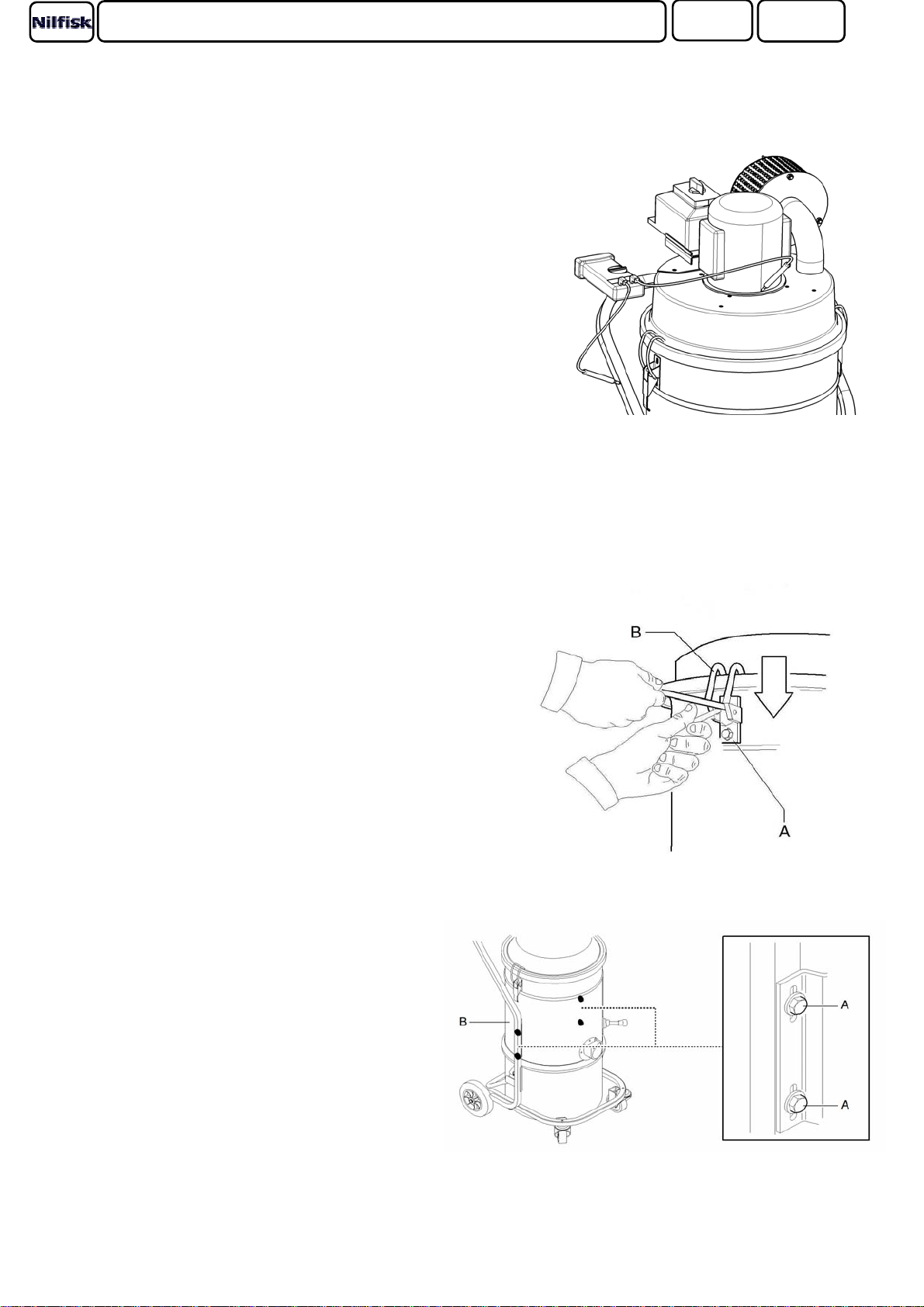

MAKING ADJUSTMENTS TO CONTAINER GASKETS
If you suspect the gasket between the motor head and the filter
chamber is not sealing properly:
1. Loosen latch screws "A" and slide latch downward.
2. Tighten latch screws.
3. Turn on the unit and inspect the seal between the motor
head and filter chamber.
4. Replace the gasket if the seal continues to leak.
If you suspect the gasket between the filter chamber and the
collection can is not sealing properly:
1. Loosen the screws "A" that lock filter chamber "B" against
the vacuum structure.
2. Lower filter chamber "B" slightly and retighten screws "A".
3. Turn on the unit and inspect the seal between the filter
chamber and the collection can.
4. Replace the gasket if the seal continues to leak.
INSTRUCTIONS FOR USE PAGE 3

USING THE VACUUM
CAUTION: OPERATORS SHOULD TEST THE VACUUM MACHINE
FOR GROUND CONTINUITY BEFORE EACH USE
WARNING: A HEPA FILTER MUST BE INSTALLED IN THE VACUUM MACHINE
WHILE WORKING WITH HAZARDOUS MATERIAL
.
FAILURE TO DO SO WILL EXPOSE PEOPLE IN THE WORK
AREA AND OTHERS TO HAZARDOUS MATERIALS WHICH
IS A SERIOUS HEALTH RISK
.
EMPTYING: IF THIS VACUUM CLEANER IS USED TO COLLECT HAZARDOUS
MATERIALS, DO NOT ATTEMPT TO OPEN OR EMPTY ITS CONTENTS
WITHOUT PERSONAL PROTECTIVE CLOTHING AND RESPIRATORY
PROTECTION. ALL DISPOSED FILTERS, BAGS, DEBRIS SHOULD
BE TREATED AS A HAZARDOUS SUBSTANCE AND MUST BE
DISPOSED OF IN ACCORDANCE WITH ALL FEDERAL, STATE
AND LOCAL REGULATIONS
.
WARNING: EXPLOSION HAZARD - USE ONLY NILFISK CFM P/N 7 24190
GROUNDED TYPE HOSE.
THIS EQUIPMENT IS CERTIFIED FOR EXPLOSION-PROOF
OPERATION,ONLY IF USED WITH SUPPLIED OR RECOMMENDED
HOSE AND TOOLS. ANY ALTERATION TO THIS EQUIPMENT BY
A THIRD PARTY WILL NULLIFY ITS CERTIFICATION.
WARNING LABELS :
-ON THE VACUUM CLEANER
-ON THE POWERCORD
INSTRUCTIONS FOR USE PAGE 4

USING THE VACUUM
TURNING THE MACHINE ON/OFF 1
1. Plug the vacuum cleaner into an approved power source.
2. Turn on the vacuum cleaner by rotating the main switch
to the “ON” position (Figure 1).
3. Turn off the vacuum cleaner by rotating the main switch
back to the “OFF” position (Figure 1).
CLEANING THE MAIN FILTER
If the performance of the vacuum cleaner decreases during
use, it may be necessary to clean the primary filter:
1. Turn off the vacuum and disconnect the vacuum from 2
its power source.
2. Actuate the filter shaker "A" (Figure 2) by raising
and lowering the lever.
3. Repeat this several times to shake the dirt from the
primary filter.
4. Wait a few minutes for the dust to settle at the bottom
of the container.
5. Empty the container
EMPTYING THE CONTAINER
1. Turn off the vacuum and disconnect the
vacuum from its power source. 3 4
2. Detach container "A" (Figure 3) by lifting
the handle.
3. Slide the container out from the machine
and carry the container by the handle (figure 4).
INSTRUCTIONS FOR USE PAGE 5

REPLACING PARTS

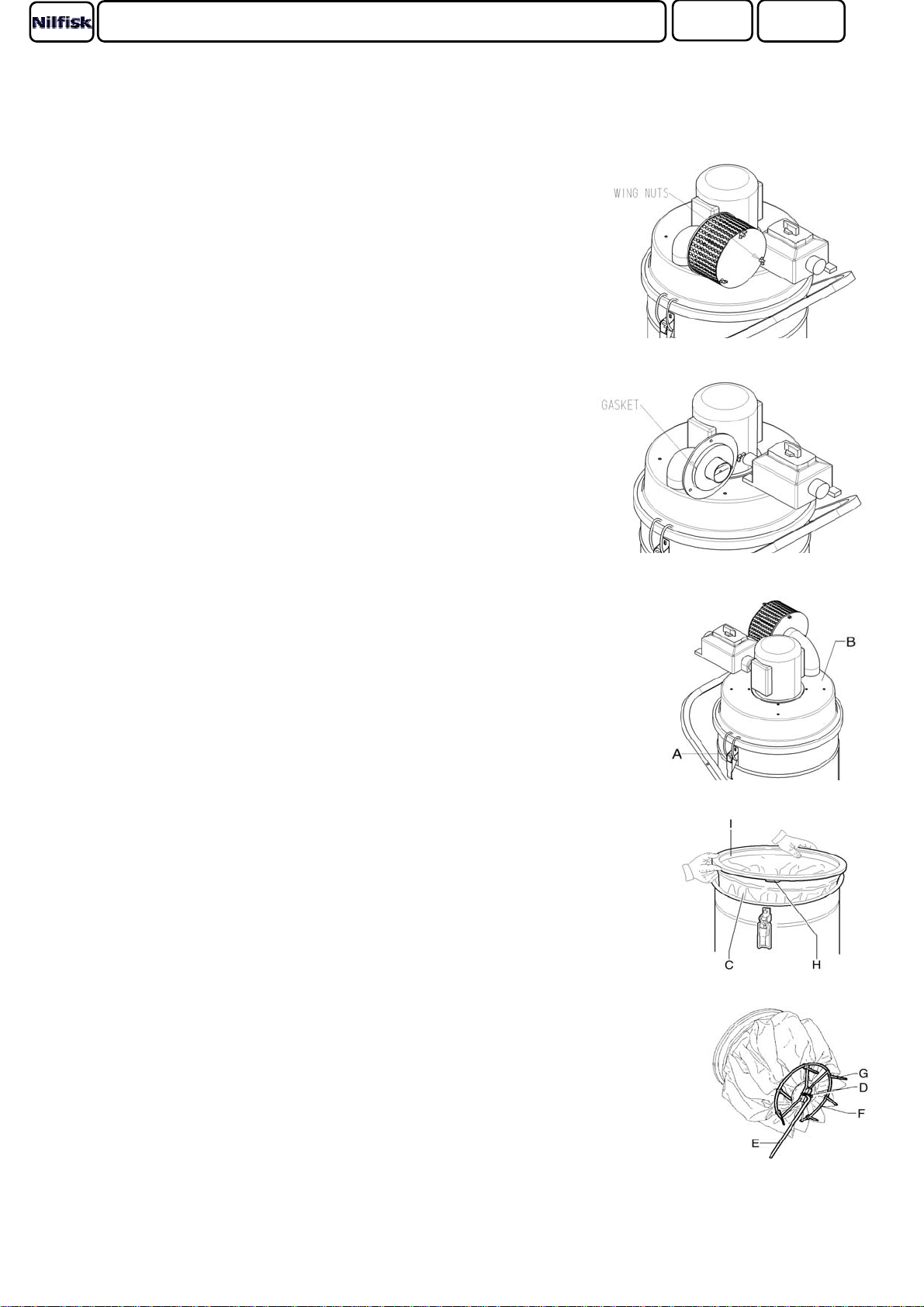

REPLACING THE HEPA FILTER
1
1. Remove the wing nuts that secure the HEPA screen (Figure 1).
2. Pull off the screen surrounding the three posts.
3. Remove old HEPA cartridge by carefully pulling cartridge through the posts.
4. Remove the old foam gasket from around the exhaust port.
5. Place a new foam gasket around the exhaust port (Figure 2).
2
6. Carefully install new HEPA cartridge against the foam
gasket with the label facing out.
7. Reinstall the screen around the posts.
8. Tighten the wing nuts.
REPLACING THE MAIN FILTER
1. Release the latches "A" and remove the Motor Head "B" (Figure 3). 3
2. Raise one side of the filter and reach down under the filter
with one hand to remove s
p
lit
p
in "D". This will release
the filter shaker lever "E" from the filter ring "F" (Figure 5).
3. Lift up of the filter and cut the ties (G) that attach the filter
to the ring "F"(Figure 5).
4. Unscrew clamp "H" and remove the upper ring "I" (Figure 4).
5. Mount the upper ring "I" onto the new filter and secure
the ring in place with clamp "H" (Figure 4). 4
6. Secure the Filter "C" to the ring "F" using the ties "G"
supplied in the new filter kit (Figure 5).
7. Place the new filter assembly inside the filter chamber and
reconnect the assembly using the split pin "D" (Figure 5).
8. Mount the motor head "B" onto the machine and secure 5
in place with the latches "A" (Figure 3).
9. Dispose of the old filter in accordance with all federal,
state and local regulations.
INSTRUCTIONS FOR USE PAGE 6

REPLACING PARTS

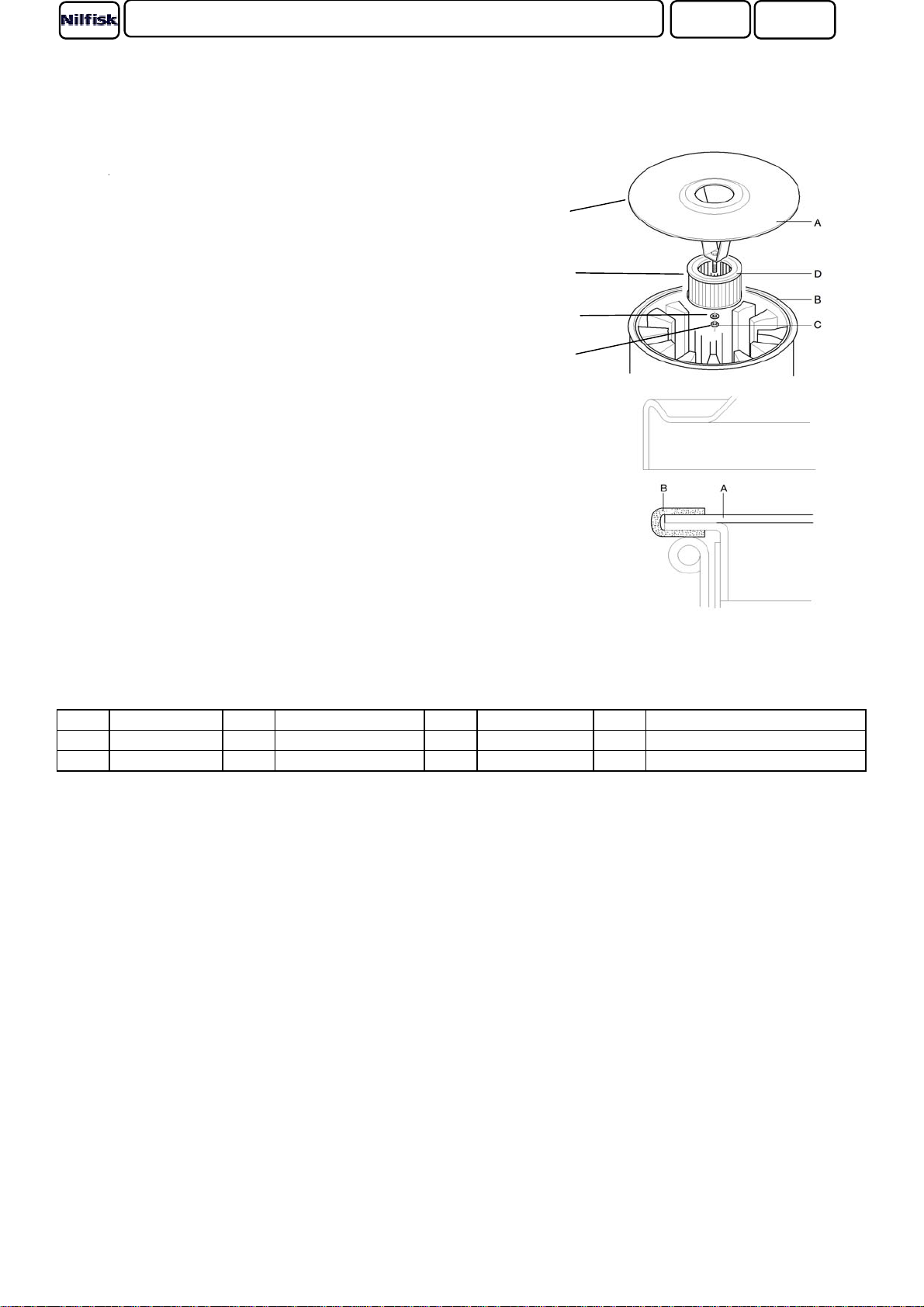

REPLACING THE OPTIONAL (UPSTREAM) HEPA FILTER
1. Release the latches and remove the motor head.
2. Separate disc "A" from gasket "B" and remove
disc/filter assembly from the vacuum machine.
3. Loosen nut "C" and remove the HEPA filter "D".
4. Fit a new HEPA Filter onto Disc"A" and tighten
in place.
5. Slide the disc with new filter into gasket "B".
6. Replace the motor head onto the vacuum machine.
7. Dispose of the old filter in accordance with all
federal, state and local regulations.
POS. N^CODE Q DESCRIPTION POS. N^CODE Q DESCRIPTION
1 8 33323G 1 DISC 3 BR010X 1 WASHER
2 8 17262 1 HEPA FILTER 4 BN10X 1 NUT
INSTRUCTION FOR USE PAGE 7
1
2
3
4

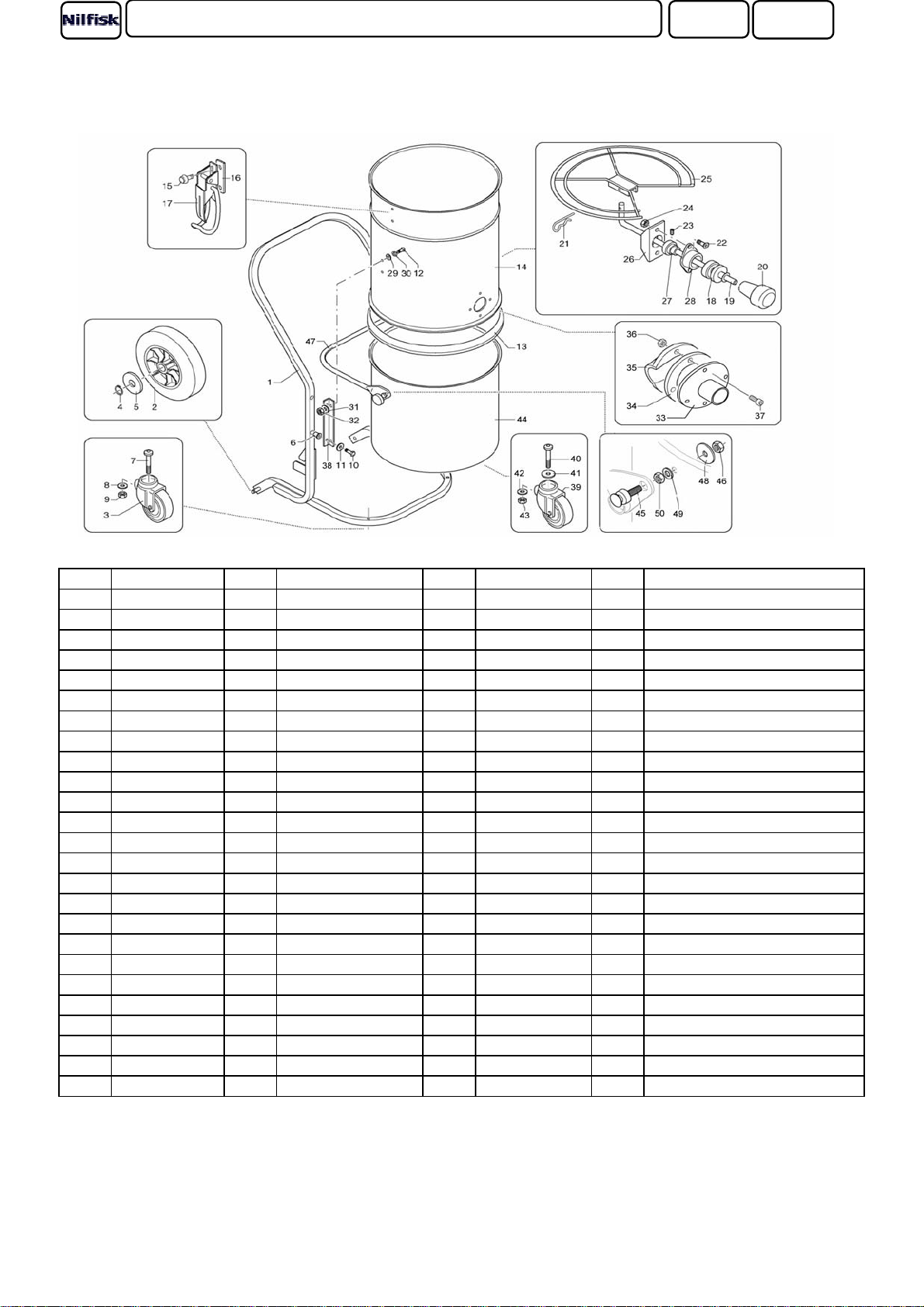

PARTS EXPLOSION
CONTAINER UNIT
A
CT DE N^CODE Q DESCRIPTION POS. N^CODE Q DESCRIPTION
1 8 36359 1 CAR 26 8 15130 1 SUPPORT
2 8 40261 2 WHEEL 27 8 38047 1 ARTICULATION
3 8 40910 2 WHEEL 28 8 15131 1 BELOWS HOLDER
4 BSEE15G 2 CLIP 29 BR00824X 4 WASHER
5BRO15ZB 1 WASHER 30 BRODO8X 4 WASHER
6 8 38059 4 RIVET 31 BROO8X 4 WASHER
7 BVTBCE0840ZB 2 SCREW 32 BDNO8X 4 NUT
8 BRO08ZB 2 WASHER 33 8 32086 1 FILLER
9 BDABO8ZB 2 NUT 34 8 17005 1 SEAL
10 BVTEO62OZB 4 SCREW 35 8 32314 1 DEFLECTOR
11 BROO618ZB 4 WASHER 36 BDNO5X 4 NUT
12 BVTBCEO816X 4 SCREW 37 BVTBCEO525X 4 SCREW
13 8 17226 1 SILICON SEAL 38 8 18970 2 BRACKET
14 8 11110 1 CHAMBER 39 8 40402 3 WHEEL
15 BVTEZO6O8X 4 SCREW 40 BVTBCEO82OX 3 SCREW
16 8 18010 2 PLAQUE 41 BR00832X 3 WASHER
17 8 36030 2 LOCK 42 BROO8ZB 3 WASHER
18 8 40393 1 BELLOWS 43 BDAO8ZB 3 NUT
19 8 33221 1 ROD-INOX 44 8 30337 1 CONTAINER
20 8 40373 1 HANDGRIP 45 8 14579 2 PIN
21 8 38018 1 COTTER PIN 46 BDAO8X 2 NUT
22 BVTBCO616X 1 SCREW 47 8 18971 1 HANDLE
23 BVSTCECO4O6X 1 DOWEL 48 BR00832X 2 WASHER
24 BDAO6X 1 NUT 49 BROO8X 2 WASHER
25 8 33174 1 RING 50 BDNO8X 2 NUT
INSTRUCTION FOR USE PAGE 8

PARTS EXPLOSION
SUCTION UNIT
POS. N^CODE Q DESCRIPTION POS. N^CODE Q DESCRIPTION
1 8 17125 1 GASKET 13 8 12403 1 CAP
2 8 18078 1 STOP 14 8 17006 3 GASKET
3 8 15009 1 RING 15 BDN06X 8 NUT
4 8 17140 1 FILTER 16 8 391241 1 CABLE-PRESS
58 18980 2 GROUNDING TAB 17 8 391242 1 CONNECTOR
6 8 38073 3 WING NUTS 18 8 391240 1 SWITCH
7 8 38072 3 POSTS 19 8 391243 1 CONNECTOR
8 8 31698 1 SCREEN 20 8 54017 1 MOTOR
9 01727631 1 HEPA FILTER 21 8 17804 1 GASKET
10 8 35130 1 MOTOR FIXING DEVICE 22 8 13066 1 MESH
11 8 14623 4 STUD 23 8 39669 1 EARTH CABLE
12 8 17124 1 GASKET 24 8 391244 1 CABLE
INSTRUCTION FOR USE PAGE 9

DIMENSIONS
P/N 7 24190 A CONTACT DE MISE À LA TERRE DU FABRICANT
INSTRUCTION FOR USE PAGE 10

WIRING DIAGRAMS
INSTRUCTION FOR USE PAGE 11

APPLICATIONS
The electric motors used in the Nilfisk Explosion Proof vacuum Cleaner model 118EXP have been listed by
Underwriters Laboratories Inc. in guide PTDR file E25653, for use in the following hazardous locations classifications:
Class l/Group D Atmospheres containing: gasoline, petroleum, naphtha, benzine, butalie, propane, alcohol,
acetone, benzol, lacquer solvent vapors or natural gas.
Warning: Do not use this or any other Nilfisk CFM vacuum for the purposes of cleaning or extracting
fuel residues from airplanes or ships.
Class ll/Group E Atmospheres containing: metal dust
Class ll/Group F Atmospheres containing: carbon, black coal or coke dust.
Class ll/Group G Atmospheres containing: flour, starch or grain dust.
NOTE: The motors used in this vacuum cleaner are designed for use in commercial and industrial vacuum
equipment which employs filters to remove dirt from the airstream before reaching the motor’s vacuum fans.
Do not operate the vacuum cleaner without the proper filter system installed.
GROUNDING INSTRUCTIONS
This vacuum cleaner must be connected to an earth ground source. Cord plug installed by customer,shall be
suitable for the hazardous locations area that vacuum is installed in. If the vacuum cleaner should malfunction or
INSTRUCTION FOR USE PAGE 12
break down, grounding provides a path of least resistance for electric current to reduce the risk of electrical shock.
This vacuum cleaner must be properly installed and grounded in accordance with all local codes and ordinances.
DANGER
: Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded.
Use only with certified explosion-proof plugs and outlets.
TOOLS AND ATTACHMENTS
WARNING: EXPLOSION HAZARD - USE ONLY NILFISK CFM P/N 7 24190 GROUNDED TYPE HOSE.
This equipment is only certified for explosion-proof operation if it is equipped with the proper
conductive hose and tools. Any alteration to this equipment by a third party will nullify its certification.
INSTRUCTION FOR USE PAGE 12 INSTRUCTION FOR USE PAGE 12

WARRANTY
Nilfisk warrants that its equipment will be free of defects in workmanship or material for a period of two years from the
date of delivery. If the vacuum fails to meet these warranty standards, Nilfisk shall, upon notification within such time
period, correct such non-conformity, at its option, either by repairing any defective part or parts, or by replacing a part
or parts provided that the equipment is returned to an authorized Nilfisk service facility. In all cases freight both ways
will be at expense of the customer. Equipment shall not be returned without advance notice to, and consent of Nilfisk.
EXCEPT AS SPECIFICALLY SET FORTH HEREIN, NILFISK MAKES NO WARRANTIES, EITHER
EXPRESSED OR IMPLIED, AS TO ANY MATTER WHATSOEVER, INCLUDING W1THOUT LIMITATION ANY
AND ALL WARRANTIES OF MERCHANTABILITY, FITNESS OF PURPOSE, OR OTHER WARRANTIES,
ALL OF WHICH ARE EXPRESSLY DISCLAIMED AND EXCLUDED. NEITHER PARTY SHALL BE LIABLE TO THE
OTHER FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT
LIMITED TO LOSS OF PRODUCTION, LOSS OF PROFITS OR ANY OTHER SIMILAR INDIRECT LOSSES
WHICH MIGHT OCCUR AS A RESULT OF DEFECTS, PARTIAL OR TOTAL FAILURE OF THE PRODUCT TO
PERFORM AS SPECIFIED.
Correction of non-conformities or defects in the manner and for the period of time provided above, shall constitute
fulfilment of all Inabilities of Nilfisk to the customer, whether based on contract, negligence or otherwise with
respect to, or arising out of such equipment. The remedies set forth herein are exclusive, and the inability of Nilfisk
with respect to this sale or anything done in connection therewith, whether in contract, in tort, under any warranty,
or otherwise, shall not, except as expressly provided herein, exceed the price of the equipment or part on which such
liability is based.
This warranty does not cover repairs due to normal wear and tear, accident, neglect, misuse or abuse, incorrect
installation or use other than as described in the instruction booklet. Breaks in hoses and cables are not covered.
This warranty Is rendered void if the motor number plate is removed or defaced or if repairs are made or attempted
by persons not authorized by Nilflsk.
Some states do not allow exclusion of implied warranties or limitations on how Long an implied warranty lasts so the
above exclusions or limitation of implied warranties may not apply. Some states do not allow exclusion or limitation
of incidental or consequential damages so the above exclusion or limitation of incidental or consequential damages
may not apply. Limited warranties set forth above give specific legal rights. Customer may have other rights which
vary from state to state.
Nilfisk-Advance America, Inc., 300 Technology Drive, Malvem, PA 19355, [phone]
INSTRUCTION FOR USE PAGE 13

ACCESSORIES
BOM 01760495 - 118EXP Dry Accessory Kit
Nilfisk P/N Description Qty
01719401 Dust Brush 1
01768601 Alum Wand 1
01768700 14" Floor Brush 1
01768900 11" Crevice Tool 1
Hose
Nilfisk P/N Description Qty
7 24190 Hose 1
Accessory Coupling
Nilfisk P/N Description Qty
01768507 Accessory Coupling 1
Nilfisk-Advance America, Inc., 300 Technology Drive, Malvem, PA 19355, [phone]
Material
Aluminium
Material
Aluminium / Stainless steel
Aluminium
Aluminium
Aluminium
Material
Conductive

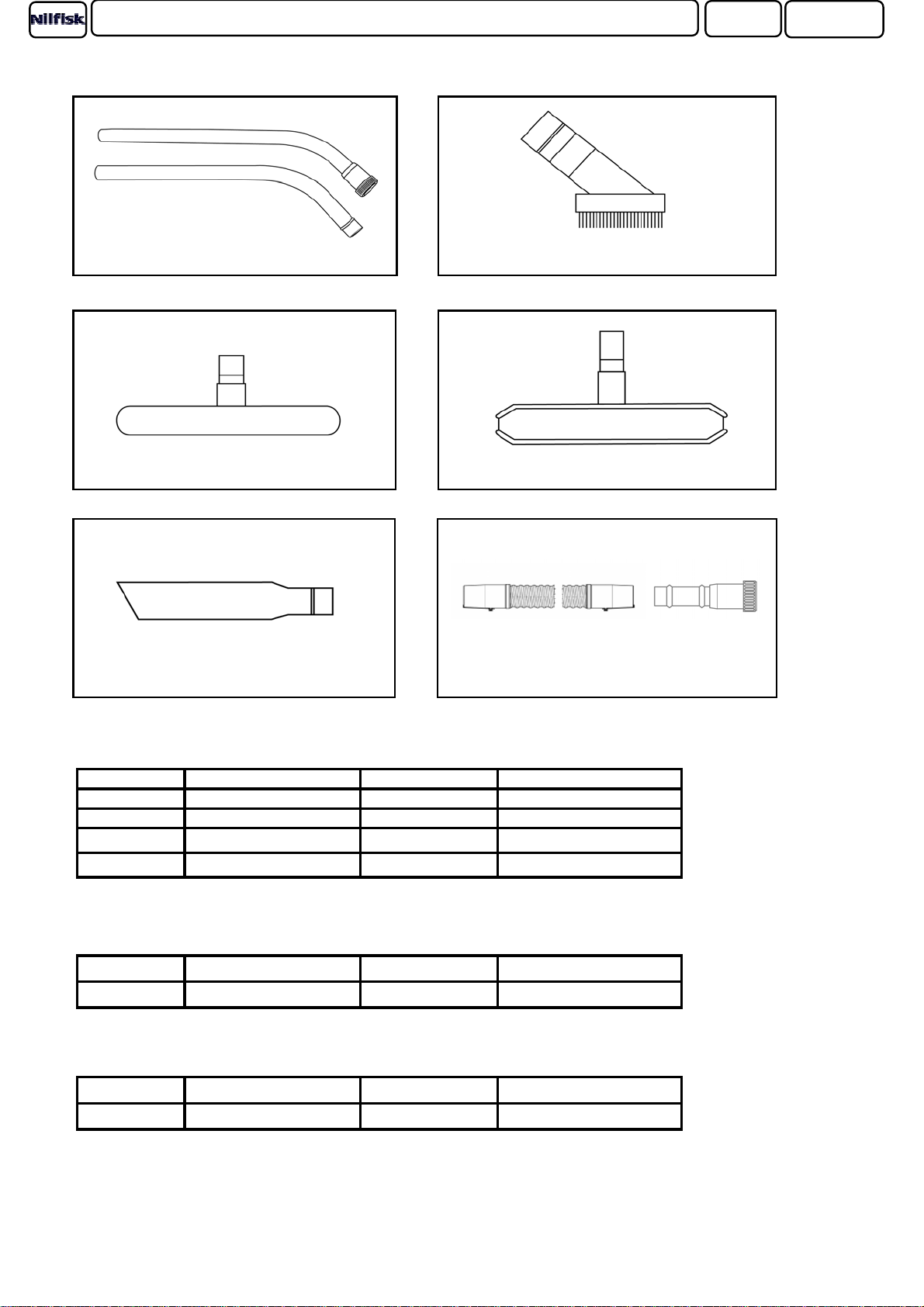

INSTRUCTION FOR USE PAGE 14
01768900 - Crevice Tool
01768800 - Floor Squeegee
01719401 - Dust Brush
01768700 - Floor Brush
01768601 - Alum Wand
7 24190 - Hose 01768507 -
Accessory Coupling
