Attix 30 / Attix 50
Service Manual
ATTIX 30
ATTIX 30 HEPA
ATTIX 30 AS/E
ATTIX 50
ATTIX 50 HEPA
ATTIX 50 AS/E
ATTIX 50 AS/E XC

2
2
Nilfisk
ALT
Index
A. Saftey Issues 4

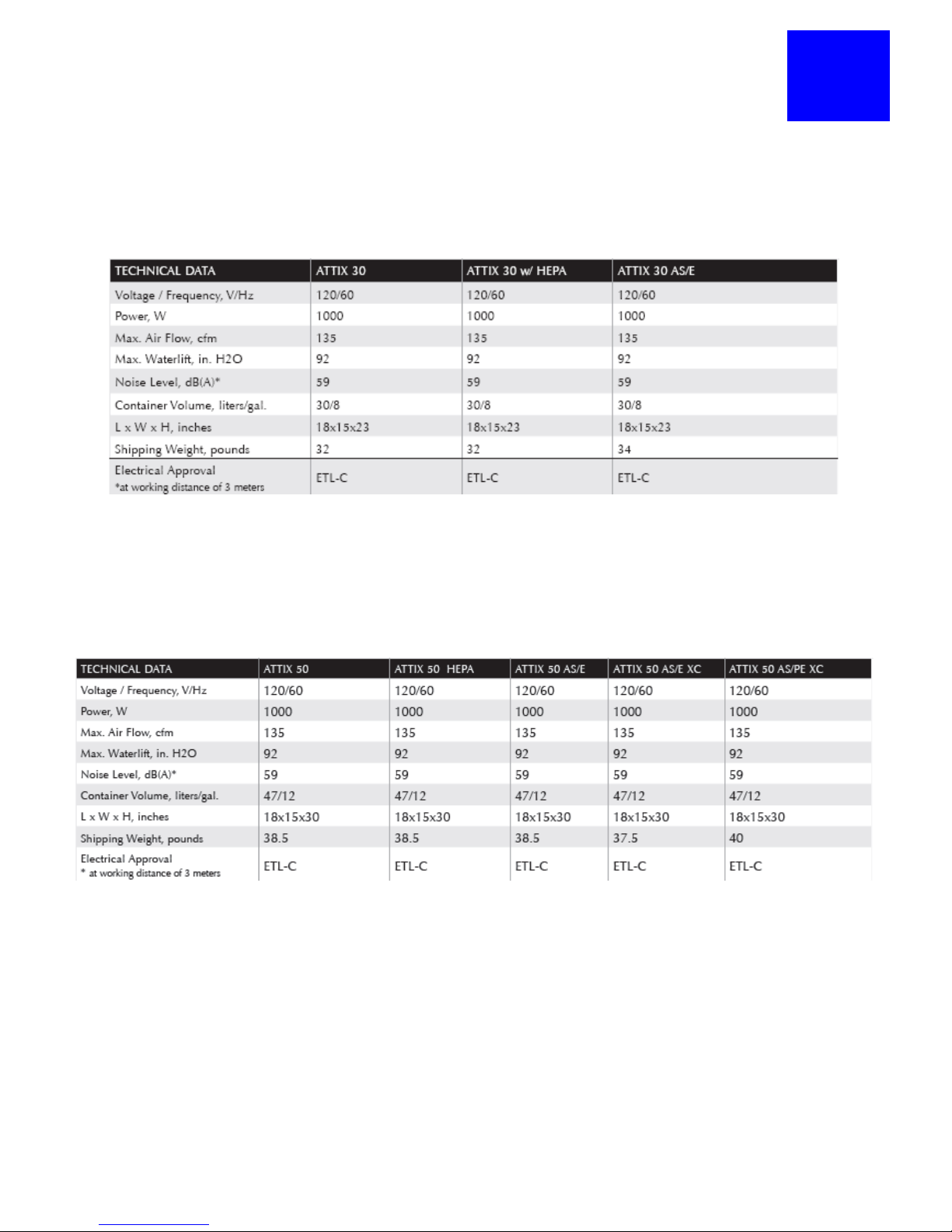

B. Technical data 5
C. Disassembly 6-16
D. Function 17-19
E. Trouble shooting 20-27
F. Wiring Diagrams 28-30

3
3
Nilfisk
ALT A
Preface
In this manual you will find
the essentials you need
to know when repairing
wet and dry cleaners of
the Attix 30 and 50 series.
When carrying out repairs,
make sure you ha e a suitable
workbench or the like with the
necessary power supply
a ailable.
If you determine an error
in operation, be sure to
refer the customer to the
user manual.
A fault in the equipment
can ha e a number of causes.
Chapter E Troubleshooting
will help you here.
Use the illustrated spare
parts lists for your repairs.
These show you the location
of the indi idual parts and the
sequence in which they are
assembled.
Read the technical informa-
tion sheets. These will tell you
about any technical modifica-
tions made after publication of
this repair manual.
Repair manuals such as this
are a supplement to the spare
parts list. Please refer to the
spare parts list for any parts
that you do not find in this
manual.
Use original Nilfisk-ALTO
spare parts only!
Safety instructions marked
with this symbol must be
obser ed to pre ent danger
and/or personal injury.
This symbol is used to
mark safety instructions
that must be obser ed to
pre ent damage to the
equipment and degradation
of performance.
This symbol indicates tips
and instructions to simplify
work and to ensure safe
operation.
Symbols used to mark
instructions


4
4
Nilfisk
ALT A
Safety Issues.
Unplug the machine from it’s power supply socket when not in use and before performing any
ser ice or maintenance work on the machine.
Before starting any ser ice or maintenance work, be sure to read this ser ice manual fully and
keep it close by for reference.
Be sure to obser e any national safety directi es and regulations before attempting to repair or
ser ice your machine.
The machine should only be used by persons who ha e been instructed in its use and are au-
thorized to do so.
Repairs should only be
made by someone who
has recei ed proper
instructions for the job
or who is a qualified
electrician.
For your own safety
ESD (Electro-Static Discharge)
Obser e the following ESD precautions before repairing or working near elec-
tronic parts:
• Discharge any static build up on your own body by touching a properly earth-
grounded source.
• Wear an anti-static wrist strap, if possible.
• Use a conducting floor or tabletop.
• Ne er touch a circuit board or electronic component directly, always hold them
by their plastic frame or insulation.
• Transport electronic parts in conducti e packaging (e.g. special ESD packages).

5
5
Nilfisk
ALT B
Technical Data.

6
6
Nilfisk
ALT C
Disassembly
1
2 3
Attix 30 A/SE Motorhead
Shown with both Push & Clean Feature
and Auto Start Electrical utlet
1. Push & Clean button
2. utlet socket
3. n / ff switch
Attix 50 Collection Container Attix 30 Collection Container
Attix 50 A/SE XC Motorhead
Shown with both Xtreme Clean Feature
and Auto Start Electrical utlet
1. Xtreme Clean Filter
2. utlet socket
3. n / ff switch
1
2
3

7
7
Fig. 1
Fig. 2
Remove the motor cover by removing the 3 screws (Torx 10)
shown in Fig. 1 on the top of the handle. Then remove the 3
screws (Torx 20) shown in Fig. 2 under the handle.
Nilfisk
ALT C
Disassembly

8
8
Dashboard Air Guide
Circuit Board Suction motor
Nilfisk
ALT C
Disassembly
In order to access the motor once the motorcover
has been removed, carefully remove the dashboard,
circuit board (if present) and the air guide in order to
expose the remaining screws underneath.
Fig. 3 Attix 30 AS/E motorhead
Attix 30/50 Push&Clean Motorhead

9
9
Nilfisk
ALT C
Disassembly
Remove the 7 screws (Torx 20) shown in Fig. 4 and then
remove the clamping plate. Remove the 6 screws (Torx
20) shown in Fig. 5 and then remove the filter plate.
Fig. 4
Fig. 5
Attix 30/50 Push&Clean Motorhead

10
10
Nilfisk
ALT C
Disassembly
Push&Clean flap
Underside of Push&Clean motorhead with filter plate removed
Attix 30/50 Push&Clean Motorhead
Motor gaskets (top and bottom)

11
11
Air guide
Suction
motor
utlet Socket
Circuit
Board
Servo Motor
n / f Switch with
Speed control
Solenoid Valve
Fig. 6 Attix 50 AS/E XC motorhead
Nilfisk
ALT C
Disassembly
In order to access the motor once the motor-
cover has been removed, carefully remove the
dashboard, circuit board (if present) and the air
guide in order to expose the remaining screws
underneath.
Attix 50 XtremeClean Motorhead

12
12
Lubricate the 2 O-rings on the filter
bracket before reassembling
Remo e co er and 1 screw (Torx 20)
on bracket
Nilfisk
ALT C
Disassembly
Attix 50 XtremeClean Motorhead

13
13
Use 2 screwdri ers very carefully as shown in Fig. 7
to separate the shaft from the arm of the ser o motor.
Fig. 7
Fig. 8
Nilfisk
ALT C
Disassembly
Attix 50 XtremeClean Motorhead
Use a pair or pliers as shown in Fig. 8 to recon-
nect the shaft to the motor arm.

14
14
Nilfisk
ALT C
Disassembly
Motor gaskets (top and bottom)
Attix 50 Xtreme Clean Motorhead
When assembling the machine be sure the two O-rings are mounted properly
Thick -ring
Thin -ring

15
15
Nilfisk
ALT C
Disassembly
Attix 50 Circuit Board with Soft-Start (w/o speed control)
Attix 30 AS/E and Attix 50 AS/E Circuit Board with Soft-Start,
Speed Control and Automatic Tool Start for Electric tools
Circuit Boards

16
16
Green LED
Power on
Solenoid
Val e
Yellow LED
Cleaning
Test plug
Ser o plug
Power
Connection
Motor
Connection
Red LED on
Motor is running
Yellow LED on
water le el to high
Nilfisk
ALT C
Disassembly
Circuit Boards
Attix 50 AS/E XC Circuit Board with Soft-Start,
Speed Control and Automatic Tool Start for Electric tools

17
17
Nilfisk
ALT D
Function
FC-button pressedFC-button pressed
Fitting
closed
Fitting
closed
Flap
Filter
Turbine
Fitting
Container
FC-button
2
3
1
By sealing the suction opening (1) a high negati e pressure is generated inside the dirt tank
when the motor is running. By actuating the cleaning button (2) on the suction head, an air
flap is opened in the carrier plate, which allows air to flow into the inside of the filter (3). The
air flows through the filter material from the inside to the outside. The negati e pressure in-
side the dirt tank is reduced ery quickly and the tank wall relie ed of pressure. The dirt that
has adhered to the filter is blown and shaken off, causing it to fall back into the tank. To opti-
mise the cleaning effect, it is recommended to actuate the cleaning button briefly se eral
times.
Attix 30 / 50 Push&Clean

18
18
Nilfisk
ALT D
Function
Attix 50 XtremeClean
Automatic Cleaning function
E en with extremely fine dust the automatic filter cleaning function allows you to work constantly
with the same suction performance without ha ing to manually clean the filter. To make it possible
to clean the filter during cleaning work, the filter has been di ided into two hal es by means of two
side seals on the filter holder. The cleaner sucks in dirt through one side while the other side is be-
ing cleaned by a blast of air from the inside to the outside. One solenoid al e (pos 1.) and the the
ser o motor (pos.2 ) control ( e ery 30 sec.) the suction air stream and the blast of air to clean the
filter.
Pos. 2
Pos. 1

19
19
Se eral functions are integrated on this printed circuit
board.
- Main switch with positions
-“Man-0-Auto”
- Radio interference
suppression
- Speed control
- Soft-Start
Nilfisk
ALT D
Function
Soft-Start:
The features allows the motor to ramp up to its operating speed which greatly reduces amper-
age spiking at start up. This will prolong the life of the motor.
Main switch:
Two modes can be selected with the main switch:
Man: The turbine starts immediately.
Auto: The turbine waits for an electric tool to be switched on at the socket.
Speed control:
Speed control has been integrated into the manual and automatic modes.
Settings on the switch range are possible from 45° to 135°.
Advantages:
-
Optimum adjustment of the suction power to suit the application.
- Increase in the ser ice life of the turbine
- Reduction in noise emission
- Energy sa ings
Automatic starter
Work with an electric tool (grinder, etc.) can be optimised by using the automatic starter. The
main switch is set to the “AUTO” position and the electric tool connected to the socket of the
cleaner.
The suction motor is switched off. When the electric tool is now switched on, the automatic
starter detects. The flow through the connected machine and switches the suction motor on.
When work with the electric tool is stopped, the suction motor switches off after a delay of
approx. 3 seconds. The cleaner now stays in the standby mode until the electric tool is
switched on again.
Automatic Start with Speed Control (A/SE)

20
20
Nilfisk
ALT E
Troubleshooting
1. Isolate component from the electricity supply.
2. Remo e co er.
3. Apply mains oltage.
Set switch to position “I” at full power.
4. Visual inspection:
Green LED lights up (5 V OK).
Red LED lights up (motor is acti ated).
5. Isolate component from the electricity supply.
6. Remo e the two motor cables from the circuit board and the switch.
7. Connect test lamp 302000764.
8. Apply mains oltage.
9. Test:
“Motor” lamp slowly star it to light up (soft star t).
Set switch to minimum speed.
The brightness of the lamp becomes less.
Checking electronics of automatic starter with speed control in “AUT ”
Motor Tool
302000764
Motor Tool
302000765
L 1
N Green
LED
Red LED
Attix 30 AS/E and Attix 50 AS/E Circuit Board with Soft-Start,
Speed Control and Automatic Tool Start for Electric tools
