NIOSH AP522VL User manual

1
AIR+ SMART MASK
With Micro Ventilator
Instructions for use
1. The instructions for use and warning are guides to the proper use of the
respirator and to prevent health risk. They must be carefully read, completely
understood and properly followed. If using the respirator in work environment: the
wearer of the respirator must be well trained to use it properly before starting
work.
2. Before the occupational use of this respirator, a written respiratory protection
program must be implemented meeting all the local government requirements. In
the United States employers must comply with OSHA 29 CFR 1910.134 which
includes medical evaluation, training, and fit testing.
3. No alteration or modification is allowed to the respirator. The respirator
should not be worn when it is contaminated (eg. dusty, wet, etc) or damaged (eg.
Broken part, hole, etc). The contaminated or damaged respirator must not be
used and must be replaced with a new one.
4. The respirator must not be used continuously for more than a single work
shift. Always replace with a new respirator, whenever the breathing resistance
becomes excessive or after using continuously for a single work shift.
5. The valve cap is reusable. To clean and disinfect, please wipe its surface with
a damp and soft cloth or wet tissue or alcohol wipe. Do not use strong chemical or
abrasive solvent to clean the valve cap.
6. While in use, avoid touching the respirator. It is important to consider the
respirator as potentially contaminated upon removal and user should wash hands
thoroughly with soap and water or using an alcohol-based hand-rub.

2
7. To remove the respirator, handle only the elastic bands starting with the
bottom and then the top. Lift the respirator away from the face and discard
properly in a designated waste receptacle.
8. The “Lot” code represents the production date in yyyy/mm/dd format. The
“Exp” represents the expiry date in yyyy/mm/dd format.
Storage
The respirator must be stored in its original packaging and stored in a clean, cool
and dry atmosphere to ensure that it is protected against dust, chemicals,
moisture, excessive heat and direct sunlight.
-5°C −50°C <85%

3
User Instructions for Micro Ventilator

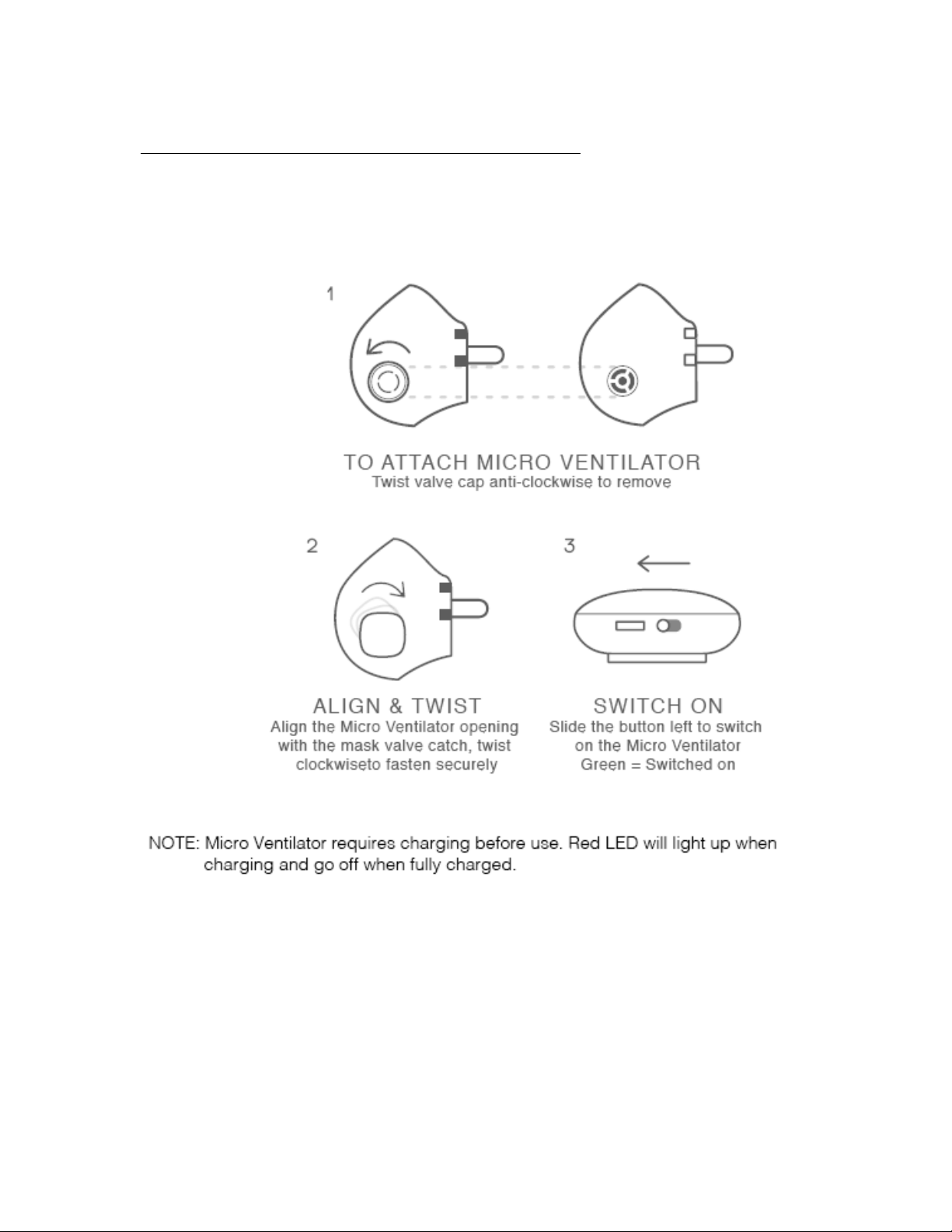

1. For use of the respirator with the micro ventilator, please attach and switch on
the micro ventilator before wearing the respirator.
2. The operating time of the Micro Ventilator is estimated at 2.5 hours. The
respirator can still be used independently even when the micro ventilator
stops working or if the micro ventilator is not attached. Ensure that only the
original Micro Ventilator is used on the respirator.

4
3. The Micro Ventilator needs to be fully charged prior to initial use. It can be
recharged using the attached USB cable by connecting to a powered USB
port or power bank. Please note, for safety reasons, it is not advised to use
any other USB cable aside from the one provided with the device.
4. Once charging begins, a red LED light on the Micro Ventilator will light up.
The charging time of the Micro Ventilator is estimated at 1.5 hours. The red
LED light will turn off once charging is complete.
5. The Micro Ventilator is re-usable. To clean and disinfect, please wipe its
surface with a damp and soft cloth or wet tissue or alcohol wipe. Do not use
strong chemical or abrasive solvent to clean the Micro Ventilator. Please
ensure that the Micro Ventilator is switched off and disconnected from any
power source before cleaning.
6. The ventilator interior may be disinfected by the use of Isopropyl Alcohol (IPA,
at least 70% V/V) sprayed directly into the ventilator inlet through the use of a
pump-type atomiser. To do so, spray two pumps of the IPA into the ventilator
inlet while the unit is switched off. After spraying, switch on and wait for the
IPA to fully dry out before using the ventilator again.
7. The Micro Ventilator Battery should be fully recharged every 6 months during
long-term storage.

5
User Instructions for Respirator

6

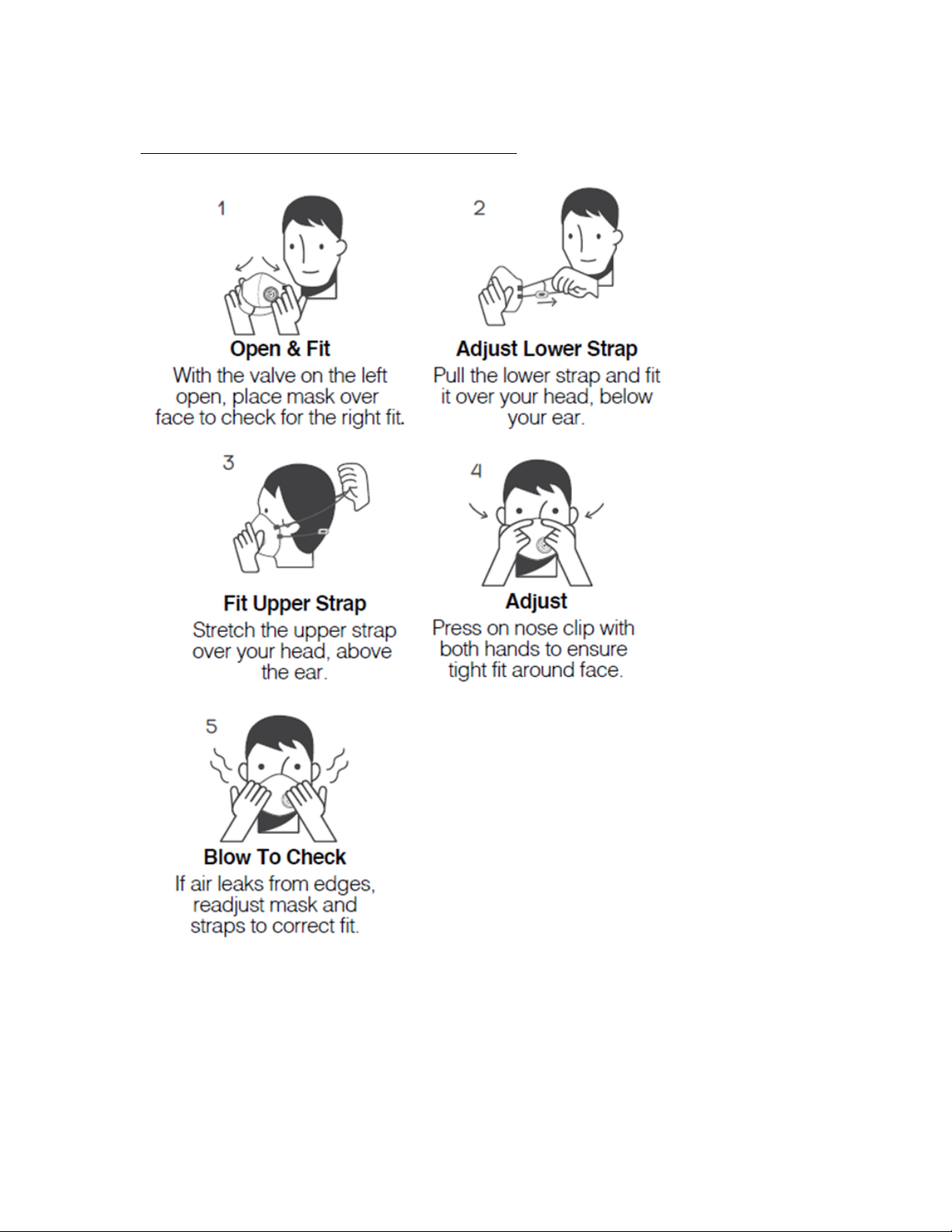

1. Before using, check the respirator for holes, tears or other
damage to its surface, strap and/or nose cushioning to
ensure that your respirator works well. Replace with a new
respirator, if damaged or damp.

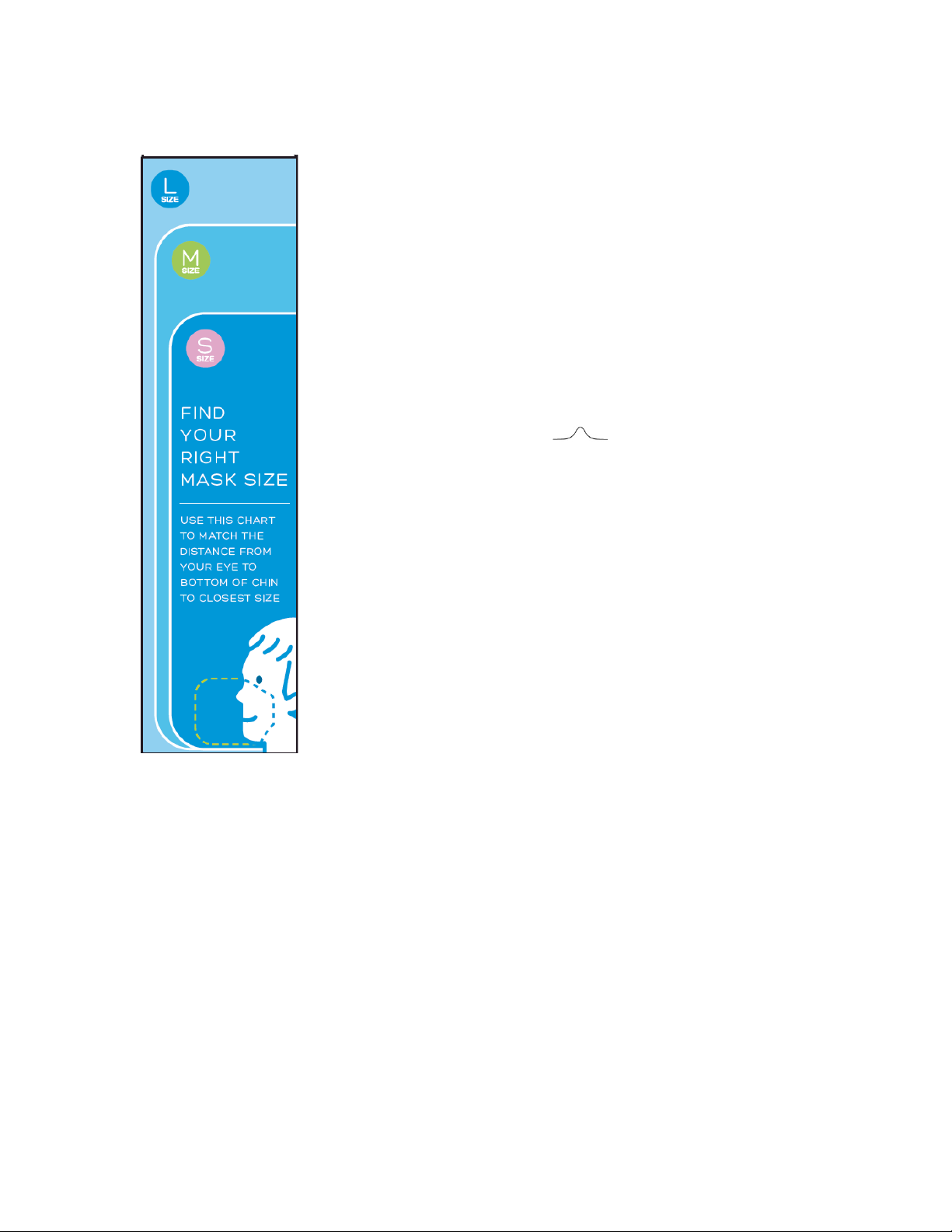

2. Select the right respirator size to fit your face. Consult
the given size chart on the box for size selection. If your
selected size fails to fit your face properly, choose another
size until the proper size to fit your face is obtained. Please
refer to procedures 3 to 5 below.
3. Fold the nose clip into a shape for a proper fit.
4. The respirator strap can be adjusted for proper fit. Pull
the strap outwards at either side of the buckle for tighter fit;
push the strap inwards at either side of the buckle for looser
fit.
5. To ensure a tight seal on your face, cover the middle
surface of the respirator with one hand and exhale deeply.
Do not push the respirator against your face. If you feel air
blowing at your face or eyes, the respirator’s position and
strap needs to be re-adjusted. Repeat the above steps until
you do not feel air blowing at your face or eyes.
6. For use of the respirator with the micro ventilator, Fit check should be
performed with the Micro Ventilator attached.

7
Special or critical User Instructions
1. The mask should be used with the valve cap, unless it is used with the Micro
Ventilator device (available separately). Do not remove the mask or change
its accessory unless you are in an uncontaminated area.
2. If this respirator is intended to be used with the micro ventilator, OSHA fit
testing should be performed with the ventilator turned on.
3. Model AP522VL filtering facepiece has been manufactured by Champak
Enterprise Co., Ltd. for Innosparks Pte Ltd under TC-84A-7842.
Safety and Precaution
1. The Micro Ventilator contains lithium polymer battery. Improper use or
storage may result in battery leak or expansion, and may cause conflagration,
property loss or health harm.
2. Operating temperature range of the Micro Ventilator is from -5°C to 35°C. Do
not expose Micro Ventilator to fire or high temperature. When not in use
please store the Micro Ventilator in a clean, cool and dry atmosphere.
3. Micro Ventilator is rated IP53. However, it should not be washed or
submerged into water.
4. The Micro Ventilator should only be charged using proper certified
micro-USB cable (supplied) and socket.
5. Please disconnect any cable from Micro Ventilator before using it on the
respirator. Do not short-circuit battery. Do not reverse-charge or
reverse-connect.
6. Do not drop, shake, puncture or disassemble the Micro Ventilator or its
components. Once the Micro Ventilator or its components are damaged, do
not continue to use it.
7. Please dispose all parts in accordance to local regulation. The lithium
polymer battery should be recycled and should not be disposed as general
litter.
8. The “Lot” code represents the production date in yyyy/mm/dd format.

8
Legal Disclaimer
1. Reproduction, transfer, distribution or disassembly of this product in any form
is prohibited.
2. This product is being sold “as-is”. Unless expressly provided, our company
does not provide any warranty of the product, whether implied or statutory,
including, but not limited to, any warranty of merchantability or fitness for a
particular purpose.
3. Our company shall not incur any liability for any damages, including but
limited to, direct, indirect, special, or consequential damages arising out of,
resulting from, or in any way connected to the use of the product, whether or
not based upon warranty, contract, tort or otherwise; whether or not injury
was sustained by person or property or otherwise, and whether or not loss
was sustained from, or arose out of, the results of the product.
4. This product may contain technology, component or software subject to
export laws and regulations of Singapore or other countries. Diversion
contrary to such laws are strictly prohibited.

9
Innosparks Pte Ltd
75 Ayer Rajah Crescent #02-13
Singapore 139953
[phone]
THIS RESPIRATOR IS APPROVED ONLY IN THE FOLLOWING CONFIGURATION:
TC-
Protection1
Respirator
Accessory
Cautions and Limitations2
AP522VL
APR
USB
84A-7842
N95
X
X
X
ABCJMNOPS
1. Protection
N95- Particulate Filter (95% filter efficiency level)
Effective against particulate aerosols free of oil; time use
restrictions may apply
2. Cautions and Limitations
A - Not for use in atmospheres containing less than 19.5% oxygen.
B - Not for use in atmospheres immediately dangerous to life or health.
C -Do not exceed maximum use concentrations established by regulatory
standards.
J - Failure to properly use and maintain this product could result in injury or
death.
M -All approved respirators shall be selected, fitted, used, and maintained in
accordance with MSHA, OSHA, and other applicable regulations.
N -Never substitute, modify, add, or omit parts. Use only exact replacement
parts in the configuration as specified by the manufacturer.
O -Refer to User's Instructions, and/or maintenance manuals for information
on use and maintenance of these respirators.
P - NIOSH does not evaluate respirators for use as surgical respirators.
S- Special or critical User Instructions and/ or specific use limitations apply.
Refer to User Instruction before donning.

10
Warning
1. Do not use the respirator as protection against toxic particle, gas, vapor or
solvent from spray-painting operation. Those who have difficulty breathing must
take caution when using the respirator to ensure that their ability to breathe is not
further hindered by wearing the respirator.
2. Do not use the respirator in enclosed space, tank, inadequately ventilated
area, oxygen-deficient environment (<19.5% in volume), hazardous environment,
or in any circumstance where toxic gas is likely to be present.
3. Do not use the respirator when the concentration of contaminant is
dangerous for life or health. The concentration, toxicological characteristics and
type of substances should be known.
4. Leave the work area immediately if breathing becomes difficult, dizziness or
any other sign of distress occurs.
5. Ensure proper fit on your face before using the respirator.
6. The respirator should not be worn under condition preventing a proper fit on
your face. Such conditions may include growth of beard, mustache, sideburn, the
use of spectacles or any other device containing strap which passes between the
respirator’s sealing edge and the user’s face.
7. If allergy occurs when respirator is in contact with your skin, the respirator
should be removed immediately.
8. Filtering facepieces are to be inspected prior to each use to assure there are
no holes in the breathing zone other than the strap attachment welding points and
no damage has occurred, and enlarged holes resulting from ripped or torn filter
material around welding points are considered damage.
9. The respirator has been tested and small punctures around welding points
are normal and do not interfere with the respirator compliance with Part 84
approval requirements.

11
Innosparks Pte Ltd
75 Ayer Rajah Crescent #02-13 Singapore 139953
Model number: AP522VL
Made in Taiwan
