Profile Lite

INSTRUCTIONS FOR USE
1
ProleLite
Nasal Gel Mask
3 Intended Use
4 Warnings
6 Symbols
7 Cleaning Instructions
8 System One Resistance Control
8 Putting on the Mask and Headgear
9 Removing the Mask and Headstrap
10 Replacing the Gel Spacer
10 Reforming the Mask
12 Comfort Tips
12 Disposal
12 Specifications
15 Limited Warranty
16 Reorder Information
Table of Contents

ProfileLite
2
ProleLite
Nasal Gel Mask
A
B
C
D
Figure 1
A = Gel Forehead Spacer
B = Mask Cushion
C = Exhalation Port
(Do not block)
D = Removable Port Cap

INSTRUCTIONS FOR USE
3
Intended Use
The Profile Lite Nasal Gel Mask is intended to provide an interface
for application of CPAP or bi-level therapy to patients. The mask is
for single patient use in the home or multi-patient use in the hospital/
institutional environment. The mask is to be used on patients
(>66lbs/30kg) for whom CPAP or bi-level therapy has
been prescribed.
Important Note: An exhalation port is built into the Profile Lite Nasal
Gel Mask so a separate exhalation port is not required.
CAUTION
US federal law restricts this device to sale by or on the order of a physician.

ProfileLite
4
Warnings:
This mask is not suitable for providing life•
support ventilation.
This mask is designed for use with CPAP•
or bi-level systems recommended by your
health care professional or respiratory
therapist. Do not wear this mask unless the
CPAP or bi-level system is turned on and
operating properly. Do not block or try to
seal the exhalation port. Explanation of the
Warning: CPAP systems are intended to be
used with special masks with connectors
which have vent holes to allow continuous
flow of air out of the mask. When the
CPAP machine is turned on and functioning
properly, new air from the CPAP machine
flushes the exhaled air out through the
attached mask exhalation port. However,
when the CPAP machine is not operating,
enough fresh air will not be provided through
the mask, and exhaled air may be rebreathed.
This warning applies to most models of
CPAP systems. Rebreathing of exhaled air
for longer than several minutes can, in some
circumstances, lead to suffocation.
If oxygen is used with the device, the oxygen•
flow must be turned off when the device is
Warning
A warning indicates the
possibility of injury to
the user or operator.
Caution
A caution indicates the
possibility of damage to
the device.
Note
A note places an
emphasis on an
operating characteristic.

INSTRUCTIONS FOR USE
5
not operating. Explanation of the Warning: When the device is not
in operation, and the oxygen flow is left on, oxygen delivered into
the ventilator tubing may accumulate within the device enclosure.
Oxygen accumulated in the device enclosure will create a risk of fire.
Oxygen supports combustion. Oxygen should not be used while•
smoking or in the presence of an open flame.
At a fixed flow rate of supplemental oxygen flow, the inhaled oxygen•
concentration will vary, depending on the pressure settings, patient
breathing pattern, mask selection, and the leak rate. This warning
applies to most types of CPAP and bi-level machines.
Some users may experience skin redness, irritation, or discomfort.•
If this happens, discontinue use and contact your healthcare
professional.
At low CPAP or EPAP pressures, the flow through the exhalation•
port may be inadequate to clear all exhaled gas from the tubing.
Some rebreathing may occur.
If an additional exhalation device is added to the patient circuit,•
you may need to adjust the pressure level to compensate for the
additional leak of the exhalation device.
Hand wash prior to first use. Inspect the mask for damage or wear•
(cracking, crazing, tears or cushion damage resulting in gel exposure,
etc). Discard and replace any components as necessary.
Carefully touch the mask cushion to be sure that it has cooled•
enough to prevent irritation or burning.
Use of a nasal or full face mask may cause tooth, gum or jaw soreness•
or aggravate an existing dental condition. Consult your physician or
dentist if symptoms occur.

ProfileLite
6
Symbols
Symbol Description
General Caution or Warning
Consult instructions for use
System One Resistance Control
Note
Tip
Does not contain natural rubber latex

INSTRUCTIONS FOR USE
7
Cleaning Instructions
Hand wash the mask before first use and daily. The headgear should
be hand washed weekly, or as needed. The headgear does not need
to be removed for daily cleaning of the mask.
Hand wash the mask and headgear in warm water with a mild1.
liquid dish washing detergent.
Caution: Do not use bleach, alcohol, cleaning solutions containing bleach
or alcohol, or cleaning solutions containing conditioners or moisturizers.
Rinse thoroughly with drinking quality water and air dry out of2.
direct sunlight. Make sure the mask is dry before use. Lay the
headgear flat or line dry. Do not place the headgear into the
dryer.
Inspect all parts for damage or wear; replace any parts that have3.
visibly deteriorated (cracking, crazing, tears, etc). Replace the
mask if the cushion becomes hardened.
For multi-patient use in the hospital/institutional environment,
use the Mask Cleaning and Disinfection Instructions to reprocess
the mask between patients. These instructions can be obtained by
visiting www.sleepapnea.com or contacting Respironics Customer
Service at 1-800-345-6443 (USA or Canada) or 1-724-387-4000.

ProfileLite
8
Figure 2
System One Resistance Control
This mask uses the System One Resistance Control setting .This
symbol may appear on your therapy device.This symbol represents the level of
mask resistance compensation. Match the setting to the mask if appropriate.
Important Notes:
Verify the System One setting if the mask or mask cushion changes.•
The System One setting is not compatible with masks requiring a separate/•
additional exhalation device.
If your provider has locked the resistance compensation setting, you can view
the setting but cannot change it, and the screen will display a lock symbol.
If your provider has disabled the resistance compensation, you will not see
this setting.
Putting on the Mask and
Headgear
Hold the mask lightly against your face, and1.
slide the headstrap over your head
(Figure 2).
Connect the flexible tubing to the2.

INSTRUCTIONS FOR USE
9
exhalation elbow. Turn the CPAP or
bi-level system on.
Lie down and breathe normally through3.
your nose, keeping your lips closed.
Unhook the straps and gradually tighten
them until the mask has minimal leaks and
fits comfortably.
Note: The headstrap has two sets of tabs for
better adjustment. For larger size heads, use
the black tabs. For smaller head sizes, use the
blue tabs (Figure 3). The extra tabs can be
removed using a pair of scissors.
DO NOT overtighten the straps.4.
Overtightening can cause or worsen leaks.
Removing the Mask and
Headstrap
Because the entire headstrap stretches, you
should not need to unfasten the straps to
remove the headstrap. Simply slide the mask
and headstrap over your head. If necessary,
unfasten either of the neck straps.
AB
Figure 3
A = Use blue tabs for
smaller sized heads
B = Use black tabs for
larger sized heads

ProfileLite
10
Replacing the Gel Spacer
Replace the gel spacer if it is punctured,
leaking or damaged. See the last page of these
instructions for order information.
Before attaching a new gel spacer, remove
the headgear from the mask following the
instructions below. Slide the top tabs (1)
on the gel spacer into the top headgear slot
(Figure 4), then attach the bottom tabs (2) on
the gel spacer into the bottom headgear slot.
Reforming the Mask
OPTIONAL: If you are not able to minimize leaks,
you may want to reform the mask to fit your face
more closely.
Remove the headstrap and spacer from1.
the mask (Figure 5 and Figure 6). Fill a
container with enough water to cover the
entire mask. (DO NOT put the mask in
the water at this time.) Place the container
over heat and bring the water to a boil.
Remove the container from the heat.
1
2
B
A

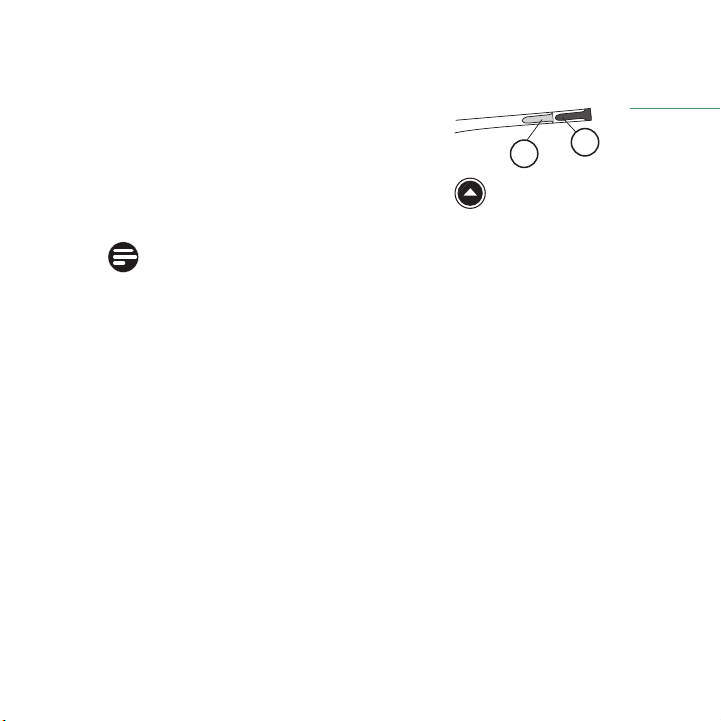

Figure 4
A = Gel spacer
B = Headgear slots
Figure 5
Figure 6

INSTRUCTIONS FOR USE
11
Caution: Do not heat the mask by placing it
into the microwave or conventional oven. The
mask will be damaged.
Using tongs or a similar utensil, slowly2.
place the mask into the water being
careful to keep the water from spilling
over (Figure 7). Soak the mask for four
minutes. Using the tongs again, grab the
mask at the extension and remove it from
the water. Place the mask in cold water for
ten seconds. Reconnect the spacer and
headstrap.
Warning: Before placing the mask on your
face, be sure the mask has cooled enough to
prevent irritation or burning.
3. Place the mask on your face in the
position you will be wearing it, pressing
comfortably against your face (Figure 8).
Slide the headgear over your head.
Note: Be sure to tighten the headgear to the
tension you would normally use. Wear the
mask and headgear for five minutes to allow
the mask to form to your face. Remove the
mask and headstrap. The mask will maintain
its shape.

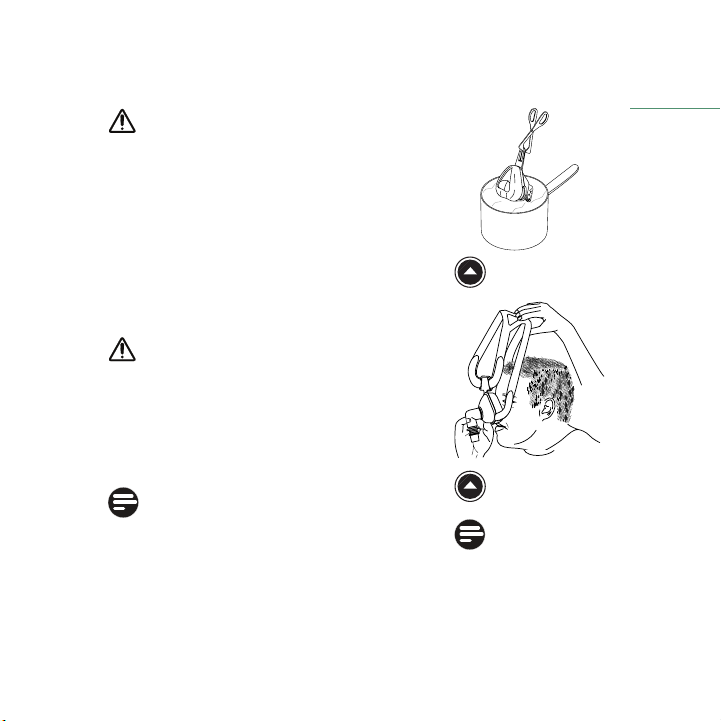

Figure 7
Figure 8
Note: The mask
can be reformed,
if necessary, by
repeating steps 1
through 3.

ProfileLite
12
Comfort Tips
Clean your face and mask thoroughly before each use.•
Make sure the mask is the correct size for your face.•
Do not overtighten the headgear. Overtightening can irritate your•
face, increase leaks, or cause damage to the mask.
Replace the cushion and forehead gel spacer if they become•
hardened or deformed.
Disposal
Dispose of in accordance with local regulations.
Specications
Warning: The technical specifications of the mask are provided for your
clinician to check that they are compatible with the CPAP or bi-level
device. If used outside specification or if used with incompatible devices,
the seal and comfort of the mask may not be effective, optimum therapy
may not be achieved, and leak, or variation in the rate of leak, may affect
the CPAP or bi-level device function.

INSTRUCTIONS FOR USE
13
Intentional Leak
0
5
10
15
20
25
30
35
40
201612840
Prole Lite
Prole Lite
w/ 22mm elbow

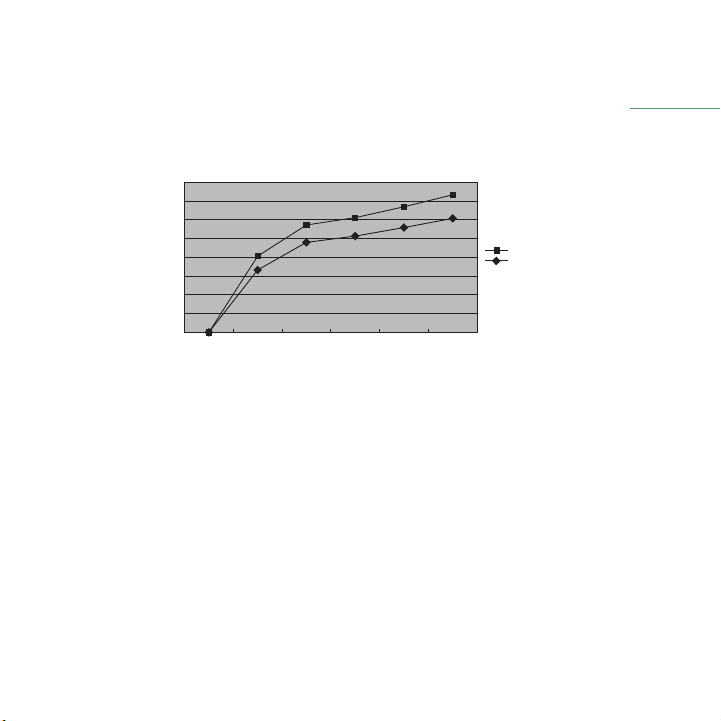

Pressure vs. Leak Rate
Pressure cmH2O (hPa)
Leak Rate (SLPM)

ProfileLite
14
Pressure Drop cm H2O (hPa)
50 SLPM 100 SLPM
Large 0.1 0.3
Deadspace
≤ 281 cc.
Storage Conditions
Temperature -4° F to 140° F (-20° C to 60° C)
15% to 95% RH, non-condensing

INSTRUCTIONS FOR USE
15
LIMITED WARRANTY
Respironics, Inc. warrants that its mask systems (including mask frame and cushion) (the
“Product”) shall be free from defects of workmanship and materials for a period of ninety
(90) days from the date of purchase (the “Warranty Period”).
If the Product fails under normal conditions of use during the Warranty Period and the
Product is returned to Respironics within the Warranty Period, Respironics will replace
the Product. This warranty is non-transferable and only applies to the original owner of
the Product. The foregoing replacement remedy will be the sole remedy for breach of the
foregoing warranty.This warranty does not cover damage caused by accident, misuse, abuse,
negligence, alteration, failure to use or maintain the Product under conditions of normal use
and in accordance with the terms of the product literature, and other defects not related to
materials or workmanship. This warranty does not apply to any Product that may have been
repaired or altered by anyone other than Respironics.
Respironics disclaims all liability for economic loss, loss of prots, overhead, or indirect,
consequential, special or incidental damages which may be claimed to arise from any sale or
use of the Product. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER EXPRESS WARRANTIES. IN ADDI-
TION,ANY IMPLIED WARRANTY, INCLUDING ANY WARRANTY OF MERCHANTABIL-
ITY OR FITNESS FOR A PARTICULAR PURPOSE, IS SPECIFICALLY DISCLAIMED. SOME
STATES DO NOT ALLOW DISCLAIMERS OF IMPLIED WARRANTIES, SO THE ABOVE
LIMITATION MAY NOT APPLY TOYOU.THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS,AND YOU MAY ALSO HAVE OTHER RIGHTS,WHICH VARY FROM STATE TO
STATE.
To exercise your rights under this limited warranty, contact your local authorized Respironics,
Inc. dealer or Respironics, Inc. at 1001 Murry Ridge Lane, Murrysville, Pennsylvania 15668,
1-800-345-6443 (USA and Canada only) or 1-724-387-4000.
© 2010 Koninklijke Philips Electronics N.V.All rights reserved.

ProfileLite
16
1002849 Profile Lite Mask, P
1002850 Profile Lite Mask, S
1002370 Profile Lite Mask, MS
1002371 Profile Lite Mask, M
1002372 Profile Lite Mask, MW
1002374 Profile Lite Mask, LN
1002373 Profile Lite Mask, L
1004292 Gel Retrofit Spacers, S
1004291 Gel Retrofit Spacers, L
1008869 Gel Retrofit Spacers, XL
1004086 Profile Lite Mask w/headstrap, P
1004087 Profile Lite Mask w/headstrap, S
1004088 Profile Lite Mask w/headstrap, MS
1004089 Profile Lite Mask w/headstrap, M
1004110 Profile Lite Mask w/headstrap, MW
1004112 Profile Lite Mask w/headstrap, LN
1004111 Profile Lite Mask w/headstrap, L
1004395 Exhalation Elbow Kit
1002720 Split Washer Kit (5 ea.)
7041 Mask Swivel
For a complete list of products and reorder numbers, or contact
Customer Service at 1-800-345-6443 (US or Canada only) or
724-387-4000 to obtain a product catalog (#1027825) or visit us
online at www.sleepapnea.com.
Reorder Information
