Nivel System NL510 User manual

1
EN
Rotation Laser
NL510, NL510G
Thank you for purchasing a Nivel System NL510 / NL510G laser level.
To best use the purchased instrument, please read the instructions carefully and put in a
convenient spot so that in the future you will be able to use it.

2
WARNING:
The device contains a rechargeable nickel-hydrogen batteries which must
be recycled and should be disposed
in accordance with the requirements (WEEE-Reg .: DE23874031)

3
INTRODUCTION
Multitasking self-leveling laser construction levels are used to determine the height in
construction measurements. Model NL510 / NL510G has a visible light beam (NL510 - red
beam, NL510G - green beam) and it can be used at work inside and outside the building. The
device is powered by rechargeable batteries which use advanced micro-controlled charging
technology.
NL series levels may designate a vertical or horizontal laser plane, additionally the device define
the axis of the laser plane (laser line - point up and down). The device can also "draw" a laser
line (scan function) –thanks to it it's possible to stop the beam at a given distance. NL510 /
NL510G models can be controlled from the device control panel or remotely, with remote
control.
Laser level is waterproof and can be used outdoors, even in the rain. However, these devices
can’t be submerged in water
Laser plumb up / masking flap
Laser module Optical glass
MENU / LCD
Charge socket Handle
Laser plumb down
PRECAUTIONS
WARNING: the device has a built in laser source which generates laser beam. It Is not allowed
to disassembly the device by "your own".
There is a risk of fire, electric shock, or injury while self-repair.
Repairs can be made only by Nivel System service or its authorized representatives.
The laser beam can be hazardous to the human eye if the device is improperly operated.
Never repair the laser by your own.

4
Protect your eyes from damage.
Never look into the laser beam
Risk of fire and electric shock.
Never use a wet battery.
The possibility of explosion.
Never use a laser level near flammable gases and liquids.
A short-circuit may cause a fire.
Pay attention to not to short-circuit the battery while storing the device.
Protection against shock
When transporting the instrument it should be protected against shocks. Strong shocks can
cause measurements errors.
The user of this instrument should follow the instructions contained in this manual and
remember to periodically check the correctness of its working. The manufacturer is not liable for
any damage resulting from the incorrect use of the instrument and losses due to this.
Improper use of the laser and use not in accordance with instructions described in this manual,
can cause injury or exposure to excessive radiation dose.
Do not allow anyone to work in a laser beam. Before you begin, make sure that the laser beam
is over the heads of workers. The lighting by laser beam can cause temporary blindness. When
it's possible, use warning signs when construction machines are working near laser level
Do not expose the body and clothing to the acid leaking from batteries and accumulators.
However, if it occurs, quickly wash the body with clean water and consult a doctor.
Broken or damaged transport box or transport box latches can lead to falling out of the box and
damage the laser.
The collapse of laser level to the ground can lead to damage.
Shaky, unstable site of laser level can lead to collapse and damage the laser. Always make
sure that all screws and latches in a tripod works properly.
Exclusions of liability
1. It is expected from the user to comply all recommendations regarding to the use of this
product and perform periodic reviews of the work of the instrument.
2. The manufacturer, or its representatives assume no liability for damages caused by
improper handling or intentional improper use , including direct or indirect damage and
loss of income.
3. The manufacturer and its representatives are not liable for damage or loss of income
caused by natural disasters (earthquake, storm, flood, etc.), Fire, accident or involving
third parties in use of this instrument or using the instrument under conditions other than
normal.
4. The manufacturer and its representatives are not liable for any damages, loss of income,
loss of data, interruption of business, etc.., Caused by the use of the product.
5. The manufacturer and its representatives are not liable for any damages and loss of
income caused by the use of the instrument in a way other than described in the manual.
6. The manufacturer and its representatives are not liable for damage caused by improper
activities or reactions as a result of combining with other products.

5
BATTERIES
The NL510 / NL510G used nickel-hydrogen batteries that can be recharged.
Charging the battery is done by the AC adapter (included in standard) - Use the connector on
the front panel of laser level.
Charging process is indicated by illumination of the LED. When the LED lights up green, the
charging process is completed.
If it's necessary to replace the battery - battery compartment should be unscrewed.
Replacement batteries can be purchased from an authorized distributor.
Use lasers NL510 / NL510G with care, protect from moisture. Never put a wet instrument to the
transport box (wait until dry).

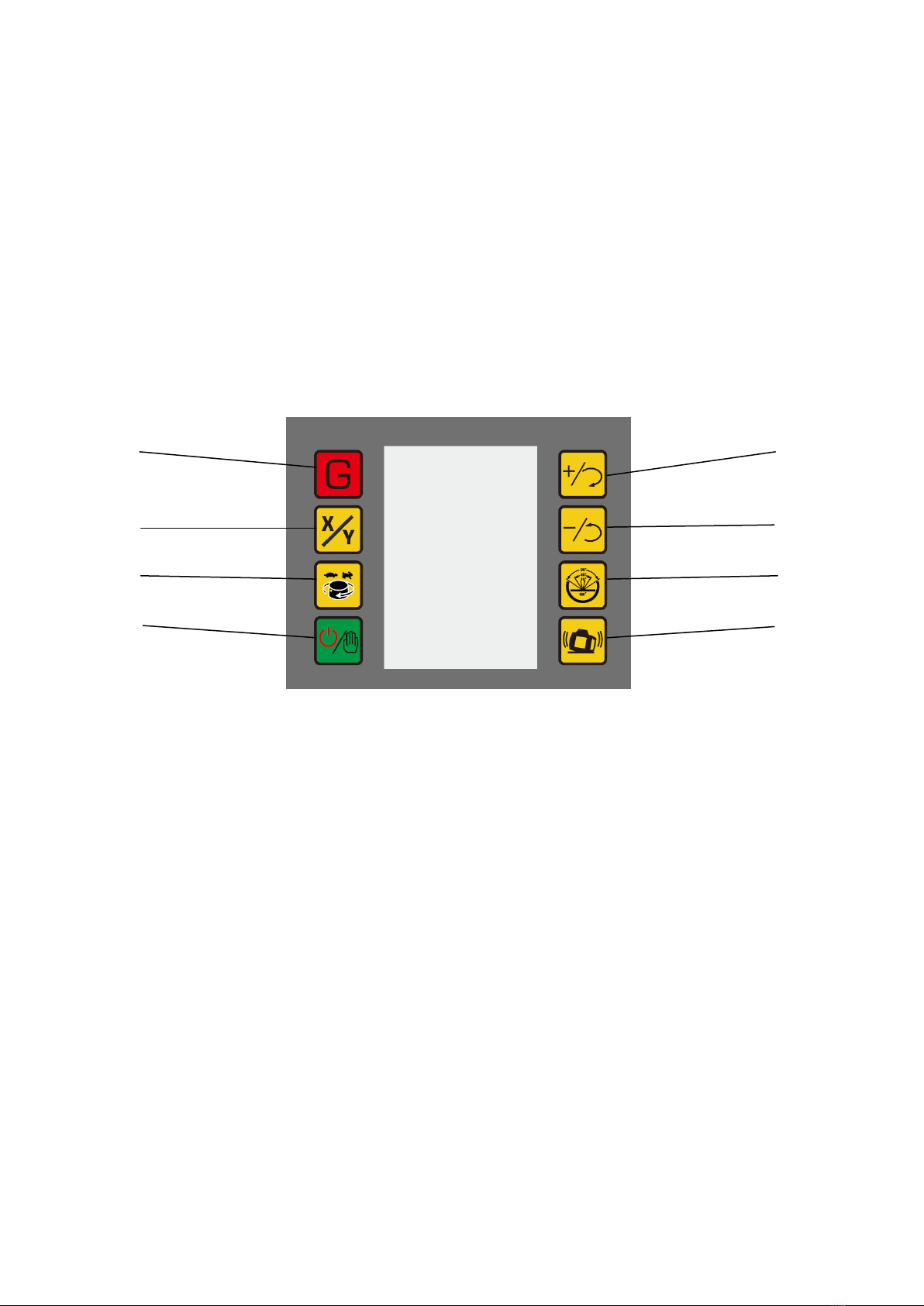

CONTROL PANEL
4 8
3 7
2 6
1 5
Description of buttons and functions:
1) On / off power and switch to manual mode
- Turns on and off
- Longer press of a button - approx. 6 seconds. (when the equipment is turned on) enables /
disables the manual mode. The equipment in manual mode can be tilted (beyond self-levelling)
or work in difficult terrain, near the heavy construction equipment (does not react to the
vibrations of the land). When the equipment is switched to manual mode, the display shows the
"hand" icon.
2) Adjusting the rotation speed of the head
- available head spin speeds: 0-60-120-300-600 rpm. Each press will switch speed. When
working on smaller distances, classic measurements - choose 300 rpm. When working on large
distances and with the cooperation of machine control systems, select 600 rpm. Keep in mind
that the faster the head rotates, the energy consumption is greater
3) Select the inclination in axis (X, Y)
- Use the button to select the direction of the inclination (X, Y). Plane can be tilted up to ±10%
4) laser inclination mode switch (device automatically switches to manual mode)
5) movement alarm mode (TILT)
- The laser is able to secure. While the device is moved, placed in another place (which can
cause incorrect measurements) –it turns off (system beeps). In such a situation, turn off and on

6
laser level again (or turn off the TILT by holding longer the button 5)
6) directional scan button - narrowing of the laser line in the required range (where the work is
carried out)
- available display of beam angles: 0-10 ° -45 ° -90 ° -180 °. Each press will switch the display
of the beam angle.
7) MINUS / right rotation
- Use the key to: subtract the value of inclination (minus) / heads turn to the right (when the
head is not spinning or level is switched into scan mode)
8) PLUS / counter-clockwise rotation
- Use the key to: add the value of inclination (plus) / turn heads left
WORKING WITH LASER LEVEL
Turning on the power
On the front panel press button 1. The instrument will level by itself and the power LED lights
up. Press the button again to turn off the power.
Once leveled up, the laser LED stops blinking and the laser head rotates at a speed of 600 rpm.
If instrument will be is set inclined more than ± 5 °, it won't level by itself.
Rotating laser head mode
button 2 allows you to adjust the speed of laser head rotation. Switching the speed is carried out
by pressing again this button
Scan mode
Adjust the rotating speed of the head. Press button 6 which will cause the device goes into scan
mode, the laser will begin to "draw" a line at set distance. Each time when you press this button
you will cause increase the range of "drawn" line. Depending on your needs, switch the direction
of rotation of the head (clockwise or counter-clockwise).
The inclination of laser plane
NL510/510G allows you to incline the laser plane in one or two directions
Press 4 button which will go into a mode of enter the inclinations
Press 3 to enable selection of the axis along which surface will be tilted (X or Y).
To set the inclination in the X-axis, press the buttons 7, respectively (positive values) or 8
(negative values) - every time pressing the laser beam will tilt to the surface - in the X or Y
plane, on the top cover of the laser are marked directions of inclinations. Positive values will
incline laser plane according to the arrow on the top cover, negative - in the opposite direction)
After entering the inclination value for the X-axis, Y-axis, press 3 again after approx. 3 seconds,
the plane begins to be tilted to entered values.
Press the 4 button to exit set inclination mode, the plane will be automatically levelled.

7

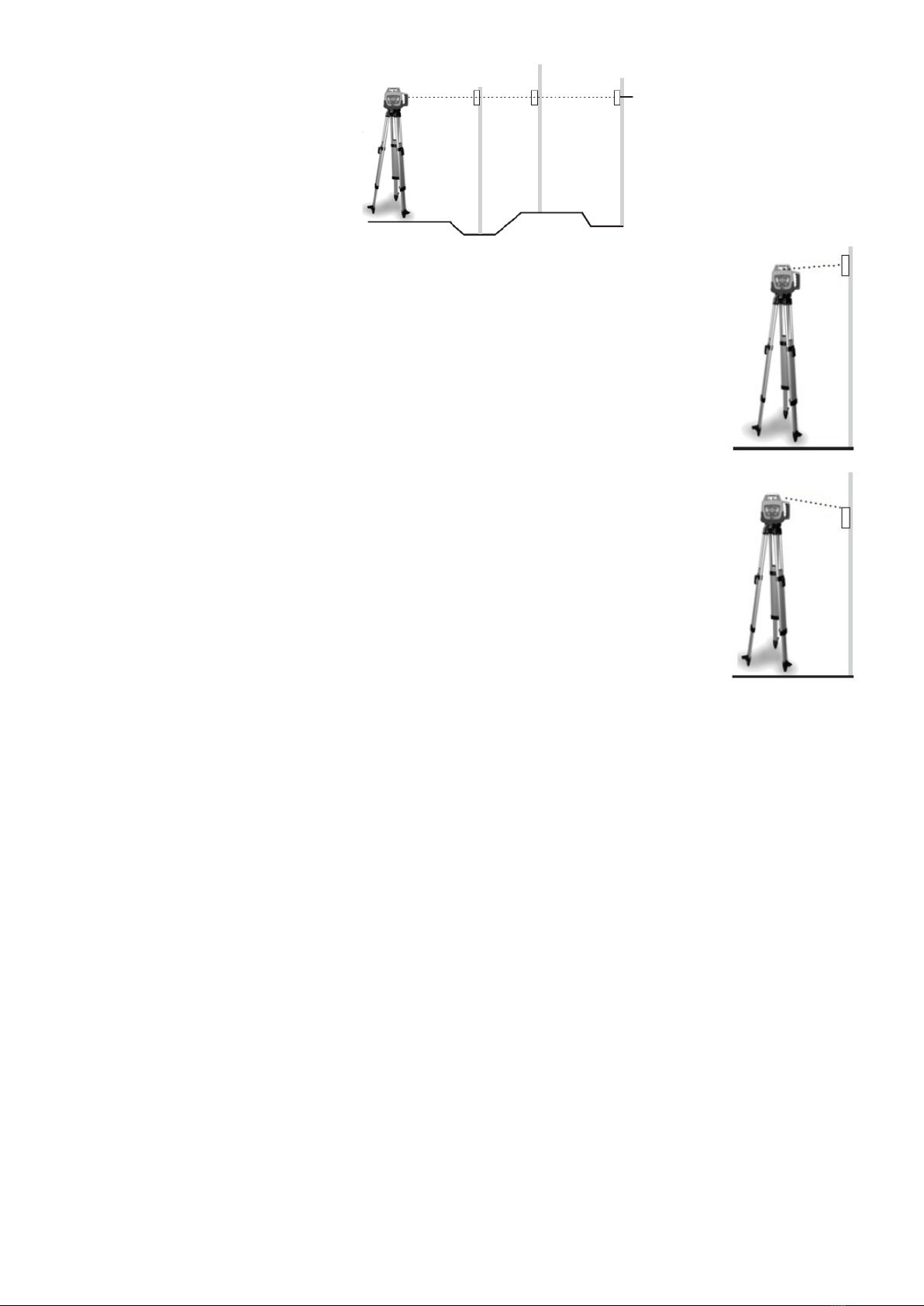

PRINCIPLE OF OPERATION
Height Measurement
Turn the power on to Level the instrument itself. Once leveled, the laser head
starts to spin, setting the laser plane. Attach the laser sensor on the laser staff.
Place a laser staff with attached sensor on a benchmark (zero point)- reset the
position of sensor (adjust the height of the sensor to define a zero level, the
laser staff should also indicate zero). Move the laser staff with sensor to another
point which height you want to measure, adjust the height of the sensor to place
it in the field of the laser beam - move it up or down on the laser staff. The
difference of sensor positions on the staff will indicate the height differences of
the measured point compared to the benchmark.
Slope determination
Set the laser level on a tripod. Set the laser level in the axis you want to tilt and
turn on the laser level. The laser plummet (bottom) indicates the first point of the
axis, on the other end point set the laser staff with laser sensor - reset position
(sensor and staff). Depending on the desired value of inclination slide the
sensor on a staff and by remote control change the inclination of the laser plane
in order to fit in the position of the laser sensor (this shift of laser sensor will
specify the inclination, eg. If you want to get a inclination of 1%, at a distance of
10 m (laser staff) the difference between the height of the zero point on the staff
should and designated inclination should be 10 cm).
Working with the vertical plane
NL510/ NL510G can set horizontal or vertical beam. If you work with a vertical laser beam
you must set the laser level as in the picture beside. After switching on the laser level the
device will level by itself –the head will start to rotate - setting a vertical plane.
The laser plummet (top) defines a line perpendicular to the plane of the laser level, which
is used in all perpendicular works (building partitions, setting 90°angle, etc.).
Remote control
Features of NL510/510G laser level can be controlled remotely using the remote control. On the
remote control panel there are buttons that correspond to those included on the front panel of
laser level. The operating range of remote control is approximately 20 meters (depends on the
conditions on the site)
The procedure for changing the transmission channel.
Changing the channel must be carried out separately on the remote control and laser level.
Changing the channel on the remote control:
• Turn the remote by on/off switch by holding it so long until you see the blinking icon
similar to the phone and will be displayed next to the channel number.
• Change the channel number by pressing + or -.
• Confirm by holding down the power button on remote control.

8
Changing the channel in laser level:
• Turn the laser level.
• Hold the X / Y for about 5 seconds. You will see the blinking icons:
antenna and channel number.
• Change the channel number using the + or - on the same as the one set
the remote control.
• Remember, holding the X / Y until turns off the channel number.
• antenna icon continue to blink.
• Then turn off the laser level and turn it on again.
• non-blinking antenna icon indicates a proper connection with the remote
NOTE:
In exceptional cases, you may experience instability working of laser level in cooperation with
the remote control. This is caused by data transmission system between the remote control and
leveling tool. The communication system is based on a radio transmitter operating on UHF. In
this range there are multiple transmission systems and their frequencies can interfere with each
other. In the case of unstable behaviour leveling change the channel on the remote control
communicates with the leveling tool.

9
Checking the laser level
You should regularly check the following parameters of the laser level
setting a horizontal plane
cone error
setting a vertical plane
Checking and calibration of the horizontal and vertical planes is simple and in most cases can
be done by the user. Checking the cone error can be also done by the user, but this error can
be only removed by an authorized service center.
Checking the horizontal plane
1. Set the instrument about 30m from the wall so that the X-axis is perpendicular to the
wall and X direction a pointed to a wall.
2. Turn on the instrument and wait until it level automatically.
3. Place a sheet of paper on the wall. Mark the position of the laser beam on the sheet.
Turn off the instrument.
4. Loosen the tripod fixing screw and rotate the instrument 180°.
WARNING! Be careful not to move the instrument while the head is spinning.
5. Turn on the instrument once again and wait until it level automatically.
6. Once again mark the position of the laser beam on the sheet.
7. Measure the distance between the marks, if the distance is less than 6 mm calibration
is not necessary, in other case please contact service center
8. Perform similar operations for the Y axis .
Checking the cone error
Please do this procedure after calibration of horizontal plane.
1. Set the laser centered between the walls distanced from each other of 30 m. Set the
instrument in the X or Y direction.
2. Mark the position of the laser beam on both walls.
3. Turn off the instrument and move it near to the of one of the walls (1 to 2 meters). Do not
change the orientation of the axes. Turn on the instrument.
4. Again, mark the position of the laser beam on the walls
5. Measure the distance between the marks on the walls.
6. If the difference in distance is less than 3 mm, it can be assumed that this error does not
occur.
Warning! If this error is more than 3m, you should contact the service center.
Checking the vertical plane
This procedure should be done after calibration of the horizontal plane.
1. Set the laser centered between the walls distanced from each other of 30 m
2. Turn on the laser level.
3. Place the paper sheets on the walls and mark the position of the laser beam.
4. Turn off the instrument. Set the instrument in vertical position near to one of the walls.
5. Turn on the instrument.
6. Mark the position of the laser beam on the paper sheet. Measure the distance
between the markers

10
7. Do not change the position of the laser and spin it 180°.
8. Mark the position of the laser beam on the paper sheet. Measure the distance
between the markers
9. If the distance between the markers is less than 3mm calibration is not necesery.
LASER SENSORS
Nivel System RD100
LCD Display
Precise mode Coarse mode
Too high,
the laser signal is below
(please Lower the sensor)
- you will hear a high frequency sound
You are in the right position
- you will hear a continuous sound
Too low,
the laser signal is above
- you will hear a high frequency sound
discharged batteries buzzer on / off
Sensor panel
LCD display
laser signal receiver
ON/OFF button
bracket
working mode of a sensor
buzzer
Nivel System RD500 DIGITAL, RD500G DIGITAL
Specification
-Detecting Range: 300m
-Unit of display: mm, inch, inch(fraction), cm
-Segments of indicator: 5+5
-3 x Accuracy of detecting
-±1mm
-±5mm
-±10mm
-Readable sensor range:±45mm

11
-Detecting sensor range:125mm
-Indication of laser signal:
-Two LCD back and front
-With buzzer and audio indication, three audios of buzzer, louder-normal-no sound.
Detector is switched with louder sound.
-With LED indication.
-Power supply: 4 x AA batteries.
- Battery life: 40hours.
-Automatic switch off: 15mins without operation nor receiving.
-Working temperature: - 20℃～+50℃(- 4℉～122℉)
- IP56
-Dimension: 170(L)×76(W)×35(H)mm
-Net Weight:373g(with battery)
Features:
Easily set up, adjust the balance, with magnets and vials at both side and top, with LCD at both
front and back, easier for mounting and detecting the signal of laser.

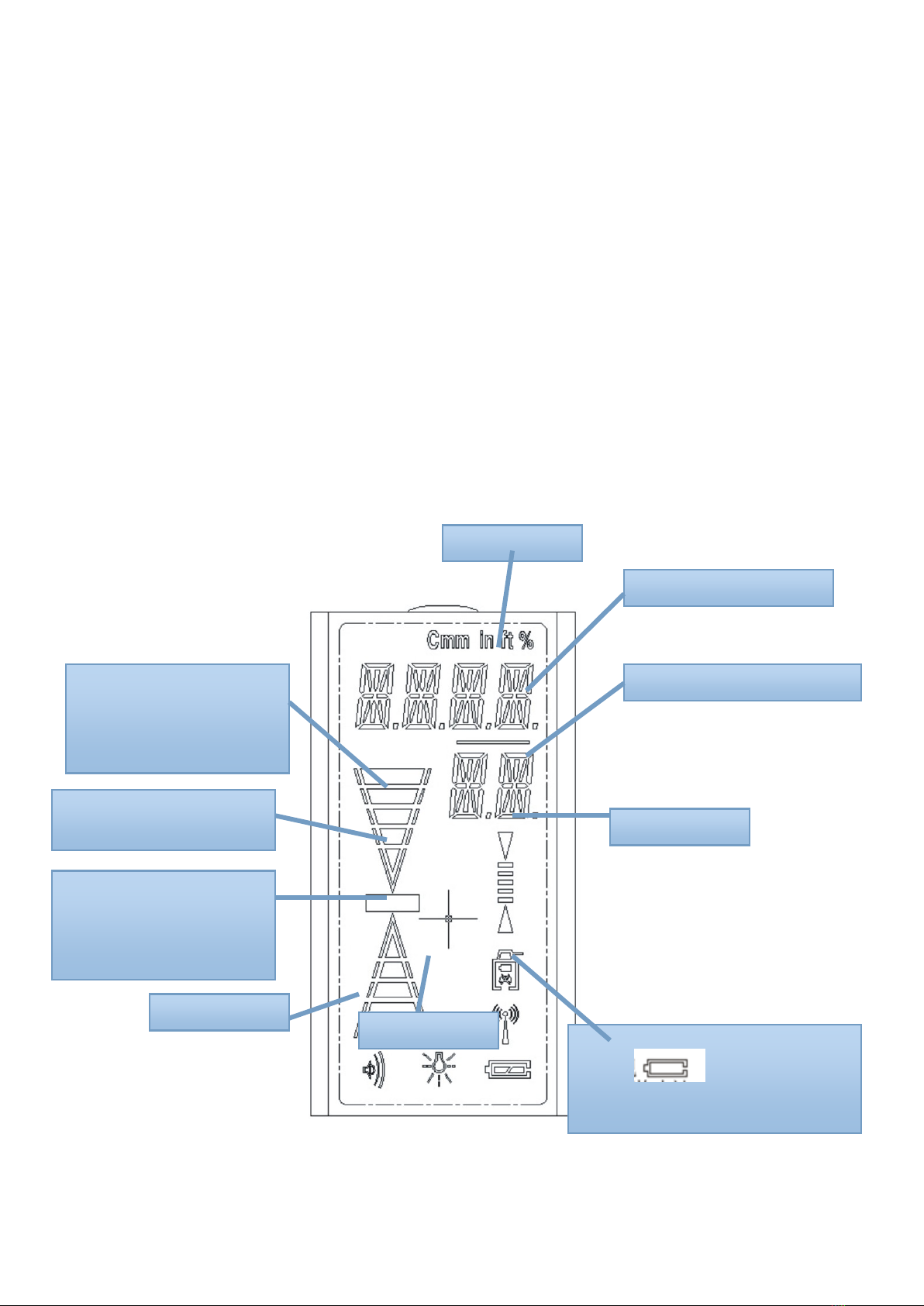

LED Display:
Unit switch
Arrows indicates that laser
location is upper than the
leveled line. High frequent
buzzer.
Arrows indicates that laser
location is lower than the
leveled line. High frequent
buzzer.
Leveled line. Buzzer with a
constant sound
Battery life icon, when it becomes to
empty “ ”, batteries inside
the detector need to be replaced.
Sound switch
Digitized distance display
Accuracy switch
Display for denominator of
inch
Background
light

12

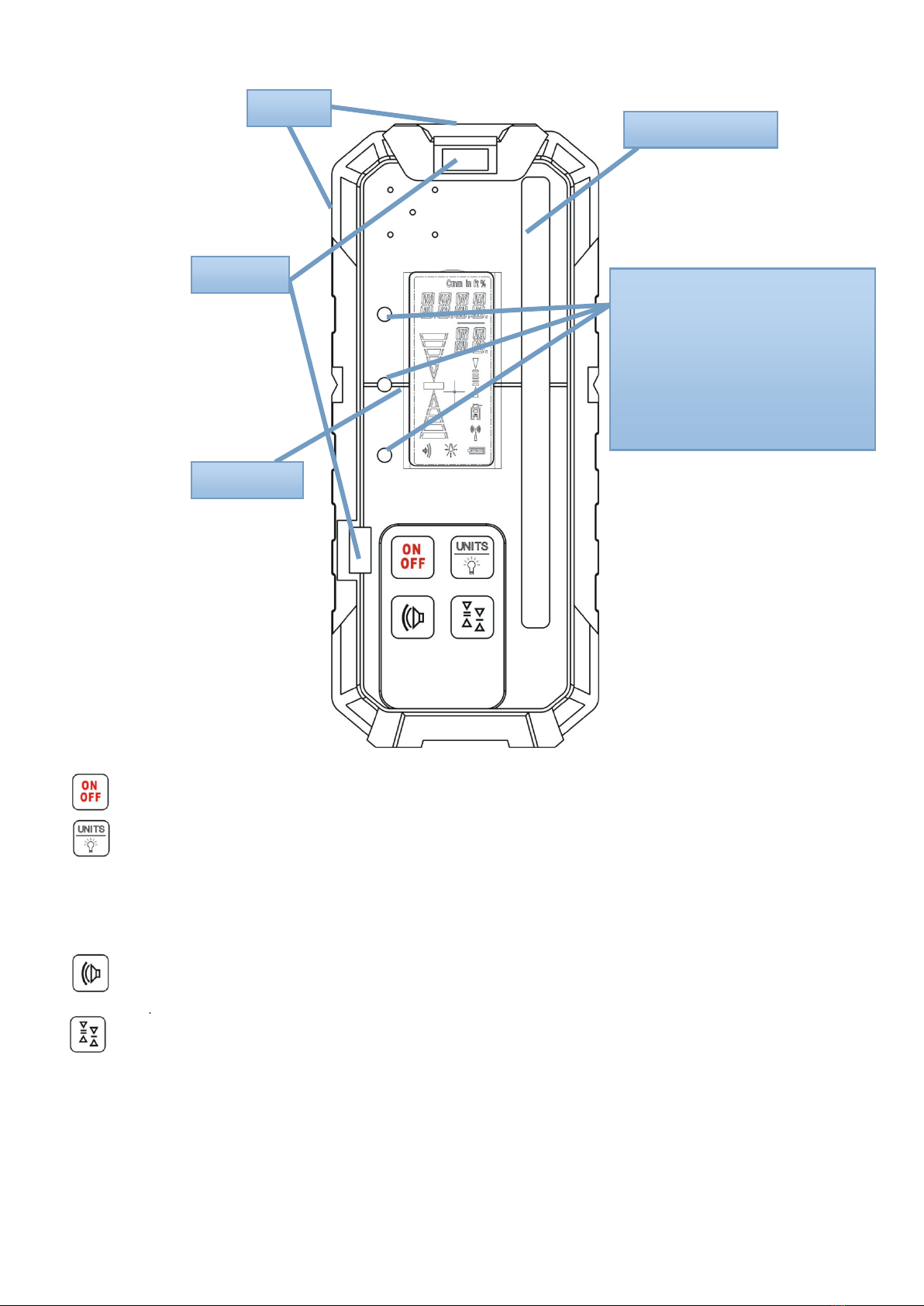

Other Features:
Keypad:
: SWITCH ON/OFF.
: Unit Switch/background light
-Detector is switched on with default “mm”, can switch between mm, inch, inch(fraction), cm by pressing this key.
-Detector is switched on with NO background light, when hold this key for 3-4seconds to turn on the
light.(blue)
: Sound switch: Detector is switched with loudest sound, sequence of the switch is: loudest→no sound→normal
sound.
: Accuracy switch: Detector is switched with highest accuracy, sequence of the switch is: highest accuracy, middle
accuracy, rough accuracy.
Magnet
s
Level vial
Level mark
Detecting Accuracy indicator:
-Upper LED(red) lights indicate
laser locates upper the leveled line
-Middle LED(Green)lights indicate
laser locates at the leveled line.
-Lower LED(Yellow)lights indicate
laser locates lower the leveled line
Receiving window

13

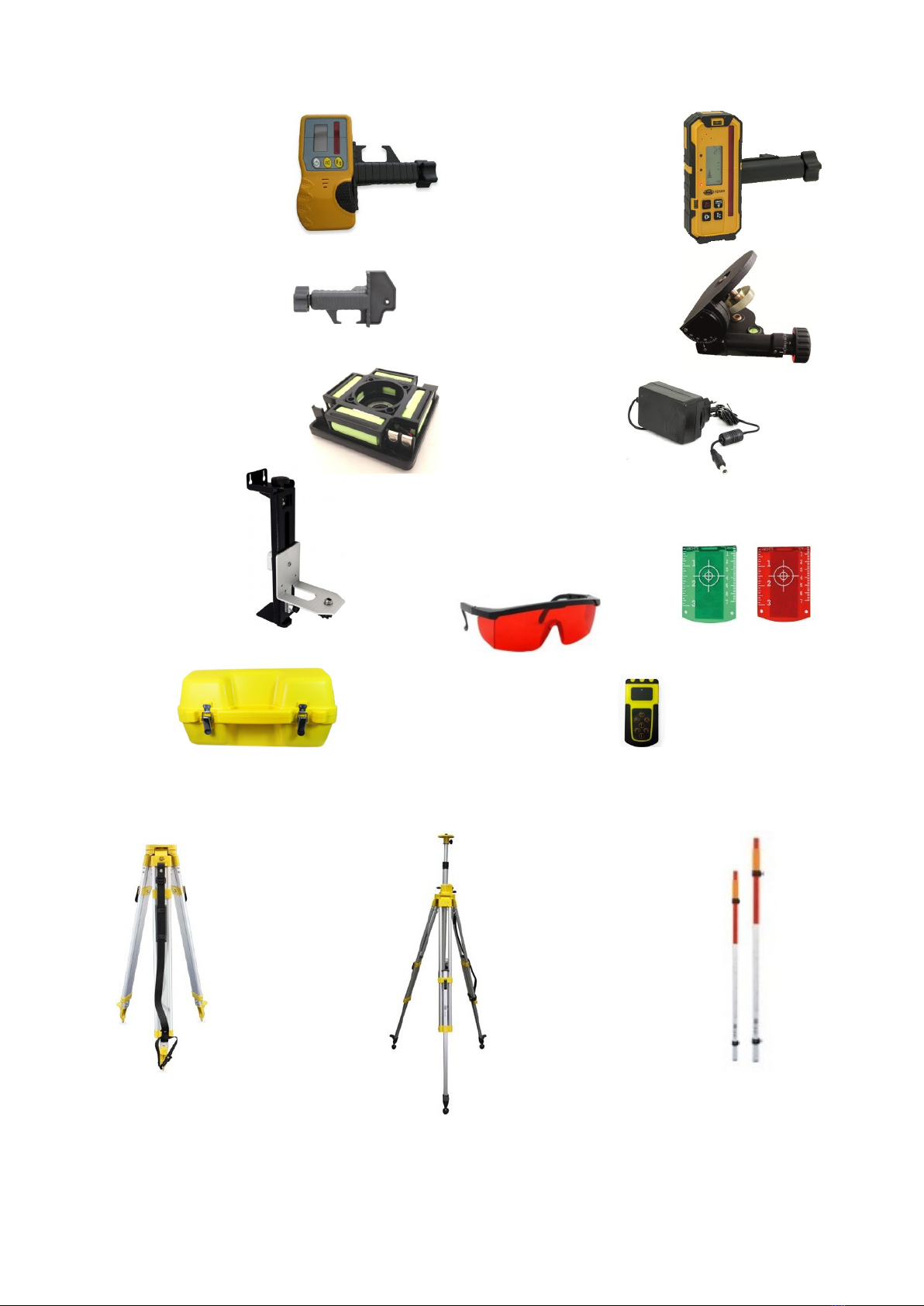

ACCESSORIES
RD100 - laser sensor RD500 DIGITAL - laser
(bracket NL-BR sensor (digital)
- option)
NL-BR - laser bracket Tripod adapter (0-90°)
Rechargeable battery pack CH-1 - charger
YR - laser shelf TR-R, TR-G - laer targets
GL-R, GL-G - laser glasses
Laser case Remote controller
SJJ1 - tripod SJJ32 - tripod (3,2m) LS-24 - laser staff (2,4m)
LS-35 - laser staff (3,5m)

14
TERMS AND CONDITIONS OF WARRANTY
1. The Warrantor shall warrant good quality and efficient operation of the product provided
that it is used for what it is intended, in operating conditions specified in the instruction
manual of the product.
The warranty shall cover the defects of products/spare parts caused as a result of
defects in materials, defective structure, or defects in assembly.
The Warrantor grants the User the warranty for 12 months and the warranty period
starts on the date of sale.
The defects acknowledged as covered by the warranty shall be removed free of
charge by an authorised service centre in the shortest possible time not exceeding 14
business days counted from the day of delivering the product for repair. In justified
cases, the time limit for repair may be extended.
The repairs shall be carried out in the Warrantor’s registered office or in the places
specified by the Warrantor.
The manner of removal of the defect shall be decided by the Warrantor.
Accessories, of which batteries, cells, cables, holders, chargers, etc., shall be
covered with 3-month warranty.
The activities listed in the instruction manual which are proper and normal services
related to operation, e.g. verification and calibration of surveying equipment, shall not
be considered a warranty repair.
The user shall be charged for unjustified complaints in accordance with the effective
price lists.
Warranty repairs shall be carried out only and exclusively based on purchase
document.
Under the warranty, the Warrantor shall not be liable for the consequences of
defects, that is damage caused to people, third parties’ property, lost profits, etc.
2. The warranty shall be terminated if the following is found: the standards of product
operation have been exceeded, the damage has occurred as a result of using the
product in violation of its instruction manual, there is some mechanical damage, the user
has carried out repairs on the user’s own or in unauthorised facilities.
3. The provisions of the Civil Code shall be applicable to all issues not stipulated in these
terms and conditions.
4. The parties shall make every effort to settle amicably any disputes arising in connection
with the execution of this agreement, and when it turns out to be impossible, the disputes
shall be resolved by the Court with jurisdiction over the Warrantor’s registered office.
5. When the warranty services provided by the service centre are needed, please do not
hesitate to contact your seller or a Nivel System service centre directly (e-mail:
[email protected], tel.: [phone])
EC declaration of conformity
NL510, NL510G
We declare that these products conform to:
EN 60825-1: 2007

15
NL510/NL510G technical specification
Laser red beam (NL510), green beam (NL510G)
Light source laser diode, class II
635 nm (NL510), 515 nm (NL510G), <1mW
Accuracy ±1mm/10m
Accuracy of laser plummet ±1mm/1,5m
Self-leveling range ±5°
Inclination (X and Y axis) ±10% (digital)
Work range (diameter) 600 m (with sensor)
Laser head rotation speed modes: 0-60-120-300-600 rpm
Scanning 0-10°-45°-90°-180
Working temperature -20°C ~ +50°C
Power DC 4,8-6 V, 4 rechargeable batteries (type D, NiMH)
Working time about 30h
Battery charging time about 7h
Dust and waterproof IP56
Dimensions 206 x 206 x 211 mm
Weight 2,8kg
Remote control technical specification
Working range about 30m (outside about 20m)
Warning:
AC Adapter could not be used outside. Do not use it for charging alkaline batteries. Device look
such as tech spec. could be changed without any information for customer.
Nivel System –service, support
TPI Sp. z o.o., Bartycka 22, 00-760 Warsaw, Poland
[phone], [phone], [email protected]
www.nivelsystem.com

16

17
PL
Niwelator laserowy
NL510, NL510G
Dziękujemy za zakupienie niwelatora laserowego firmy Nivel System model NL510/NL510G
Aby móc jak najlepiej wykorzystać zakupiony instrument, prosimy uważnie przeczytać instrukcję
i położyć w dogodnym miejscu, żeby w przyszłości móc z niej skorzystać.

18
UWAGA:
Urządzenie zawiera baterie niklowo-wodorowe, baterie te muszą
być poddane recyklingowi lub powinny być utylizowane
zgodnie z wymogami (WEEE-Reg.: DE23874031)

19
WPROWADZENIE
Wielozadaniowy niwelator laserowy to samopoziomujący laser budowlany, stosowany do
wyznaczania różnicy wysokości przy pomiarach budowlanych. Model NL510/510G wykorzystuje
wiązkę widzialnego światła i może być stosowany zarówno przy pracach wewnątrz budynku jak
i na zewnątrz. Urządzenie zasilane jest z akumulatorków, które wykorzystują nowoczesną
technologię mikro-kontrolowanego ładowania.
Niwelatory serii NL mogą wyznaczać pionową lub poziomą płaszczyznę laserową, dodatkowo
urządzenia wyznaczają oś płaszczyzny laserowej (laser liniowy - punkt do góry i punkt do dołu).
Za pomocą laserów możliwe jest także „rysowanie” linii laserem (funkcja skanowania) - dzięki
czemu możliwe jest zatrzymanie wiązki na danym odcinku. Model NL510/510G może być
sterowany zarówno z panela kontrolnego urządzenia jak i zdalnie, z pilota.
Niwelator jest wodoszczelny i może pracować na zewnątrz, także podczas deszczu. Jakkolwiek
urządzeń tych nie można zanurzać w wodzie
Pionownik laserowy (górny), klapka maskująca pionownik
Głowica obrotowa Okna zabezpieczające głowice
laserową
adapter do ustawienia
niwelatora na statywie i
praca z wiązką pionową
Panel sterowania
Wejście na ładowarkę Uchwyt
Pionownik laserowy (dolny)

20
ŚRODKI OSTROŻNOŚCI
UWAGA: zastosowane w urządzeniach źródło generuje laser. Nie dopuszczalne jest
rozkręcanie sprzętu na „własną rękę”.
Istnieje ryzyko powstania pożaru, porażenia prądem lub obrażeń podczas samodzielnego
wykonywania napraw.
Naprawy mogą być wykonywane tylko przez serwis Nivel System lub jego autoryzowanych
przedstawicieli.
Wiązka lasera może być niebezpieczna dla wzroku człowieka przy nieprawidłowej
obsłudze.
Nigdy nie naprawiaj samodzielnie lasera.
Chroń oczy przed uszkodzeniem wzroku.
Nigdy nie patrz w wiązkę laserową
Niebezpieczeństwo pożaru i porażenia prądem.
Nigdy nie używaj mokrych baterii.
Możliwość eksplozji.
Nigdy nie używaj niwelatora w pobliżu łatwopalnych gazów i płynów.
Zwarcie baterii może być przyczyną pożaru.
Zwracaj uwagę, żeby podczas przechowywania nie doszło do zwarcia baterii
Ochrona instrumentu przed wstrząsami
Podczas transportu należy zabezpieczyć instrument przed wstrząsami. Silne wstrząsy mogą
być przyczyną powstawania błędów.
Użytkownik tego instrumentu powinien postępować zgodnie z zaleceniami zawartymi w
niniejszej instrukcji i pamiętać o okresowym sprawdzaniu prawidłowości jego działania.
Producent nie ponosi odpowiedzialności za uszkodzenia niwelatora powstałe na skutek
nieprawidłowego użytkowania instrumentu i wynikające z tego powodu straty.
Niewłaściwe użycie lasera oraz stosowanie go niezgodnie z opisanymi, w tej instrukcji,
procedurami - może spowodować obrażenia lub narażenie się na nadmierną dawkę
promieniowania.
Nie można pozwolić aby ktokolwiek pracował w promieniu lasera. Przed rozpoczęciem pracy
należy upewnić się, że wiązka lasera znajduje się ponad głowami pracowników. Oświetlenie
wiązką laserową może spowodować chwilowe oślepienie. Gdy to tylko możliwe stosuj znaki
ostrzegawcze gdy w pobliżu lasera pracują maszyny.
Nie narażaj ciała i odzieży na działanie kwasu wyciekającego z baterii i akumulatorów. Gdyby
jednak do tego doszło, szybko przemyj ciało czystą wodą i skontaktuj się z lekarzem.
Połamane pudło lub uszkodzone zatrzaski kufra transportowego mogą doprowadzić do
wypadnięcia i uszkodzenia lasera.
Upadek niwelatora na ziemię może doprowadzić do jego uszkodzenia.
Chwiejne, niestabilne umiejscowienie niwelatora może doprowadzić do upadku i uszkodzenia
lasera. Zawsze sprawdzaj czy wszystkie śruby i zatrzaski na statywie działają poprawnie.
Wyłączenia od odpowiedzialności
9. Oczekuje się od użytkownika przestrzegania wszystkich zaleceń dotyczących
posługiwania się tym produktem i wykonywania okresowych przeglądów pracy
instrumentu.
10.Producent lub jego przedstawiciele, nie ponoszą odpowiedzialności za szkody wynikłe na
skutek nieprawidłowej obsługi lub zamierzonego niewłaściwego używania, włącznie z
bezpośrednimi lub pośrednimi zniszczeniami i stratą dochodów.
