Hilti PD-S User manual

PD-S English
Printed: 29.03.2018 | Doc-Nr: PUB / 5410155 / 000 / 00

Printed: 29.03.2018 | Doc-Nr: PUB / 5410155 / 000 / 00

English 1
1 Information about the documentation
1.1 About this documentation
• Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free
handling and use of the product.
• Observe the safety instructions and warnings in this documentation and on the product.
• Always keep the operating instructions with the product and make sure that the operating instructions
are with the product when it is given to other persons.
1.2 Explanation of symbols used
1.2.1 Warnings
Warnings alert persons to hazards that occur when handling or using the product. The following signal words
are used:
DANGER
DANGER !
▶Draws attention to imminent danger that will lead to serious personal injury or fatality.
WARNING
WARNING !
▶Draws attention to a potential threat of danger that can lead to serious injury or fatality.
CAUTION
CAUTION !
▶Draws attention to a potentially dangerous situation that could lead to slight personal injury or damage
to the equipment or other property.
1.2.2 Symbols in the documentation
The following symbols are used in this document:
Read the operating instructions before use.
Instructions for use and other useful information
Dealing with recyclable materials
Do not dispose of electric equipment and batteries as household waste
1.2.3 Symbols in the illustrations
The following symbols are used in illustrations:
These numbers refer to the corresponding illustrations found at the beginning of these operating
instructions
The numbering reflects the sequence of operations shown in the illustrations and may deviate
from the steps described in the text
Item reference numbers are used in the overview illustrations and refer to the numbers used in
the product overview section
This symbol is intended to draw special attention to certain points when handling the product.
Wireless data transfer
Printed: 29.03.2018 | Doc-Nr: PUB / 5410155 / 000 / 00

2 English
1.3 Product-dependent symbols
1.3.1 Symbols on the product
The following symbols are used on the product:
Measure / Continuous measurement
Area measurement / Units
ON / Delete / OFF
1.4 Product information
products are designed for professional users and only trained, authorized personnel are permitted
to operate, service and maintain the products. This personnel must be specifically informed about the
possible hazards. The product and its ancillary equipment can present hazards if used incorrectly by
untrained personnel or if used not in accordance with the intended use.
The type designation and serial number are printed on the rating plate.
▶Write down the serial number in the table below. You will be required to state the product details when
contacting Hilti Service or your local Hilti organization to inquire about the product.
Product information
Laser range meter PD-S
Generation 01
Serial no.
1.5 Declaration of conformity
We declare, on our sole responsibility, that the product described here complies with the applicable directives
and standards. A copy of the declaration issued by the certification department can be found at the end of
this documentation.
The technical documentation is filed and stored here:
Hilti Entwicklungsgesellschaft mbH | Tool Certification | Hiltistrasse 6 | 86916 Kaufering, Germany
2 Safety
2.1 Basic information on safety
In addition to the information relevant to safety given in each of the sections of these operating
instructions, the following points must be strictly observed at all times. The product and its ancillary
equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with
the intended use.
▶Keep all safety instructions and other instructions for future reference.
▶Stay alert, watch what you are doing and use common sense when operating the product. Do not use
the product while you are tired or under the influence of drugs, alcohol or medication. A moment of
inattention while operating the product can result in serious personal injury.
▶Do not render safety devices ineffective and do not remove information and warning notices.
▶Laser radiation in excess of Class 2 can be emitted if the product is opened without correct procedure
being followed. Have the product repaired by Hilti Service only.
▶Do not tamper with or attempt to make alterations to the product.
▶Before starting to use the product, always make sure that it is full working order.
▶Readings taken through panes of glass or similar materials can falsify the result of measurement.
▶People passing through the laser beam or other quick changes in measuring conditions can falsify the
result of measurement.
▶Never aim the product against the sun or other powerful light sources.
▶Take the influences of the surrounding area into account. Do not use the device where there is a risk of
fire or explosion.
▶Follow the directions for operation, care and maintenance in the operating instructions.
Printed: 29.03.2018 | Doc-Nr: PUB / 5410155 / 000 / 00

English 3
2.2 General safety measures
▶Check the product for damage before use. Have damage repaired by Hilti Service.
▶Check the accuracy of the product if it has been dropped or subjected to other mechanical stresses.
▶Although the product is designed for the tough conditions of jobsite use, like other measuring instruments
it should be treated with care.
▶When not in use, products must be stored in a dry, high place or locked away out of reach of children.
▶The product is not intended for use by children.
▶Comply with national health and safety requirements.
2.3 Proper arrangement of the workplace
▶Avoid unusual postures when working on ladders. Maintain firm footing and balance at all times.
▶Secure the site where you are taking measurements and when using the product do not direct the laser
beam toward other persons or toward yourself.
▶When the product is brought into a warm environment from very cold conditions, or vice-versa, allow it
to become acclimatized before use.
▶Use the product only within its specified limits.
▶Keep the laser aperture clean to avoid measurement errors.
▶Comply with the national accident prevention regulations.
2.4 Laser classification for Class 2 laser products
The device complies with Laser Class 2 in accordance with IEC 60825-1:2014 /EN 60825-1:2014. These
devices can be used without further protective measures.
CAUTION
Risk of injury! Do not direct the laser beam toward persons.
▶Never look directly into the source of the laser beam. In the event of direct eye contact, close your eyes
and move your head out of the path of the laser beam.
Printed: 29.03.2018 | Doc-Nr: PUB / 5410155 / 000 / 00

4 English
3 Description
3.1 Product overview
@Display
;Measure / Continuous measurement
button
=Area measurement / Units button
%ON / Delete / OFF button
Display
&Battery status indicator
(Last measured value
)Units
+Current measured value
§Measurement reference
3.2 Intended use
The product described is a laser range meter. It is designed for single measurements and for continuous
measurement of distances.
Distances can be measured relative to all objects with a surface consisting of any normally laser-reflecting
material such as concrete, stone, wood, plastic or paper. The use of prisms or other highly reflective targets
is impermissible and, if attempted, can falsify the results.
The product is approved for use with batteries of type AAA.
3.3 Items supplied
Laser range meter, belt pouch, 2 batteries, quick-start operating instructions, manufacturer's certificate,
safety instructions
Other system products approved for use with this product can be found at your local Hilti Store or online at:
www.hilti.group | USA: www.hilti.com
Printed: 29.03.2018 | Doc-Nr: PUB / 5410155 / 000 / 00

English 5
4 Technical data
PD-S
Power supply (2 x) 1.5 V
Measuring range 0.2 m ... 60 m
(0.6 ft ... 200 ft)
Distance measurement accuracy ±1.5 mm
(±0.06 in)
IEC 60529 protection class (dustproof and sprayproof) IP 54
Operating temperature −10 ℃ …50 ℃
(14 ℉ …122 ℉)
Recommended temperature range for transport and storage −25 ℃ …70 ℃
(−13 ℉ …158 ℉)
Weight 95 g
(3.4 oz)
Battery (2 x) AAA
Battery life (number of measurements), up to 5000
Laser deactivation after 90 s
Device shutdown after 180 s
5 Operation
5.1 Preparations at the workplace
5.1.1 Inserting the batteries
Make sure that battery polarity is correct. Change the batteries only as a pair. Do not use damaged
batteries.
▶Open the battery compartment and insert the batteries.
Printed: 29.03.2018 | Doc-Nr: PUB / 5410155 / 000 / 00

6 English
5.1.2 Switching the product on and off
1. Short-press the ON / Delete / OFF button to switch the product on.
2. Press the ON / Delete / OFF button for 2 seconds to switch the product off.
5.1.3 Switching the acoustic signal on and off
▶Simultaneously press the Area measurement / Units button and the ON / Delete / OFF button for 2
seconds to switch the acoustic signal on or off.
5.2 Working / Measurement reference
All measurements use the rear edge of the laser range meter as the reference point.
▶Hold the rear edge of the laser range meter against the point from which the measurement is to be taken.
Printed: 29.03.2018 | Doc-Nr: PUB / 5410155 / 000 / 00

English 7
5.2.1 Taking single measurements
1. Press the ON / Delete / OFF button to activate the laser beam.
2. Aim the laser beam at the target and press the Measure / Continuous measurement button.
◁The distance is shown in the display.
Press the ON / Delete / OFF button once to delete the last measured values.
Press the ON / Delete / OFF button again to return from area measurement to distance measure-
ment.
5.2.2 Switching the continuous measuring mode on and off
1. Press the Measure / Continuous measurement button for 2 seconds to activate continuous measure-
ment.
◁The distance is shown in the display.
2. Press the Measure / Continuous measurement button again to end the continuous measurement.
Printed: 29.03.2018 | Doc-Nr: PUB / 5410155 / 000 / 00

8 English

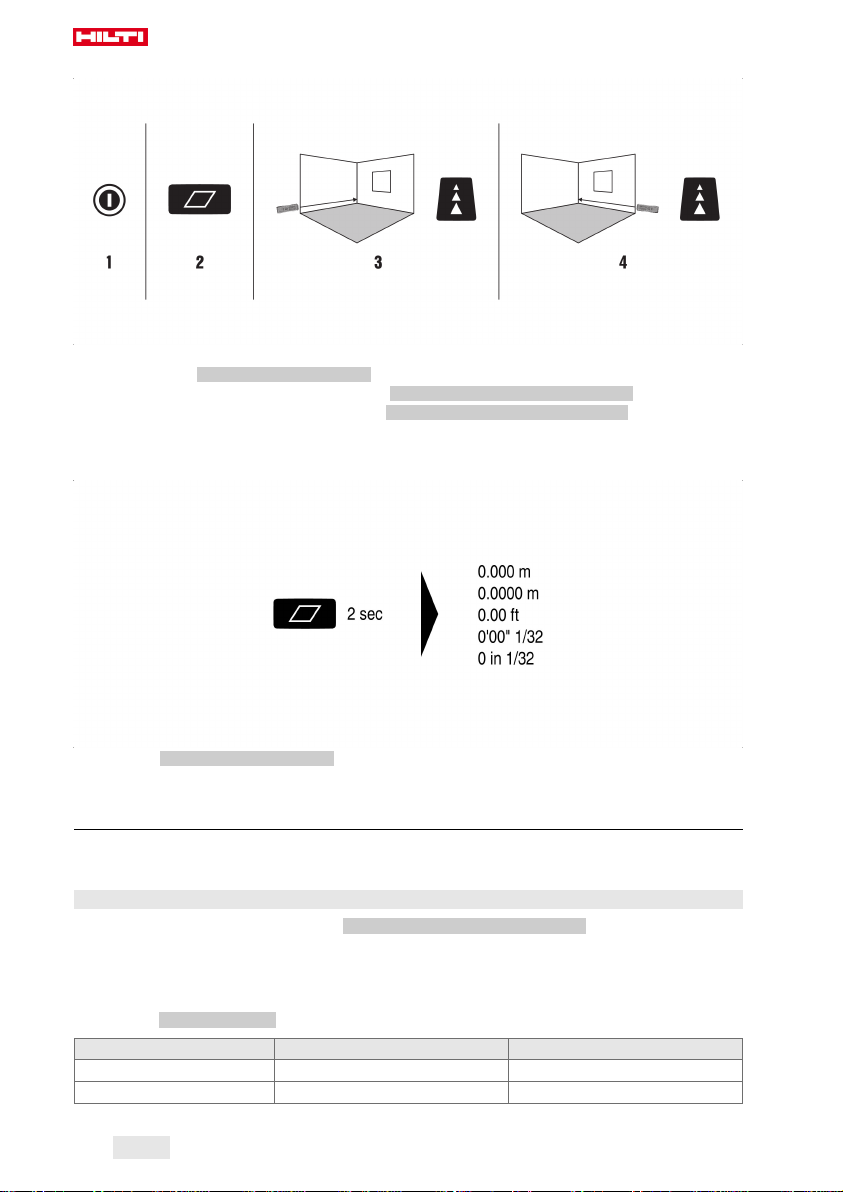

5.2.3 Measuring area
1. Switch on the product. → page 6
2. Short-press the Area measurement / Units button.
3. Measure the length of the area by pressing the Measure / Continuous measurement button.
4. Measure the width of the area by pressing the Measure / Continuous measurement button.
◁The area is calculated and the result is shown on the display.
5.2.4 Changing units
▶Press the Area measurement / Units button for 2 seconds to toggle from one unit of measurement to
the other.
6 Troubleshooting
If the trouble you are experiencing is not listed in this table or you are unable to remedy the problem by
yourself, please contact Hilti Service.
6.1 Fault codes
If a fault code appears, short-press the Measure / Continuous measurement button to return to the
measuring mode.
Restart the product if the fault code does not disappear automatically.
If a fault code re-appears, use the table below to find the corresponding information for dealing with the
problem.
•Press the ON / Delete / OFF button to clear the fault code from the display.
Trouble or fault Possible cause Action to be taken
204 Calculation error ▶Take the measurement again.
240 Data-transfer fault ▶Repeat the procedure.
Printed: 29.03.2018 | Doc-Nr: PUB / 5410155 / 000 / 00

English 9
Trouble or fault Possible cause Action to be taken
252 Temperature too high ▶Allow the product to cool down.
253 Temperature too low ▶Warm up to the product.
254 Battery voltage too low for mea-
surement
▶Change the batteries. → page 5
255 Incoming signal too weak ▶Use a different target surface
(e.g. white paper).
Measurement has taken too long ▶Use a different target surface
(e.g. white paper).
256 Incoming signal too strong ▶Use a different target surface
(e.g. white paper).
257 Too much background light ▶Shade the target area.
258 Measurement out of measuring
range
▶Correct the measuring range.
260 Laser beam interrupted ▶Repeat measurement.
7 Care, transport and storage
7.1 Care
▶Keep the laser lens clear of dirt and finger marks.
▶Clean the laser lens by blowing off dust or by wiping with a clean, soft cloth.
▶Use only pure alcohol or water for cleaning.
7.2 Transport
The batteries must be insulated or removed from the product before it is shipped or sent by mail.
▶Use the Hilti packaging or packaging of equivalent quality for transporting or shipping your equipment.
7.3 Storage and drying
▶Do not put the product into storage when wet. Allow it to dry before putting it away.
▶Observe the temperature limits given in the Technical Data section which are applicable to storage or
transport of the equipment.
▶Check the accuracy of the equipment before it is used after a long period of storage or transportation.
8 Disposal
Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The
materials must be correctly separated before they can be recycled. In many countries, your old tools,
machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative
for further information.
▶Disposal of electric tools or appliances together with household waste is not permissible.
9 Manufacturer’s warranty
▶Please contact your local Hilti representative if you have questions about the warranty conditions.
Printed: 29.03.2018 | Doc-Nr: PUB / 5410155 / 000 / 00

10 English
Printed: 29.03.2018 | Doc-Nr: PUB / 5410155 / 000 / 00

Printed: 29.03.2018 | Doc-Nr: PUB / 5410155 / 000 / 00

Printed: 29.03.2018 | Doc-Nr: PUB / 5410155 / 000 / 00

Printed: 29.03.2018 | Doc-Nr: PUB / 5410155 / 000 / 00

Hilti = registered trademark of Hilti Corp., Schaan 20180307
Printed: 29.03.2018 | Doc-Nr: PUB / 5410155 / 000 / 00
