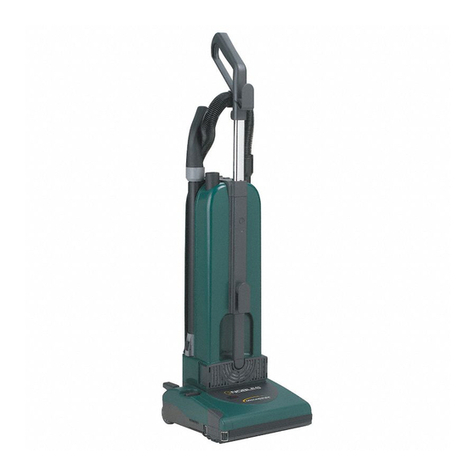

Nobles UltraGlide SMU User manual

Nobles | 701 N. Lilac Drive | P.O. Box 1452 | Minneapolis MN 55440-1452 | 800.553.8033 | www.nobles.com | [email protected]
Specifications subject to change without notice. REV 8.14.06
Vacuum System UltraGlide 12” SMU UltraGlide 15” SMU
Motor airflow 92 cfm / 42 liters per second
Waterlift motor 79 in / 2000 mm
Waterlift machine 59 in / 1500 mm
Vacuum motor type 2 stage
Vacuum motor power 850 watts
Vacuum motor hp 1.14 hp
Brush Drive System
Brush belt description Cogged / gear drive belt
Brush
Dynamically balanced for lowest noise and vibration at high rpm. Chevron bristle design converges debris to the vacuum nozzle intake.
Brush motor power (DMUs) 180 watts
Brush RPM 4500 rpm
Debris Recovery System
Vacuum bag description Three-ply paper micro filter bag with “Bag Full/Blockage” indicator light
Vacuum bag capacity 1.2 gal / 4.5 L
Vacuum filtration
Standard Five-level Filtration: Three-ply paper filter bag, washable foam intake filter, 3M Filtrete®, exhaust microfilter together yield 98% @ 0.3 micron
size filtration. Optional HEPA motor intake filter rated at 99.97% efficient at
0.3 micron size.
Vacuum hose length 15 in / 380 mm stretches to 63 in / 1600 mm
Vacuum wand Telescopic 21 in / 530 mm to 35 in / 890 mm
1-piece wand 1 in / 32 mm I.D. diam
Power Cord
Power cord length 49 ft / 15 m
Power cord type 17 gauge, 3-wire SJT, safety yellow, UL-listed
Dimensions / Sound Level
Height 44 in / 1120 mm
Length 13 in / 330 mm
Width 12 lb / 300 mm
Weight (w/o cord) 16.6 lb / 7.5 kg 17.1 lb / 7.8 kg
Handle weight 2.5 lb / 1.1 kg
Sound level 69 dBA
Warranty 1 year parts and labor. 3 year limited on motors and belt, not subject to
wear
UltraGlide®
Single Motor specifications

Nobles | 701 N. Lilac Drive | P.O. Box 1452 | Minneapolis MN 55440-1452 | 800.553.8033 | www.nobles.com | [email protected]
Specifications subject to change without notice. REV 8.14.06
Vacuum System UltraGlide 12” DMU UltraGlide 15” DMU UltraGlide 18” DMU
Airflow motor 92 cfm / 42 liters per second
Waterlift motor 79 in / 2000 mm
Waterlift machine 59 in / 1500 mm
Vacuum motor type 2 stage
Vacuum motor power 800 watts
Vacuum motor hp 1.07 hp
Brush Drive System
Brush belt description Cogged / gear drive belt
Brush
Dynamically balanced for lowest noise and vibration at high rpm. Chevron bristle design converges debris to the vacuum nozzle intake.
Brush motor power (DMUs) 180 watts 180 watts 200 watts
Brush RPM 5000 rpm 5000 rpm 4500 rpm
Debris Recovery System
Vacuum bag description Three-ply paper micro filter bag with “Bag Full/Blockage” indicator light
Vacuum bag capacity 1.2 gal / 4.5 L
Vacuum filtration
Standard Five-level Filtration: Three-ply paper filter bag, washable foam
intake filter, 3M Filtrete®, exhaust microfilter together yield 98% @ 0.3 micron
size filtration. Optional HEPA motor intake filter rated at 99.97% efficient at
0.3 micron size.
Vacuum hose length 15 in / 380 mm stretches to 63 in / 1600 mm
Vacuum wand
Telescopic 21 in / 530 mm to 35 in / 890 mm 1-piece wand 1 in / 32 mm I.D. diam
Power System
Power cord length 49 ft / 15 m
Power cord type 17 gauge, 3-wire SJT, safety yellow, UL-listed
Dimensions / Sound Level
Height 44 in / 1120 mm
Length 13 in / 330 mm
Width 12 lb / 300 mm
Weight 17.9 lb / 8.1 kg 18.4 lb / 8.3 kg 19.2 lb / 8.7 kg
Handle weight 2.5 lb / 1.1 kg
Sound level 69 dBA
Warranty 1 year parts and labor. 3 year limited on motors and belt, not subject to
wear
UltraGlide®
Dual Motor specifications
