NOCO Genius Genius G7200 User manual

Welcome. Thank you for buying the NOCO Genius®
G7200. Read and understand the User Guide before
operating the charger. For questions regarding our chargers,
view our comprehensive support information at www.no.co/
support. To contact NOCO for personalized support (not
available in all areas), visit www.no.co/connect.
What’s In The Box.
• G7200 Smart Charger
• (1) Battery Clamp Connectors
• (1) Eyelet Terminal Connectors
• User Guide
• Information Guide and Warranty
User Guide
G7200V2.0
PRIOR TO USE, READ AND UNDERSTAND
PRODUCT SAFETY INFORMATION.
Failure to follow the instructions may result
in ELECTRICAL SHOCK, EXPLOSION,
or FIRE, which may result in SERIOUS
INJURY, DEATH, DAMAGE TO DEVICE or
PROPERTY. Do not discard this information.
DANGER
Cortesía de www.bateriasdelitio.eu
Cortesía de www.bateriasdelitio.eu

Contacting NOCO.
About G7200. The NOCO Genius®G7200 represents
some of the most innovative and advanced technology
on the market, making each charge simple and easy. It is
quite possibly the safest and most efcient charger you
will ever use. The G7200 is designed for charging all types
of 12V lead-acid and 12V lithium-ion batteries, including
Wet (Flooded), Gel, MF (Maintenance-Free), CA (Calcium),
EFB (Enhanced Flooded Battery), AGM (Absorption Glass
Mat), and LIB (Lithium Ion) batteries. It is suitable for
charging battery capacities from 14 to 230 Amp-Hours and
maintaining all battery sizes.
Getting Started. Before using the charger, carefully
read the battery manufacturer’s specic precautions and
recommended rates of charge for the battery. Make sure
to determine the voltage and chemistry of the battery by
referring to your battery owner’s manual prior to charging.
Mounting. The G7200 has four (4) external holes for
mounting. Mount the charger in a desired location with
#6 self-drill screws. Make sure there are no obstructions
behind the mounting surface. It is important to keep in mind
the distance to the battery. The DC cable length from the
charger, with either the battery clamp or eyelet terminal
connectors, is approximately 75-inches (1,900mm).
Charging Modes. The G7200 has nine (9) modes:
Standby, 12V NORM, 12V COLD/AGM, 24V NORM, 24V
COLD/AGM, 12V LITHIUM, 12V AGM+, 13.6V SUPPLY,
and 12V REPAIR. Some charge modes must be pressed
and held for three (3) seconds to enter the mode. These
“Press and Hold” modes are advanced charging modes
that require your full attention before selecting. “Press
and Hold” are indicated on the charger by a red line. It is
important to understand the differences and purpose of
each charge mode. Do not operate the charger until you
1.800.456.6626
[email protected]
30339 Diamond Parkway, #102
Glenwillow, OH 44139
United States of America
Phone:
Email:
Mailing Address:
Cortesía de www.bateriasdelitio.eu
Cortesía de www.bateriasdelitio.eu

222
conrm the appropriate charge mode for your battery.
Below is a brief description:
Mode Explanation
12V
NORM
Standby
12V
COLD/
AGM
14.8V | 7.2A | 14-230Ah Batteries
24V
NORM
29V | 3.6A | 14-115Ah Batteries
29.6V | 3.6A | 14-115Ah Batteries
No Power
14.5V | 7.2A | 14-230Ah Batteries
24V
COLD/
AGM
In Standby mode, the charger is not
charging or providing any power to
the battery. Energy Save is activated
during this mode, drawing microscopic
power from the electrical outlet. When
selected, an orange LED will illuminate.
For charging 12-volt Wet Cell, Gel Cell,
Enhanced Flooded, Maintenance-Free
and Calcium batteries. When selected,
a white LED will illuminate.
For charging 12-volt batteries in cold
temperatures below 50ºF (10ºC) or
AGM batteries. When selected, a blue
LED will illuminate.
For charging 24-volt Wet Cell, Gel Cell,
Enhanced Flooded, Maintenance-Free
and Calcium batteries. When selected,
a white LED will illuminate.
For charging 24-volt batteries in cold
temperatures below 50ºF (10ºC) or
AGM batteries. When selected, a blue
LED will illuminate.
Cortesía de www.bateriasdelitio.eu
Cortesía de www.bateriasdelitio.eu

Using 12V Lithium. [Press & Hold]
12V Lithium charge mode is designed for 12-volt
lithium-ion batteries only, including lithium iron phosphate.
CAUTION. USE THIS MODE WITH CARE. THIS MODE IS
FOR 12-VOLT LITHIUM BATTERIES ONLY. LITHIUM-
ION BATTERIES ARE MADE AND CONSTRUCTED
IN DIFFERENT WAYS AND SOME MAY OR MAY NOT
CONTAIN A BATTERY MANAGEMENT SYSTEM (BMS).
CONSULT THE LITHIUM BATTERY MANUFACTURER
BEFORE CHARGING AND ASK FOR RECOMMENDED
CHARGING RATES AND VOLTAGES. SOME LITHIUM-ION
BATTERIES MAY BE UNSTABLE AND UNSUITABLE FOR
CHARGING.
Mode Explanation
12V
AGM+
13.6V
SUPPLY
12V
LITHIUM
15.5V | 7.2A | 14-230Ah Batteries
13.6V | 5A | Max 6A
14.2V | 7.2A | 14-230Ah Batteries
16.5V | 1.5A | Any Capacity
Press & Hold
12V
REPAIR
For charging 12-volt advanced AGM
batteries, which requires a higher
than normal charging voltage. When
selected, a blue LED will illuminate.
Converts to a DC power supply for
powering any 12VDC device, like a tire
inator, oil changer, or as a memory
retainer when replacing a battery. When
selected, a red LED will illuminate.
For charging 12-volt lithium-ion
batteries, including lithium iron
phosphate. When selected, a blue
LED will illuminate.
An advanced battery recovery mode
for repairing and storing, old, idle,
damaged, stratied or sulfated
batteries. When selected, a red LED
will illuminate and ash
Press & Hold
Press & Hold
Press & Hold
Cortesía de www.bateriasdelitio.eu
Cortesía de www.bateriasdelitio.eu

444
Using 12V AGM+. [Press & Hold]
12V AGM+ charge mode is designed for 12-volt
advanced AGM batteries only. Advanced AGM batteries
are a new battery technology typically found in start-
stop micro-hybrid vehicles. These batteries accept a
higher than normal charging voltage around 15.5-volts.
12V AGM+ charge mode is NOT suitable for traditional
AGM batteries. Consult the battery manufacturer before
using this mode.
CAUTION. USE THIS MODE WITH CARE. THIS
MODE IS FOR 12-VOLT LEAD-ACID ADVANCED
AGM BATTERIES ONLY. THIS MODE USES A HIGH
CHARGING VOLTAGE AND MAY CAUSE SOME
WATER LOSS IN WET (FLOODED) CELL BATTERIES
OR OVERCHARGE IN SOME BATTERIES.
Using 13.6V Supply. [Press & Hold]
13.6V Supply converts the charger to a constant
current, constant voltage DC power supply. It can be
used to power 12VDC devices, including; tire inators,
oil changers, coffee pots, seat heaters and more. As a
power supply, it can also be used to retain a vehicle’s
on-board computer settings during battery repair or
replacement. 13.6V Supply provides 13.6-volts at 5A
with overload protection at 6A (Max).
CAUTION. THIS MODE IS FOR 12-VOLT LEAD-ACID
BATTERIES ONLY. PRIOR TO USE, READ YOUR
12VDC DEVICE MANUAL TO DETERMINE IF IT IS
SUITABLE FOR USE WITH THIS MODE. BOTH THE
SPARK PROOF AND REVERSE POLARITY SAFETY
FEATURES ARE DISABLED IN THIS MODE. DO NOT
ALLOW THE POSITIVE AND NEGATIVE BATTERY
CLAMP OR EYELET TERMINAL CONNECTORS TO
TOUCH OR CONNECT TO EACH OTHER AS THE
CHARGER COULD GENERATE SPARKS. CHECK THE
POLARITY OF THE BATTERY TERMINALS BEFORE
USING THIS MODE.
Cortesía de www.bateriasdelitio.eu
Cortesía de www.bateriasdelitio.eu

Using 12V Repair. [Press & Hold]
12V Repair is an advanced battery recovery mode for
repairing and storing, old, idle, damaged, stratied or
sulfated batteries. Not all batteries can be recovered.
Batteries tend to become damaged if kept at a low charge
and/or never given the opportunity to receive a full charge.
The most common battery problems are battery sulfation
and stratication. Both battery sulfation and stratication
will articially raise the open circuit voltage of the battery,
causing the battery to appear fully charged, while providing
low capacity. Use 12V Repair in attempt to reverse these
problems. For optimal results, take the 12-volt battery
through a full charge cycle, bringing the battery to full
charge, before using this mode. 12V Repair can take up
to four (4) hours to complete the recovery process and will
return to Standby when completed.
CAUTION. USE THIS MODE WITH CARE. THIS MODE
IS FOR 12-VOLT LEAD-ACID BATTERIES ONLY. THIS
MODE USES A HIGH CHARGING VOLTAGE AND MAY
CAUSE SOME WATER LOSS IN WET (FLOODED) CELL
BATTERIES. BE ADVISED, SOME BATTERIES AND
ELECTRONICS MAY BE SENSITIVE TO HIGH CHARGING
VOLTAGES. TO MINIMIZE RISKS TO ELECTRONICS,
DISCONNECT THE BATTERY BEFORE USING THIS
MODE.
Connecting to the Battery.
Do not connect the AC power plug until all other
connections are made. Identify the correct polarity of
the battery terminals on the battery. The positive battery
terminal is typically marked by these letters or symbol
(POS,P,+). The negative battery terminal is typically marked
by these letters or symbol (NEG,N,-). Do not make any
connections to the carburetor, fuel lines, or thin, sheet metal
parts. The below instructions are for a negative ground
system (most common). If your vehicle is a positive ground
system (very uncommon), follow the below instructions in
reverse order.
1.) Connect the positive (red) battery clamp or eyelet
terminal connector to the positive (POS,P,+) battery
terminal.
Cortesía de www.bateriasdelitio.eu
Cortesía de www.bateriasdelitio.eu

666
2.) Connect the negative (black) battery clamp or eyelet
terminal connector to the negative (NEG,N,-) battery
terminal or vehicle chassis.
3.) Connect the battery charger’s AC power plug into a
suitable electrical outlet. Do not face the battery when
making this connection.
4.) When disconnecting the battery charger, disconnect
in the reverse sequence, removing the negative rst (or
positive rst for positive ground systems).
Begin Charging.
1.) Verify the voltage and chemistry of the battery.
2.) Conrm that you have connected the battery clamps
or eyelet terminal connectors properly and the AC power
plug is plugged into an electrical outlet.
3.) The charger will begin in Standby mode, indicated by
an orange LED. In Standby, the charger is not providing
any power.
4.) Press the mode button to toggle to the appropriate
charge mode (press and hold for three seconds to enter
an advanced charge mode) for the voltage and chemistry
of your battery.
5.) The mode LED will illuminate the selected charge
mode and the Charge LEDs will illuminate (depending on
the health of the battery) indicating the charging process
has started.
6.) The charger can now be left connected to the battery
at all times to provide maintenance charging.
Cortesía de www.bateriasdelitio.eu
Cortesía de www.bateriasdelitio.eu

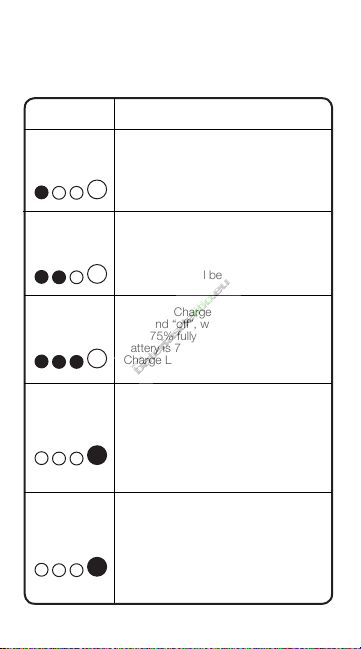

Understanding Charge LEDs.
The charger has four (4) Charge LEDs per bank - 25%,
50%, 75% and 100%. These Charge LEDs indicate the
connected battery(s) state-of-charge (SOC). See the
explanation below:
LED Explanation
Maintenance
Green LED
25%
Red LED The 25% Charge LED will slowly
pulse “on” and “off”, when the battery
is less than 25% fully charged. When
the battery is 25% charged, the red
Charge LED will be solid.
50%
Red LED
During maintenance charging, the
100% Charge LED will pulse “on”
and “off” slowly. When the battery is
topped off and fully charged again,
the 100% Charge LED will turn
solid green. The charger can be left
connected to the battery indenitely.
75%
Orange LED
The 50% Charge LED will slowly
pulse “on” and “off”, when the battery
is less than 50% fully charged. When
the battery is 50% charged, the red
Charge LED will be solid.
The 75% Charge LED will slowly pulse
“on” and “off”, when the battery is less
than 75% fully charged. When the
battery is 75% charged, the orange
Charge LED will be solid.
The 100% Charge LED will slowly
pulse “on” and “off”, when the battery
is less than 100% fully charged. When
the battery is fully charged, the green
LED will be solid, and the 25%, 50%
and 75% Charge LEDs will turn “off”.
100%
Green LED
25% 50% 75% 100%
25% 50% 75% 100%
25% 50% 75% 100%
25% 50% 75% 100%
25% 50% 75% 100%
Cortesía de www.bateriasdelitio.eu
Cortesía de www.bateriasdelitio.eu

888
Understanding Advanced Diagnostics.
Advanced Diagnostics is used when displaying Error
Conditions. It will display a series of blink sequences
that help you identify the cause of the error and
potential solutions.
All Error Conditions are displayed with the Error LED
and Standby LED ashing back and forth. The
number of ashes between each pulse denotes a
potential Error Condition (except reverse polarity and
low-voltage battery).
Error Reason/Solution
Single
Flash
Battery will not hold a charge.
Have battery checked by a
professional.
Possible battery short.
Have battery checked by a
professional.
Battery voltage is too high for
the selected charge mode.
Check the battery and charge
mode.
Error LED
Solid Red
Reverse polarity. Reverse the
battery connections.
Battery voltage is too low for
charge to detect or charger
is in supply. Jumpstart the
battery to raise the battery
voltage.
Double
Flash
Triple
Flash
Standby
Solid Orange
Cortesía de www.bateriasdelitio.eu
Cortesía de www.bateriasdelitio.eu

Memory
Returns to last selected mode when restarted
Interactive
Alters the charging process based on organic
battery feedback
Recovery
Applies a high-voltage pulse charge when low-
voltage, sulfation or lost capacity is detected
Safe
Protects against reverse polarity, sparks,
overcharging, overcurrent, open-circuits,
short-circuits and overheating
Fast
Charges two times faster than traditional
battery chargers
Compensation
Adjusts for varying A/C line voltage for
consistent charging
Rugged
Dirt, water, UV, impact and crush resistant
Compact
High-frequency energy conversion for
ultra-compact, lightweight and portable charger
Start-Stop
Counteracts increased cyclic energy demands
placed on batteries in micro-hybrid vehicles
Firewall
Multi-level safety barrier that prevents abnormal
and unsafe conditions
Cortesía de www.bateriasdelitio.eu
Cortesía de www.bateriasdelitio.eu

101010
Optimization
Stabilizes internal battery chemistry for
increased performance and longevity
Maintenance Plus
Keeps the battery fully charged without
overcharging allowing the charger to be
safely connected indenitely
Energy Save
Minimizes energy consumption when full
power is not needed
Load Tracking
Charge LEDs dynamically track the
batteries state-of-charge when a load
outpaces the charge current
Diagnostics
Intuitive visual diagnostic tool for detecting
reverse polarity, low-voltage or damaged
batteries
CANBUS
Automatically enables the charging port to
charge CANBUS systems
Thermal Monitor
Internal temperature sensors adjust charge
based on ambient climate
Cortesía de www.bateriasdelitio.eu
Cortesía de www.bateriasdelitio.eu

Charging Steps.
Step 1 & 2: Analyze & Diagnose
Checks the battery’s initial condition, including voltage,
state-of-charge and health, to determine if the battery is
stable before charging.
Step 3: Recovery
Initializes the Recovery desulfation process (if needed)
for deeply discharged or sulfated batteries by pulsing
small amounts of current.
Step 4: Initialize
Starts the charging process with a gentle (soft) charge.
Step 5: Bulk
Begins the Bulk charging process based on the
condition of the battery and returns 80% of the battery’s
capacity.
Step 6: Absorption
Brings the charge level to 90% by delivering small
amounts of current to provide a safe, efcient charge.
This limits battery gassing and is essential to prolonging
battery life.
Step 7: Optimization
Finalizes the charging process and brings the battery
to maximum capacity. In this step, the charger utilizes
multi-layered charging proles to fully recapture capacity
and optimize the specic gravity of the battery for
increased run time and performance. The charger will
switch to Maintenance if the battery tells the charger that
more current is needed.
1 2 3 4 5 6 7 8
Analyze
Step
Voltage (V)
Current (A)
Initialize
Diagnose
Bulk
Optimization
Recovery
Absorption
Maintenance
Cortesía de www.bateriasdelitio.eu
Cortesía de www.bateriasdelitio.eu

121212
Step 8: Maintenance
Continuously monitors the battery to determine when
a maintenance charge should be initiated. If the battery
voltage falls below its target threshold, the charger will
restart the Maintenance cycle until voltage reaches its
optimal state and then discontinues the charge cycle.
The cycle between Optimization and Maintenance is
repeated indenitely to keep the battery at full charge.
The battery charger can be safely left connected
indenitely without the risk of overcharging.
Charging Times.
The estimated time to charge a battery is shown below.
The size of the battery (Ah) and its depth of discharge
(DOD) greatly affect its charging time. The charge time
is based on an average depth of discharge to a fully
charged battery and is for reference purposes only.
Actual data may differ due to battery conditions. The
time to charge a normally discharged battery is based
on a 50% DOD.
Battery Size Approx. Time to Charge In Hours
12V
40
80
100
150
230
2.8
5.6
6.9
10.4
16.0
5.6
11.1
13.9
20.8
-
24VAh
Cortesía de www.bateriasdelitio.eu
Cortesía de www.bateriasdelitio.eu

110-120 VAC, 50-60Hz
85-130 VAC, 50-60Hz
85% Approx.
132W Max
Various
7.2A (12V),
3.6A (24V)
2V (12V), 14V (24V)
<5mA
0°C to +40°C
8 Step, Smart Charger
12V & 24V
Wet, Gel, MF, CA, EFB,
AGM & LIB
14-230Ah (12V), 14-115Ah
(24V), Maintains
All Battery Sizes
IP65
Natural Convection
9.17 x 3.74 x 2.32 Inches
1.73 Pounds
Input Voltage AC:
Working Voltage AC:
Efciency:
Power:
Charging Voltage:
Charging Current:
Low-Voltage Detection:
Back Current Drain:
Ambient Temperature:
Charger Type:
Type of Batteries:
Battery Chemistries:
Battery Capacity:
Housing Protection:
Cooling:
Dimensions (L x W x H):
Weight:
Technical Specications.
Cortesía de www.bateriasdelitio.eu
Cortesía de www.bateriasdelitio.eu

14
Bienvenue. Merci pour l’achat d’un NOCO
Genius®G7200. Veuillez lire et comprendre le manuel
d’utilisation avant d’utiliser l’appareil. Pour toutes
questions concernant nos chargeurs, veuillez consulter
nos informations exhaustives à l’adresse www.no.co/
support. Pour contacter NOCO an d’avoir un service
personnalisé (n’existe pas dans toutes les régions),
consultez l’adresse www.no.co/connect.
Contenu de la boîte.
• G7200 Chargeur intelligent
• (1) Bride de serrage HD pour batterie
• (1) Connecteurs de borne à œil
• Manuel d’utilisation
• Guide d’utilisation et garantie
Manuel d’utilisation
G7200V2.0
AVANT TOUTE UTILISATION -
VEUILLEZ LIRE ET COMPRENDRE
LES INDICATIONS DE SÛRETÉ.Ne
pas respecter ces instructions peut
conduire à un CHOC ÉLECTRIQUE, UNE
EXPLOSION, UN INCENDIE pouvant
causer des BLESSURES GRAVES, LA
MORT ou ENDOMMAGER L’APPAREIL
ou d’autres OBJETS. N’ignorez pas les
informations contenues ici.
DANGER
Cortesía de www.bateriasdelitio.eu
Cortesía de www.bateriasdelitio.eu

Contacter NOCO.
À propos de G7200. Le NOCO Genius®G7200
dispose des technologies parmi les plus innovantes et
avancées du marché, rendant chaque chargement simple
et facile. C’est très probablement un des chargeurs les
plus sûrs et les plus efcaces que vous utiliserez. Le G7200
est conçu pour charger tous types de batteries de 12V
plombacide et 12V lithium-ions, y compris des batteries
humides, à gel, MF (sans entretien), CA (Calcium), EFB
(Enhanced Flooded Battery), AGM (Absorption Glass
Mat),LIB (Lithium Ion). Il est adapté au chargement de
batteries d’une capacité de 14 à 230 ampères-heures et à
l’entretien des batteries de toute tailles.
Premiers pas. Avant d’utiliser le chargeur, veuillez lire
attentivement les indications du fabricant et les taux de
chargement recommandés pour la batterie. Soyez certains
de déterminez le voltage et la composition chimique de
la batterie en consultant le guide d’utilisation avant tout
chargement.
Montage. Le G7200 dispose de quatre (4) oeillères de
xation. Fixez le chargeur à l’endroit souhaité avec six
vis. Assurez-vous qu’il n’y a pas d’obstructions derrière
la surface de montage. Il est important de garder à l’esprit
la distance jusqu’à la batterie. La longueur du câble DC
depuis le chargeur, avec soit la bride de serrage ou le
connecteur de borne à œil, est approximativement de 1900
mm (75 pouces).
Modes de chargement. Le G7200 dispose de
neuf (9) modes : Veille, NORMAL 12V, FROID/AGM 12V,
NORMAL 24V, FROID/AGM 24V, LITHIUM 12V, AGM+
12V, 13.6V SUPPLY et RÉPARATION 12V. Pour déclencher
certains modes de chargement, il faut appuyer pendant
trois (3) secondes pour déclencher le mode. Ces modes
“appuyer et maintenir” sont des modes de chargement
avancés qui retiendront toute votre attention avant de les
1.800.456.6626
[email protected]
30339 Diamond Parkway, #102
Glenwillow, OH 44139
United States of America
Téléphone :
E-Mail :
Adresse postale :
Cortesía de www.bateriasdelitio.eu
Cortesía de www.bateriasdelitio.eu

16
déclencher. “Appuyer et charger” sont indiqués sur
le chargeurs sur une ligne rouge. Il est important de
comprendre les différences et les avantages de chaque
mode de chargement. Il est important de charger jusqu’à
ce que vous conrmiez le mode de chargement de votre
batterie. Ci-dessous se trouve une brève description :
Mode Explication
NORME
12V
Veille
FROID/
AGM
12V
14.8V | 7.2A | 14-230Ah Batterie
NORME
24V
29V | 3.6A | 14-115Ah Batterie
29.6V | 3.6A | 14-115Ah Batterie
Pas de courant
14.5V | 7.2A | 14-230Ah Batterie
FROID/
AGM
24V
En mode veille, le chargeur ne charge
pas ou ne fournit aucune électricité à la
batterie. Le mode économie d’énergie
est activé durant ce mode et s’alimente
à très petites doses sur la prise de
courant. Lorsqu’il est choisi, un LED
orange s’allume.
Pour charger une batterie humide, à gel,
EFB (enhanced ooded batteriy), sans
entretien et au calcium. Lorsqu’il est
choisi, un LED blanc s’allume.
Pour charger des batteries de 12 volts
à des températures en-dessous de 10°
C ou des batteries AGM. Lorsqu’il est
choisi, un LED bleu s’allume.
Pour charger une batterie 24 volt
humide, à gel, EFB (enhanced ooded
batteriy), sans entretien et au calcium.
Lorsqu’il est choisi, un LED blanc
s’allume.
Pour charger des batteries de 24 volts
à des températures en-dessous de
10° C ou des batteries AGM. Lorsqu’il
est choisi, un LED bleu s’allume.
Cortesía de www.bateriasdelitio.eu
Cortesía de www.bateriasdelitio.eu

Utilisation du mode lithium 12V.
Appuyer & maintenir
Le mode de chargement lithium 12V est conçu pour
des batteries 12 volts à lithium ions, y compris lithium fer
phosphate.
ATTENTION. UTILISEZ CE MODE AVEC PRÉCAUTION.
CE MODE EST UNIQUEMENT ADAPTÉ À DES BATTERIES
PLOMBACIDE 12 VOLT. LES BATTERIES LITHIUM-IONS
SONT FABRIQUÉES DE MANIÈRES DIFFÉRENTES ET
CERTAINES CONTIENNENT OU NON DES SYSTÈMES
DE GESTION DE BATTERIES (BMS). CONSULTEZ LE
FABRICANT DE BATTERIES LITHIUM AVANT DE CHARGER
ET RENSEIGNEZ-VOUS SUR LES TAUX DE CHARGEMENT
Mode Explication
AGM+
12V
ALIMENTATION
13.6 V
LITHIUM
12V
15.5V | 7.2A | 14-230Ah Batterie
13.6V | 5A | 6A Max
14.2V | 7.2A | 2-120Ah Batterie
16.5V | 1.5A | Tous les Capacités
RÉPARATION
12 V
Pour charger des batteries AGM 12 volt
qui requièrent une tension de chargement
supérieure à la normale. Lorsqu’il est
choisi, un LED bleu s’allume.
Convertit vers une alimentation DC pour
alimenter n’importe quel appareil de 12V
en courant direct, tel un goneur de pneu,
un changeur d’huile ou bien comme
sauvegarde mémoire au moment de
changer une batterie. Lorsqu’il est choisi,
un LED rouge s’allume.
Pour charger des batteries 12 volt
lithium-ions, y compris lithium fer
phosphate. Lorsqu’il est choisi, un LED
bleu s’allume.
Un mode batterie avancé de
récupération pour réparer, sauvegarder
et stocker des batteries sulfatées
ou stratiées, vieilles, inutilisées ou
endommagées. Lorsqu’il est choisi, un
LED rouge s’allumera et clignotera.
Appuyer &
maintenir
Appuyer &
maintenir
Appuyer &
maintenir
Appuyer &
maintenir
Cortesía de www.bateriasdelitio.eu
Cortesía de www.bateriasdelitio.eu

18
ET DE TENSION. CERTAINES BATTERIES LITHIUM-
IONS PEUVENT ÊTRE INSTABLES ET INADAPTÉES
AU CHARGEMENT.
Utilisation du mode de chargement AGM+
12V. Appuyer & maintenir
Le mode de chargement AGM+ 12V est conçu pour
des batteries AGM avancées. Les batteries AGM
avancées disposent d’une nouvelle technologie que
l’on trouve aussi dans les véhicules micro-hybrides
start-stop. Ces batteries acceptent une tension de
chargement plus élevée que d’habitude aux alentours
de 15.5 volts. Le mode de charge AGM+ 12V n’est PAS
adapté à des batteries AGM traditionnelles. Consultez le
fabricant de batteries avant d’utiliser ce mode.
ATTENTION. UTILISEZ CE MODE AVEC
PRÉCAUTION. CE MODE EST UNIQUEMENT ADAPTÉ
À DES BATTERIES PLOMBACIDE AGM AVANCÉES
12 VOLT. CE MODE UTILISE UNE TENSION POUR
CHARGEMENT INTENSE ET PEUT PROVOQUER DES
PERTES D’EAU DANS DES BATTERIES HUMIDES
(EFB - ENHANCED FLOODED BATTERIES), DES
BATTERIES À GEL OU UNE SURCHARGE DANS
CERTAINES BATTERIES.
Utilisation du mode de chargement
alimentation 13.6 V. Appuyer & maintenir
Le mode 13.6 V convertit le chargeur en source
d’alimentation DC de courant et de tension constants.
Il peut être utilisé pour alimenter les appareils 12 VDC,
y compris : des goneurs de pneu, des changeurs
d’huile, des chauffe-siège et bien plus. En tant
qu’alimentation, il peut également être utilisé pour
sauvegarder les paramétrages d’un ordinateur de bord
de véhicule pendant la réparation ou le remplacement
d’une batterie. Le mode 13.6V fournit du courant 13.6
volt à 5 ampères avec une protection de surcharge à 6
ampères (max).
ATTENTION. CE MODE EST UNIQUEMENT
ADAPTÉ À DES BATTERIES PLOMBACIDE 12 VOLT.
AVANT TOUTE UTILISATION, LISEZ LE MANUEL
D’UTILISATION 12VDC POUR DÉTERMINER S’IL EST
ADAPTÉ À UNE UTILISATION AVEC CE MODE. DANS
Cortesía de www.bateriasdelitio.eu
Cortesía de www.bateriasdelitio.eu

CE MODE, LA POLARITÉ INVERSÉE ET LA PROTECTION
ÉTINCELLES SONT DÉSACTIVÉS. N’AUTORISEZ PAS LA
BRIDE DE SERRAGE NÉGATIVE ET POSITIVE OU LES
CONNECTEURS DE BORNES À OEIL DE SE TOUCHER OU
DE SE CONNECTER COMME LE CHARGEUR POURRAIT
GÉNÉRER DES ÉTINCELLES. VÉRIFIEZ LA POLARITÉ DES
BORNES DE LA BATTERIE AVANT D’UTILISER CE MODE.
Utilisation du mode de réparation 12 V.
Appuyer & maintenir
Le mode batterie de réparation 12V de récupération pour
réparer, sauvegarder et stocker des batteries sulfatées
ou stratiées, vieilles, inutilisées ou endommagées. Pas
toutes les batteries peuvent être récupérées. Les batteries
ont tendance à être endommagées si leur chargement
est durablement bas et/ou s’ils ne reçoivent jamais un
chargement complet. Les problèmes de batterie les plus
répandus sont le sulfatage et la stratication de la batterie. Le
sulfatage et la stratication augmentera de façon articicielle
le circuit de tension ouvert de la batterie, ce qui provoquera
l’apparence d’une charge complète, tout en fournissant une
capacité basse. Utilisez les mode de réparation 12V pour
inverser ces problèmes. Pour obtenir les meilleurs résultats,
soumettez la batterie 12 volt à un cycle de chargement
complet, amenant la batterie à une charge complète, avant
d’utiliser ce mode. Ce mode peut prendre jusqu’à quatre (4)
heures pour compléter le processus de récupération, lorsqu’il
sera terminé il reviendra en mode veille.
ATTENTION. UTILISEZ CE MODE AVEC PRÉCAUTION.
CE MODE EST UNIQUEMENT ADAPTÉ À DES BATTERIES
PLOMBACIDE 12 VOLT. CE MODE UTILISE UNE TENSION
POUR CHARGEMENT HAUTE TENSION ET PEUT
PROVOQUER DES PERTES D’EAU DANS DES BATTERIES
HUMIDES. SOYEZ AVERTIS, CERTAINES BATTERIES ET
PIÈCES ÉLECTRONIQUES PEUVENT ÊTRE SENSIBLES
À DES HAUTES TENSIONS DE CHARGEMENT. AFIN
DE RÉDUIRE LES RISQUES POUR LES APPAREILS
ÉLECTRONIQUES, DÉCONNECTEZ LA BATTERIE AVANT
D’UTILISER CE MODE.
Connecter la batterie. Ne connectez pas la prise de
courant AC jusqu’à ce que toutes les autres connections
Cortesía de www.bateriasdelitio.eu
Cortesía de www.bateriasdelitio.eu
