Introduction
With the Nokia Bicycle Charger
DC-14, you can charge the battery in
your compatible Nokia device using
the bottle dynamo mounted on
the bicycle.
The product is designed to be used
on paved roads.
Read this guide carefully before
installing and using the product.
Also, read the user guide for your
bicycle and the Nokia device that you
connect to the charger.
This product may contain small parts.
Keep them out of the reach of
small children.
Warning: The connectors
of this device may contain
a small amount of nickel.
Persons who are sensitised to nickel may
have symptoms from prolonged skin
contact with the connectors.
Parts
The product contains the following
parts shown on the title page:
• Nokia Bicycle Charger DC-14:
charging cable (1), grounding
cable (2), electric cable (3)

ENGLISH
• Dynamo: mounting bracket (4),
lever (5), friction roller (6), latch for
electric wire (7), adjustment bolt
for dynamo position (8)
• Other parts: Nokia Bicycle Holder
CR-124 (9), grounding wire (10),
electric wire (11)
General safety instructions
Obey all local laws. Always keep your
hands free to operate the bicycle
while cycling. Your first consideration
while cycling should be road safety.
Only operate the product if it is safe to
do so under all cycling conditions.
When you install the product, make
sure it does not interfere with or
hinder the steering or braking systems
of the bicycle.
Make sure the product is not installed
where you might come in contact
with it in the event of an accident
or collision.
During extended operation or in high
temperatures, the charger or dynamo
may be very warm. Do not touch the
dynamo for a few minutes after
alongride.
Incorrect installation may cause the
dynamo to fall between the bicycle
spokes and jam the wheel. After riding
a few kilometres, make sure that the
dynamo is still securely fitted. After
that, check every time before using
the bicycle.
Incorrect installation of the dynamo
causes an increase in running
resistance and an excessive wearing
of tyres during operation.

ENGLISH
Mount the dynamo
Only use the supplied dynamo with
the charger.

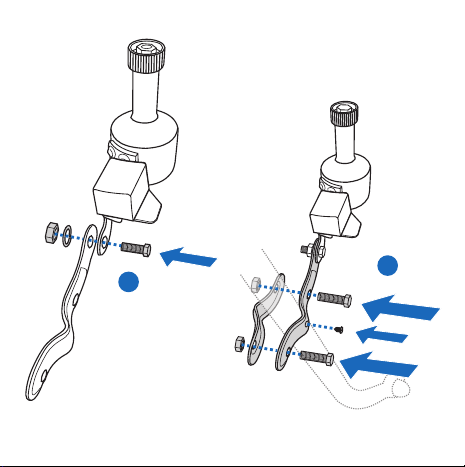

Attach the dynamo to the
mounting bracket
To attach the dynamo to the mounting
bracket, use the supplied bolt, nut,
and washer (12). Make sure the
bracket is firmly attached to the
dynamo.
Attach the bracket to the
front fork
To attach the mounting bracket to the
right side of the front fork on your
bicycle, use the supplied bolts, nuts,
and screw (13). Make sure the bracket
is firmly attached to the fork.

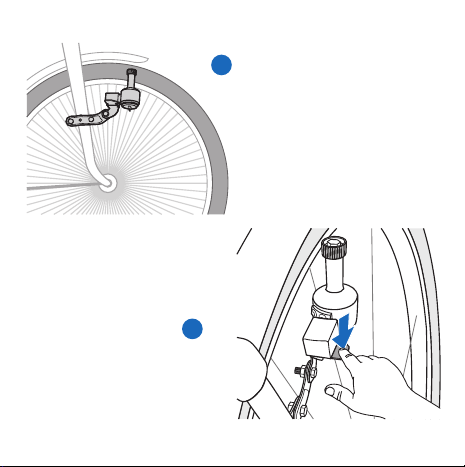

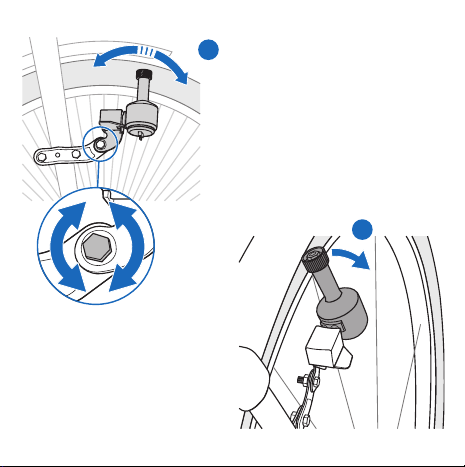

Mount the dynamo against
the tyre
To mount the dynamo against the
tyre, place the friction roller at the
correct angle, height, and distance to
the tyre (14) so that it properly
touches the side of the tyre when you
press the lever (15). Position the
dynamo correctly using the
adjustment bolt (16).
To detach the roller from the tyre, pull
the dynamo away from the tyre (17).
Attach the electric wire
To attach the electric wire to the
dynamo, firmly press and hold the
latch at the bottom of the dynamo
upwards (18), guide the bare end of
the wire through the hole (19), and
release the latch to lock the wire
in place.

ENGLISH
Attach the grounding wire
To attach the grounding wire to the
mounting bracket, place the
connector of the wire under the nut
(20), and tighten the bolt to lock the
wire firmly in place.
Mount the charger and mobile device
Attach the charger to the
handlebar
To attach the charger and your Nokia
mobile device to the handlebar, use
the supplied Nokia Phone Holder for
Bicycles CR-124.

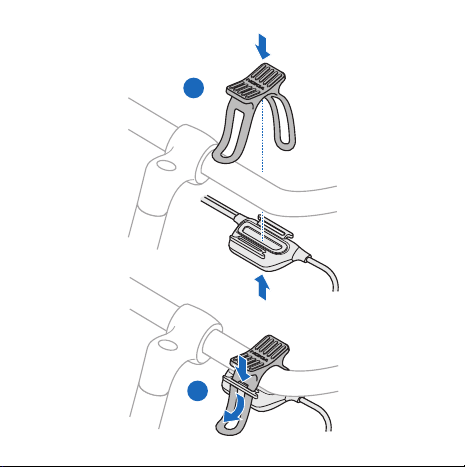

Place the holder on the top and the
charger on the bottom of the
handlebar (21). Thread the straps of
the holder through the slots at the
charger (22).

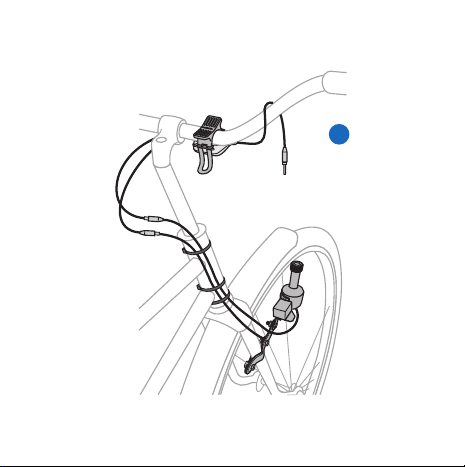

Connect the cables
To connect the charger cables to the
electric wire attached to the dynamo
and the grounding wire attached to
the mounting bracket, press the ends
of the corresponding cables and wires
into each other (23).
Attach the electric and grounding
wires to the head tube with the
supplied removable cable ties.
Make sure the charger is properly
mounted (24).
Attach the mobile device to the
handlebar
Place the mobile device over the
holder. Carefully stretch the holder
straps, and thread them around the
top and rear sides of the mobile device
(25). Make sure the mobile device
stays firmly in place and is properly
mounted (26).

ENGLISH
To keep the holder attached to the
handlebar when you are not using it,
carefully stretch the holder straps over
the handlebar, and thread the straps
behind the tabs on the charger (27).
Make sure the holder stays firmly in
place (28).
Connect the charger to the
mobile device
Plug the charging cable of the charger
into the 2.0 mm charger connector on
your Nokia device.
If you connect the dynamo to
a headlamp at the same time, your
device will not charge properly.
Charge the battery using the dynamo
Make sure the charger is connected
to your mobile device.
Press the lever of the dynamo so that
the friction roller touches the tyre.
Begin pedalling your bicycle faster
than 6 km/h (4 mph), which is
a typical walking speed. If you pedal
too slowly, charging may not start
even when you increase your speed.
In that case, stop the bicycle, and
detach the charging cable from the
mobile device for a few seconds.
Take care of your device
Handle your device and accessories with
care. The following suggestions help you
protect your warranty coverage.
• Keep the device dry. Precipitation,
humidity, and all types of liquids or
moisture can contain minerals that

ENGLISH
corrode electronic circuits. If your
device gets wet, allow it to dry
completely.
• Do not use or store the device in dusty
or dirty areas. Moving parts and
electronic components can be
damaged.
• Do not attempt to open the device.
• Do not drop, knock, or shake the
device. Rough handling can break
mechanics.
• Only use a soft, clean, dry cloth to
clean the surface of the device.
• Do not paint the device. Paint can
clog the moving parts and prevent
proper operation.
Recycle
Always return your used electronic
products, batteries, and packaging
materials to dedicated collection points.
This way you help prevent uncontrolled
waste disposal and promote the
recycling of materials. Check product
environmental information and how to
recycle your Nokia products at
www.nokia.com/werecycle, or with
a mobile device, www.nokia.mobi/
werecycle.
