Introduction
Welcome to Maps. Here is important background
information before you get started.
System requirements
To use Maps, you need the following:
●Mobile device with S60 3.1 or 3.2 edition.
●Minimum of 5 MB free space either in the device
memory or compatible memory card.
About GPS
The Global Positioning System (GPS) is operated by the
government of the United States, which is solely
responsible for its accuracy and maintenance. The
accuracy of location data can be affected by
adjustments to GPS satellites made by the United
States government and is subject to change with the
United States Department of Defense civil GPS policy
and the Federal Radionavigation Plan. Accuracy can
also be affected by poor satellite geometry. Availability
and quality of GPS signals may be affected by your
location, buildings, natural obstacles, and weather
conditions. The GPS receiver should only be used
outdoors to allow reception of GPS signals.
Any GPS should not be used for precise location
measurement, and you should never rely solely on
location data from the GPS receiver and cellular radio
networks for positioning or navigation.
The trip meter has limited accuracy, and rounding
errors may occur. Accuracy can also be affected by
availability and quality of GPS signals.
Assisted GPS (A-GPS) is used to retrieve assistance data
over a packet data connection, which assists in
calculating the coordinates of your current location
when your device is receiving signals from satellites.
GPS receiver
If your device has an internal GPS receiver, you can use
it with Maps. Using the internal GPS receiver may drain
the device battery faster.
Use Maps with a compatible external GPS
receiver
1. Fully charge your GPS receiver, and switch it on.
© 2008 Nokia. All rights reserved.4

2. Set up a Bluetooth connection between your device
and the GPS receiver.
3. Place the GPS receiver in a position with an
unobstructed view to the sky.
4. Open the Maps application, and select the external
GPS receiver.
It may take several minutes to establish the first GPS
connection. Subsequent connections are faster, but, if
you have not used GPS for several days, or you are very
far from the last location you used it, it may take a
while to find a strong satellite signal.
Use the mobile network for positioning
If your mobile device supports assisted GPS (A-GPS),
you can use the mobile network to find your current
location even indoors. This is faster but less accurate
than with GPS, and you cannot use the location as a
starting point for navigation.
To use the mobile network for positioning, select the
network-based positioning method from the device
settings. When you start the Maps application and your
GPS connection is ready, GPS replaces mobile network
as the positioning method. For information about the
mobile network data transmission charges, contact
your service provider.
© 2008 Nokia. All rights reserved. 5

Get started
About Maps
With Maps, you can see your current location on the
map, browse maps for different cities and countries,
search for addresses and different points of interest,
plan routes from one location to another, and save
locations and send them to compatible devices. You
can also purchase licences for extra services, such as
travel guides, traffic information, and navigation
service with voice guidance. These services are not
available for all countries or regions.
When you use Maps for the first time, you may need to
select a cellular or a WLAN access point for
downloading maps.
If you browse to an area which is not covered by maps
already downloaded in your device, a map for the area
is automatically downloaded through the internet.
Some maps may be available in your device or memory
card. You can also use the Nokia Map Loader PC
software to download maps. To install Nokia Map
Loader to a compatible PC, go to www.nokia.com/
maps.
Downloading maps and extra services, such as travel
guides and voice guidance files, may involve the
transmission of large amounts of data through your
service provider's network. For more information on
data transmission charges, contact your service
provider.
To connect to the internet automatically when you
start Maps, select Options > Tools > Settings >
Internet > Go online at start-up > Always on.
To prevent automatic downloading of maps, select
Options > Tools > Settings > Internet > Go
online at start-up > Never.
To set the device to ask your permission before
connecting to the internet, select Options > Tools >
Settings > Internet > Go online at start-up >
Always ask.
To be informed when your device registers to a
network other than your home network, select
Options > Tools > Settings > Internet >
Roaming warning > On (shown only when you are
online). For details and roaming costs, contact your
service provider.
© 2008 Nokia. All rights reserved.6

Tip: To avoid data transfer costs, you can also
use Maps without an internet connection, and
browse the maps that are saved in your device
or memory card.

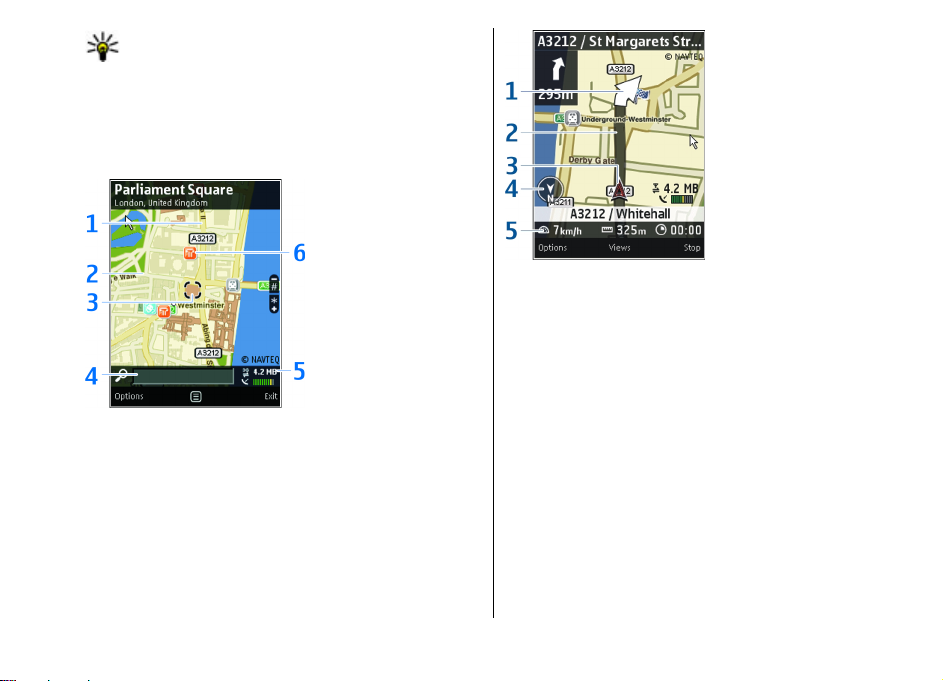

Map elements
Browse maps
1— Main street (yellow)
2— Secondary street (grey)
3— Selected location
4— Search field
5— Indicator area
6— Point of interest (for example, a railway station or
a museum)
Navigate
1— Direction (big arrow)
2— Route (dark grey)
3— Your location (arrow if driving, dot if walking)
4— Compass
5— Information bar (speed, distance, time)
© 2008 Nokia. All rights reserved. 7

Browse maps
The map coverage varies by country and region.
When you open Maps, the capital of the country you
are in or the location that was saved from your last
session is shown. The map of the location is also
downloaded, if needed.
Move on a map
Your location
To zoom in to your GPS position or your last known
location, select Options > My position.
When the GPS connection is active, shows your
current location on the map.
Move and zoom
To move on the map, drag the
map. The map is oriented
towards north by default.
When you have an active
connection and browse the
map on the display, a new
map is automatically
do wnl oaded i f you scroll t o an
area which is not covered by
maps already downloaded.
The maps are automatically
saved in the device memory
or on a compatible memory card (if inserted).
Tip: To avoid data transfer costs, use Nokia Map
Loader to download maps. See "Nokia Map
Loader", p. 20.
To zoom in and out on the map, select +and -.
© 2008 Nokia. All rights reserved.8

Adjust the map view
You can adjust the map view in several ways to suit
your location or usage. Here are only a few examples.
See "Settings", p. 18.
System of measurement
To define the measurement system used in the maps,
select Options > Tools > Settings > Map >
System of measurement > Metric or Imperial.
Points of interest
To define what kinds of points of interest are shown
on the map, select Options > Tools > Settings >
Map > Categories and the desired categories.
Day or night view
To adjust the map for car navigation during daytime
or night-time, select Options > Tools > Settings >
Map > Colours > Day mode or Night mode.
Change map type
To change the map type,
select Options > Map
view > Map, 3D, Satellite,
or Hybrid. The satellite and
hybrid maps are available for
browsing maps and
pedestrian navigation, and
they cannot be downloaded
with Nokia Map Loader.
Satellite data is not available
for all regions.
Display indicators
The GPS indicator on the bottom right
corner of the display shows the availability and
strength of the satellite signal. One bar is one satellite.
When the device tries to find a satellite, the bar is
yellow. When the device receives enough data from
the satellite to establish a GPS connection, the bar
turns green. The more green bars, the stronger the GPS
connection.
Initially, your device must receive signals from at least
four satellites to calculate the coordinates of your
location. After the initial calculation, signals from
three satellites may be enough.
© 2008 Nokia. All rights reserved. 9

The data transfer indicator shows the
internet connection used and the amount of data
transferred since the application started.
© 2008 Nokia. All rights reserved.10

Find places
Need directions? Looking for a restaurant? Maps helps
you get there.
Find locations
To find a location in the city or area displayed on the
map, enter the full or partial address of the location in
the search field. Tap the green arrow, and select
Search. To find a location in another city, enter the city
and the full or partial address, such as London Oxford
Street. For the best results, enter the name of the city
in the local language.
Tip: If unsure of the name of the location, enter
only the first characters of the search word. For
the best search results, enter at least three
characters.
To find a specific address, or an address in another
country, select Options > Search > Addresses.
Country/Region * and City/Post code * are
mandatory.
Tip: To search for locations in another country
using the search field, enter also the name of the
country in the search field: Rome Italy. Enter the
name of the country in English, or use the three
letter ISO-code (ITA for Italy, GBR for Great
Britain, CHN for China).
To import a location address from the Contacts
application, select Options > Search > Addresses >
Options > Select from Contacts.
If you search for locations without an internet
connection, the search results are limited to a radius
of 50 km (31 miles), and the search may be slower.
Search by categories
To make it easier to find the place you are looking for,
the search results are grouped by categories. To limit
the search to one category, select Options >
Search > Places. You can also use the search field for
© 2008 Nokia. All rights reserved. 11

finding places in the categories. Enter the search text
in the field and select Search.
Example: To find
restaurants close to
your location, select
Options > Search >
Places > Eat &
Drink > Restaurants.
Example: To find a
specific hotel, select
Options > Search >
Places >
Accommodation.
Enter the name of the
hotel in the search field, and select Search all.
Plan a route
To plan a route, select your start point on the map, tap
the information area on the top of the map, and select
Add to route.
To define the destination and add more locations for
your route, search for the location, and select
Options > Add route point.
To change the order of the locations in the route, tap
a location, and select Move. Move to the place where
you want to move the location, and select Select.
To edit the route, tap a location, and select Edit
route.
To define the settings for the route, select Options >
Settings.
To show the route on the map, select Options >
Show route.
To simulate the route, select Options > Show
route, tap the information area on the top of the map,
and select Simulate.
To navigate to the destination by car or on foot, if you
have purchased a licence for these extra services,
select Options > Start driving or Start walking.
To save the route, select Options > Save route.
Save and send locations
To save a location to your device, tap the location, tap
the information area on top of the map, and select Add
to My places. The location is saved in Favourites >
My places.
To send a location to a compatible device, tap the
location, and select Send. If you send the location in a
text message, the information is converted to plain
text.
© 2008 Nokia. All rights reserved.12

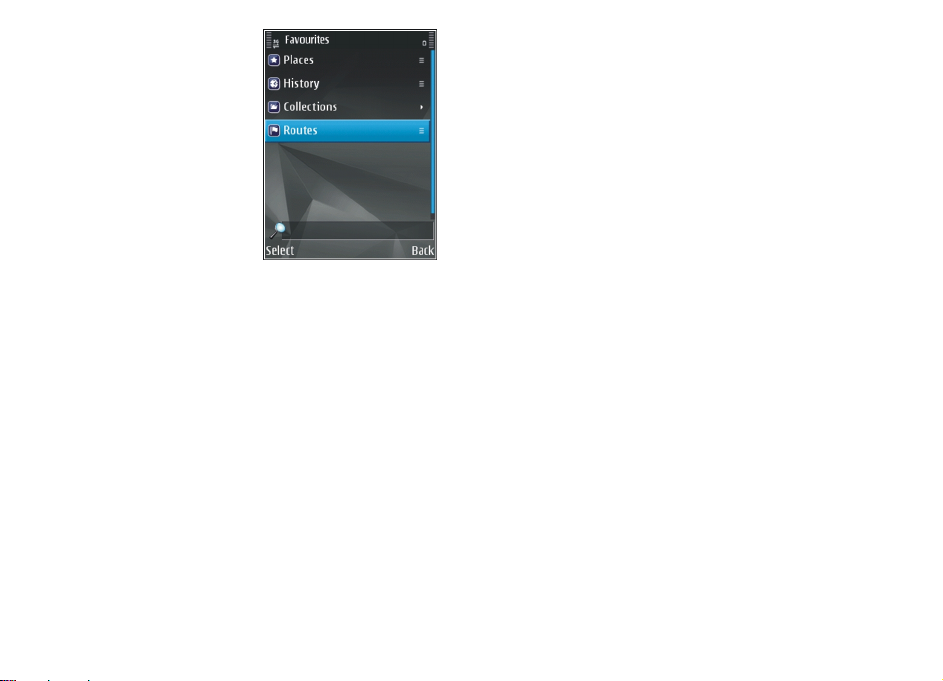

View your saved items
To view the items you have saved to your device, select
Options > Favourites.
Places
To view the locations you have saved to your device,
select My places.
To organise the saved locations, select Options >
Sort.
To view the selected location on the map, select Show
on map.
To add the location to a route, tap the location, and
select Add > Add to route.
History
To check which locations you have searched for on the
map, select History.
To view the selected location on the map, select Show
on map.
To send the location to a compatible device, tap the
location, and select Send.
Collections
To create a collection of your favourite places, such as
restaurants or museums, select Collections >
Options > New collection.
To add locations to your collection, open My places,
tap the location, and select Add > Add to
collection.
To view the selected location on the map, select Show
on map.
Routes
To view the routes you have saved, select Routes.
To open the selected route, select Options > Open.
© 2008 Nokia. All rights reserved. 13

© 2008 Nokia. All rights reserved.14

Extra services for Maps
You can purchase a licence and download travel guides
to your device. You can also purchase a licence for
pedestrian or car navigation and traffic information
service. You can pay for the licence through a credit
card or in your phone bill, if supported by your service
provider.
To view and update your licenses, select Options >
Extras > My licenses.
Transfer a licence
You can transfer a licence from your device to another
compatible device, but the licence can only be used in
one device at a time. To transfer the licence, insert your
SIM card to the other device. When prompted, confirm
that you want to transfer the licence. The licence is
disabled from the old device.
You can also transfer the license by selecting
Options > Extras > My licenses.
Walk to your destination
The walking route ignores any possible limitations to
car navigation, such as one-way streets and turn
restrictions, and includes areas such as pedestrian
zones and parks. It also prioritises walkways and
smaller roads, and omits highways and motorways.

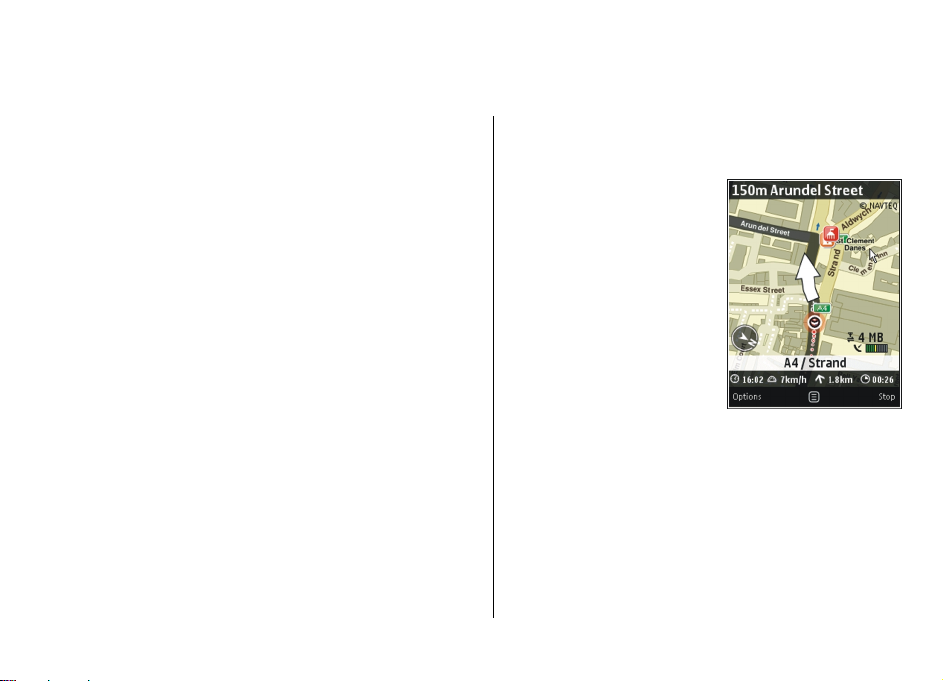

The route is drawn to the
map, and the arrow indicates
the direction. The small dots
show in which direction you
are walking.
The length of a walking route
is limited to a maximum of 50
kilometres (31 miles) and the
travelling speed to a
maximum of 30 km/h (18
miles/h). If the speed limit is
exceeded, navigation stops
and is resumed once the speed is back within limits.
There is no voice guidance available for pedestrian
navigation.
To purchase a licence for pedestrian navigation, select
Options > Extras > Walk. The licence is region-
specific and can be used only in the selected area. You
can pay for the licence through a credit card or in your
phone bill, if supported by your service provider.
© 2008 Nokia. All rights reserved. 15

To start navigating, select a location, tap the
information area on top of the map, and select Walk
to. This service is available when you have purchased
it.
To find an alternative route, select Options >
Different route.
To stop navigating, select Stop navigation.
Drive to your destination
To purchase a licence for pedestrian and car navigation
with voice guidance, select Options > Extras >
Drive & Walk. The licence is region-specific and can
be used only in the selected area.

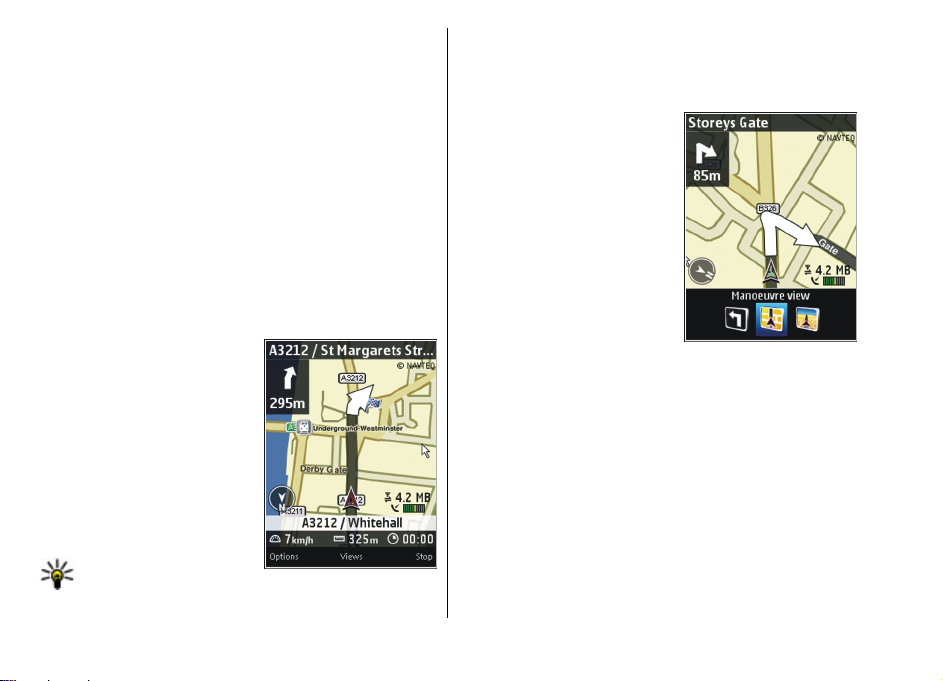

To start navigating by car,
select a location, tap the
information area on the top
of the map, and select Drive
to. When you use car
navigation for the first time,
you are asked to select the
language of the voice
guidance and download the
related voice guidance files.
Tip: You can also use
Nokia Map Loader to
download the voice guidance files.
To switch between different views during the
navigation, tap the information area on the top of the
map, and select Manoeuvre view, Bird's-eye view,
or Arrow view.
To find an alternative route,
select Options > Diff.
route.
To repeat the voice guidance,
select Options > Repeat.
To adjust the volume of the
voice guidance, select
Options > Volume.
To view information about
traffic events that may affect
your travel (extra service),
select Options > Traffic info.
To stop navigating, select Stop navigation.
Traffic information
The real-time traffic information service provides
information about traffic events that may affect your
travel. The traffic information service is an extra
service that you can purchase and download into your
device, if available in your country or region.
© 2008 Nokia. All rights reserved.16

To purchase a licence for the traffic information
service, select Options > Extras > Traffic info.
To view information about traffic events, select
Options > Traffic info. The events are shown on the
map as triangles and lines.
To view the details of an event, including possible
rerouting options, select the event and Options >
Open.
To update the traffic information, select Update
traffic info.
Travel guides
Travel guides provide information about attractions,
restaurants, hotels, and other points of interest. Some
guides contain videos and audio clips. The guides must
be purchased and downloaded before use.
To purchase and download travel guides, or to view
downloaded ones, select Options > Extras >
Guides.
To browse travel guide
categories, select a category.
If there are subcategories,
select a subcategory.

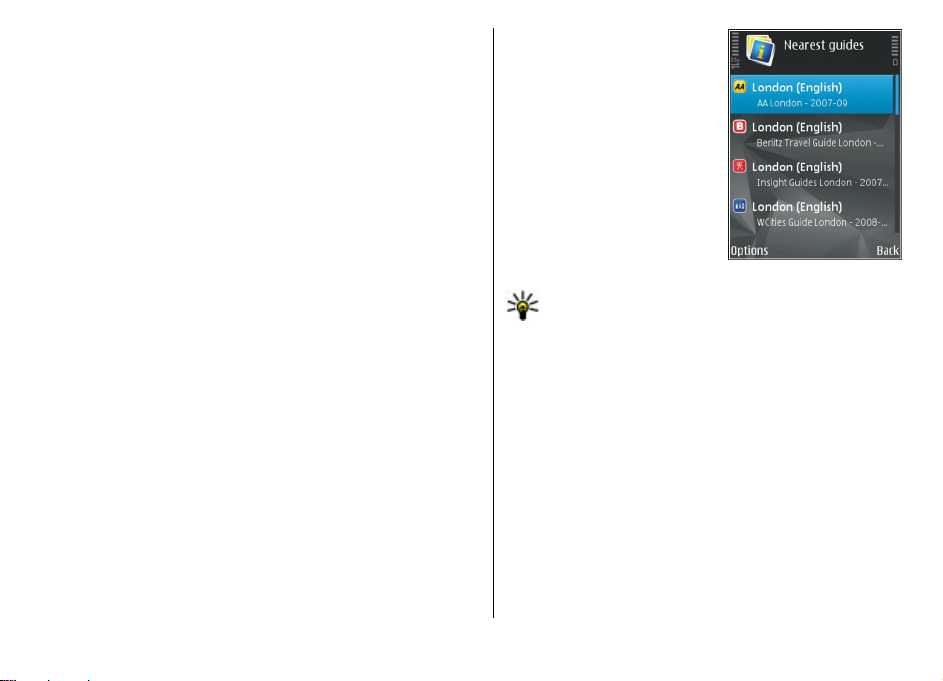

To download a new guide to
your device, scroll to the
desired guide, and select
Yes. You can pay for the
guides through a credit card
or in your phone bill, if
supported by your service
provider.
Tip: There is a 10-minute free trial available for
travel guides. To try out a guide for free, select
Options > Extras > Guides and the desired
guide.
© 2008 Nokia. All rights reserved. 17

Settings
In Settings, you can change, for example, how the
application connects to the internet or what transport
mode is used.
Internet settings
Select Options > Tools > Settings > Internet.
To select whether to allow Maps to open an internet
connection when you start the application, select Go
online at start-up.
To select the access point to be used when connecting
to the internet, select Default access point.
To select whether to be notified when your device
registers to a network other than your home network,
select Roaming warning.
Navigation settings
Select Options > Tools > Settings > Navigation.
To select the language of the voice guidance, select
Voice guidance. You may need to download the voice
files before you can select the language.
To define the backlight setting, select Backlight.
To select how often the information about traffic
events is updated, select Traffic info update.
To set the device to plan a new route to avoid traffic
events, select Reroute due to traffic.
Route settings
Select Options > Tools > Settings > Route.
To select the mode of transportation, select Transport
mode > Walk or Drive. If you select Walk, one-way
streets are regarded as normal streets and walkways
can be used.
To calculate the fastest route, select Route
selection > Faster route. This option is available
only if you have selected Drive as the mode of
transportation.
To calculate the shortest route, select Route
selection > Shorter route.
© 2008 Nokia. All rights reserved.18

To plan a route that combines the advantages of both
the shortest and the fastest route, select Route
selection > Optimised.
Map settings
Select Options > Tools > Settings > Map.
To select the categories of points of interest you want
to display on the map, select Categories. For example,
to display restaurants, select Restaurants.
To optimise the colour scheme for day or night usage,
select Colours.
To select how much of the device memory or space
available on the compatible memory card (if inserted)
can be used to store map data, select Maximum
memory use. When the memory limit is reached, the
oldest data is removed.
To select whether to use the metric or imperial system,
select System of measurement.
© 2008 Nokia. All rights reserved. 19

Get updates
You can update the Maps application and the maps
saved in your device or memory card either using your
device, the Maps website, or Nokia Map Loader.
Tip: You can use Nokia Map Loader also to
download new maps, not just to update existing
ones.
Update maps
To update the maps on your device, select Options >
Tools > Settings > Map > Options > Check for
map updates, or use Nokia Map Loader.
To update the Maps application, use the Download!
application in your device, or go to www.nokia.com/
maps.
Nokia Map Loader
With the Nokia Map Loader application, you can
download maps and voice guidance files from the
internet to the device memory or a compatible
memory card. You must use the Maps application and
browse maps at least once before using Nokia Map
Loader, as Nokia Map Loader uses the Maps
information to check which version of the maps to
download.
To install Nokia Map Loader to a compatible PC or Mac,
go to www.nokia.com/maps, and follow the
instructions on the screen.
Download maps with Nokia Map Loader
1. Connect your device to the computer with a
compatible USB data cable or Bluetooth
connection. If you use a data cable, select PC Suite
as the USB connection method for PCs, and Nokia
mode for Macs.
2. Start Nokia Map Loader on the computer.
3. Select a continent and a country. Small countries
may be chosen in their entirety; others have several
sub-maps from which to choose.
4. Select the maps or extra services, and download
and install them to your device.
© 2008 Nokia. All rights reserved.20
