Nokia 7020 User manual

Nokia 7020 RM-497
Service Manual Level 1&2
1 Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1
SERVICE MANUAL
Level 1&2
RM-497
Transceiver characteristics
Band:
GSM 850/900/1800/1900
Main display:
2.2" 320 x 240 pixels (QVGA), up to 262,144 colours
Secondary display:
1.36" 160 x 128 pixels, black and white
Camera:
2 megapixel camera
Operating System:
S40
Connections:
MicroUSB connector, USB 2.0
2.5 mm Nokia AV connector
DC Charger
microSD memory card slot
Bluetooth 2.1 +EDR
Transceiver with BL-4U battery pack
Talk time Standby
GSM:
Up to 4h 36min
GSM:
Up to360 hours
Note:
Talk times are dependant on network parameters and
phone settings

Nokia 7020 RM-497
Service Manual Level 1&2
2 Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1
Table of contents
1.Change history ...............................................................................................................................................................................3
2.Copyright..........................................................................................................................................................................................4
3.Warnings and cautions...............................................................................................................................................................5
3.1Warnings ................................................................................................................................................................................5
3.2Cautions ..................................................................................................................................................................................5
4.ESD protection................................................................................................................................................................................6
5.Care and maintenance ................................................................................................................................................................7
6.Battery information .....................................................................................................................................................................8
7.Exploded view................................................................................................................................................................................9
8.Service devices .............................................................................................................................................................................10
9.SW-update.....................................................................................................................................................................................11

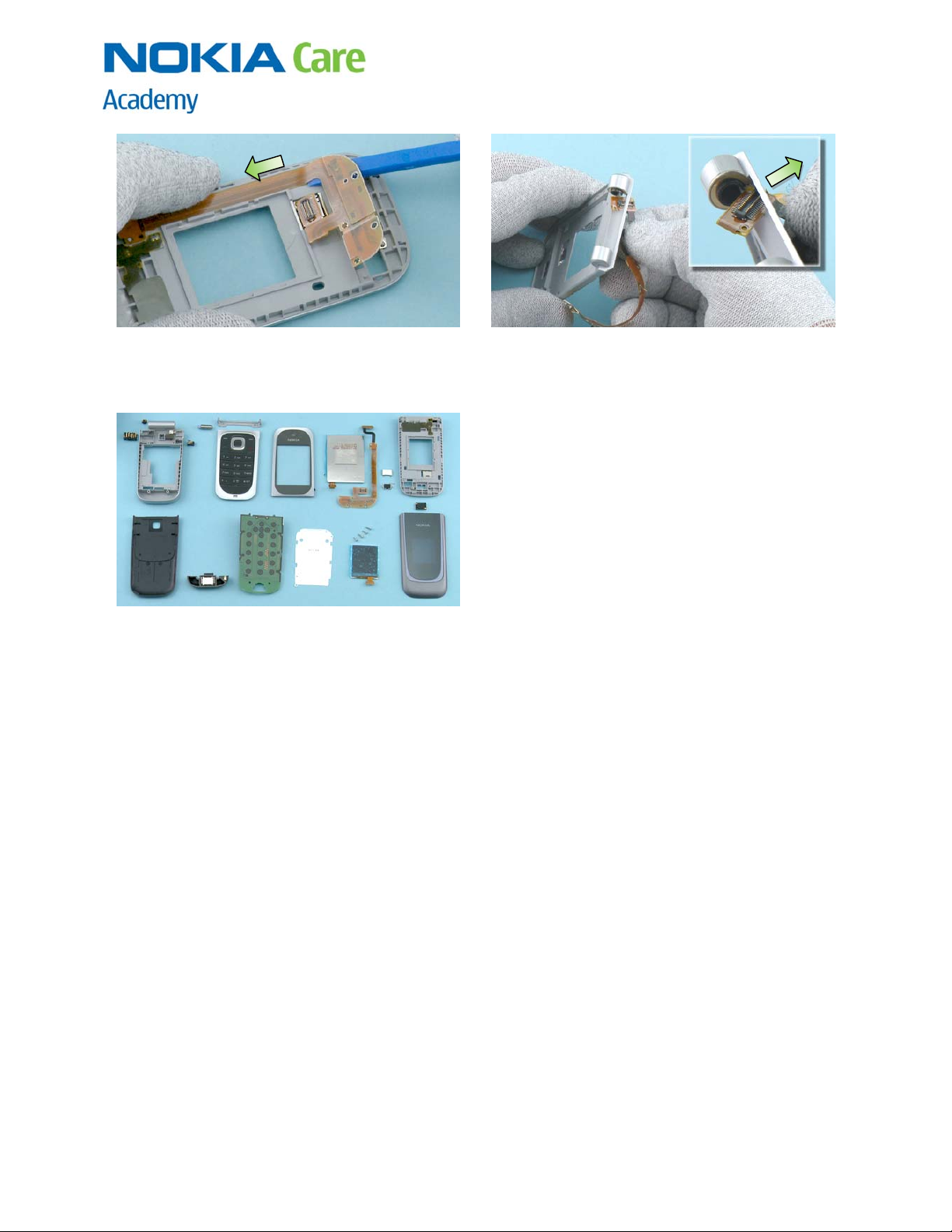

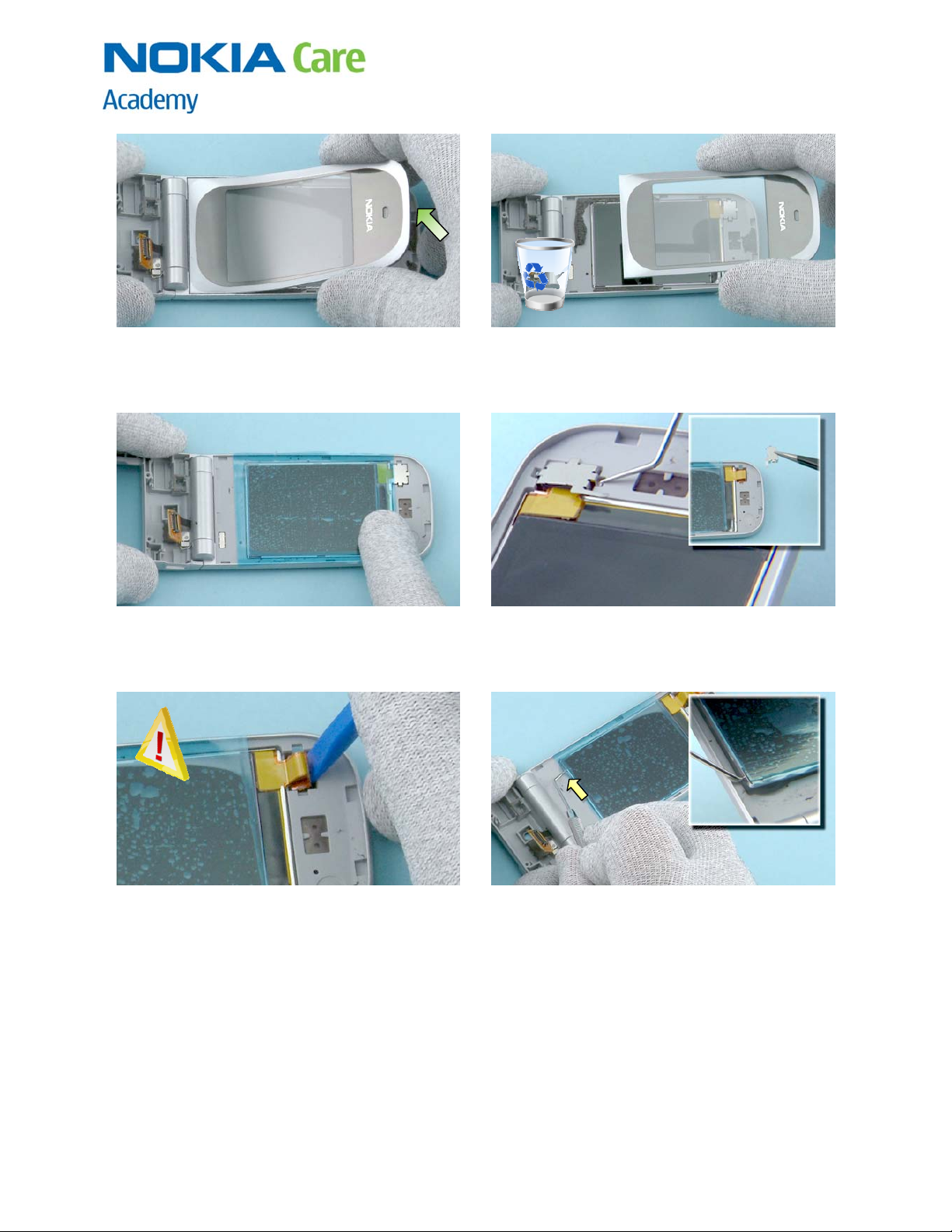

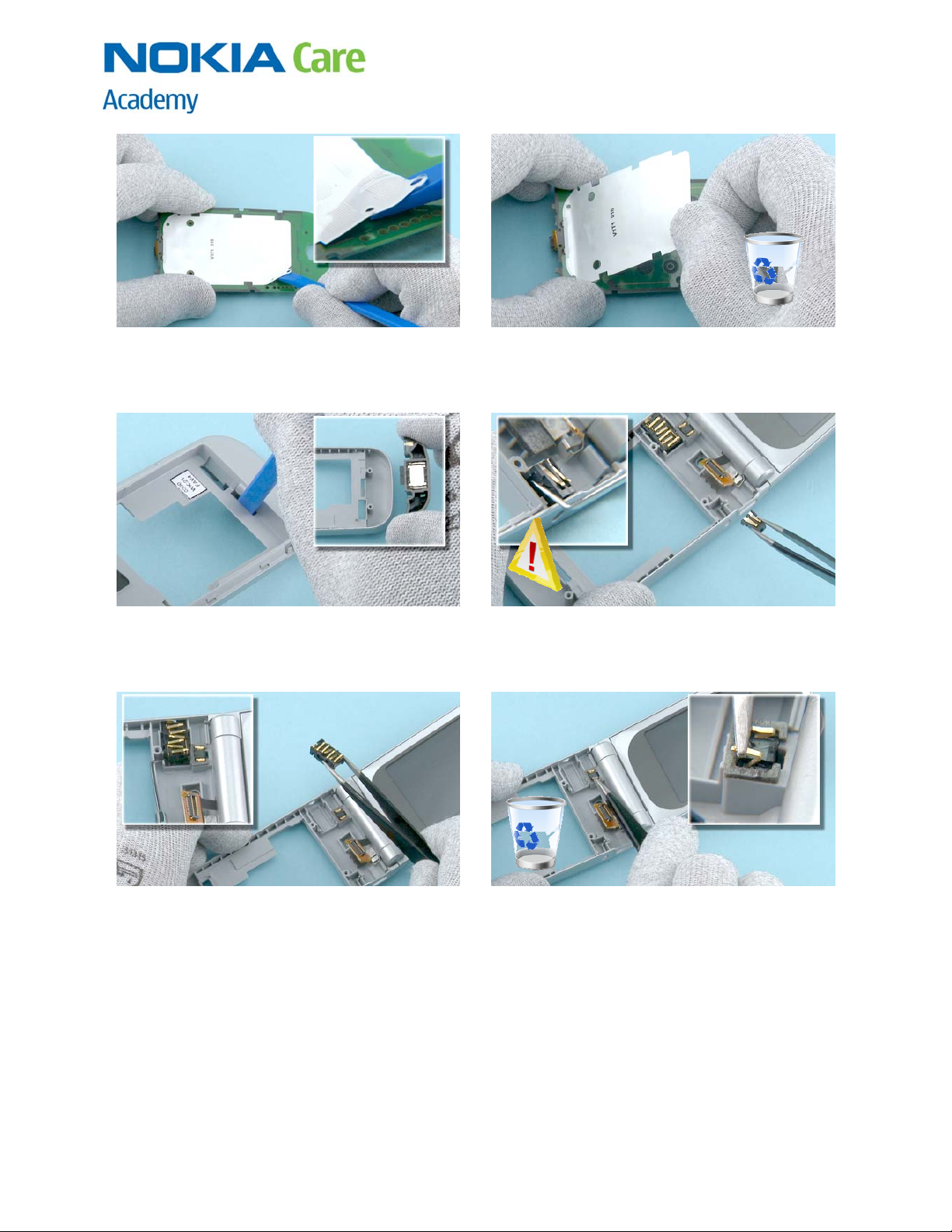

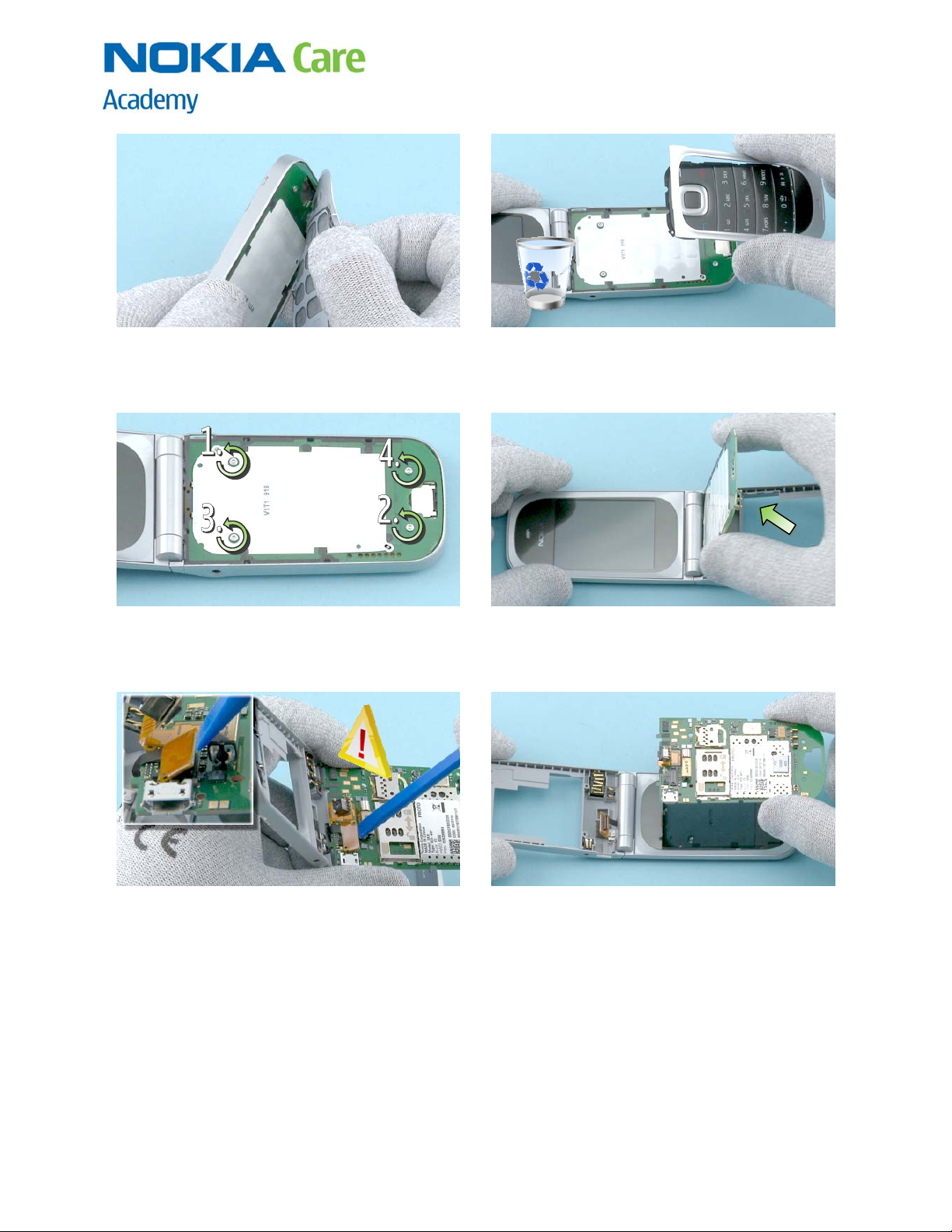

10.Disassembly instructions.....................................................................................................................................................12

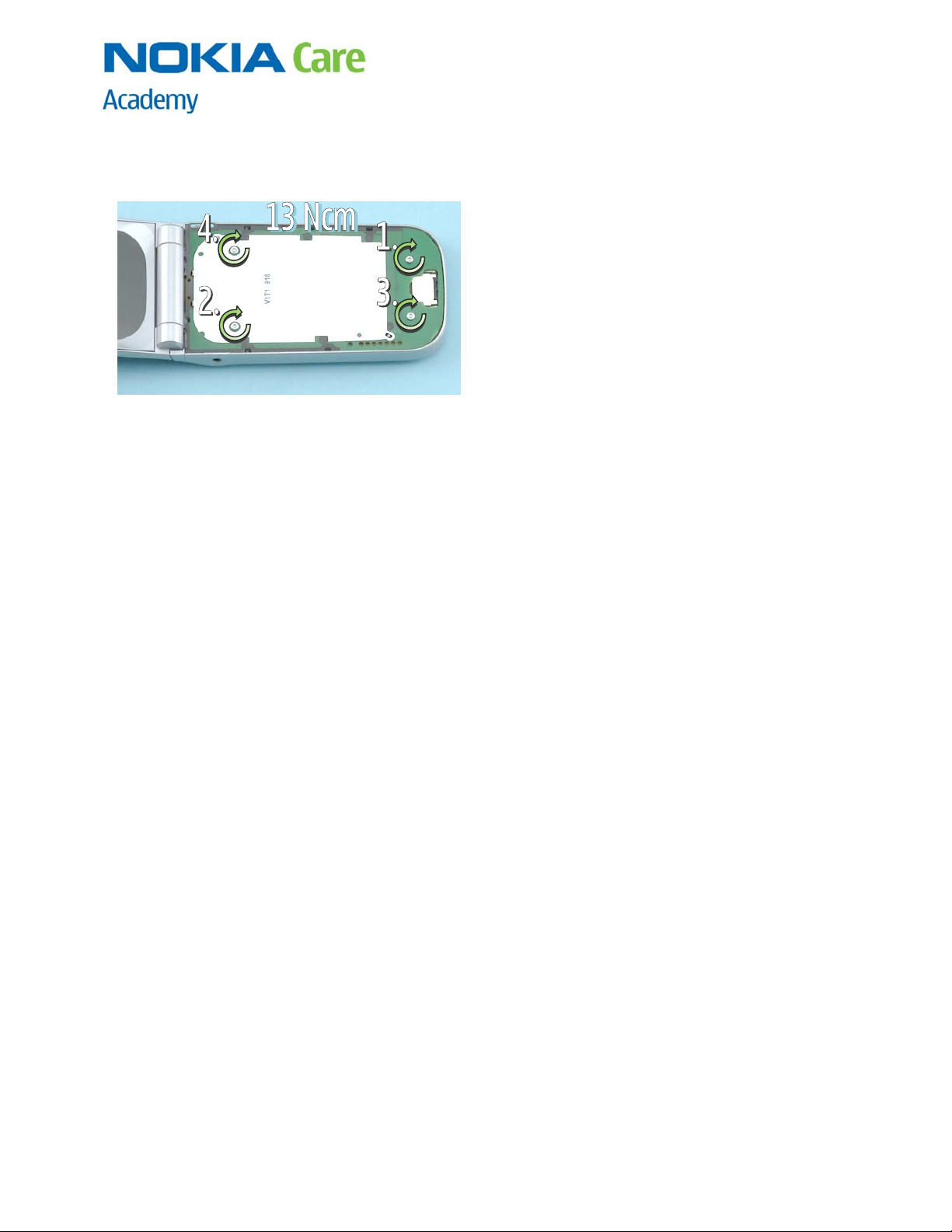

11.Assembly hints ........................................................................................................................................................................20


Nokia 7020 RM-497
Service Manual Level 1&2
3 Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1
1. CHANGE HISTORY
Status Version No. Date Comments
Approved 1.0 24.08.2009
Approved 2.0 07.12.2009 Standby time updated
The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to
carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA
service suppliers, and the content of it is confidential. Please note that NOKIA provides also other
guidance documents (e.g. Service Bulletins) for service suppliers, follow these regularly and
comply with the given instructions.
While every endeavor has been made to ensure the accuracy of this document, some errors may
exist. If you find any errors or if you have further suggestions, please notify NOKIA using the
address below:
CMO Operation & Logistics
Training and Vendor Development
Multimedia Creation & Support
mailto:[e-mail]
Please keep in mind also that this documentation is continuously being updated and modified,
so watch always out for the newest version.

Nokia 7020 RM-497
Service Manual Level 1&2
4 Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1
2. COPYRIGHT
Copyright © 2009 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in
any form without the prior written permission of Nokia is prohibited.
Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of
Nokia Corporation. Other product and company names mentioned herein may be trademarks or
tradenames of their respective owners.
Nokia operates a policy of continuous development. Nokia reserves the right to make changes
and improvements to any of the products described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any special,
incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided “as is”. Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region.
IMPORTANT
This document is intended for use by qualified service personnel only.

Nokia 7020 RM-497
Service Manual Level 1&2
5 Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1
3. WARNINGS AND CAUTIONS
Please refer to the phone’s user guide for instructions relating to operation, care and
maintenance including important safety information. Note also the following:
3.1 Warnings
1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE
MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS,
EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE
DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF
ENERGY.
2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN
POTENTIALLY EXPLOSIVE ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS), BLASTING
AREAS ETC.
3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY
INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT
A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS.
OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.
3.2 Cautions
1. Servicing and alignment must be undertaken by qualified personnel only.
2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist
strap is worn.
3. Use only approved components as specified in the parts list.
4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing
and alignment.
5. Ensure all cables and wires are repositioned correctly

Nokia 7020 RM-497
Service Manual Level 1&2
6 Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1
4. ESD PROTECTION
Nokia requires that service points have sufficient ESD protection (against static
electricity) when servicing the phone.
Any product of which the covers are removed must be handled with ESD
protection. The SIM card can be replaced without ESD protection if the product
is otherwise ready for use.
To replace the covers ESD protection must be applied.
All electronic parts of the product are susceptible to ESD. Resistors, too, can be
damaged by static electricity discharge.
All ESD sensitive parts must be packed in metallized protective bags during
shipping and handling outside any ESD Protected Area (EPA).
Every repair action involving opening the product or handling the product
components must be done under ESD protection.
ESD protected spare part packages MUST NOT be opened/closed out of an ESD
Protected Area.
For more information and local requirements about ESD protection and ESD
Protected Area, contact your local Nokia After Market Services representative.

Nokia 7020 RM-497
Service Manual Level 1&2
7 Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1
5. CARE AND MAINTENANCE
This product is of superior design and craftsmanship and should be treated with care. The
suggestions below will help you to fulfil any warranty obligations and to enjoy this product for
many years.
Keep the phone and all its parts and accessories out of the reach of small children.
Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can
contain minerals that will corrode electronic circuits.
Do not use or store the phone in dusty, dirty areas. Its moving parts can be
damaged.
Do not store the phone in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
Do not store the phone in cold areas. When it warms up (to its normal temperature),
moisture can form inside, which may damage electronic circuit boards.
Do not drop, knock or shake the phone. Rough handling can break internal circuit
boards.
Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the
phone.
Do not paint the phone. Paint can clog the moving parts and prevent proper
operation.
Use only the supplied or an approved replacement antenna. Unauthorised antennas,
modifications or attachments could damage the phone and may violate regulations
governing radio devices.
All of the above suggestions apply equally to the product, battery, charger or any accessory.

Nokia 7020 RM-497
Service Manual Level 1&2
8 Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1
6. BATTERY INFORMATION
Note: A new battery’s full performance is achieved only after two or three complete charge and
discharge cycles! The battery can be charged and discharged hundreds of times but it will
eventually wear out.
When the operating time (talk-time and standby time) is noticeably shorter than normal, it is
time to buy a new battery. Use only batteries approved by the phone manufacturer and
recharge the battery only with the chargers approved by the manufacturer.
Unplug the charger when not in use. Do not leave the battery connected to a charger for longer
than a week, since overcharging may shorten its lifetime.
If left unused a fully charged battery will discharge itself over time Temperature extremes can
affect the ability of your battery to charge.
For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to time by
leaving the product switched on until it turns itself off (or by using the battery discharge facility
of any approved accessory available for the product).
Do not attempt to discharge the battery by any other means Use the battery only for its
intended purpose.
Never use any charger or battery which is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object
(coin, clip or pen) causes direct connection of the + and - terminals of the battery (metal strips
on the battery) for example when you carry a spare battery in your pocket or purse.
Shortcircuiting the terminals may damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions,
will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C
and 25°C (59°F and 77°F).
A phone with a hot or cold battery may temporarily not work, even when the battery is fully
charged. Batteries’ performance is particularly limited in temperatures well below freezing.
Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g.
recycling).
Do not dispose as household waste.

Nokia 7020 RM-497
Service Manual Level 1&2
9 Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1
7. EXPLODED VIEW
Only available as
assembly
These parts can not be
reused after removal
Ver. 1.0
A1=B-COVER ASSY
(I0005 - I0010)
A2=KEYMAT ASSY
(I0201 - I0202)
A3=LIGHT SWAP PACKAGE
(I0204 - I0207)
A4=ANTENNA ASSY (I0208 - I0209)
A5=C-COVER ASSY
(I0210 - I0213)
A-COVER ASSY
I0001
B-COVER
I0009
C-COVER EARS ASSY
I0214
HINGE MOTOR
I0102
SCREW 1.4X5.0
I0203
LCD AM TFT a-SI 128x160
I0003
UI FLEX ASSY
I0101
A-COVER ADHESIVE
I0005
DISPLAY ADHESIVE
I0010
MAIN DISPLAY
I0011
DISPLAY WINDOW ASSY
I0013
KEYMAT
I0202
LIGHT SWAP PWB
I0205
MICROPHONE
I0211
AV JACK
I0212
DC JACK
I0210
MIDDLE DISPLAY GASKET
I0004
ANTENNA
I0208
D-COVER
I0215
C-COVER
I0213
IHF SPEAKER
I0209
CONN.SUPPORT COVER
I0002
EARPIECE
I0008
ENGINE SHIELD CAN
I0206
EARPIECE MESH ASSY
I0007
TYPE LABEL
I0207
KEYMAT FRAME
I0201
DOMESHEET ASSY
I0204
CONNECTOR SHIELD ASSY
I0012
SECONDARY
DISPLAY ADHESIVE
I0006

Nokia 7020 RM-497
Service Manual Level 1&2
10 Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1

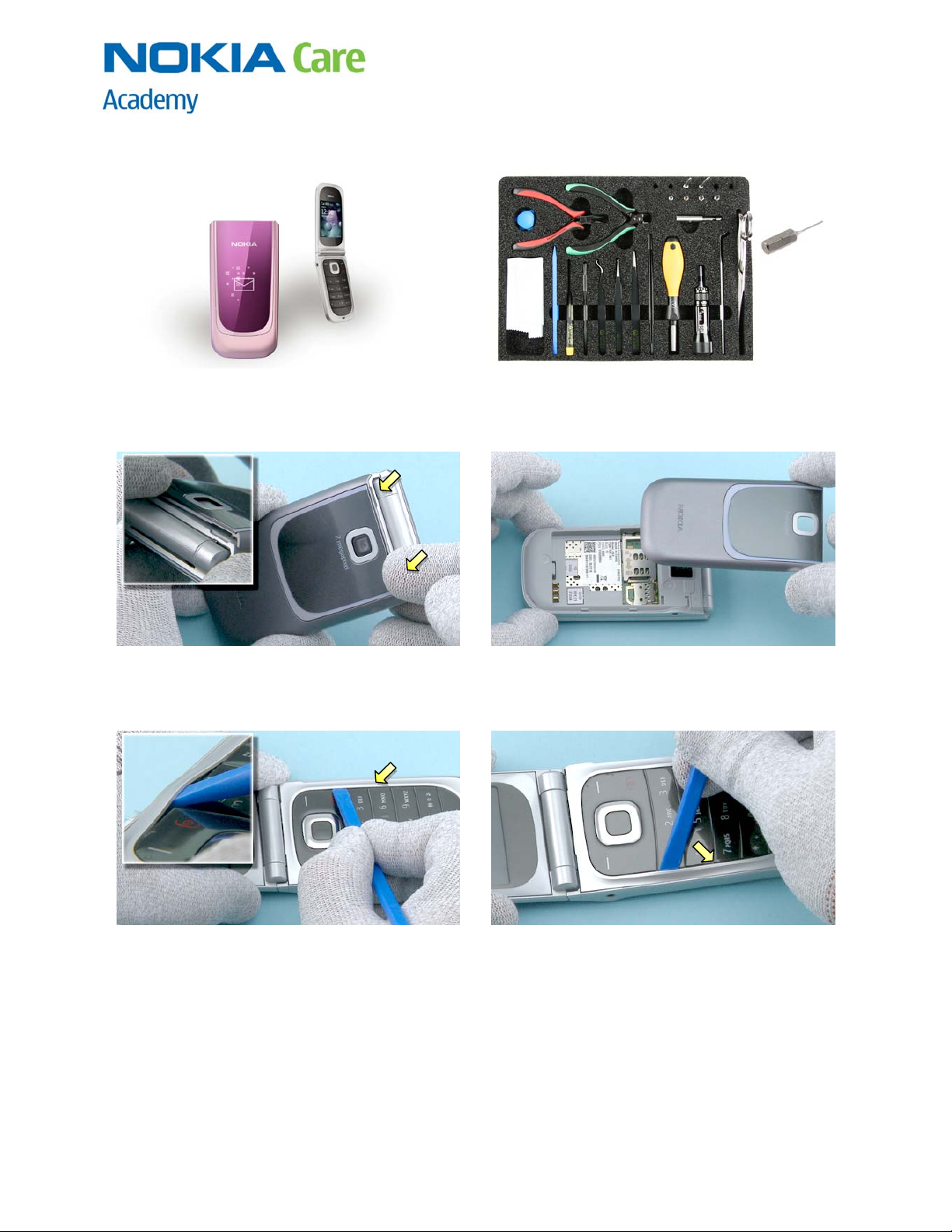

8. SERVICE DEVICES
FLS-5 Flash Device
CA-101 Service Cable AC-3 Travel Charger
BL-4S Battery
SS-212
NMP standard toolkit (v2)
For more information, refer to the
Service Bulletin (SB-011) on NOKIA
Online. Supplier or manufacturer
contacts for tool re-order can be
found in “Recommended service
equipment” document on NOKIA
Online.

Nokia 7020 RM-497
Service Manual Level 1&2
11 Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1
9. SW-UPDATE
Flash concept- (Point of Sales)
To use the FLS-5 Flash Dongle, follow the user guide inside the sales package.
Please check always for the latest version of flash software, wich is available on Nokia Online.

Nokia 7020 RM-497
Service Manual Level 1&2
12 Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1
10. DISASSEMBLY INSTRUCTIONS
1) Nokia 7020 disassembly. 2) You must use the Nokia Standard Toolkit version
2 + the SS-212 tool.
3) To remove the BATTERY COVER, use the notches
on the top side.
4) Remove the BATTERY COVER. If there is a battery
inserted, remove it also.
4) Use the SS-93 to release the clip holding the
KEYMAT ASSEMBLY.
6) Release also the clip on the opposite side.

Nokia 7020 RM-497
Service Manual Level 1&2
13 Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1
7) Finally loosen carefully the adhesive on the
bottom side of the KEYMAT ASSEMBLY.
8) Remove the KEYMAT ASSEMBLY. Do not use it
again. Discard it.
9) Unscrew the four TORX + size 4 screws in the
order shown. Do not use them again.
10) Lift up the PWB in the direction shown.
11) Open the connector with SS-93 as shown. The
vibra rotor can be used as a lever. Be careful not to
damage the components nearby!
12) Remove the PWB.

Nokia 7020 RM-497
Service Manual Level 1&2
14 Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1
13) Use the SS-93 to loosen the shown corner of the
DOMESHEET.
14) Then peel off the DOMESHEET and remove it. Do
not use it again.
15) Press out the ANTENNA MODULE with the SS-93
and remove it.
16) Lever out the DC JACK with the dental tool and
remove it with tweezers. Be careful not to injure
yourself with the sharp end of the dental tool!
17) Use the dental tool to release the AV JACK. Then
remove it with tweezers.
18) Remove the MICROPHONE by lifting it from its
connector pins by using tweezers. Do not use it
again. Discard it.

Nokia 7020 RM-497
Service Manual Level 1&2
15 Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1
19) Use the SRT-6 to release the A-COVER. 20) Slide the SRT-6 between the A-COVER and the B-
COVER as shown.
21) Release also the opposite side … 22) … and the top side of the A-COVER.
23) Slide the A-COVER to the direction shown to
release the final two clips holding the A-COVER.
Remove it.
24) Protect the SECONDARY DISPLAY with protective
film.

Nokia 7020 RM-497
Service Manual Level 1&2
16 Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1
25) Release the CONN. SUPPORT COVER with dental
tool as shown and remove it with tweezers.
26) Open the LCD CONNECTOR with the SS-93. Be
careful not to damage the connector or nearby
components!
27) Carefully lift up the LCD with the dental tool as
shown.
28) Remove the LCD and discard it.
29) Start releasing the DISPLAY WINDOW ASSY by
inserting SRT-6 between the DISPLAY WINDOW ASSY
and the B-COVER.
30) Slide the SRT-6 along the sides of DISPLAY
WINDOW ASSY.

Nokia 7020 RM-497
Service Manual Level 1&2
17 Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1
31) Finally lift up and … 32) … remove the DISPLAY WINDOW ASSY. Do not
use it again.
33) Protect the MAIN DISPLAY with protective film. 34) Open the CONNECTOR SHIELD ASSY with the
dental tool and remove it with tweezers.
35) Open the MAIN DISPLAY connector with the SS-
93. Be careful not to damage the connector!
36) Start releasing the MAIN DISPLAY with the dental
tool from the shown place. Carefully loosen up the
adhesive holding the MAIN DISPLAY.

Nokia 7020 RM-497
Service Manual Level 1&2
18 Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1
37) Remove the MAIN DISPLAY. Discard it. 38) Push the SS-212 tool into the hole to the
maximum depth to release the spring holding the C-
COVER. Keep the spring pressed and gently push the
C-COVER to the position shown in main picture.
Before twisting them all apart, pull out the SS-212
to avoid it from bending.
39) Carefully separate the C-COVER so that the flex
and the connector stays unharmed.
40) Remove the C-COVER EARS ASSY as shown. Do
not use it again. Discard it.
41) Push out the HINGE MOTOR with a screwdriver. 42) Start releasing the UI FLEX ASSY with the SS-93.

Nokia 7020 RM-497
Service Manual Level 1&2
19 Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1
43) Slide the SS-93 into direction shown. 44) Finally pull carefully the connector through the
gap and remove the UI FLEX ASSY. Do not use it
again. Discard it.
45) Nokia 7020 disassembly is now complete.
-END OF DISASSEMBLY-

Nokia 7020 RM-497
Service Manual Level 1&2
20 Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 2.0 ISSUE 1
11. ASSEMBLY HINTS
1) Tighten the four TORX + size 4 screws to the
torque of 13 Ncm in the order shown.
