Nokia C2-02 User manual

Nokia C2–02 User Guide
9229882
Issue 1.0
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Contents
Safety 5
Get started 7
Keys and parts 7
Insert a SIM card and
battery 8
Insert a memory
card 11
Charge the battery 13
Attach a strap 14
Switch the phone on
or off 15
GSM antenna 16
Basic use 17
Access codes 17
Lock or unlock the
keys and screen 19
Touch screen
actions 19
Swipe to open an
application or
activate a feature 22
Indicators 22
Copy contacts or
messages from your
old phone 23
Change the volume
of a call, song, or
video 24
Calls 25
Make a call 25
Call the last dialed
number 25
View your missed
calls 26
Contacts 26
Save a name and
phone number 26
Text input 27
Switch between text
input modes 27
Write using
traditional text
input 28
Use predictive text
input 29
2 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Messaging 30
Send a message 30
Retrieve a
multimedia
message 32
Listen to voice
messages 33
Personalize your
phone 34
About the home
screen 34
Customize the home
screen 35
Customize your
phone tones 36
Time management 38
Change the time and
date 38
Set an alarm 38
Add an appointment 39
Connectivity 39
Bluetooth 39
USB data cable 42
Music and audio 43
FM radio 43
Media Player 45
Pictures and
videos 46
Take a picture 46
Record a video 46
Send a picture or
video 47
Web 48
About the web
browser 48
Browse the web 49
Clear browsing
history 49
Mail and chat 49
About Mail 49
Send a mail 50
Read and reply to
mail 51
About Chat 51
Chat with your
friends 51
www.nokia.com/support 3
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Maps 52
About Maps 52
View your current
location on the map 54
Find a place 54
Share your location
or a place 55
Nokia's Ovi
services 56
Availability and costs
of Nokia's Ovi
services 56
Access Nokia's Ovi
services 56
Find help 56
Support 56
Subscribe to the Tips
and Offers service 57
Keep your phone up
to date 58
Protect the
environment 63
Save energy 63
Recycle 63
Product and safety
information 64
Index 77
4 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Safety
Read these simple guidelines. Not following them
may be dangerous or illegal. For further
information, read the complete user guide.
SWITCH OFF IN RESTRICTED AREAS
Switch the device off when cell phone use
is not allowed or when it may cause
interference or danger, for example, in
aircraft, in hospitals or near medical
equipment, fuel, chemicals, or blasting
areas. Obey all instructions in restricted
areas.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your
hands free to operate the vehicle while
driving. Your first consideration while
driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to
interference, which could affect
performance.
English 5
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

QUALIFIED SERVICE
Only qualified personnel may install or
repair this product.
KEEP YOUR DEVICE DRY
Your device is not water-resistant. Keep it
dry.
PROTECT YOUR HEARING
Listen to a headset at a moderate level,
and do not hold the device near your ear
when the loudspeaker is in use.
6English
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

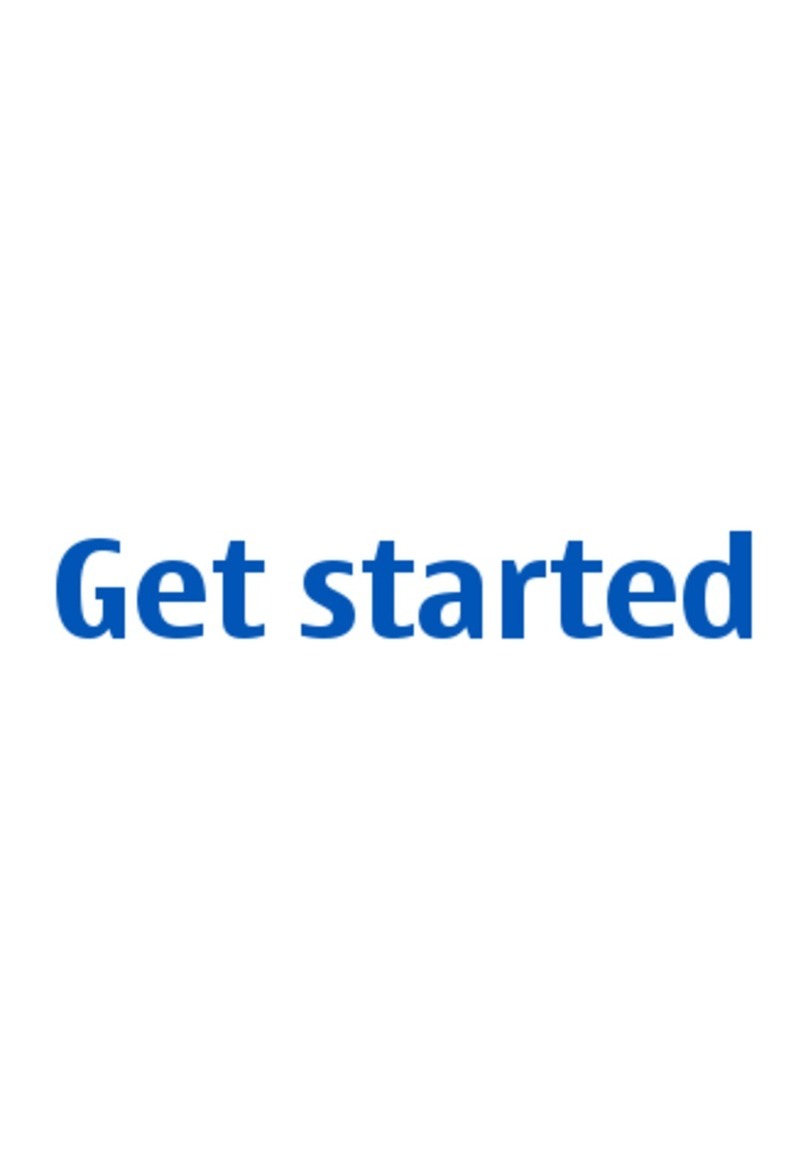

Get started
Keys and parts
1Display
2Call key
3Keypad
4Earpiece
English 7
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

5Wrist strap hole
6Volume up/Zoom in key
7Volume down/Zoom out key
8Key lock switch
9End/Power key
10 Microphone
11 Nokia AV Connector (3.5 mm)
12 Micro-USB connector
13 Charger connector
14 Camera lens. Before using the camera, remove
the protective tape from the lens.
15 Loudspeaker
Insert a SIM card and battery
Note: Switch the device off and disconnect the
charger and any other device before removing any
covers. Avoid touching electronic components while
changing any covers. Always store and use the
device with any covers attached.
Important: Do not use a mini-UICC SIM card, also
known as a micro-SIM card, a micro-SIM card with an
adapter, or a SIM card that has a mini-UICC cutout
(see figure) in this device. A micro-SIM card is smaller
than the standard SIM card. This device does not
support the use of micro-SIM cards and use of
8English
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

incompatible SIM cards may damage the card or the
device, and may corrupt data stored on the card.
Important: To prevent damage to the SIM card,
always remove the battery before you insert or
remove the card.
This phone is intended for use with a BL-5C battery.
Always use original Nokia batteries.
The SIM card and its contacts can be easily damaged
by scratches or bending, so be careful when
handling, inserting, or removing the card.
1 Place your finger in the recess at the top of the
phone, and carefully lift and remove the back
cover (1). If the battery is inserted, lift it out (2).
English 9
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

2 Open the SIM card holder (3), and insert or
remove the SIM card (4 or 5). Make sure the
contact area of the card is facing down.
3 Line up the contacts of the battery and the
battery compartment, and insert the battery (6).
To replace the back cover, direct the bottom
locking catches toward their slots (7), and press
down until the cover locks into place (8).
10 English
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Insert a memory card
Use only compatible memory cards approved by
Nokia for use with this device. Incompatible cards
may damage the card and the device and corrupt
data stored on the card.
Your phone supports memory cards with a capacity
of up to 32 GB.
English 11
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

1 Switch the phone off, and remove the back cover
and battery.
2 To release the memory card holder, slide the
holder in the direction indicated by the arrow
on the holder. Lift the memory card holder (1).
3 Insert a compatible memory card. Make sure the
contact area of the card is facing down (2).
4 Lower the memory card holder (3).
5 To lock the memory card holder, slide the holder
to its original position (4).
12 English
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Remove the memory card
1 Switch the phone off.
2 Remove the back cover and battery.
3 To release the memory card holder, slide the
holder in the direction indicated by the arrow
on the holder. Lift the memory card holder, and
remove the memory card.
Charge the battery
Your battery has been partially charged at the
factory, but you may need to recharge it before you
can switch on your phone for the first time. If the
phone indicates a low charge, do the following:
1 Connect the charger to a wall outlet.
2 Connect the charger to the phone.
English 13
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

3 When the phone indicates a full charge,
disconnect the charger from the phone, then
from the wall outlet.
You do not need to charge the battery for a specific
length of time, and you can use the phone while it
is charging.
If the battery is completely discharged, it may take
several minutes before the charging indicator is
displayed or before any calls can be made.
If the battery has not been used for a long time, to
begin charging, you may need to connect the
charger, then disconnect and reconnect it.
Attach a strap
14 English
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Straps may be available separately.
Switch the phone on or off
Press and hold the power key .
You may be prompted to get the configuration
settings from your network service provider. For
more information on this network service, contact
your network service provider.
English 15
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

GSM antenna
The antenna area is highlighted.
Avoid touching the antenna area while the antenna
is in use. Contact with antennas affects the
communication quality and may reduce battery life
due to higher power level during operation.
16 English
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Basic use
Access codes
PIN or PIN2
code
(4-8 digits)
These protect your SIM card against
unauthorized use or are required to
access some features.
You can set your device to ask for the
PIN code when you switch it on.
If not supplied with your SIM card or
you forget the codes, contact your
service provider.
If you enter the code incorrectly three
times in a row, you need to unblock
the code with the PUK or PUK2 code.
PUK or PUK2
code
(8 digits)
These are required to unblock a PIN
or PIN2 code.
If not supplied with your SIM card,
contact your service provider.
IMEI
number
(15 digits)
This is used to identify valid devices
in the network. The number can also
be used to block, for example, stolen
devices.
English 17
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

To view your IMEI number, dial
*#06#.
Lock code
(security
code)
(min. 4
digits or
characters)
This helps you protect your device
against unauthorized use.
You can set your device to ask for the
lock code that you define. The default
lock code is 12345.
Keep the code secret and in a safe
place, separate from your device.
If you forget the code and your device
is locked, your device will require
service. Additional charges may
apply, and all the personal data in
your device may be deleted.
For more information, contact a
Nokia Care Point or your device
dealer.
The personal unblocking key (PUK) code and the
universal personal unblocking key (UPUK) code (8
digits) are required to change a blocked PIN code
and UPIN code, respectively. The PUK2 code (8 digits)
is required to change a blocked PIN2 code. These
18 English
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

codes are not supplied with the SIM card. Contact
your local service provider for the codes.
Lock or unlock the keys and screen
To avoid accidentally making a call when your phone
is in your pocket or bag, lock the keys and screen of
your phone.
Slide the key lock switch.
Tip: If the key lock switch is out of reach, to unlock
the keys and screen, press the end key, and select
Unlock.
Touch screen actions
To interact with the touch screen user interface, tap
or tap and hold the touch screen.
Open an application or other screen element
Tap the application or element.
Access item-specific options
Tap and hold the item. A pop-up menu with
available options opens.
English 19
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Scroll in a list or menu
Place your finger on the screen, slide it quickly up or
down the screen, and then lift your finger. The
content of the screen scrolls with the speed and
direction it had at the moment of release. To select
an item from a scrolling list and to stop the
movement, tap the item.
20 English
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
